2022 MERCEDES-BENZ CLS COUPE Owners Manual

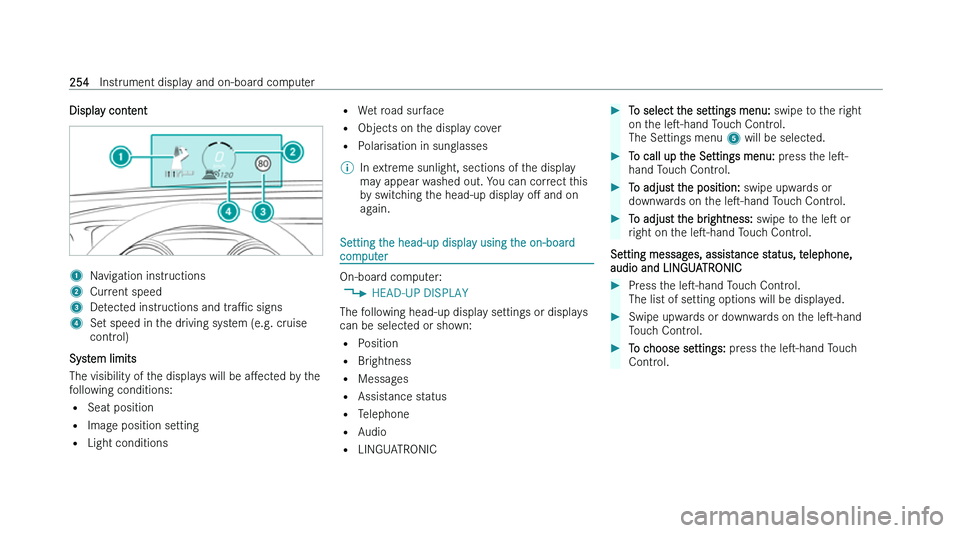

Display content
1
Navigation instructions
2 Current speed
3 Detected instructions and tr aPc signs
4 Set speed in the driving system (e.g. cruise
contr

ol)
System limits
The visibility of t
he displays will be aMected by the
following conditions:
= Seat position
= Image position setting
= Light conditions =
W
et road surface
= Objects on the display cover
= Polarisation in sunglasses
% In extreme sunlight, sections of the display
ma
y appear washed out. You can correct this
by switching the head-up display oM and on
again. Setting the head-up display using the on-board
com

puter On-board computer:
4 HEAD-UP DISPLAY
The f

ollowing head-up display settings or displays
can be selected or shown:
= Position
= Brightness
= Messages
= Assistance status
= Telephone
= Audio
= LINGUATRONIC
To select the settings menu: swipe t
o the right
on the les-hand Touch Control.
The Settings menu 5 will be selected.
To call up the Settings menu: pr
ess the les-
hand Touch Control.
To adjust the position: swipe upw
ards or
downwards on the les-hand Touch Control.
To adjust the brightness: swipe t
o the les or
right on the les-hand Touch Control.
Setting messages, assistance status, telephone,
audio and LIN
GUATRONIC
Press the les-hand T
ouch Control.
The list of setting options will be displayed.
Swipe upwards or downwards on the les-hand
T
ouch Control.
To choose settings: pr
ess the les-hand Touch
Control. 254
Instrument display and on-board computer

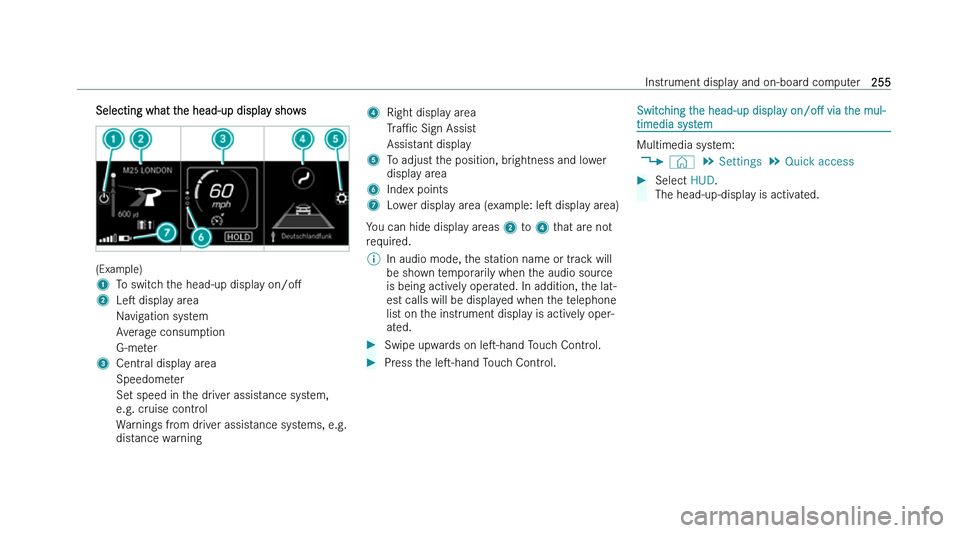

Selecting what the head-up display shows
(Example)
1
To switch the head-up display on/oM
2 Les display area
Navigation system
Average consumption
G-meter
3 Central display area
Speedometer
Set speed in the driver assistance system,
e.g. cr
uise control
Warnings from driver assistance systems, e.g.
dis
tance warning 4
Right display area
TraPc Sign Assis
t
Assistant display
5 To adjust the position, brightness and lower
displa

y area
6 Index points
7 Lower display area (example: les displa
y area)
You can hide display areas 2 t
o 4 that are not
required.
% In audio mode, the station name or track will
be sho
wn temporarily when the audio source
is being actively operated. In addition, the lat-
est calls will be displayed when the telephone
list on the instrument display is actively oper-
ated.
Swipe upwards on les-hand T
ouch Control.
Press the les-hand T
ouch Control. Switching the head-up display
on/oM via t
he mul-
timedia system Multimedia system:
4 © 5
Settings 5
Quick access
Select HUD.
The head-up-displa

y is activated. Instrument display and on-board computer
255

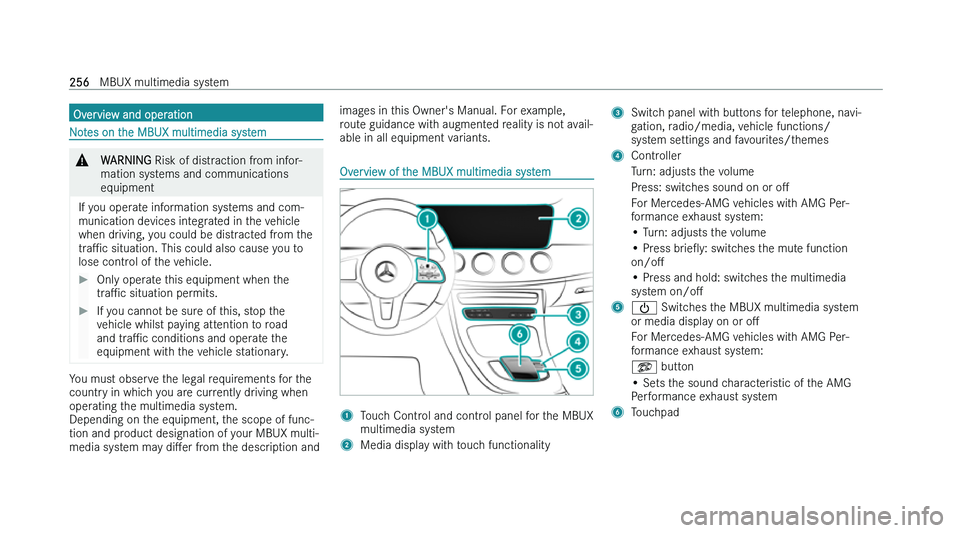

Overview and operation
Notes on the MBUX multimedia system
&
WARNING Risk of dis traction from infor-
mation systems and communications
equipment
If you operate information systems and com-
munication de
vices integrated in the vehicle
when driving, you could be distracted from the
traPc situation. This could also cause you to
lose control of the vehicle.
Only operate this equipment when the
tr

aPc situation permits.
If you cannot be sure of this, stop the
v
ehicle whilst paying attention to road
and traPc conditions and operate the
equipment with the vehicle stationary. You must observe the legal requirements for the
countr

y in which you are currently driving when
operating the multimedia system.
Depending on the equipment, the scope of func-
tion and pr
oduct designation of your MBUX multi-
media system may diMer from the description and images in this Owner's Manual. For example,
r
oute guidance with augmented reality is not avail-
able in all equipment variants. Overview of the MBUX multimedia system
1
Touch Control and control panel for the MBUX
multimedia sy

stem
2 Media display with touch functionality 3
Switch panel with buttons for telephone, navi-
g
ation, radio/media, vehicle functions/
system settings and favourites/themes
4 Controller
Turn: adjusts the volume
Press: switches sound on or oM
For Mercedes-AMG vehicles with AMG Per-
f
ormance exhaust system:
!

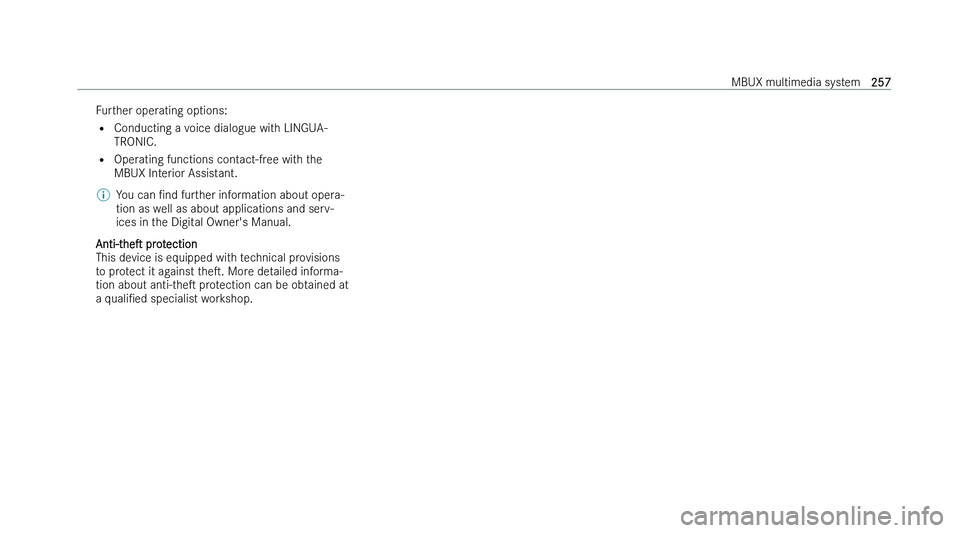

Further operating options:
= Conducting a v
oice dialogue with LINGUA-
TRONIC.
= Operating functions contact-free with the
MBUX Interior Assistant.
% You can Nnd fur
ther information about opera-
tion as well as about applications and serv-
ices in the Digital Owner's Manual.
Anti-thes pr
otection
This device is equipped with technical provisions
to protect it against thes. More detailed informa-
tion about anti-thes protection can be obtained at
a qualiNed specialist workshop. MBUX multimedia system
257

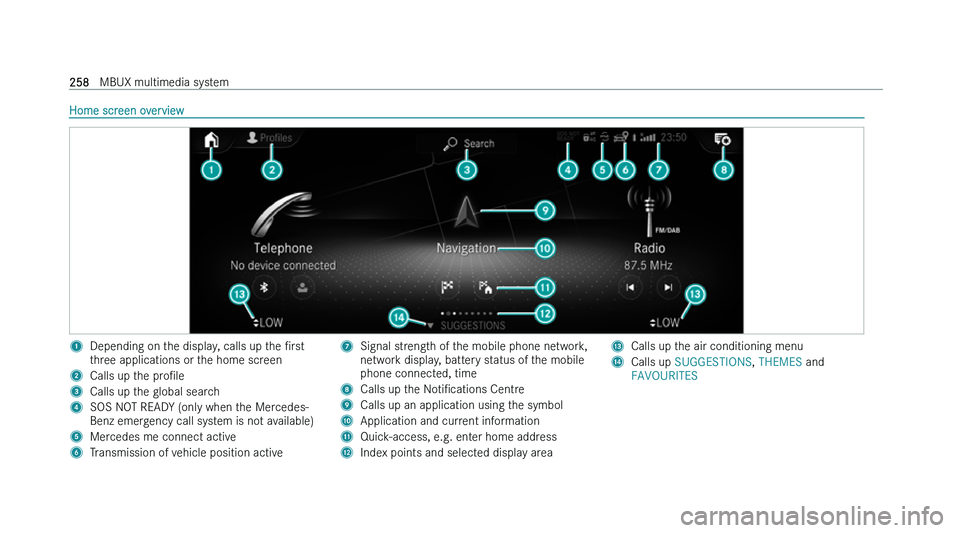

Home screen overview
1
Depending on the display, calls up the Nr st
three applications or the home screen
2 Calls up the pr
oNle
3 Calls up the global search
4 SOS NOT READY (only when the Mercedes-
Benz emer
gency call system is not available)
5 Mercedes me connect active
6 Transmission of vehicle position active 7
Signal strength of the mobile phone network,
ne
twork display, battery status of the mobile
phone connected, time
8 Calls up the N
otiNcations Centre
9 Calls up an application using the symbol
A Application and current information
B Quick-access, e.g. enter home address
C Index points and selected display area D
Calls up the air conditioning menu
E Calls up SUGGESTIONS , THEMES and
FAVOURITES 258
MBUX multimedia system

%

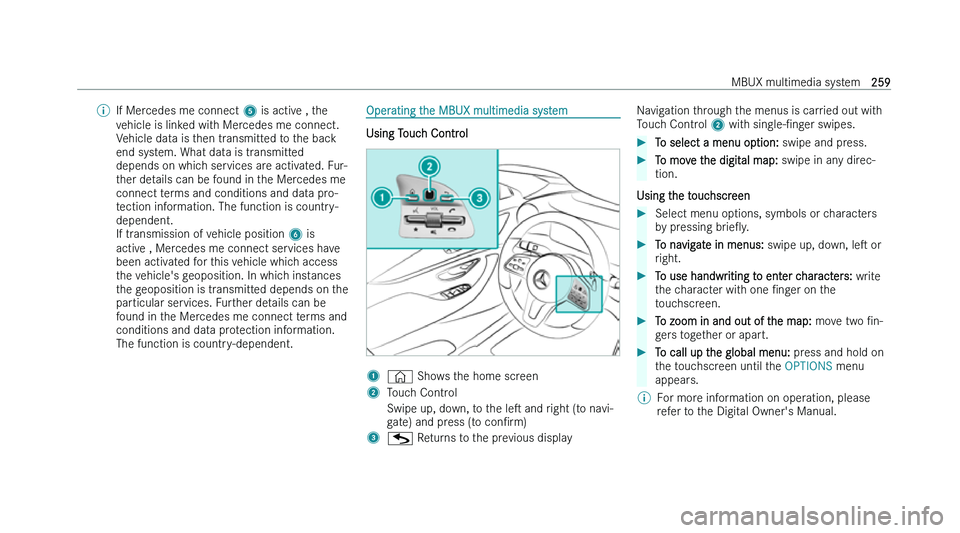

If Mercedes me connect 5 is activ e , the
vehicle is linked with Mercedes me connect.
Vehicle data is then transmitted to the back
end system. What data is transmitted
depends on which services are activated. Fur-
ther details can be found in the Mercedes me
connect terms and conditions and data pro-
tection information. The function is country-
dependent.
If transmission of vehicle position 6 is
active , Mercedes me connect services have
been activated for this vehicle which access
the vehicle's geoposition. In which instances
the geoposition is transmitted depends on the
particular services. Further details can be
found in the Mercedes me connect terms and
conditions and data protection information.
The function is country-dependent. Operating the MBUX multimedia system
Using Touch Control
1
© Sho
ws the home screen
2 Touch Control
Swipe up, down, to the les and r
ight (to navi-
gate) and press (to conNrm)
3 ( R
eturns to the previous display Navigation through the menus is carried out with
T

ouch Control 2 with single-Nnger swipes.
To select a menu option: swipe and pr
ess.
To move the digital map: swipe in an
y direc-
tion.
Using the touchscreen
Select menu options, symbols or characters
b
y pressing brieOy.
To navigate in menus: swipe up, do
wn, les or
right.
To use handwriting to enter characters: wr
ite
the character with one Nnger on the
touchscreen.
To zoom in and out of the map: mo
ve two Nn-
gers together or apart.
To call up the global menu: pr
ess and hold on
the touchscreen until the OPTIONS menu
appears.
% For more information on operation, please
r
efer to the Digital Owner's Manual. MBUX multimedia system
259

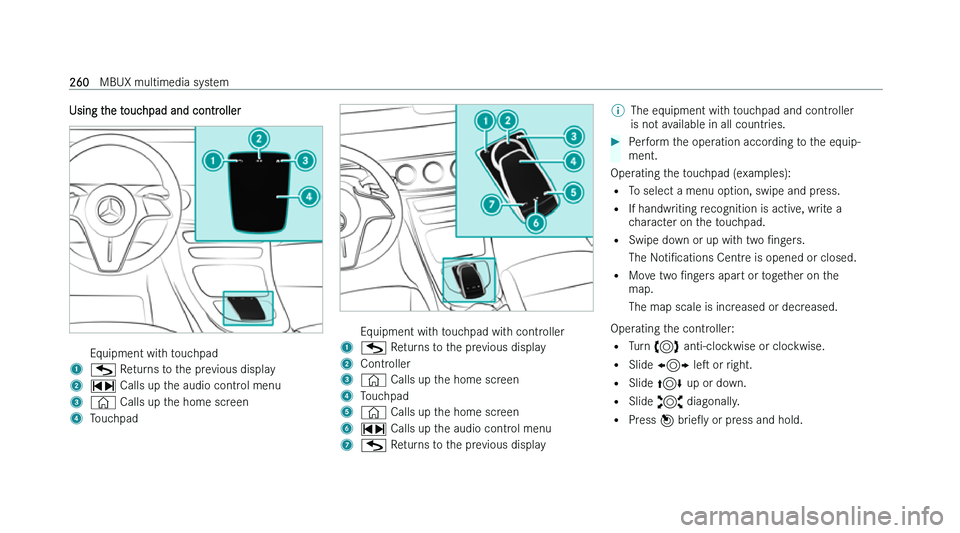

Using the touchpad and controller
Equipment with touchpad
1 ( Returns to the previous display
2 _ Calls up t
he audio control menu
3 © Calls up t
he home screen
4 Touchpad Equipment with touchpad with controller
1 ( R
eturns to the previous display
2 Controller
3 © Calls up t
he home screen
4 Touchpad
5 © Calls up t
he home screen
6 _ Calls up t
he audio control menu
7 ( R
eturns to the previous display %
The equipment with touchpad and controller
is no
t available in all countries.
Perform the operation according to the equip-
ment.
Operating the touchpad (examples):
= T

o select a menu option, swipe and press.
= If handwriting recognition is active, write a
character on the touchpad.
= Swipe down or up with two Nngers.
The NotiNcations Centre is opened or closed.
= Move two Nngers apart or together on the
map.
The map scale is increased or decreased.
Operating the controller:
= Turn 3 anti-clockwise or clockwise.
= Slide 1 les or right.
= Slide 4 up or down.
= Slide 2 diagonally.
= Press  brieOy or press and hold.260
MBUX multimedia system

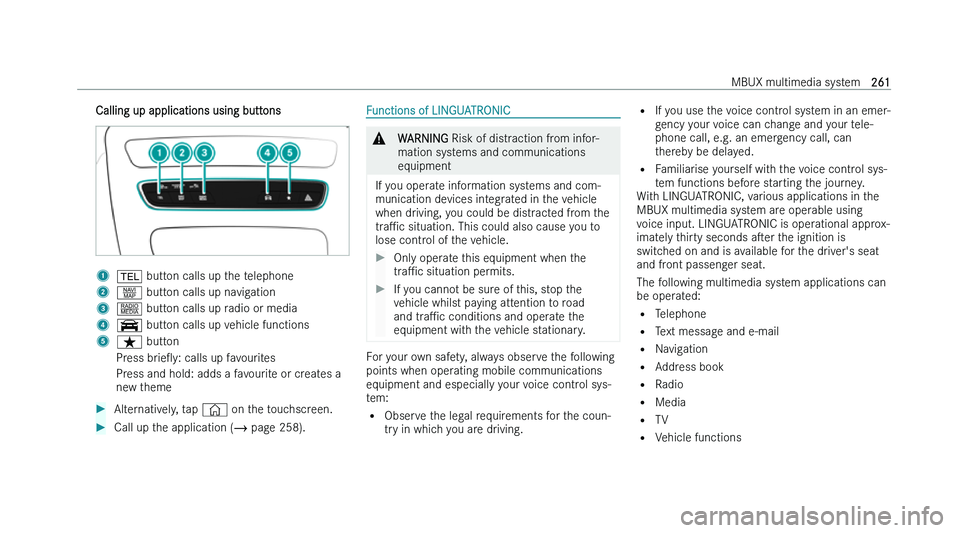

Calling up applications using buttons
1
+ button calls up the telephone
2 z butt
on calls up navigation
3 ] butt
on calls up radio or media
4 y butt
on calls up vehicle functions
