2022 MERCEDES-BENZ CLS COUPE Owners Manual

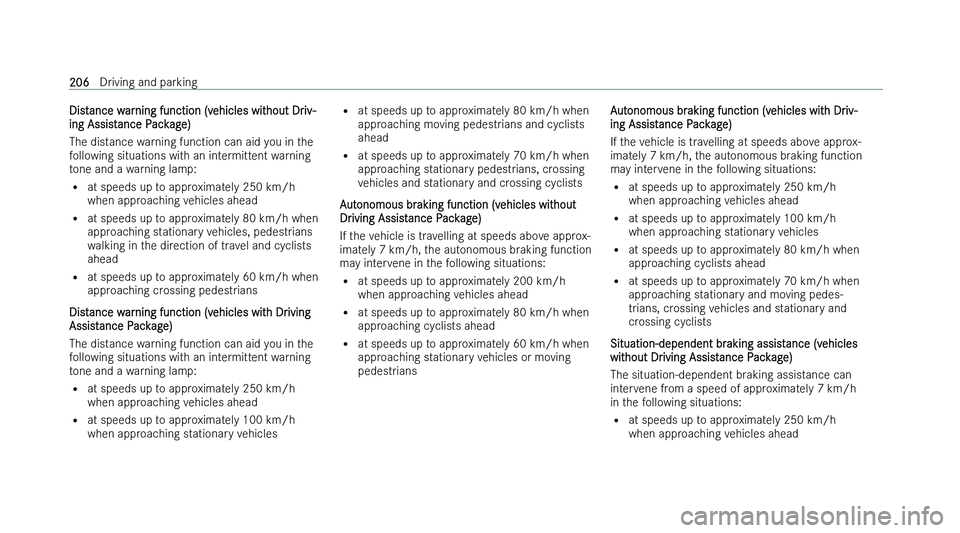

Distance warning function (vehicles without Driv-
ing Assis tance Package)
The distance warning function can aid you in the
following situations with an intermittent warning
tone and a warning lamp:
= at speeds up to approximately 250 km/h
when approaching vehicles ahead
= at speeds up to approximately 80 km/h when
approaching stationary vehicles, pedestrians
walking in the direction of travel and cyclists
ahead
= at speeds up to approximately 60 km/h when
approaching crossing pedestrians
Distance warning function (vehicles with Driving
Assistance Package)
The distance warning function can aid you in the
following situations with an intermittent warning
tone and a warning lamp:
= at speeds up to approximately 250 km/h
when approaching vehicles ahead
= at speeds up to approximately 100 km/h
when approaching stationary vehicles =
at speeds up t o approximately 80 km/h when
approaching moving pedestrians and cyclists
ahead
= at speeds up to approximately 70 km/h when
approaching stationary pedestrians, crossing
vehicles and stationary and crossing cyclists
Autonomous braking function (vehicles without
Driving Assistance Package)
If the vehicle is travelling at speeds above approx-
imately 7 km/h, the autonomous braking function
may intervene in the following situations:
= at speeds up to approximately 200 km/h
when approaching vehicles ahead
= at speeds up to approximately 80 km/h when
approaching cyclists ahead
= at speeds up to approximately 60 km/h when
approaching stationary vehicles or moving
pedestrians Autonomous braking function (vehicles with Driv-
ing Assis
tance Package)
If the vehicle is travelling at speeds above approx-
imately 7 km/h, the autonomous braking function
may intervene in the following situations:
= at speeds up to approximately 250 km/h
when approaching vehicles ahead
= at speeds up to approximately 100 km/h
when approaching stationary vehicles
= at speeds up to approximately 80 km/h when
approaching cyclists ahead
= at speeds up to approximately 70 km/h when
approaching stationary and moving pedes-
trians, crossing vehicles and stationary and
crossing cyclists
Situation-dependent braking assistance (vehicles
without Driving Assistance Package)
The situation-dependent braking assistance can
intervene from a speed of approximately 7 km/h
in the following situations:
= at speeds up to approximately 250 km/h
when approaching vehicles ahead 206
Driving and parking

=
at speeds up t o approximately 80 km/h when
approaching stationary vehicles and cyclists
ahead
= at speeds up to approximately 60 km/h when
approaching moving pedestrians
Situation-dependent braking assistance (vehicles
with Driving Assistance Package)
The situation-dependent braking assistance can
intervene from a speed of approximately 7 km/h
in the following situations:
= at speeds up to approximately 250 km/h
when approaching vehicles ahead
= at speeds up to approximately 100 km/h
when approaching stationary vehicles
= at speeds up to approximately 80 km/h when
approaching cyclists ahead
= at speeds up to approximately 60 km/h when
approaching stationary and moving pedes-
trians, crossing vehicles, and stationary and
crossing cyclists Cancelling a brake application of Active Brake
Assis
t
You can cancel a brake application of Active
Brake Assist at any time by:
= sharply depressing the accelerator pedal or
with kickdown
= releasing the brake pedal
Active Brake Assist may cancel the brake applica-
tion when one of the following conditions is fulNl-
led:
= You manoeuvre to avoid the obstacle.
= There is no longer a risk of collision.
= An obstacle is no longer detected in front of
your vehicle.
Evasive Steering Assist (only vehicles with Driving
Assistance Package)
Evasive Steering Assist has the following charac-
teristics:
= The ability to detect stationary or moving
pedestrians.
= Assistance through power-assisted steering if
it detects a swerving manoeuvre. =
A ctivation by an abrupt steering movement
during a swerving manoeuvre.
= Assistance during swerving and straightening
of the vehicle.
= Reaction from a speed of approximately
20 km/h up to a speed of approximately
70 km/h.
You can prevent the assistance at any time by
actively steering.
Cornering function (only vehicles with Driving
Assistance Package)
If the system detects a risk of a collision with an
oncoming vehicle when turning across an oncom-
ing lane, autonomous braking can be initiated at
speeds below 15 km/h before you have les the
lane in which you are driving. &
WARNING Risk of accident despit
e Eva-
sive Steering Assist
Evasive Steering Assist cannot always recog-
nise objects or com
plex traPc situations
clearly. Driving and parking
207

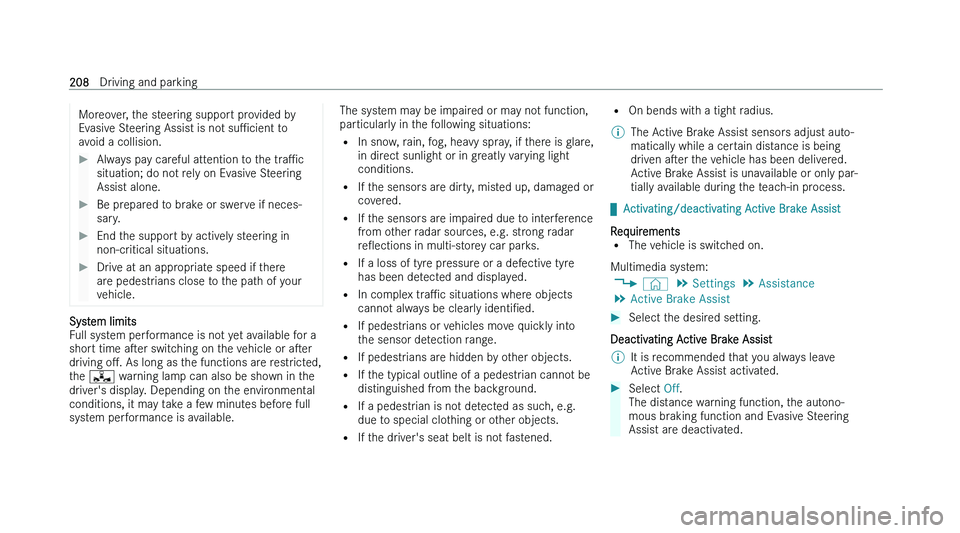

Moreover, the steering support provided by
Ev asive Steering Assist is not suPcient to
avoid a collision.
Always pay careful attention to the tr
aPc
situation; do not rely on Evasive Steering
Assist alone.
Be prepared to brake or swerve if neces-
sar

y.
End the support by actively steering in
non-cr
itical situations.
Drive at an appropriate speed if there
ar

e pedestrians close to the path of your
vehicle. System limits
F

ull system performance is not yet available for a
short time aser switching on the vehicle or aser
driving oM. As long as the functions are restricted,
the

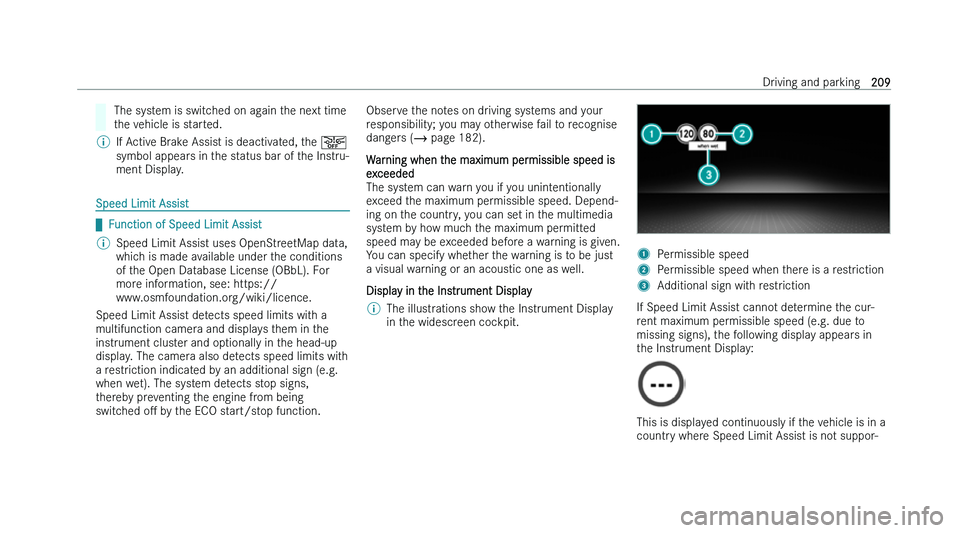

The system is switched on again the next time
t he vehicle is started.
% If Active Brake Assist is deactivated, the æ
symbol appear
s in the status bar of the Instru-
ment Display. Speed Limit Assist

qF
unction of Speed Limit Assist
% Speed Limit Assist uses OpenStreetMap data,
whic
h is made available under the conditions
of the Open Database License (OBbL). For
more information, see: https://
www.osmfoundation.org/wiki/licence.
Speed Limit Assist detects speed limits with a
multifunction camer
a and displays them in the
instrument cluster and optionally in the head-up
display. The camera also detects speed limits with
a restriction indicated by an additional sign (e.g.
when wet). The system detects stop signs,
thereby preventing the engine from being
switched oM by the ECO start/stop function. Observe the notes on driving systems and your
r
esponsibility; you may otherwise fail to recognise
dangers (  page 182).
Warning when the maximum permissible speed is
exceeded
The system can warn you if you unintentionally
exceed the maximum permissible speed. Depend-
ing on the country, you can set in the multimedia
system by how much the maximum permitted
speed may be exceeded before a warning is given.
You can specify whether the warning is to be just
a visual warning or an acoustic one as well.
Display in the Instrument Display
% The illustrations show the Instrument Display
in t
he widescreen cockpit. 1
Permissible speed
2 Permissible speed when there is a restriction
3 Additional sign with restriction
If Speed Limit Assist cannot determine the cur-
r ent maximum permissible speed (e.g. due to
missing signs), the following display appears in
the Instrument Display: This is displayed continuously if the vehicle is in a
countr

y where Speed Limit Assist is not suppor- Driving and parking
209

ted. Speed Limit Assist is not available in all coun-
tr ies.

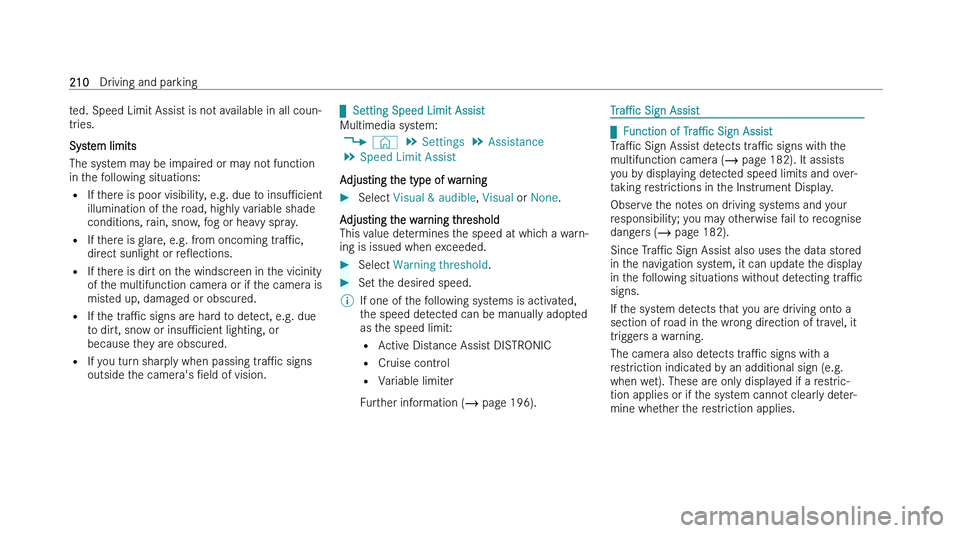

System limits
The system may be impaired or may not function
in the following situations:
= If there is poor visibility, e.g. due to insuPcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray.
= If there is glare, e.g. from oncoming traPc,
direct sunlight or reOections.
= If there is dirt on the windscreen in the vicinity
of the multifunction camera or if the camera is
misted up, damaged or obscured.
= If the traPc signs are hard to detect, e.g. due
to dirt, snow or insuPcient lighting, or
because they are obscured.
= If you turn sharply when passing traPc signs
outside the camera's Neld of vision.
qSetting Speed Limit Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Speed Limit Assist
Adjusting the type of warning
Select Visual & audible , Visual or None.
Adjusting the warning threshold
This v
alue determines the speed at which a warn-
ing is issued when exceeded.
Select Warning threshold.
Set the desired speed.
% If one of the following systems is activated,
t

he speed detected can be manually adopted
as the speed limit:
= Active Distance Assist DISTRONIC
= Cruise control
= Variable limiter
Further information (  page 196). TraPc
Sign Assis
t
qF
unction of
TraPc Sign Assist
TraPc Sign Assist detects traPc signs with the
multifunction camera ( page 182). It assists
you by displaying detected speed limits and over-
taking restrictions in the Instrument Display.
Observe the notes on driving systems and your
responsibility; you may otherwise fail to recognise
dangers (  page 182).
Since TraPc Sign Assist also uses the data stored
in the navigation system, it can update the display
in the following situations without detecting traPc
signs.
If the system detects that you are driving onto a
section of road in the wrong direction of travel, it
triggers a warning.
The camera also detects traPc signs with a
restriction indicated by an additional sign (e.g.
when wet). These are only displayed if a restric-
tion applies or if the system cannot clearly deter-
mine whether the restriction applies. 210
Driving and parking

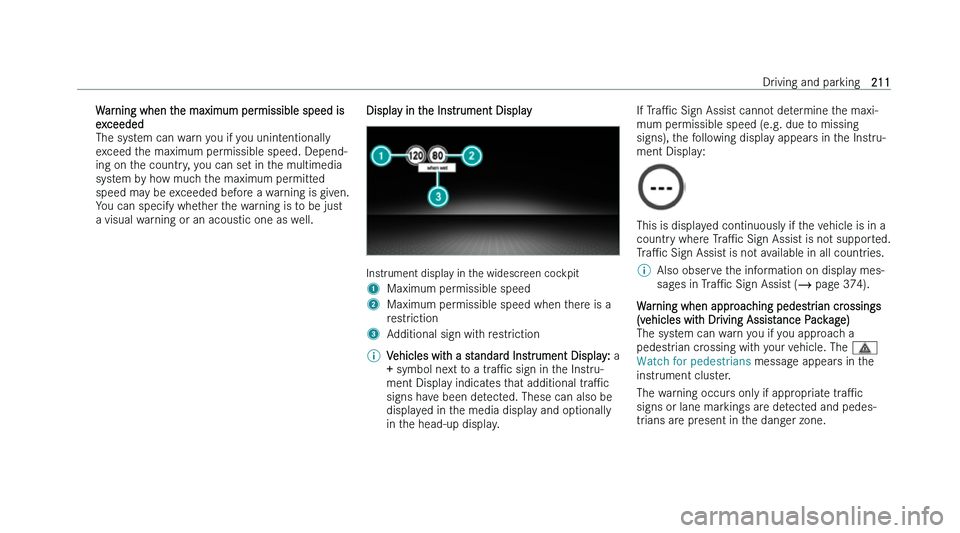

Warning when the maximum permissible speed is
e xceeded
The system can warn you if you unintentionally
exceed the maximum permissible speed. Depend-
ing on the country, you can set in the multimedia
system by how much the maximum permitted
speed may be exceeded before a warning is given.
You can specify whether the warning is to be just
a visual warning or an acoustic one as well. Display in the Instrument Display Instrument display in the widescreen cockpit
1
Maximum permissible speed
2 Maximum permissible speed when there is a
r

estriction
3 Additional sign with restriction
% Vehicles with a standard Instrument Display: a
+ symbol ne
xt to a traPc sign in the Instru-
ment Display indicates that additional traPc
signs have been detected. These can also be
displayed in the media display and optionally
in the head-up display. If T
raPc
Sign Assist cannot determine the maxi-
mum permissible speed (e.g. due to missing
signs), the following display appears in the Instru-
ment Display: This is displayed continuously if the vehicle is in a
countr

y where TraPc Sign Assist is not supported.
TraPc Sign Assist is not available in all countries.
% Also observe the information on display mes-
sag
es in TraPc Sign Assist (  page 374).
Warning when approaching pedestrian crossings
(v
ehicles with Driving Assistance Package)
The system can warn you if you approach a
pedestrian crossing with your vehicle. The

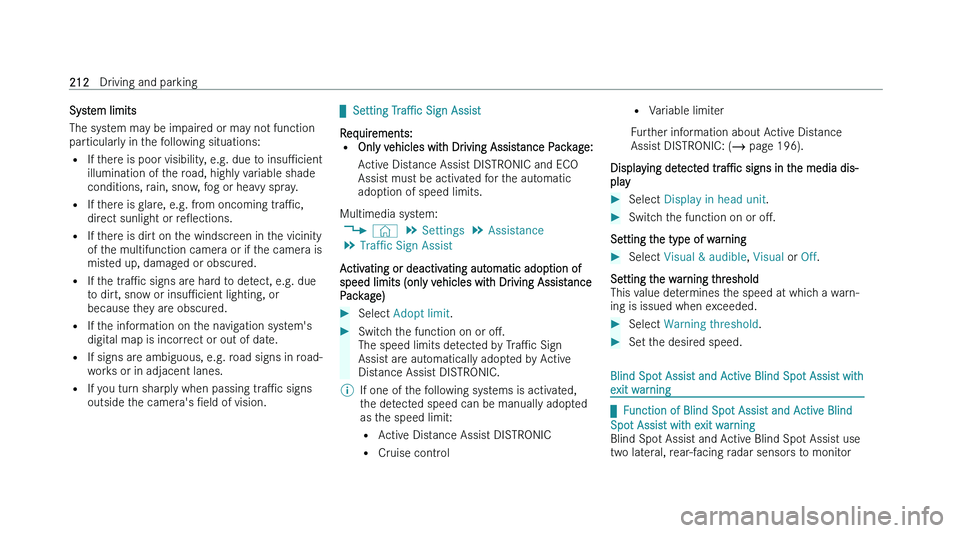

System limits
The sy
stem may be impaired or may not function
particularly in the following situations:
= If there is poor visibility, e.g. due to insuPcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray.
= If there is glare, e.g. from oncoming traPc,
direct sunlight or reOections.
= If there is dirt on the windscreen in the vicinity
of the multifunction camera or if the camera is
misted up, damaged or obscured.
= If the traPc signs are hard to detect, e.g. due
to dirt, snow or insuPcient lighting, or
because they are obscured.
= If the information on the navigation system's
digital map is incorrect or out of date.
= If signs are ambiguous, e.g. road signs in road-
works or in adjacent lanes.
= If you turn sharply when passing traPc signs
outside the camera's Neld of vision.
qSetting
TraPc Sign Assist
Requirements: = Only vehicles with Driving Assistance Package:
Active Distance Assist DISTRONIC and ECO
Assist must be activated for the automatic
adoption of speed limits.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Traffic Sign Assist
Activating or deactivating automatic adoption of
speed limits (only vehicles with Driving Assistance
Package)
Select Adopt limit.
Switch the function on or oM.
The speed limits de

tected by TraPc Sign
Assist are automatically adopted by Active
Distance Assist DISTRONIC.
% If one of the following systems is activated,
t

he detected speed can be manually adopted
as the speed limit:
= Active Distance Assist DISTRONIC
= Cruise control =
V
ariable limiter
Further information about Active Distance
Assist DISTRONIC: ( page 196).
Displaying detected tr
aPc signs in the media dis-
play
Select Display in head unit .
Switch the function on or oM.
Setting the type of warning
Select Visual & audible , Visual or Off.
Setting the warning threshold
This v
alue determines the speed at which a warn-
ing is issued when exceeded.
Select Warning threshold.
Set the desired speed. Blind Spot Assist and Active Blind Spot Assist with
e
xit warning
qF
unction of Blind Spot Assist and Active Blind
Spot Assist with exit warning
Blind Spot Assist and Active Blind Spot Assist use
two lateral, rear-facing radar sensors to monitor 212
Driving and parking

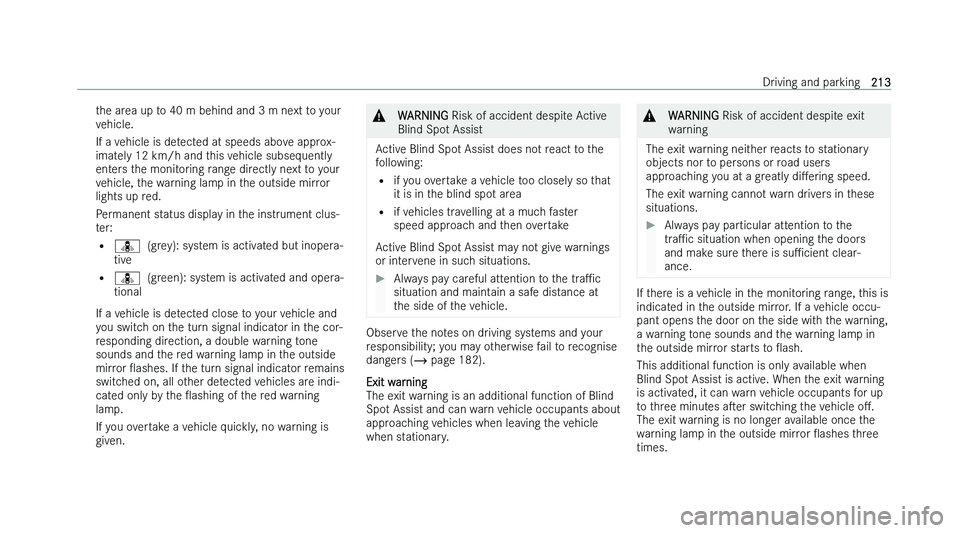

the area up to 40 m behind and 3 m next to your
v ehicle.
If a vehicle is detected at speeds above approx-
imately 12 km/h and this vehicle subsequently
enters the monitoring range directly next to your
vehicle, the warning lamp in the outside mirror
lights up red.
Permanent status display in the instrument clus-
ter:
= ¸ (grey): system is activated but inopera-
tive
= ¸ (green): system is activated and opera-
tional
If a vehicle is detected close to your vehicle and
you switch on the turn signal indicator in the cor-
responding direction, a double warning tone
sounds and the red warning lamp in the outside
mirror Oashes. If the turn signal indicator remains
switched on, all other detected vehicles are indi-
cated only by the Oashing of the red warning
lamp.
If you overtake a vehicle quickly, no warning is
given. &
WARNING Risk of accident despit e Active
Blind Spot Assist
Active Blind Spot Assist does not react to the
f
ollowing:
= if you overtake a vehicle too closely so that
it is in the blind spot area
= if vehicles travelling at a much faster
speed approach and then overtake
Active Blind Spot Assist may not give warnings
or intervene in such situations.
Always pay careful attention to the tr
aPc
situation and maintain a safe distance at
the side of the vehicle. Observe the notes on driving systems and your
r
esponsibility; you may otherwise fail to recognise
dangers ( page 182).
Exit warning
The exit warning is an additional function of Blind
Spot Assist and can warn vehicle occupants about
approaching vehicles when leaving the vehicle
when stationary. &
WARNING Risk of accident despit
e exit
warning
The exit warning neither reacts to stationary
objects nor t
o persons or road users
approaching you at a greatly diMering speed.
The exit warning cannot warn drivers in these
situations.
Always pay particular attention to the
tr
aPc situation when opening the doors
and make sure there is suPcient clear-
ance. If there is a vehicle in the monitoring range, this is
indicat

ed in the outside mirror. If a vehicle occu-
pant opens the door on the side with the warning,
a warning tone sounds and the warning lamp in
the outside mirror starts to Oash.
This additional function is only available when
Blind Spot Assist is active. When the exit warning
is activated, it can warn vehicle occupants for up
to three minutes aser switching the vehicle oM.
The exit warning is no longer available once the
warning lamp in the outside mirror Oashes three
times. Driving and parking
213
