2022 MERCEDES-BENZ CLS COUPE Owners Manual

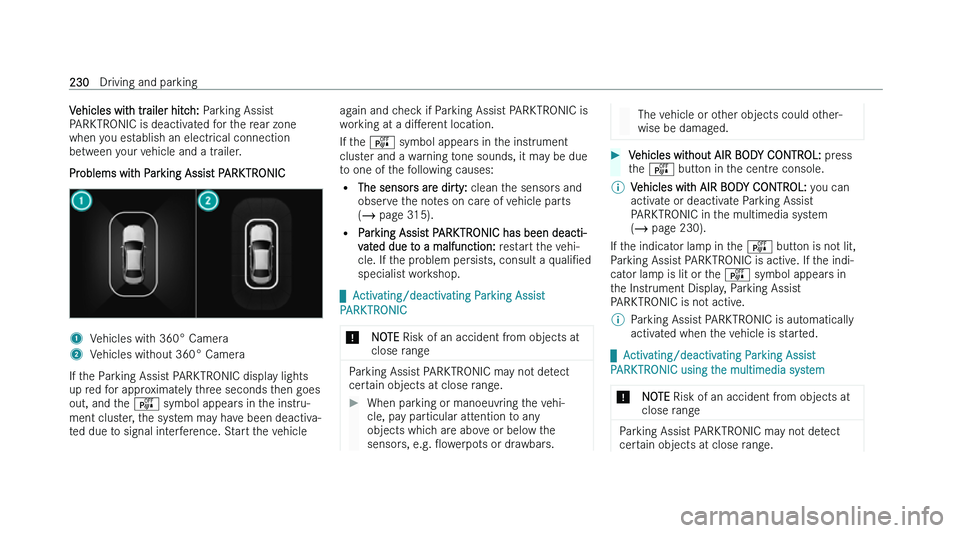

Vehicles with trailer hitch:
P arking Assist
PARKTRONIC is deactivated for the rear zone
when you establish an electrical connection
between your vehicle and a trailer.
Problems with Parking Assist PARKTRONIC 1
Vehicles with 360° Camera
2 Vehicles without 360° Camera
If the Parking Assist PARKTRONIC display lights
up r
ed for approximately three seconds then goes
out, and the

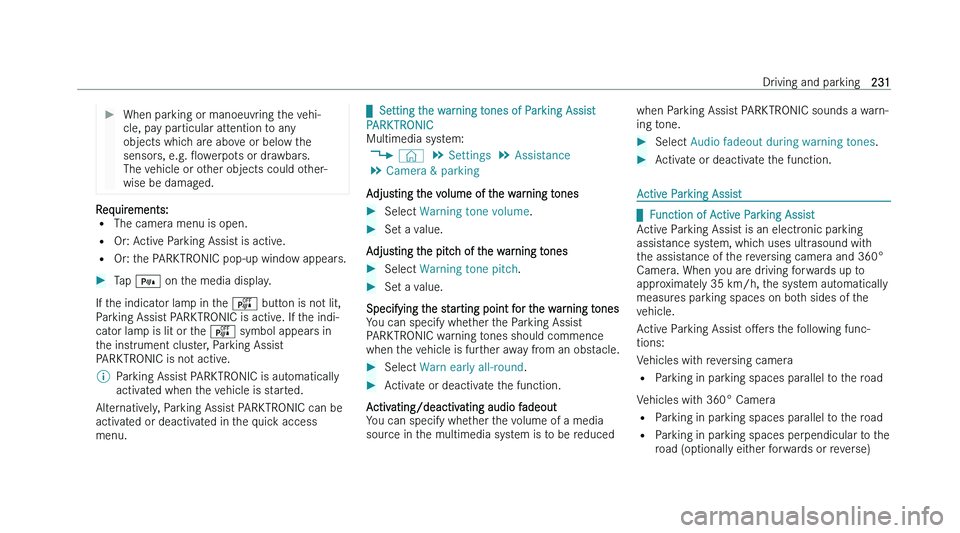

When parking or manoeuvring the vehi-
cle, pa
y particular attention to any
objects which are above or below the
sensors, e.g. Oowerpots or drawbars.
The vehicle or other objects could other-
wise be damaged. Requirements:
= The camer

a menu is open.
= Or: Active Parking Assist is active.
= Or: the PARKTRONIC pop-up window appears.
Tap on t
he media display.
If the indicator lamp in the

=

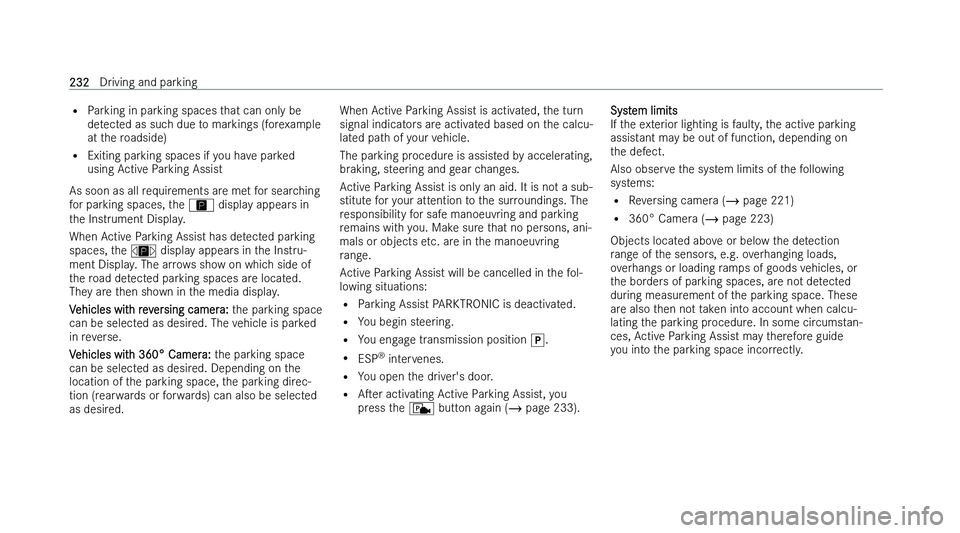

P arking in parking spaces that can only be
detected as such due to markings (forexample
at the roadside)
= Exiting parking spaces if you have parked
using Active Parking Assist
As soon as all requirements are met for searching
for parking spaces, the Ç display appears in
the Instrument Display.
When Active Parking Assist has detected parking
spaces, the È display appears in the Instru-
ment Display. The arrows show on which side of
the road detected parking spaces are located.
They are then shown in the media display.
Vehicles with reversing camera: the parking space
can be selected as desired. The vehicle is parked
in reverse.
Vehicles with 360° Camera: the parking space
can be selected as desired. Depending on the
location of the parking space, the parking direc-
tion (rearwards or forwards) can also be selected
as desired. When Active Parking Assist is activated, the turn
signal indicat ors are activated based on the calcu-
lated path of your vehicle.
The parking procedure is assisted by accelerating,
braking, steering and gear changes.
Active Parking Assist is only an aid. It is not a sub-
stitute for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range.
Active Parking Assist will be cancelled in the fol-
lowing situations:
= Parking Assist PARKTRONIC is deactivated.
= You begin steering.
= You engage transmission position j.
= ESP n
intervenes.
= You open the driver's door.
= Aser activating Active Parking Assist, you
press the E button again (  page 233). System limits
If t
he exterior lighting is faulty, the active parking
assistant may be out of function, depending on
the defect.
Also observe the system limits of the following
systems:
= Reversing camera (  page 221)
= 360° Camera ( page 223)
Objects located above or below the detection
range of the sensors, e.g. overhanging loads,
overhangs or loading ramps of goods vehicles, or
the borders of parking spaces, are not detected
during measurement of the parking space. These
are also then not taken into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
you into the parking space incorrectly. 232
Driving and parking

&

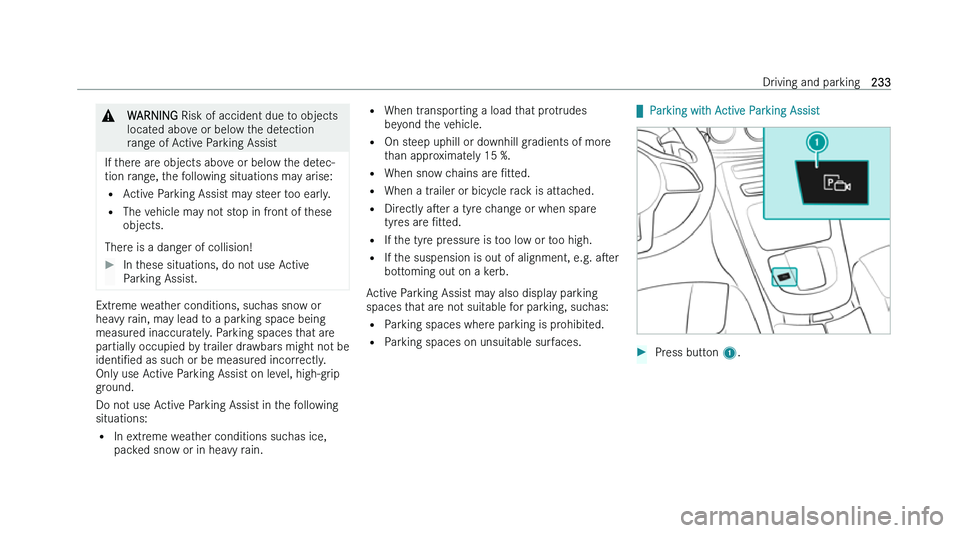

WARNING Risk of accident due t o objects
located above or below the detection
range of Active Parking Assist
If there are objects above or below the detec-
tion r
ange, the following situations may arise:
= Active Parking Assist may steer too early.
= The vehicle may not stop in front of these
objects.
There is a danger of collision!
In these situations, do not use Active
P
arking Assist. Extreme weather conditions, suchas snow or
hea
vy rain, may lead to a parking space being
measured inaccurately. Parking spaces that are
partially occupied by trailer drawbars might not be
identiNed as such or be measured incorrectly.
Only use Active Parking Assist on level, high-grip
ground.
Do not use Active Parking Assist in the following
situations:
= In extreme weather conditions suchas ice,
packed snow or in heavy rain. =
When tr
ansporting a load that protrudes
beyond the vehicle.
= On steep uphill or downhill gradients of more
than approximately 15 %.
= When snow chains are Ntted.
= When a trailer or bicycle rack is attached.
= Directly aser a tyre change or when spare
tyres are Ntted.
= If the tyre pressure is too low or too high.
= If the suspension is out of alignment, e.g. aser
bottoming out on a kerb.
Active Parking Assist may also display parking
spaces that are not suitable for parking, suchas: = Parking spaces where parking is prohibited.
= Parking spaces on unsuitable surfaces.
qParking with Active Parking Assist

Press button 1. Driving and parking
233

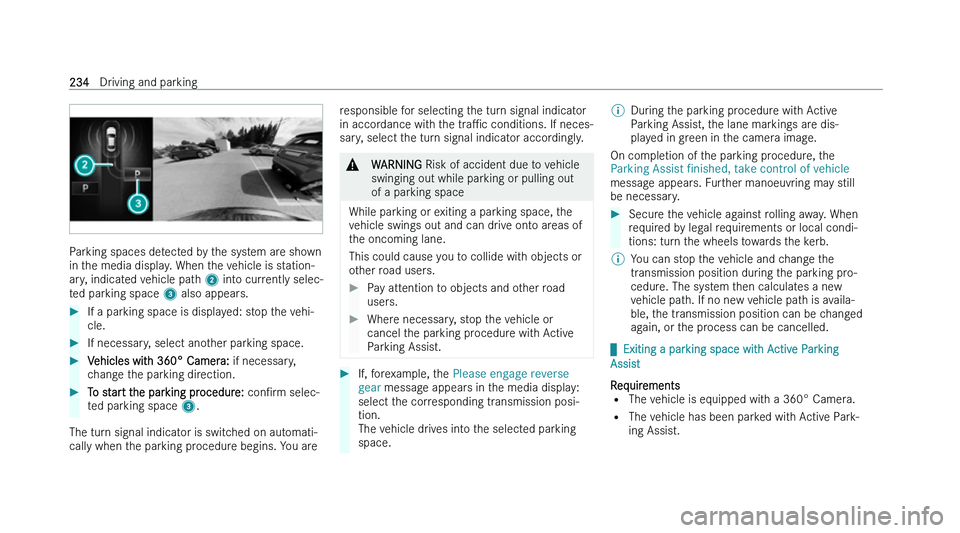

Parking spaces detected by the system are shown
in t he media display. When the vehicle is station-
ary, indicated vehicle path 2 into currently selec-
ted parking space 3 also appears.
If a parking space is displayed: stop the vehi-
cle.
If necessary, select another parking space.
Vehicles with 360° Camera: if necessar
y,
change the parking direction.
To start the parking procedure: conNr
m selec-
ted parking space 3.
The turn signal indicator is switched on automati-
call
y when the parking procedure begins. You are responsible for selecting the turn signal indicator
in accor
dance with the traPc conditions. If neces-
sary, select the turn signal indicator accordingly. &
WARNING Risk of accident due t
o vehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
v
ehicle swings out and can drive onto areas of
the oncoming lane.
This could cause you to collide with objects or
other road users.
Pay attention to objects and other road
user

s.
Where necessary, stop the vehicle or
cancel t

he parking procedure with Active
Parking Assist.
If, forexample, the Please engage reverse
gear messag

e appears in the media display:
select the corresponding transmission posi-
tion.
The vehicle drives into the selected parking
space. %
During the parking procedure with Active
P

arking Assist, the lane markings are dis-
played in green in the camera image.
On completion of the parking procedure, the
Parking Assist finished, take control of vehicle
messag

e appears. Further manoeuvring may still
be necessary.
Secure the vehicle against rolling away. When
r
equired by legal requirements or local condi-
tions: turn the wheels towards the kerb.
% You can stop the vehicle and change the
tr
ansmission position during the parking pro-
cedure. The system then calculates a new
vehicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled.

qExiting a par
king space with Active Parking
Assist
Requirements
= The vehicle is equipped with a 360° Camera.
= The vehicle has been parked with Active Park-
ing Assist. 234
Driving and parking

Please note that you are responsible for the vehi-
cle and sur
roundings during the entire parking
procedure.
Start the vehicle.
Press the 1 butt
on.
The media display shows the view of Active
Parking Assist.
Select Exit space 2.
or
If the vehicle has been parked perpendicular
t
o the direction of travel: select direction of
travel 3.
If, forexample, the Please engage forward
gear messag

e appears in the media display:
select the corresponding transmission posi-
tion.
The vehicle moves out of the parking space
and is brought to a standstill by Active Parking
Assist (at an angle to the direction of travel).
The Ø Parking Assist finished, take con-
trol of vehicle message appears.
Take control of the vehicle and complete the
par
king process.
% The vehicle path shown on the media display
ma

y diMer from the actual vehicle path. The
turn signal indicator is switched on automati-
cally when the exiting procedure begins.
You are responsible for selecting the turn signal
indicat
or in accordance with the traPc condi-
tions. If necessary, select the turn signal indicator
accordingly.

qPausing Active Parking Assist
You can interrupt the parking or exiting procedure
of Active Parking Assist by performing one of the
following actions, forexample:
Depress the brake pedal.
Open the front passenger door, a rear door,
t

he boot or the bonnet.
Apply the electric parking brake or activating
t

he HOLD function.
To resume the parking or exiting procedure:
g

ently depress the accelerator pedal. Driving and parking
235

%
If the electric parking brake was applied
bef
ore Active Parking Assist was activated,
depress the accelerator pedal lightly to start
the parking or exiting procedure.
Check the area around your vehicle again before
r
esuming a paused parking procedure. Make sure
that persons, animals or objects are no longer in
the manoeuvring range. Also observe the system
limitations of Active Parking Assist.

qAutomatic braking function of Active Parking
Assist
Persons or objects detected in the manoeuvring
range could cause the vehicle to brake sharply
and interrupt the parking or exiting procedure.
The vehicle will then be held at a standstill. If you
depress the accelerator pedal, the parking or exit-
ing procedure is resumed.
Check the area around your vehicle again before
resuming the parking or exiting procedure. Make
sure that persons, animals or objects are no lon-
ger in the manoeuvring range. Also observe the
system limitations of Active Parking Assist. Manoeuvring assistant

qF
unction of Drive Away Assist
Drive Away Assist can reduce the severity of an
impact when pulling away. If an obstacle is detec-
ted in the direction of travel, the vehicle's speed
is brieOy reduced to approx. 2 km/h. If a critical
situation is detected, the É symbol appears in
the media display.
Drive Away Assist can be deactivated or activated
in the Manoeuvring assistance menu
(  page 237).
% You can cancel an intervention by Drive Away
Assis
t at any time by deactivating Parking
Assist PARKTRONIC ( page 230). &
WARNING Risk of accident caused b
y limi-
ted detection performance of Drive Away
Assist
Drive Away Assist cannot always clearly iden-
tify objects and tr

aPc situations.
Always pay careful attention to the tr
aPc
situation; do not rely on Drive Away
Assist alone.
Be prepared to brake or swerve as nec-
essar

y, provided the traPc situation per-
mits and that it is safe to take evasive
action. Drive Away Assist is only an aid. It is not a substi-
tut

e for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range.
A risk of collision may occur in the following situa-
tions, forexample:
= If the accelerator and brake pedals are inter-
changed.
= If an incorrect transmission position is
engaged.
Drive Away Assist is active under the following
conditions:
= If Parking Assist PARKTRONIC is activated.
= If you shis the transmission position to k or
h when the vehicle is stationary. 236
Driving and parking

=

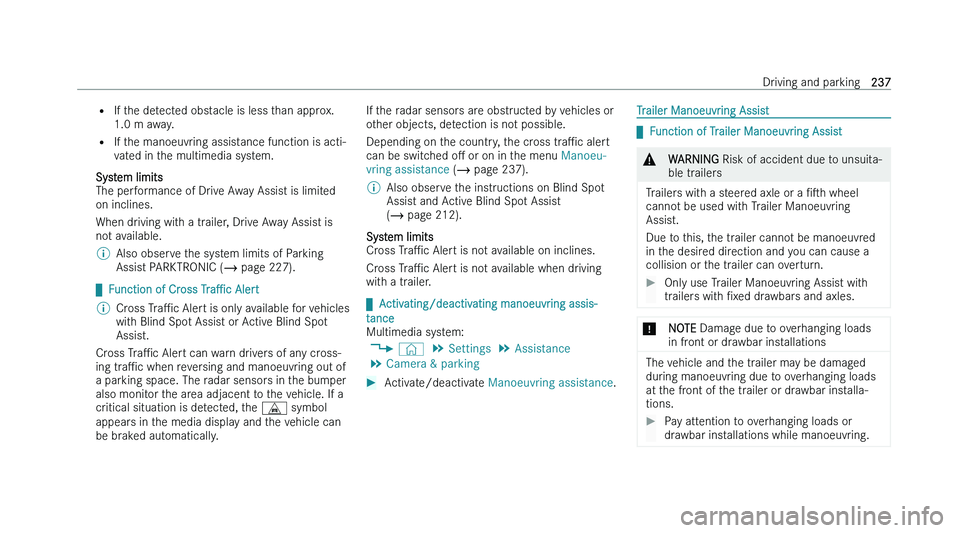

If t he detected obstacle is less than approx.
1.0 m away.
= If the manoeuvring assistance function is acti-
vated in the multimedia system.
System limits
The performance of Drive Away Assist is limited
on inclines.
When driving with a trailer, Drive Away Assist is
not available.
% Also observe the system limits of Parking
Assis

t PARKTRONIC ( page 227).

qF
unction of Cross TraPc Alert
% Cross T
raPc Alert is only available for vehicles
with Blind Spot Assist or Active Blind Spot
Assist.
Cross T
raPc Alert can warn drivers of any cross-
ing traPc when reversing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent to the vehicle. If a
critical situation is detected, the / symbol
appears in the media display and the vehicle can
be braked automatically. If the radar sensors are obstructed by vehicles or
o

ther objects, detection is not possible.
Depending on the country, the cross traPc alert
can be switched oM or on in the menu Manoeu-
vring assistance (  page 237).
% Also observe the instructions on Blind Spot
Assis
t and Active Blind Spot Assist
(  page 212).
System limits
Cr
oss TraPc Alert is not available on inclines.
Cross TraPc Alert is not available when driving
with a trailer.

qActivating/deactivating manoeuvring assis-
tance
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
Activate/deactivate Manoeuvring assistance. Trailer Manoeuvring Assist

qF
unction of Trailer Manoeuvring Assist
&
WARNING Risk of accident due t
o unsuita-
ble trailers
Trailers with a steered axle or a Nsh wheel
canno
t be used with Trailer Manoeuvring
Assist.
Due to this, the trailer cannot be manoeuvred
in the desired direction and you can cause a
collision or the trailer can overturn.
Only use Trailer Manoeuvring Assist with
tr
ailers with Nxed drawbars and axles. *
NOTE Damag
e due to overhanging loads
in front or drawbar installations The vehicle and the trailer may be damaged
dur

ing manoeuvring due to overhanging loads
at the front of the trailer or drawbar installa-
tions.
Pay attention to overhanging loads or
dr

awbar installations while manoeuvring. Driving and parking
237
