2022 HYUNDAI ELANTRA HYBRID Owners Manual

04
4-47

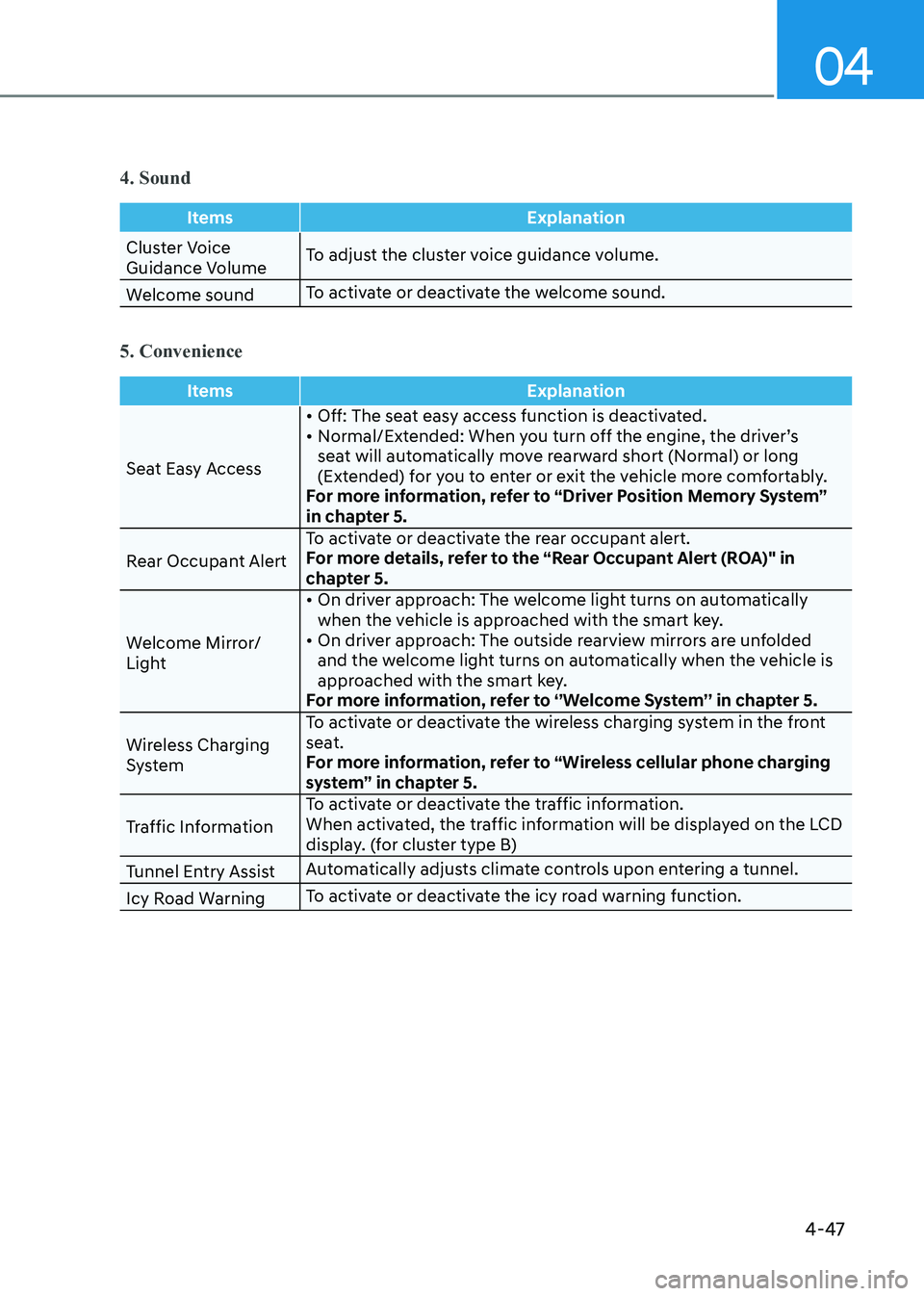

4. Sound
ItemsExplanation
Cluster Voice
Guidance VolumeTo adjust the cluster voice guidance volume.
Welcome sound To activate or deactivate the welcome sound.
5. Convenience
Items
Explanation
Seat Easy Access• Off: The seat easy access function is deactivated.
• Normal/Extended: When you turn off the engine, the driver’s
seat will automatically move rearward short (Normal) or long
(Extended) for you to enter or exit the vehicle more comfortably.
For more information, refer to “Driver Position Memory System”
in chapter 5.
Rear Occupant Alert To activate or deactivate the rear occupant alert.
For more details, refer to the “Rear Occupant Alert (ROA)" in
chapter 5.
Welcome Mirror/
Light • On driver approach: The welcome light turns on automatically
when the vehicle is approached with the smart key.
• On driver approach: The outside rearview mirrors are unfolded and the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more information, refer to ‘’Welcome System’’ in chapter 5.
Wireless Charging
System To activate or deactivate the wireless charging system in the front
seat.
For more information, refer to “Wireless cellular phone charging
system” in chapter 5.
Traffic Information To activate or deactivate the traffic information.
When activated, the traffic information will be displayed on the LCD
display. (for cluster type B)
Tunnel Entry Assist Automatically adjusts climate controls upon entering a tunnel.
Icy Road Warning To activate or deactivate the icy road warning function.

Instrument Cluster
4-48

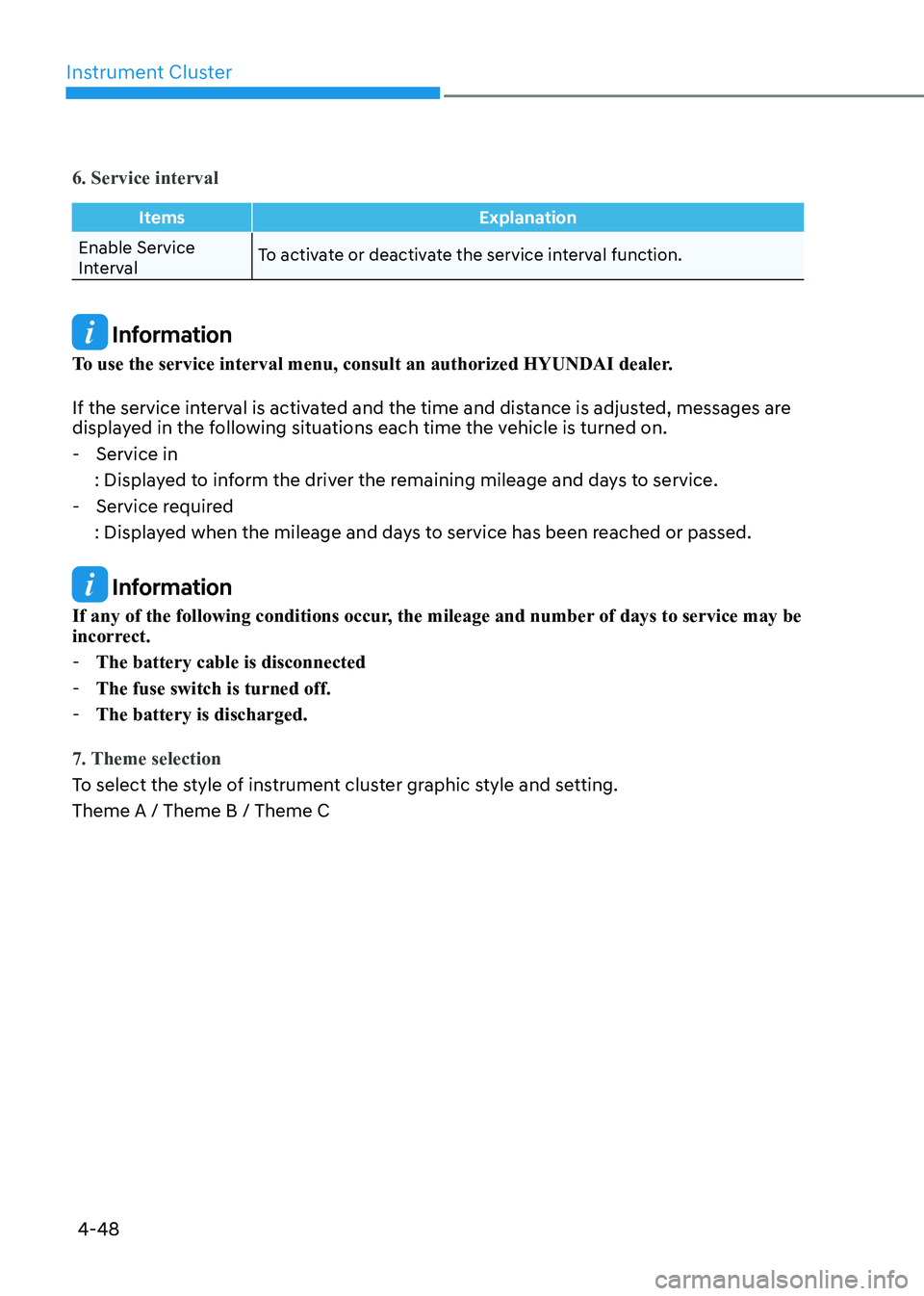

6. Service interval
ItemsExplanation
Enable Service
IntervalTo activate or deactivate the service interval function.
Information
To use the service interval menu, consult an authorized HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on. - Service in
: Displayed to inform the driver the remaining mileage and days to service. - Service required
: Displayed when the mileage and days to service has been reached or passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect. - The battery cable is disconnected
- The fuse switch is turned off.
- The battery is discharged.
7. Theme selection
To select the style of instrument cluster graphic style and setting. Theme A / Theme B / Theme C

04
4-49

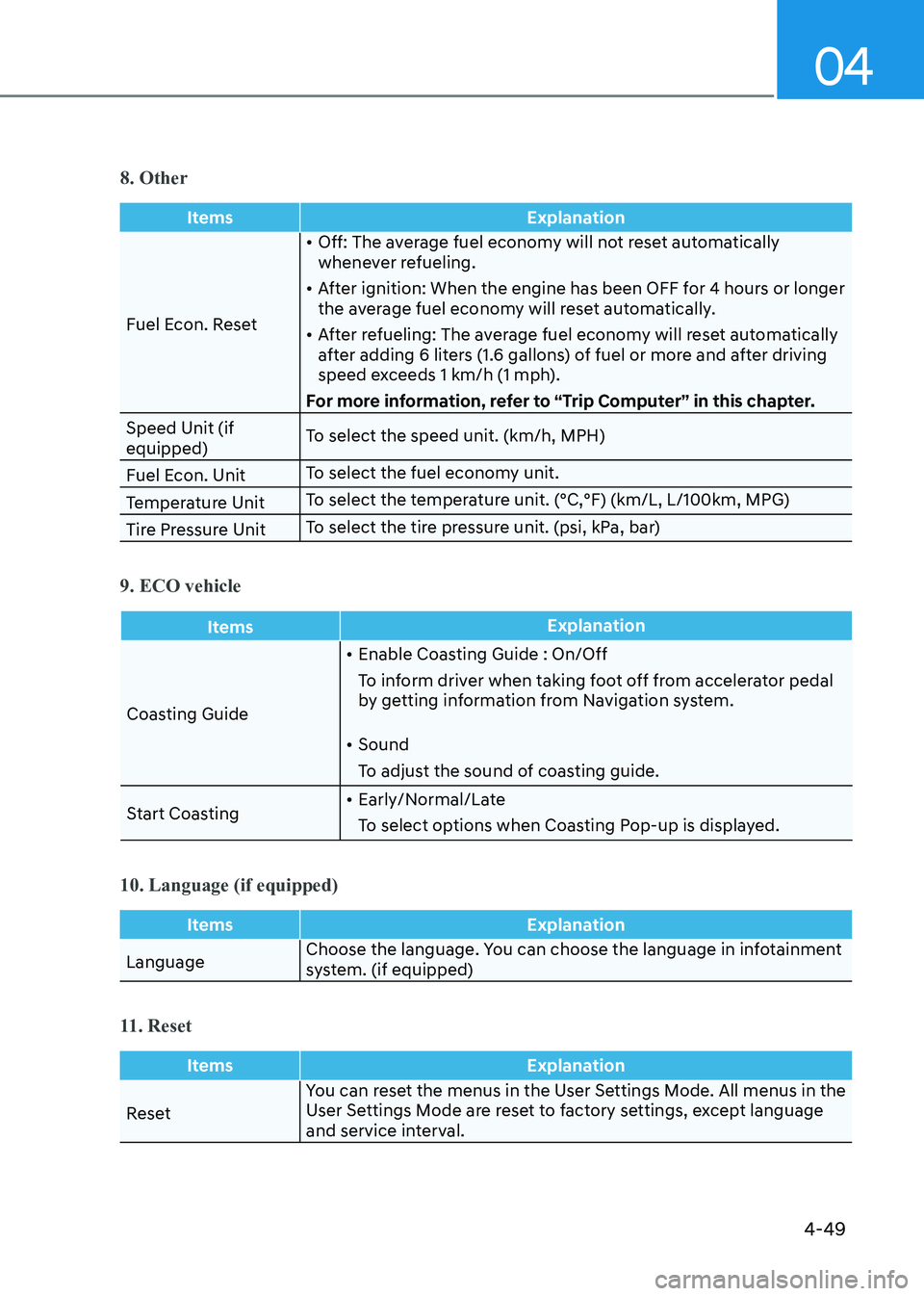

8. Other
ItemsExplanation
Fuel Econ. Reset•
Off: The average fuel economy will not reset automatically
whenever refueling.
• After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.
• After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more information, refer to “Trip Computer” in this chapter.
Speed Unit (if equipped) To select the speed unit. (km/h, MPH)
Fuel Econ. Unit To select the fuel economy unit.
Temperature Unit To select the temperature unit. (°C,°F) (km/L, L/100km, MPG)
Tire Pressure Unit To select the tire pressure unit. (psi, kPa, bar)
9. ECO vehicle
Items
Explanation
Coasting Guide•
Enable Coasting Guide : On/Off
To inform driver when taking foot off from accelerator pedal
by getting information from Navigation system.
• Sound
To adjust the sound of coasting guide.
Start Coasting •
Early/Normal/Late
To select options when Coasting Pop-up is displayed.
10. Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotainment
system. (if equipped)
11. Reset
Items
Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language
and service interval.

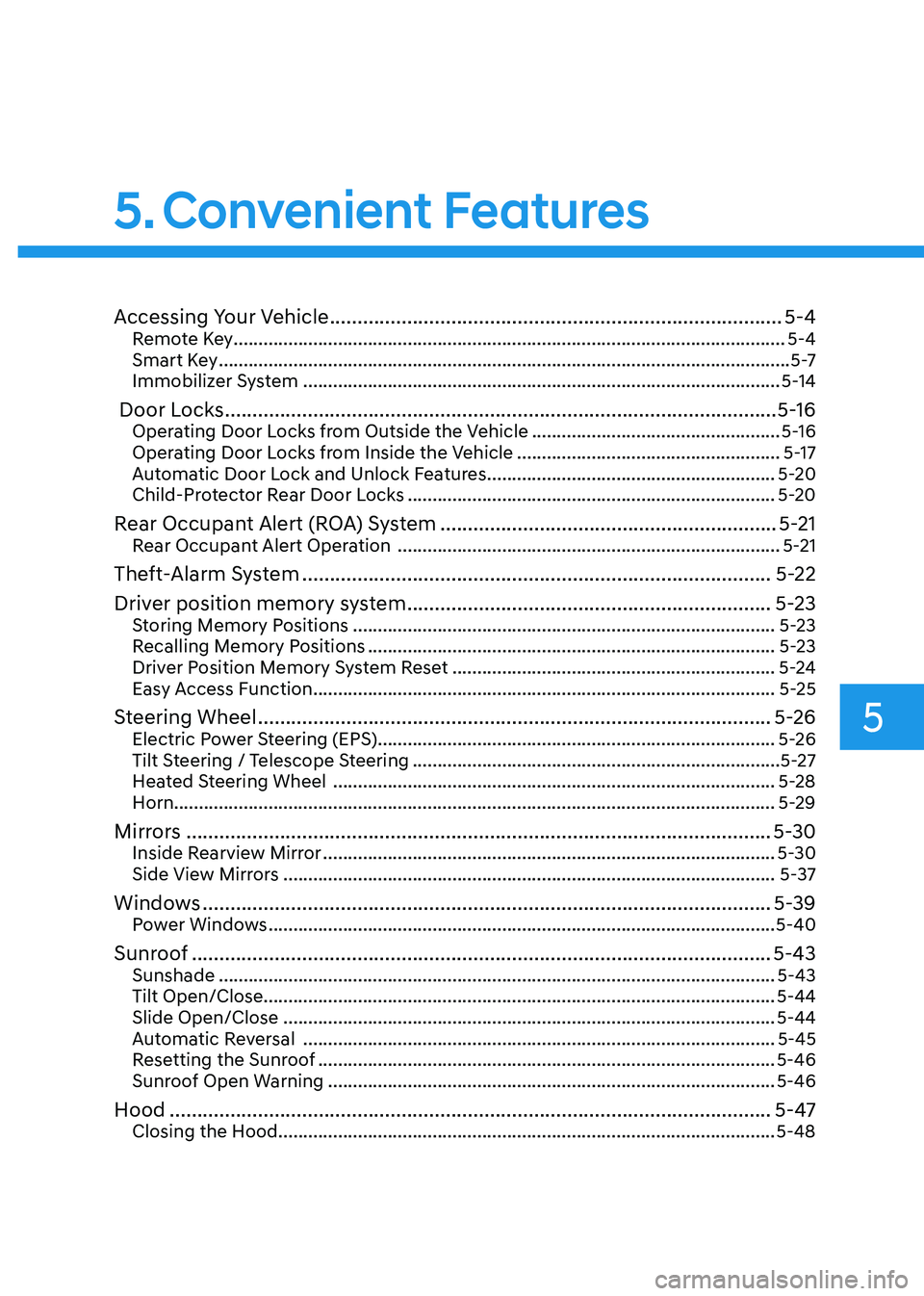

5. Convenient Features
Accessing Your Vehicle .................................................................................. 5-4
Remote Key ............................................................................................................... 5-4
Smart Key ................................................................................................................... 5 -7
Immobilizer System ................................................................................................ 5-14
Door Locks .................................................................................................... 5-16
Operating Door Locks from Outside the Vehicle ..................................................5-16
Operating Door Locks from Inside the Vehicle .....................................................5-17
Automatic Door Lock and Unlock Features ..........................................................5-20
Child-Protector Rear Door Locks .......................................................................... 5-20
Rear Occupant Alert (ROA) System ............................................................. 5-21
Rear Occupant Alert Operation ............................................................................. 5-21
Theft-Alarm System ..................................................................................... 5-22
Driver position memory system .................................................................. 5-23
Storing Memory Positions ..................................................................................... 5-23
Recalling Memory Positions .................................................................................. 5-23
Driver Position Memory System Reset ................................................................. 5-24
Easy Access Function ............................................................................................. 5-25
Steering Wheel ............................................................................................. 5-26
Electric Power Steering (EPS) ................................................................................ 5-26
Tilt Steering / Telescope Steering .......................................................................... 5-27
Heated Steering Wheel ......................................................................................... 5-28
Horn......................................................................................................................... 5-29
Mirrors .......................................................................................................... 5-30
Inside Rearview Mirror ........................................................................................... 5-30
Side View Mirrors ................................................................................................... 5-37
Windows ....................................................................................................... 5-39
Power Windows ...................................................................................................... 5-40
Sunroof ......................................................................................................... 5-43
Sunshade ................................................................................................................ 5-43
Tilt Open/Close....................................................................................................... 5-44 Slide Open/Close ................................................................................................... 5-44
Automatic Reversal ............................................................................................... 5-45
Resetting the Sunroof ............................................................................................ 5-46
Sunroof Open Warning .......................................................................................... 5-46
Hood ............................................................................................................. 5-47
Closing the Hood .................................................................................................... 5-48
5

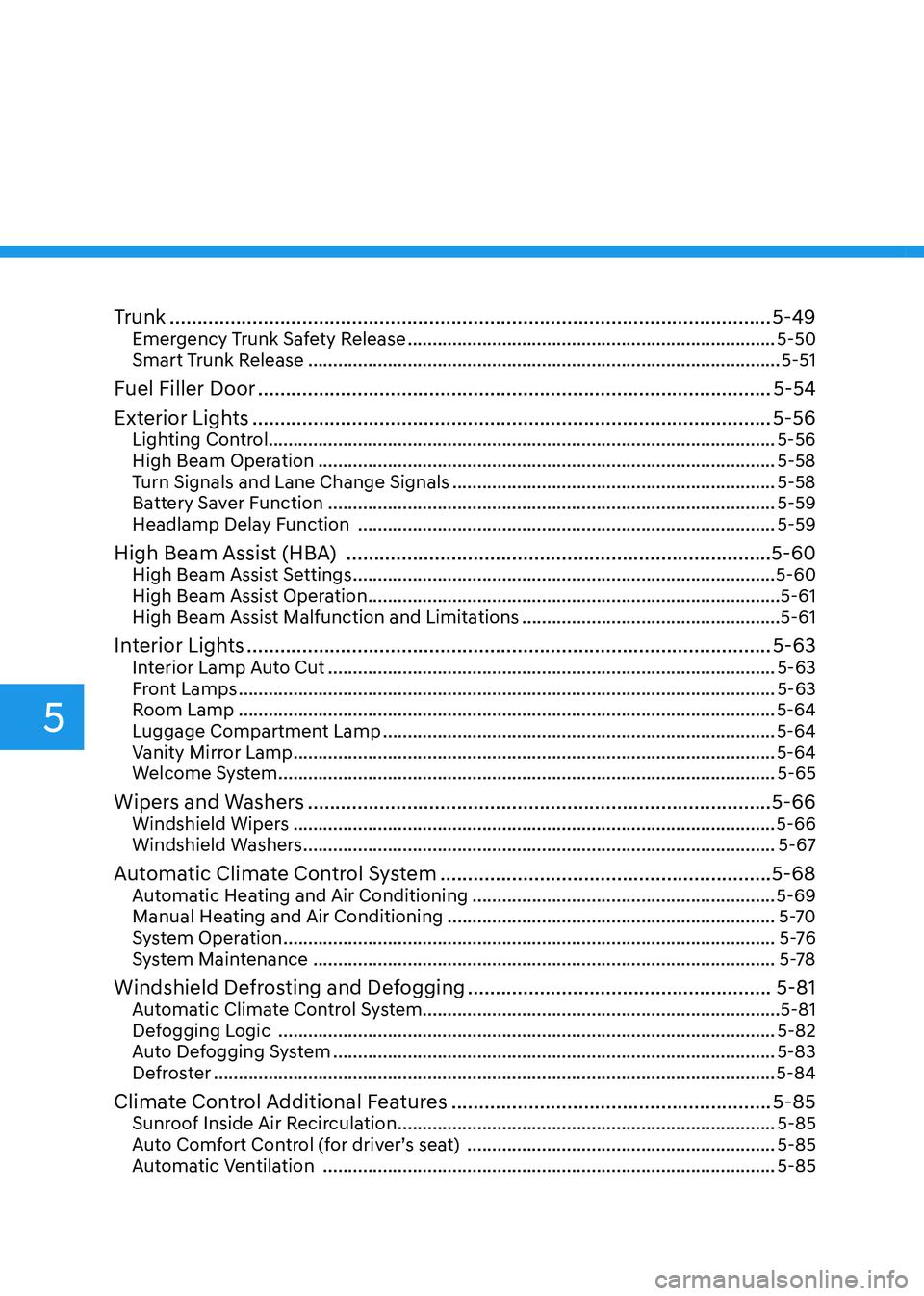

Trunk ............................................................................................................. 5-49
Emergency Trunk Safety Release .......................................................................... 5-50
Smart Trunk Release ............................................................................................... 5-51
Fuel Filler Door ............................................................................................. 5-54
Exterior Lights .............................................................................................. 5-56
Lighting Control...................................................................................................... 5-56
High Beam Operation ............................................................................................ 5-58
Turn Signals and Lane Change Signals ................................................................. 5-58
Battery Saver Function .......................................................................................... 5-59
Headlamp Delay Function .................................................................................... 5-59
High Beam Assist (HBA) ............................................................................. 5-60
High Beam Assist Settings ..................................................................................... 5-60
High Beam Assist Operation ................................................................................... 5-61
High Beam Assist Malfunction and Limitations ....................................................5-61
Interior Lights ............................................................................................... 5-63
Interior Lamp Auto Cut .......................................................................................... 5-63
Front Lamps ............................................................................................................ 5-63
Room Lamp ............................................................................................................ 5-64
Luggage Compartment Lamp ............................................................................... 5-64
Vanity Mirror Lamp ................................................................................................. 5-64
Welcome System .................................................................................................... 5-65
Wipers and Washers .................................................................................... 5-66
Windshield Wipers ................................................................................................. 5-66
Windshield Washers ............................................................................................... 5-67
Automatic Climate Control System ............................................................ 5-68
Automatic Heating and Air Conditioning .............................................................5-69
Manual Heating and Air Conditioning .................................................................. 5-70
System Operation ................................................................................................... 5 -76
System Maintenance ............................................................................................. 5-78
Windshield Defrosting and Defogging .......................................................5-81
Automatic Climate Control System........................................................................5-81
Defogging Logic .................................................................................................... 5-82
Auto Defogging System ......................................................................................... 5-83
Defroster ................................................................................................................. 5-84
Climate Control Additional Features ..........................................................5-85
Sunroof Inside Air Recirculation ............................................................................ 5-85
Auto Comfort Control (for driver’s seat) ..............................................................5-85
Automatic Ventilation ........................................................................................... 5-85
5

5

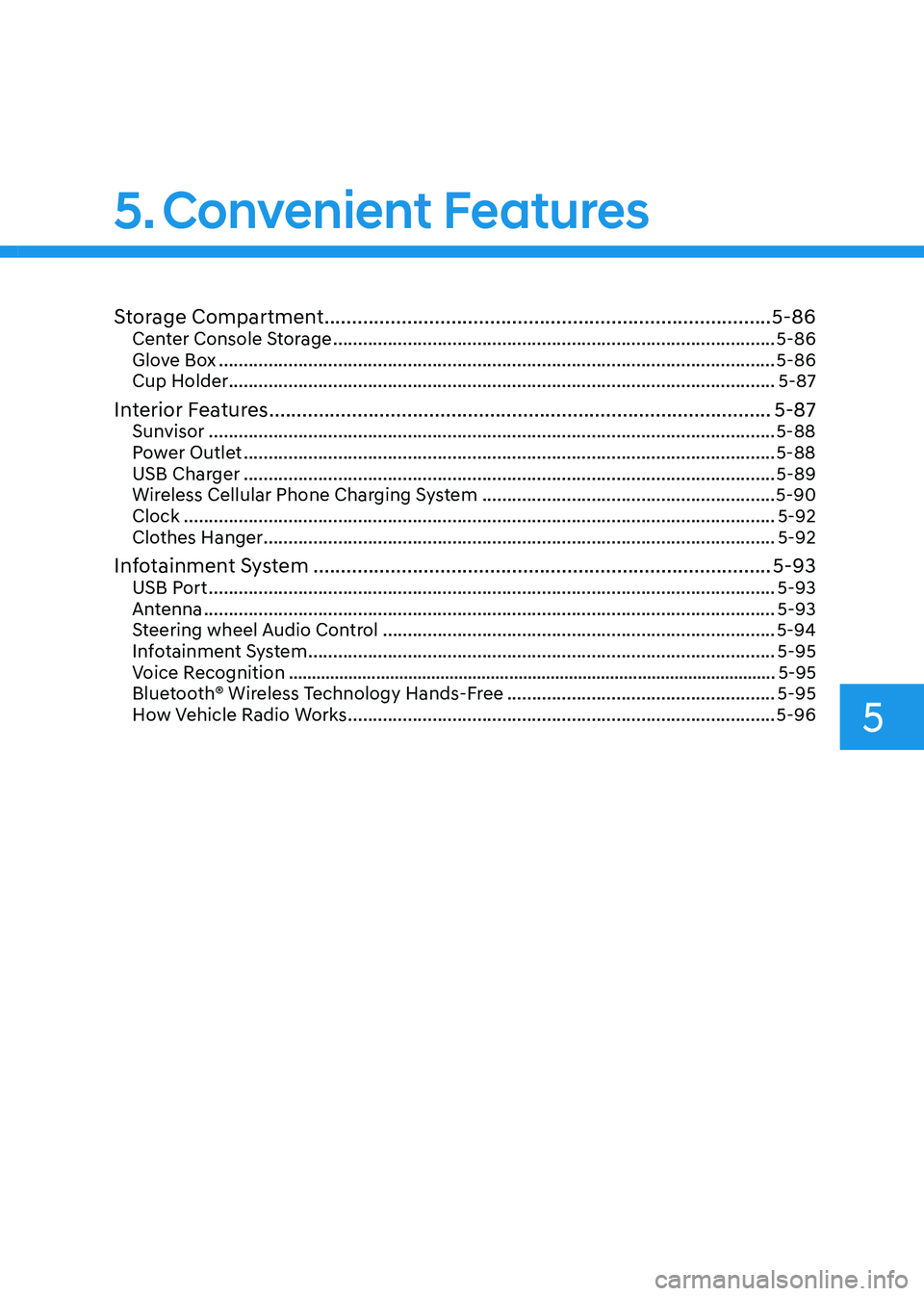

Storage Compartment ................................................................................. 5-86
Center Console Storage ......................................................................................... 5-86
Glove Box ................................................................................................................ 5-86
Cup Holder .............................................................................................................. 5-87
Interior Features ........................................................................................... 5-87
Sunvisor .................................................................................................................. 5-88
Power Outlet ........................................................................................................... 5-88
USB Charger ........................................................................................................... 5-89
Wireless Cellular Phone Charging System ...........................................................5-90
Clock ....................................................................................................................... 5-92
Clothes Hanger ....................................................................................................... 5-92
Infotainment System ................................................................................... 5-93
USB Port .................................................................................................................. 5-93
Antenna ................................................................................................................... 5-93
Steering wheel Audio Control ............................................................................... 5-94
Infotainment System .............................................................................................. 5-95
Voice Recognition .......................................................................................................... 5-95
Bluetooth® Wireless Technology Hands-Free ......................................................5-95
How Vehicle Radio Works ...................................................................................... 5-96
5. Convenient Features

Convenient Features
5-4

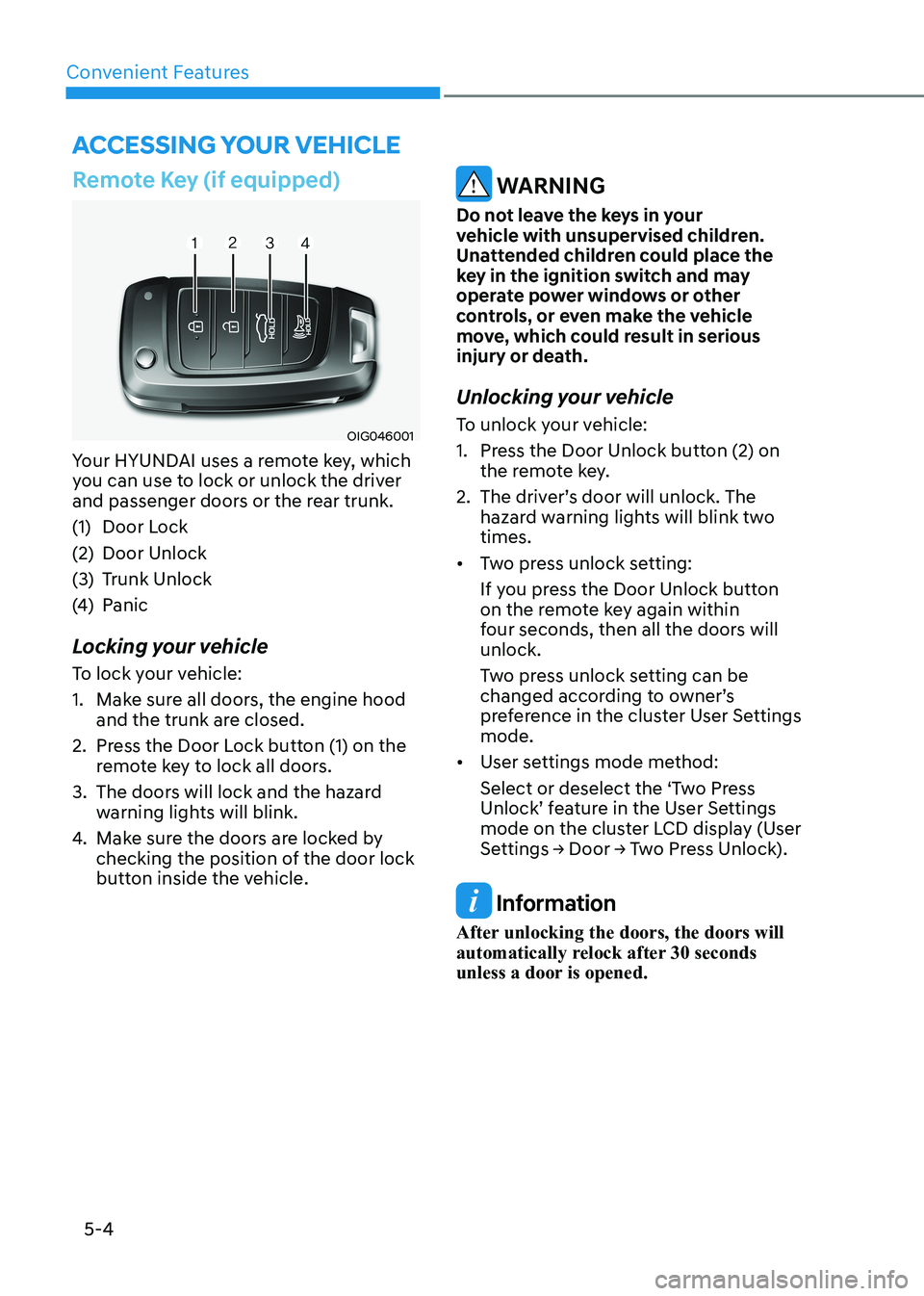

Remote Key (if equipped)
OIG046001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the rear trunk.
(1) Door Lock
(2) Door Unlock
(3) Trunk Unlock
(4) Panic
Locking your vehicle
To lock your vehicle:
1. Make sure all doors, the engine hood and the trunk are closed.
2. Press the Door Lock button (1) on the remote key to lock all doors.
3. The doors will lock and the hazard warning lights will blink.
4. Make sure the doors are locked by
checking the position of the door lock
button inside the vehicle.
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
To unlock your vehicle:
1. Press the Door Unlock button (2) on the remote key.
2. The driver’s door will unlock. The hazard warning lights will blink two times.
• Two press unlock setting:
If you press the Door Unlock button
on the remote key again within
four seconds, then all the doors will unlock.
Two press unlock setting can be
changed according to owner’s
preference in the cluster User Settings mode.
• User settings mode method:
Select or deselect the ‘Two Press
Unlock’ feature in the User Settings
mode on the cluster LCD display (User
Settings → Door → Two Press Unlock).
Information
After unlocking the doors, the doors will
automatically relock after 30 seconds
unless a door is opened.
Accessing Your Vehicle

05
5-5
Trunk unlocking
To unlock the trunk :
1. Press and hold the Trunk Unlock button (3) on the remote key for more than one second.
2. The hazard warning lights will blink two times and the trunk will be
unlocked.
3. Once the trunk is opened and then closed, the trunk will automatically lock.
Information
The word “HOLD” is written on the
button to inform you that you must press
and hold the button for more than one second.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights flash for about 30 seconds.
To cancel the panic mode, press any
button on the remote key.
Start-up
For information, refer to the “Key
Ignition Switch” section in chapter 6.
NOTICE
To prevent damaging the remote key: • Keep the remote key away from
water or any liquid and fire. Internal
circuits may malfunction if the inside
of the remote key gets damp (from
liquids or moisture) or if it is heated.
This can exclude the remote key from
being covered under warranty.
• Avoid dropping or throwing the
remote key.
• Protect the remote key from extreme
temperatures. Mechanical key
OIG046004
If the remote key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To unfold the mechanical key, press the
release button on the remote.
To return the key to its stored position,
press the release button and fold the key
back into the remote.
Remote key precautions
The remote key will not work if any of the
following occur: • The key is in the ignition switch.
• You exceed the operating distance
limit (about 30 m [90 feet]).
• The remote key battery is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.
If the remote key does not work
correctly, open and close the door
with the mechanical key. If you have a
problem with the remote key contact an
authorized HYUNDAI dealer.
