2022 HYUNDAI ELANTRA HYBRID Owners Manual

Maintenance
9-48

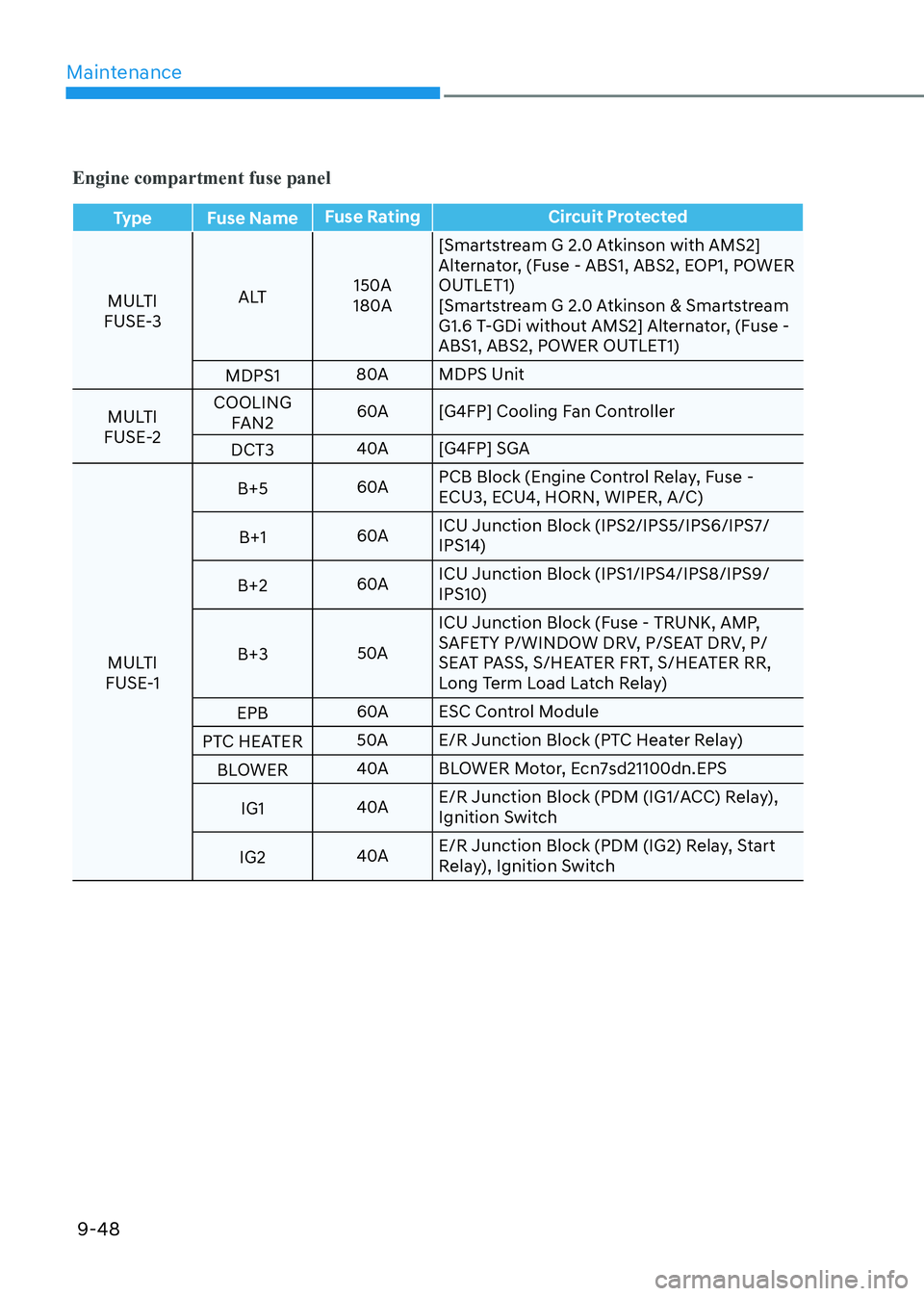

Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-3 ALT
150A
180A [Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS1 80A MDPS Unit
MULTI
FUSE-2 COOLING
FAN2 60A [G4FP] Cooling Fan Controller
DCT3 40A [G4FP] SGA
MULTI
FUSE-1 B+5
60APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+1 60AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+2 60AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+3 50AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB 60A ESC Control Module
PTC HEATER 50A E/R Junction Block (PTC Heater Relay)
BLOWER 40A BLOWER Motor, Ecn7sd21100dn.EPS
IG1 40AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG2 40AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch

09
9-49

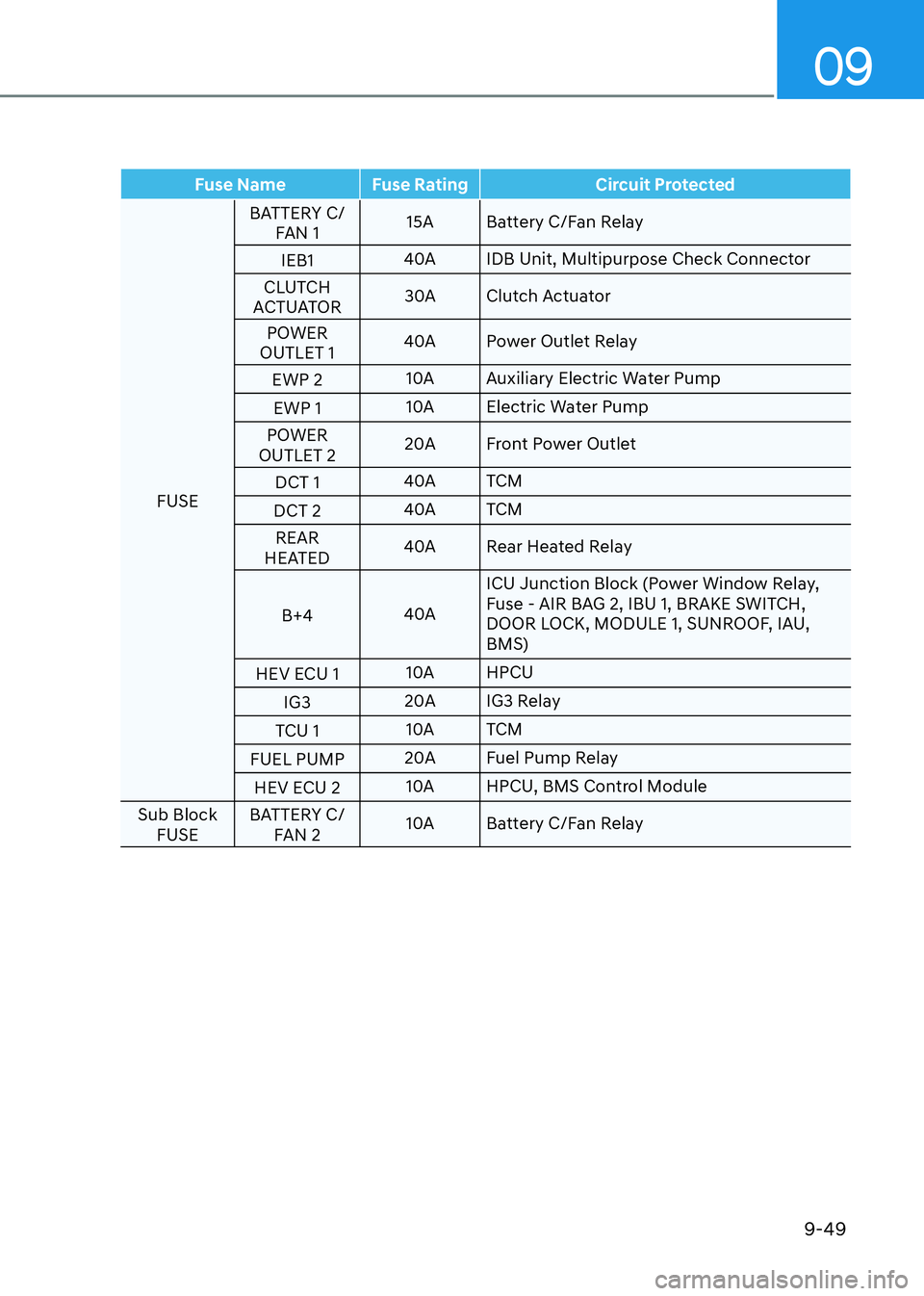

Fuse Name Fuse Rating Circuit Protected
FUSEBATTERY C/
FAN 1 15A Battery C/Fan Relay
IEB1 40A IDB Unit, Multipurpose Check Connector
CLUTCH
ACTUATOR 30A Clutch Actuator
POWER
OUTLET 1 40A Power Outlet Relay
EWP 2 10A Auxiliary Electric Water Pump
EWP 1 10A Electric Water Pump
POWER
OUTLET 2 20A Front Power Outlet
DCT 1 40A TCM
DCT 2 40A TCM
REAR
HEATED 40A Rear Heated Relay
B+4 40AICU Junction Block (Power Window Relay,
Fuse - AIR BAG 2, IBU 1, BRAKE SWITCH,
DOOR LOCK, MODULE 1, SUNROOF, IAU, BMS)
HEV ECU 1 10A HPCU
IG3 20A IG3 Relay
TCU 1 10A TCM
FUEL PUMP 20A Fuel Pump Relay
HEV ECU 2 10A HPCU, BMS Control Module
Sub Block FUSE BATTERY C/
FAN 2 10A Battery C/Fan Relay

Maintenance
9-50
Fuse NameFuse Rating Circuit Protected
WIPER
25A Wiper Relay
HORN 15A Horn Relay
IGN COIL 20A Ignition Coil #1~#4
ECU 2 15A ECM
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
SENSOR 2 10ACamshaft Position Sensor #1/#2 (Intake/Exhaust), Mass
Air Flow Sensor, ELCM, Oil Control Valve #1/#2 (Intake/
Exhaust), Purge Control Solenoid Valve
ECU 3 10A ECM, HPCU, Clutch Actuator
SENSOR 1 15A Oxygen Sensor (Up/Down)
IEB 4 10A IDB Unit, Multipurpose Check Connector
EWP 3 10A Auxiliary Electric Water Pump
ECU 1 20A ECM
TCU 2 15A Transaxle Range Switch, TCM

09
9-51
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle inspected by an authorized HYUNDAI
dealer.
WARNING

Maintenance
9-52

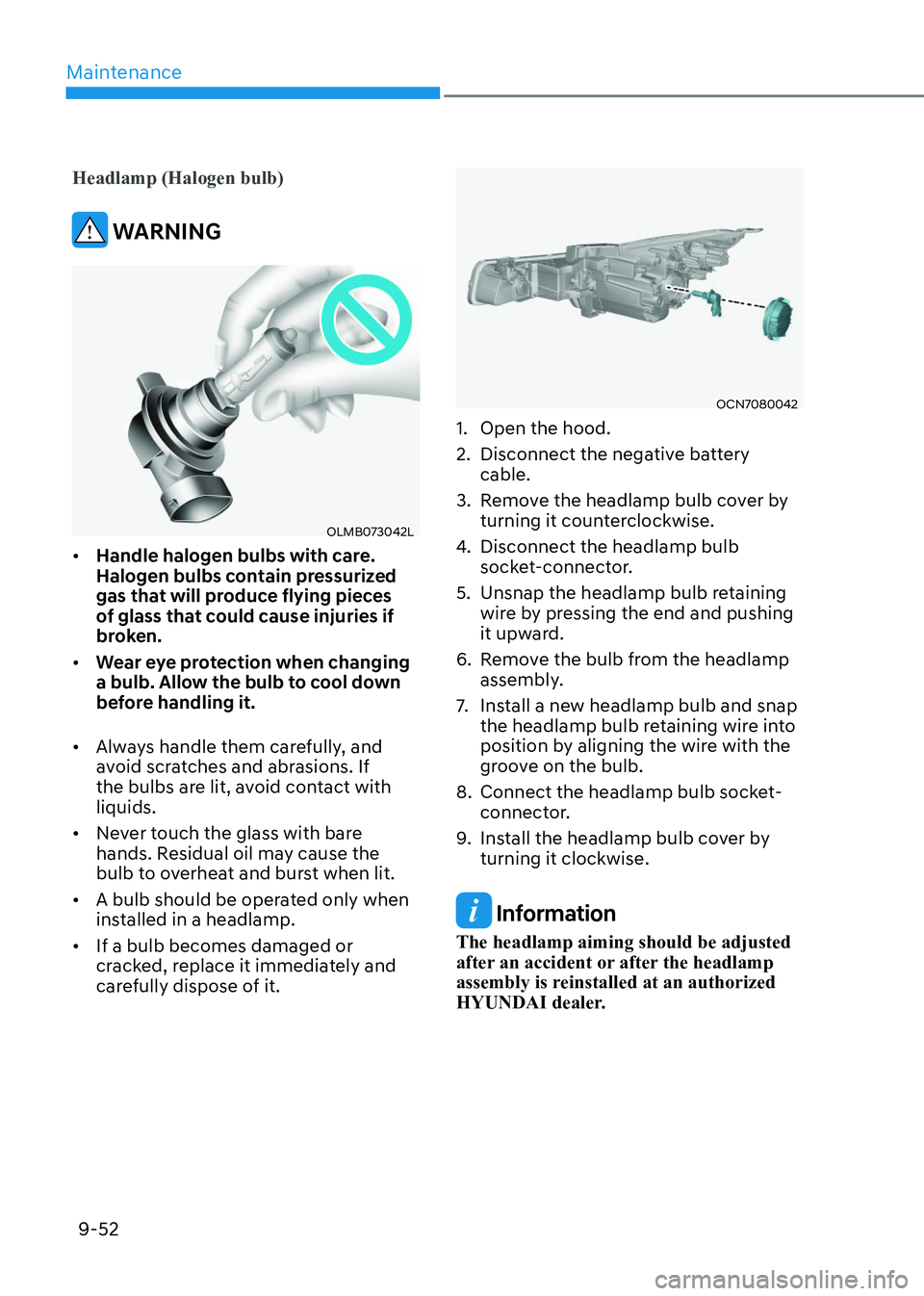

Headlamp (Halogen bulb)
WARNING
OLMB073042LOLMB073042L

09
9-53

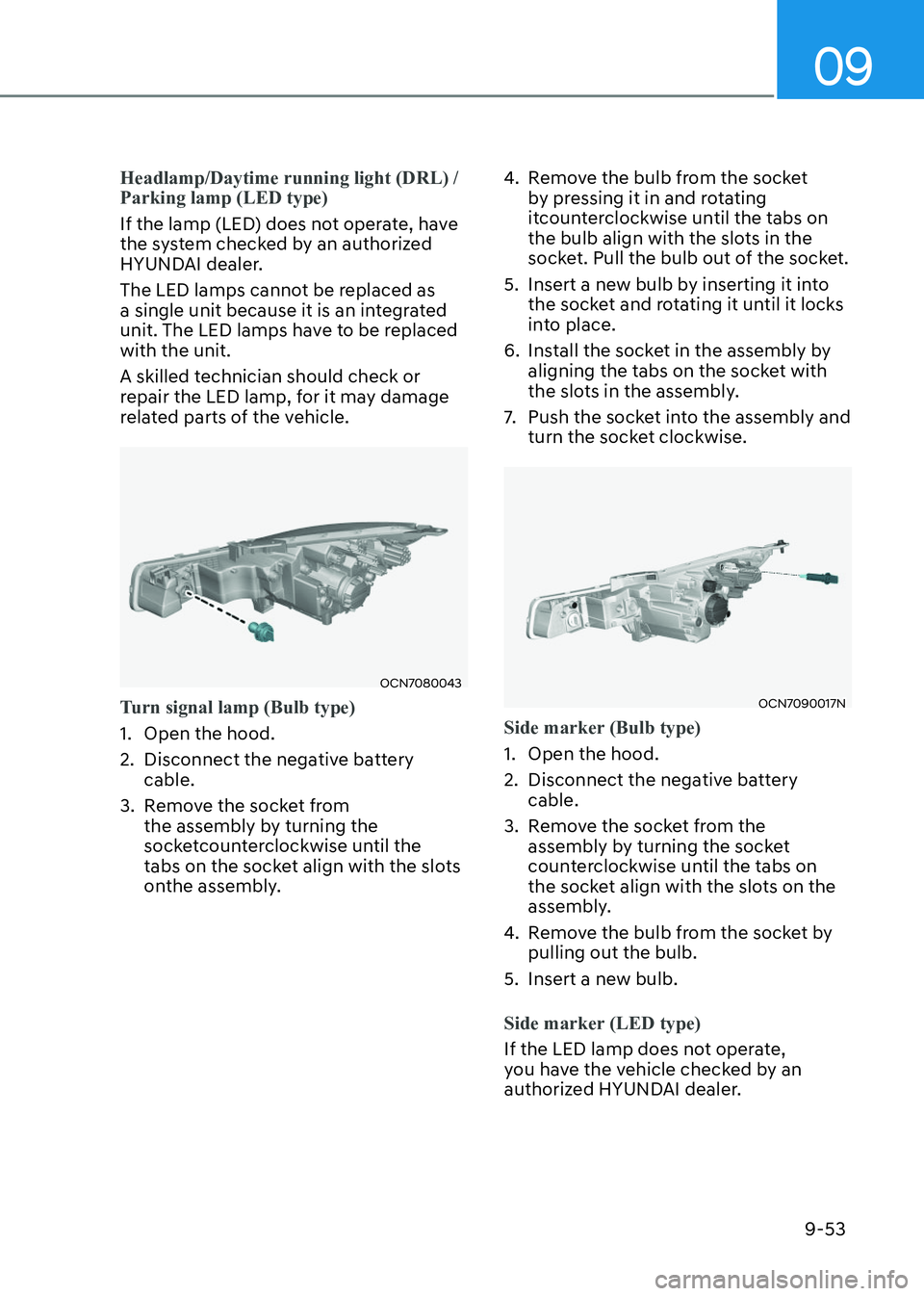

Headlamp/Daytime running light (DRL) / Parking lamp (LED type)
If the lamp (LED) does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
OCN7080043OCN7080043
Turn signal lamp (Bulb type)
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assembly by turning the
socketcounterclockwise until the
tabs on the socket align with the slots
onthe assembly. 4. Remove the bulb from the socket
by pressing it in and rotating
itcounterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
OCN7090017NOCN7090017N
Side marker (Bulb type)
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Side marker (LED type)
If the LED lamp does not operate,
you have the vehicle checked by an
authorized HYUNDAI dealer.

Maintenance
9-54

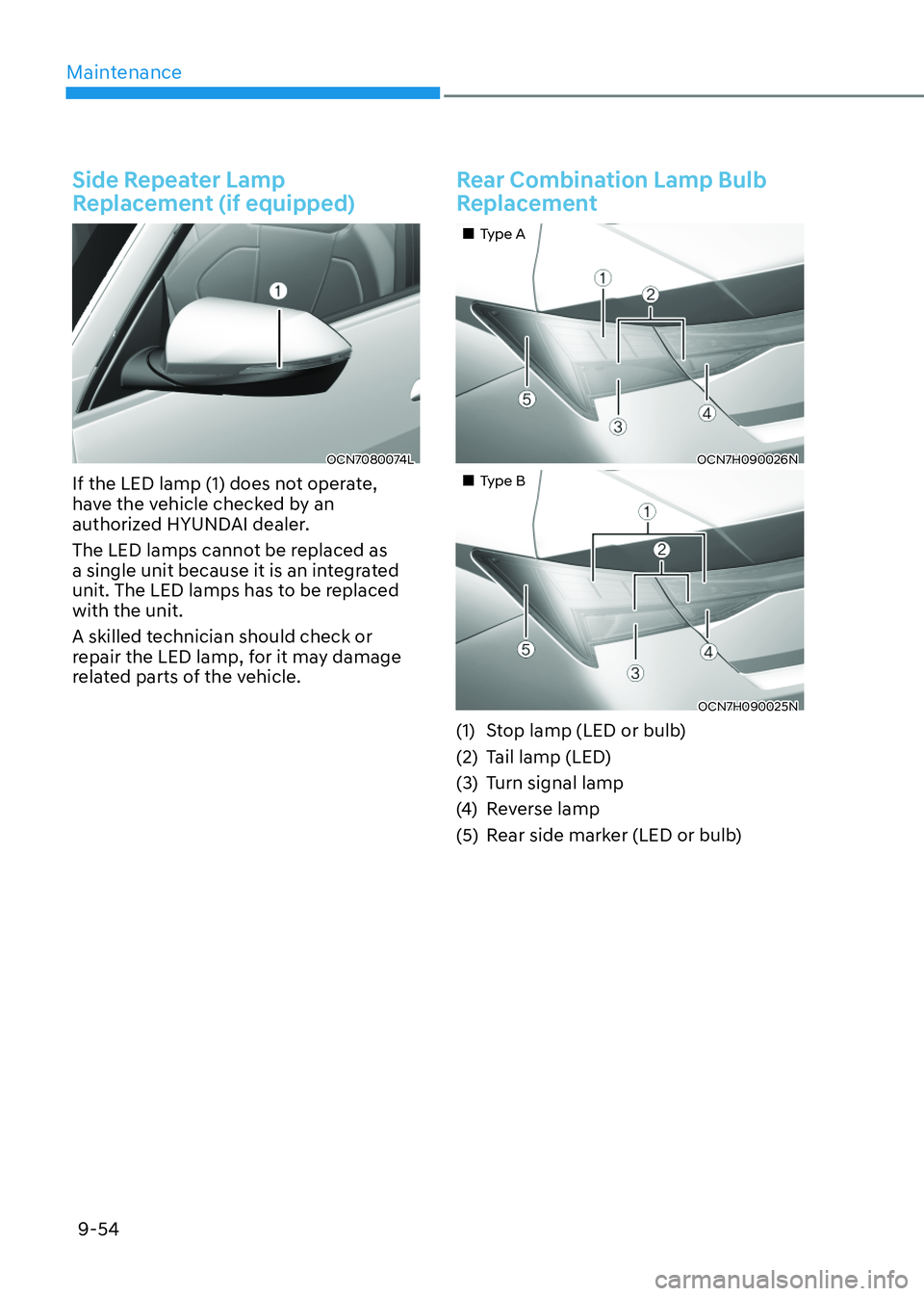

Side Repeater Lamp
Replacement (if equipped)
OCN7080074LOCN7080074L
If the LED lamp (1) does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp Bulb
Replacement
Type AType A
OCN7H090026NOCN7H090026N
Type BType B
OCN7H090025NOCN7H090025N
(1) Stop lamp (LED or bulb)
(2) Tail lamp (LED)
(3) Turn signal lamp
(4) Reverse lamp
(5) Rear side marker (LED or bulb)

09
9-55

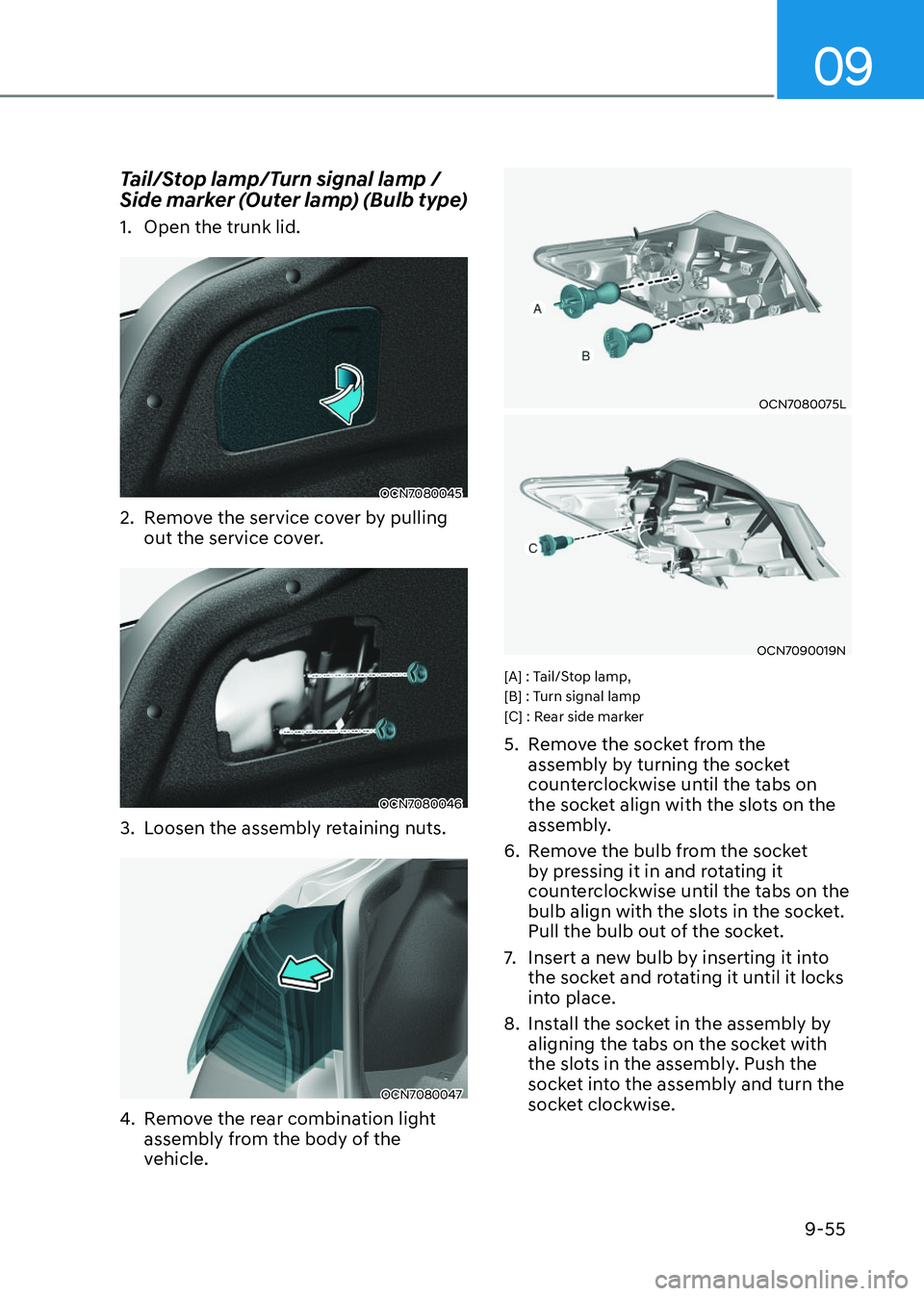

Tail/Stop lamp/Turn signal lamp /
Side marker (Outer lamp) (Bulb type)
1. Open the trunk lid.
OCN7080045OCN7080045
2. Remove the service cover by pulling out the service cover.
OCN7080046OCN7080046
3. Loosen the assembly retaining nuts.
OCN7080047OCN7080047
4. Remove the rear combination light assembly from the body of the
vehicle.
OCN7080075LOCN7080075L
OCN7090019NOCN7090019N
[A] : Tail/Stop lamp,
[B] : Turn signal lamp
[C] : Rear side marker
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
