2022 HYUNDAI ELANTRA HYBRID Owners Manual

Driver Assistance System
7-64
Turning off Cruise Control
OCN7060060
[A] : Type A, [B] : Type B
Press the Driving Assist button to turn
Cruise Control off. The Cruise (
)
indicator will go off.
Always press the Driving Assist button to
turn Cruise Control off when not in use.
WARNINg
Take the following precautions when
using Cruise Control: • Always set the vehicle speed under
the speed limit in your region.
• Keep Cruise Control off when
the system is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.
• Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.
• Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
• Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)

07
7-65
Smart Cruise Control is designed to
help detect the vehicle ahead and
help maintain the desired speed and
minimum distance between the vehicle ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if the system judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Detecting senor
OCN7061030L
OCN7060029
[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera and
front radar in good and clean condition
to maintain optimal performance of
Smart Cruise Control.
for more details on the precautions of
the front view camera and front radar,
refer to “forward Collision-Avoidance
Assist (fCA)” section in chapter 7.
smart Cruise Control (sCC) (iF equipped)

Driver Assistance System

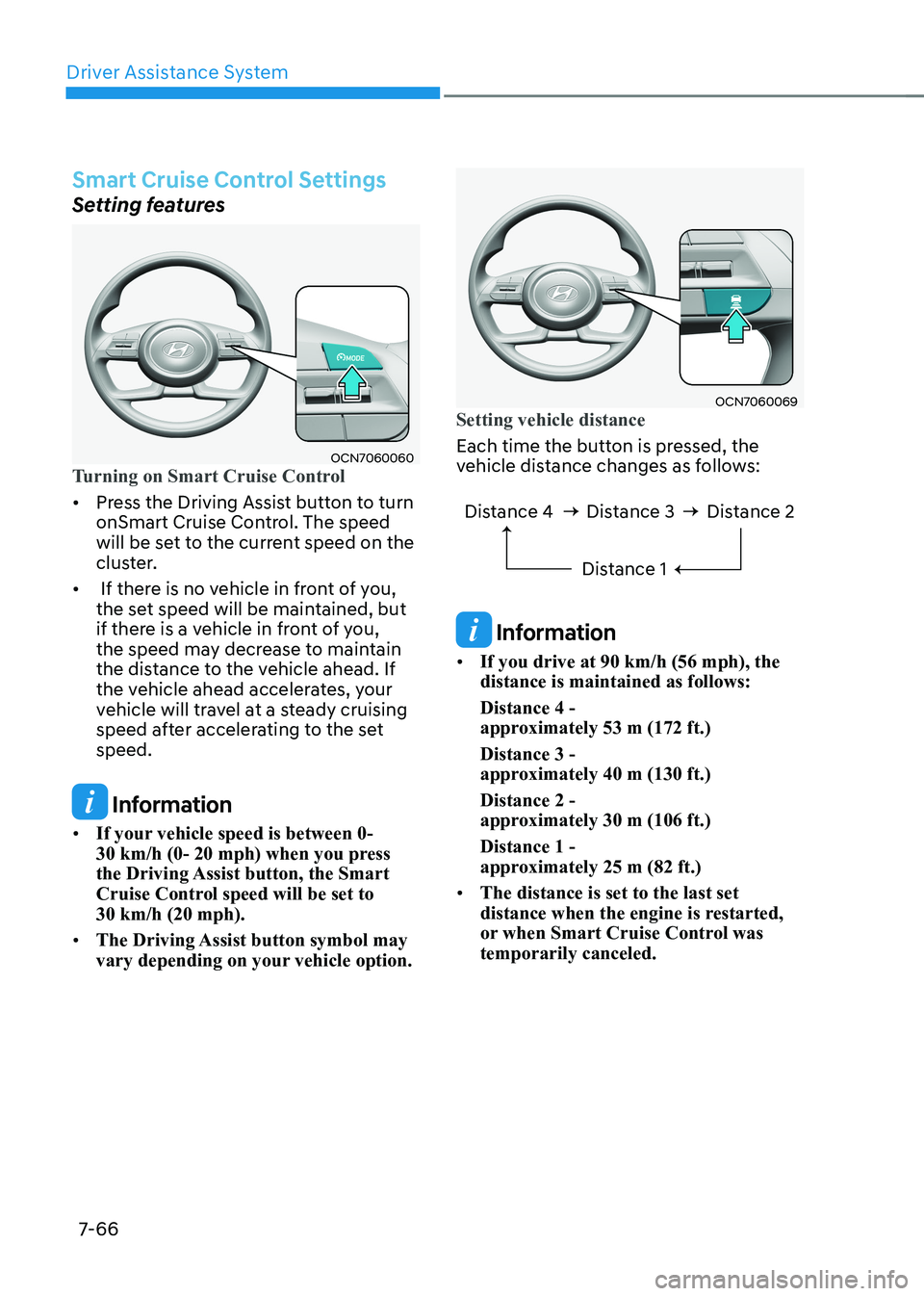

7-66
Smart Cruise Control Settings
Setting features
OCN7060060Turning on Smart Cruise Control
• Press the Driving Assist button to turn
onSmart Cruise Control. The speed
will be set to the current speed on the
cluster.
• If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set speed.
Information
• If your vehicle speed is between 0-
30 km/h (0- 20 mph) when you press
the Driving Assist button, the Smart
Cruise Control speed will be set to 30 km/h (20 mph).
• The Driving Assist button symbol may
vary depending on your vehicle option.
OCN7060069Setting vehicle distance
Each time the button is pressed, the
vehicle distance changes as follows:
Distance 4 Distance 3
Distance 1Distance 2
Information
• If you drive at 90 km/h (56 mph), the distance is maintained as follows: Distance 4 -
approximately 53 m (172 ft.) Distance 3 -
approximately 40 m (130 ft.) Distance 2 -
approximately 30 m (106 ft.) Distance 1 -
approximately 25 m (82 ft.)
• The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was temporarily canceled.

07

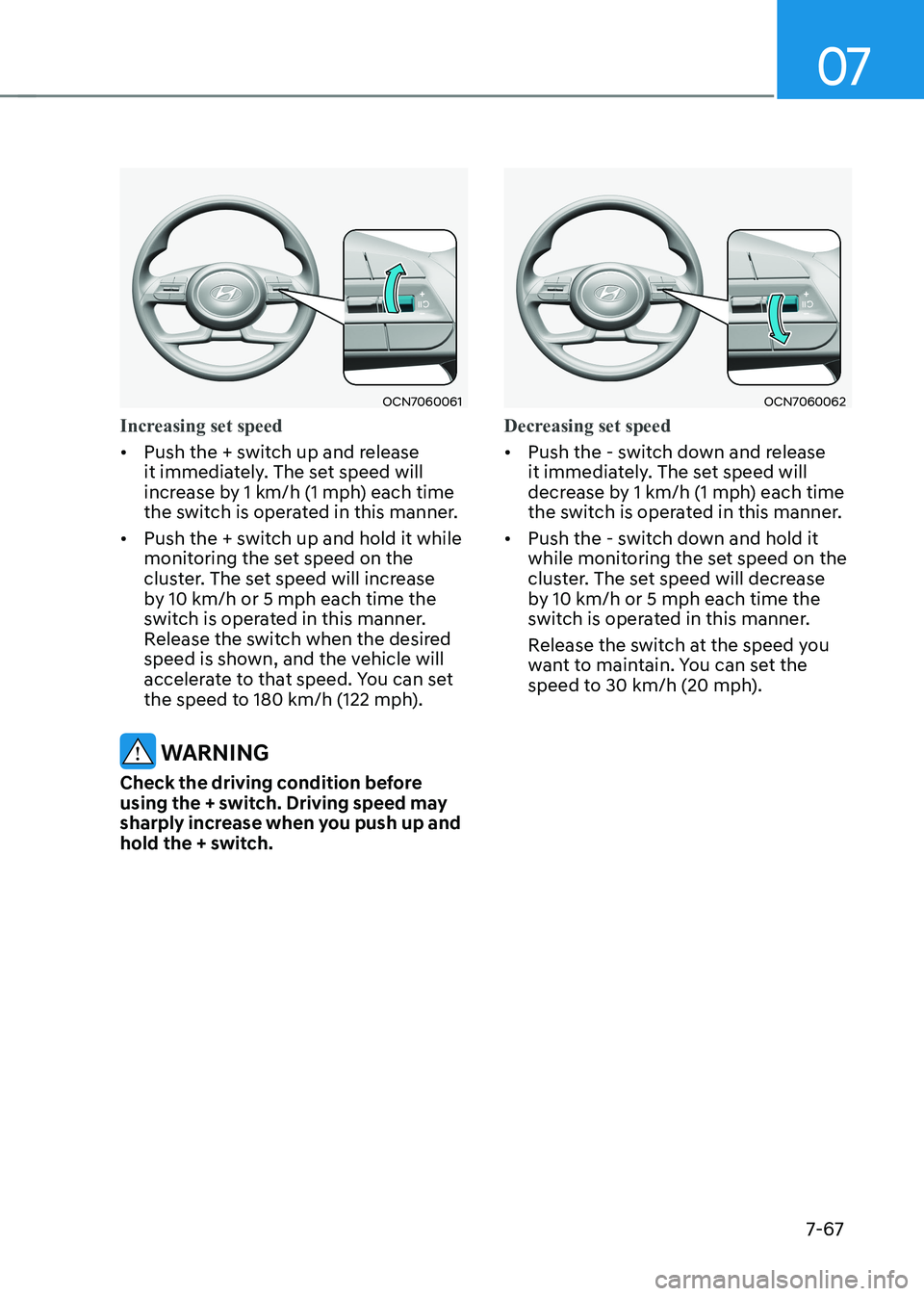

7-67
OCN7060061
Increasing set speed
• Push the + switch up and release
it immediately. The set speed will
increase by 1 km/h (1 mph) each time
the switch is operated in this manner.
• Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase
by 10 km/h or 5 mph each time the
switch is operated in this manner.
Release the switch when the desired
speed is shown, and the vehicle will
accelerate to that speed. You can set
the speed to 180 km/h (122 mph).
WARNINg
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OCN7060062
Decreasing set speed
• Push the - switch down and release
it immediately. The set speed will
decrease by 1 km/h (1 mph) each time
the switch is operated in this manner.
• Push the - switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease
by 10 km/h or 5 mph each time the
switch is operated in this manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 30 km/h (20 mph).

Driver Assistance System

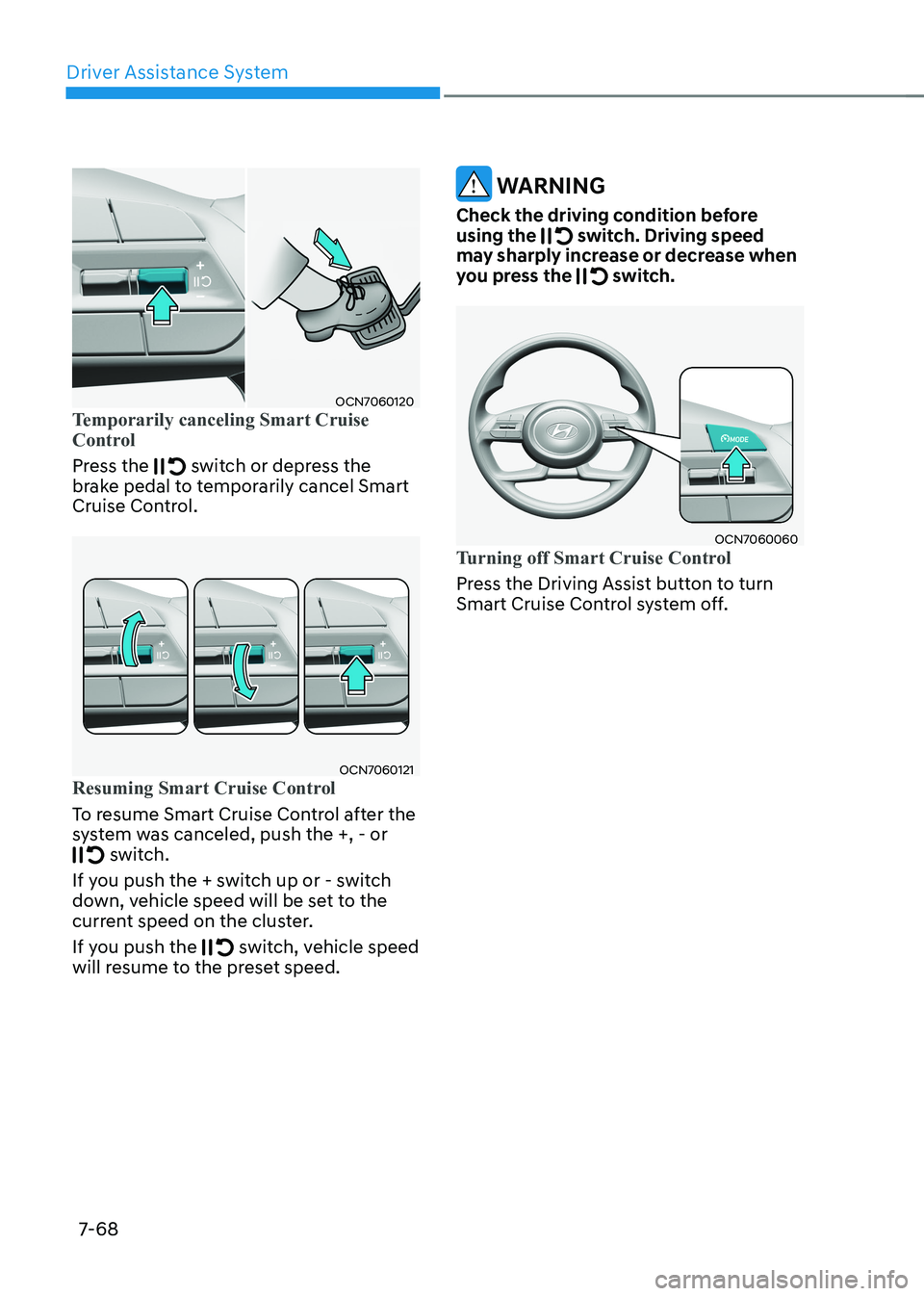

7-68
OCN7060120Temporarily canceling Smart Cruise
Control
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OCN7060121Resuming Smart Cruise Control
To resume Smart Cruise Control after the
system was canceled, push the +, - or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
WARNINg
Check the driving condition before using the
switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OCN7060060Turning off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Control system off.

07

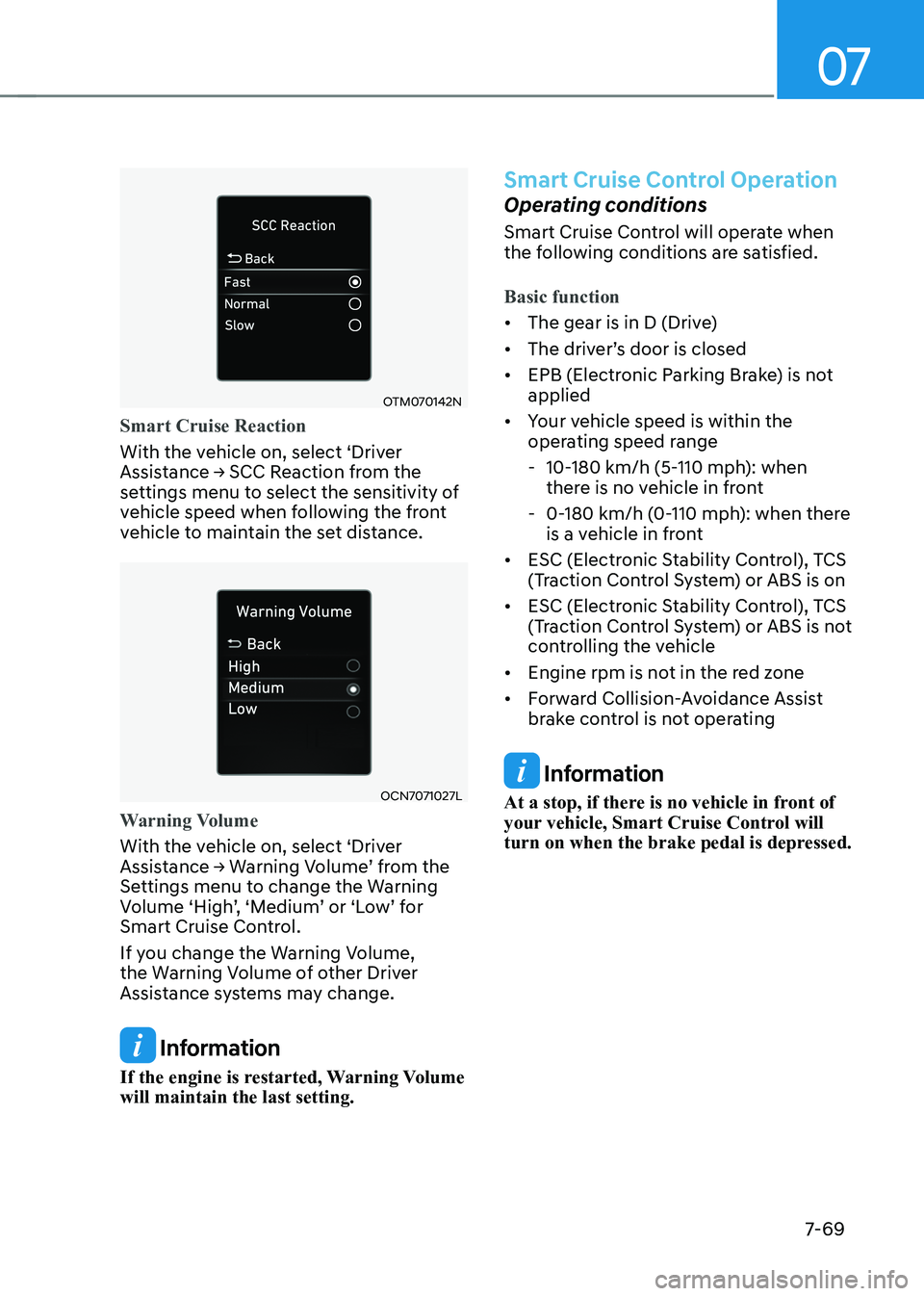

7-69
OTM070142N
Smart Cruise Reaction
With the vehicle on, select ‘Driver
Assistance → SCC Reaction from the
settings menu to select the sensitivity of
vehicle speed when following the front
vehicle to maintain the set distance.
OCN7071027L
Warning Volume
With the vehicle on, select ‘Driver
Assistance → Warning Volume’ from the
Settings menu to change the Warning
Volume ‘High’, ‘Medium’ or ‘Low’ for
Smart Cruise Control.
If you change the Warning Volume,
the Warning Volume of other Driver
Assistance systems may change.
Information
If the engine is restarted, Warning Volume will maintain the last setting.
Smart Cruise Control Operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function
• The gear is in D (Drive)
• The driver’s door is closed • EPB (Electronic Parking Brake) is not applied
• Your vehicle speed is within the
operating speed range
- 10-180 km/h (5-110 mph): when there is no vehicle in front
- 0-180 km/h (0-110 mph): when there is a vehicle in front
• ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is on
• ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is not
controlling the vehicle
• Engine rpm is not in the red zone
• Forward Collision-Avoidance Assist
brake control is not operating
Information
At a stop, if there is no vehicle in front of
your vehicle, Smart Cruise Control will
turn on when the brake pedal is depressed.

Driver Assistance System

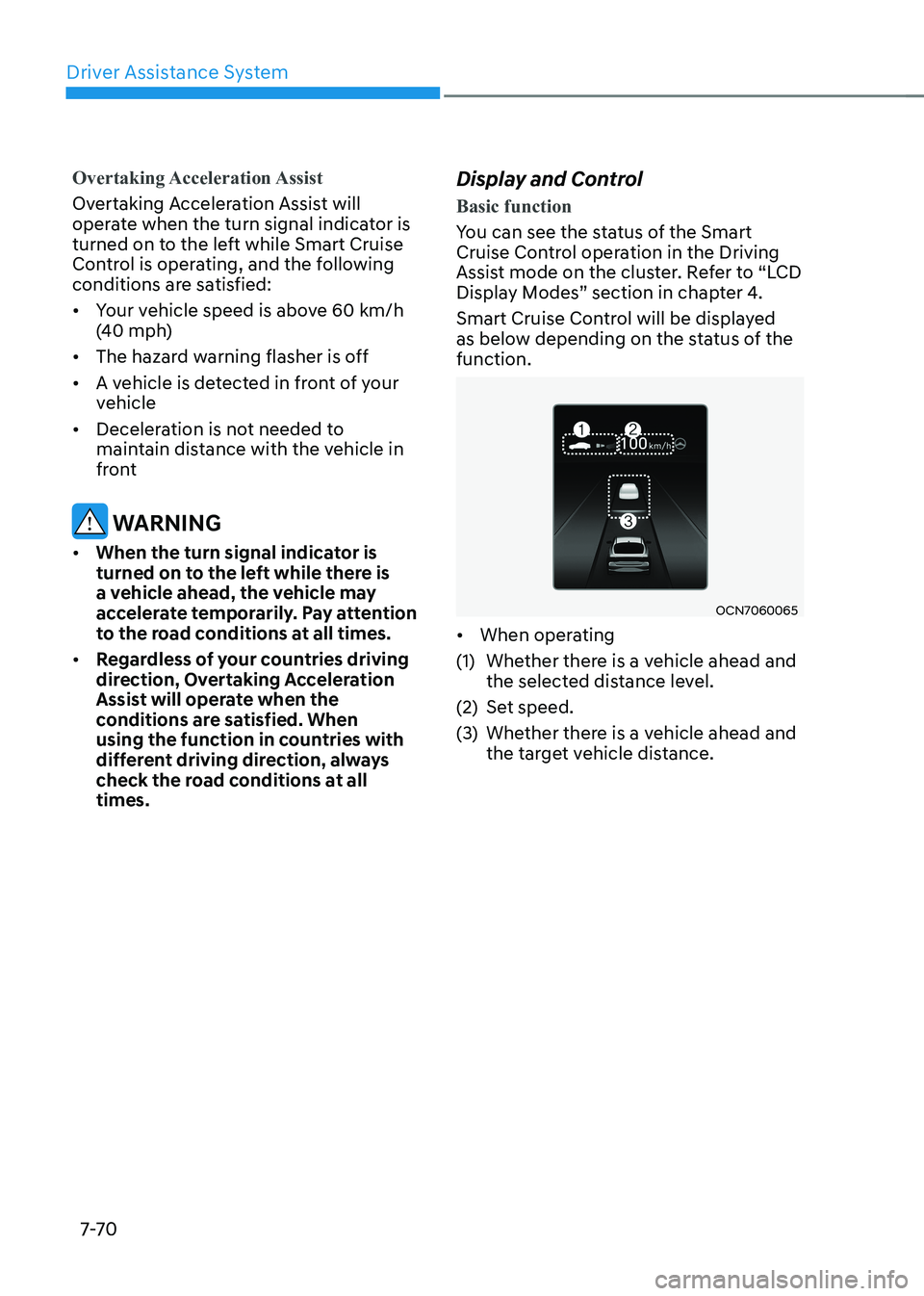

7-7 0
Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator is
turned on to the left while Smart Cruise
Control is operating, and the following
conditions are satisfied: • Your vehicle speed is above 60 km/h
(40 mph)
• The hazard warning flasher is off
• A vehicle is detected in front of your
vehicle
• Deceleration is not needed to
maintain distance with the vehicle in
front
WARNINg
• When the turn signal indicator is
turned on to the left while there is
a vehicle ahead, the vehicle may
accelerate temporarily. Pay attention
to the road conditions at all times.
• Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all times. Display and Control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the function.
OCN7060065
• When operating
(1) Whether there is a vehicle ahead and the selected distance level.
(2) Set speed.
(3) Whether there is a vehicle ahead and the target vehicle distance.

07

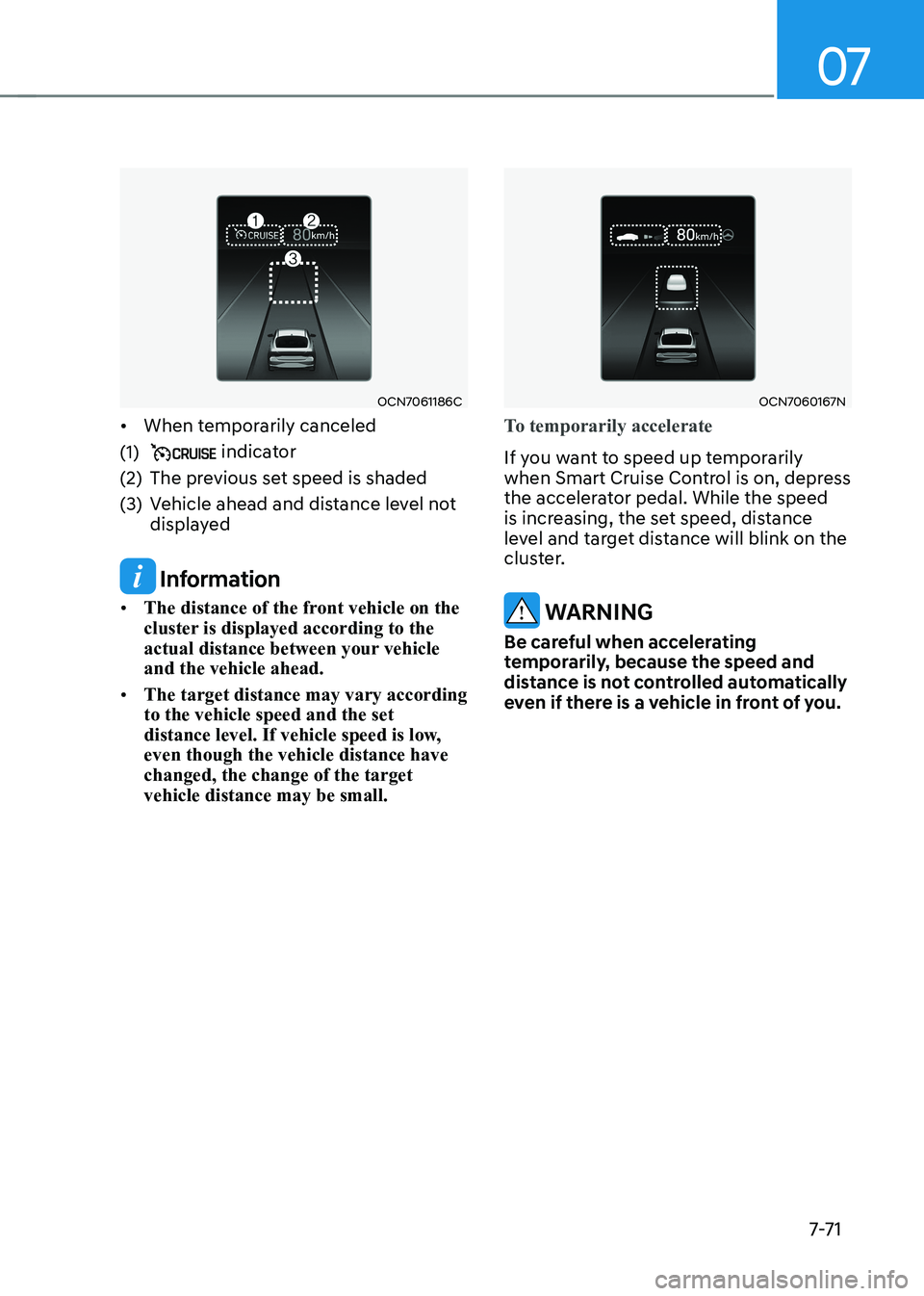

7-7 1
OCN7061186C
• When temporarily canceled
(1)
indicator
(2) The previous set speed is shaded
(3) Vehicle ahead and distance level not displayed
Information
• The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle and the vehicle ahead.
• The target distance may vary according to the vehicle speed and the set
distance level. If vehicle speed is low, even though the vehicle distance have changed, the change of the target vehicle distance may be small.
OCN7060167N
To temporarily accelerate
If you want to speed up temporarily
when Smart Cruise Control is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNINg
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.
