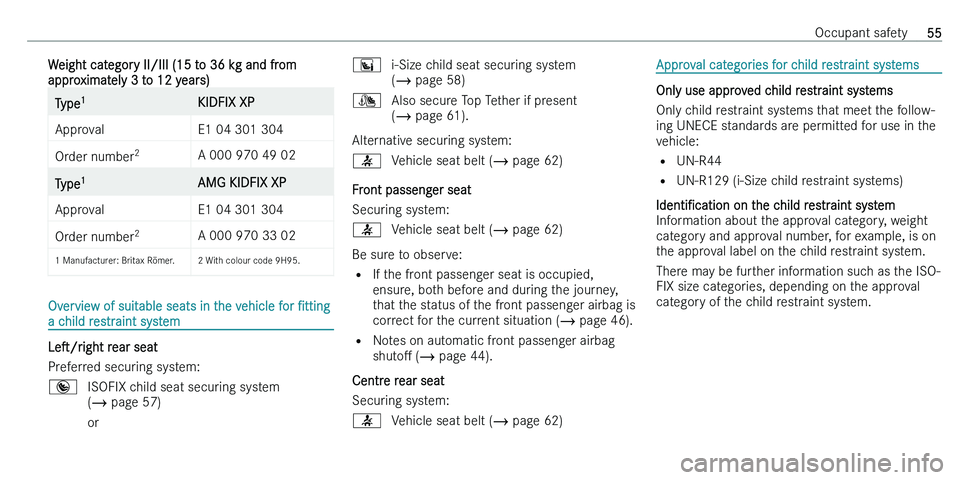

Weight category II/III (15 to 36 kg and fromapproximately 3 to 12 years)Type 1KIDFIX XPApprovalE1 04 301 304Order number 2A 000 970 49 02Type1AMG KIDFIX XPApprovalE1 04 301 304Order number 2A 000 970 33 021 Manufacturer: Britax R

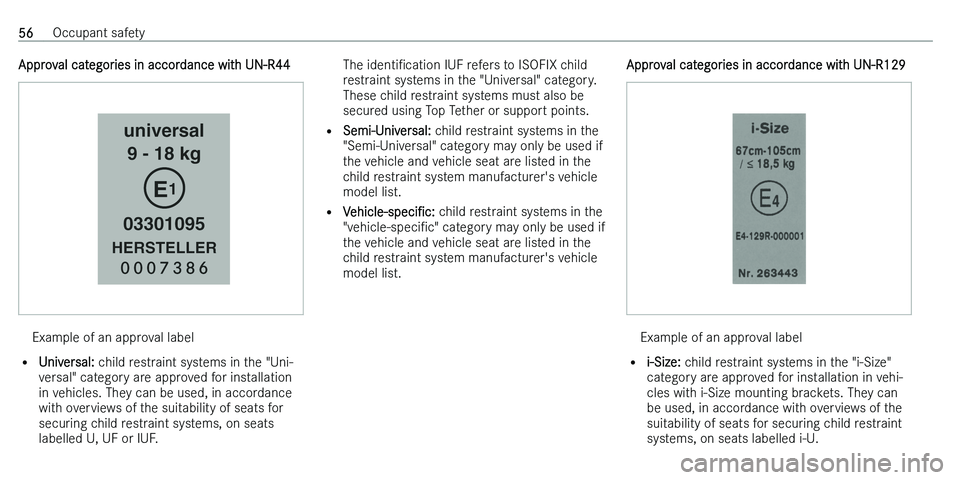

Approval categories in accordance with UN-R44Example of an approval label
=Universal: child restraint systems in the "Uni-
versal" category are approved for installation
in vehicles. They can be used, in accordance
with overviews of the suitability of seats for
securing child restraint systems, on seats labelled U, UF or IUF.
The identiNcation IUF refers to ISOFIX child
restraint systems in the "Universal" category.
These child restraint systems must also be secured using Top Tether or support points.
= Semi-Universal: child restraint systems in the
"Semi-Universal" category may only be used if
the vehicle and vehicle seat are listed in the child restraint system manufacturer's vehicle
model list.
= Vehicle-speciNc child restraint systems in the
vehicle-speciNc category may only be used if
the vehicle and vehicle seat are listed in the child restraint system manufacturer's vehicle
model list.Approval categories in accordance with UN-R129Example of an approval label
= i!äSize: child restraint systems in the "i!äSize"
category are approved for installation in vehi-
cles with i!äSize mounting brackets. They can be used, in accordance with overviews of the suitability of seats for securing child restraint
systems, on seats labelled i!äU.
56Occupant safety

The identiNcation i!äU refers to i!äSize child
restraint systems in the "Universal" category.
These child restraint systems must also be
secured using Top Tether or support points.
Observe the suitability of vehicle seats
Depending on the approval category, there are
forward-facing and rearward-facing child restraint systems. Their use can be restricted for certain
vehicle seats:
= Suitability of seats for attaching ISOFIX child
restraint systems (  page 57)
= Suitability of seats for securing i!äSize child
restraint systems (  page 58).
= Suitability of seats for attaching belt-secured
child restraint systems (  page 62)Fitting an ISOFIX or i-Size child restraint system
on the rear seat

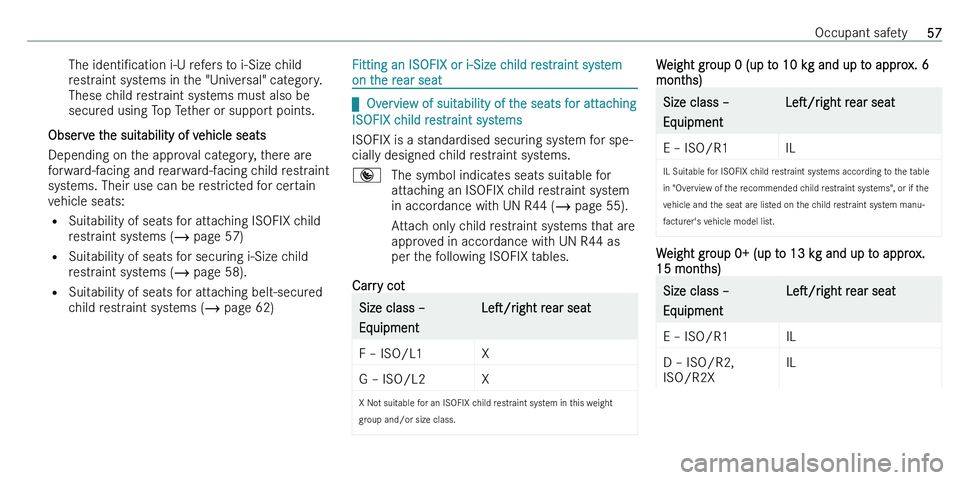

q Overview of suitability of the seats for attaching
ISOFIX child restraint systems
ISOFIX is a standardised securing system for spe-
cially designed child restraint systems.
®The symbol indicates seats suitable for
attaching an ISOFIX child restraint system in accordance with UN R44 (  page 55).
Attach only child restraint systems that are approved in accordance with UN R44 as per the following ISOFIX tables.
Carry cot
Size class !

Size class !

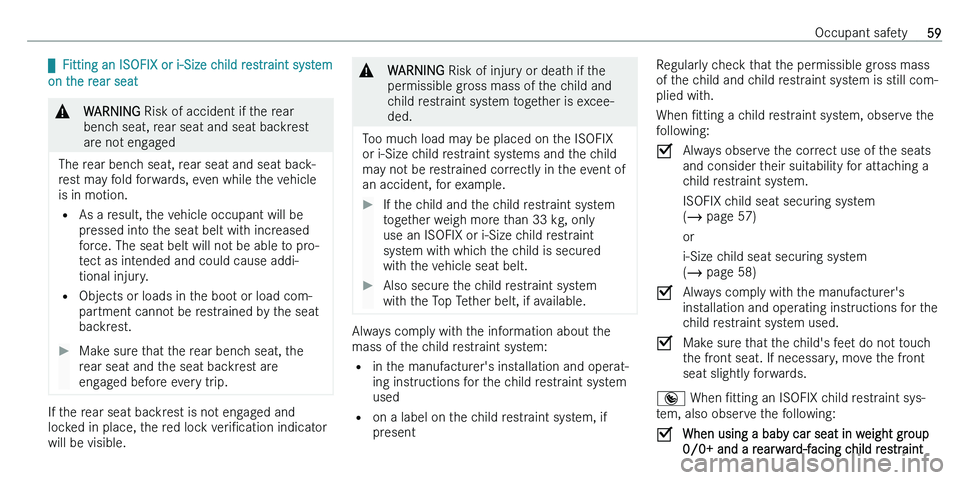

qFitting an ISOFIX or i!äSize child restraint system
on the rear seat&WARNING Risk of accident if the rear
bench seat, rear seat and seat backrest
are not engaged
The rear bench seat, rear seat and seat back-
rest may fold forwards, even while the vehicle
is in motion.
= As a result, the vehicle occupant will be
pressed into the seat belt with increased
force. The seat belt will not be able to pro- tect as intended and could cause addi-
tional injury.
= Objects or loads in the boot or load com-
partment cannot be restrained by the seat backrest.
Make sure that the rear bench seat, therear seat and the seat backrest are engaged before every trip.If the rear seat backrest is not engaged and
locked in place, the red lock veriNcation indicator
will be visible.&WARNING Risk of injury or death if the
permissible gross mass of the child and
child restraint system together is excee-
ded.
Too much load may be placed on the ISOFIX
or i!äSize child restraint systems and the child may not be restrained correctly in the event ofan accident, for example.
If the child and the child restraint systemtogether weigh more than 33 kg, only
use an ISOFIX or i!äSize child restraint system with which the child is secured
with the vehicle seat belt.Also secure the child restraint system
with the Top Tether belt, if available.Always comply with the information about the
mass of the child restraint system:
= in the manufacturer's installation and operat-
ing instructions for the child restraint system used
= on a label on the child restraint system, if
presentRegularly check that the permissible gross mass
of the child and child restraint system is still com- plied with.
When Ntting a child restraint system, observe the
following:0073Always observe the correct use of the seats and consider their suitability for attaching achild restraint system.
ISOFIX child seat securing system
(  page 57)
or
i!äSize child seat securing system
(  page 58)0073Always comply with the manufacturer's
installation and operating instructions for the
child restraint system used.0073Make sure that the child's feet do not touch the front seat. If necessary, move the front
seat slightly forwards.
® When Ntting an ISOFIX child restraint sys-
tem, also observe the following:
0073When using a baby car seat in weight group
0/0+ and a rearward-facing child restraint Occupant safety59

system in weight group 1 on a rear seat: adjust the front seat so that the seat does
not touch the child restraint system.0073When using a forward-facing child restraint
system in weight group 1: remove the head
restraint from the respective seat, if possible. In addition, the backrest of the child restraintsystem must lie as Oat as possible against
the backrest of the vehicle seat.
Aser the child restraint system has been
removed, replace the head restraints again immediately and adjust them correctly.0073If the head restraint of the child seat cannot
be fully extended when it is installed in the vehicle, this will result in restrictions on themaximum size setting for child restraint sys- tems in weight category II or III.
Contact with the roof when the head restraint is fully extended and locked in place
will not result in any restrictions on use.0073The child restraint system must not be put under strain between the roof and the seat
cushion and/or be Ntted facing the wrongdirection. Where possible, adjust the seat
cushion inclination accordingly.0073The child restraint system must not be put under strain by the head restraint. Adjust the head restraints as appropriate.
° When Ntting an i!äSize child restraint system,
also observe the following:
0073When using a rearward-facing child restraint
system: adjust the front seat so that it does
not touch the child restraint system.0073When using a forward-facing child restraint
system: remove the head restraint from the
respective seat, if possible. In addition, the backrest of the child restraint system must
lie as Oat as possible against the backrest of
the vehicle seat.
Aser the child restraint system has been

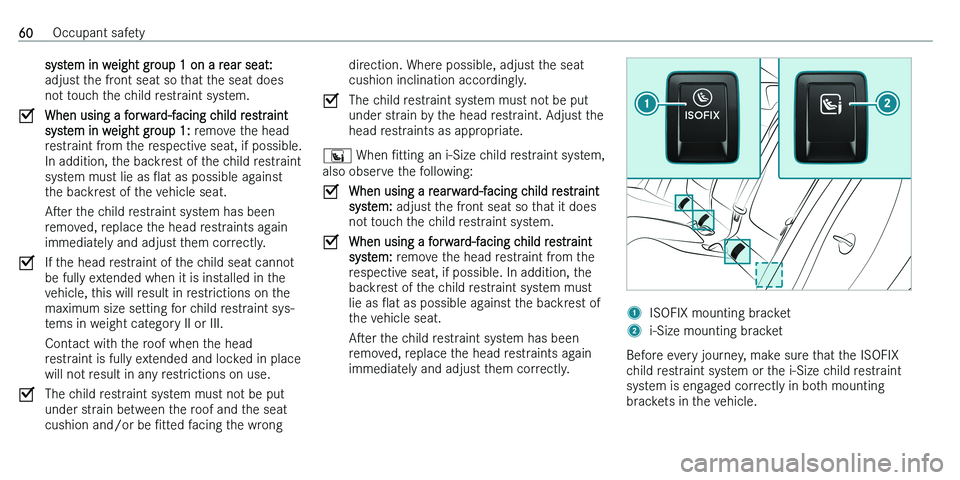

removed, replace the head restraints again immediately and adjust them correctly.1ISOFIX mounting bracket2i!äSize mounting bracket
Before every journey, make sure that the ISOFIXchild restraint system or the i!äSize child restraint
system is engaged correctly in both mounting
brackets in the vehicle.
60Occupant safety

*NOTE Damage to the seat belt for the
centre seat during installation of the child
restraint systemMake sure that the seat belt is not trap-
ped.Attach the ISOFIX or i!äSize child restraint sys- tem to both mounting brackets in the vehicle.

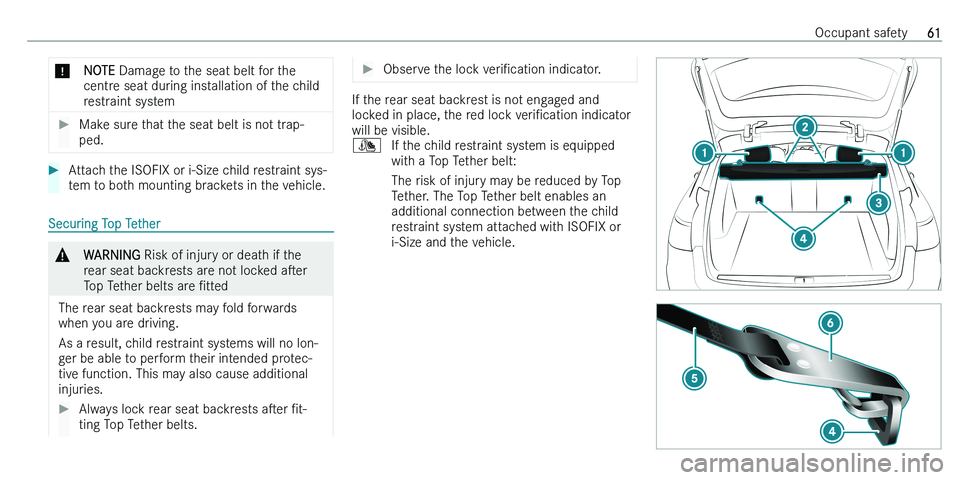

Securing Top Tether
&WARNING Risk of injury or death if the
rear seat backrests are not locked aser
Top Tether belts are Ntted
The rear seat backrests may fold forwards
when you are driving.
As a result, child restraint systems will no lon-
ger be able to perform their intended protec-
tive function. This may also cause additional
injuries.
Always lock rear seat backrests aser Nt-
ting Top Tether belts.Observe the lock veriNcation indicator.If the rear seat backrest is not engaged and
locked in place, the red lock veriNcation indicator
will be visible.¯If the child restraint system is equipped
with a Top Tether belt:
The risk of injury may be reduced by Top
Tether. The Top Tether belt enables an
additional connection between the child
restraint system attached with ISOFIX or
i!äSize and the vehicle.Occupant safety61

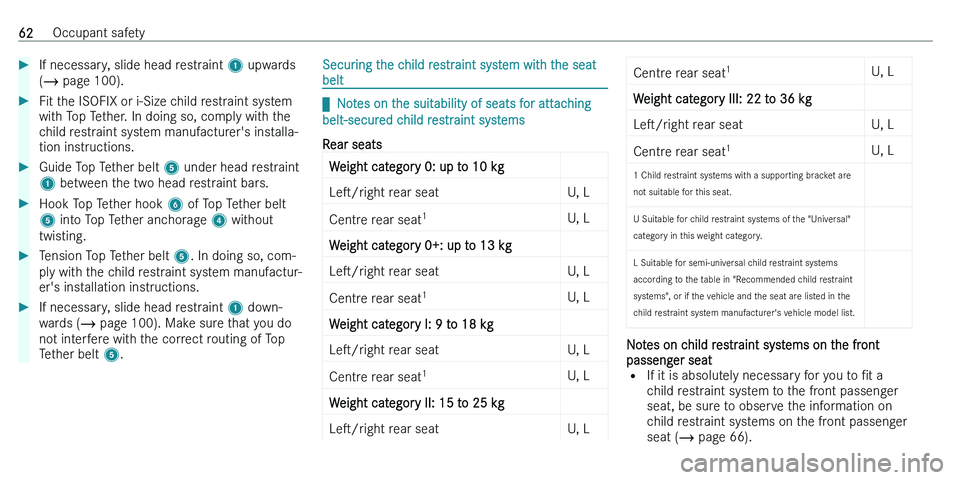

If necessary, slide head restraint 1 upwards
(  page 100).Fit the ISOFIX or i!äSize child restraint system
with Top Tether. In doing so, comply with the
child restraint system manufacturer's installa-
tion instructions.Guide Top Tether belt 5 under head restraint
1 between the two head restraint bars.Hook Top Tether hook 6 of Top Tether belt
5 into Top Tether anchorage 4 without
twisting.Tension Top Tether belt 5. In doing so, com-
ply with the child restraint system manufactur-
er's installation instructions.If necessary, slide head restraint 1 down-
wards (  page 100). Make sure that you do
not interfere with the correct routing of Top
Tether belt 5.Securing the child restraint system with the seat
belt

q Notes on the suitability of seats for attaching
belt-secured child restraint systems
Rear seats
Weight category 0: up to 10 kgLes/right rear seatU, LCentre rear seat 1U, LWeight category 0+: up to 13 kg Les/right
rear seatU, LCentre rear seat 1U, LWeight category I: 9 to 18 kgLes/right
rear seatU, LCentre rear seat 1U, LWeight category II: 15 to 25 kg Les/right
rear seatU, LCentre rear seat 1U, LWeight category III: 22 to 36 kgLes/right
rear seatU, LCentre rear seat 1U, L1 Child restraint systems with a supporting bracket are
not suitable for this seat.U Suitable for child restraint systems of the "Universal"
category in this weight category.L Suitable for semi-universal child restraint systems according to the table in "Recommended child restraint
systems", or if the vehicle and the seat are listed in the
child restraint system manufacturer's vehicle model list.
Notes on child restraint systems on the front passenger seat = If it is absolutely necessary for you to Nt a
child restraint system to the front passenger
seat, be sure to observe the information on
child restraint systems on the front passenger
seat (  page 66).
