2020 TOYOTA PRIUS PRIME Owners Manual (in English)

641
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

642
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance

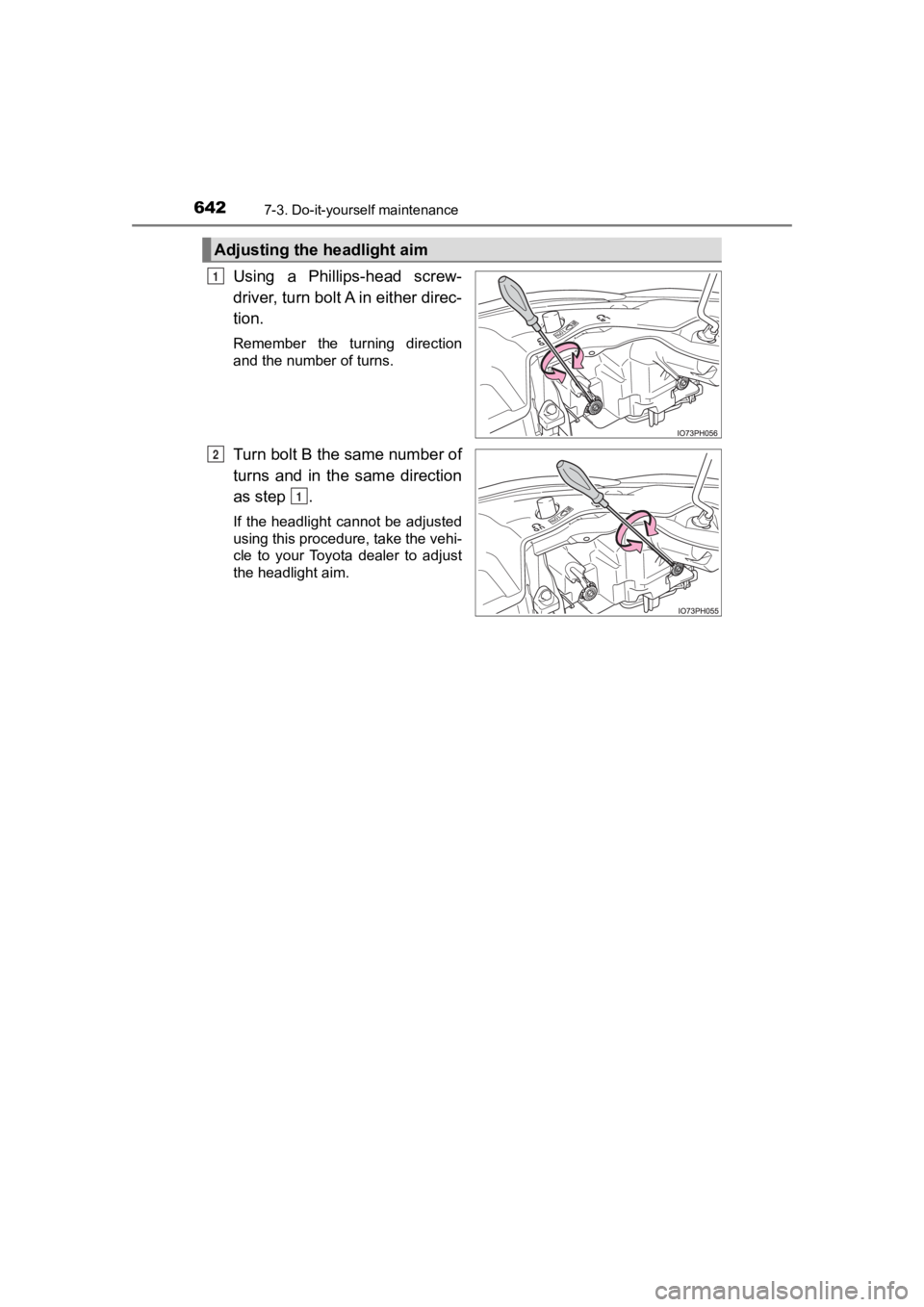

Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step .
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Adjusting the headlight aim
1
2
1

643
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

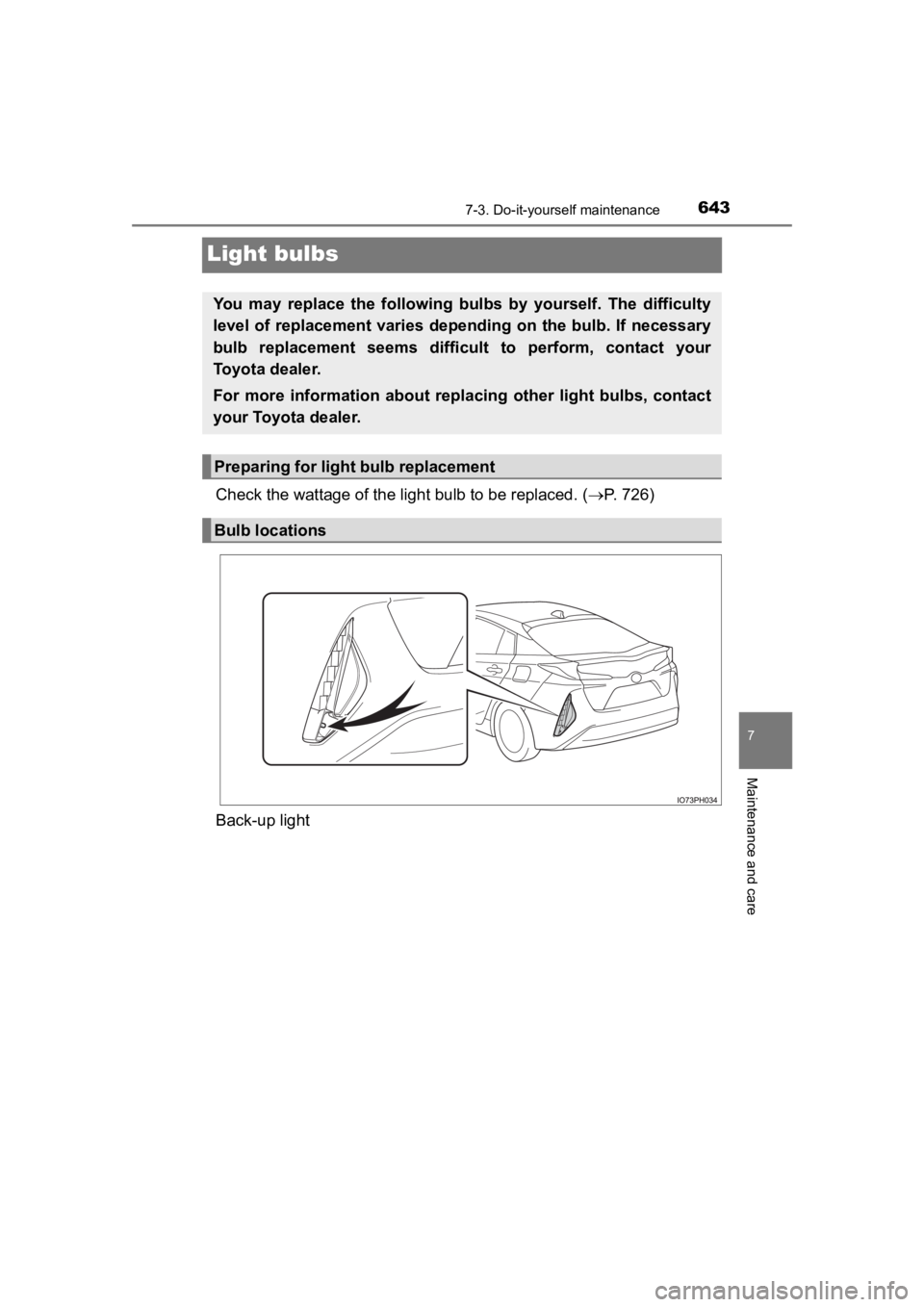

Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 726)
Back-up light
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems diffic ult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations

644
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance

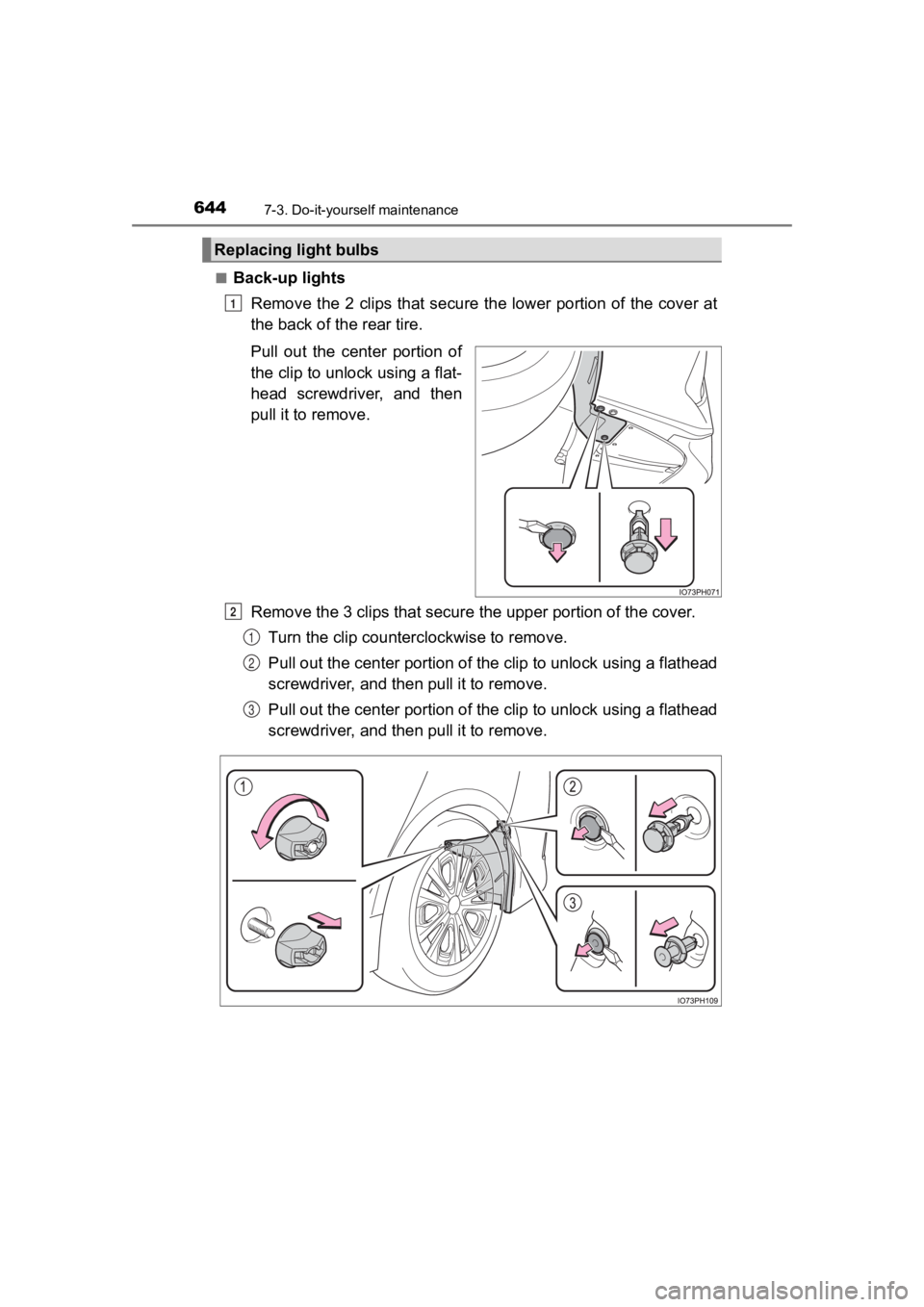

■Back-up lightsRemove the 2 clips that secure t he lower portion of the cover at
the back of the rear tire.
Pull out the center portion of
the clip to unlock using a flat-
head screwdriver, and then
pull it to remove.
Remove the 3 clips that secure the upper portion of the cover.
Turn the clip countercl ockwise to remove.
Pull out the center portion of the clip to unlock using a flathead
screwdriver, and th en pull it to remove.
Pull out the center portion of the clip to unlock using a flathead
screwdriver, and th en pull it to remove.
Replacing light bulbs
1
2
1
2
3

PRIUS PRIME_OM_OM47C77U_(U)
6457-3. Do-it-yourself maintenance
7
Maintenance and care

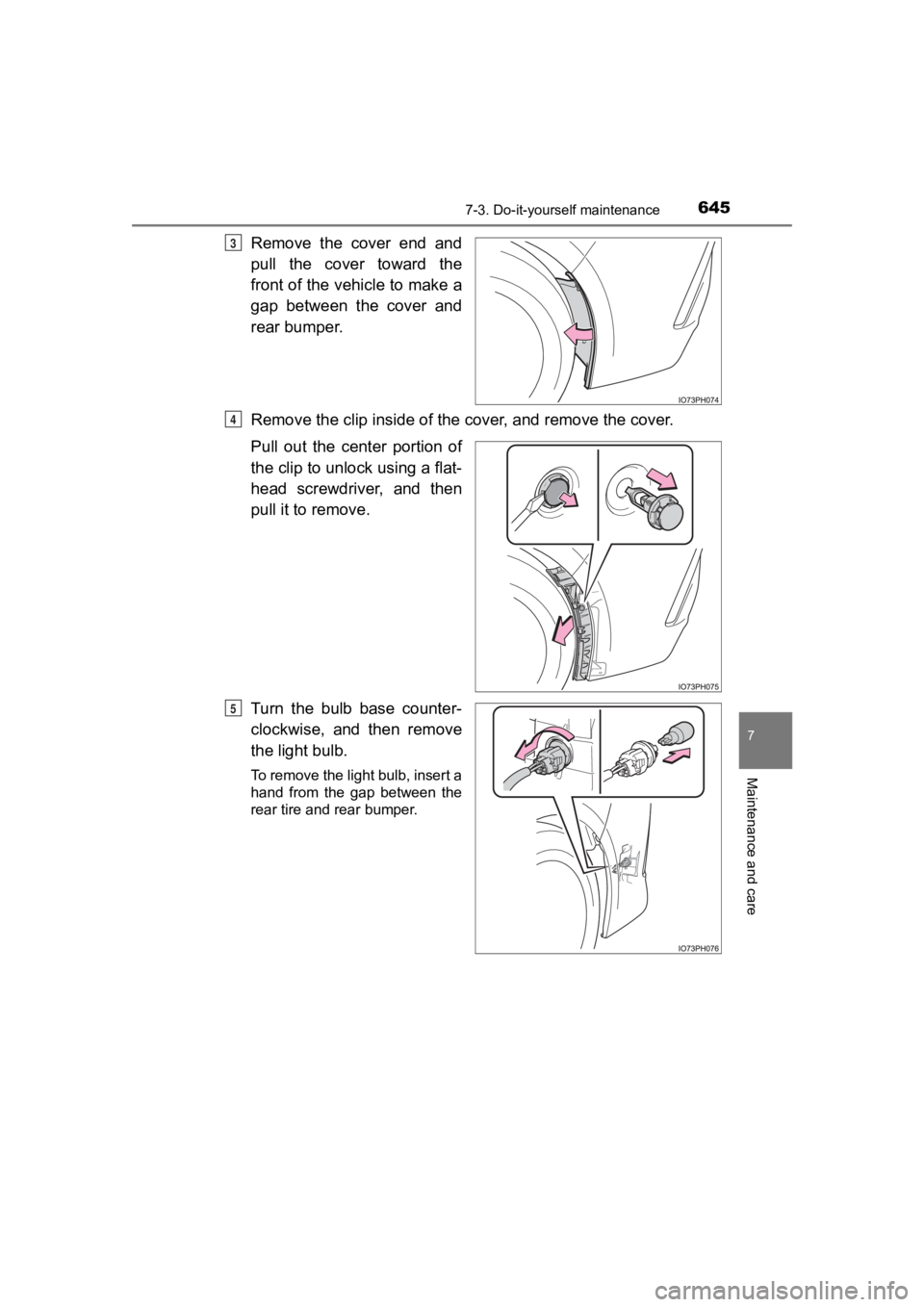

Remove the cover end and
pull the cover toward the
front of the vehicle to make a
gap between the cover and
rear bumper.
Remove the clip inside of the cover, and remove the cover.
Pull out the center portion of
the clip to unlock using a flat-
head screwdriver, and then
pull it to remove.
Turn the bulb base counter-
clockwise, and then remove
the light bulb.
To remove the light bulb, insert a
hand from the gap between the
rear tire and rear bumper.
3
4
5

646
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance

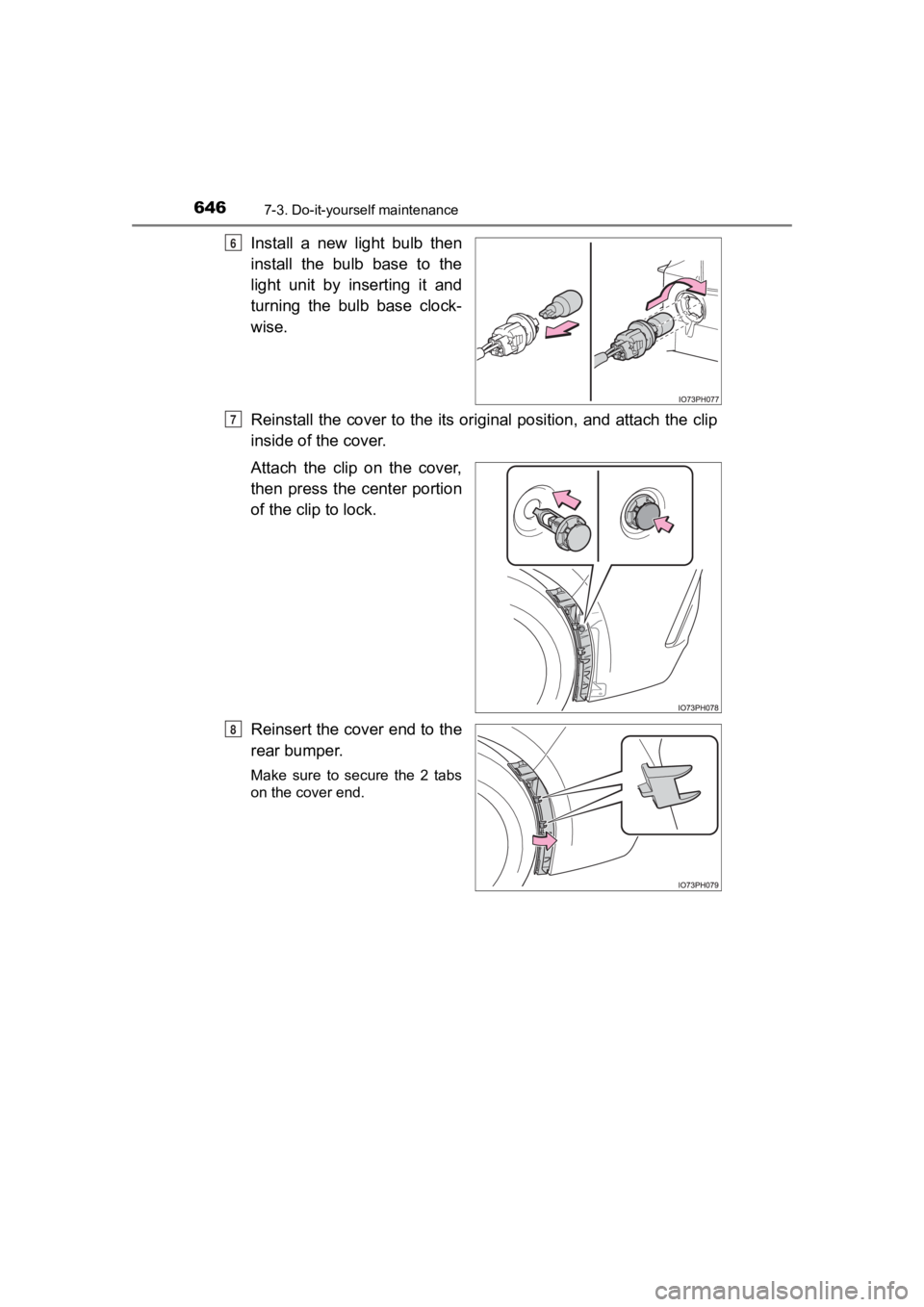

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
Reinstall the cover to the its original position, and attach the clip
inside of the cover.
Attach the clip on the cover,
then press the center portion
of the clip to lock.
Reinsert the cover end to the
rear bumper.
Make sure to secure the 2 tabs
on the cover end.
6
7
8

PRIUS PRIME_OM_OM47C77U_(U)
6477-3. Do-it-yourself maintenance
7
Maintenance and care

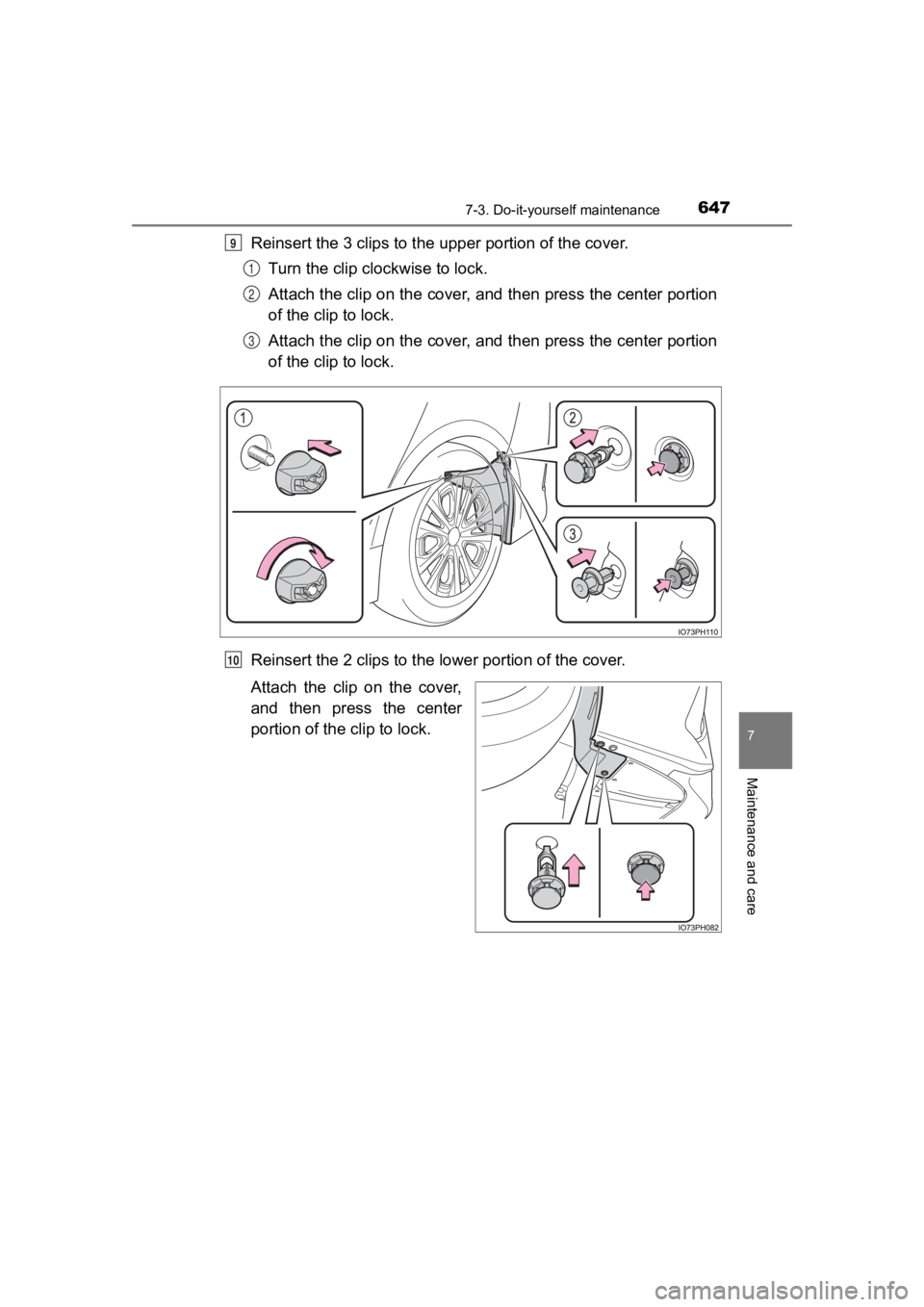

Reinsert the 3 clips to the upper portion of the cover.
Turn the clip clockwise to lock.
Attach the clip on the cover, and then press the center portion
of the clip to lock.
Attach the clip on the cover, and then press the center portion
of the clip to lock.
Reinsert the 2 clips to the lower portion of the cover.
Attach the clip on the cover,
and then press the center
portion of the clip to lock.9
1
2
3
10

648
PRIUS PRIME_OM_OM47C77U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights and daytime running lights
● Front side marker lights
● Parking lights
● Fog lights (if equipped)
● LED accent lights (if equipped)
● Front turn signal lights
● Rear turn signal lights
● Rear side marker lights
● Tail lights
● Stop lights
● High mounted stoplight
● License plate lights
■LED lights
The lights other than the back-up lights each consist of a numb er of LEDs. If
any of the LEDs burn out, take your vehicle to your Toyota deal er to have the
light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the light.
■ When replacing light bulbs
P. 640
