2020 TOYOTA PRIUS PRIME Owners Manual (in English)

265
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
3
Instrument cluster

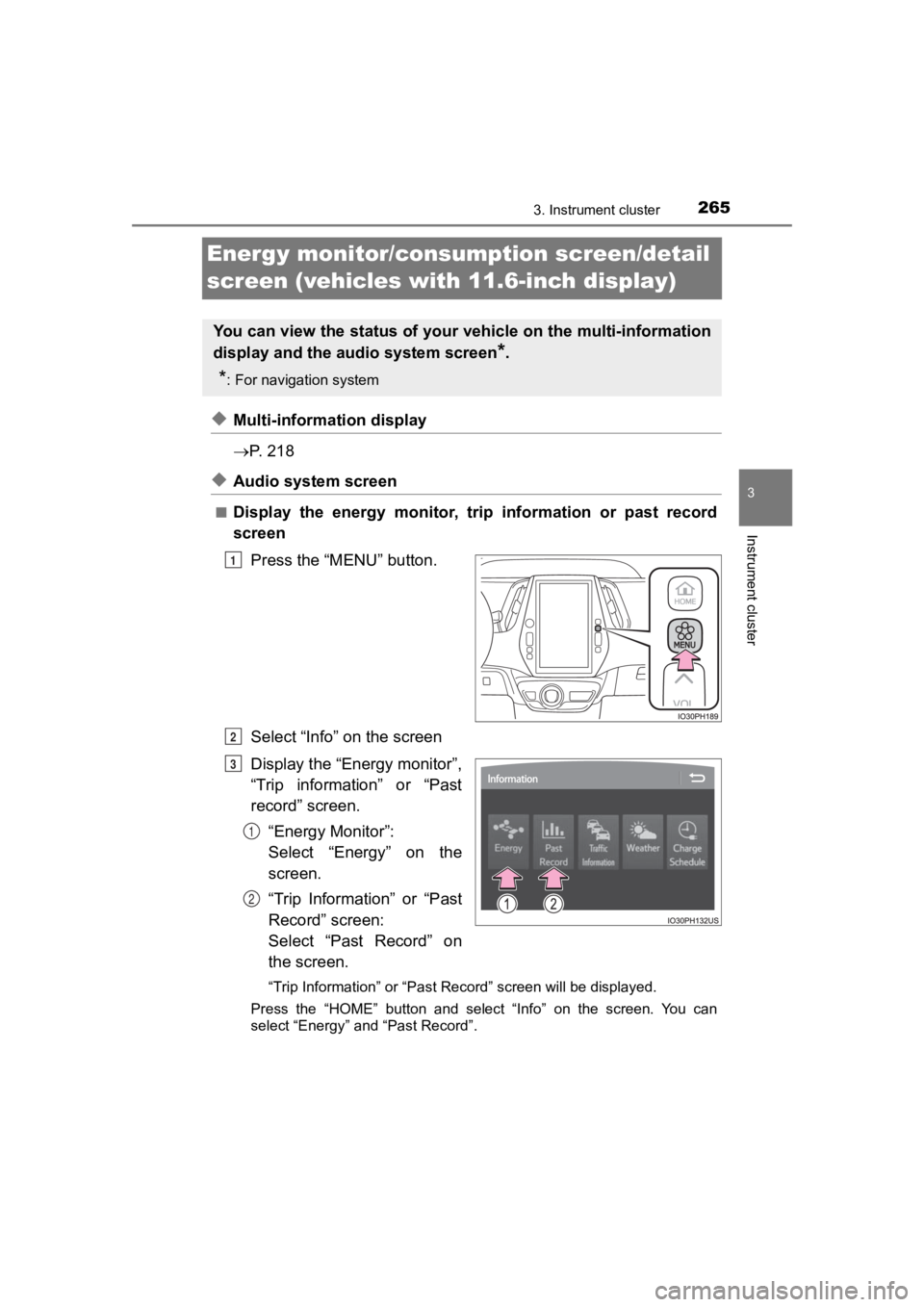

Energy monitor/consumption screen/detail
screen (vehicles with 11.6-inch display)
◆Multi-information display
P. 2 1 8
◆Audio system screen
■Display the energy monitor, tri p information or past record
screen
Press the “MENU” button.
Select “Info” on the screen
Display the “Energy monitor”,
“Trip information” or “Past
record” screen.“Energy Monitor”:
Select “Energy” on the
screen.
“Trip Information” or “Past
Record” screen:
Select “Past Record” on
the screen.
“Trip Information” or “Past Record” screen will be displayed.
Press the “HOME” button and select “Info” on the screen. You ca n
select “Energy” and “Past Record”.
You can view the status of your vehicle on the multi-informatio n
display and the a udio system screen
*.
*: For navigation system
1
2
3
1
2

266
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
■Display the detail screen (P. 2 7 1 )
Display “Energy Monitor” screen.
Select on the upper right screen.
■Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
The flow of electric energy during charging is displayed when
charging from an exte rnal power source.
For vehicles equipped with a solar charging system, a guide for the
state of the solar charging system is displayed.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright poin t of light are not displayed.
● The display when the engine is operating is in blue while the
engine is being warmed up and yellow afterwards.
● The arrow from the engine to the motor and tires is displayed i n
red.
● The arrow indicating energy consumption is displayed in yellow
and the arrow indicating energy regeneration or charging is dis -
played in green. Also, the hybrid battery (traction battery)
changes color accordingly.
● There are icons , , on the lower side of the
screen. The screen switches to each point of view when you
select it.
● When you select , this screen is displayed in the lower half of
the screen, it will be displayed together with the navigation
screen.
● These images are examples only, and may vary slightly from
actual conditions.
How to read the energy monitor
1
2

PRIUS PRIME_OM_OM47C77U_(U)
2673. Instrument cluster
3
Instrument cluster

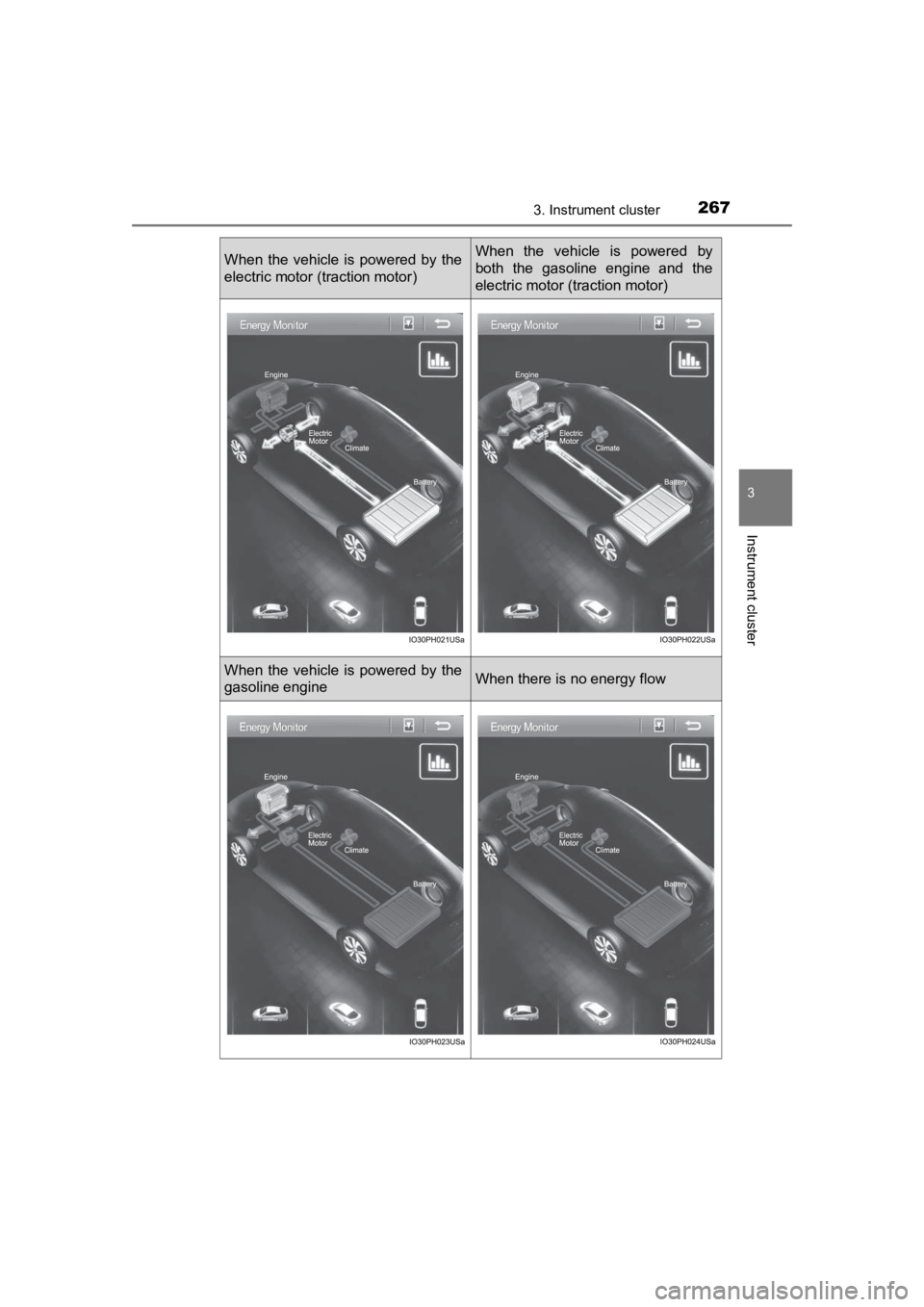

When the vehicle is powered by the
electric motor (traction motor)When the vehicle is powered by
both the gasoline engine and the
electric motor (traction motor)
When the vehicle is powered by the
gasoline engineWhen there is no energy flow

268
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
*: When the air conditioning compressor is not operating, an arrow does notappear and the bright point of light are not displayed.

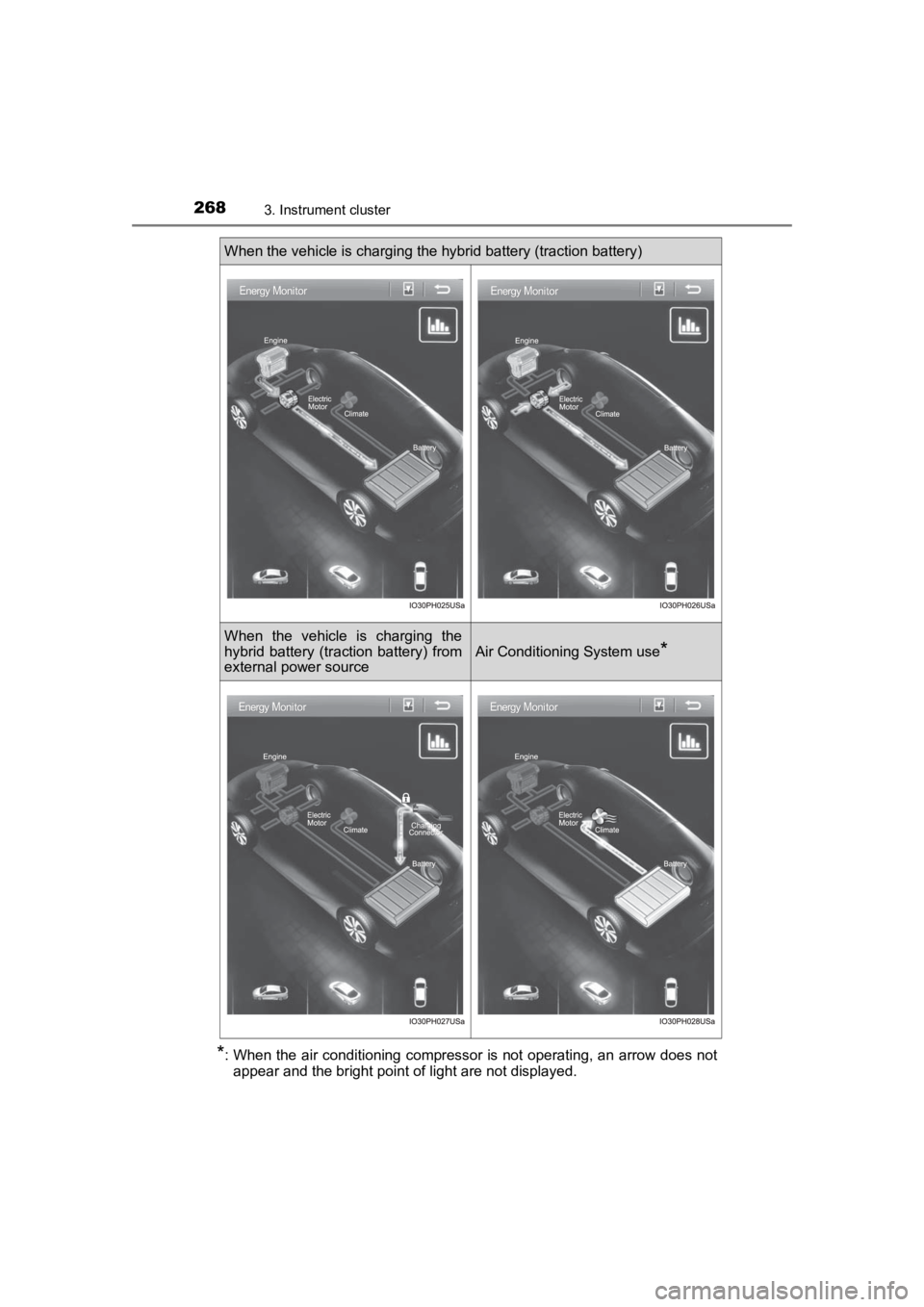

When the vehicle is charging the hybrid battery (traction batte ry)
When the vehicle is charging the
hybrid battery (traction battery) from
external power source
Air Conditioning System use*

PRIUS PRIME_OM_OM47C77U_(U)
2693. Instrument cluster
3
Instrument cluster

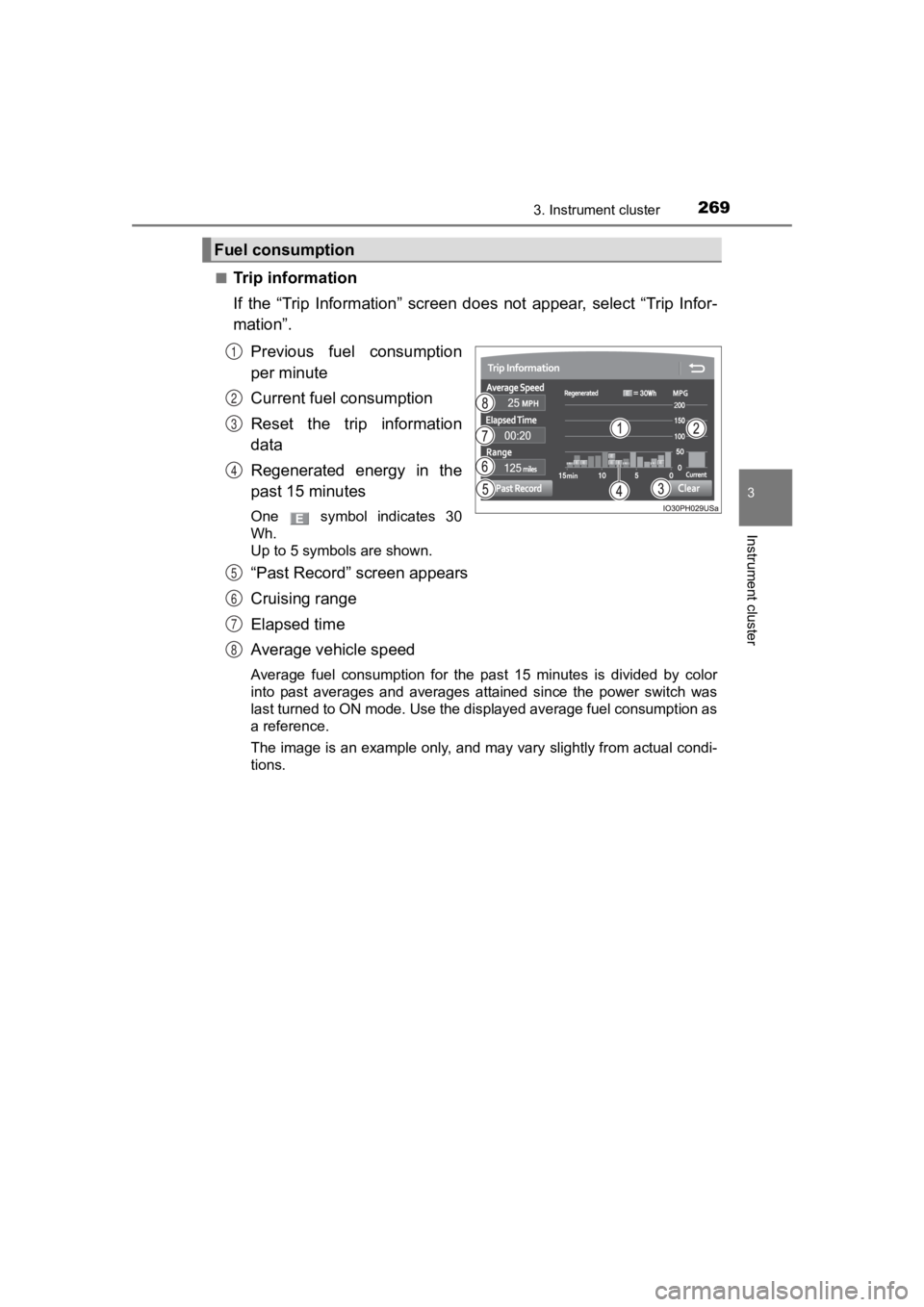

■Trip information
If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
Regenerated energy in the
past 15 minutes
One symbol indicates 30
Wh.
Up to 5 symbols are shown.
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumpt ion as
a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Fuel consumption
1
2
3
4
5
6
7
8

270
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster

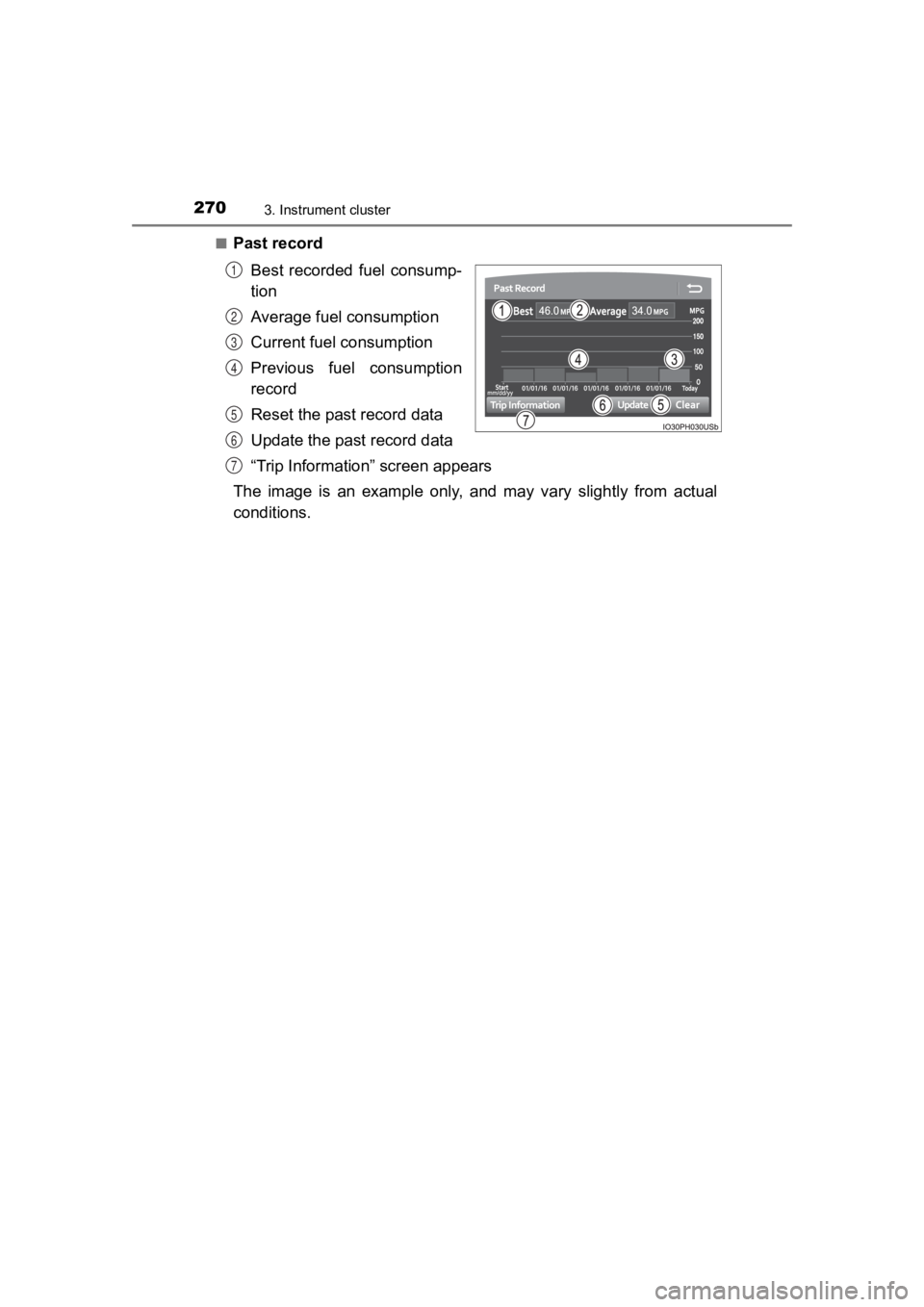

■Past recordBest recorded fuel consump-
tion
Average fuel consumption
Current fuel consumption
Previous fuel consumption
record
Reset the past record data
Update the past record data
“Trip Information” screen appears
The image is an example only, and may vary slightly from actual
conditions.
1
2
3
4
5
6
7

PRIUS PRIME_OM_OM47C77U_(U)
2713. Instrument cluster
3
Instrument cluster
Displays information about each selected item.
When you select the “ ”, and close the screen.
■Select “Battery”
●Display of battery charging state
Displayed when charging from an external power supply.
Display of charge status
The remaining time until
the charging completed
The remaining hybrid bat-
tery (traction battery)
capacity of the HV mode
The remaining hybrid bat-
tery (traction battery)
capacity of the EV mode
● Display the “Next Charging Event”
It appears when the timer
charging function is waiting
to charge the external power
source.
● Regenerated amount of energy
It appears during driving or
parked.
Shows the energy regen-
erated every minute.
Shows the energy being
regenerated while hybrid
system is operating.
Every time the power switch
is turned to off, the value is
reset.
How to see the detail screen
1
2
3
4
1
2

272
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
■Select “Engine”
Display of the engine status.
■Select “Climate”
Display the power consump-
tion of the air conditioner
■Resetting the data
●Selecting “Clear” on the “Trip Information” screen will reset t he trip informa-
tion data.
● Selecting “Clear” on the “Past Record” screen will reset the past record
data.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displayed in the multi-infor mation display
will be reset at the same time.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.
■ Display of navigation screen during charging
After the power switch is turned to ON mode during charging, th e power
switch will automatically turn off after approximately 100 seconds.
