2020 TOYOTA PRIUS PRIME Owners Manual (in English)

PRIUS PRIME_OM_OM47C77U_(U)
7459-2. Customization
9
Vehicle specifications

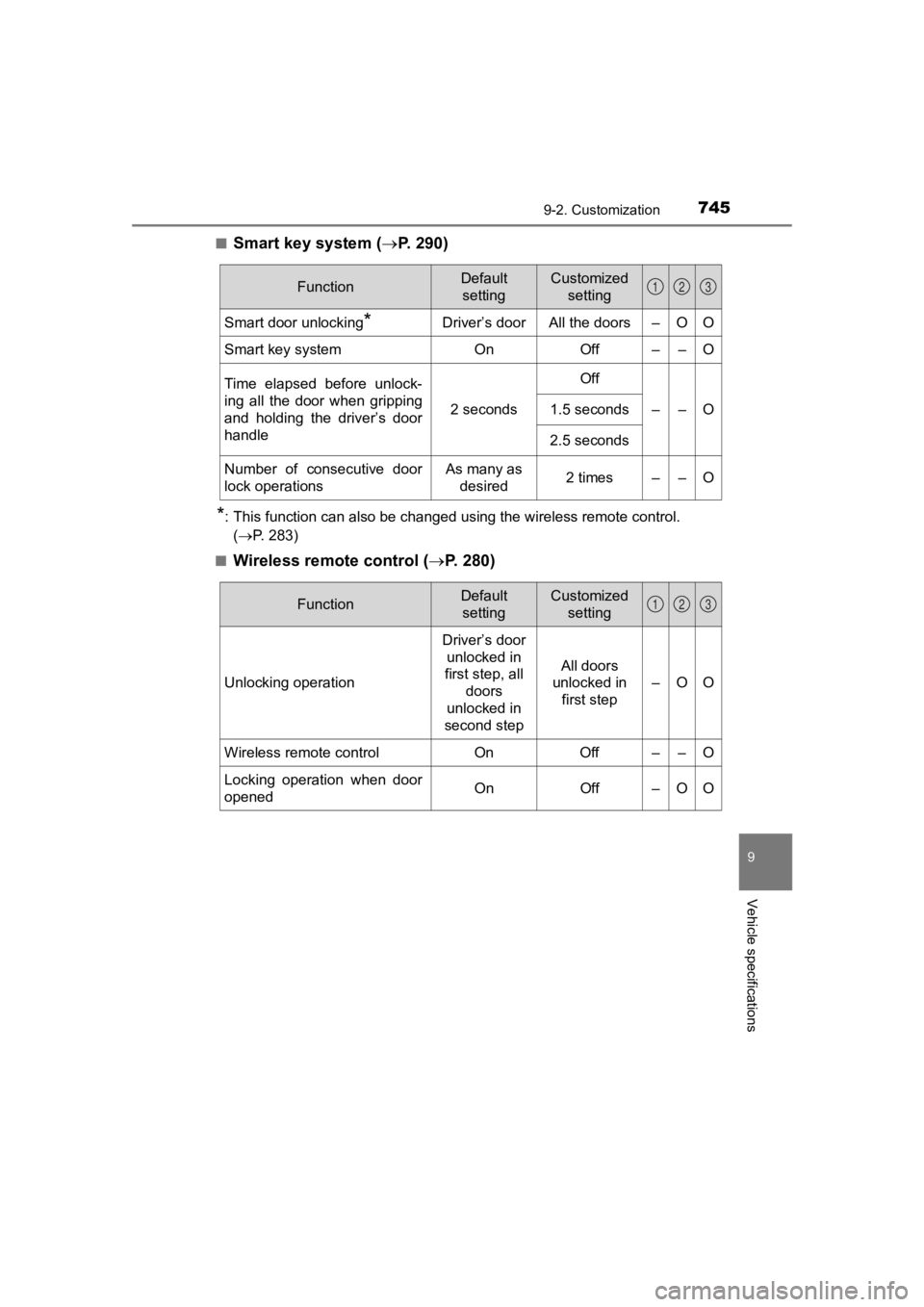

■Smart key system (P. 2 9 0 )
*: This function can also be changed using the wireless remote control.
(P. 283)
■
Wireless remote control ( P. 2 8 0 )
FunctionDefault
settingCustomized setting
Smart door unlocking*Driver’s doorAll the doors–OO
Smart key systemOnOff––O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
––O1.5 seconds
2.5 seconds
Number of consecutive door
lock operationsAs many as
desired2 times––O
123
FunctionDefault settingCustomized setting
Unlocking operation
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step –
OO
Wireless remote control On Off – – O
Locking operation when door
opened On Off – O O
123

746
PRIUS PRIME_OM_OM47C77U_(U)
9-2. Customization

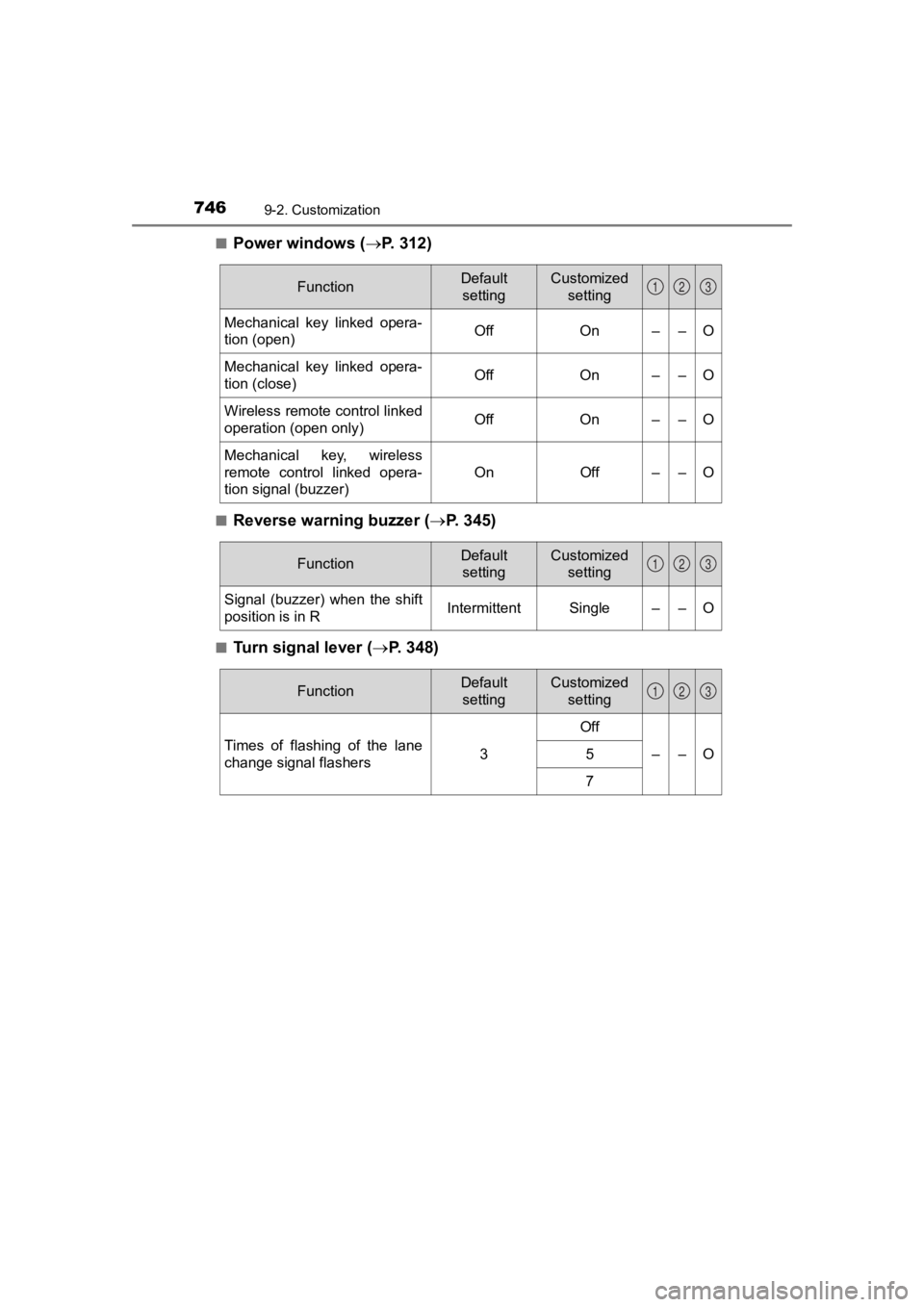

■Power windows (P. 312)
■Reverse warning buzzer ( P. 345)
■Turn signal lever ( P. 348)
FunctionDefault
settingCustomized setting
Mechanical key linked opera-
tion (open)OffOn––O
Mechanical key linked opera-
tion (close)OffOn––O
Wireless remote control linked
operation (open only)OffOn––O
Mechanical key, wireless
remote control linked opera-
tion signal (buzzer)
OnOff––O
123
FunctionDefault settingCustomized setting
Signal (buzzer) when the shift
position is in RIntermittentSingle––O
123
FunctionDefault settingCustomized setting
Times of flashing of the lane
change signal flashers3
Off
––O5
7
123

PRIUS PRIME_OM_OM47C77U_(U)
7479-2. Customization
9
Vehicle specifications
■Automatic light control system*1 ( P. 350)
*1: If equipped
*2: This function cannot be customized for vehicles sold in Canada .
■
Rain-sensing windshield wipers* (  P. 3 6 4 )
*: If equipped
■
Intuitive parking assist* (  P. 433)
*: If equipped
FunctionDefault
settingCustomized setting
Time elapsed before the
headlights turn off 30 secondsOff
–OO
60 seconds
90 seconds
Light sensor sensitivityLevel 0Level -2 to 2–OO
Daytime running lights*2OnOff–OO
123
FunctionDefault
settingCustomized setting
Wiper operation when the
wiper switch is in the
position
Rain-sensing operation
Intermittent operation
linked to vehi- cle speed
(with interval
adjuster)
––O
123
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorsFarNear––O
Detection distance of the rear
center sensorsFarNear––O
Buzzer volume31 to 5––O
123

748
PRIUS PRIME_OM_OM47C77U_(U)
9-2. Customization

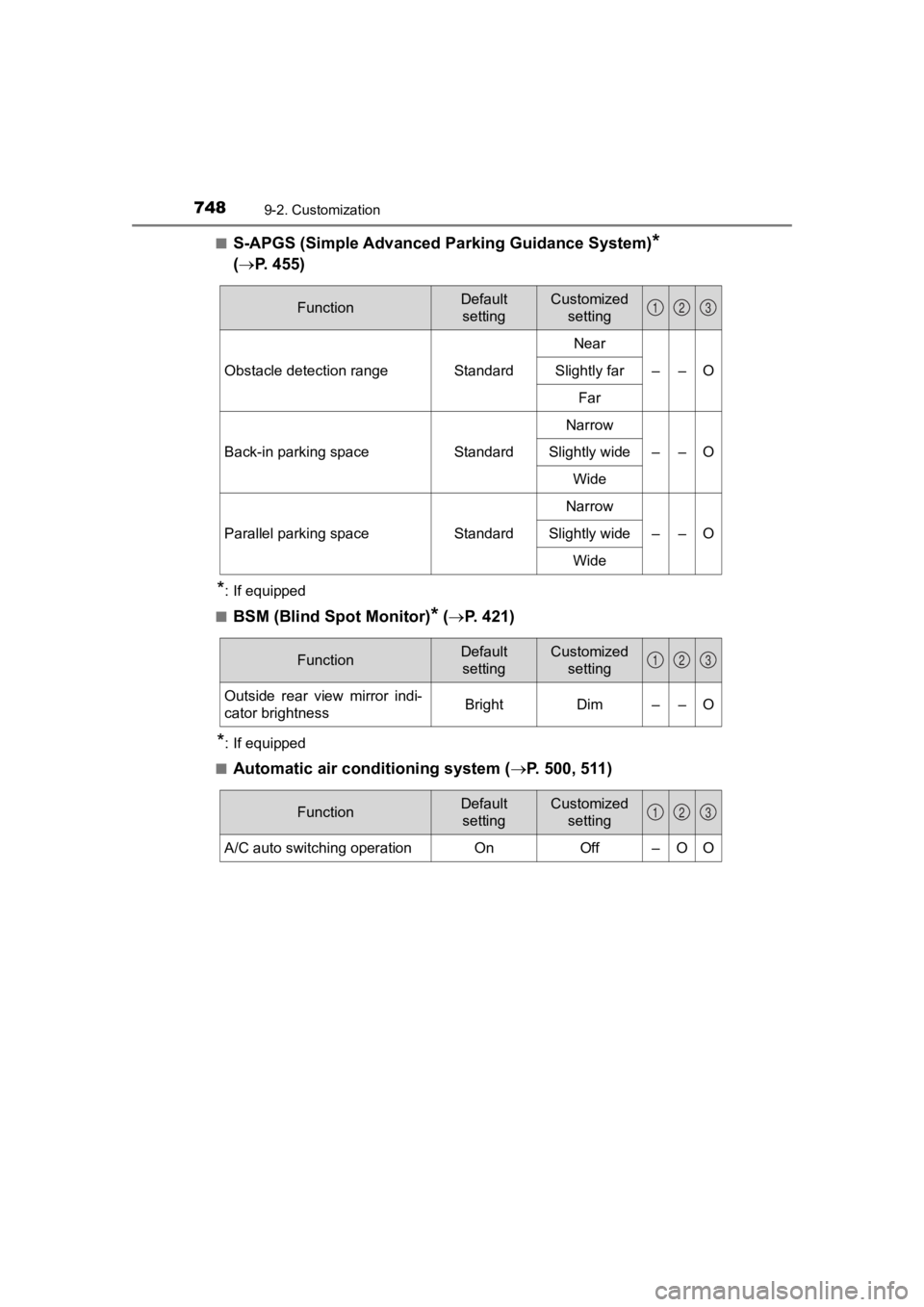

■S-APGS (Simple Advanced Parking Guidance System)*
(  P. 455)
*: If equipped
■
BSM (Blind Spot Monitor)* (  P. 421)
*: If equipped
■
Automatic air c onditioning system ( P. 500, 511)
FunctionDefault
settingCustomized setting
Obstacle detection rangeStandard
Near
––OSlightly far
Far
Back-in parking spaceStandard
Narrow
––OSlightly wide
Wide
Parallel parking spaceStandard
Narrow
––OSlightly wide
Wide
123
FunctionDefault settingCustomized setting
Outside rear view mirror indi-
cator brightnessBrightDim––O
123
FunctionDefault settingCustomized setting
A/C auto switching operationOnOff–OO
123

PRIUS PRIME_OM_OM47C77U_(U)
7499-2. Customization
9
Vehicle specifications

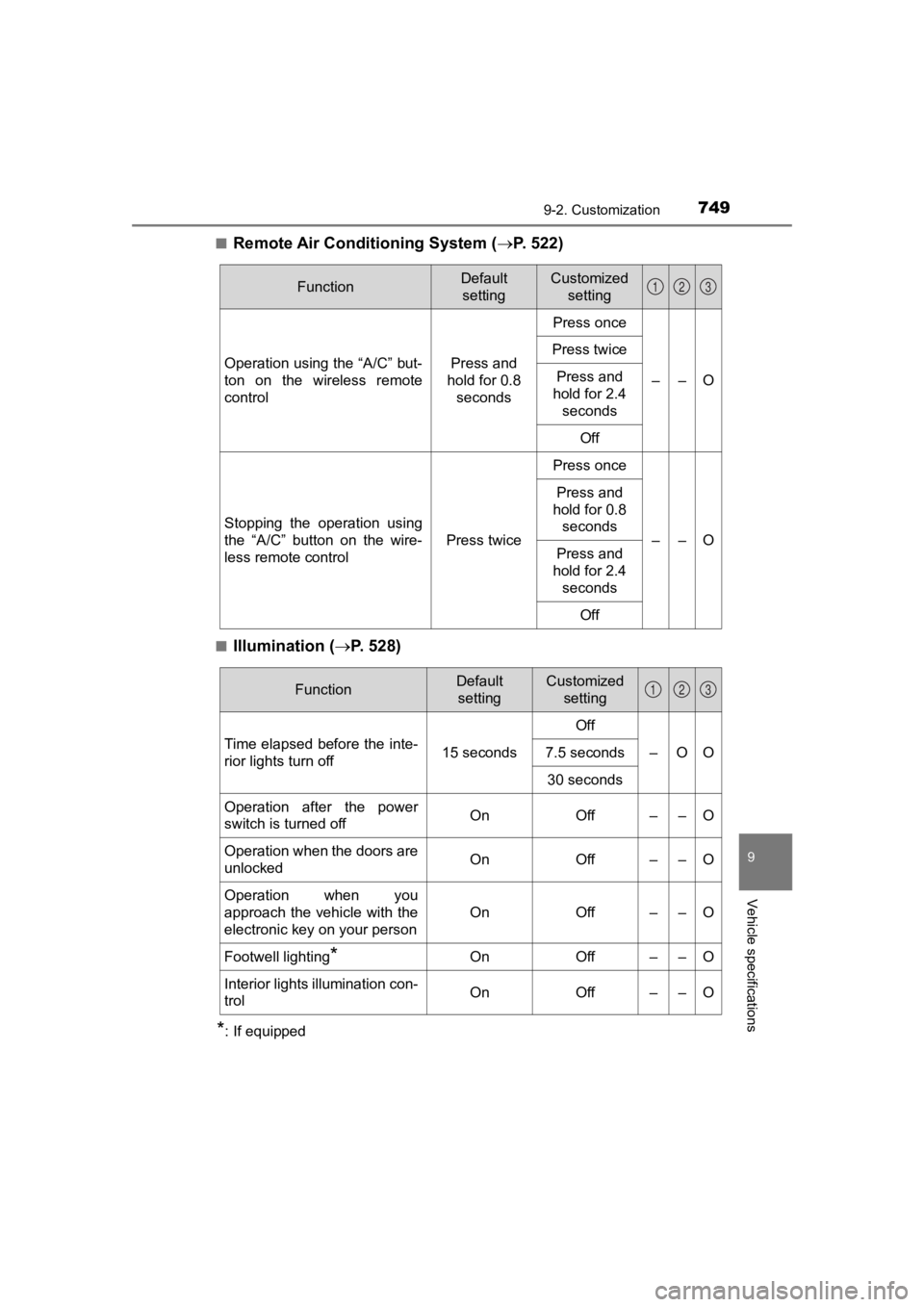

■Remote Air Conditioning System (P. 522)
■Illumination ( P. 5 2 8 )
*: If equipped
FunctionDefault
settingCustomized setting
Operation using the “A/C” but-
ton on the wireless remote
controlPress and
hold for 0.8 seconds
Press once
––O
Press twice
Press and
hold for 2.4
seconds
Off
Stopping the operation using
the “A/C” button on the wire-
less remote control
Press twice
Press once
––O
Press and
hold for 0.8 seconds
Press and
hold for 2.4
seconds
Off
123
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you
approach the vehicle with the
electronic key on your person
OnOff––O
Footwell lighting*OnOff––O
Interior lights illumination con-
trolOnOff––O
123

750
PRIUS PRIME_OM_OM47C77U_(U)
9-2. Customization
■Seat belt reminder (P. 667)
■Vehicle customization
●When the Speed linked door locking function and the Shift posit ion linked
door locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed li nked door
locking function will operate.
● When the smart key system is off, Smart door unlocking cannot be custom-
ized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function is activated, the signals will be generated in accordance
with the operation signal (buzzer) and the operation signal (emergency
flashers) settings.
■ In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
●The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault
settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff––O
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization , ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while customizing features.
123

PRIUS PRIME_OM_OM47C77U_(U)
7519-2. Customization
9
Vehicle specifications

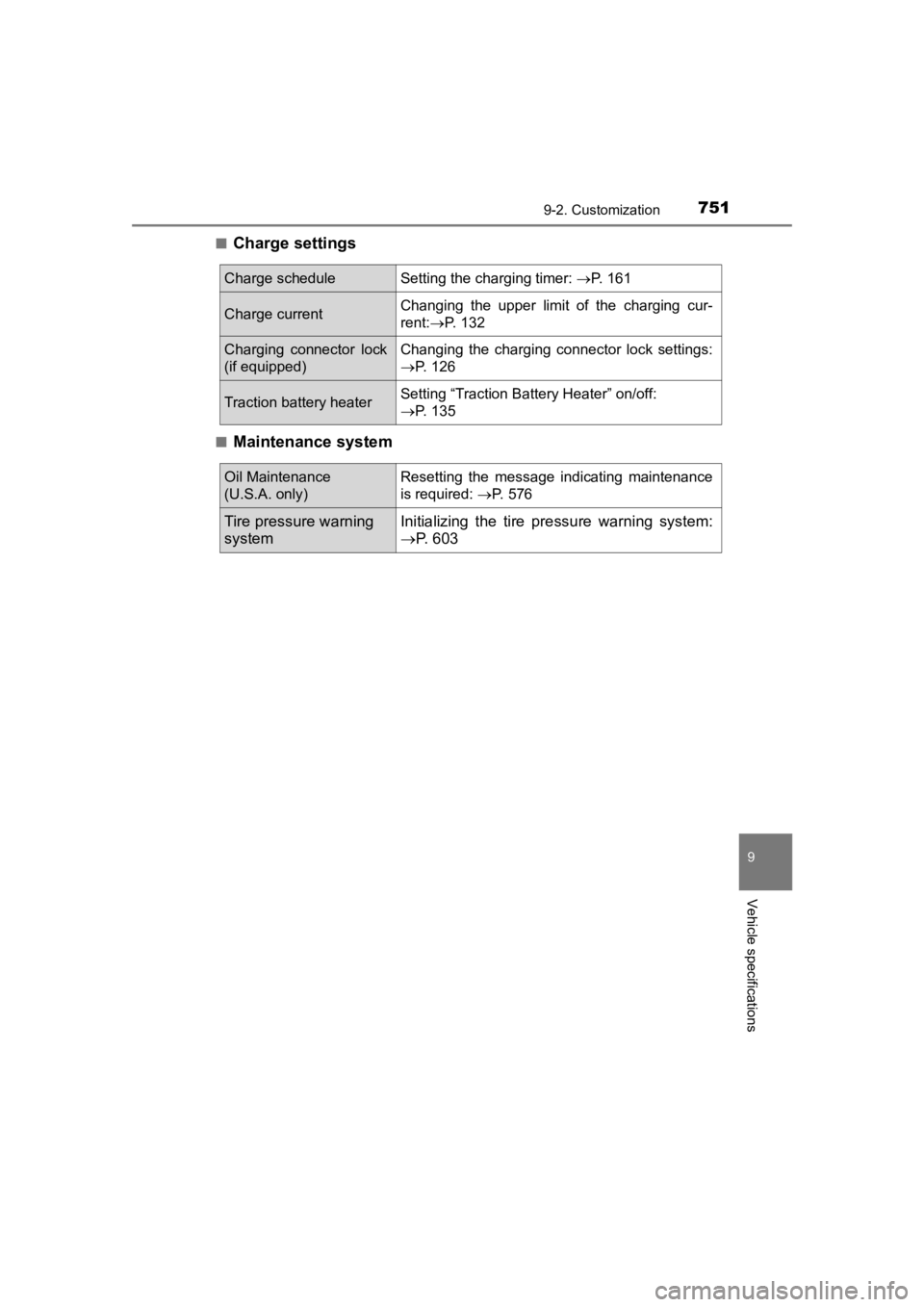

■Charge settings
■Maintenance system
Charge scheduleSetting the charging timer: P. 161
Charge currentChanging the upper limit of the charging cur-
rent:P. 132
Charging connector lock
(if equipped)Changing the charging connector lock settings:
P. 126
Traction battery heaterSetting “Traction Battery Heater” on/off:
P. 135
Oil Maintenance
(U.S.A. only)Resetting the message indicating maintenance
is required: P. 576
Tire pressure warning
systemInitializing the tire p ressure warning system:
 P. 603

752
PRIUS PRIME_OM_OM47C77U_(U)
9-3. Initialization

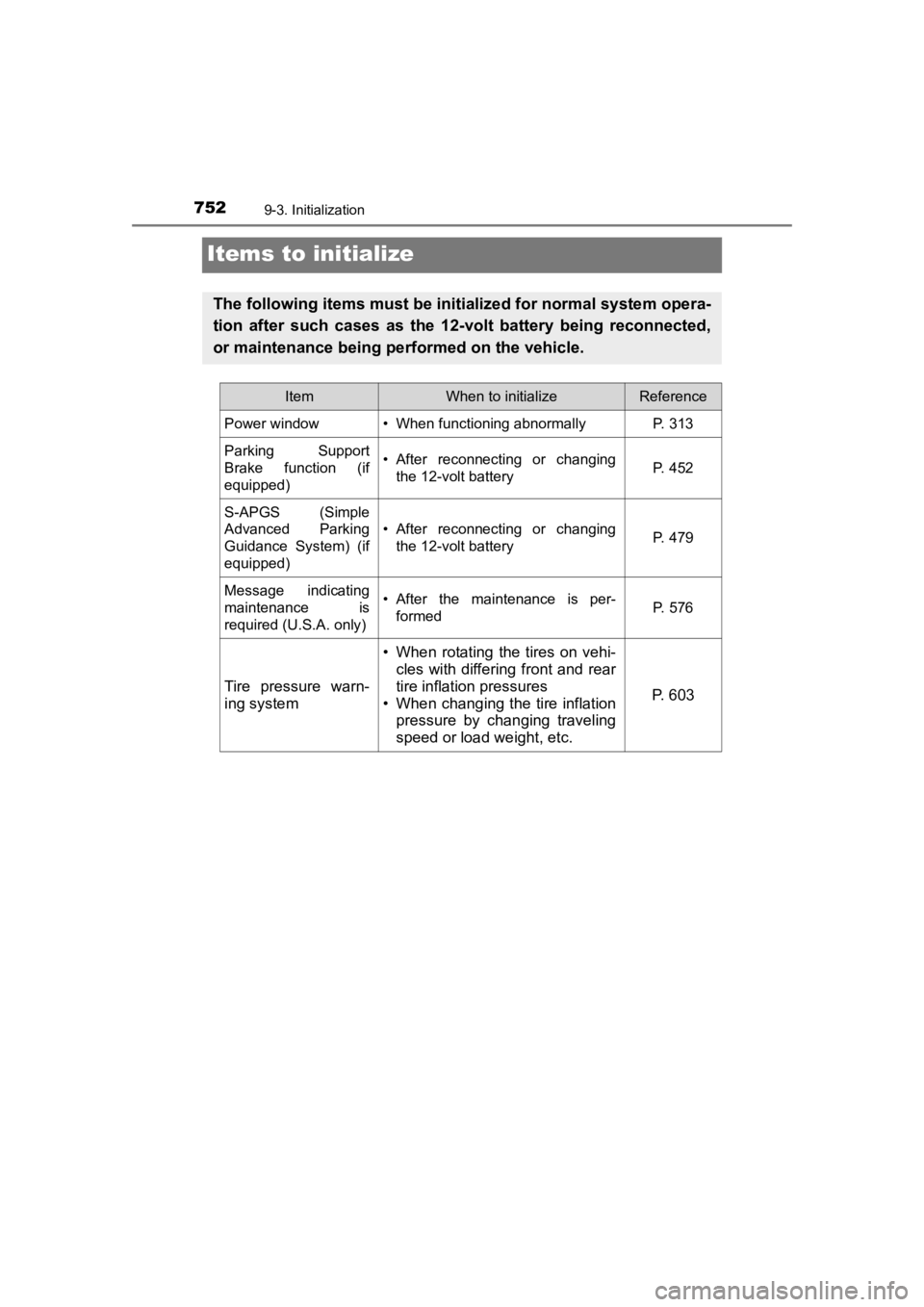

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being pe rformed on the vehicle.
ItemWhen to initializeReference
Power window• When functioning abnormallyP. 313
Parking Support
Brake function (if
equipped)• After reconnecting or changing
the 12-volt batteryP. 452
S-APGS (Simple
Advanced Parking
Guidance System) (if
equipped)
• After reconnecting or changingthe 12-volt batteryP. 479
Message indicating
maintenance is
required (U.S.A. only)• After the maintenance is per-formedP. 576
Tire pressure warn-
ing system
• When rotating the tires on vehi-cles with differing front and rear
tire inflation pressures
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
P. 6 0 3
