When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.

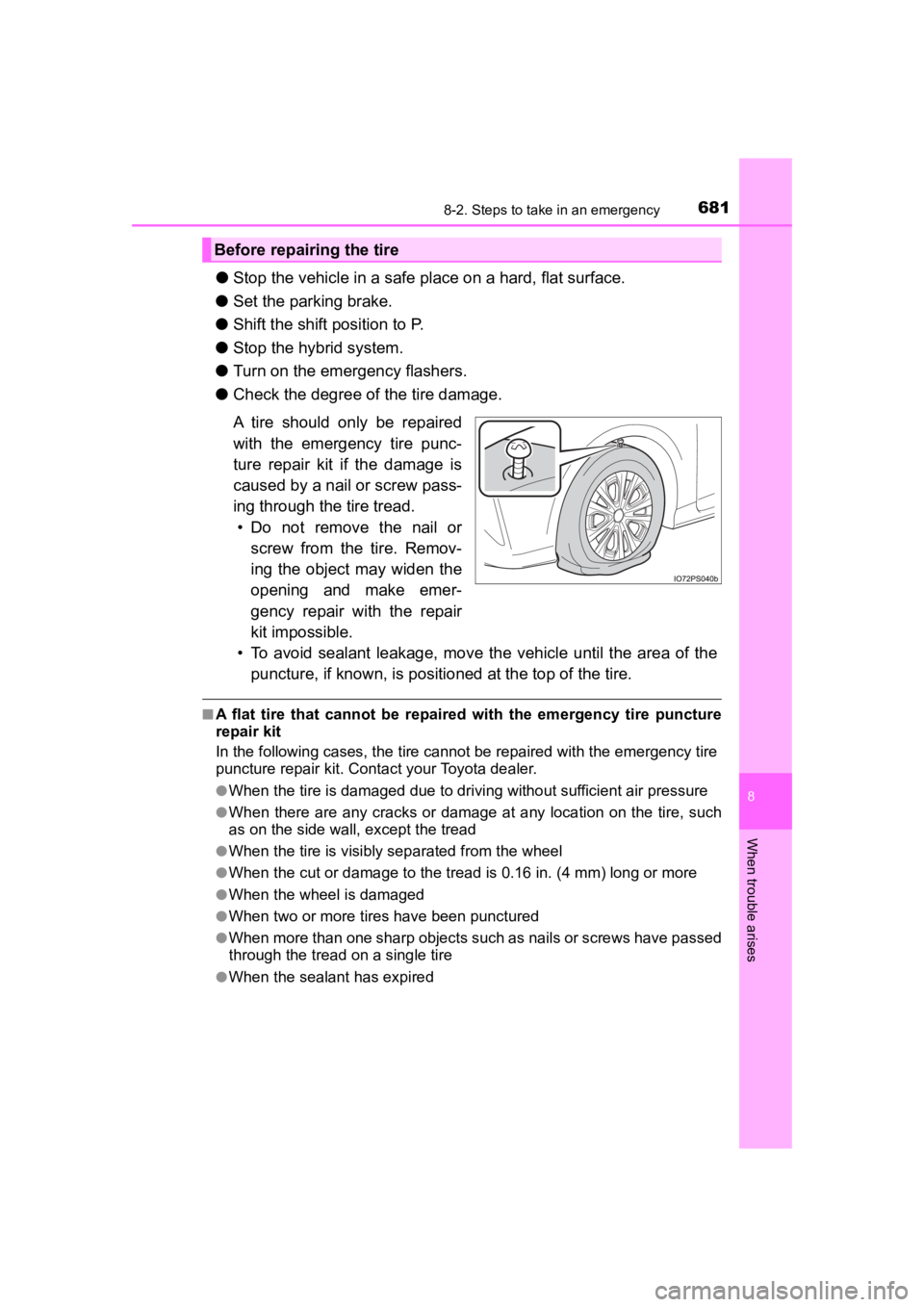

● Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread. • Do not remove the nail or screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
■A flat tire that cannot be repaired with the emergency tire pun cture
repair kit
In the following cases, the tire cannot be repaired with the em ergency tire
puncture repair kit. Contact your Toyota dealer.
●When the tire is damaged due to driving without sufficient air pressure
●When there are any cracks or damage at any location on the tire , such
as on the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tr ead is 0.16 in. (4 mm) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When more than one sharp objects such as nails or screws have p assed
through the tread on a single tire
●When the sealant has expired
Before repairing the tire

6828-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
Emergency tire puncture repair kit

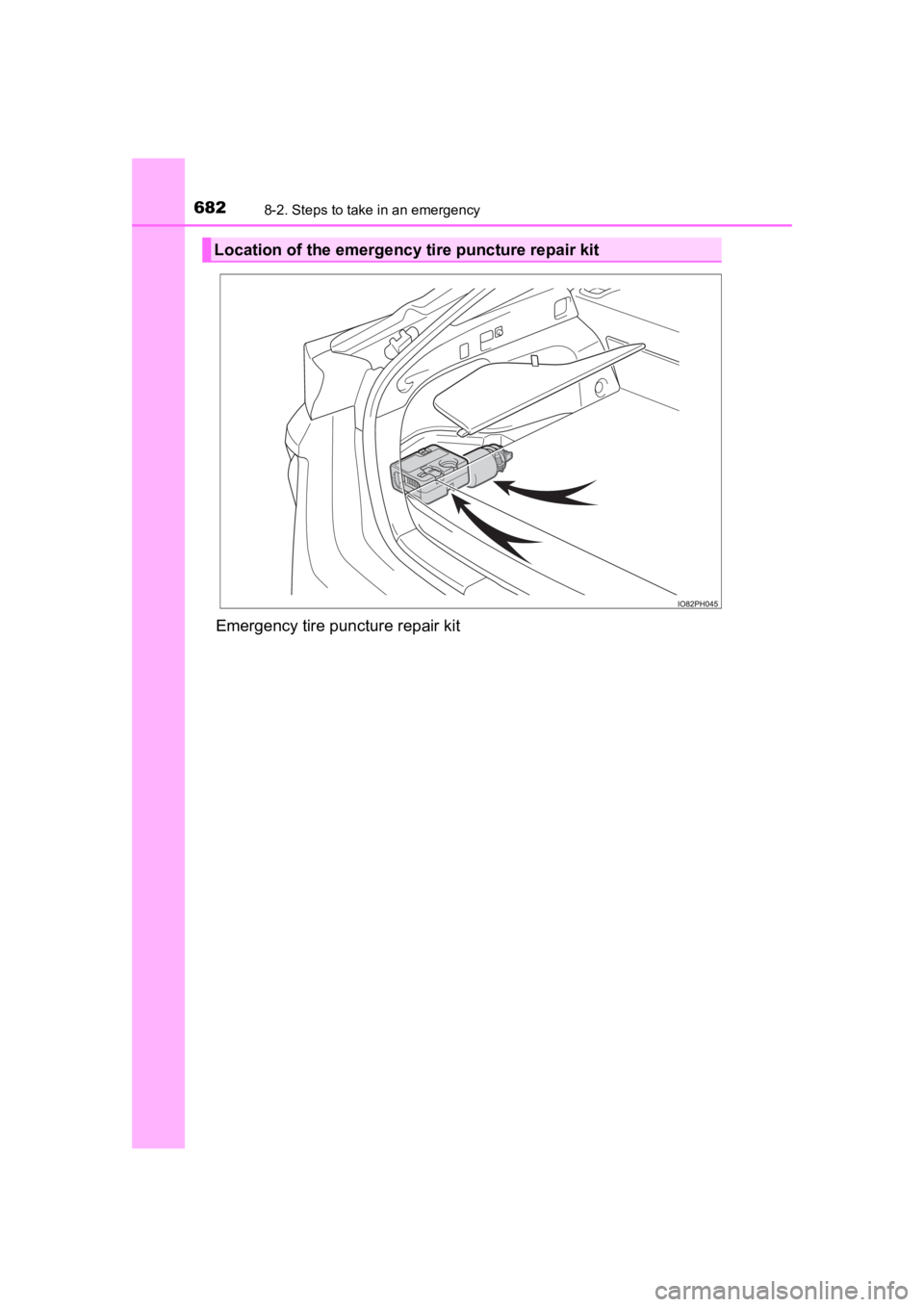

Location of the emergency tire puncture repair kit

6838-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
8
When trouble arises
Emergency tire puncture repair kit components
Hose
Air release cap
StickerPower plug
Air pressure gauge
Compressor switch1
2
3
4
5
6

6848-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
Pull the strap up and remove
the cover.
Take out the emergency tire
puncture repair kit.
■When installing the cover

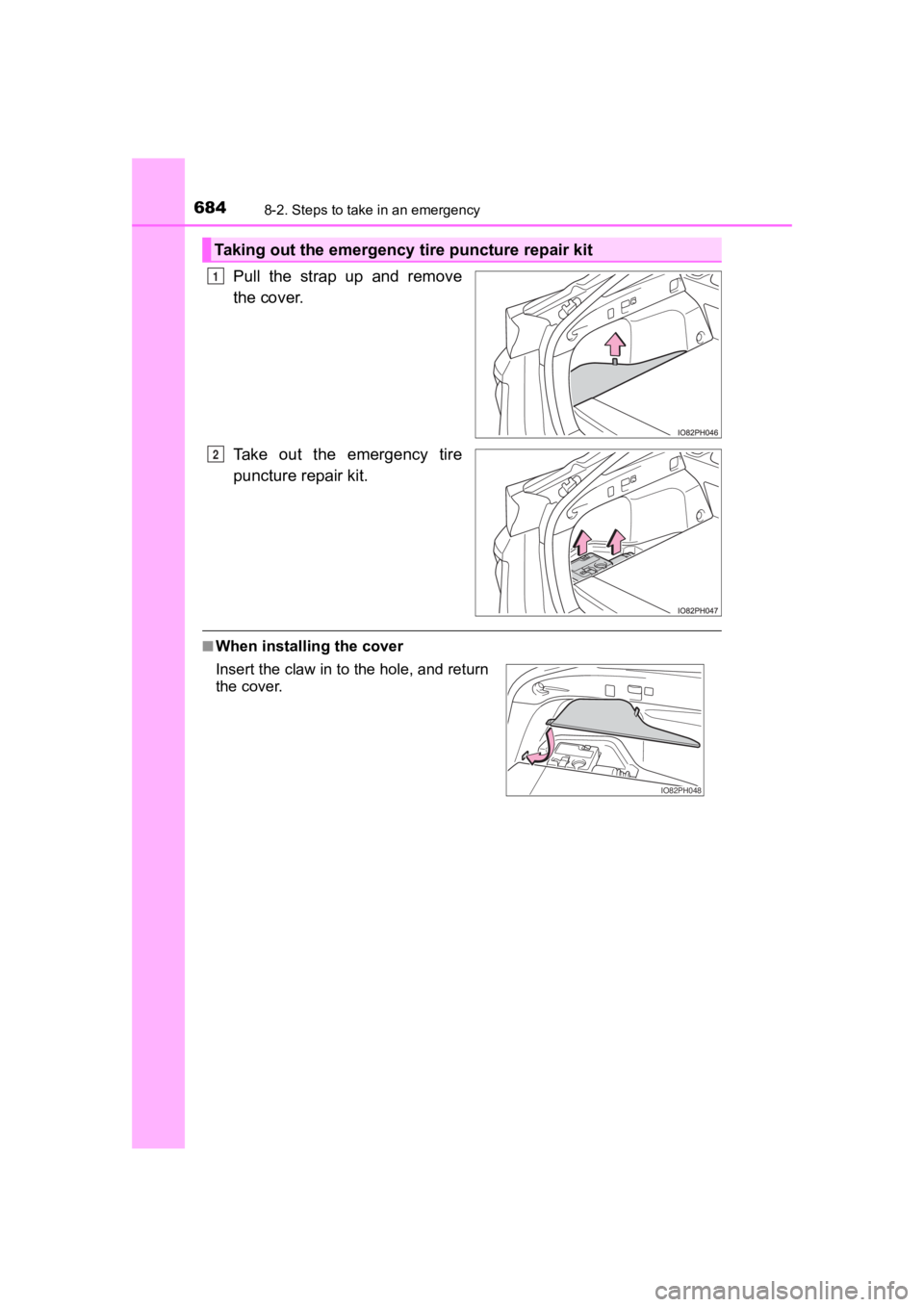

Taking out the emergency tire puncture repair kit
1
2
Insert the claw in to the hole, and return
the cover.
IO82PH048

6858-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
8
When trouble arises
Take out the repair kit from the plastic bag.
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the
air release cap from the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See step .)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.

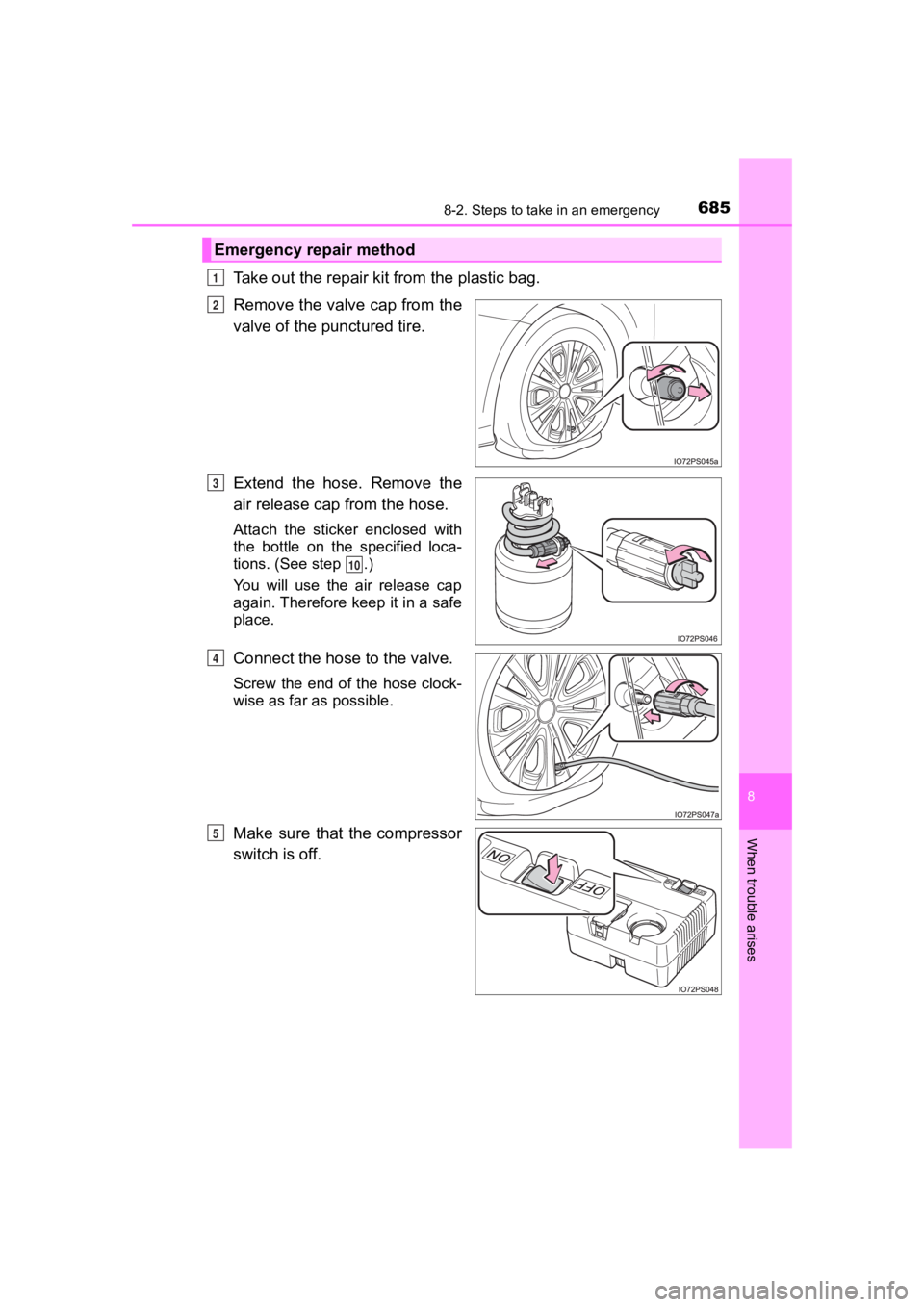

Emergency repair method
1
2
3
10
4
5

6868-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)

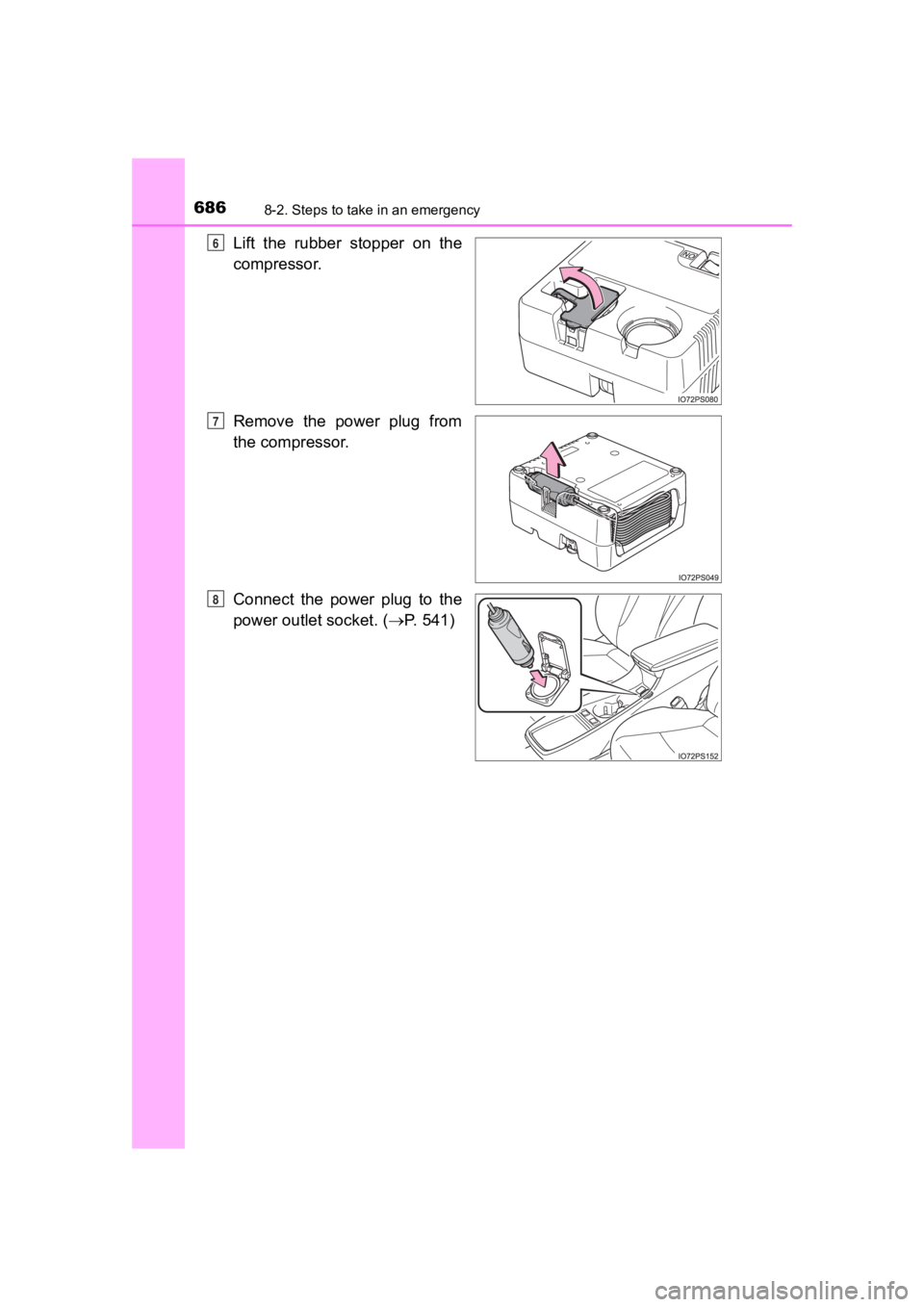

Lift the rubber stopper on the
compressor.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (P. 541)6
7
8

6878-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
8
When trouble arises

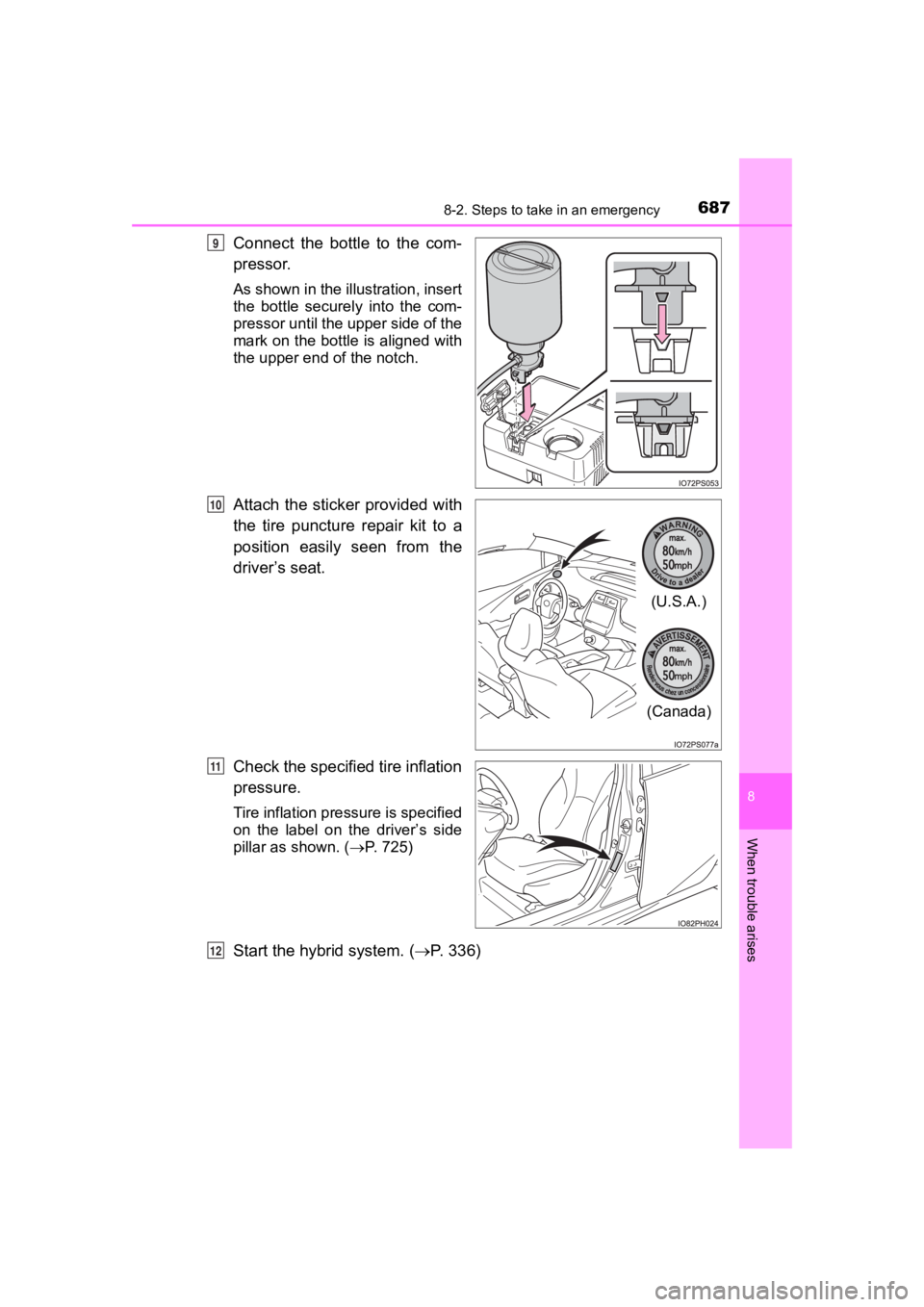

Connect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle securely into the com-
pressor until the upper side of the
mark on the bottle is aligned with
the upper end of the notch.
Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label on the driver’s side
pillar as shown. (P. 7 2 5 )
Start the hybrid system. ( P. 3 3 6 )
9
(U.S.A.)
(Canada)
10
11
12

6888-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C77U_(U)
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the specified air pressure is reached.The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa,
3.0 kgf/cm
2 or bar) and
58 psi (400 kPa, 4.0 kgf/cm2
or bar), then gradually
decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 to 5
minutes after the switch is
turned on.
• Turn the compressor switch off and then check the tire
inflation pressure. Being
careful not to over inflate,
check and repeat the inflation
procedure until the specified
tire inflation pressure is
reached.
• The tire can be inflated for about 5 to 20 minutes (depending on
the outside temperature). If the t ire inflation pressure is still lower
than the specified point after inflation for 25 minutes, the tire is
too damaged to be repaired. Turn the compressor switch off and
contact your Toyota dealer.
• If the tire inflation pressure exceeds the specified air press ure, let
out some air to adjust the tire inflation pressure. ( P. 691, 725)
13
14
1
