2020 Ram ProMaster City Owner's Manual

46 GETTING TO KNOW YOUR VEHICLE

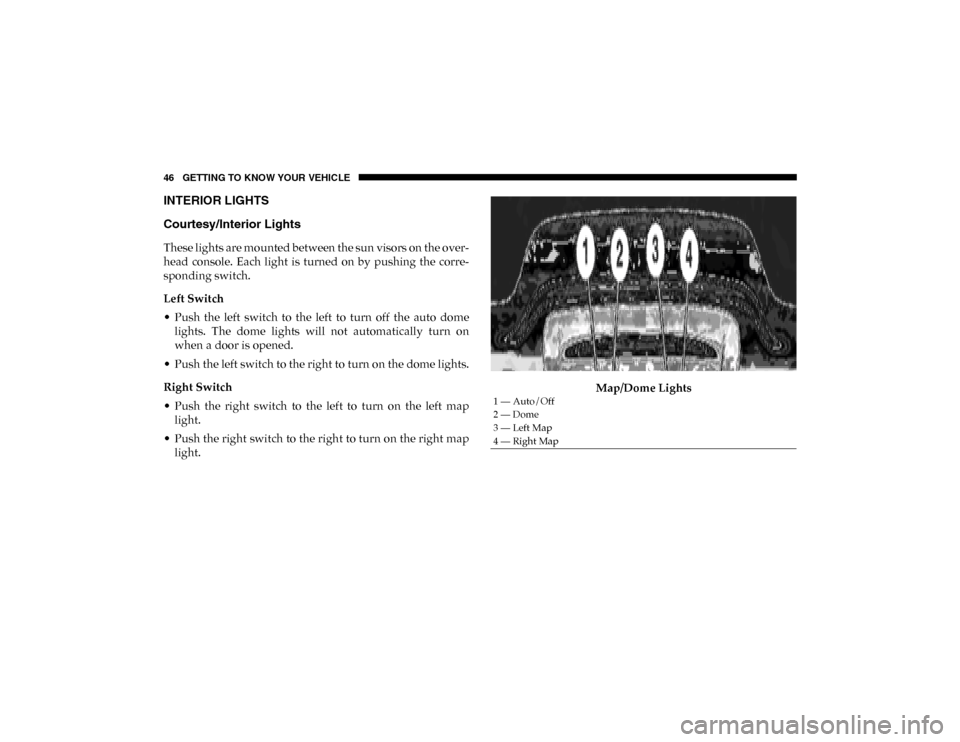

INTERIOR LIGHTS
Courtesy/Interior Lights
These lights are mounted between the sun visors on the over-
head console. Each light is turned on by pushing the corre -
sponding switch.
Left Switch
• Push the left switch to the left to turn off the auto dome lights. The dome lights will not automatically turn on
when a door is opened.
• Push the left switch to the right to turn on the dome lights.
Right Switch
• Push the right switch to the left to turn on the left map light.
• Push the right switch to the right to turn on the right map light. Map/Dome Lights
1 — Auto/Off
2 — Dome
3 — Left Map
4 — Right Map
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 46

GETTING TO KNOW YOUR VEHICLE 47
Rear Lights
Cargo VehicleCargo Vehicle Interior Lamp Locations Lateral Roof Light
This is located on the right side of the load compartment.
Rear Roof Light
This is located on the rear panel of the load compartment.
In auto-mode, the light comes on automatically when you
open the sliding doors and the rear wing doors, and goes out
when you close them.
• Push the left-hand side of the lens to switch the light off
when the doors are open.
• Push the right hand side of the lens to switch the light on when the doors are open.
1 — Lateral Roof Light
2 — Rear Roof Light
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 47

48 GETTING TO KNOW YOUR VEHICLE
Lateral Roof LightPassenger Vehicle
The interior lamps are located in the center of the roof, above
the second row seating, and in the roof, in the center of the
rear load area.
Passenger Vehicle Interior Lamp Locations
1 — Off
2 — Auto
3 — On
1 — Rear Roof Light
2 — Second Row Seating Light
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 48

GETTING TO KNOW YOUR VEHICLE 49
Second Row Seating And Rear Roof Lights Operation
In auto-mode, the light comes on automatically when you
open the sliding doors and the rear wing doors, and goes out
when you close them.
• Push the left-hand side of the lens to switch the light offwhen the doors are open.
• Push the right-hand side of the lens to switch the light on when the doors are open.
Interior Light
1 — Off
2 — Auto
3 — On
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 49

50 GETTING TO KNOW YOUR VEHICLE
Cargo Compartment Light — If Equipped
The cargo compartment light comes on automatically when
the swing doors are opened and turns off when the doors are
closed.Cargo Compartment LightWIPERS AND WASHERS
The windshield wiper/washer lever is located on the right
side of the steering column.
NOTE:
The windshield wipers/washers will only operate with the
ignition in the MAR (ACC/ON/RUN) position.
Front Wiper Operation
There are five different modes of operation for the front
windshield wipers. The windshield wiper lever can be
moved in several positions to access these modes.
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 50

GETTING TO KNOW YOUR VEHICLE 51
Windshield Wiper LeverWindshield Wiper Off
This is the normal position of the wiper lever.
Low Speed Rotate the end of the lever upward to the second
detent. The wipers will operate at low speed.
High Speed Rotate the end of the lever upward to the third
detent. The wipers will operate at high speed.
Intermittent Wiper System Rotate the end of the lever upward to the first detent.
The wipers will operate at intermittent speed. When
the vehicle's speed increases, the time between the
wipes will decrease.
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 51

52 GETTING TO KNOW YOUR VEHICLE
Windshield Washers
Pull the windshield wiper/washer lever toward the steering
wheel to activate the washers. The wipers will activate auto-
matically for three cycles after the lever is released. Manual High Speed/Mist
Push the lever upward from the off position. The wipers will
operate at high speed to clear off road mist or spray from a
passing vehicle. This operation will continue until the lever
is released. When the lever is released, the wipers will return
to the off position and automatically shut off.
Rear Wiper Operation — If Equipped
Rear Windshield Wiper Operation
Rotate the windshield wiper lever center ring upwards to
operate the rear window wiper as follows:
• In intermittent mode when the front window wiper is not
operating
• In synchronous mode (at half the speed of the front window wiper) when the front window wiper is operating
• In continuous mode while vehicle is in REVERSE
With the windshield wipers on, and REVERSE gear engaged,
rear window wiping will be continuous in the same way.
CAUTION!
• Turn the windshield wipers off when driving through an automatic car wash. Damage to the windshield
wipers may result if the wiper control is left in any
position other than off.
• In cold weather, always turn off the wiper switch and allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on and
the wipers freeze to the windshield, damage to the
wiper motor may occur when the vehicle is restarted.
• Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off posi -
tion. If the windshield wiper control is turned off and
the blades cannot return to the off position, damage to
the wiper motor may occur.
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 52

GETTING TO KNOW YOUR VEHICLE 53
Rear Windshield Washer Operation
Pushing the windshield wiper lever forward activates the
rear window washer. Keep the windshield wiper lever
pushed for more than quarter of a second to activate the rear
window wiper as well. When the windshield wiper lever is
released, the wipers will return to normal operation.
The function stops when the windshield wiper lever is
released.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
instrument panel below the radio.
Manual Climate Control Overview
Manual Climate Control
2
