2020 Ram ProMaster City Owner's Manual

62 GETTING TO KNOW YOUR VEHICLE
Power Windows System Initialization
The power windows may be reset if any of the following
occurs:
• On the front doors:• Fuse or battery are disconnected when the window ismoving
• 50 window movements without ever closing the window
• On the rear doors (in addition to the condition for the front doors):
• Fuse or battery are disconnected when the window is moving
• The auto-reverse system is activated while the window is moving and the door is opening
• 50 window movements without ever closing the window • One door opening movements with the window
moving, without ever closing the door
• Three door opening with the window in motion. During these maneuvers, the upper stop position is
never reached
Proceed as follows for initialization:
1. Completely close the driver's door window, keeping the operating button pushed for at least five seconds after the
(upper) end of travel position.
2. Proceed in the same way on the passenger's side door button and on the buttons of rear doors.
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 62

GETTING TO KNOW YOUR VEHICLE 63

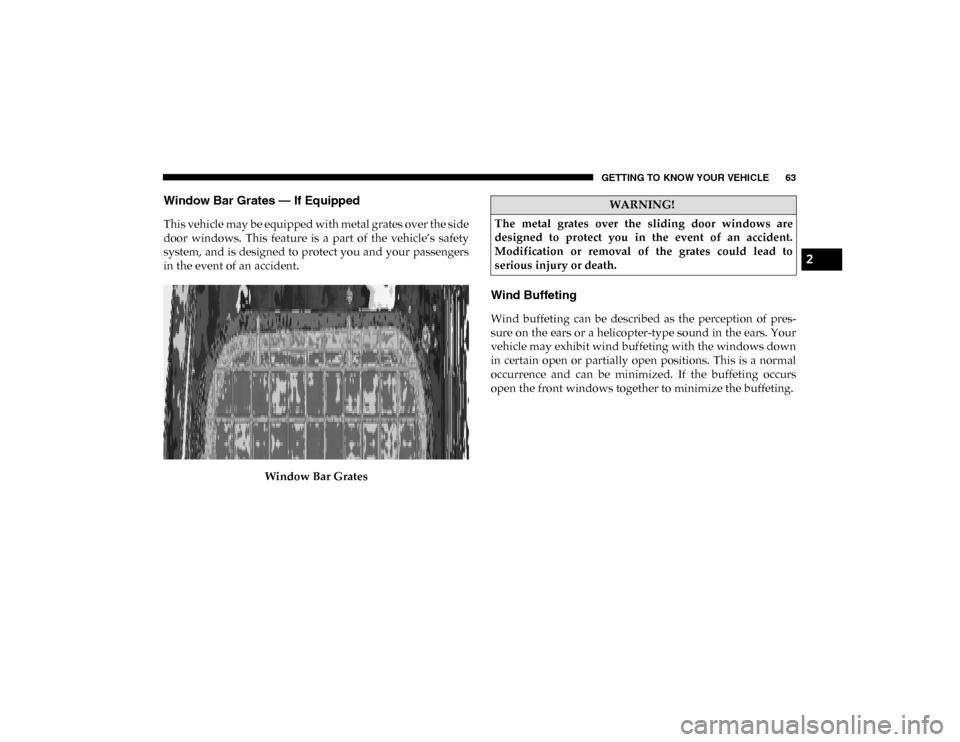

Window Bar Grates — If Equipped
This vehicle may be equipped with metal grates over the side
door windows. This feature is a part of the vehicle’s safety
system, and is designed to protect you and your passengers
in the event of an accident.Window Bar Grates
Wind Buffeting
Wind buffeting can be described as the perception of pres -
sure on the ears or a helicopter-type sound in the ears. Your
vehicle may exhibit wind buffeting with the windows down
in certain open or partially open positions. This is a normal
occurrence and can be minimized. If the buffeting occurs
open the front windows together to minimize the buffeting.
WARNING!
The metal grates over the sliding door windows are
designed to protect you in the event of an accident.
Modification or removal of the grates could lead to
serious injury or death.
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 63

64 GETTING TO KNOW YOUR VEHICLE
HOOD
Opening
To open the hood, two latches must be released.
1. Pull the release lever located below the instrument paneland in front of the driver's door.
Hood Release Lever 2. Move to the outside of the vehicle, reach into the opening
beneath the center of the hood and push up the safety
latch lever to release it, before raising the hood.
Hood Safety Latch Lever Location
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 64

GETTING TO KNOW YOUR VEHICLE 65
3. Raise the hood and place the hood prop rod in hood slotto secure the hood in the open position.
Hood Prop RodClosing
CAUTION!
Be sure to disengage the rod and secure it in close
position before closing the hood. Damage may occur.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless hood
is fully closed, with both latches engaged.
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 65

66 GETTING TO KNOW YOUR VEHICLE

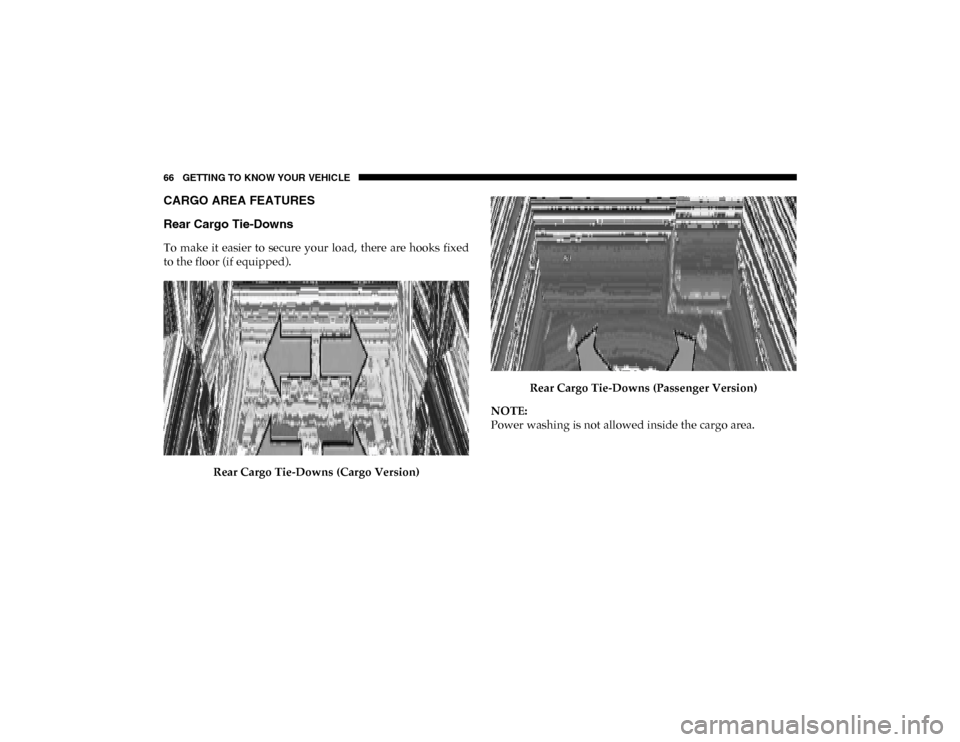

CARGO AREA FEATURES
Rear Cargo Tie-Downs
To make it easier to secure your load, there are hooks fixed
to the floor (if equipped).Rear Cargo Tie-Downs (Cargo Version) Rear Cargo Tie-Downs (Passenger Version)
NOTE:
Power washing is not allowed inside the cargo area.
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 66

GETTING TO KNOW YOUR VEHICLE 67
(Continued)
WARNING!
• To help protect against personal injury, passengers should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes only,
not for passengers, who should sit in seats and use seat
belts.
• Cargo tie-down hooks are not safe anchors for a child seat tether strap. In a sudden stop or accident, a hook
could pull loose and allow the child seat to come loose.
A child could be badly injured. Use only the anchors
provided for child seat tethers.
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:
• Do not carry loads which exceed the load limits described on the label attached to the left door or left
door center pillar.
• Always place cargo evenly on the cargo floor. Put heavier objects as low and as far forward as possible.
• Place as much cargo as possible in front of the rear axle.Too much weight or improperly placed weight over or
behind the rear axle can cause the rear of the vehicle to
sway.
• Do not pile luggage or cargo higher than the top of the seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or accident.
WARNING! (Continued)
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 67

68 GETTING TO KNOW YOUR VEHICLE

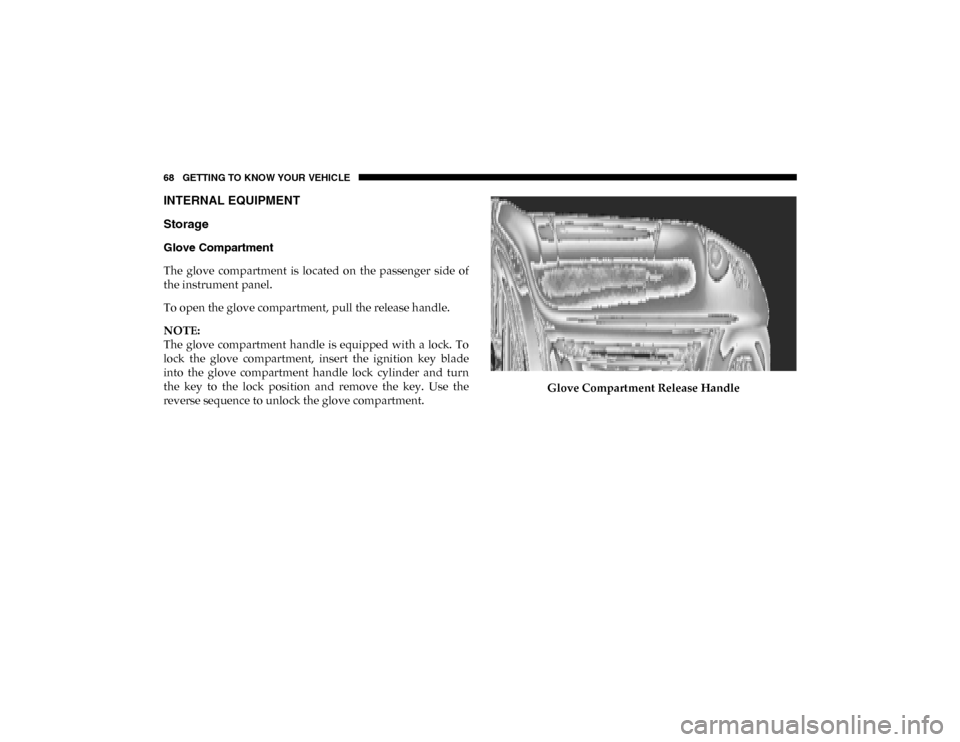

INTERNAL EQUIPMENT
Storage
Glove Compartment
The glove compartment is located on the passenger side of
the instrument panel.
To open the glove compartment, pull the release handle.
NOTE:
The glove compartment handle is equipped with a lock. To
lock the glove compartment, insert the ignition key blade
into the glove compartment handle lock cylinder and turn
the key to the lock position and remove the key. Use the
reverse sequence to unlock the glove compartment.Glove Compartment Release Handle
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 68

GETTING TO KNOW YOUR VEHICLE 69

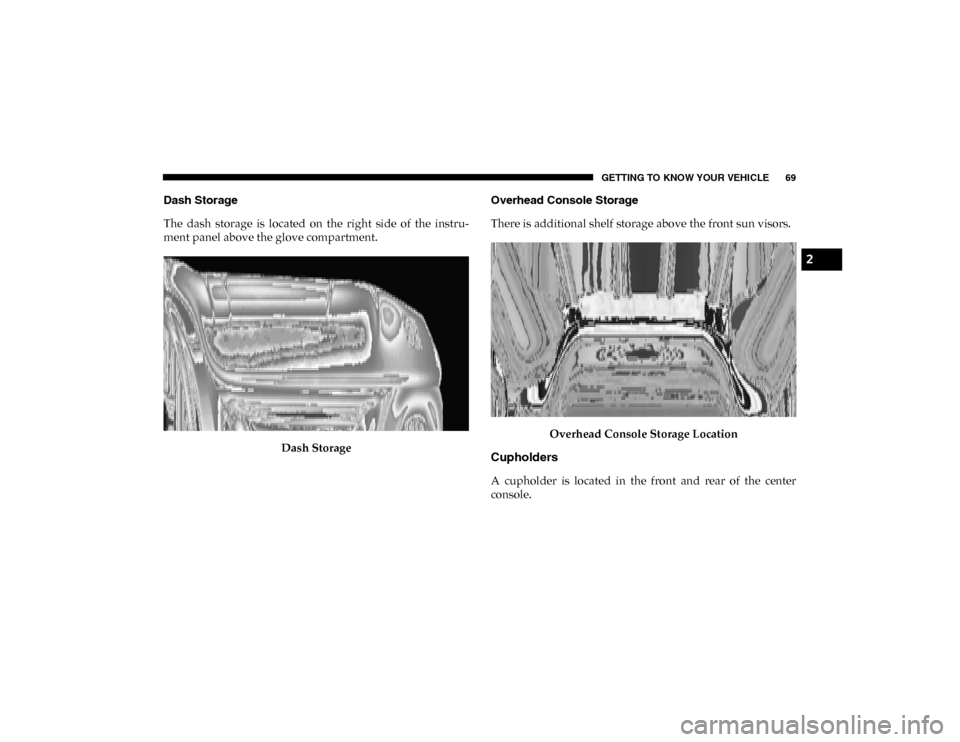

Dash Storage
The dash storage is located on the right side of the instru-
ment panel above the glove compartment.Dash Storage Overhead Console Storage
There is additional shelf storage above the front sun visors.
Overhead Console Storage Location
Cupholders
A cupholder is located in the front and rear of the center
console.
2
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 69
