2020 MERCEDES-BENZ SPRINTER dimensions

To
p view 1
Yellow lane marking the course the tires will
ta ke atthe cur rent steering wheel angle
(dynamic)
2 Yellow guide line, vehicle width (driven sur‐
fa ce) depending on the cur rent steering
wheel angle (dynamic)
3 Marking at a dis tance of appr oximately 3.3 ft
(1.0 m) (the rear-end doors can still be
opened comple tely)
4 Red guide line at a dis tance of appr oximately
1. 0 in (0.3 m) from there ar area
5 Red guide line at a dis tance of appr oximately
8 in (0.2 m) from there ar area, vehicle width
with outside mir ror
6 Redwa rning display of Parking Assist
PA RKTRONIC: obstacles at a dis tance of
appr oximately 1.3 ft (0.4 m) or less
When Parking Assist PARKTRONIC is operational
and no object is de tected, the segments of the
wa rning display are shown in gray.
% If
th e entire sy stem fails, the segments of the
wa rning display are shown in red.
If th e sy stem fails at there ar, the display of
th e segments changes as follo ws:
R The rear segments are shown in red when
backing up.
R The rear segments are hidden when driv‐
ing forw ards.
If Pa rking Assist PARKTRONIC is deactivated,
th ewa rning display fades out.
Guide lines
% The guide lines in
the multimedia sy stem dis‐
play show the dis tances toyour vehicle. The
dis tances only apply toroad le vel.
In trailer mode, the guide lines are shown at
th e le vel of the trailer hitch. Vi
ew of trailer (if trailer hit chis installed) Vi
ew of trailer (if trailer hitch is ins talled)
1 Yellow guide line, locating aid
2 Red guide line at a dis tance of appr oximately
1. 0 in (0.3 m) from the ball head of the trailer
hitch
3 Ball head of the trailer hitch
Side view of the mir ror came ras
The sides of theve hicle can be seen in this vie w. 1
Lane indicating thero ute theve hicle will take
with thesteering wheel in its cur rent position
2 Yellow warning display of Parking Assist
PA RKTRONIC: obstacles at a dis tance of
appr oximately 3.3 ft(1.0 m) or less
3 Your vehicle from abo ve
4 Marker of the wheel contact points
5 Guide line of extern al vehicle dimensions
with outside mir rors folded out
If th e dis tance tothe object lessens, the color of
wa rning display 2changes.
Sy stem failure
If th ere is no operational readiness, thefo llowing
message appears in the multimedia sy stem: 16 0
Driving and pa rking

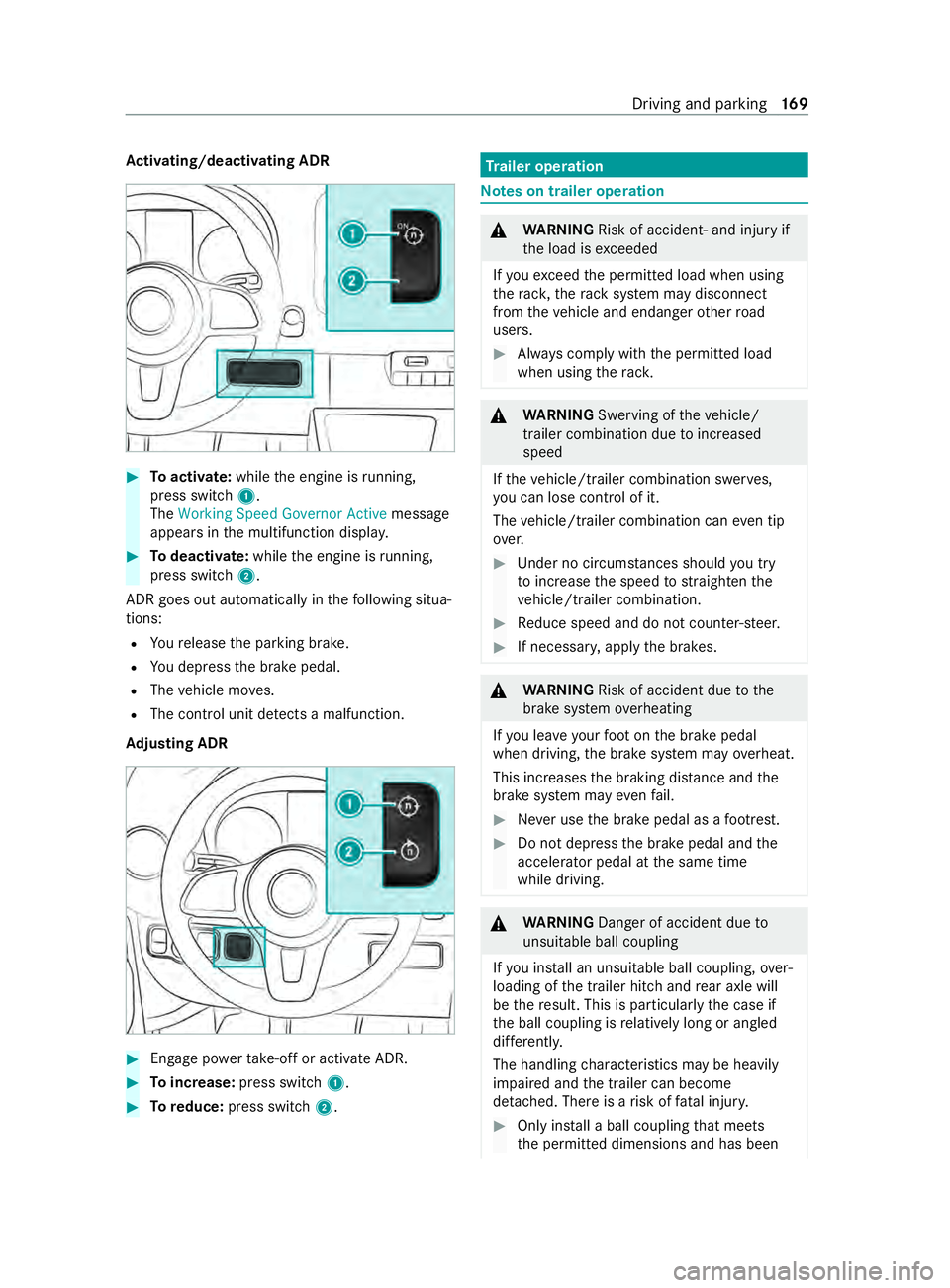

Ac
tivating/deactivating ADR #
Toactivate: whilethe engine is running,
press switch 1.
The Working Speed Governor Active message
appears in the multifunction displa y.#
Todeactivate: whilethe engine is running,
press switch 2.
ADR goes out au tomatical lyin thefo llowing situa‐
tions:
R Youre lease the parking brake.
R You depress the brake pedal.
R The vehicle mo ves.
R The contro l unit detects a malfunction.
Ad justing ADR #
Engage po werta ke -off or acti vate ADR. #
Toincrease: press switch 1. #
Toreduce: press switch 2. Tr
ailer operation Note
s on trailer operation &
WARNING Risk of accident‑ and injury if
th e load is exceeded
If yo uexc eed the permitted load when using
th era ck ,th era ck system may disconnect
from theve hicle and endanger other road
users. #
Always comply with the permitted load
when using thera ck. &
WARNING Swerving of theve hicle/
trailer combination due toinc reased
speed
If th eve hicle/trailer combination swer ves,
yo u can lose control of it.
The vehicle/trailer combination can even tip
ove r. #
Under no ci rcums tances should you try
to inc rease the speed tostra ighten the
ve hicle/trailer combination. #
Reduce speed and do not counter-s teer. #
If necessar y,apply the brakes. &
WARNING Risk of accident due tothe
brake sy stem overheating
If yo u lea veyour foot on the brake pedal
when driving, the brake sy stem may overheat.
This increases the braking dis tance and the
brake sy stem may evenfa il. #
Never use the brake pedal as a foot re st. #
Do not depress the brake pedal and the
accelerator pedal at the same time
while driving. &
WARNING Danger of accident due to
unsuitable ball coupling
If yo u ins tall an unsuitable ball coupling, over‐
loading of the trailer hitch and rear axle will
be there sult. This is particularly the case if
th e ball coupling is relatively long or angled
dif fere ntl y.
The handling characteristics may be heavily
impaired and the trailer can become
de tach ed. There is a risk of fata l injur y. #
Only ins tall a ball coupling that meets
th e permitted dimensions and has been Driving and parking
16 9

Fo
rve hicles with twin tires with a GVW of
11 ,030 lbs or 12,125 lbs, only use tires with
th e dimension LT215/85 R16 whi chhave
been appr ovedfo rth is vehicle bythe manu‐
fa cturer. It is not permissible touse tires with
dif fere nt dimensions; doing so may lead to a
ge neral ope rating pe rmit being rende red
in va lid.
% Ve
hicles with single tires:
Fo rve hicles with single tires with a GVW less
th an or equal to9,480 lbs, only use tires with
th e dimension LT245/75 R16 whi chhave
been appr ovedfo rth is vehicle bythe manu‐
fa cturer. It is not permissible touse tires with
dif fere nt dimensions; doing so may lead to a
ge neral ope rating pe rmit being rende red
in va lid.
% Ve
hicles with Super Single tires:
Fo rve hicles with single tires with a GVW of
11 ,030 lbs, only use tires with the dimen‐
sions 225/ 75R16C (FA) and 285/65 R16C
(RA) which ha vebeen appr ovedfo rth is vehi‐
cle bythe manufacturer. It is not permissible
to use tires with dif fere nt dimensions; doing
so may lead toage neral ope rating pe rmit
being rende red in valid.
Be sure toalso obse rveth efo llowing fur ther rela‐
te d subjects:
R Notes on tire pressure (/ page310)
R Tire and Loading In form ation placard
(/ page 317)
R Tire size designation, load-beari ng capacity,
speed rating and load ind ex (/page 321)
R Tire pressure table
R Notes on the emer gency spa rewheel
(/ page 332) Note
s onchanging wheels &
WARNING Risk of inju rythro ugh dif fer‐
ent wheel sizes
Inter changing the front and rear wheels if the
wheels or tires ha vediffere nt dimensions may
se verely impair the driving characteristics.
The wheel brakes or wheel suspension com‐
ponents may also be damaged. #
Rotate front and rear wheels only if the
wheels and tires are of the same dimen‐
sions. On
vehicles that ha vethe same size front and
re ar wheels, rotate the wheels according tothe
inter vals in the tire manufacturer's warranty book
in your vehicle documents. If this is not available,
ro tate the tires every3,000 (5,000) to
6,000 miles (10,000 km), depending on the
degree of wear. Ensure that the direction of rota‐
tion is maintained.
It is imperati vetoobser vethe instructions and
saf ety no tes on "Changing a wheel" when doing
so. Wheel size categories of wheels
The de
term ined vehicle speed is displa yed in the
instrument clus ter and is impor tant for control‐
ling the driving saf ety sy stems and driving sys‐
te ms. The display accuracy of the speedome ter
and the odome ter is legally prescribed. De term in‐
ing the speed is dependent on the tire size or the
ro lling circumference of the tires. The rim diame‐
te r is alw ays specified in inches.
Fo rth is reason, theve hicle contro l units can be
coded forth efo llowing wheel size categories:
Wheel size category 3
R 225/75 R16C FA
R 285/65 R16C RA
R LT24 5/75 R16
R LT21 5/85 R16
% Mercedes-Benz
recommends that youstay
within a wheel size category when changing a
tire. In this wa y,yo uav oid recoding the con‐
trol units.
If yo uch ange the wheel size of your vehicle, for
ins tance when changing wheels for winter opera‐
tion, check that it is assigned tothe cor rect
wheel size catego ry. If the wheel size category
ch anges, you must ha veyour vehicle's control
units recoded at a qualified specialist workshop.
Otherwise, the display accuracy of the speedom‐
et er and the odome ter will be outside the legally
prescribed tolerance. It may also be lo wer,i.e.
th e cur rent road speed is then higher than the
speed shown on the speedome ter.If a deviation
is outside thera nge of tolerance, driving saf ety
sy stems and driving sy stems may be operation‐
ally impaired or may de tect a malfunction and
switch themselves off. 326
Wheels and tires

#
Tighten the wheel bolts or nuts evenly in the
sequence indicated (1 to6 ).
Specified tightening torque:
R Steel wheel bolts: 177 lb-ft (240 Nm)
R Wheel nuts: 133 lb-f t(180 Nm)
R Alloy wheel bolts: 133 lb-f t(180 Nm) #
Push the pis ton on thehy draulic jack in again
and close the pressure release scr ew. #
Vehicles with all-wheel drive: turnthe jack
spindle clockwise as far as it will go.
% Yo
u can now ins tallth e hub caps on steel
wheels with wheel bolts. The ins tallation pro‐
cedure depends on whe ther the hub cap acts
as a trim that co vers the whole wheel, or just
co vers the center. #
Wheel with hub cap: positionthe opening
fo rth e tire valve in the hub cap overth e tire
va lve. #
Push the edge of the hub cap onto the wheel
ri m with bo thhands until it engages into
place. Make sure the hub cap retaining
cat ches engage on thesteel wheel. #
Wheel with central hub cap: positionthe
re taining lugs of the cent ral hub cap overthe
wheel bolts. #
Hitthe middle of the hub cap toengage it on
th e wheel. #
Secure thefa ulty wheel in the spare wheel
brac ket. #
Vehicles with Super Single tires: transport
th efa ulty rear wheel on the load area. The
re ar wheel is too lar geforth e spare wheel
brac ket. #
Check the tire pressure of the newly ins talled
wheel and adjust it if necessar y. #
Retighten the wheel bolts or wheel nuts tothe
specified tightening torque af terth eve hicle
has been driven 31miles (50 km). #
When using a wheel or spare wheel with a
new or newly painted wheel rim, ha vethe
wheel bolts or nuts retightened af ter appro x‐
ima tely 620 miles (1,000 km) to3,10 0 miles
(5,000 km).
% Ve
hicles with the tire pressure monitor
sy stem: all ins talled wheels must be equip‐
ped with functioning sensors.
Make sure toobser vethefo llowing fur ther rela‐
te d subject:
R Notes on tire pressure (/ page310) Spare wheel
Note
s onthe emer gency spare wheel and
spare wheel Spare wheel:
wheel and tire dimensions as well
as the type of tire cor respond totheot her ins tal‐
led wheels.
Emer gency spare wheel: wheel and/or tire
dimensions as well as the type of tire are dif fer‐
ent from the wheel tobe replaced. A label with a
speed limit can be found on the emer gency spa re
wheel.
An ins talled emer gency spa rewheel or spare
wheel changes the driving characteristics and
bears risks. &
WARNING Risk of accident caused by
incor rect wheel and tire dimensions
When the emer gency spa rewheel or the
spare wheel is ins talled, driving characteris‐
tics may be se verely affected.
The reis an inc reased risk of an accident.
To prev ent hazardous situations: #
Once the spare wheel or the emer gency
spa rewheel has been ins talled, check
th e tire pressure and adjust if neces‐
sar y. #
The emer gency spa rewheel may only
be used temp orarily and must be
re placed with a standard wheel as soon
as possible. #
Never ins tall more than one emer gency
spa rewheel. #
When operating your vehicle with the
emer gency spa rewheel ins talled, adapt 332
Wheels and tires

#
Make sure that no windshield washer
concentrate spills out next tothefiller
opening. *
NO
TEDama getotheex terior lighting
due tounsuitable windshield washer fluid Uns
uitable windshield washer fluid may dam‐
age the plastic sur face of theex terior lighting. #
Only use windshield washer fluid which
is also suitable for use on plast ic surfa‐
ces, e.g. MB SummerFit or MB Winter‐
Fit. *
NO
TEBlocked spr aynozzles caused by
mixing windshield washer fluids #
Do not mix MB SummerFit and MB Win‐
te rFit with other windshield washer flu‐
ids. Do not use distilled or de-ionized
water.Other‐
wise, thefill le vel sensor may give a false reading.
Information on the windshield washer fluid
Re commended windshield washer fluid:
R abovefreezing point: e.g. MB SummerFit
R below freezing point: e.g. MB WinterFit
Mixing ratio
Fo rth e cor rect mixing ratio, referto the informa‐
tion on the anti-freeze container.
Mix thewa sher fluid with windshield washer fluid
all year round.
Fi lling capacities
Wi ndshield washer sy stem
Wa sher fluid
5.8 qt (5.5 l) Re
frigerant Note
s onrefrigerant
Obser vethe no tes on operating fluids
(/ page 340).
% Yo
ur vehicle's climate contro l system can be
fi lled with R‑134a refrigerant. The refrigerant
R‑134a contains fluorinated greenhouse gas.
If yo ur vehicle is filled with R‑134a refrigerant, the
fo llowing information applies: *
NO
TEDama gecaused byincor rect refrig‐
erant If
th e incor rect refrigerant is used, this can
damage the climate cont rol sy stem. #
Use only R‑134a refrigerant or thePAG
oil appr ovedfo ryo ur vehicle by
Mercedes-Benz. #
The appr ovedPA G oil may not be mixed
with any other PAG oil that is not
appr ovedfo r R‑134a refrigerant. Maintenance
work, such as adding refrigerant or
re placing components, may be car ried out only
by aqu alified specialist workshop. All the applica‐
ble regulations relating tothis and theSA E J639
st andard must be adhered to.
All workon the climate cont rol sy stem should
alw ays be car ried out at a qualified specialist
wo rkshop. Example:
refrigerant warning label
1 Warning symbols
2 Refrigerant capacity
3 Applicable standards
4 PAG oil part number
5 Refrigerant type
Wa rning symbols 1referto thefo llowing:
R Potential dangers
R The per form ance of main tenance workat a
qu alified specialist workshop Ve
hicle data Information on
vehicle dimensions The
following section con tains impor tant tech ni‐
cal da taforyo ur vehicle. Your vehicle documents
contain fur ther vehicle-specific and equipment-
dependent tech nical da tasuch as vehicle dimen‐
sions and weights. 348
Tech nical da ta

Tr
ailer hitch Note
s onthe trailer hit ch &
WARNING Risk of accident due toafte r‐
mar ket ins tallation of a trailer hitch that
is not permissible
If af term arke t ins tallation of a trailer hitch is
not permissible and you ins tall a trailer hitch
or other assembly parts, the longitudinal
frame member will be weakened and may
break. In this case, the trailer may come
loose from theve hicle.
There is a risk of an accident.
Only ins tall a trailer hitch af term arke t if it is
pe rm issible. Obser
vethe no tes on trailer operation
(/ page 169).
Re trofitting a trailer hitch is only pe rmissible if a
to wing capacity is specified in your vehicle docu‐
ments.
Yo u can obtain fur ther information on the trailer
hitch at a qualified specialist workshop.
Mercedes-Benz recommends that you ha ve a
trailer hitch retrofitted at an au thorized
Mercedes-Benz Center.
Only use a trailer hitch which has been tested
and specially appr ovedby Mercedes-Benz for
yo ur vehicle.
Use only a ball neck that has been appr ovedfor
yo ur vehicle and foryo ur Sprinter trailer hit ch.
No tes on the permissible dimensions of the ball
neck can also be found on the identification plate
of the trailer hitch.
The maximum permissible towing capacity for
traile rswithout a separate braking sy stem is
1, 653 lbs (750 kg). Tr
ailer loads The permissible
weights and loads which must
not be exceeded can also be obtained from the
fo llowing sources of information:
R Vehicle documents
R The identification plates of the trailer hitch,
trailer and vehicle
The values appr ovedby the manufacturer can be
fo und in thefo llowing table. If theva lues dif fer,
th e lo westvalue applies. Use a calibrated weigh‐ ing machine
tocheck thewe ight restrictions ha ve
been complied with before youstart your journe y. Te
ch nical da ta349

Ins
tallation no tes .............................. 337
Tr ansmission output (maximum) ...... 337 U
Un its of measurement
Setting .............................................. 213
Un locking setting .................................. .47
Un locking/locking
Swit ching automatic locking fea‐
ture on/off ........................................ .50
Un locking and opening front doors
from inside ........................................ .49
Up dates
Impor tant sy stem updates ................2 14
Pe rforming ........................................2 14
Software upda tes ............................. 214
USB soc ket in the rear passenger
comp artment .......................................... 81
User profile ...........................................2 02
Using a sun visor ................................... .98
Using kickdown .................................... 124
Using thete lephone
see Calls V
Ve hicle ................................................... 11 0
Cor rect use ........................................ 26
Data recording ................................... 28
Diagnostics connection ...................... 25
Equipment .......................................... 23
Limi tedWa rranty ................................ 27
Locking (auto matic) ............................ 50
Locking/unlocking (emergency key) .. 50
Lo we ring ........................................... 331
Maintenance ....................................... 24
Notify ing problems ............................ .27
Pa rking (s tart/s top button) .............. 14 0
Pa rking for an extended pe riod ........ 14 4
QR code rescue card .......................... 27
Qualified specialist workshop .............26
Ra ising ............................................ .328
Re gistration ........................................26
St arting (in emer gency operation
mode) ............................................... 11 0
St arting (s tart/s top button) .............. 11 0
Switching on po wer supply (s tart/
st op button) ...................................... 109
Un locking (from inside) ...................... 49
Ve ntilating (co nvenience opening) ...... 60
Vo ice commands (Voice Cont rol
Sy stem) ............................................ 19 3Ve
hicle data
Displ aying (DYNAMIC SELECT) ........ .215
Showing ............................................ 215
Tr ans ferring toAndroid Auto ............ 253
Tr ans ferring toApple CarPl ay®
......... 253
Ve hicle height ..................................3 48
Ve hicle length ................................... 348
Ve hicle width .................................... 348
Wheelbase ........................................3 48
Ve hicle data memory
Electronic control units ...................... 28
Service pr oviders .............................. .29
Ve hicle data storage
Event data recorders .......................... 29
Ve hicle dimensions .............................. 348
Ve hicle identification number
see VIN
Ve hicle identification plate
EU general operating pe rmit num‐
ber .................................................. .338
Gross axle weight rating ................... 338
Pa int code ........................................ 338
Pe rm issible gross mass .................... 338
VIN ................................................... 338
Ve hicle identification plate
see Model series
Ve hicle key
see Key
Ve hicle le vel
Lo we ring ........................................... 12 9
Ra ising .............................................. 12 9
Ve hicle maintenance
see ASS YST PLUS
Ve hicle operation
Outside the USA or Canada ................23
Ve hicle tool kit ............................ .303, 305
Ve hicle tool kit stowage compa rt‐
ment ...................................................... 306
VIN ......................................................... 338
Identification plate ........................... 338
Re ading out ...................................... 338
Seat .................................................. 338
Wi ndshield ....................................... 338
Vo ice command types (Voice Con‐
trol Sy stem) .......................................... 185
Vo ice Control Sy stem .......................... .184
Application specific voice com‐
mands .............................................. 185
Au dible help functions ...................... 186
Entering numbe rs............................. 185 Index
409
