2019 TOYOTA PRIUS PLUS Owners Manual

5378-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8

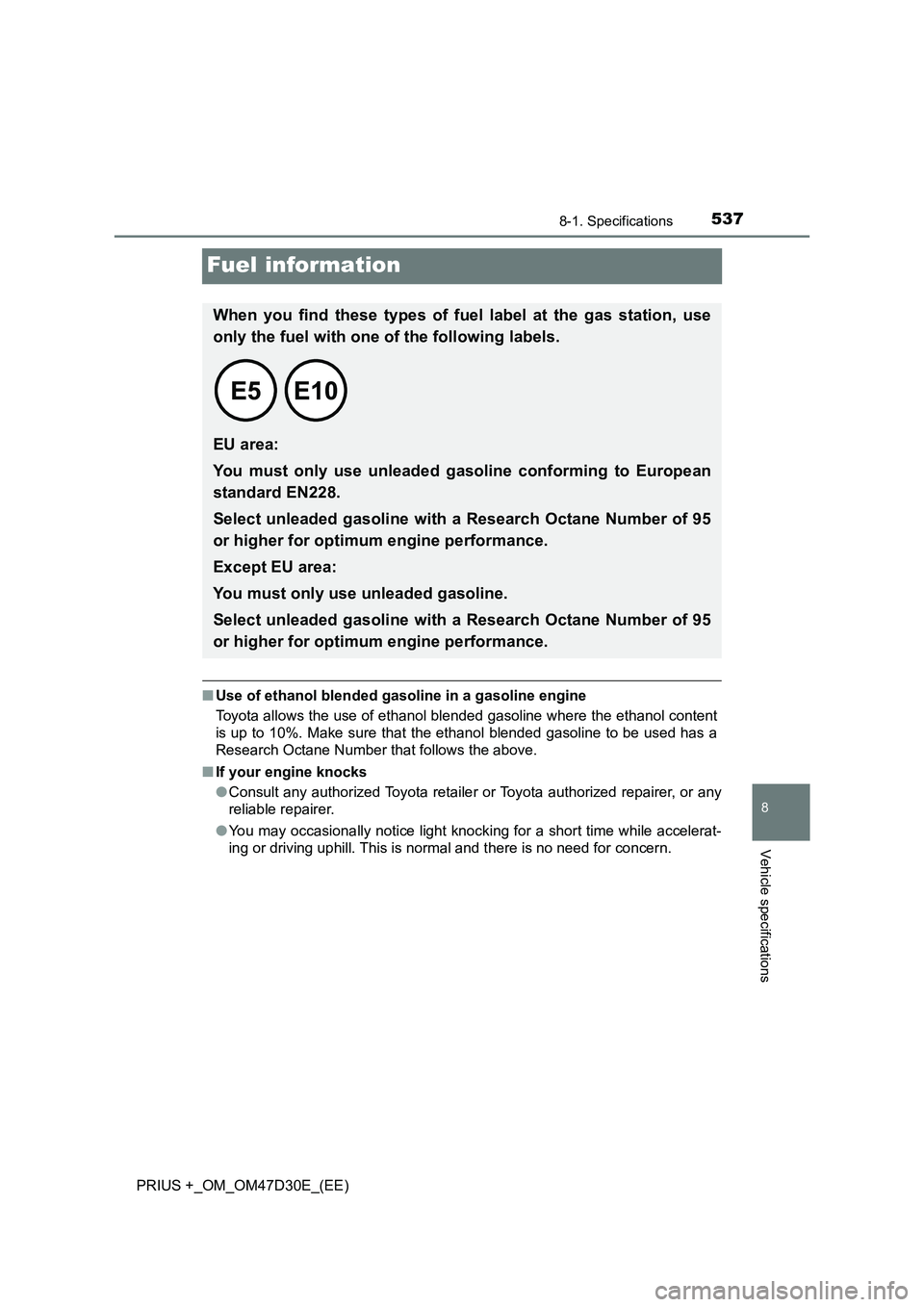

Vehicle specifications
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

5388-1. Specifications
PRIUS +_OM_OM47D30E_(EE)

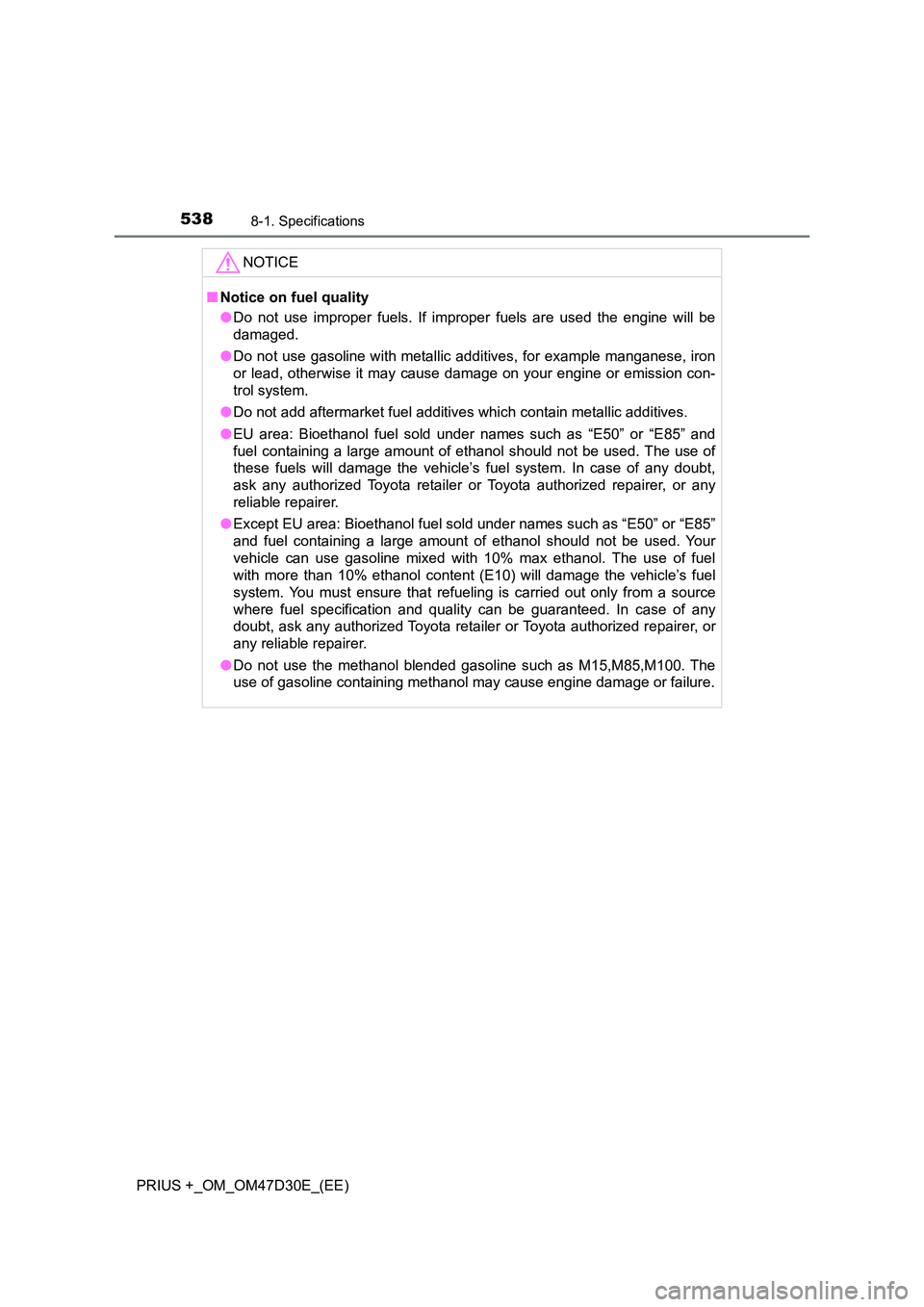

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15,M85,M100. The
use of gasoline containing methanol may cause engine damage or failure.

5398-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
■Changing using the multi-information display (if equipped)
Press or of the meter control switches, select ,
and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
■Changing using the navigation system
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation system, or at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
1
2

5408-2. Customization
PRIUS +_OM_OM47D30E_(EE)
Settings that can be changed using the multi-information display
Vehicles with navigation system: Settings that can be changed
using the navigation system
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – =Not available
■Smart entry & start system and wireless remote control
(P. 140, 153)
■Smart entry & start system (P. 153)
Customizable features
1
2
3
FunctionDefault
settingCustomized
setting
Operation signal
(emergency flashers)OnOff–OO
Open door reminder
buzzer (When locking the
vehicle)
OnOff––O
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
30 seconds
60 seconds
––O
120 seconds
123
FunctionDefault
settingCustomized
setting
Smart entry & start
systemOn Off – O O
123

5418-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■Wireless remote control (P. 140)
■Automatic light control system (P. 241)
■Illumination (P. 342)
*: If equipped
FunctionDefault
settingCustomized
setting
Wireless remote control On Off – – O
123
FunctionDefault
settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
123
FunctionDefault
settingCustomized
setting
Time elapsed before the
interior lights turn off15 secondsOff
–OO 7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlocked with the
smart entry & start system
or the wireless remote
control function or the
mechanical key
OnOff––O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff––O
Footwell lighting
*On Off – – O
Footwell lighting control
*On Off – – O
123

5428-2. Customization
PRIUS +_OM_OM47D30E_(EE)■
Instrument cluster (P. 1 1 7 )
*: The default setting varies according to countries.
■
LDA (Lane Departure Alert with steering control)* (P. 284)
*: If equipped
FunctionDefault
settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
Language*English
French
O–OGerman
Spanish
Italian
Unitskm
(L/100km)km (km/L)OOO
Pop-up displayOnOffO–O
123
FunctionDefault
settingCustomized
setting
Steering Assist functionOnOffO——
Alert sensitivityStandardHighO——
Vehicle sway warning
functionOnOffO——
Vehicle sway warning
sensitivityStandardLowO——High
123

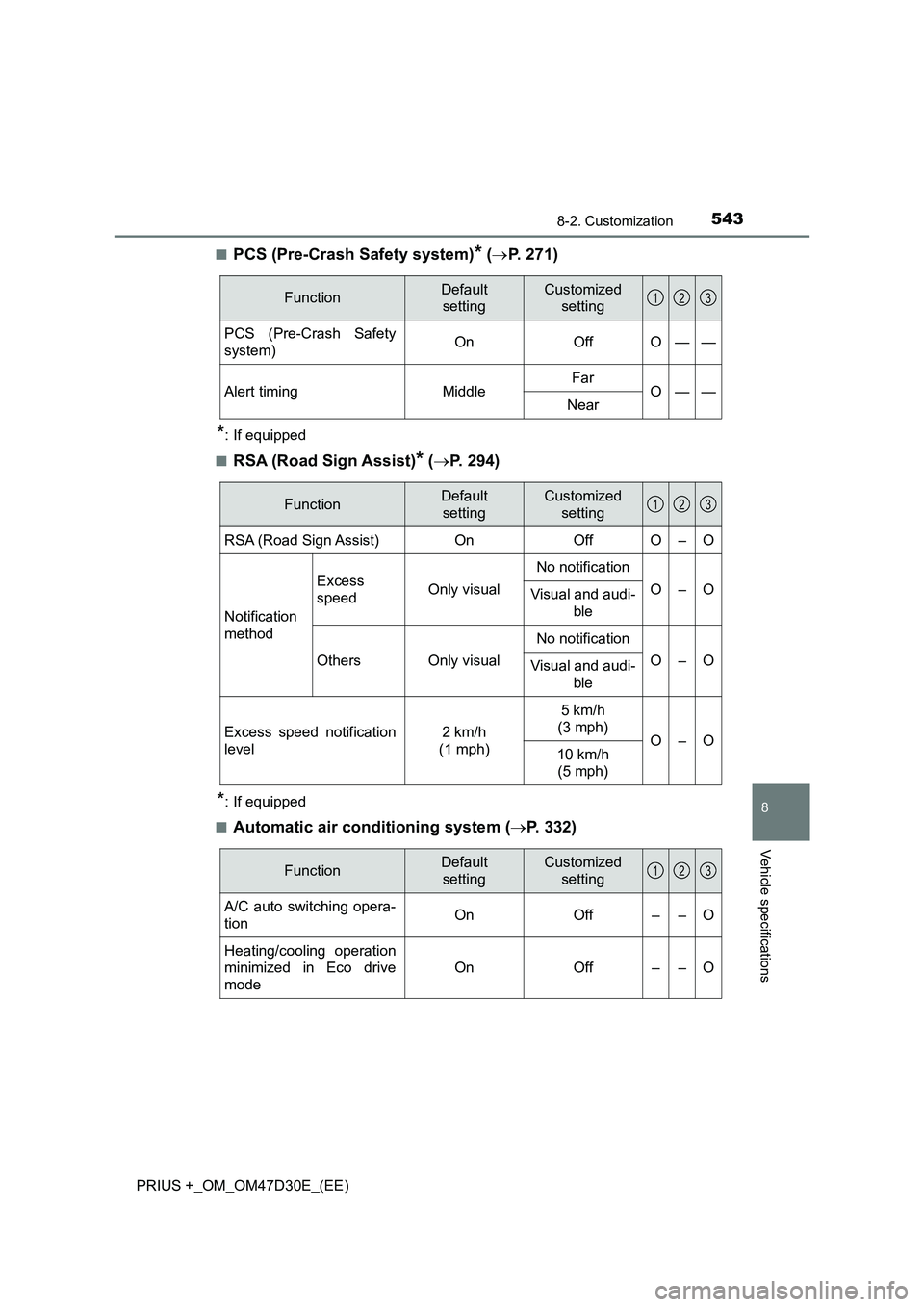

5438-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■PCS (Pre-Crash Safety system)* (P. 271)
*: If equipped
■
RSA (Road Sign Assist)* (P. 294)
*: If equipped
■
Automatic air conditioning system (P. 332)
FunctionDefault
settingCustomized
setting
PCS (Pre-Crash Safety
system)OnOffO——
Alert timingMiddleFarO——Near
123
FunctionDefault
settingCustomized
setting
RSA (Road Sign Assist)OnOffO–O
Notification
method
Excess
speedOnly visual
No notification
O–OVisual and audi-
ble
OthersOnly visual
No notification
O–OVisual and audi-
ble
Excess speed notification
level2 km/h
(1 mph)
5 km/h
(3 mph)
O–O10 km/h
(5 mph)
123
FunctionDefault
settingCustomized
setting
A/C auto switching opera-
tionOnOff––O
Heating/cooling operation
minimized in Eco drive
mode
OnOff––O
123

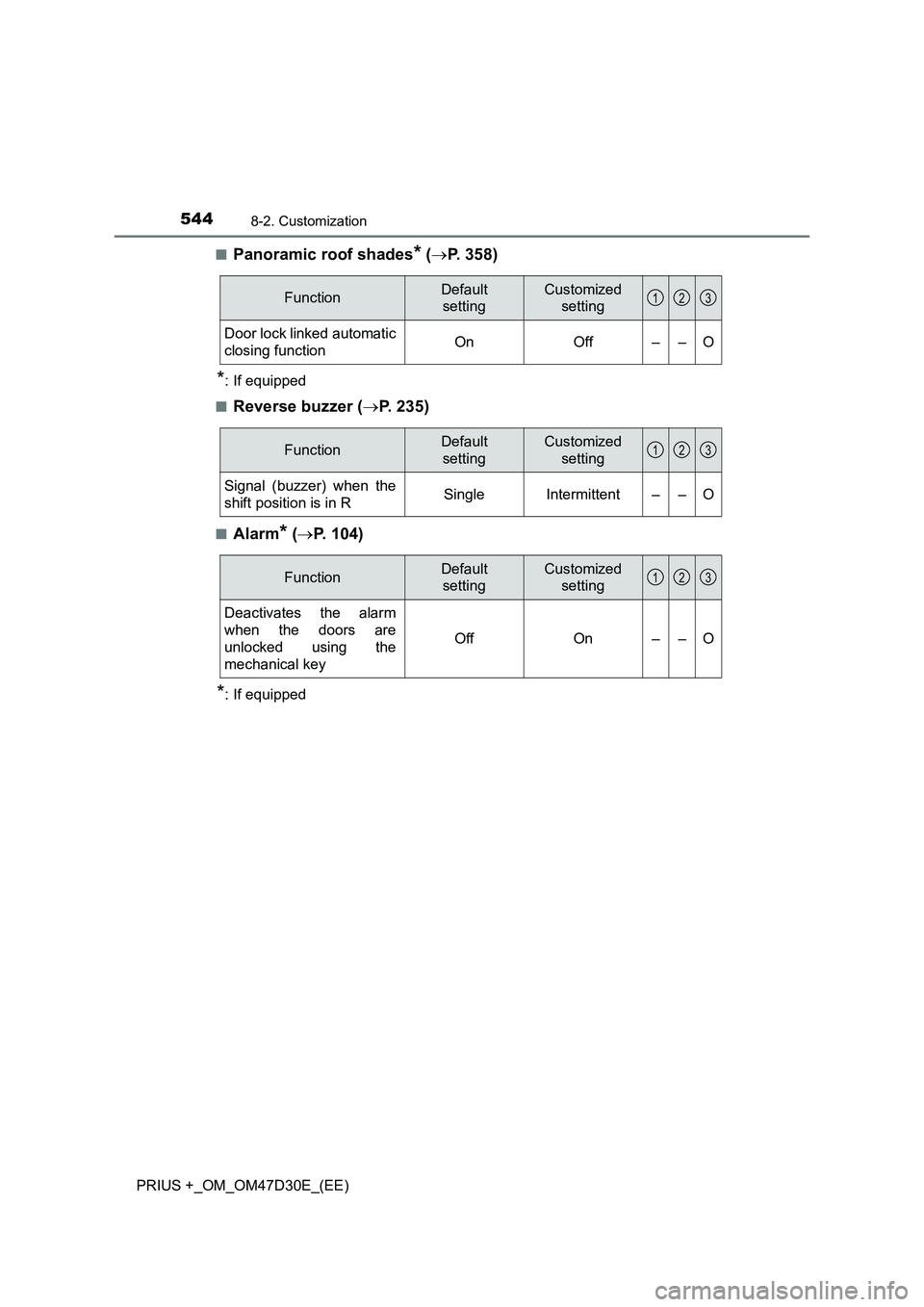

5448-2. Customization
PRIUS +_OM_OM47D30E_(EE)■
Panoramic roof shades* (P. 358)
*: If equipped
■
Reverse buzzer (P. 235)
■Alarm* (P. 104)
*: If equipped
FunctionDefault
settingCustomized
setting
Door lock linked automatic
closing functionOnOff––O
123
FunctionDefault
settingCustomized
setting
Signal (buzzer) when the
shift position is in RSingleIntermittent––O
123
FunctionDefault
settingCustomized
setting
Deactivates the alarm
when the doors are
unlocked using the
mechanical key
OffOn––O
123
