2019 TOYOTA PRIUS PLUS Owners Manual

5298-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Voltage3.6 V/cell
Capacity5 Ah
Quantity56 cells
Nominal voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

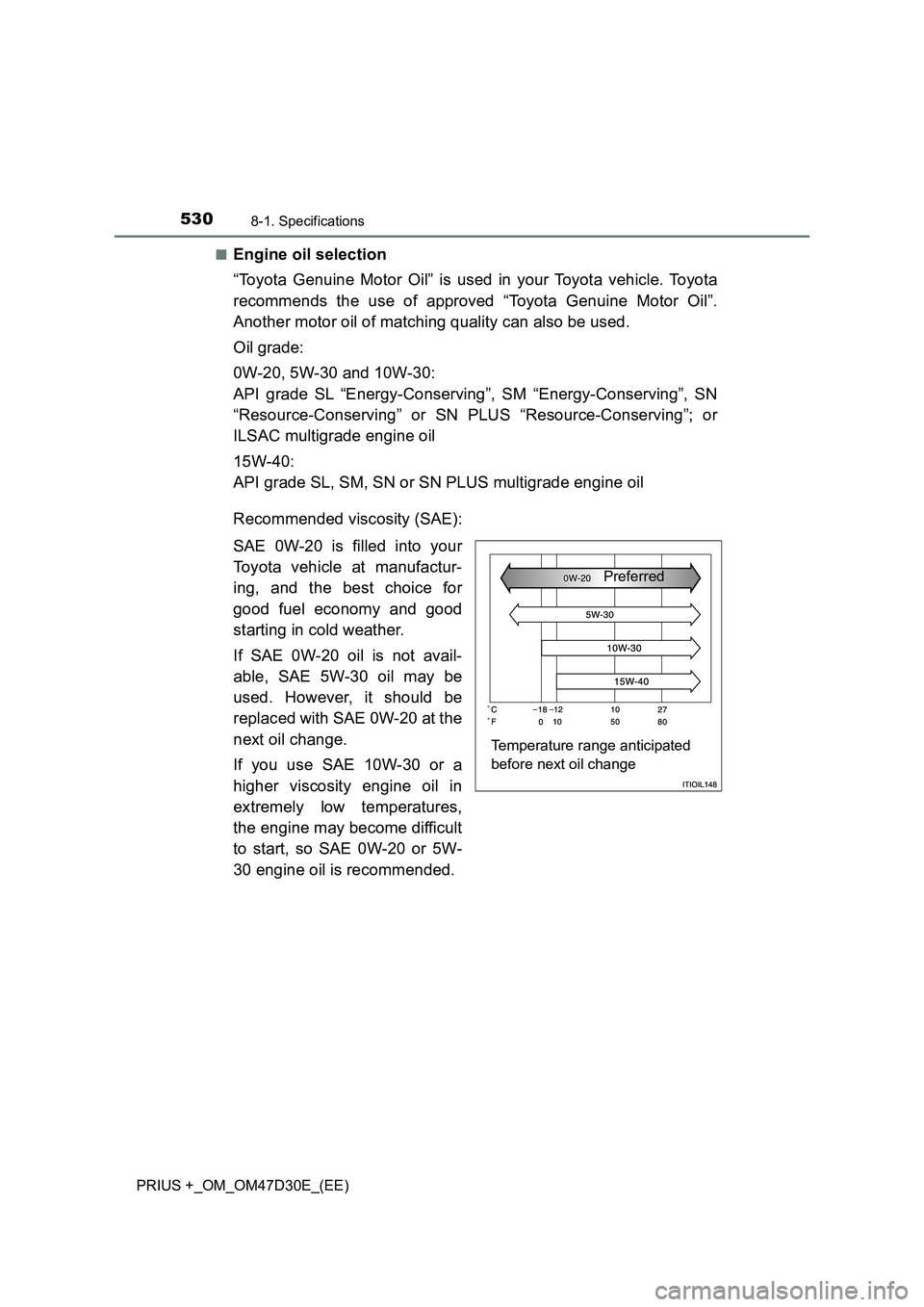

5308-1. Specifications
PRIUS +_OM_OM47D30E_(EE)■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil changePreferred

5318-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5328-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
Cooling system
Capacity
Gasoline
engine
Without an exhaust heat recirculator sys-
tem
6.5 L (6.9 qt., 5.7 Imp.qt.)
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Power
control unit2.7 L (2.9 qt., 2.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SC20HR11 or SC16HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

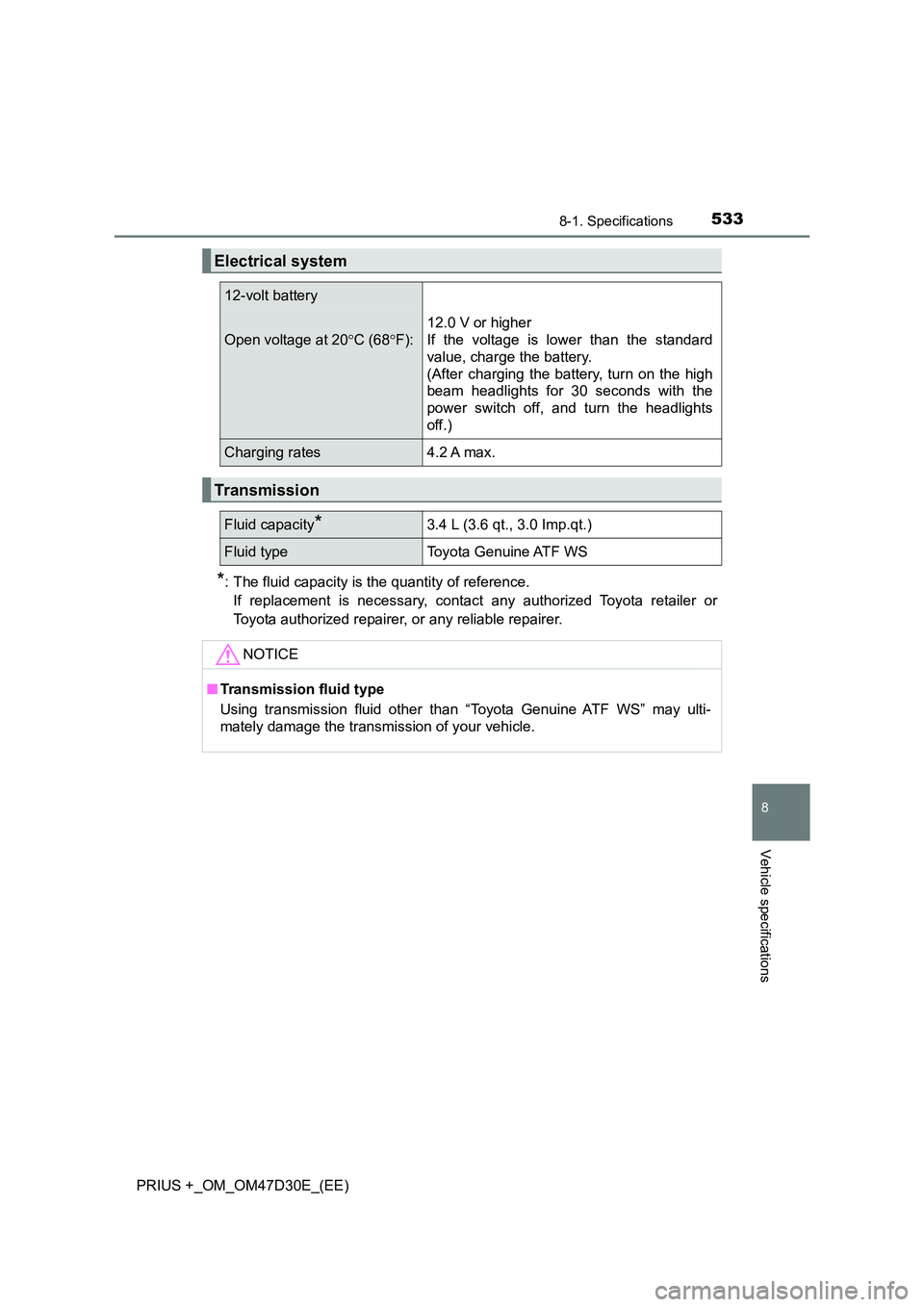

5338-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Electrical system
12-volt battery
Open voltage at 20 C (68F):
12.0 V or higher
If the voltage is lower than the standard
value, charge the battery.
(After charging the battery, turn on the high
beam headlights for 30 seconds with the
power switch off, and turn the headlights
off.)
Charging rates4.2 A max.
Transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.

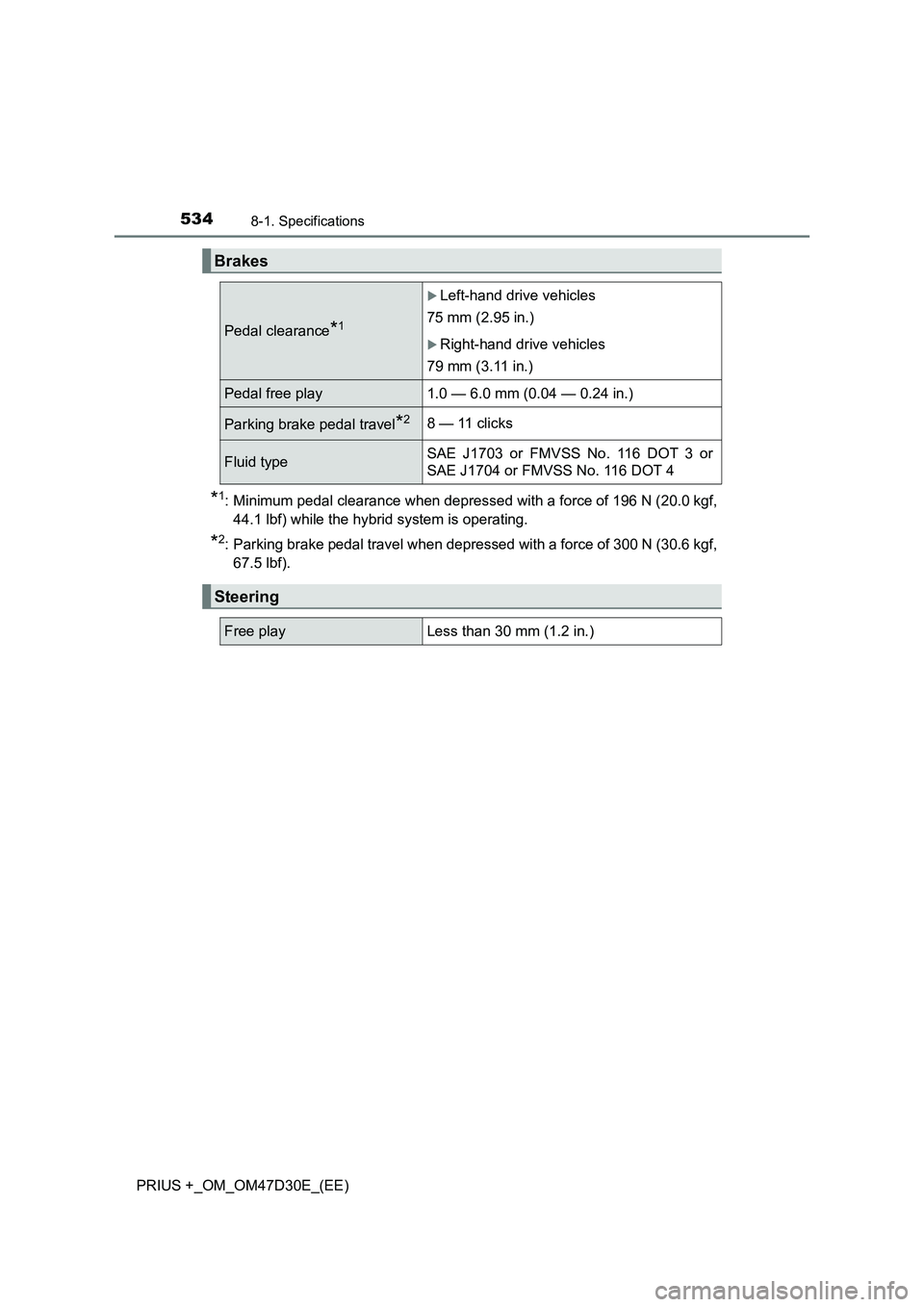

5348-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
*1: Minimum pedal clearance when depressed with a force of 196 N (20.0 kgf,
44.1 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,
67.5 lbf).
Brakes
Pedal clearance*1
Left-hand drive vehicles
75 mm (2.95 in.)
Right-hand drive vehicles
79 mm (3.11 in.)
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 —11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5358-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
Ty pe A
Ty pe B
Compact spare tire (if equipped)
Tires and wheels
Tire size205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Wheel size16  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/50R17 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

5368-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
Light bulbs
Light bulbsWTyp e
Exterior
Front fog lights19A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights21C
Rear fog light21C
License plate lights5C
Interior
Vanity lights8C
Personal/interior lights
Vehicles without panoramic roof
Vehicles with panoramic roof
5
8C
C
Rear interior light8D
Door courtesy lights5C
Luggage compartment light5C
A: H16 halogen bulbs
B: Wedge base bulbs (amber)C: Wedge base bulbs (clear)
D: Double end bulbs
