2019 TOYOTA PRIUS PLUS Owners Manual

2654-5. Using the driving support systems
4
Driving
PRIUS +_OM_OM47D30E_(EE)

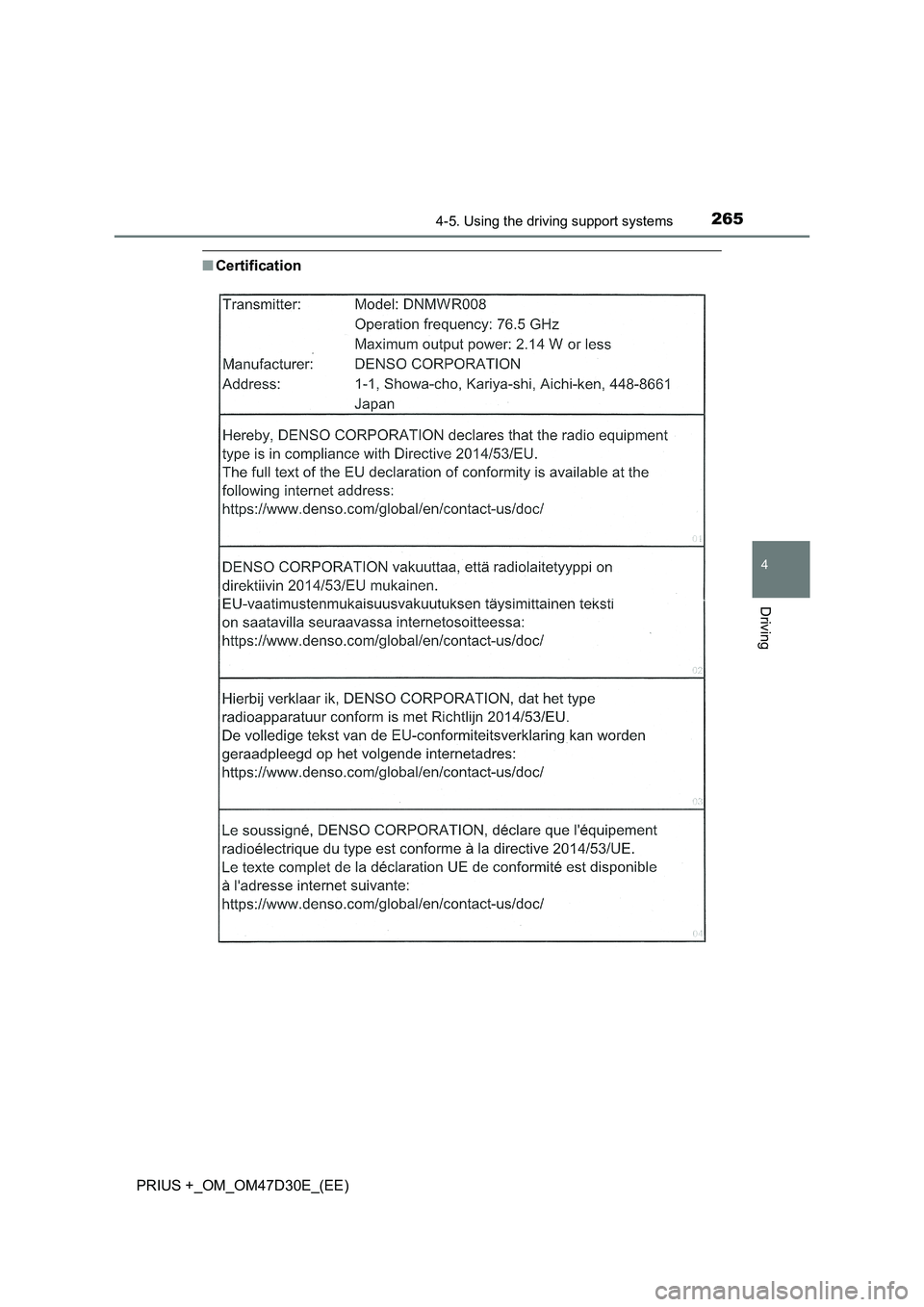

■Certification

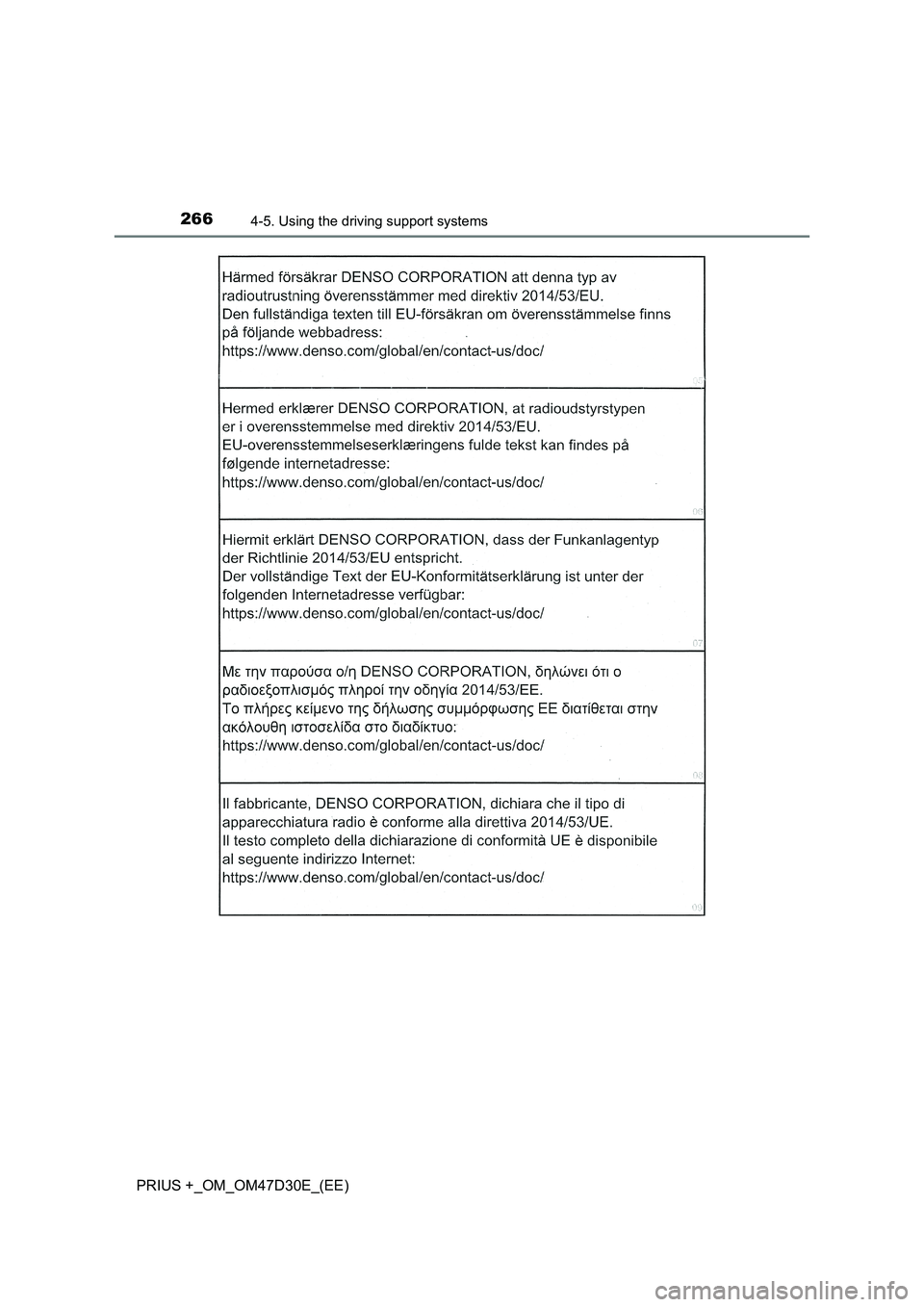

2664-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)

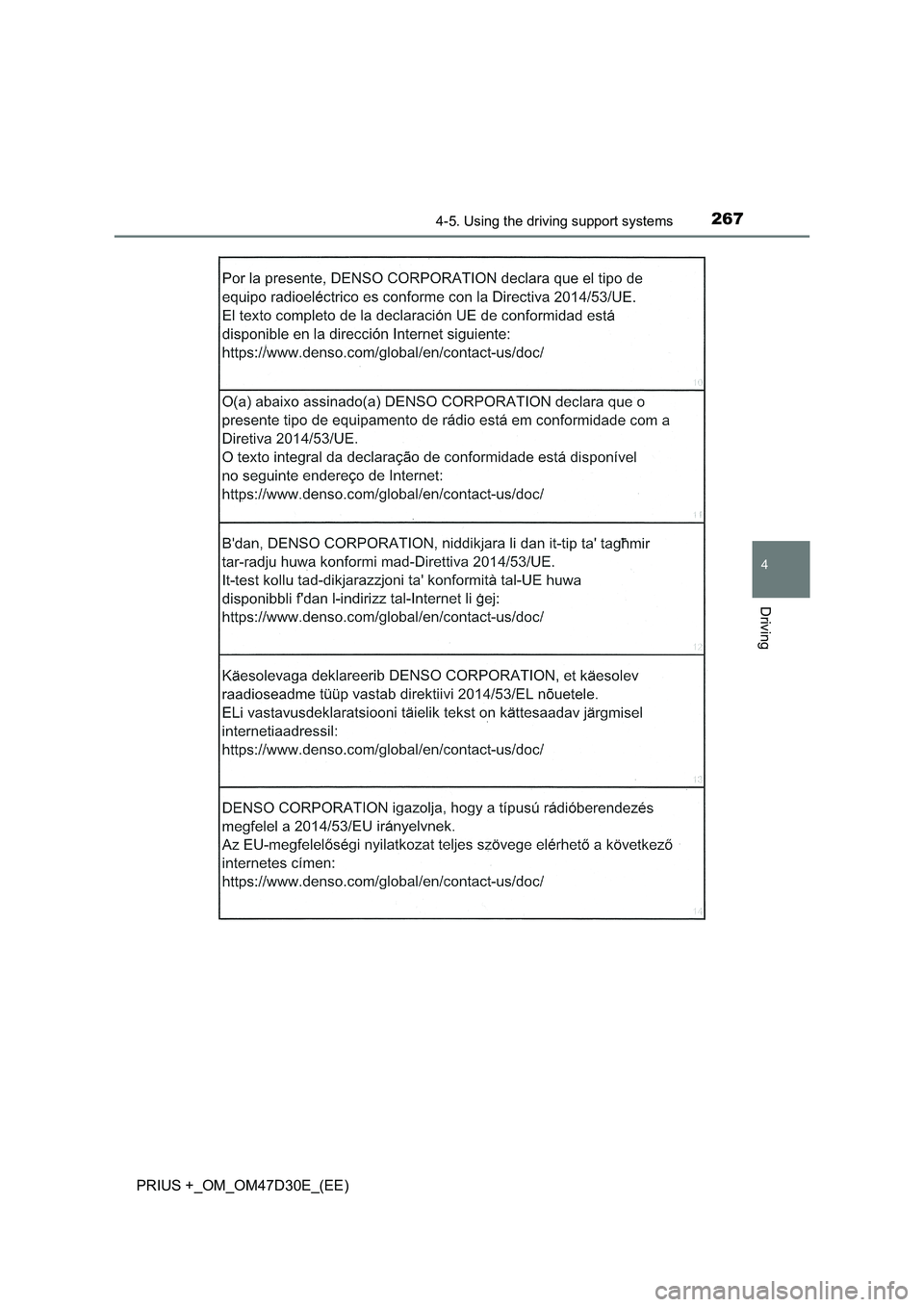

2674-5. Using the driving support systems
4
Driving
PRIUS +_OM_OM47D30E_(EE)

2684-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)

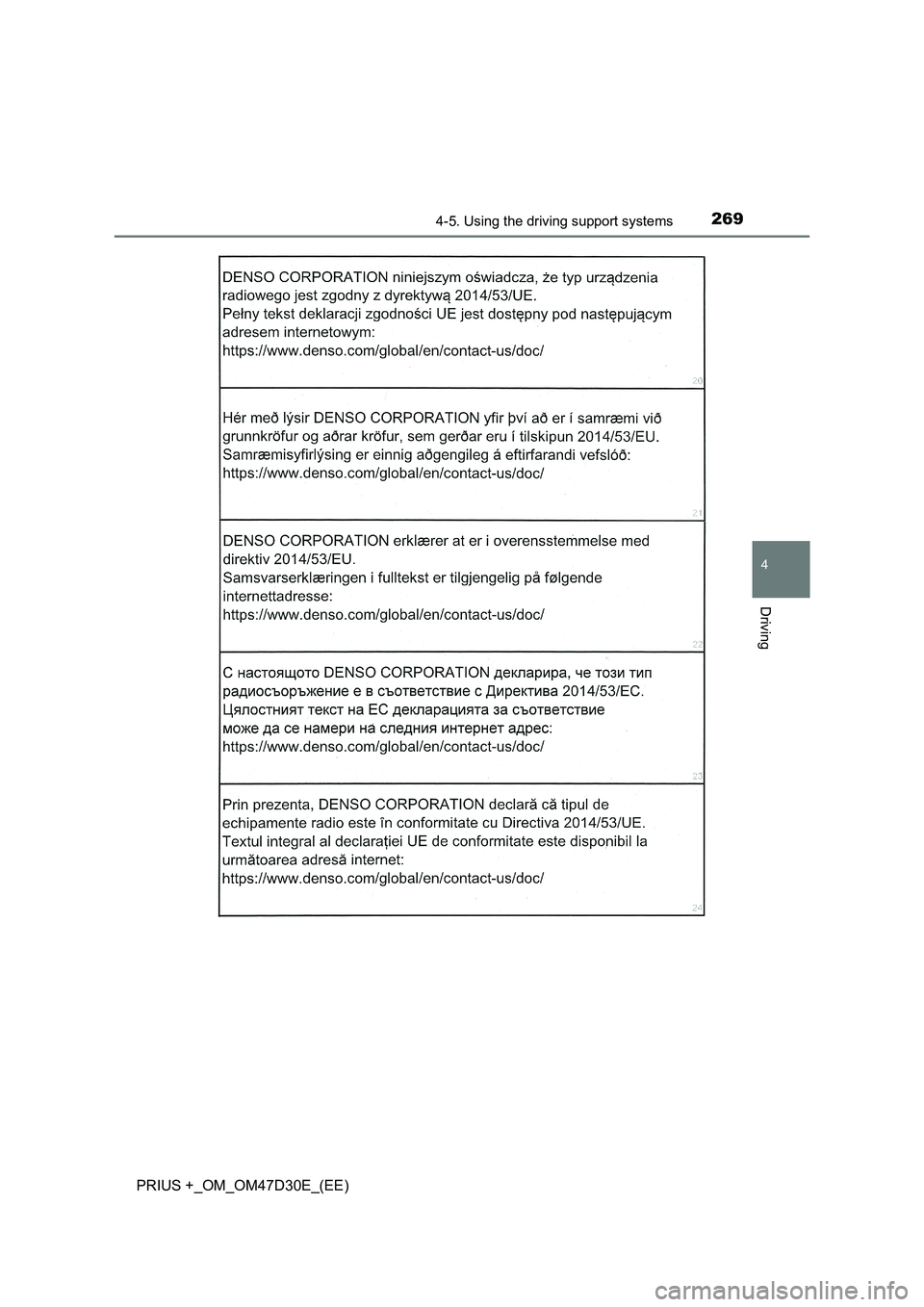

2694-5. Using the driving support systems
4
Driving
PRIUS +_OM_OM47D30E_(EE)

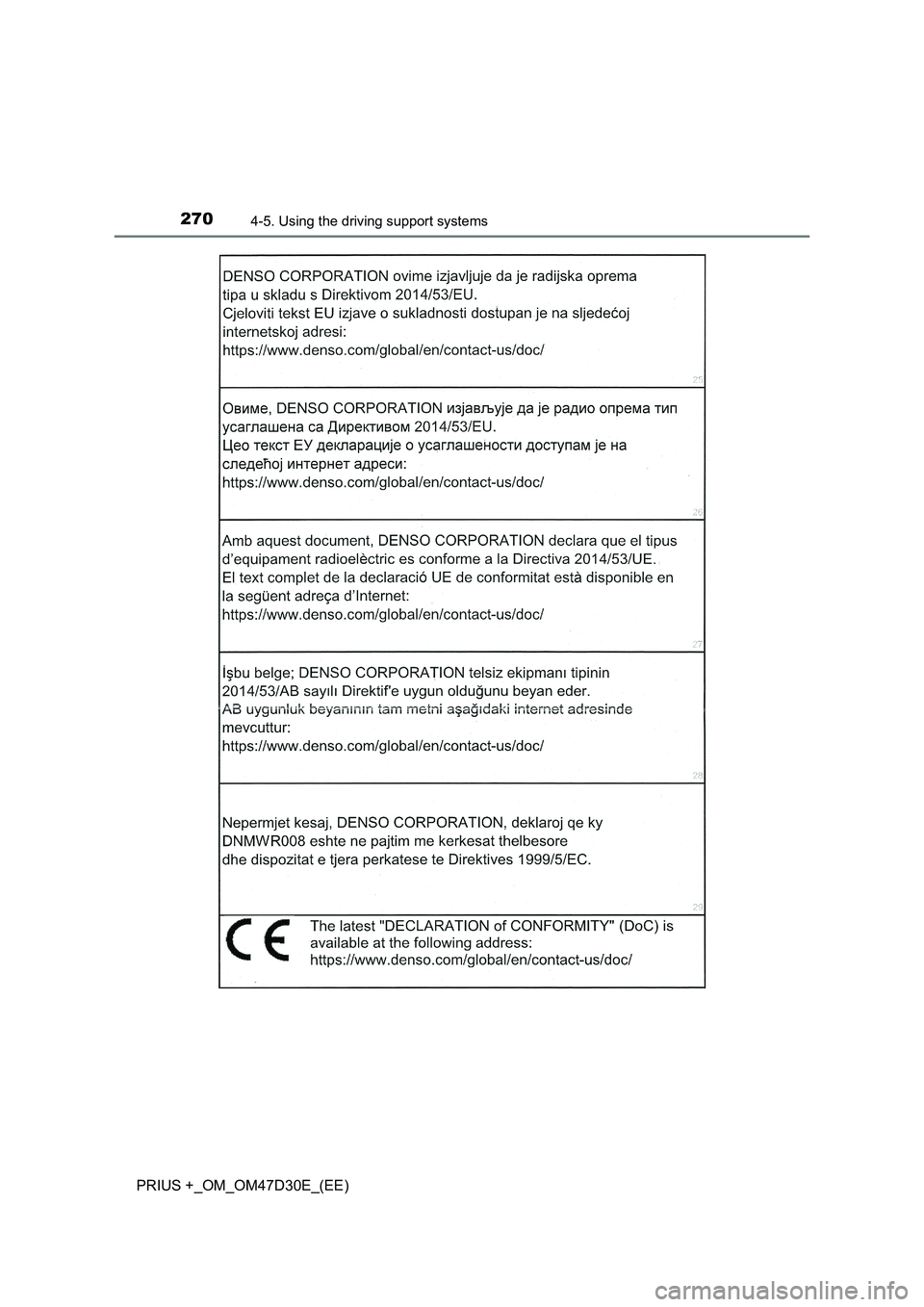

2704-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)

271
4
4-5. Using the driving support systems
Driving
PRIUS +_OM_OM47D30E_(EE)
PCS (Pre-Crash Safety system)
◆Pre-crash warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
: If equipped
The pre-crash safety system uses a radar sensor and camera
sensor to detect vehicles and pedestrians in front of your vehi-
cle. When the system determines that the possibility of a frontal
collision with a vehicle or pedestrian is high, a warning operates
to urge the driver to take evasive action and the potential brake
pressure is increased to help the driver avoid the collision. If the
system determines that the possibility of a frontal collision with
a vehicle or pedestrian is extremely high, the brakes are auto-
matically applied to help avoid the collision or help reduce the
impact of the collision.
The pre-crash safety system can be disabled/enabled and the warn-
ing timing can be changed. (P. 275)

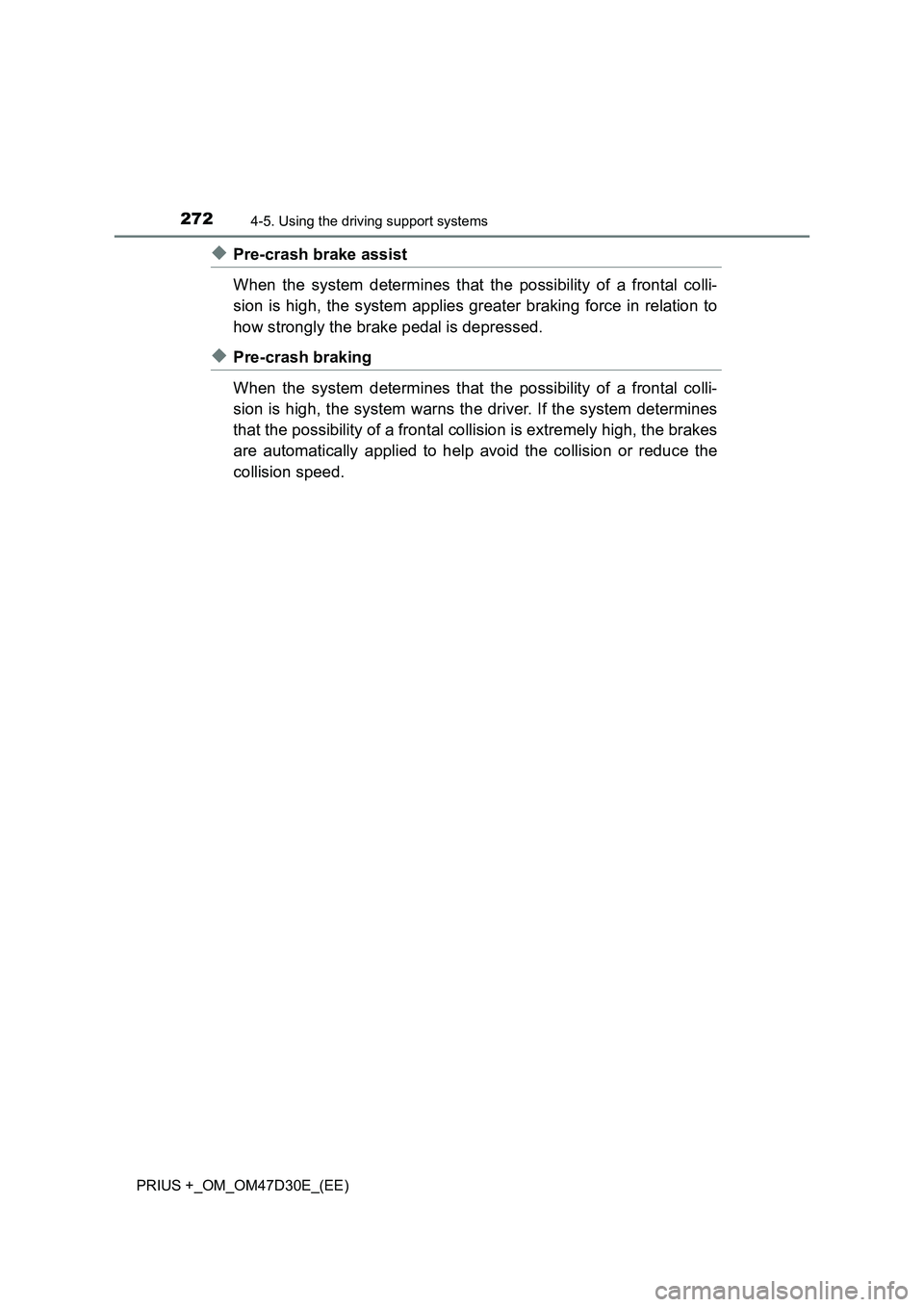

2724-5. Using the driving support systems
PRIUS +_OM_OM47D30E_(EE)
◆Pre-crash brake assist
When the system determines that the possibility of a frontal colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.
◆Pre-crash braking
When the system determines that the possibility of a frontal colli-
sion is high, the system warns the driver. If the system determines
that the possibility of a frontal collision is extremely high, the brakes
are automatically applied to help avoid the collision or reduce the
collision speed.
