2019 TOYOTA PRIUS PLUS Owners Manual

2494-3. Operating the lights and wipers
4
Driving
PRIUS +_OM_OM47D30E_(EE)
NOTICE
■Notes when using the Automatic High Beam system
Observe the following to ensure that the Automatic High Beam functions
correctly.
● Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflec ted in the windshield for streetlights,
the headlights of other vehicles, etc.
● Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
● Do not overload the vehicle.
● Do not modify the vehicle.
● Do not replace windshield with non-genuine windshield.
Contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not replace headlights with non-genuine headlights.
Contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not touch the camera sensor.
● Do not subject the camera sensor to a
strong impact.
● Do not disassemble the camera sensor.
● Do not spill liquid onto the camera sen-
sor.
● Do not apply window tinting or stickers
to the camera sensor or the area of
windshield near the camera sensor.

2504-3. Operating the lights and wipers
PRIUS +_OM_OM47D30E_(EE)

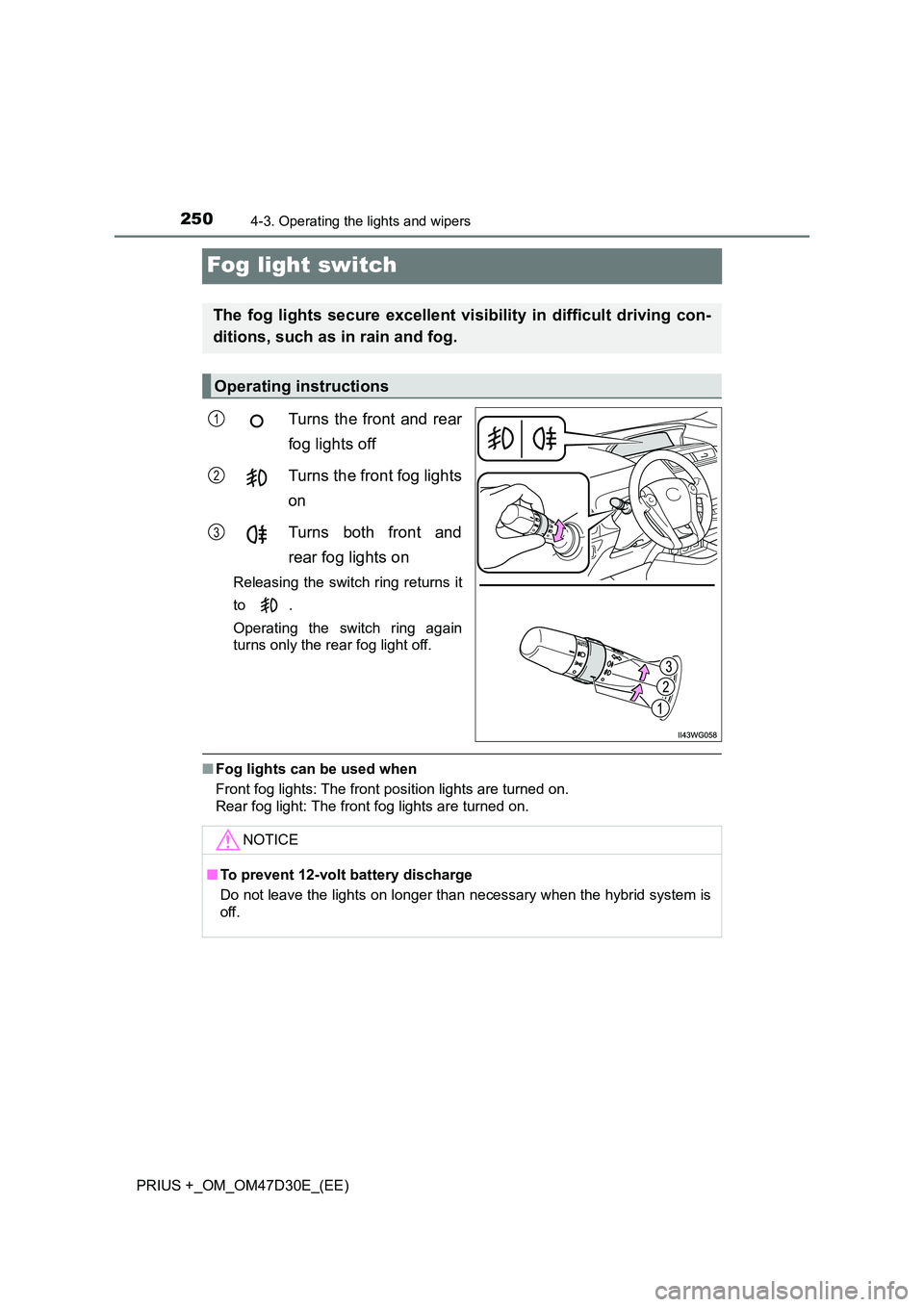

Fog light switch
Turns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and
rear fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
■ Fog lights can be used when
Front fog lights: The front position lights are turned on.
Rear fog light: The front fog lights are turned on.
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
Operating instructions
1
2
3
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

251
4
4-3. Operating the lights and wipers
Driving
PRIUS +_OM_OM47D30E_(EE)

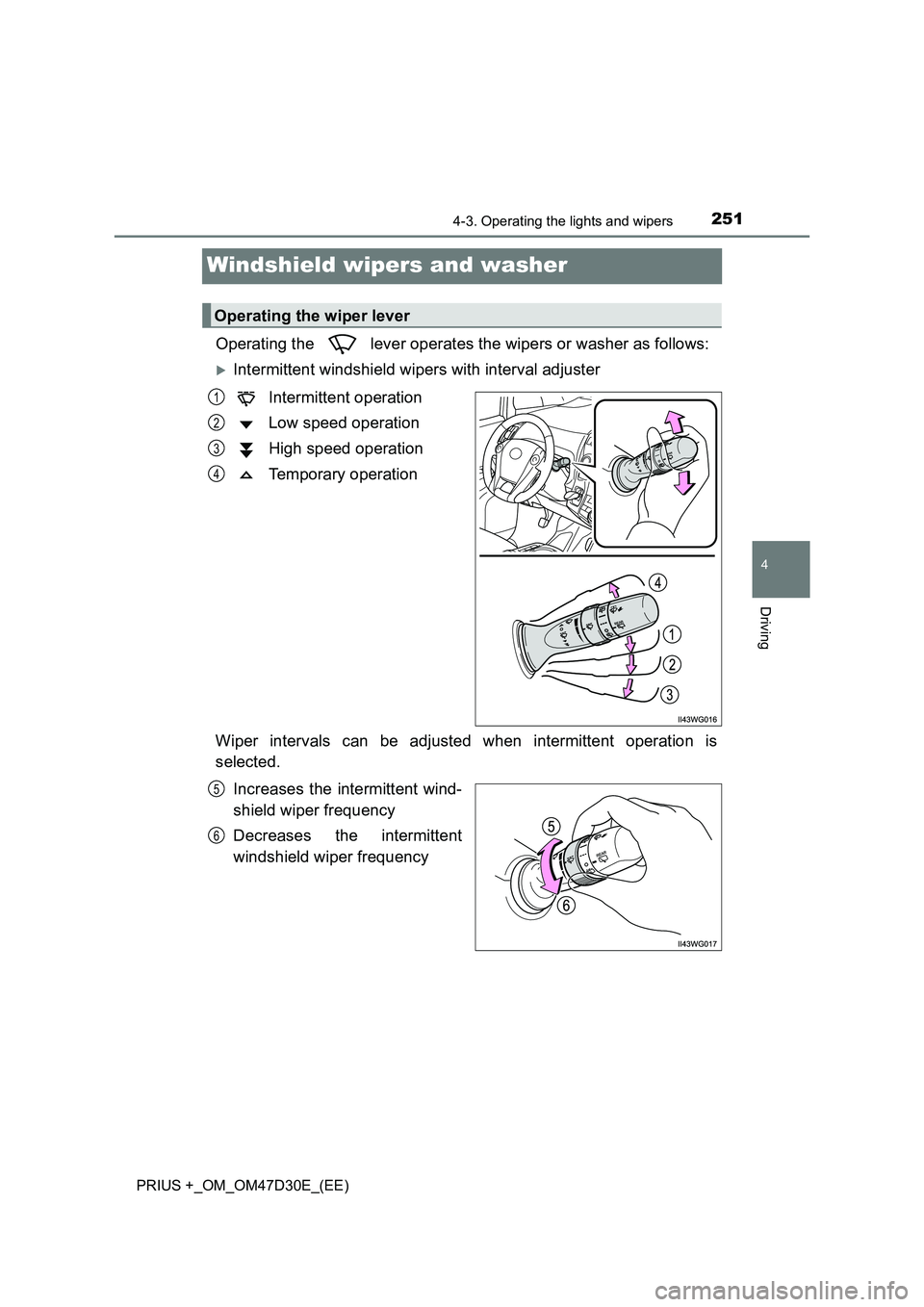

Windshield wipers and washer
Operating the lever operates the wipers or washer as follows:
Intermittent windshield wipers with interval adjuster
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected.
Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Operating the wiper lever
1
2
3
4
5
6

2524-3. Operating the lights and wipers
PRIUS +_OM_OM47D30E_(EE)
Washer/wiper dual oper-
ation
Pulling the lever operates the wip-
ers and washer.
Wipers will automatically operate a
couple of times after the washer
squirts.
Rain-sensing windshield wipers
Rain-sensing operation
Low speed operation
High speed operation
Temporary operation
When is selected, the wipers
will operate automatically when
the sensor detects falling rain.
The system automatically adjusts
wiper timing in accordance with
rain volume and vehicle speed.
7
1
2
3
4

2534-3. Operating the lights and wipers
4
Driving
PRIUS +_OM_OM47D30E_(EE)
The sensor sensitivity can be adjusted when is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual oper-
ation
Pulling the lever operates the wip-
ers and washer.
Wipers will automatically operate a
couple of times after the washer
squirts.
■ The windshield wipers and washer can be operated when
The power switch is in ON mode.
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
● If the wiper switch is turned to the position while the power switch is in
ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
● If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
● If the temperature of the raindrop sensor is 85C (185F) or higher, or -10C
(14 F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than .
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.
5
6
7
● The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

2544-3. Operating the lights and wipers
PRIUS +_OM_OM47D30E_(EE)
WARNING
■Caution regarding the use of windshield wipers in AUTO mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers etc. do not become caught in the windshield wipers.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■ To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system
is off.

255
4
4-3. Operating the lights and wipers
Driving
PRIUS +_OM_OM47D30E_(EE)

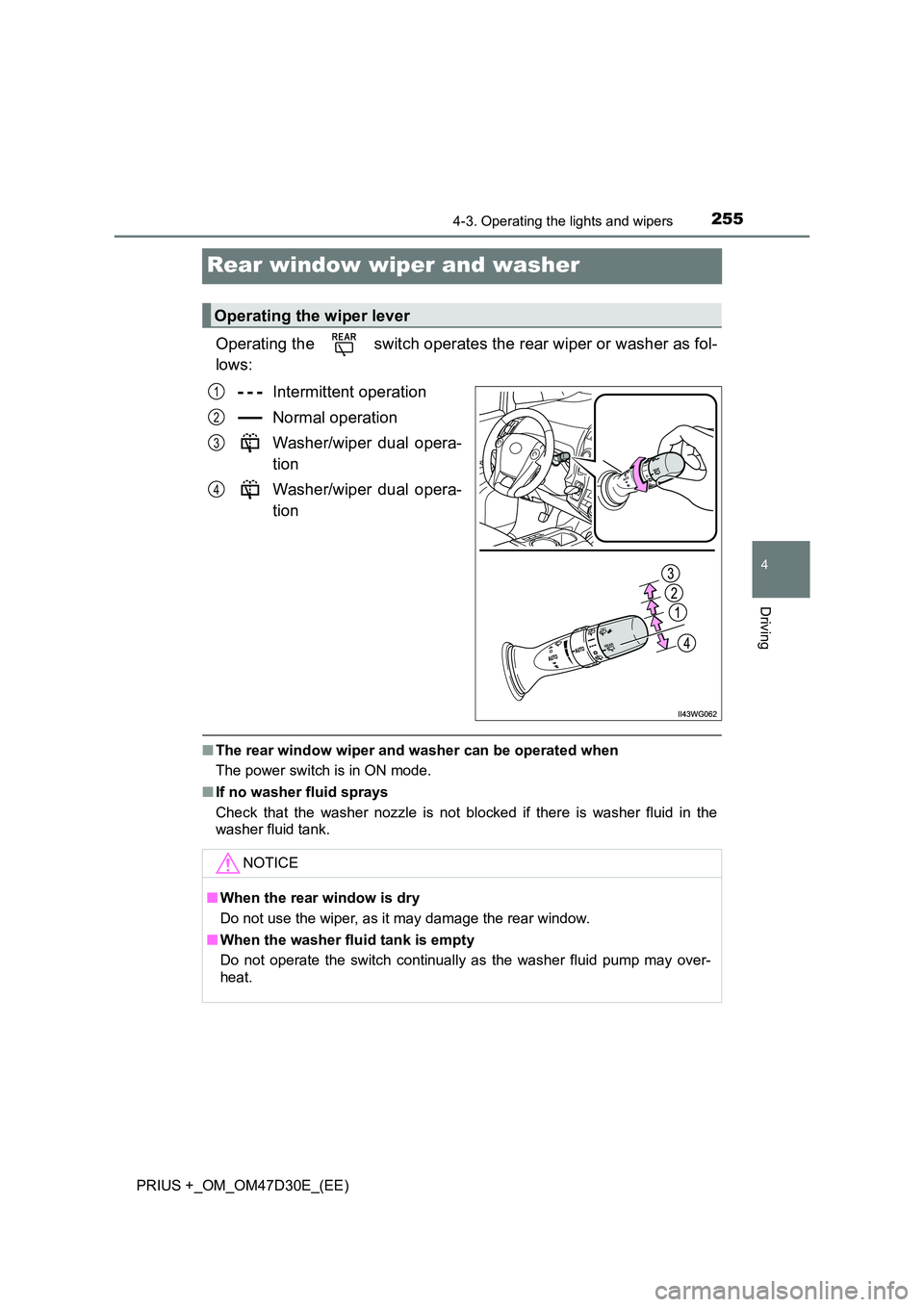

Rear window wiper and washer
Operating the switch operates the rear wiper or washer as fol-
lows:
Intermittent operation
Normal operation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
■ The rear window wiper and washer can be operated when
The power switch is in ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid tank.
Operating the wiper lever
1
2
3
4
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

2564-4. Refueling
PRIUS +_OM_OM47D30E_(EE)

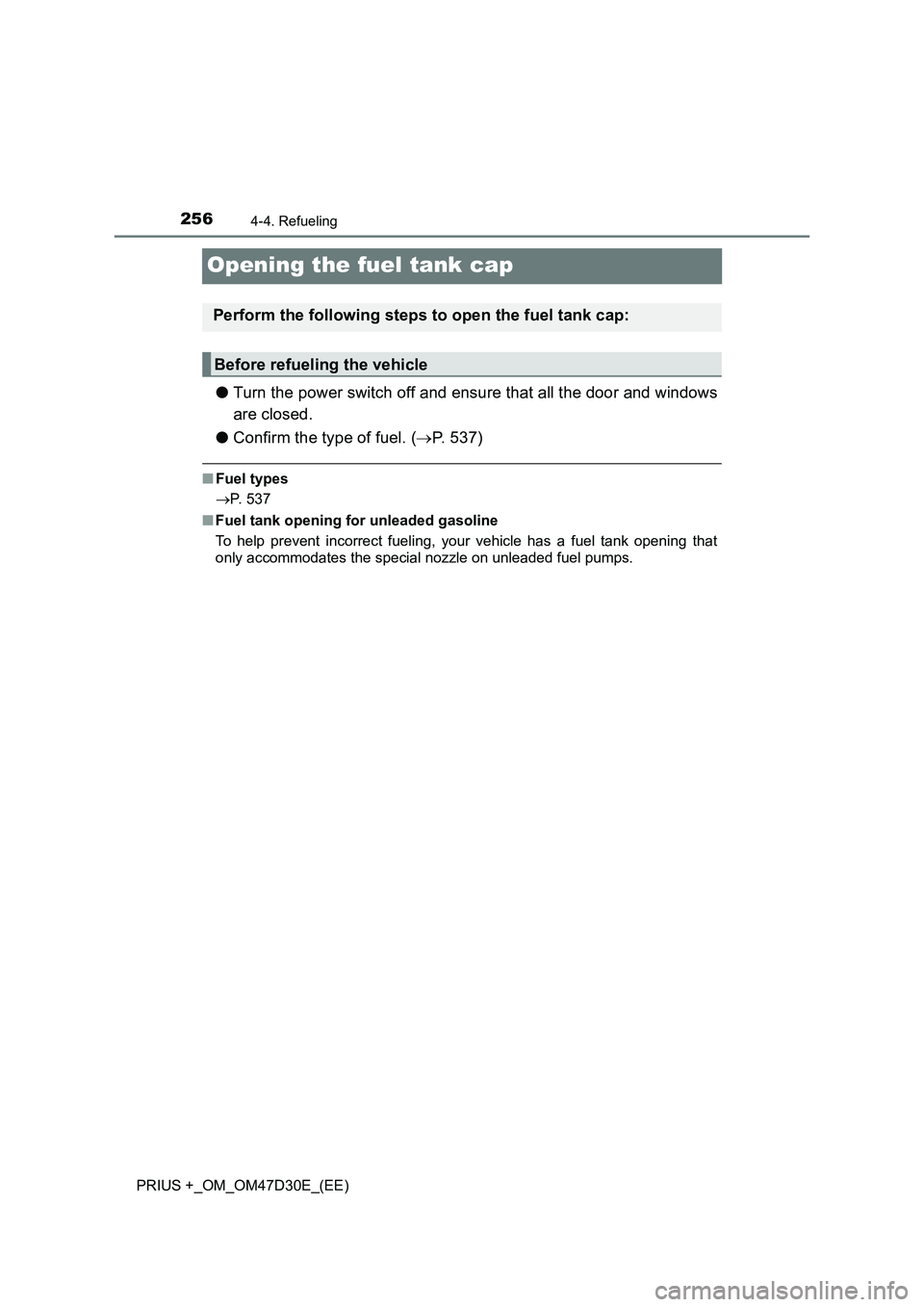

Opening the fuel tank cap
●Turn the power switch off and ensure that all the door and windows
are closed.
●Confirm the type of fuel. (P. 537)
■Fuel types
P. 537
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
