2019 TOYOTA PRIUS PLUS Owners Manual

971-3. Theft deterrent system
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

981-3. Theft deterrent system
PRIUS +_OM_OM47D30E_(EE)

991-3. Theft deterrent system
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

1001-3. Theft deterrent system
PRIUS +_OM_OM47D30E_(EE)

1011-3. Theft deterrent system
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

1021-3. Theft deterrent system
PRIUS +_OM_OM47D30E_(EE)

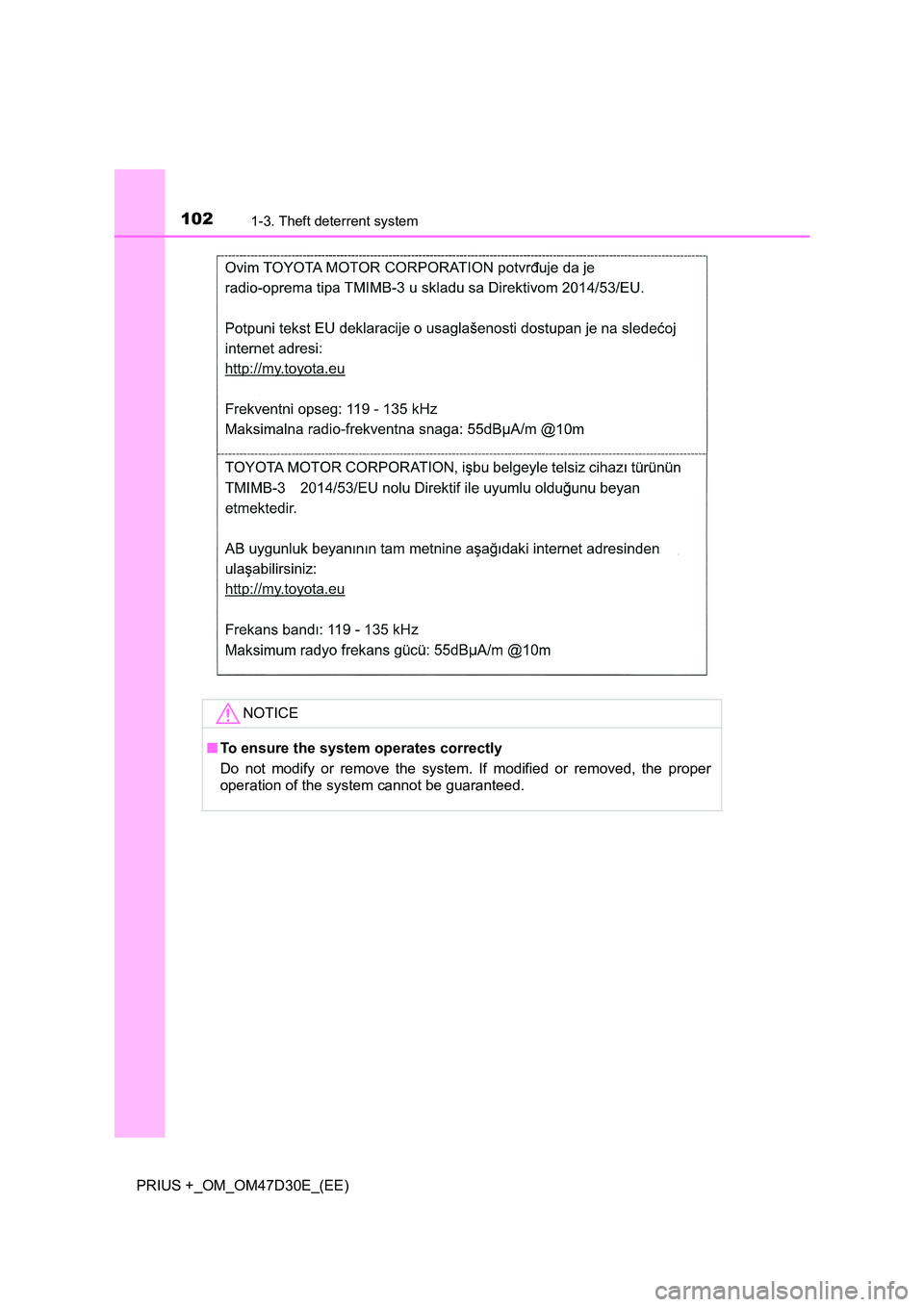

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

103
1
1-3. Theft deterrent system
PRIUS +_OM_OM47D30E_(EE)
For safety and security
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the driver’s outside door handle or front
passenger’s door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle on the driver
side or front passenger side.
Using the wireless remote control: Press .
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

1041-3. Theft deterrent system
PRIUS +_OM_OM47D30E_(EE)
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function or wireless remote control.
● The hood is opened.
● The quarter windows or back door window are tapped or broken. (if
equipped)
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function or wireless remote con-
trol.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
