2019 TOYOTA PRIUS PLUS Owners Manual

3294-6. Driving tips
4
Driving
PRIUS +_OM_OM47D30E_(EE)
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert with steering control) (if equipped).
■ When parking the vehicle
When parking the vehicle without applying the parking brake, make sure to
chock the wheels. If you do not chock the wheels, the vehicle may move
unexpectedly, possibly resulting in an accident.

3304-6. Driving tips
PRIUS +_OM_OM47D30E_(EE)
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer or legitimate
tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

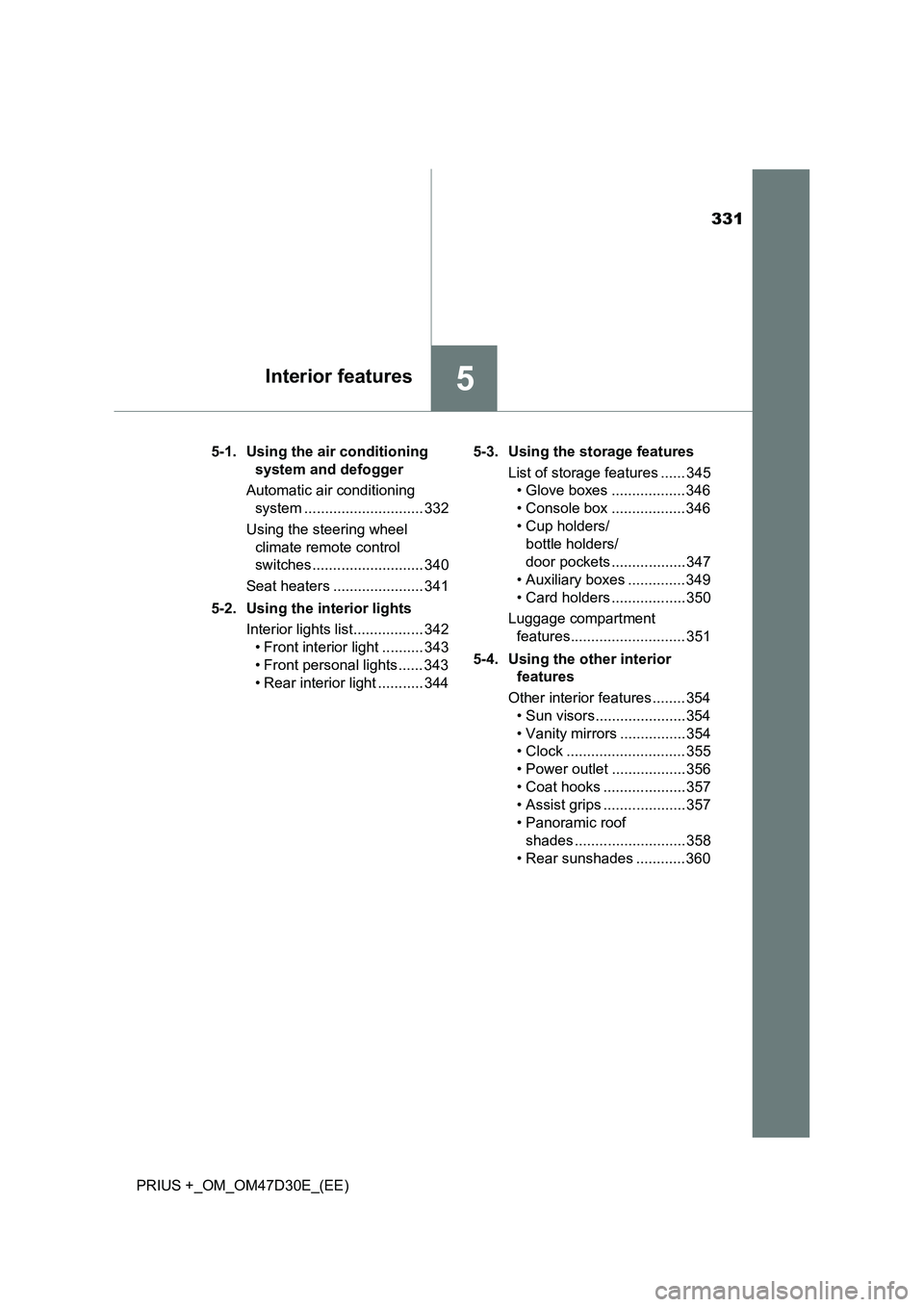

331
5Interior features
PRIUS +_OM_OM47D30E_(EE)5-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 332
Using the steering wheel
climate remote control
switches ........................... 340
Seat heaters ...................... 341
5-2. Using the interior lights
Interior lights list................. 342
• Front interior light .......... 343
• Front personal lights ...... 343
• Rear interior light ........... 3445-3. Using the storage features
List of storage features ...... 345
• Glove boxes .................. 346
• Console box .................. 346
• Cup holders/
bottle holders/
door pockets .................. 347
• Auxiliary boxes .............. 349
• Card holders .................. 350
Luggage compartment
features............................ 351
5-4. Using the other interior
features
Other interior features ........ 354
• Sun visors...................... 354
• Vanity mirrors ................ 354
• Clock ............................. 355
• Power outlet .................. 356
• Coat hooks .................... 357
• Assist grips .................... 357
• Panoramic roof
shades ........................... 358
• Rear sunshades ............ 360

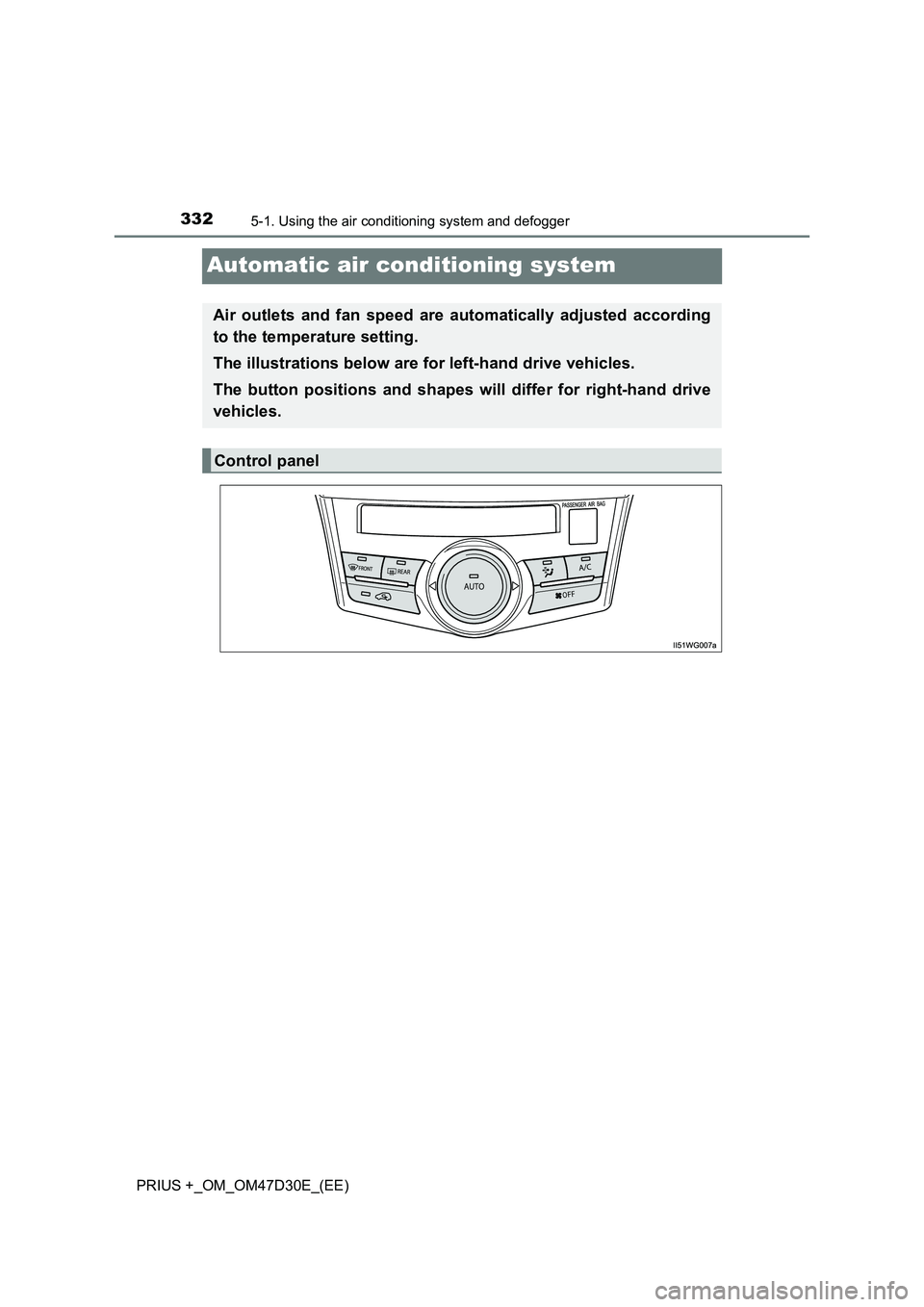

3325-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive
vehicles.
Control panel

3335-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
5
Interior features
■Switching functions and changing settings
Move left and right
to select the function.
The function currently being set
up will be surrounded by a
frame.
The arrows displayed at the
sides of the frame indicate the
directions in which the frame
can be moved.
Fan speed
Temperature setting
If is not pressed, the system will blow ambient temperature air or
heated air.
Airflow mode
Turn to adjust/select the setting.
■Changing the airflow mode
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
1
1
2
3
2
1
2
3
4

3345-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
Press .
*
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
To switch the air conditioning (cooler /dehumidifier functions) ON or OFF,
press . (ON and OFF are switched between each time the button is
pressed.)
*: When is pressed, the current temperature setting display ( )
will be automatically selected.
Turn to the clockwise to raise the temperature, or counter-
clockwise to lower.
■Automatic mode indicator
If the fan speed setting or airflow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
Using the automatic air conditioning system
1
2

3355-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
5
Interior features
■Switching between outside air and recirculated air modes
Press .
The mode switches between recirculated air mode and outside air mode
each time the button is pressed.
The indicator on turns on when the recirculated air mode is
selected.
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■Pollen removal mode
Pollen is removed from the air and the air flows to the upper part of
the body.
Press .
In order to prevent the windshiel d from fogging up when the outside air
is cold, the dehumidification function may operate.
The pollens are filtered out even if the pollen removal mode is turned
off.
Other functions

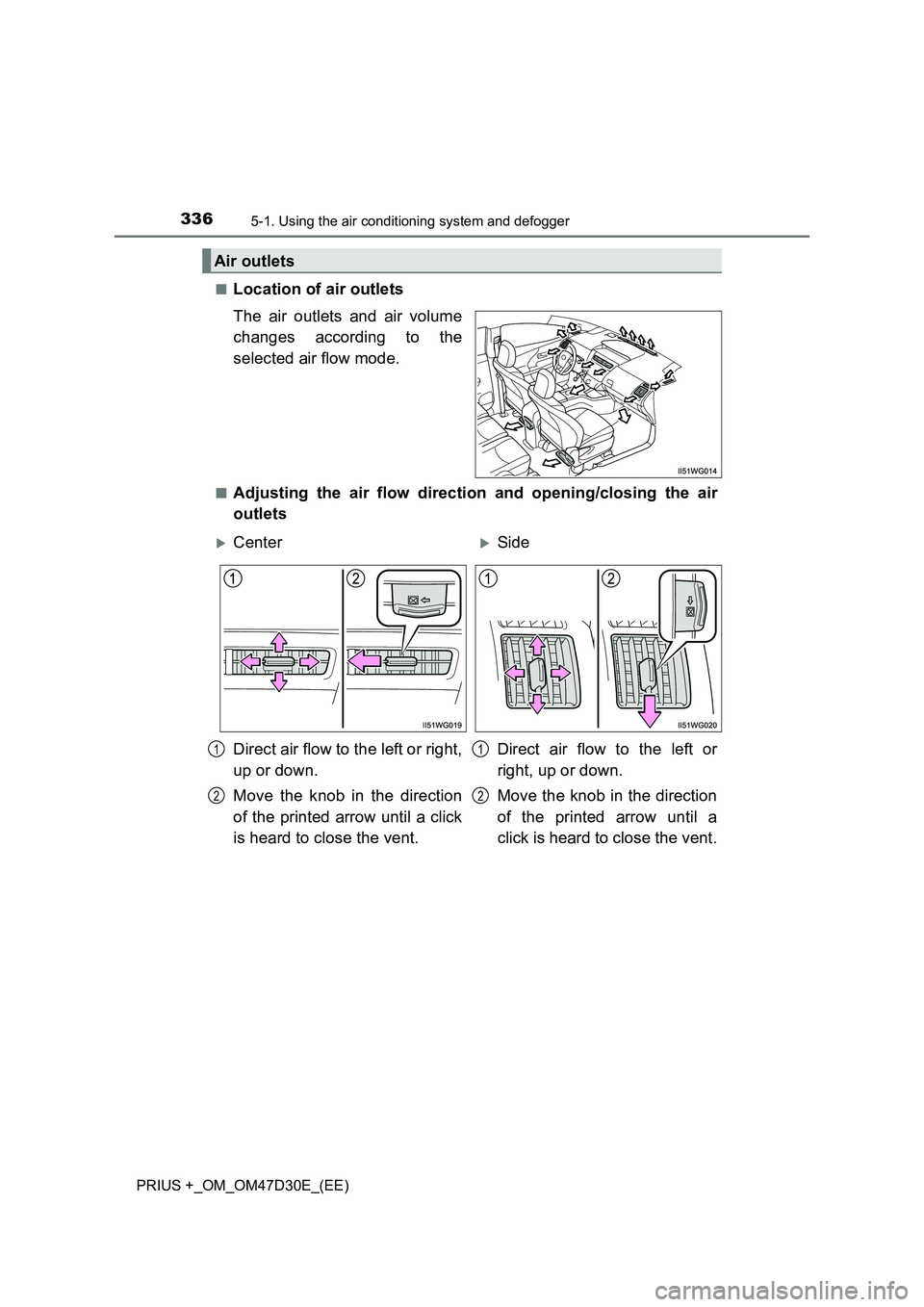

3365-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
■Adjusting the air flow direction and opening/closing the air
outlets
Air outlets
CenterSide
Direct air flow to the left or right,
up or down.
Move the knob in the direction
of the printed arrow until a click
is heard to close the vent.
Direct air flow to the left or
right, up or down.
Move the knob in the direction
of the printed arrow until a
click is heard to close the vent.
1
2
1
2
