19Pictorial index
PRIUS +_OM_OM47D30E_(EE)
Instrument cluster light control button . . . . . . . . . . . . . . . . P. 120
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . P. 355
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 395
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s Manual”.
1
2
3

27Pictorial index
PRIUS +_OM_OM47D30E_(EE)
Instrument cluster light control button . . . . . . . . . . . . . . . . P. 120
MPH or km/h button*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Instrument cluster light control button . . . . . . . . . . . . . . . . P. 120
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . P. 355
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 395
*1: Refer to “Navigation and multimedia system Owner’s Manual”.
*2: If equipped
1
2
3
4

1272. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Clock
Show the current time on the display.
Driving assist system information (if equipped)
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control), cruise control and
dynamic radar cruise control is displayed. (P. 284, 299)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 458)
Settings display
Select to change the meter display settings. (P. 539)

3345-1. Using the air conditioning system and defogger
PRIUS +_OM_OM47D30E_(EE)
Press .
*
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
To switch the air conditioning (cooler /dehumidifier functions) ON or OFF,
press . (ON and OFF are switched between each time the button is
pressed.)
*: When is pressed, the current temperature setting display ( )
will be automatically selected.
Turn to the clockwise to raise the temperature, or counter-
clockwise to lower.
■Automatic mode indicator
If the fan speed setting or airflow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
Using the automatic air conditioning system
1
2

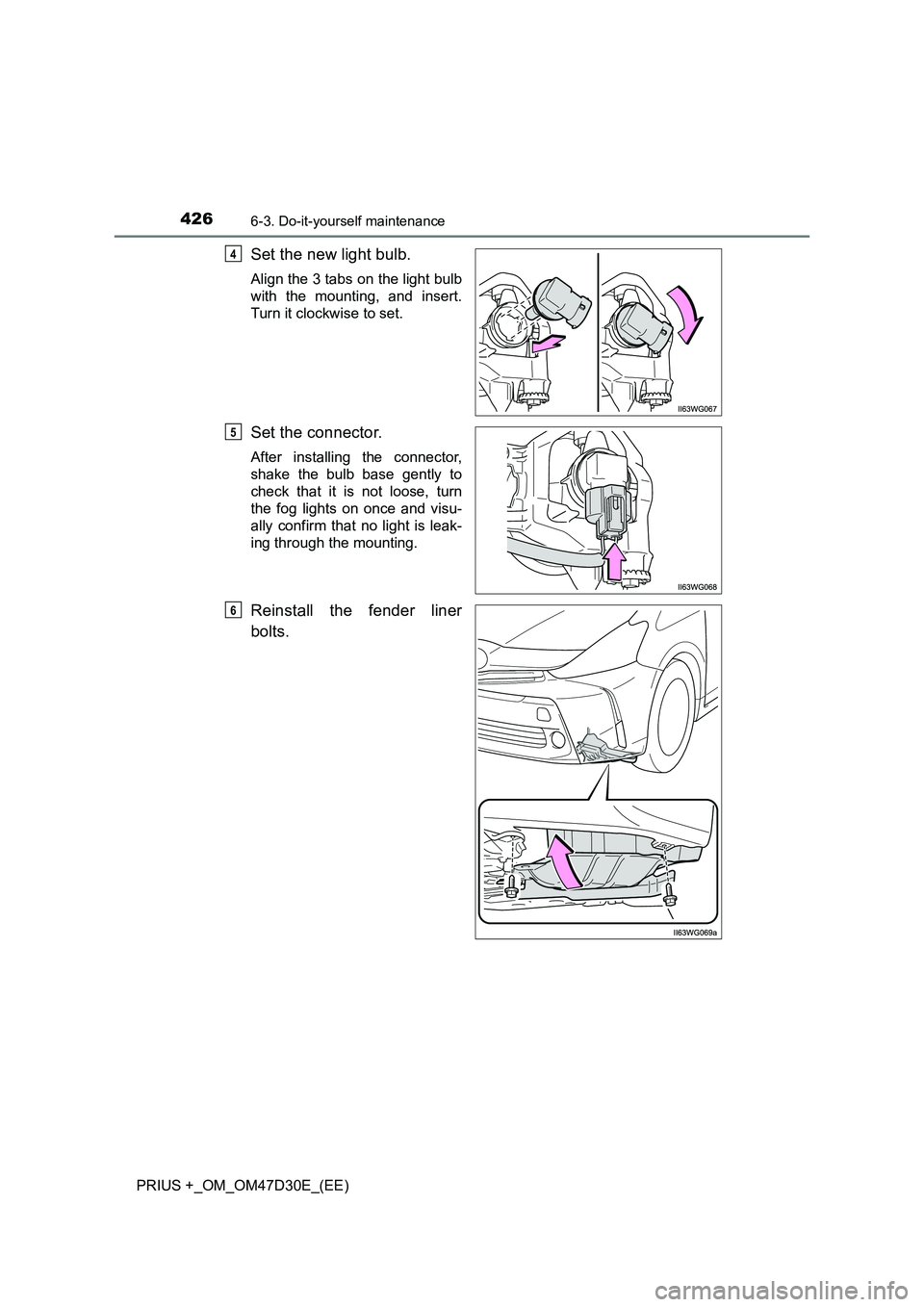

4266-3. Do-it-yourself maintenance
PRIUS +_OM_OM47D30E_(EE)
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner
bolts.
4
5
6
