2019 TOYOTA PRIUS PLUS Owners Manual

5458-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
● A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.

5468-3. Initialization
PRIUS +_OM_OM47D30E_(EE)
Item to initialize
The following item must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning
system
• When rotating the tires on
vehicles with differing front
and rear tire inflation pres-
sures
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
• When changing the tire size
P. 394

547
Index
PRIUS +_OM_OM47D30E_(EE)What to do if...
(Troubleshooting) ..................... 548
Alphabetical index ...................... 552
For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Rear view monitor system
• Audio/visual system
• IPA (Intelligent Parking Assist)

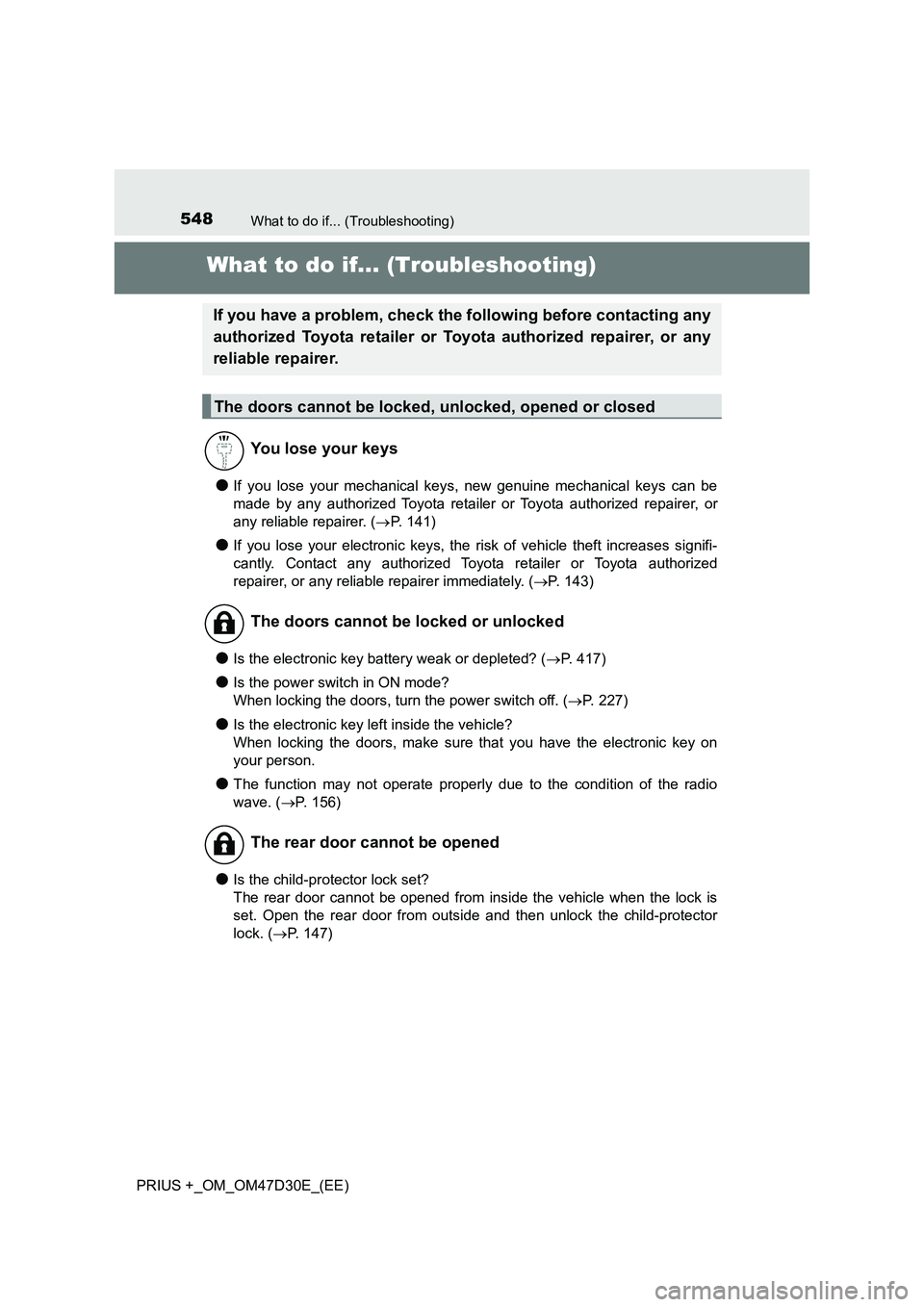

548What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer. (P. 141)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. (P. 143)
●Is the electronic key battery weak or depleted? (P. 417)
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 227)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 156)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 147)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

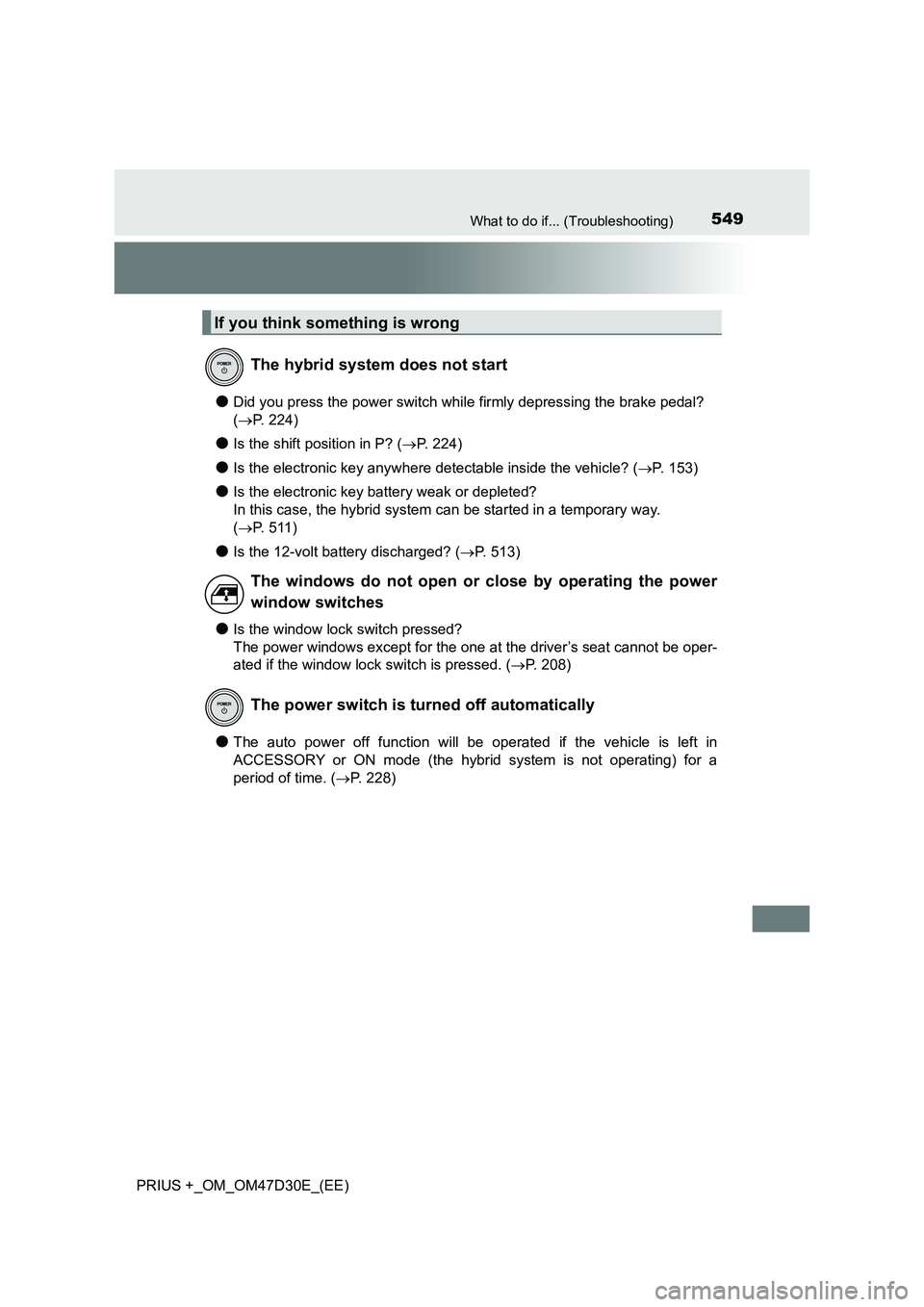

549What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
●Did you press the power switch while firmly depressing the brake pedal?
( P. 224)
●Is the shift position in P? (P. 224)
●Is the electronic key anywhere detectable inside the vehicle? (P. 153)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
( P. 5 1 1 )
●Is the 12-volt battery discharged? (P. 513)
●Is the window lock switch pressed?
The power windows except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 208)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. ( P. 2 2 8 )
If you think something is wrong
The hybrid system does not start
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically

550What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 450)
●The parking brake indicator is on
Is the parking brake released? (P. 240)
Depending on the situation, other types of warning buzzer may also sound.
(P. 444, 458)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 104)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Vehicles without multi-information display: P. 154
Vehicles with multi-information display: P. 475
●When a warning light turns on or a warning message is displayed, refer to
P. 444, 458.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (vehicles with
alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

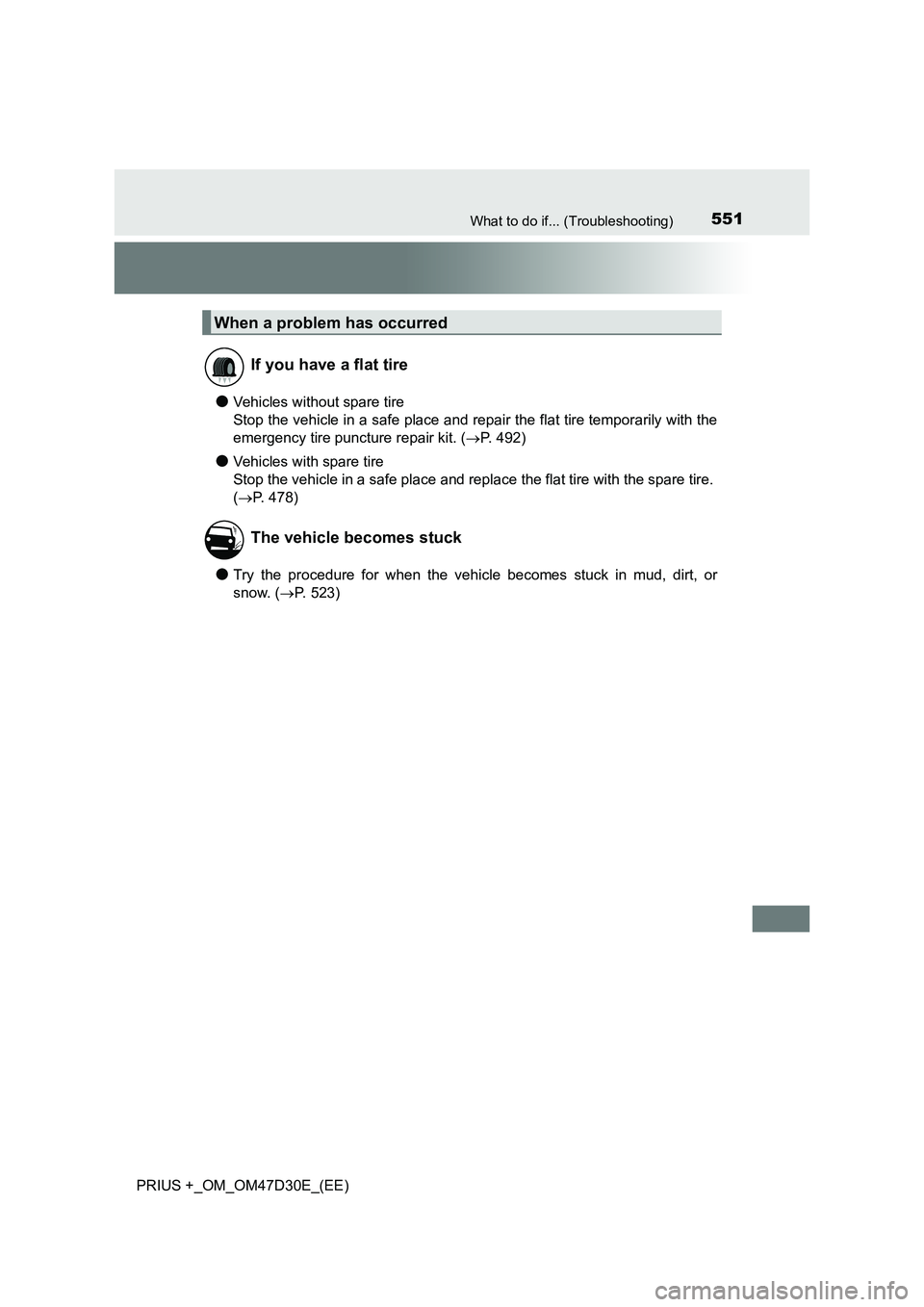

551What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
●Vehicles without spare tire
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 492)
●Vehicles with spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 478)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 523)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

552Alphabetical index
PRIUS +_OM_OM47D30E_(EE)
Alphabetical index
A/C............................................. 332
Air conditioning filter.............. 413
Automatic air conditioning
system ................................ 332
Climate remote control
switches.............................. 340
Pollen removal mode ............ 335
ABS
(Anti-lock Brake System) ...... 318
Function ................................ 318
Warning light ......................... 445
Air conditioning filter .............. 413
Air conditioning system .......... 332
Air conditioning filter.............. 413
Automatic air conditioning
system ................................ 332
Climate remote control
switches.............................. 340
Pollen removal mode ............ 335
Air intake vent ............................ 86
Airbag manual on-off
system ...................................... 56Airbags ....................................... 46
Airbag manual on-off
system .................................. 56
Airbag operating conditions .... 52
Airbag precautions for your
child ...................................... 48
Airbag warning light .............. 445
Correct driving posture ........... 36
Curtain shield airbag
operating conditions ............. 52
Curtain shield airbag
precautions........................... 50
General airbag precautions .... 48
Locations of airbags................ 46
Modification and disposal of
airbags.................................. 51
Side airbag operating
conditions ............................. 52
Side airbag precautions .......... 49
Side and curtain shield
airbags operating
conditions ............................. 52
Side and curtain shield
airbags precautions .............. 50
SRS airbags............................ 46
A
