2019 TOYOTA PRIUS PLUS Owners Manual

1372. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Press the “CAR”. (P. 134)
Select “Trip information” on the
“CAR” screen.
Average vehicle speed since
the hybrid system was
started.
Cruising range (P. 138)
Fuel consumption in the past
15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information
1
2
1
2
3
4
5
6

1382. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
Press the “CAR”. (P. 134)
Select “Past record” on the
“CAR” screen.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5

139
3
Operation of
each component
PRIUS +_OM_OM47D30E_(EE)3-1. Key information
Keys ................................... 140
3-2. Opening, closing and
locking the doors
Side doors.......................... 144
Back door........................... 148
Smart entry & start
system ............................. 153
3-3. Adjusting the seats
Front seats ......................... 187
Second seats ..................... 191
Third seats ......................... 196
Head restraints .................. 199
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 202
Inside rear view mirror ....... 204
Outside rear view
mirrors ............................. 206
3-5. Opening and closing the
windows
Power windows .................. 208

1403-1. Key information
PRIUS +_OM_OM47D30E_(EE)
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry &
start system (P. 153)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
Locks all the doors (P. 144)
Unlocks all the doors (P. 144)
The keys
1
2
3
Wireless remote control
1
2

1413-1. Key information
3
Operation of each component
PRIUS +_OM_OM47D30E_(EE)

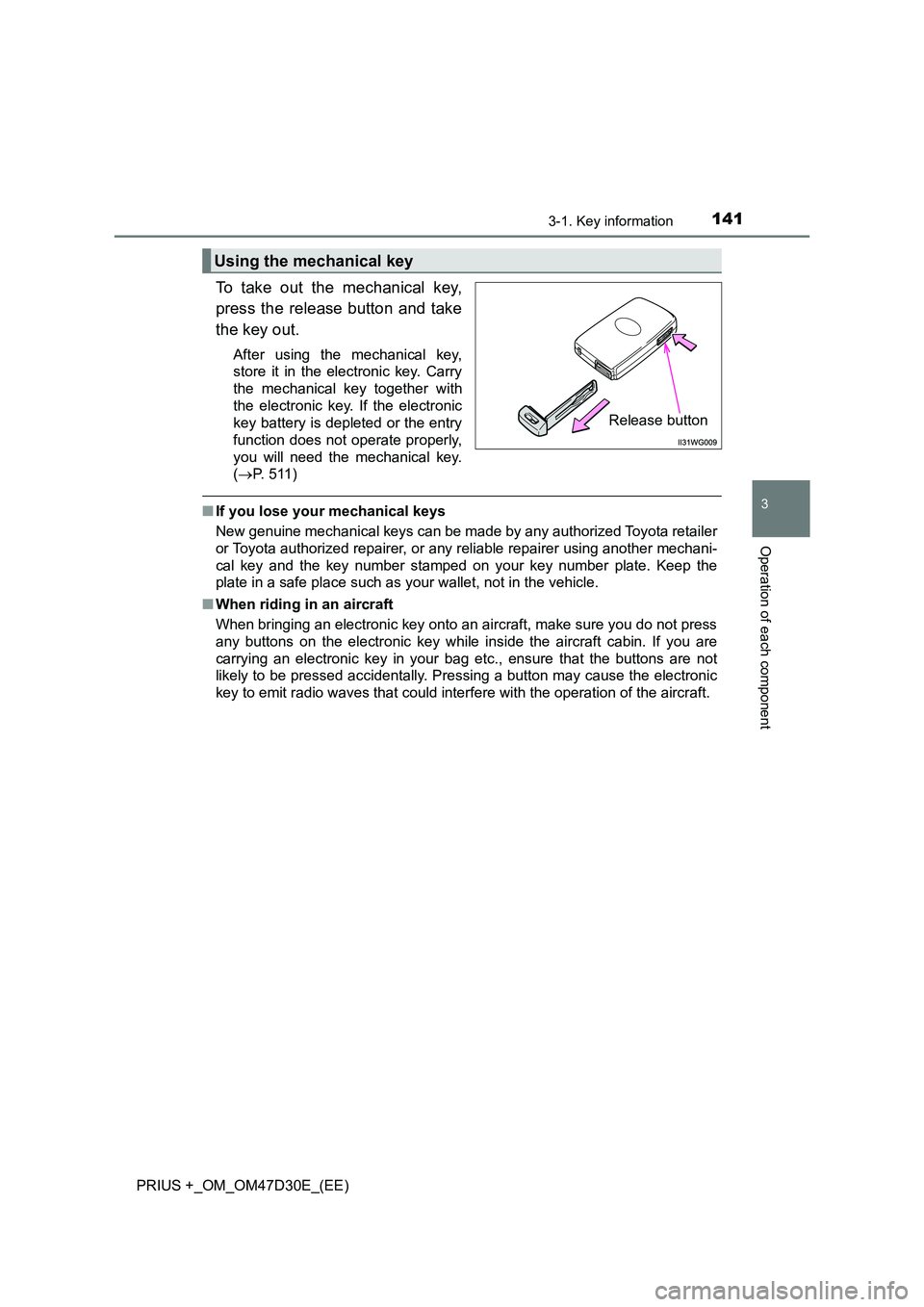

To take out the mechanical key,
press the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P. 5 1 1 )
■If you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer using another mechani-
cal key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
Using the mechanical key
Release button

1423-1. Key information
PRIUS +_OM_OM47D30E_(EE)■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin, and the smart
entry & start system warning light will flash (vehicles without multi-informa-
tion display) or a message will be displayed on the multi-information display
(vehicles with multi-information display) when the hybrid system stops.
(P. 476)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 417)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Table lamps
• Induction cookers
■Replacing the battery
P. 417
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.

1433-1. Key information
3
Operation of each component
PRIUS +_OM_OM47D30E_(EE)

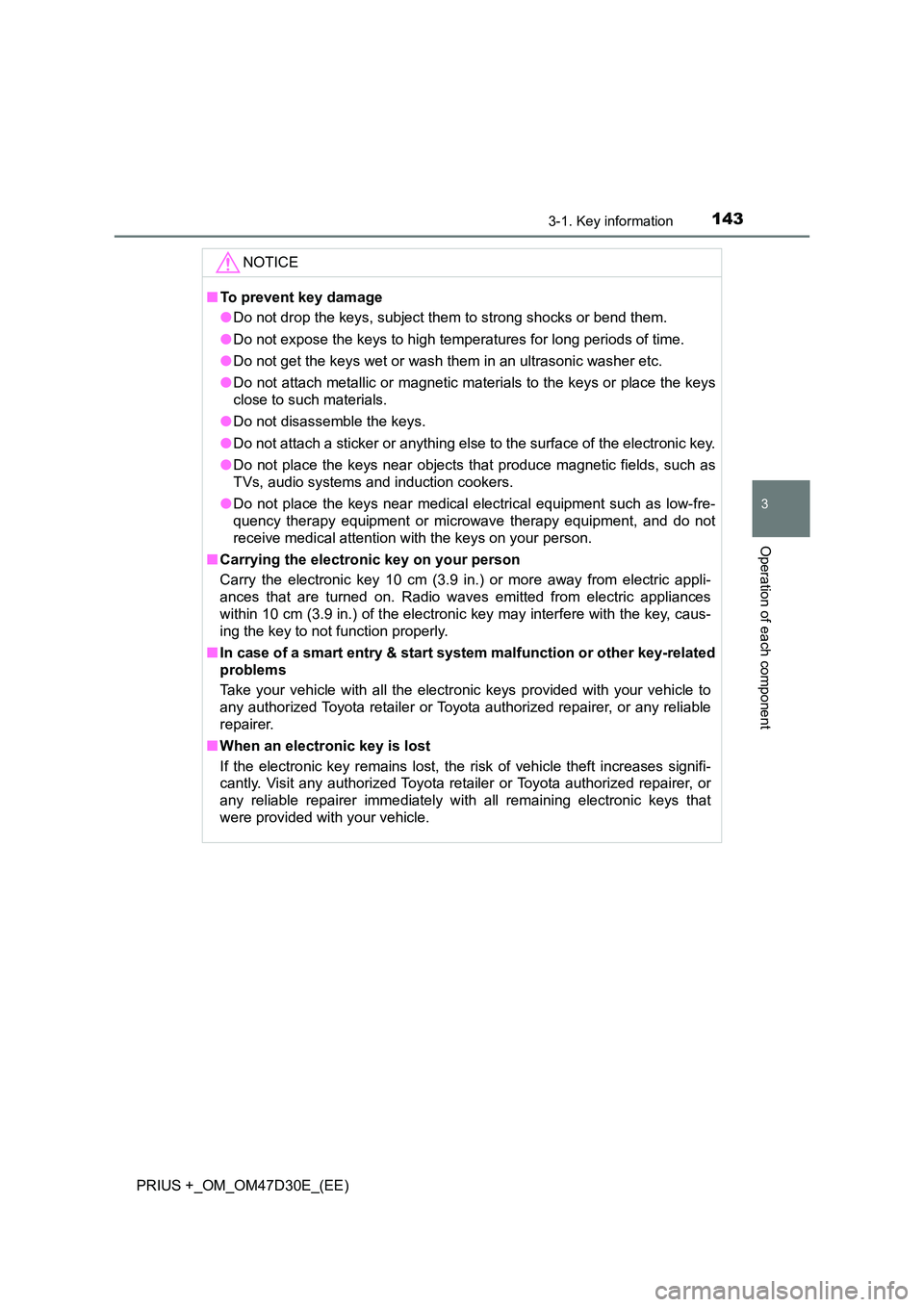

NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers.
● Do not place the keys near medical electrical equipment such as low-fre-
quency therapy equipment or microwave therapy equipment, and do not
receive medical attention with the keys on your person.
■ Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer imm ediately with all remaining electronic keys that
were provided with your vehicle.

1443-2. Opening, closing and locking the doors
PRIUS +_OM_OM47D30E_(EE)
Side doors
◆Smart entry & start system
Carry the electronic key to enable this function.
Grip the driver’s door handle
or front passenger door han-
dle with the sensor (if
equipped) to unlock the door.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (indentation on the upper part of the front
door handle) to lock the doors.
Check that the door is securely locked.
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote control or door lock switch.
Unlocking and locking the doors from the outside
1
2
1
2
