2019 JEEP GRAND CHEROKEE LIMITED Owners Manual

WARNING!
An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake,
or clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
•ALWAYS securely attach
your floor mat using the
floor mat fasteners. DO NOT install your floor mat
upside down or turn your floor mat over. Lightly pull
to confirm mat is secured using the floor mat fasten-
ers on a regular basis.
• ALWAYS REMOVE THE EXISTING FLOOR MAT
FROM THE VEHICLE
before installing any other
floor mat. NEVER install or stack an additional floor
mat on top of an existing floor mat.
• ONLY install floor mats designed to fit your vehicle.
NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.
(Continued)

WARNING!(Continued)
•If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under the vehicle after overnight parking for
fuel, coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.
248 SAFETY

STARTING AND OPERATING
CONTENTS

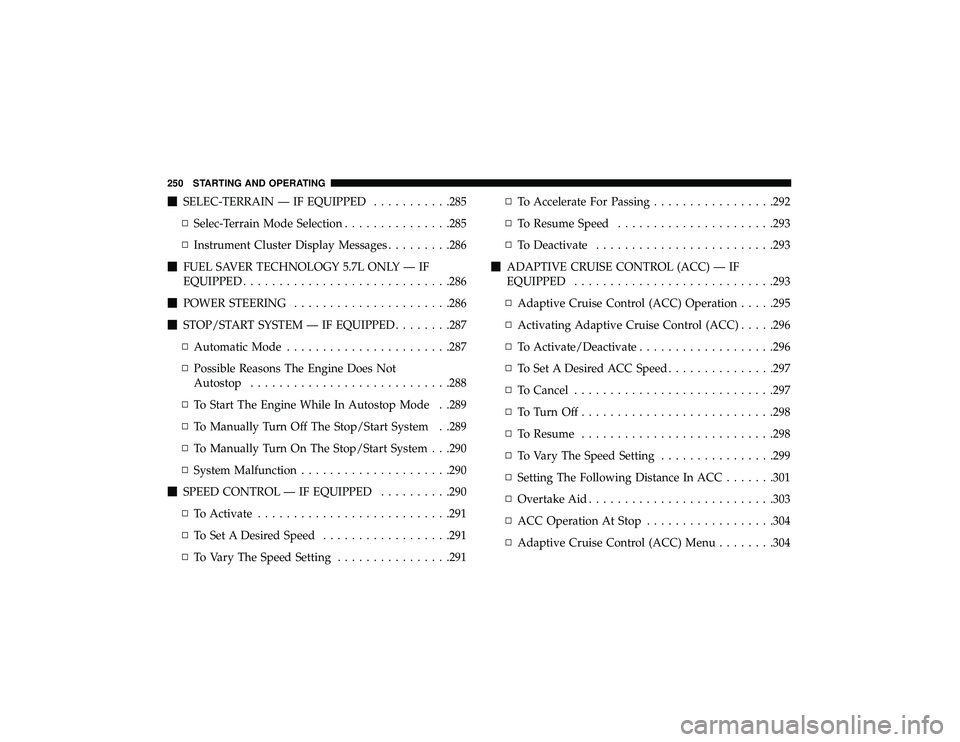

SELEC-TERRAIN — IF EQUIPPED ...........285
▫ Selec-Terrain Mode Selection ...............285
▫ Instrument Cluster Display Messages .........286
 FUEL SAVER TECHNOLOGY 5.7L ONLY — IF
EQUIPPED ............................ .286
 POWER STEERING ..................... .286
 STOP/START SYSTEM — IF EQUIPPED ........287
▫ Automatic Mode .......................287
▫ Possible Reasons The Engine Does Not
Autostop ........................... .288
▫ To Start The Engine While In Autostop Mode . .289
▫ To Manually Turn Off The Stop/Start System . .289
▫ To Manually Turn On The Stop/Start System . . .290
▫ System Malfunction .....................290
 SPEED CONTROL — IF EQUIPPED ..........290
▫ To Activate .......................... .291
▫ To Set A Desired Speed ..................291
▫ To Vary The Speed Setting ................291 ▫
To Accelerate For Passing .................292
▫ To Resume Speed ..................... .293
▫ To Deactivate ........................ .293
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED ........................... .293
▫ Adaptive Cruise Control (ACC) Operation .....295
▫ Activating Adaptive Cruise Control (ACC) .....296
▫ To Activate/Deactivate .................. .296
▫ To Set A Desired ACC Speed ...............297
▫ To Cancel ........................... .297
▫ ToTurnOff.......................... .298
▫ To Resume .......................... .298
▫ To

Vary The Speed Setting ................299
▫ Setting The Following Distance In ACC .......301
▫ Overtake Aid ......................... .303
▫ ACC Operation At Stop ..................304
▫ Adaptive Cruise Control (ACC) Menu ........304
250 STARTING AND OPERATING

▫Display Warnings And Maintenance .........305
▫ Precautions While Driving With ACC .........307
▫ General Information .....................310
▫ Normal (Fixed Speed) Cruise Control Mode . . . .311
 PARKSENSE REAR PARK ASSIST
— IF EQUIPPED ....................... .313
▫ ParkSense Sensors ..................... .315
▫ ParkSense Display ..................... .315
▫ ParkSense Warning Display ................319
▫ Enabling And Disabling ParkSense ..........319
▫ Service The ParkSense Rear Park Assist System. .320
▫ Cleaning The ParkSense System .............320
▫ ParkSense System Usage Precautions .........320
 PARKSENSE FRONT AND REAR PARK ASSIST — IF
EQUIPPED ............................ .322
▫ ParkSense Sensors ..................... .323
▫ ParkSense Display ..................... .324
▫ ParkSense Warning Display ................328 ▫
Enabling And Disabling ParkSense ..........329
▫ Service The ParkSense Park Assist System .....329
▫ Cleaning The ParkSense System .............330
▫ ParkSense System Usage Precautions .........330
 PARKSENSE ACTIVE PARK ASSIST SYSTEM
— IF EQUIPPED ....................... .332
▫ Enabling And Disabling The ParkSense Active
Park Assist System ..................... .333
▫ Parallel Parking Space Assistance
Operation/Display ..................... .334
▫ Perpendicular Parking Space Assistance
Operation/Display ..................... .343
 LANESENSE — IF EQUIPPED ..............352
▫ LaneSense Operation ................... .352
▫ T

urning LaneSense On Or Off ..............353
▫ LaneSense Warning Message ...............354
▫ Changing LaneSense Status ................357
 PARKVIEW REAR BACK UP CAMERA ........357
6
STARTING AND OPERATING 251

REFUELING THE VEHICLE — GASOLINE
ENGINE ............................. .359
▫ Emergency Fuel Filler Door Release ..........361
 VEHICLE LOADING .....................362
▫ Certification Label ..................... .362
 TRAILER TOWING ..................... .364
▫ Common Towing Definitions ...............364
▫ Trailer Hitch Classification ................366
▫ Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .367
▫ Trailer Hitch Receiver Cover Removal (Summit
Models) — If Equipped ..................368
▫ Trailer And Tongue Weight ...............369
▫ Towing Requirements .................. .370▫
Towing Tips ......................... .374
 SNOW PLOW ......................... .375
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ................... .376
▫ Towing This Vehicle Behind Another Vehicle. . . .376
▫ Recreational Towing — Two Wheel Drive
Models ............................. .377
▫ Recreational Towing — Quadra-Trac I (Single-Speed
Transfer Case) Four-Wheel Drive Models ......378
▫ Recreational Towing — Quadra–Trac II/Quadra–
Drive II Four-Wheel Drive Models ...........378
 DRIVING TIPS ......................... .382
▫ On-Road Driving Tips .................. .382
▫ Off-Road Driving Tips .................. .383
252 STARTING AND OPERATING

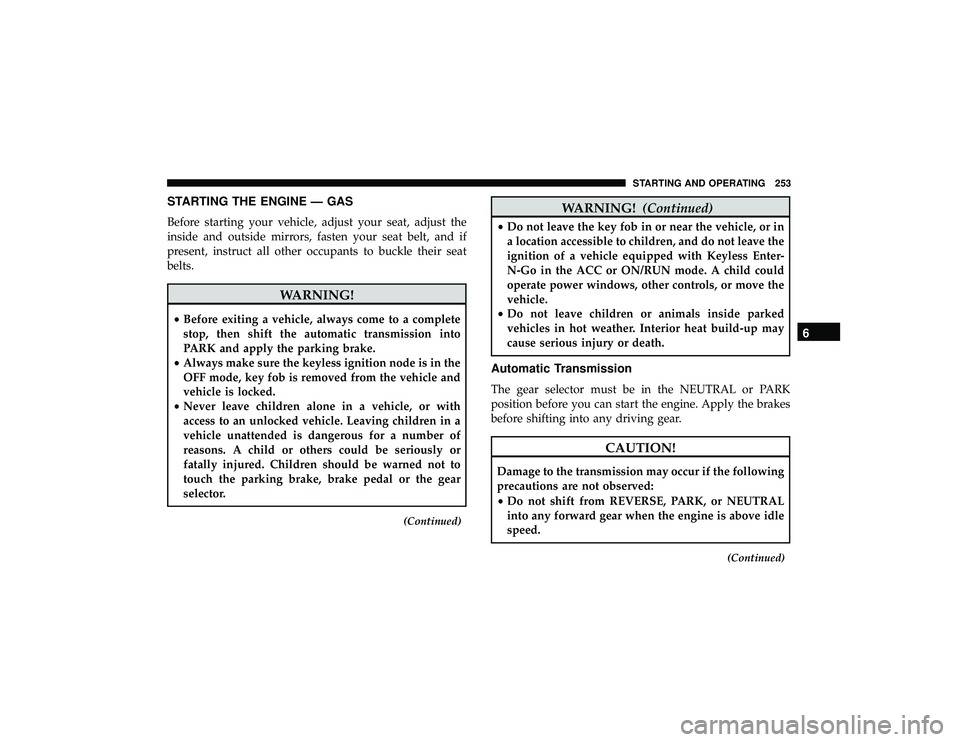

STARTING THE ENGINE — GAS
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.

CAUTION!(Continued)
•Shift into PARK only after the vehicle has come to a
complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at idle
speed.
• Before shifting into any gear, make sure your foot is
firmly on the brake pedal.
Normal Starting
To Turn On The Engine Using The ENGINE START/
STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the
ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again. NOTE:
Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE START/STOP
Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF mode.
3. If the gear selector is not in PARK (with vehicle stopped) and the ENGINE START/STOP button is pushed once,
the transmission will automatically select PARK and the
engine will turn off, however the ignition will remain in
the ACC mode (NOT the OFF mode). Never leave a
vehicle out of the PARK position, or it could roll.
4. If the gear selector is in NEUTRAL, and the vehicle speed is below 5 mph (8 km/h), pushing the START/
STOP button once will turn the engine off. The ignition
will remain in the ACC mode.
254 STARTING AND OPERATING
