2019 JEEP GRAND CHEROKEE LIMITED Owners Manual

Setting NameSelectable Options

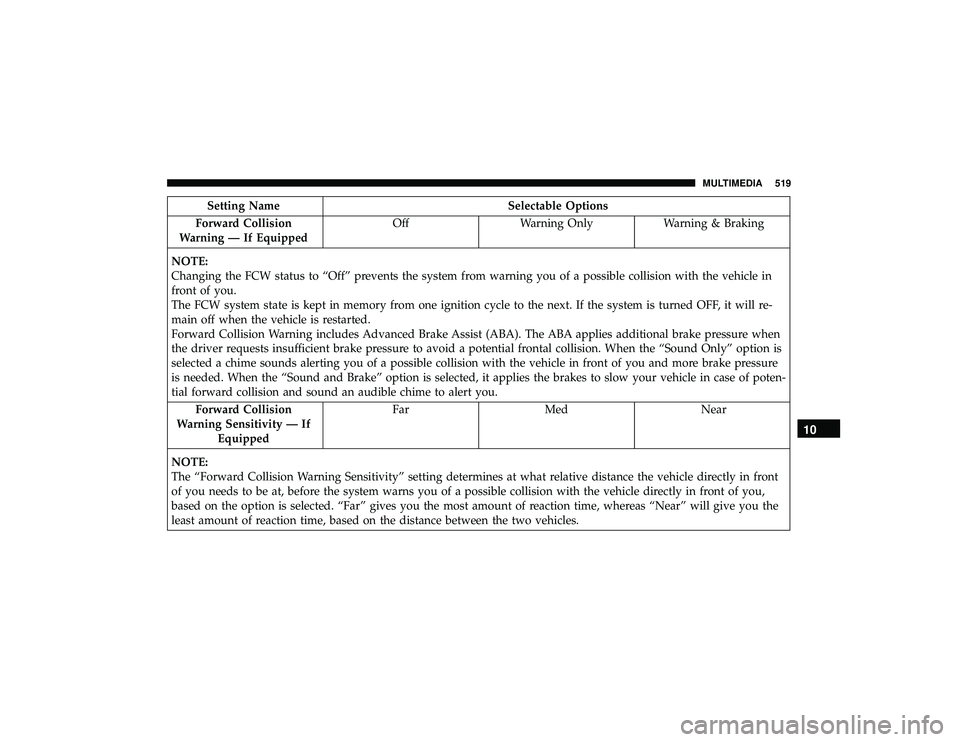

Forward Collision
Warning — If Equipped Off
Warning Only Warning & Braking
NOTE:
Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in
front of you.
The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned OFF, it will re-
main off when the vehicle is restarted.
Forward Collision Warning includes Advanced Brake Assist (ABA). The ABA applies additional brake pressure when
the driver requests insufficient brake pressure to avoid a potential frontal collision. When the “Sound Only” option is
selected a chime sounds alerting you of a possible collision with the vehicle in front of you and more brake pressure
is needed. When the “Sound and Brake” option is selected, it applies the brakes to slow your vehicle in case of poten-
tial forward collision and sound an audible chime to alert you. Forward Collision
Warning Sensitivity — If Equipped Far
Med Near
NOTE:
The “Forward Collision Warning Sensitivity” setting determines at what relative distance the vehicle directly in front
of you needs to be at, before the system warns you of a possible collision with the vehicle directly in front of you,
based on the option is selected. “Far” gives you the most amount of reaction time, whereas “Near” will give you the
least amount of reaction time, based on the distance between the two vehicles.
10
MULTIMEDIA 519

Setting NameSelectable Options

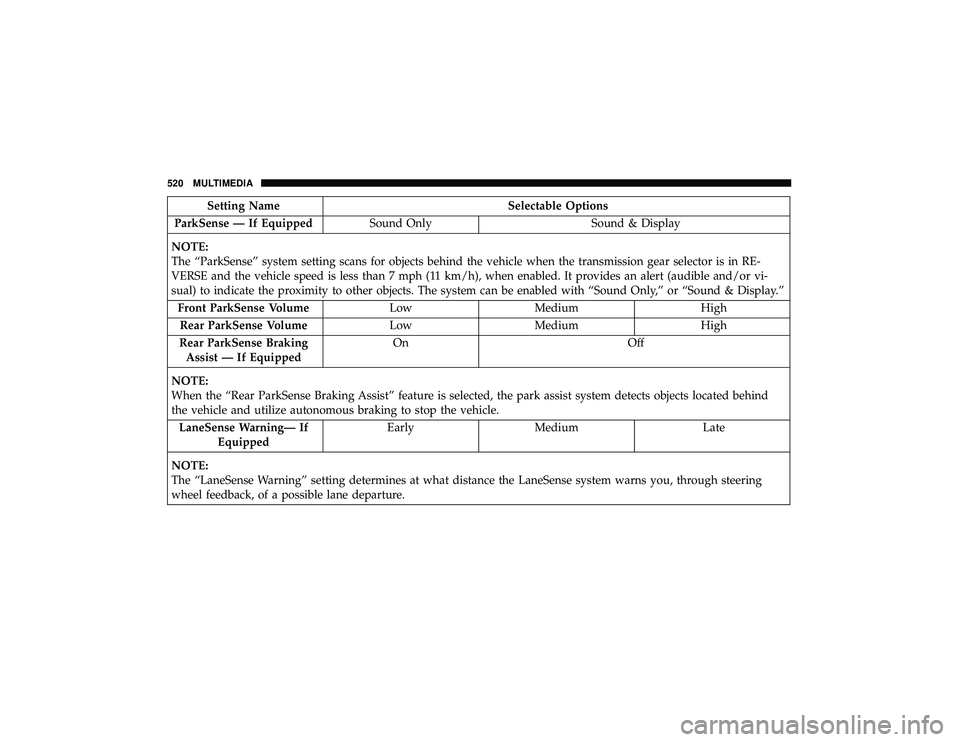

ParkSense — If Equipped Sound Only Sound & Display
NOTE:
The “ParkSense” system setting scans for objects behind the vehicle when the transmission gear selector is in RE-
VERSE and the vehicle speed is less than 7 mph (11 km/h), when enabled. It provides an alert (audible and/or vi-
sual) to indicate the proximity to other objects. The system can be enabled with “Sound Only,” or “Sound & Display.” Front ParkSense Volume LowMedium High
Rear ParkSense Volume LowMedium High
Rear ParkSense Braking Assist — If Equipped On
Off
NOTE:
When the “Rear ParkSense Braking Assist” feature is selected, the park assist system detects objects located behind
the vehicle and utilize autonomous braking to stop the vehicle. LaneSense Warning— If Equipped Early
Medium Late
NOTE:
The “LaneSense Warning” setting determines at what distance the LaneSense system warns you, through steering
wheel feedback, of a possible lane departure.
520 MULTIMEDIA

Setting NameSelectable Options

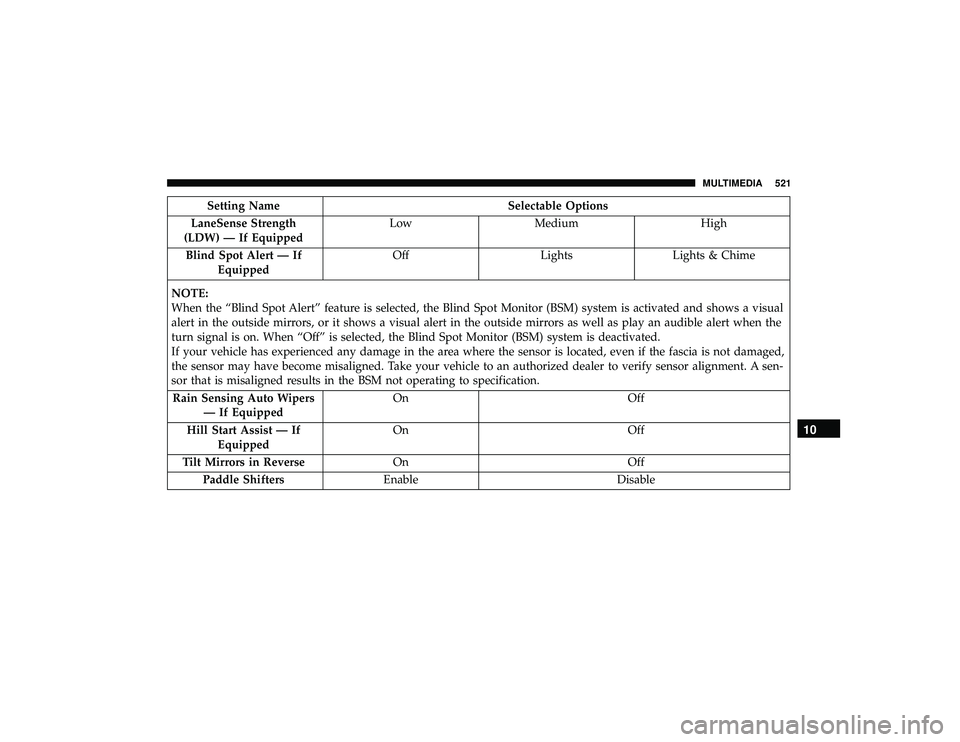

LaneSense Strength
(LDW) — If Equipped Low
Medium High
Blind Spot Alert — If Equipped Off
LightsLights & Chime
NOTE:
When the “Blind Spot Alert” feature is selected, the Blind Spot Monitor (BSM) system is activated and shows a visual
alert in the outside mirrors, or it shows a visual alert in the outside mirrors as well as play an audible alert when the
turn signal is on. When “Off” is selected, the Blind Spot Monitor (BSM) system is deactivated.
If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not damaged,
the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor alignment. A sen-
sor that is misaligned results in the BSM not operating to specification. Rain Sensing Auto Wipers — If Equipped On
Off
Hill Start Assist — If Equipped On
Off
Tilt Mirrors in Reverse On Off
Paddle Shifters Enable Disable
10
MULTIMEDIA 521

Setting NameSelectable Options

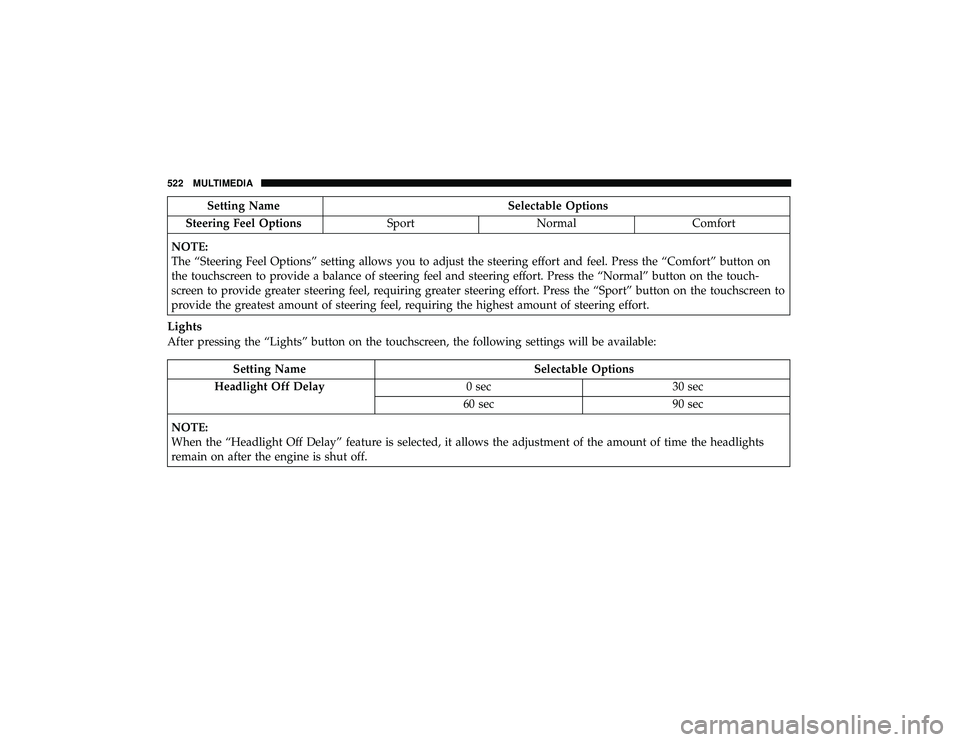

Steering Feel Options SportNormal Comfort
NOTE:
The “Steering Feel Options” setting allows you to adjust the steering effort and feel. Press the “Comfort” button on
the touchscreen to provide a balance of steering feel and steering effort. Press the “Normal” button on the touch-
screen to provide greater steering feel, requiring greater steering effort. Press the “Sport” button on the touchscreen to
provide the greatest amount of steering feel, requiring the highest amount of steering effort.
Lights
After pressing the “Lights” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options

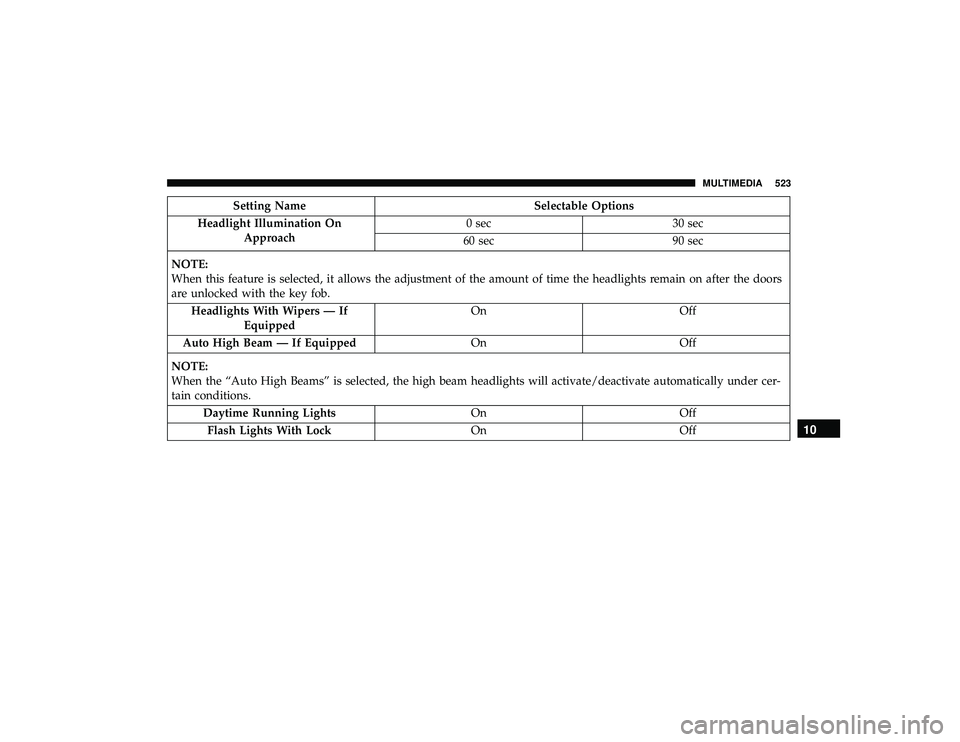

Headlight Illumination On Approach 0 sec
30 sec
60 sec 90 sec
NOTE:
When this feature is selected, it allows the adjustment of the amount of time the headlights remain on after the doors
are unlocked with the key fob. Headlights With Wipers — If Equipped On
Off
Auto High Beam — If Equipped OnOff
NOTE:
When the “Auto High Beams” is selected, the high beam headlights will activate/deactivate automatically under cer-
tain conditions. Daytime Running Lights OnOff
Flash Lights With Lock OnOff
10
MULTIMEDIA 523

Doors & Locks
After pressing the “Doors & Locks” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options

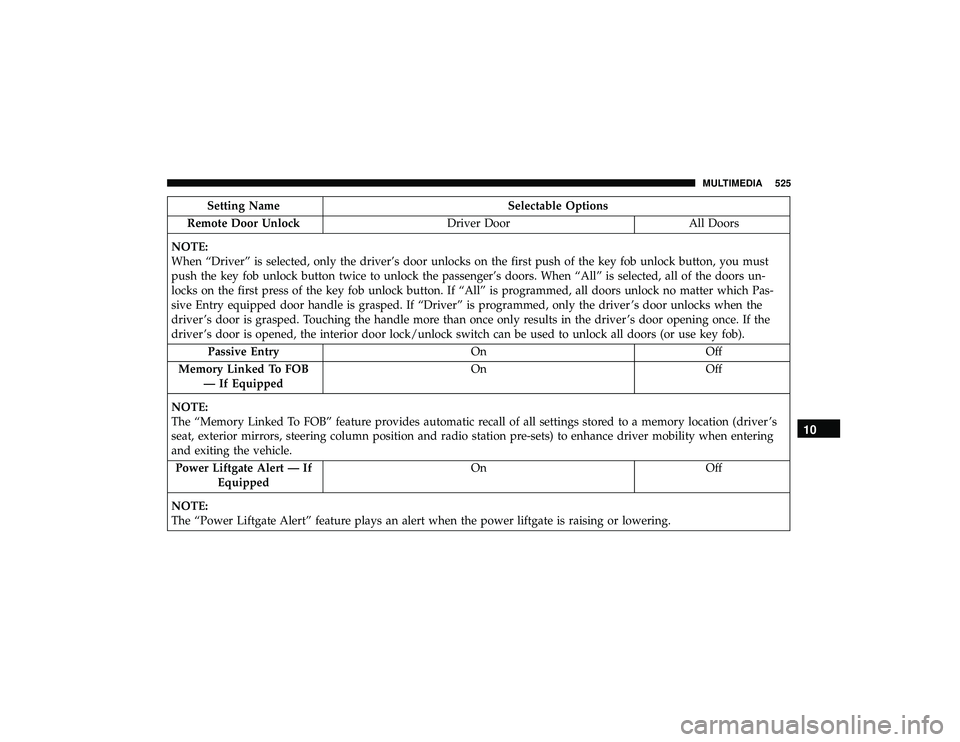

Remote Door Unlock Driver DoorAll Doors
NOTE:
When “Driver” is selected, only the driver’s door unlocks on the first push of the key fob unlock button, you must
push the key fob unlock button twice to unlock the passenger’s doors. When “All” is selected, all of the doors un-
locks on the first press of the key fob unlock button. If “All” is programmed, all doors unlock no matter which Pas-
sive Entry equipped door handle is grasped. If “Driver” is programmed, only the driver ’s door unlocks when the
driver ’s door is grasped. Touching the handle more than once only results in the driver ’s door opening once. If the
driver ’s door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob). Passive Entry OnOff
Memory Linked To FOB — If Equipped On
Off
NOTE:
The “Memory Linked To FOB” feature provides automatic recall of all settings stored to a memory location (driver ’s
seat, exterior mirrors, steering column position and radio station pre-sets) to enhance driver mobility when entering
and exiting the vehicle. Power Liftgate Alert — If Equipped On
Off
NOTE:
The “Power Liftgate Alert” feature plays an alert when the power liftgate is raising or lowering.
10
MULTIMEDIA 525

Auto-On Comfort — If Equipped
After pressing the “Auto-On Comfort & Remote Start” button on the touchscreen, the following settings will be available:
