2019 JEEP GRAND CHEROKEE LIMITED Owners Manual

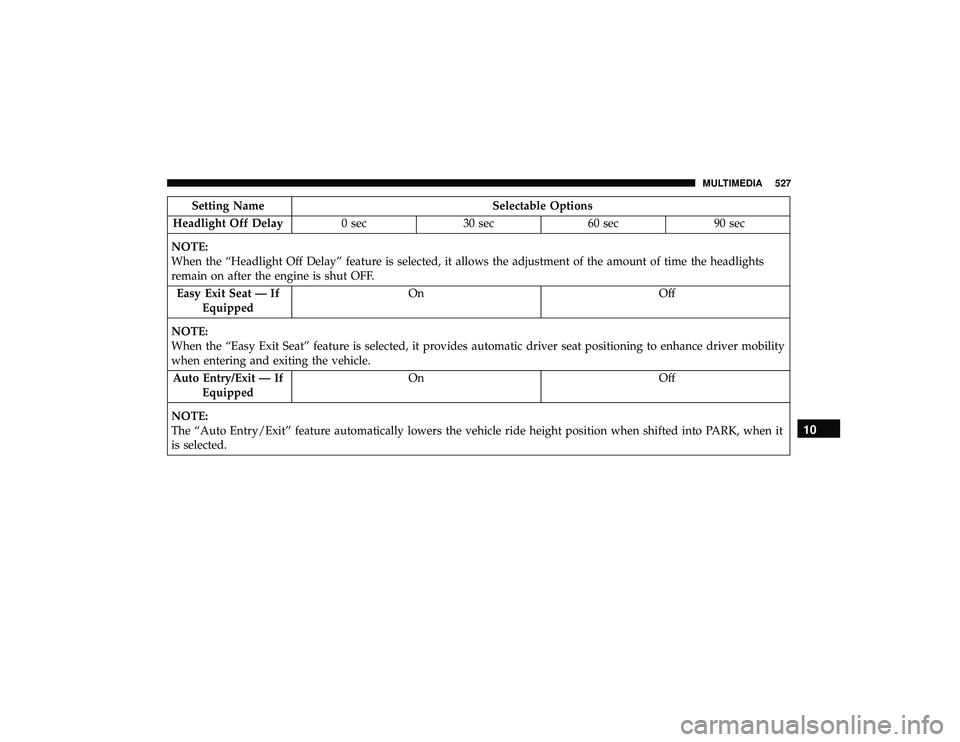

Setting NameSelectable Options
Headlight Off Delay 0 sec30 sec 60 sec 90 sec
NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut OFF. Easy Exit Seat — If Equipped On
Off
NOTE:
When the “Easy Exit Seat” feature is selected, it provides automatic driver seat positioning to enhance driver mobility
when entering and exiting the vehicle. Auto Entry/Exit — If Equipped On
Off
NOTE:
The “Auto Entry/Exit” feature automatically lowers the vehicle ride height position when shifted into PARK, when it
is selected.
10
MULTIMEDIA 527

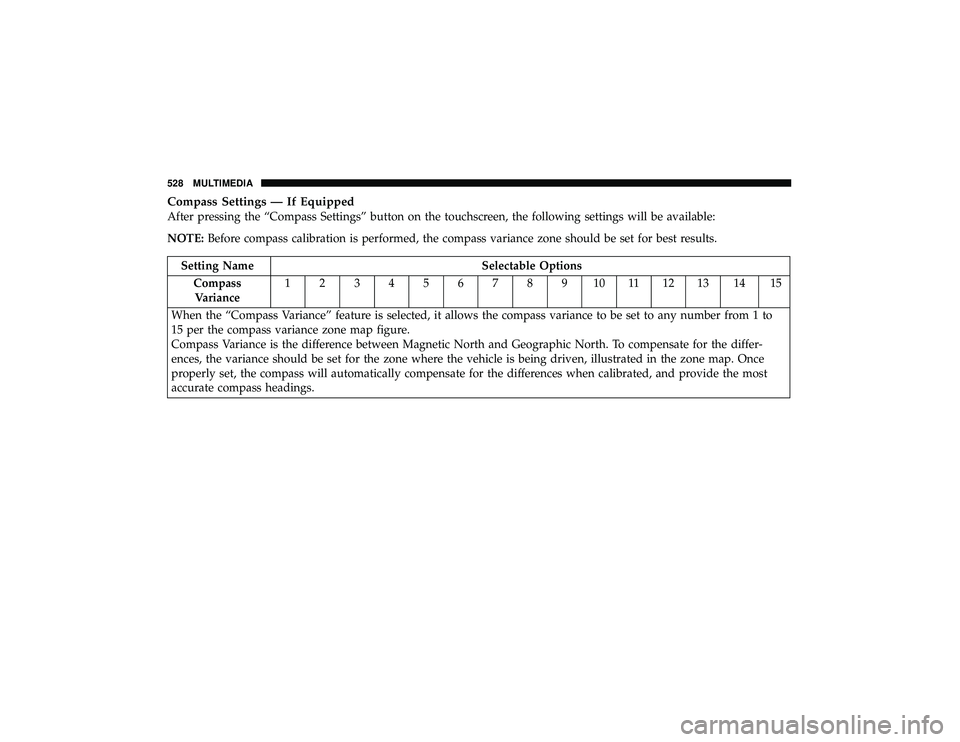

Compass Settings — If Equipped
After pressing the “Compass Settings” button on the touchscreen, the following settings will be available:
NOTE:Before compass calibration is performed, the compass variance zone should be set for best results.

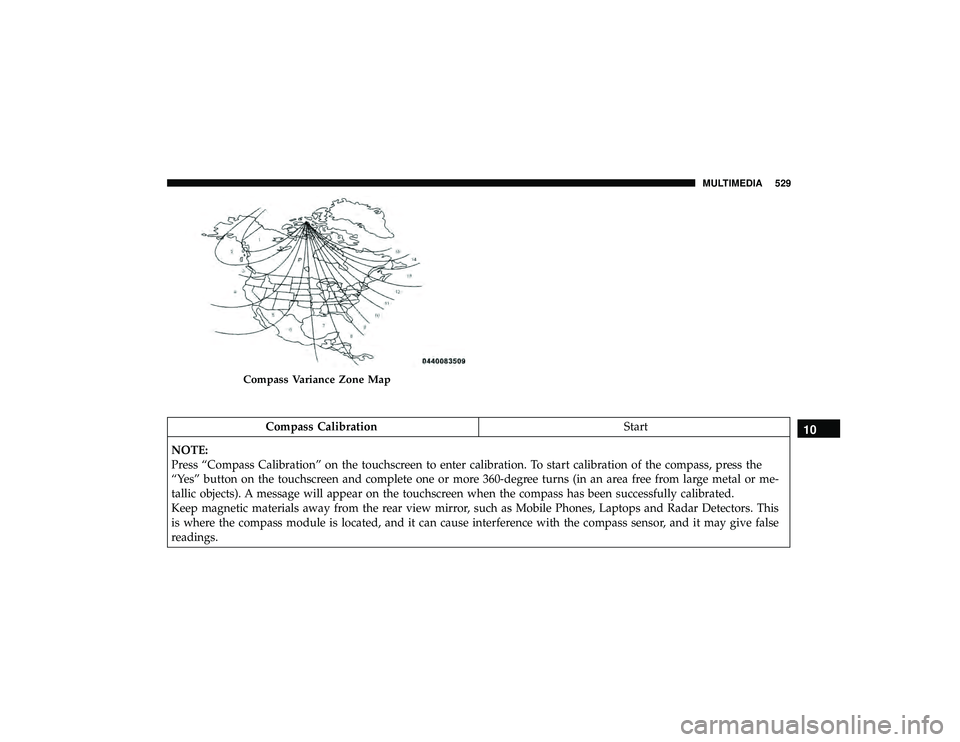

Compass CalibrationStart
NOTE:
Press “Compass Calibration” on the touchscreen to enter calibration. To start calibration of the compass, press the
“Yes” button on the touchscreen and complete one or more 360-degree turns (in an area free from large metal or me-
tallic objects). A message will appear on the touchscreen when the compass has been successfully calibrated.
Keep magnetic materials away from the rear view mirror, such as Mobile Phones, Laptops and Radar Detectors. This
is where the compass module is located, and it can cause interference with the compass sensor, and it may give false
readings.

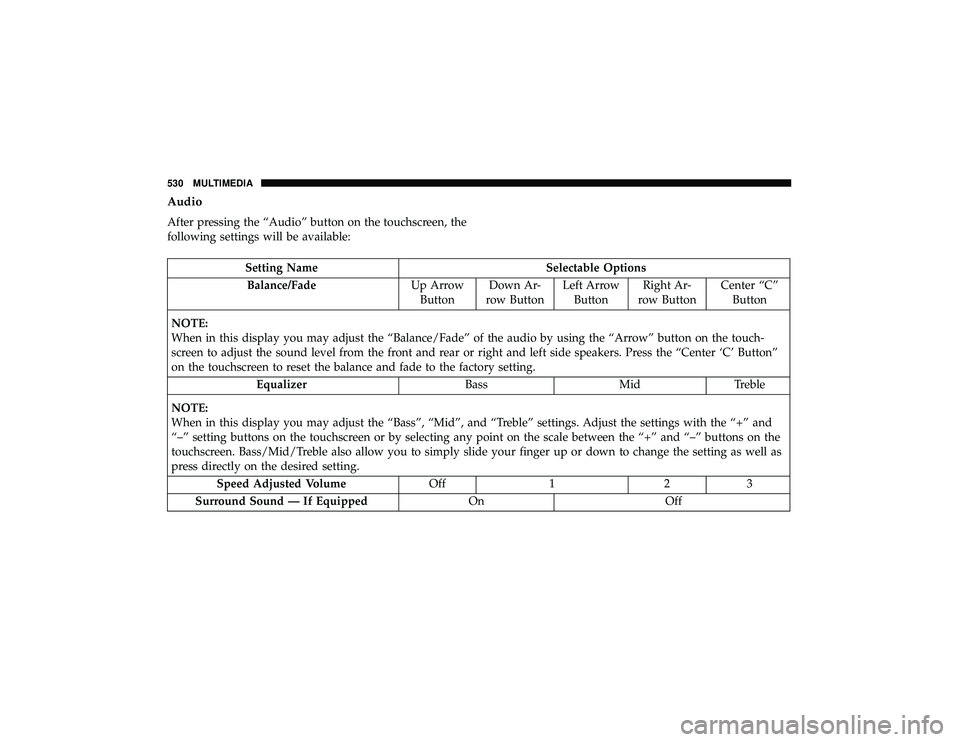

Audio
After pressing the “Audio” button on the touchscreen, the
following settings will be available:

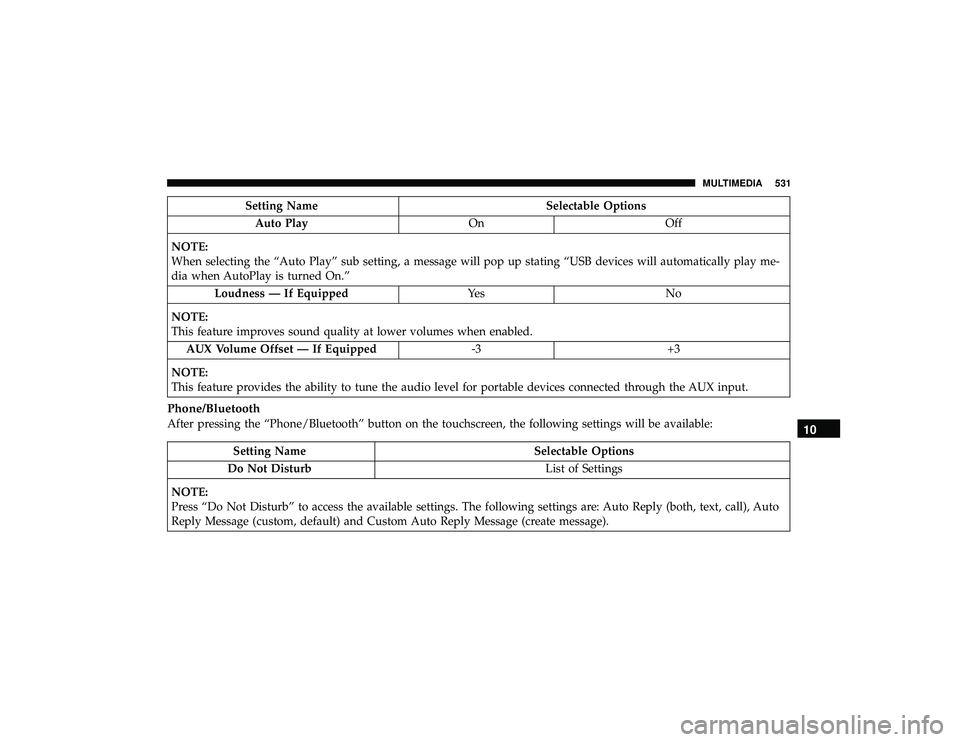

Setting NameSelectable Options
Auto Play OnOff
NOTE:
When selecting the “Auto Play” sub setting, a message will pop up stating “USB devices will automatically play me-
dia when AutoPlay is turned On.” Loudness — If Equipped Ye sN o
NOTE:
This feature improves sound quality at lower volumes when enabled. AUX Volume Offset — If Equipped -3+3
NOTE:
This feature provides the ability to tune the audio level for portable devices connected through the AUX input.

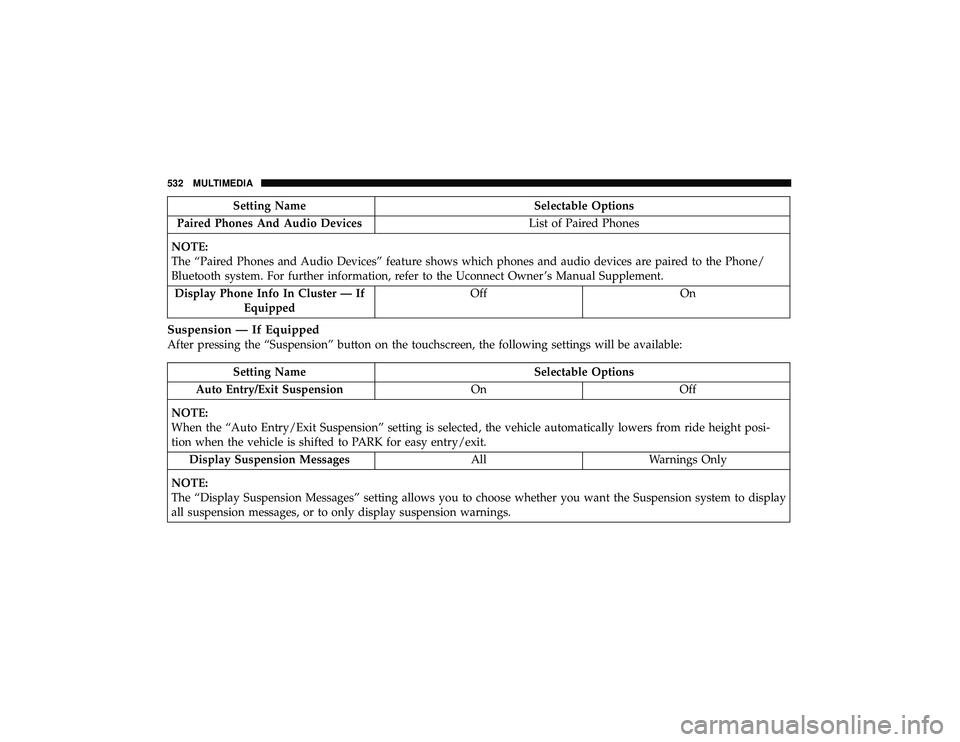

Phone/Bluetooth
After pressing the “Phone/Bluetooth” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options
Paired Phones And Audio Devices List of Paired Phones
NOTE:
The “Paired Phones and Audio Devices” feature shows which phones and audio devices are paired to the Phone/
Bluetooth system. For further information, refer to the Uconnect Owner ’s Manual Supplement. Display Phone Info In Cluster — If Equipped Off
On

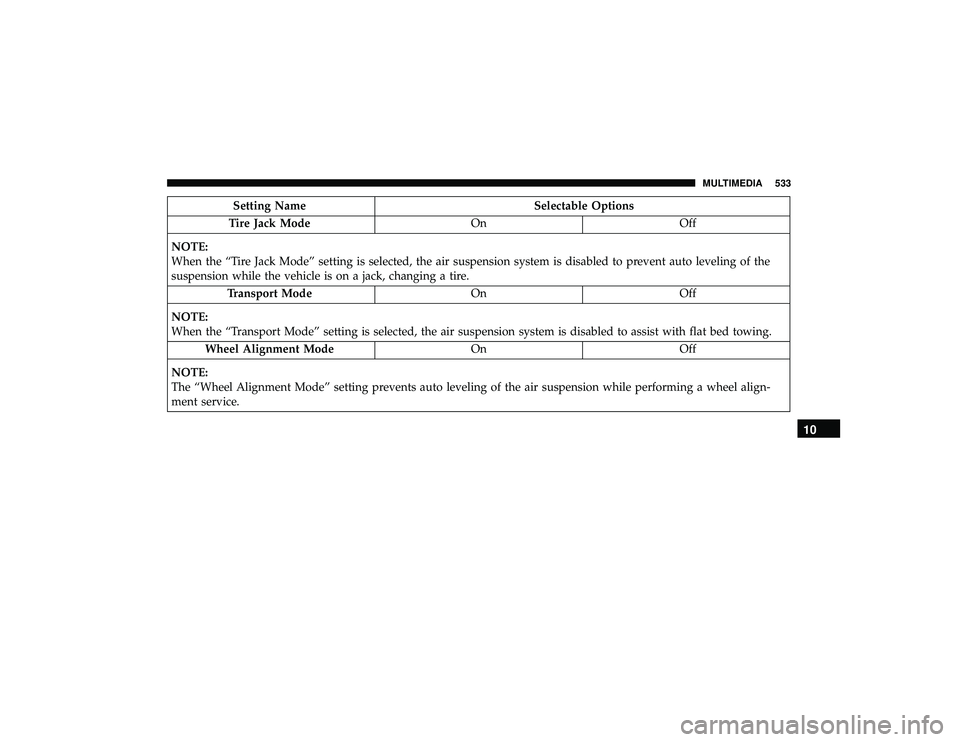

Suspension — If Equipped
After pressing the “Suspension” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options
Tire Jack Mode OnOff
NOTE:
When the “Tire Jack Mode” setting is selected, the air suspension system is disabled to prevent auto leveling of the
suspension while the vehicle is on a jack, changing a tire. Transport Mode OnOff
NOTE:
When the “Transport Mode” setting is selected, the air suspension system is disabled to assist with flat bed towing. Wheel Alignment Mode OnOff
NOTE:
The “Wheel Alignment Mode” setting prevents auto leveling of the air suspension while performing a wheel align-
ment service.
10
MULTIMEDIA 533

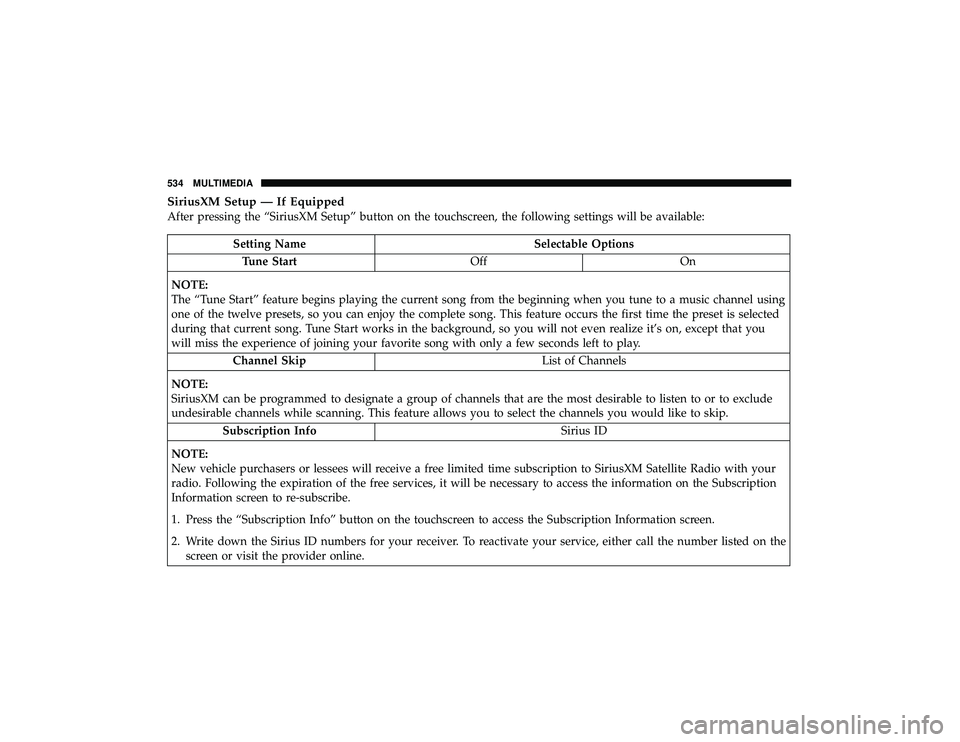

SiriusXM Setup — If Equipped
After pressing the “SiriusXM Setup” button on the touchscreen, the following settings will be available:
