2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

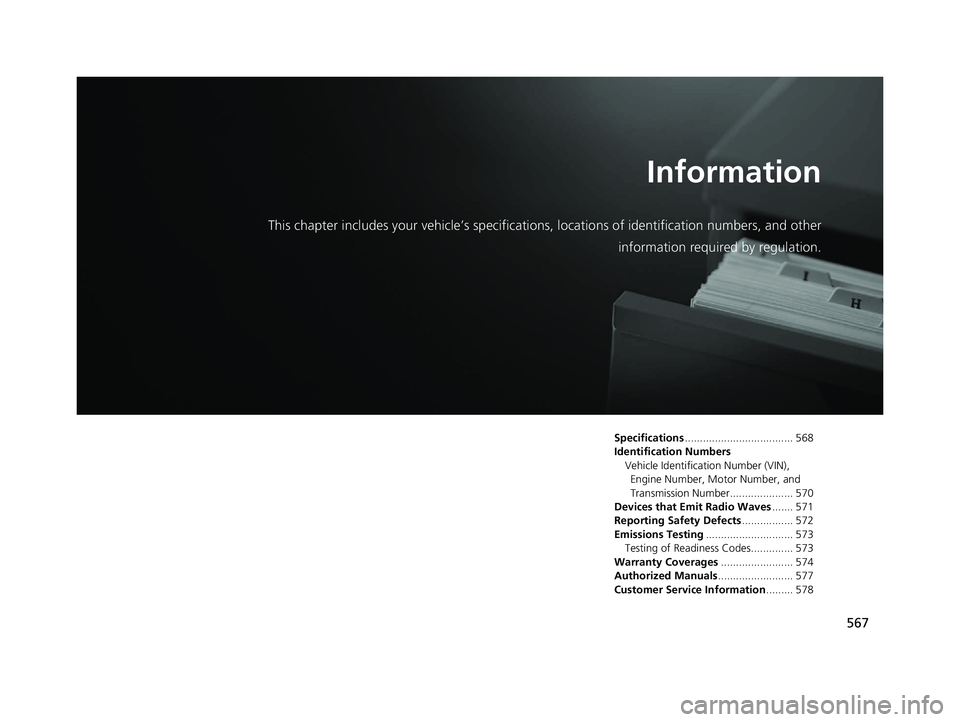

567InformationThis chapter includes your vehicl e’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 568
Identification Numbers
Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number..................... 570
Devices that Emit Radio Waves ....... 571
Reporting Safety Defects ................. 572
Emissions Testing ............................. 573
Testing of Readiness Codes.............. 573
Warranty Coverages ........................ 574
Authorized Manuals ......................... 577
Customer Service Information ......... 57819 CLARITY PHEV-31TRW6100.book 567 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

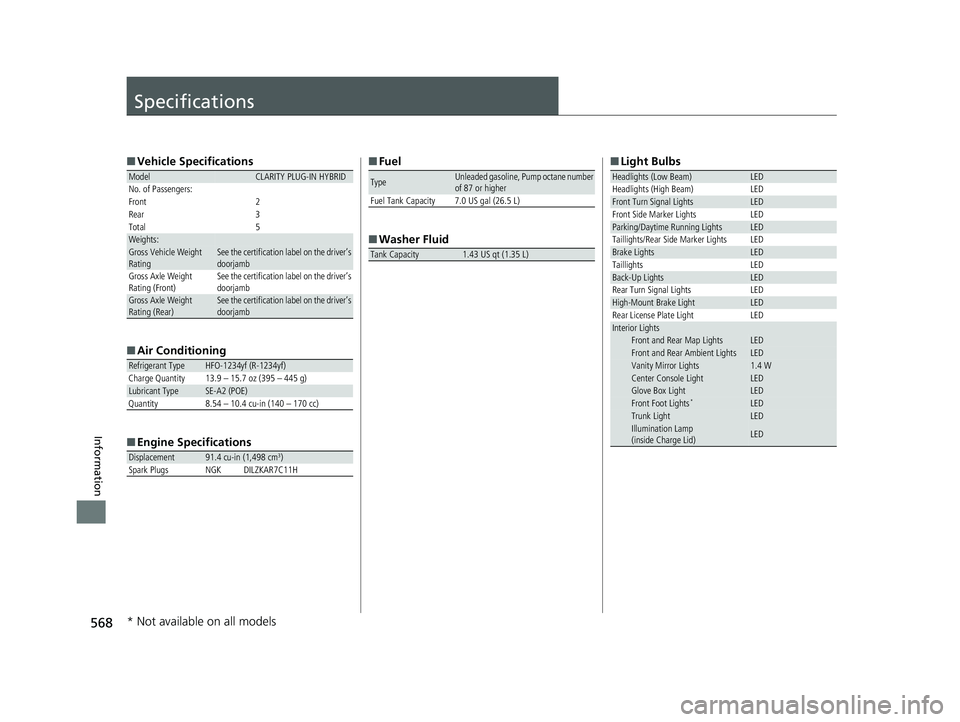

568
Information Specifications ■ Vehicle Specifications
■ Air Conditioning
■ Engine Specifications Model CLARITY PLUG-IN HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front) See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear) See the certification label on the driver’s
doorjamb
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant Type SE-A2 (POE)
Quantity 8.54 – 10.4 cu-in (140 – 170 cc)
Displacement 91.4 cu-in (1,498 cm 3
)
Spark Plugs NGK DILZKAR7C11H ■ Fuel
■ Washer Fluid Type Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 7.0 US gal (26.5 L)
Tank Capacity 1.43 US qt (1.35 L)
■ Light Bulbs Headlights (Low Beam) LED
Headlights (High Beam) LED
Front Turn Signal Lights LED
Front Side Marker Lights LED
Parking/Daytime Running Lights LED
Taillights/Rear Side Marker Lights LED
Brake Lights LED
Taillights LED
Back-Up Lights LED
Rear Turn Signal Lights LED
High-Mount Brake Light LED
Rear License Plate Light LED
Interior Lights
Front and Rear Map Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Center Console Light LED
Glove Box Light LED
Front Foot Lights *
LED
Trunk Light LED
Illumination Lamp
(inside Charge Lid) LED
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 568 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

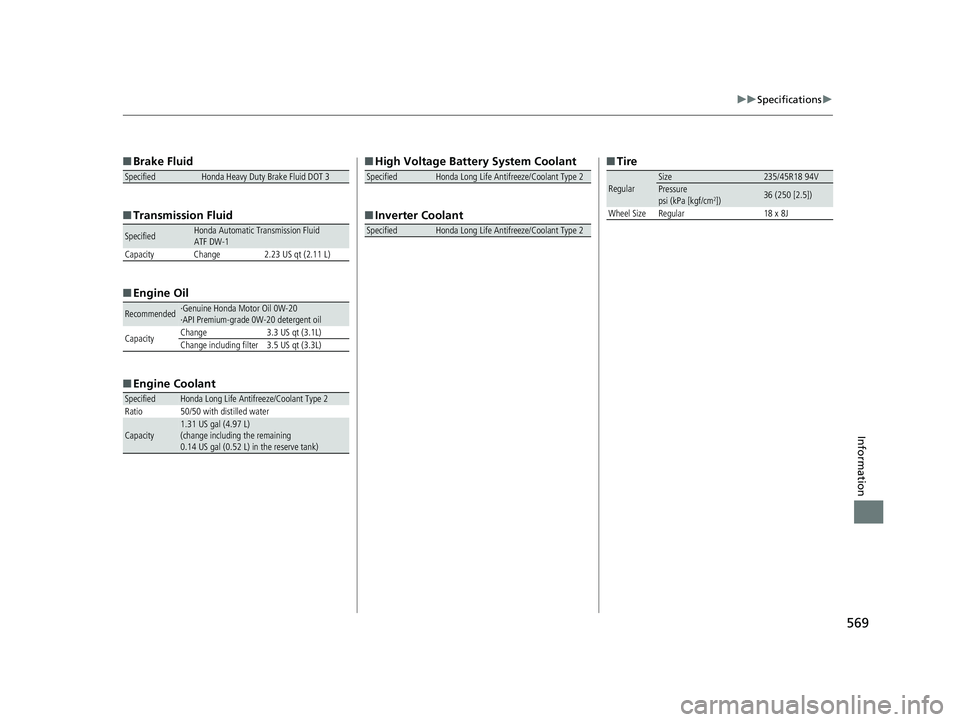

569 uu Specifications u
Information
■ Brake Fluid
■ Transmission Fluid
■ Engine Oil
■ Engine Coolant Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.23 US qt (2.11 L)
Recommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1L)
Change including filter 3.5 US qt (3.3L)
Specified Honda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity 1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank) ■ High Voltage Battery System Coolant
■ Inverter Coolant Specified Honda Long Life Antifreeze/Coolant Type 2
Specified Honda Long Life Antifreeze/Coolant Type 2
■ Tire Regular Size 235/45R18 94V
Pressure
psi (kPa [kgf/cm 2
]) 36 (250 [2.5])
Wheel Size Regular 18 x 8J19 CLARITY PHEV-31TRW6100.book 569 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

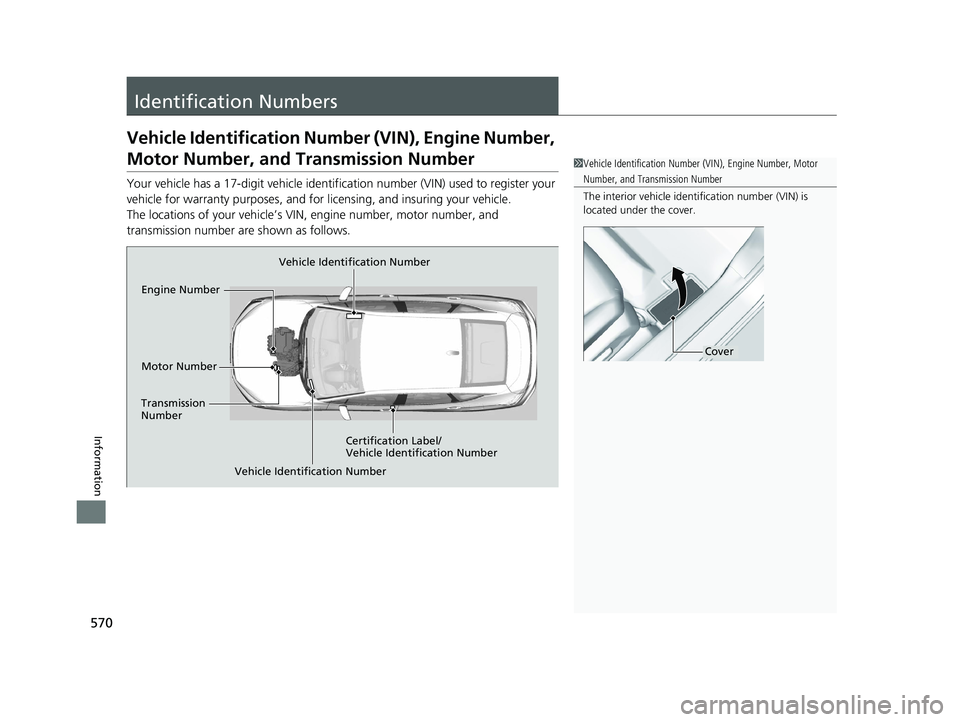

570
Information Identification Numbers Vehicle Identification Numb er (VIN), Engine Number,
Motor Number, and Transmission Number Your vehicle has a 17-digit ve hicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows. 1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
CoverVehicle Identification Number
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification NumberMotor NumberEngine Number19 CLARITY PHEV-31TRW6100.book 570 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

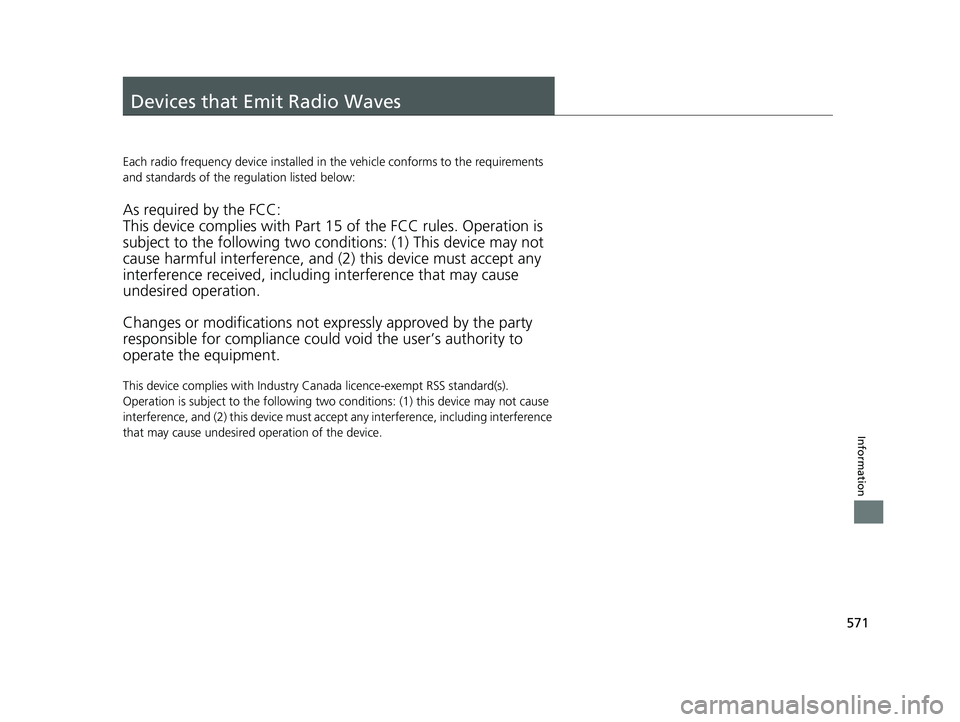

571
Information
Devices that Emit Radio Waves Each radio frequency device installed in th e vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device. 19 CLARITY PHEV-31TRW6100.book 571 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

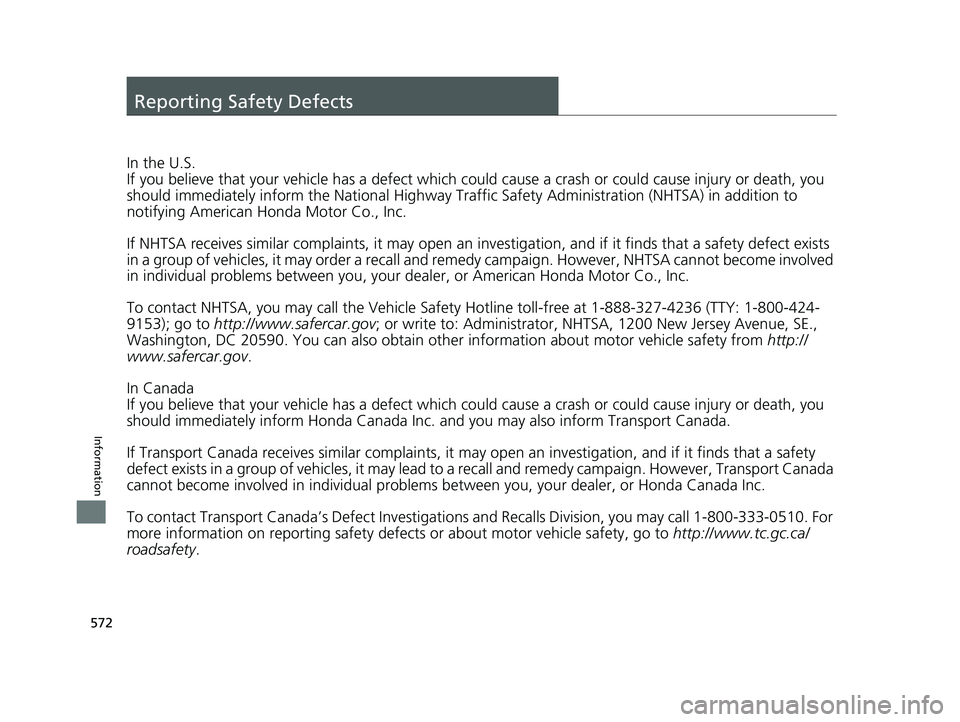

572
Information Reporting Safety Defects In the U.S.
If you believe that your vehicle has a defect which c ould cause a crash or could ca use injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Admini stration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds th at a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about moto r vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could ca use injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about mo tor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .19 CLARITY PHEV-31TRW6100.book 572 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

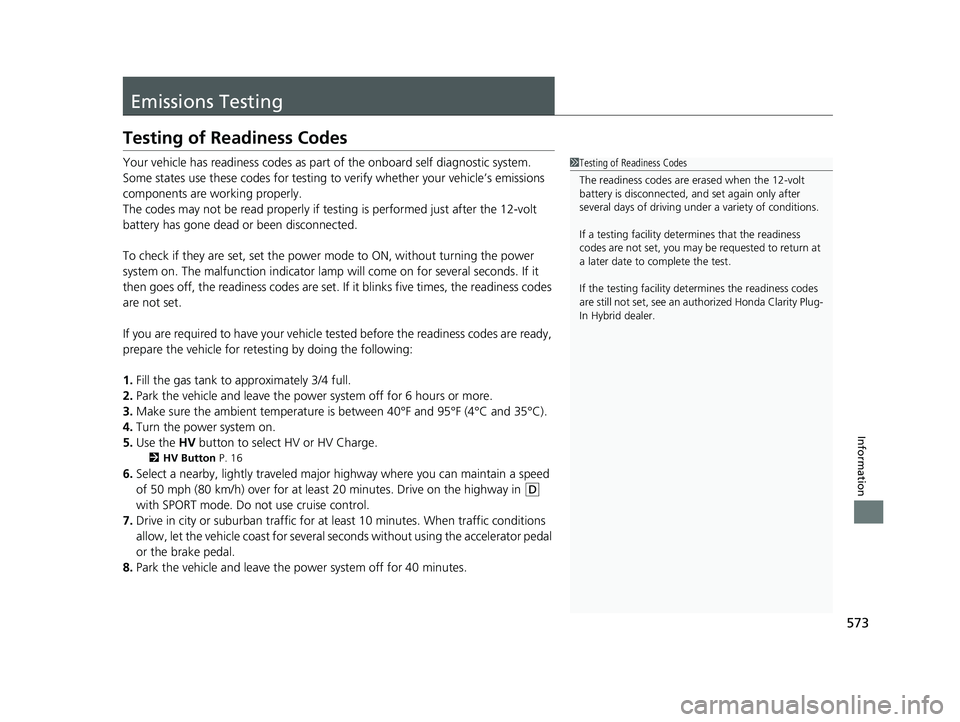

573
Information
Emissions Testing Testing of Readiness Codes Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks fi ve times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Use the HV button to select HV or HV Charge.2 HV Button P. 16
6. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in ( D

with SPORT mode. Do not use cruise control.
7. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
8. Park the vehicle and leave the po wer system off for 40 minutes. 1 Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see an au thorized Honda Clarity Plug-
In Hybrid dealer.19 CLARITY PHEV-31TRW6100.book 573 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

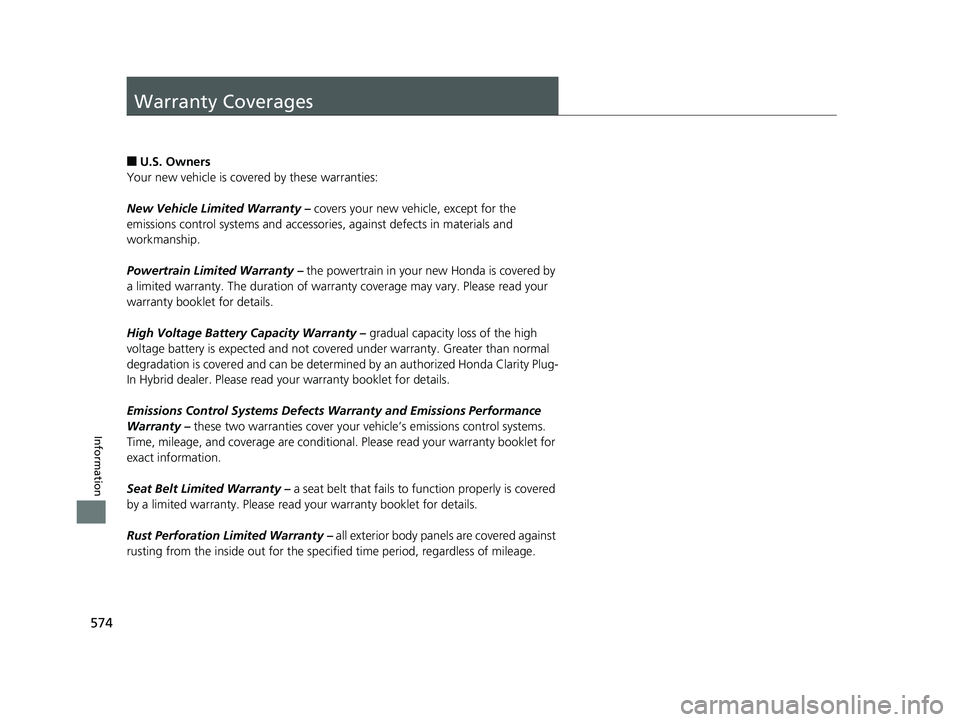

574
Information Warranty Coverages ■ U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Powertrain Limited Warranty – the powertrain in your new Honda is covered by
a limited warranty. The duration of warran ty coverage may vary. Please read your
warranty booklet for details.
High Voltage Battery Capacity Warranty – gradual capacity loss of the high
voltage battery is expected and not covered under warranty. Greater than normal
degradation is covered and can be determin ed by an authorized Honda Clarity Plug-
In Hybrid dealer. Please read yo ur warranty booklet for details.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time peri od, regardless of mileage.19 CLARITY PHEV-31TRW6100.book 574 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
