2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

183Continued
Controls

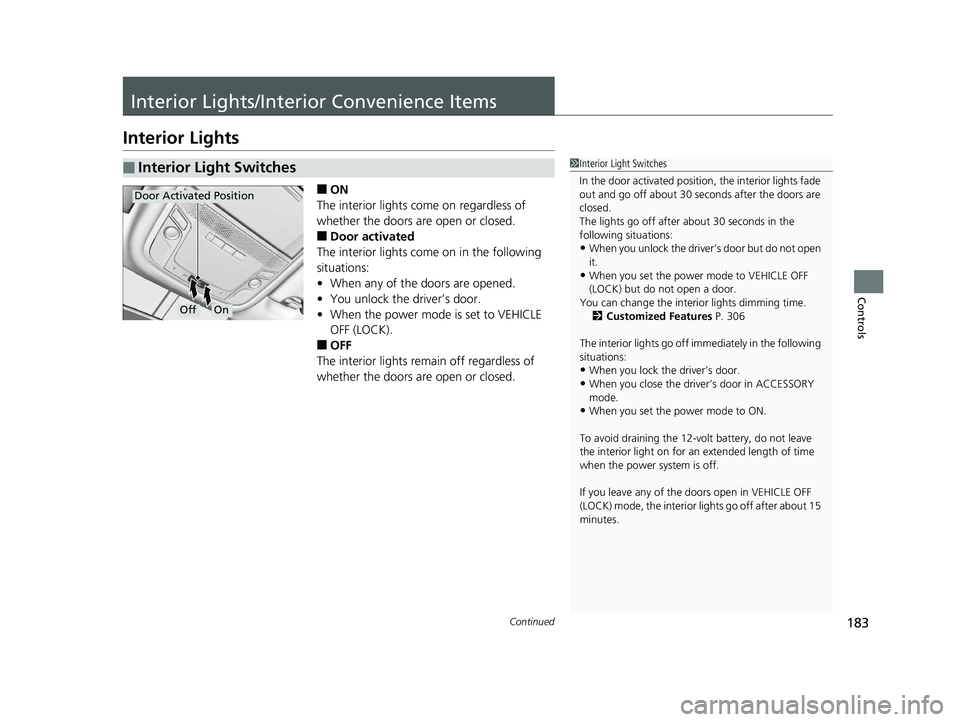

Interior Lights/Interior Convenience Items Interior Lights ■ ON
The interior lights come on regardless of
whether the doors are open or closed.
■ Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■ OFF
The interior lights remain off regardless of
whether the doors are open or closed.■ Interior Light Switches 1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
• When you unlock the driver’s door but do not open
it.
• When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 306
The interior lights go off i mmediately in the following
situations:
• When you lock the driver’s door.
• When you close the driver’s door in ACCESSORY
mode.
• When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system is off.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.Off OnDoor Activated Position19 CLARITY PHEV-31TRW6100.book 183 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Interior Lights/Interior Convenience Items u Interior Lights
184

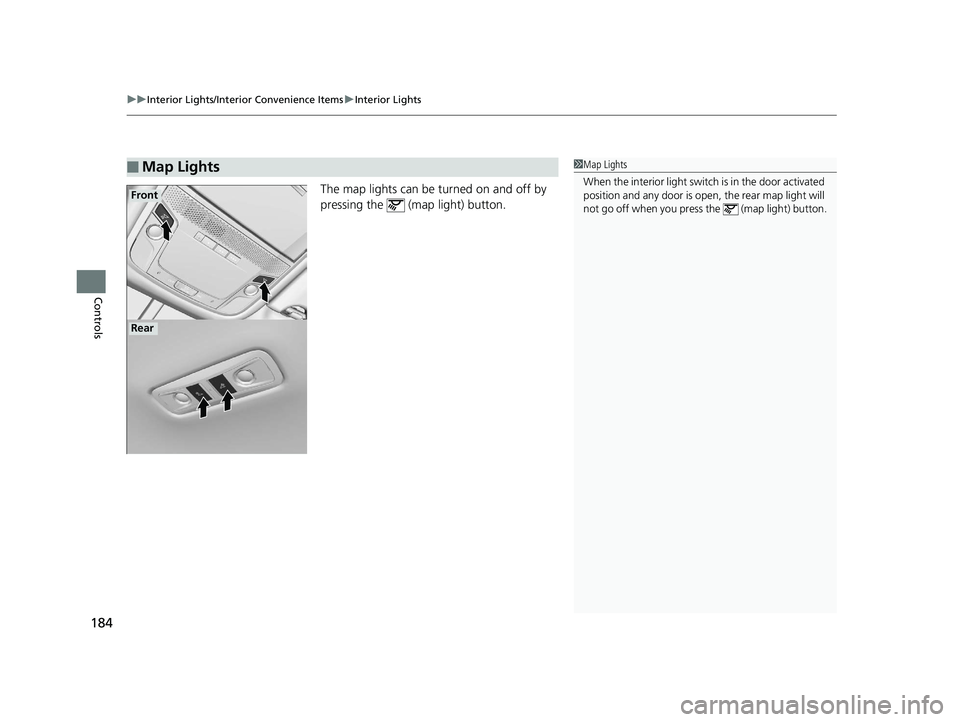

Controls The map lights can be turned on and off by
pressing the (map light) button.
■ Map Lights 1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the rear ma p light will
not go off when you press the (map light) button.Front
Rear19 CLARITY PHEV-31TRW6100.book 184 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

185uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Controls

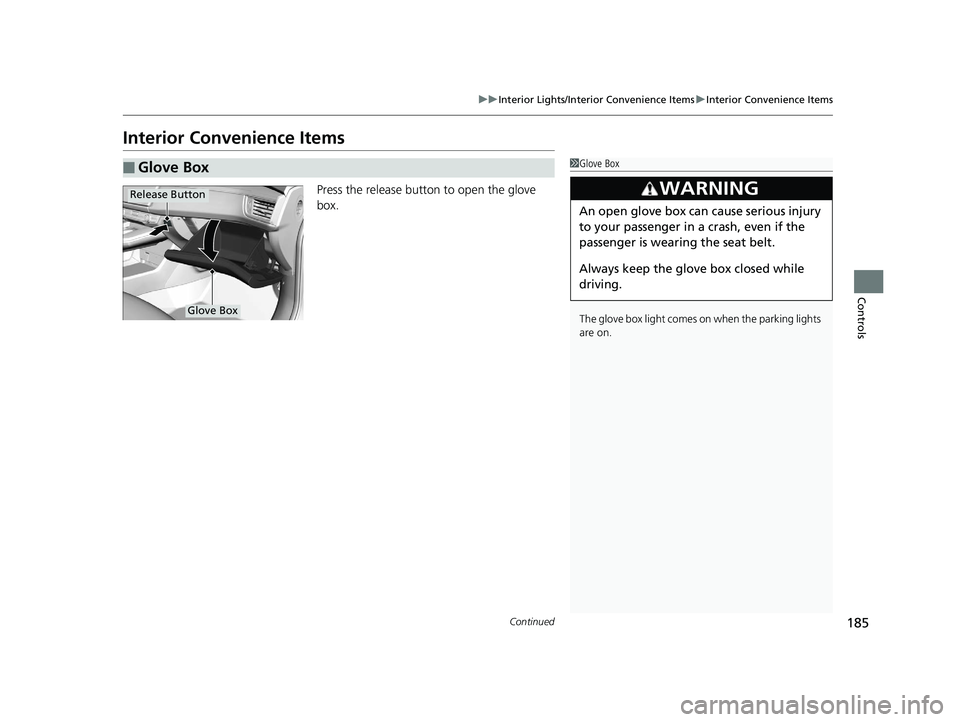

Interior Convenience Items Press the release button to open the glove
box.
■ Glove Box 1 Glove Box
The glove box light comes on when the parking lights
are on.
3
WARNING An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.Glove BoxRelease Button19 CLARITY PHEV-31TRW6100.book 185 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

186 uu Interior Lights/Interior Convenience Items u Interior Convenience Items

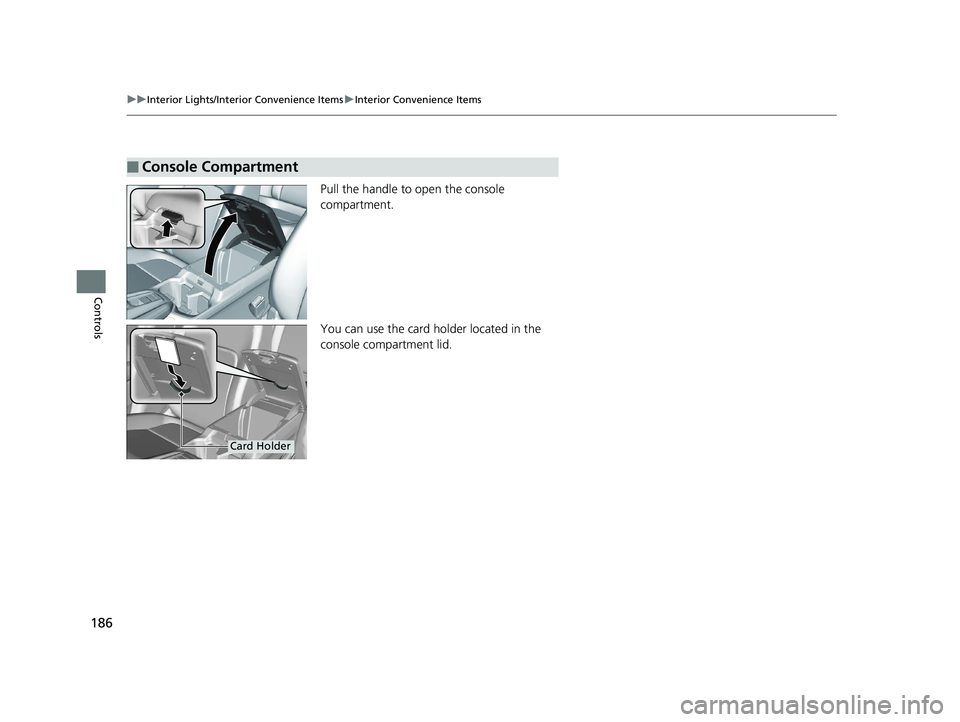

Controls Pull the handle to open the console
compartment.
You can use the card ho lder located in the
console compartment lid.■ Console Compartment
Card Holder19 CLARITY PHEV-31TRW6100.book 186 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued
187uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls

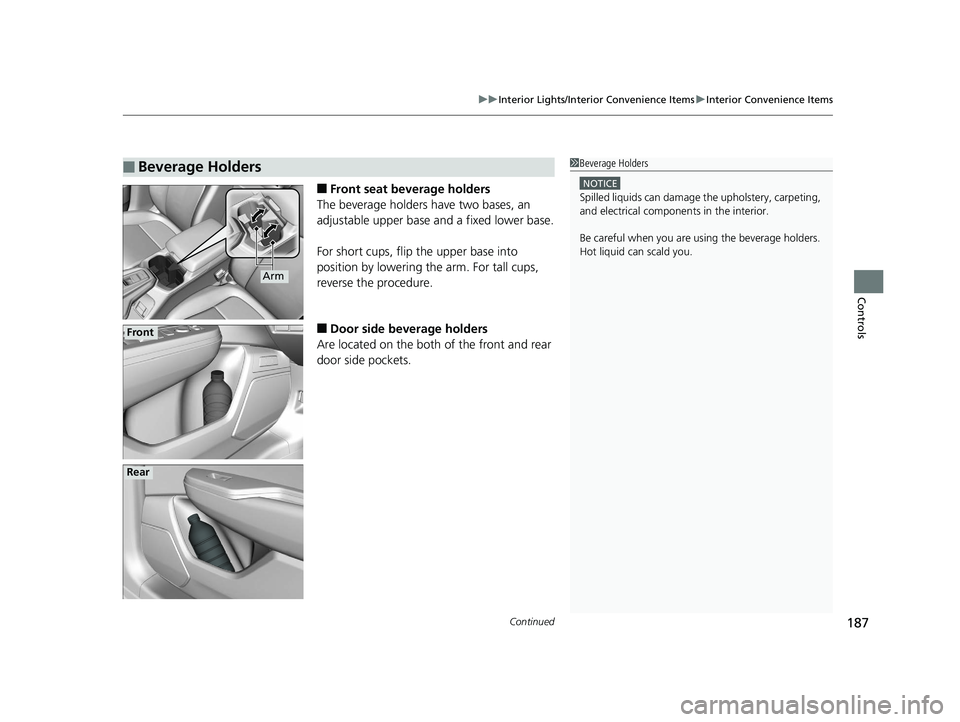

■ Front seat beverage holders
The beverage holders have two bases, an
adjustable upper base and a fixed lower base.
For short cups, flip the upper base into
position by lowering the arm. For tall cups,
reverse the procedure.
■ Door side beverage holders
Are located on the both of the front and rear
door side pockets.■ Beverage Holders 1 Beverage Holders NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Arm
Front
Rear19 CLARITY PHEV-31TRW6100.book 187 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

188 uu Interior Lights/Interior Convenience Items u Interior Convenience Items

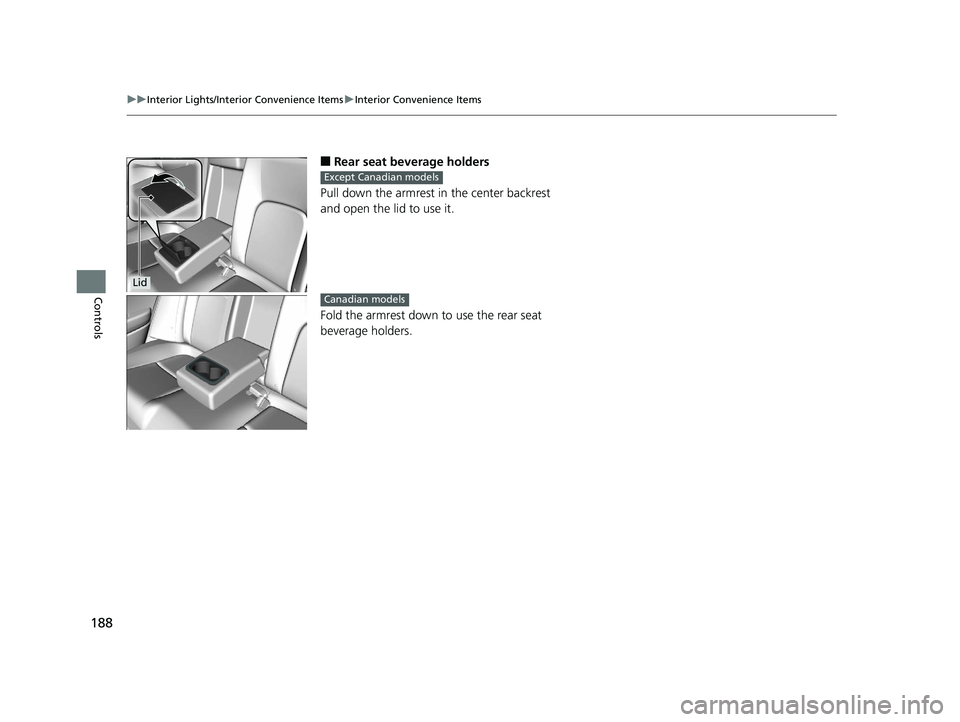

Controls ■ Rear seat beverage holders
Pull down the armrest in the center backrest
and open the lid to use it.
Fold the armrest down to use the rear seat
beverage holders.Lid Except Canadian models
Canadian models19 CLARITY PHEV-31TRW6100.book 188 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued
189uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls

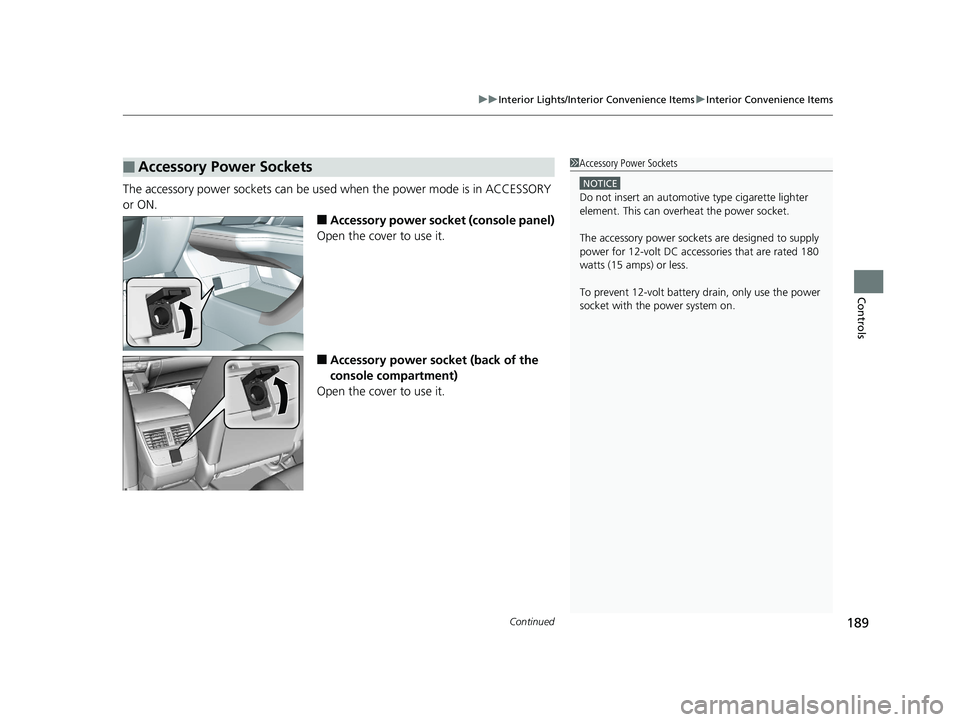

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■ Accessory power socket (console panel)
Open the cover to use it.
■ Accessory power socket (back of the
console compartment)
Open the cover to use it.■ Accessory Power Sockets 1 Accessory Power Sockets NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC acce ssories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.19 CLARITY PHEV-31TRW6100.book 189 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
190
Controls There is a coat hook on the rear left grab
handle. Pull it down to use it.
Pull up the cargo area floor lid.■ Coat Hook 1 Coat Hook
The coat hook is not desi gned for large or heavy
items.
■ Under-Floor Storage Area 19 CLARITY PHEV-31TRW6100.book 190 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
