2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

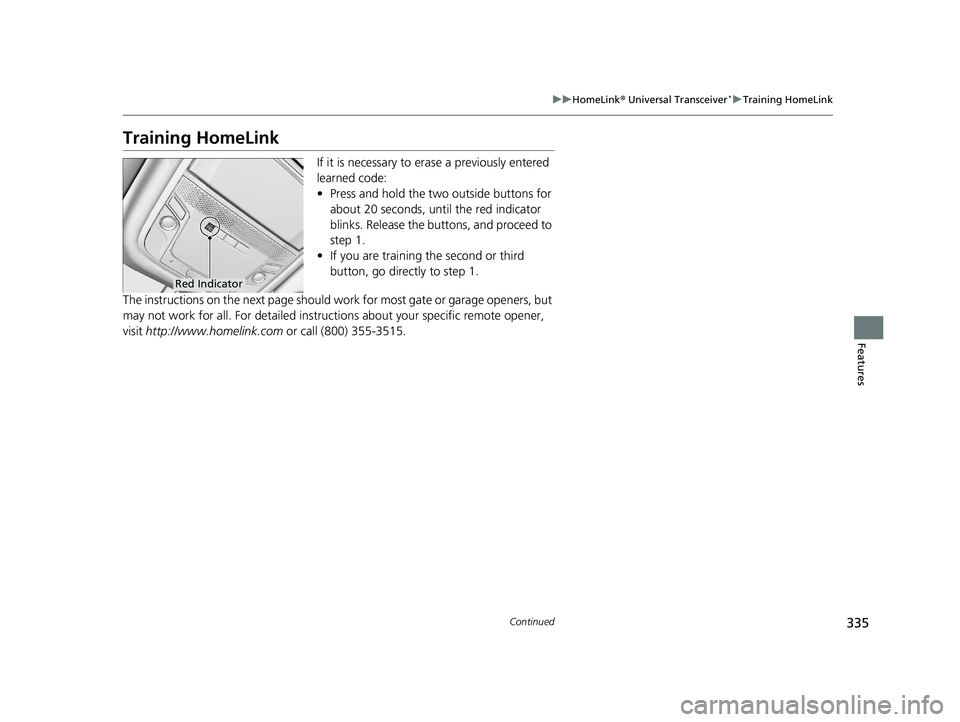

335uu HomeLink ® Universal Transceiver *
u Training HomeLink
Continued
Features
Training HomeLink If it is necessary to er ase a previously entered
learned code:
• Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the bu ttons, and proceed to
step 1.
• If you are training the second or third
button, go directly to step 1.
The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instruct ions about your specific remote opener,
visit http://www.homelink.com or call (800) 355-3515.Red Indicator19 CLARITY PHEV-31TRW6100.book 335 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

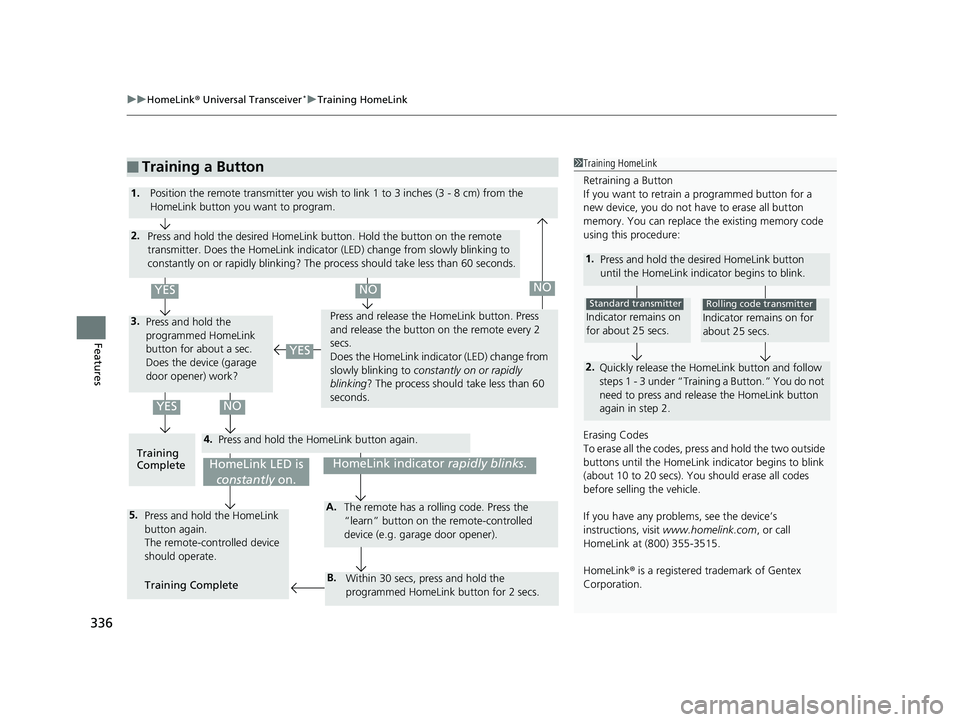

uu HomeLink ® Universal Transceiver *
u Training HomeLink
336
Features ■ Training a Button 1 Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1.
Press and hold the desired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Quickly release the Home Link button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and rele ase the HomeLink button
again in step 2.Indicator remains on
for about 25 secs. Standard transmitter
Indicator remains on for
about 25 secs. Rolling code transmitter
Erasing Codes
To erase all the codes, pr ess and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
HomeLink ® is a registered tra demark of Gentex
Corporation.4.3. 2.
5. A.
B.1.
Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and hold the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicato r (LED) change from slowly blinking to
constantly on or rapidly blinking? The pr ocess should take less than 60 seconds.
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and release the Ho meLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking ? The process should take less than 60
seconds.
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.HomeLink indicator rapidly blinks .
HomeLink LED is
constantly on.YES NO YESYES NO NO19 CLARITY PHEV-31TRW6100.book 336 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

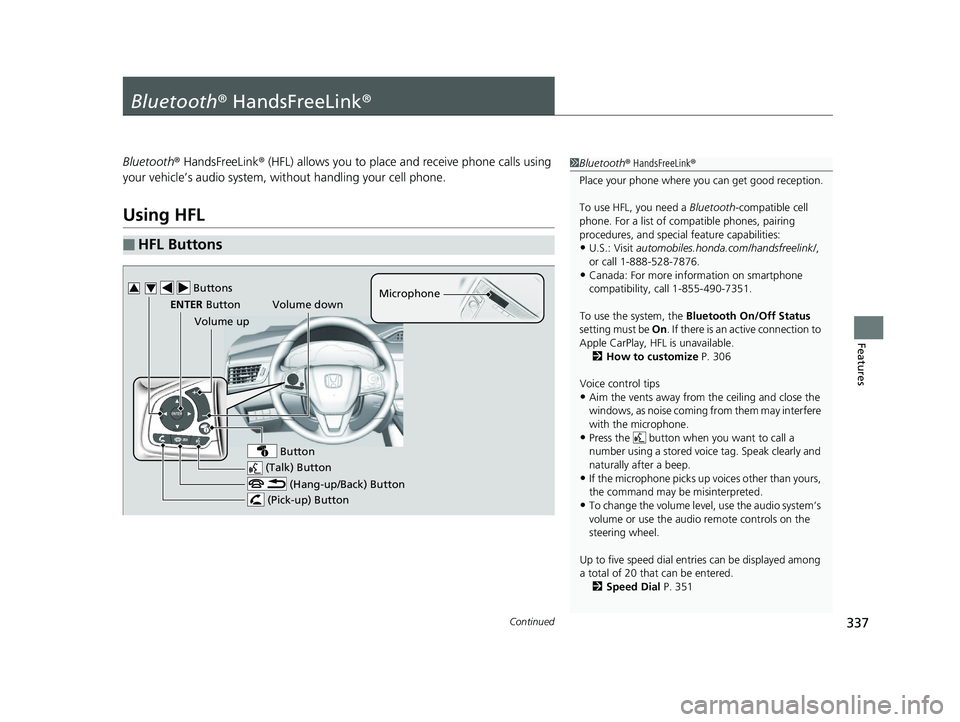

337Continued
Features
Bluetooth ® HandsFreeLink ®Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL ■ HFL Buttons 1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth -compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit automobiles.honda.com /handsfreelink/ ,
or call 1-888-528-7876.
• Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
To use the system, the Bluetooth On/Off Status
setting must be On . If there is an active connection to
Apple CarPlay, H FL is unavailable.
2 How to customize P. 306
Voice control tips
• Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
• Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
• If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, use the audio system’s
volume or use the audio remote controls on the
steering wheel.
Up to five speed dial en tries can be displayed among
a total of 20 that can be entered.
2 Speed Dial P. 351 (Talk) ButtonVolume up Microphone
(Hang-up/Back) Button
(Pick-up) ButtonENTER Button
Button Buttons3 4
Volume down19 CLARITY PHEV-31TRW6100.book 337 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

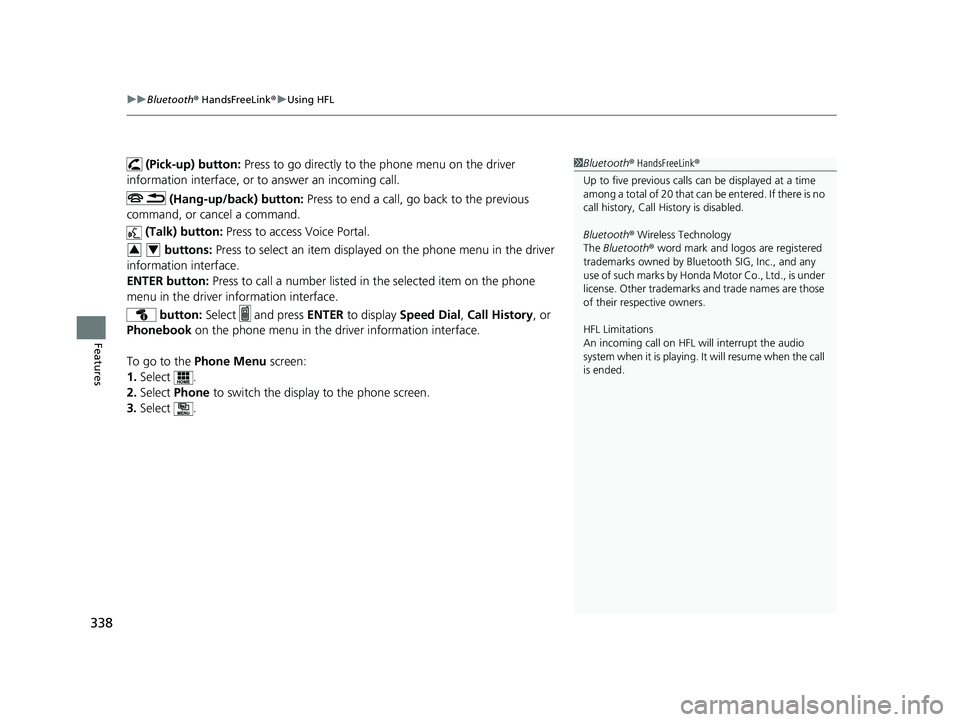

uu Bluetooth ® HandsFreeLink ® u Using HFL
338
Features (Pick-up) button: Press to go directly to the phone menu on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to access Voice Portal.
buttons: Press to select an item displayed on the phone menu in the driver
information interface.
ENTER button: Press to call a number listed in the selected item on the phone
menu in the driver information interface.
button: Select and press ENTER to display Speed Dial , Call History , or
Phonebook on the phone menu in the driver information interface.
To go to the Phone Menu screen:
1. Select .
2. Select Phone to switch the displa y to the phone screen.
3. Select . 1 Bluetooth ® HandsFreeLink ®
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s te m wh e n it is p la y i n g . It wi ll re s u m e w h en t h e c a l l
is ended.3 419 CLARITY PHEV-31TRW6100.book 338 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

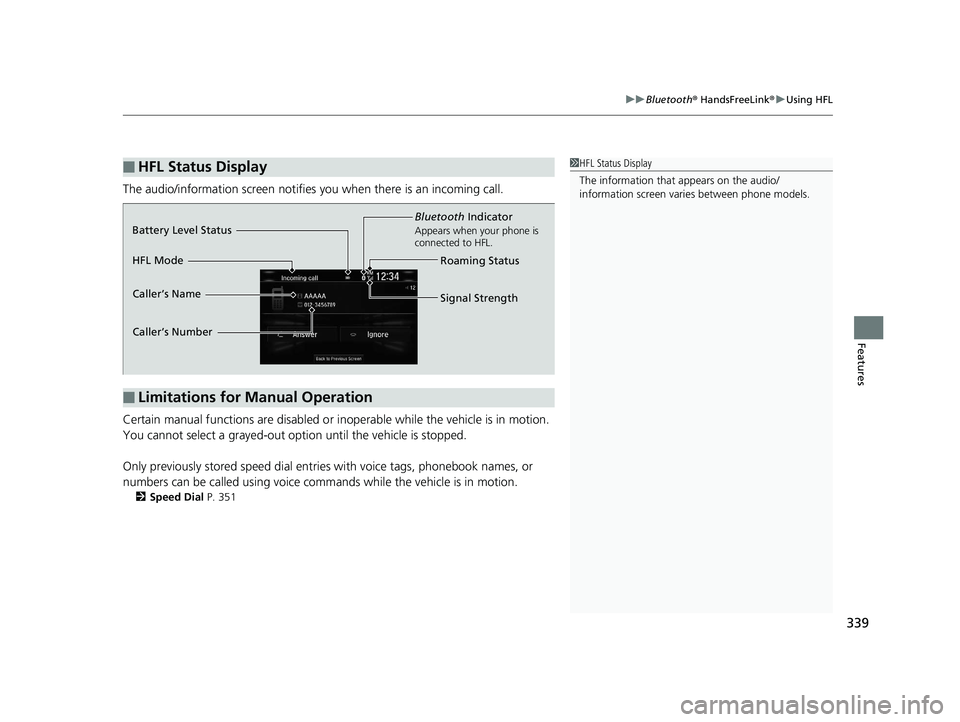

339uu Bluetooth ® HandsFreeLink ® u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 351■ HFL Status Display 1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
■ Limitations for Manual Operation Bluetooth IndicatorAppears when your phone is
connected to HFL.
Signal StrengthHFL ModeBattery Level Status
Caller’s Name
Caller’s Number Roaming Status19 CLARITY PHEV-31TRW6100.book 339 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

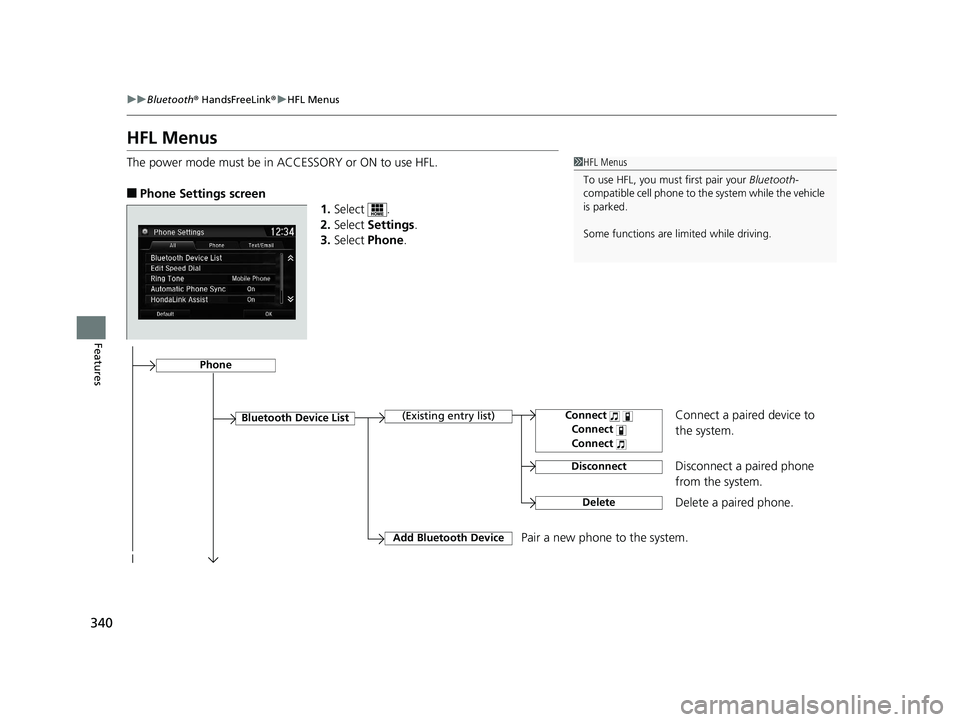

340 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features HFL Menus The power mode must be in ACCESSORY or ON to use HFL.
■ Phone Settings screen
1. Select .
2. Select Settings .
3. Select Phone . 1 HFL Menus
To use HFL, you must first pair your Bluetooth -
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.Bluetooth Device List (Existing entry list)
Disconnect
Delete
Delete a paired phone.
Add Bluetooth Device
Pair a new phone to the system.Phone
Connect a paired device to
the system.Connect
Connect
Connect 19 CLARITY PHEV-31TRW6100.book 340 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

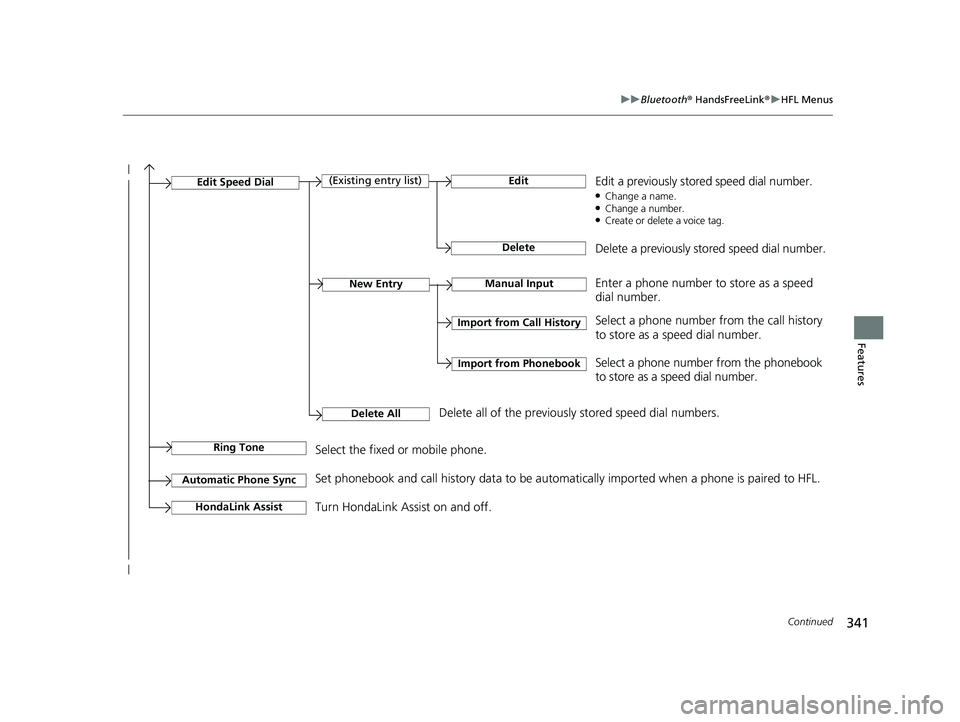

341uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features
Manual Input
New Entry
Import from Call History
Import from Phonebook Edit
Delete(Existing entry list)
Edit Speed Dial
Delete All Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers. Select a phone number from the phonebook
to store as a speed dial number.Edit a previously stored speed dial number. ●
Change a name. ●
Change a number. ●
Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring Tone
Select the fixed or mobile phone.Automatic Phone Sync
Set phonebook and call history data to be automa tically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist19 CLARITY PHEV-31TRW6100.book 341 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

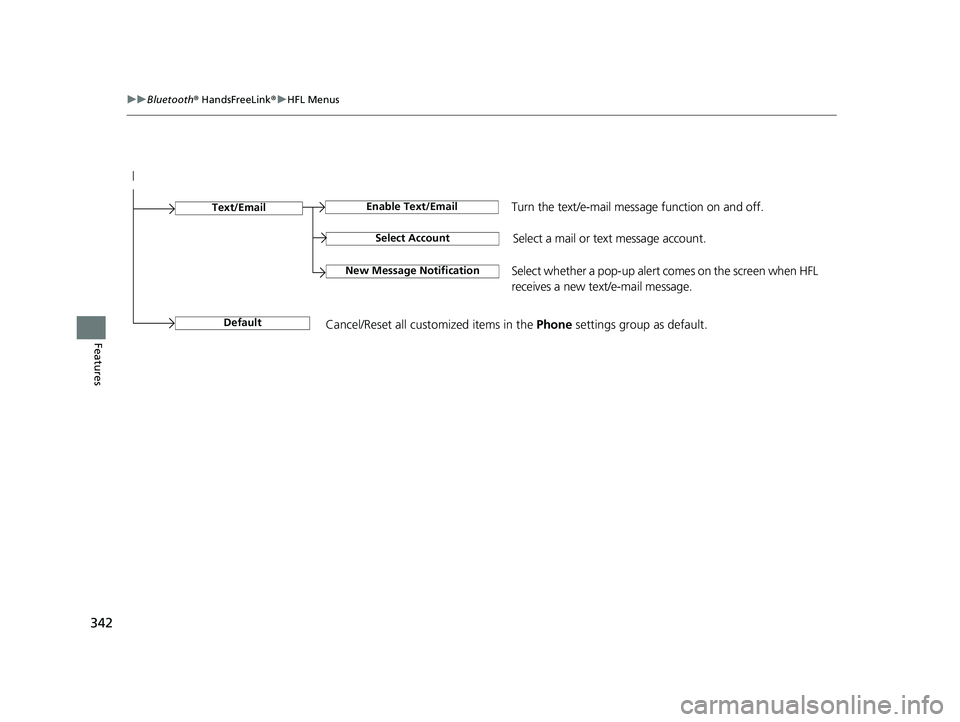

342 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features Select AccountEnable Text/Email
Text/Email
New Message Notification
Select whether a pop-up alert co mes on the screen when HFL
receives a new text/e-mail message.Turn the text/e-mail message function on and off.
Select a mail or te xt message account.
Default
Cancel/Reset all customized items in the Phone settings group as default.19 CLARITY PHEV-31TRW6100.book 342 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
