2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

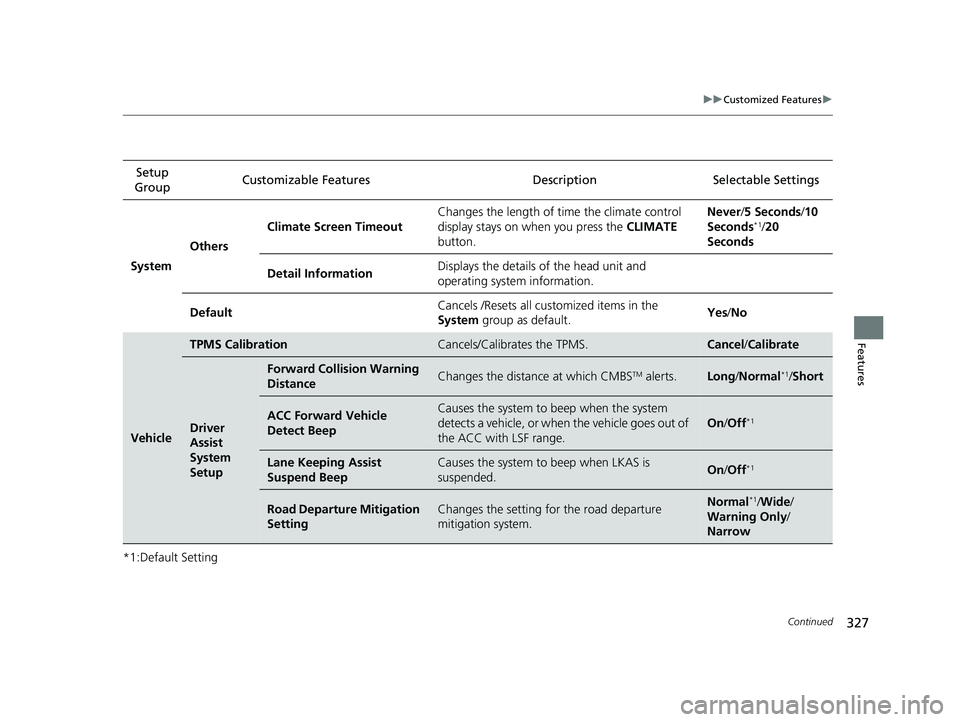

327 uu Customized Features u
Continued
Features
*1:Default Setting Setup
Group Customizable Features Description Selectable Settings
System Others Climate Screen Timeout Changes the length of time the climate control
display stays on when you press the CLIMATE
button. Never / 5 Seconds / 10
Seconds *1
/ 20
Seconds
Detail Information Displays the details of the head unit and
operating system information.
Default Cancels /Resets all customized items in the
System group as default. Yes / No
Vehicle TPMS Calibration Cancels/Calibrates the TPMS. Cancel / Calibrate
Driver
Assist
System
Setup Forward Collision Warning
Distance Changes the distance at which CMBS TM
alerts. Long / Normal *1
/ Short
ACC Forward Vehicle
Detect Beep Causes the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC with LSF range. On / Off *1
Lane Keeping Assist
Suspend Beep Causes the system to beep when LKAS is
suspended. On / Off *1
Road Departure Mitigation
Setting Changes the setting for the road departure
mitigation system. Normal *1
/ Wide /
Warning Only /
Narrow19 CLARITY PHEV-31TRW6100.book 327 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

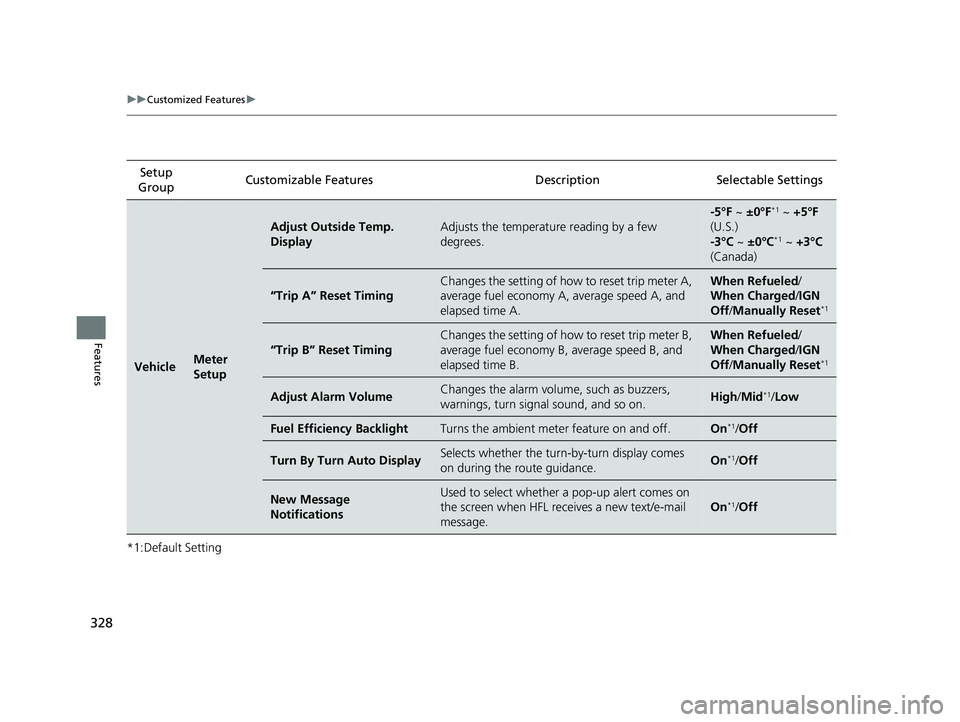

328 uu Customized Features u
Features *1:Default Setting Setup
Group Customizable Features Desc ription Selectable Settings
Vehicle Meter
Setup Adjust Outside Temp.
Display Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F *1
~ +5°F
(U.S.)
-3°C ~ ±0°C *1
~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A. When Refueled /
When Charged / IGN
Off / Manually Reset *1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. When Refueled /
When Charged / IGN
Off / Manually Reset *1
Adjust Alarm Volume Changes the alarm volu me, such as buzzers,
warnings, turn signal sound, and so on. High / Mid *1
/ Low
Fuel Efficiency Backlight Turns the ambient meter feature on and off. On *1
/ Off
Turn By Turn Auto Display Selects whether the turn-by-turn display comes
on during the route guidance. On *1
/ Off
New Message
Notifications Used to select whether a pop-up alert comes on
the screen when HFL receives a new text/e-mail
message. On *1
/ Off19 CLARITY PHEV-31TRW6100.book 328 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

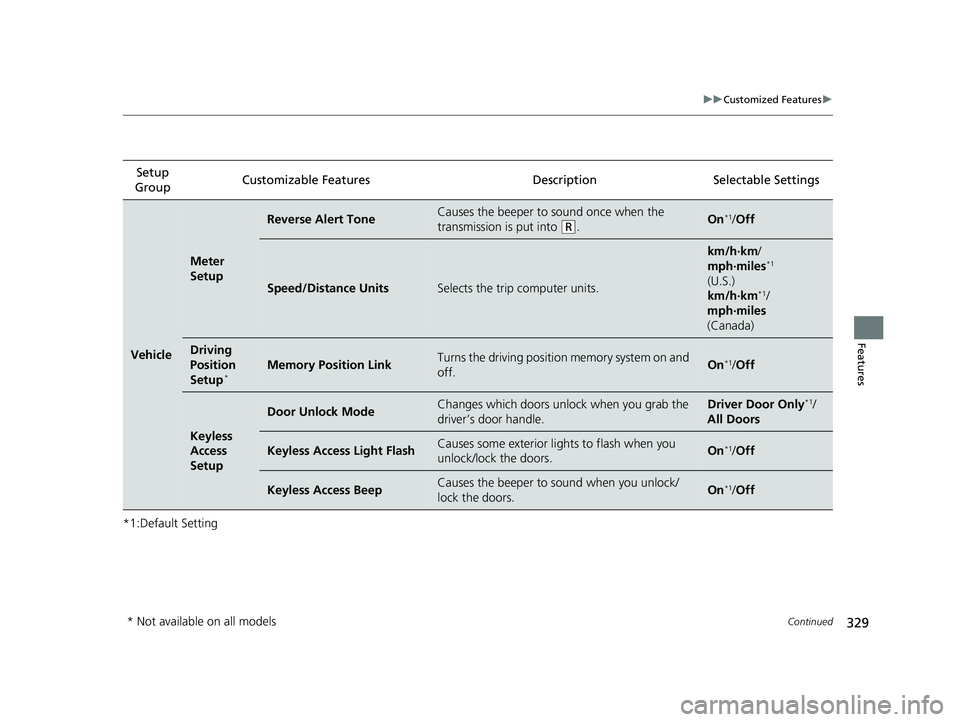

329 uu Customized Features u
Continued
Features
*1:Default Setting Setup
Group Customizable Features Desc ription Selectable Settings
Vehicle Meter
Setup Reverse Alert Tone Causes the beeper to sound once when the
transmission is put into ( R
. On *1
/ Off
Speed/Distance Units Selects the trip computer units. km/h∙km /
mph∙miles *1

(U.S.)
km/h∙km *1
/
mph∙miles
(Canada)
Driving
Position
Setup *
Memory Position Link Turns the driving position memory system on and
off. On *1
/ Off
Keyless
Access
Setup Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only *1
/
All Doors
Keyless Access Light Flash Causes some exterior li ghts to flash when you
unlock/lock the doors. On *1
/ Off
Keyless Access Beep Causes the beeper to sound when you unlock/
lock the doors. On *1
/ Off
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 329 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

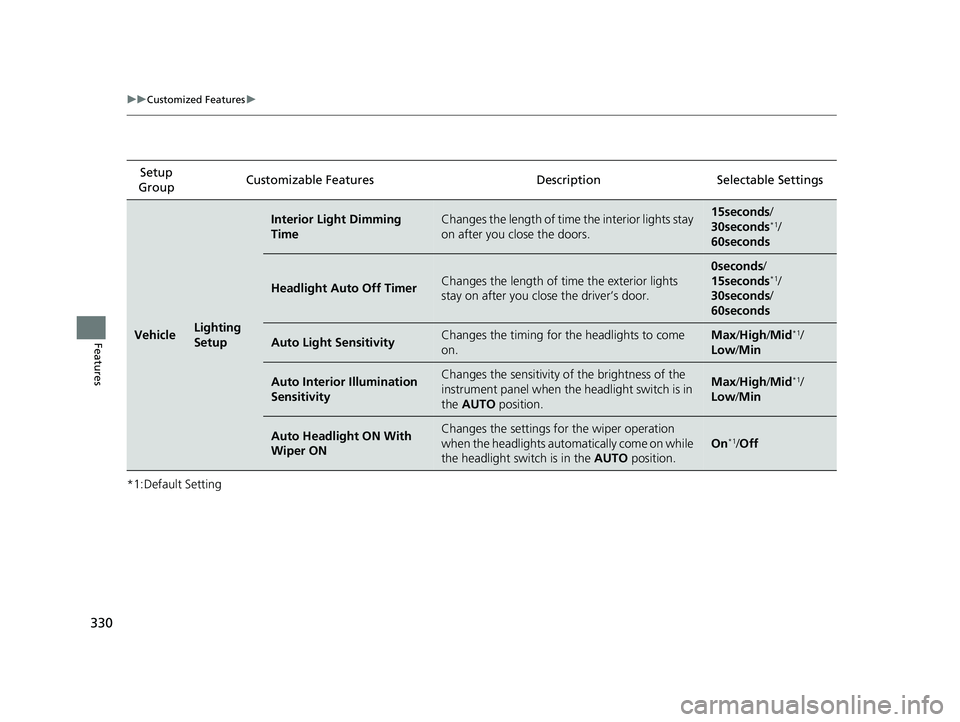

330 uu Customized Features u
Features *1:Default Setting Setup
Group Customizable Features Desc ription Selectable Settings
Vehicle Lighting
Setup Interior Light Dimming
Time Changes the length of time the interior lights stay
on after you close the doors. 15seconds /
30seconds *1
/
60seconds
Headlight Auto Off Timer Changes the length of ti me the exterior lights
stay on after you close the driver’s door. 0seconds /
15seconds *1
/
30seconds /
60seconds
Auto Light Sensitivity Changes the timing for the headlights to come
on. Max / High / Mid *1
/
Low / Min
Auto Interior Illumination
Sensitivity Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position. Max / High / Mid *1
/
Low / Min
Auto Headlight ON With
Wiper ON Changes the settings fo r the wiper operation
when the headlights automa tically come on while
the headlight switch is in the AUTO position. On *1
/ Off19 CLARITY PHEV-31TRW6100.book 330 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

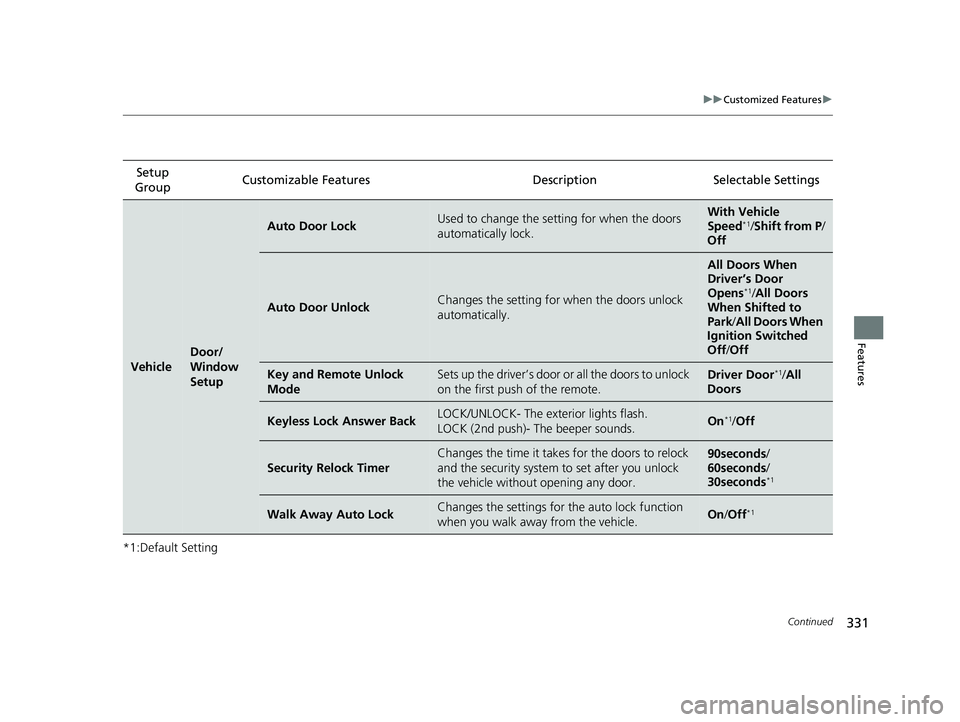

331 uu Customized Features u
Continued
Features
*1:Default Setting Setup
Group Customizable Features Desc ription Selectable Settings
Vehicle Door/
Window
Setup Auto Door Lock Used to change the sett ing for when the doors
automatically lock. With Vehicle
Speed *1
/ Shift from P /
Off
Auto Door Unlock Changes the setting for when the doors unlock
automatically. All Doors When
Driver’s Door
Opens *1
/ All Doors
When Shifted to
Park / All Doors When
Ignition Switched
Off / Off
Key and Remote Unlock
Mode Sets up the driver’s door or all the doors to unlock
on the first push of the remote. Driver Door *1
/ All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds. On *1
/ Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle withou t opening any door. 90seconds /
60seconds /
30seconds *1
Walk Away Auto Lock Changes the settings for the auto lock function
when you walk away from the vehicle. On / Off *119 CLARITY PHEV-31TRW6100.book 331 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

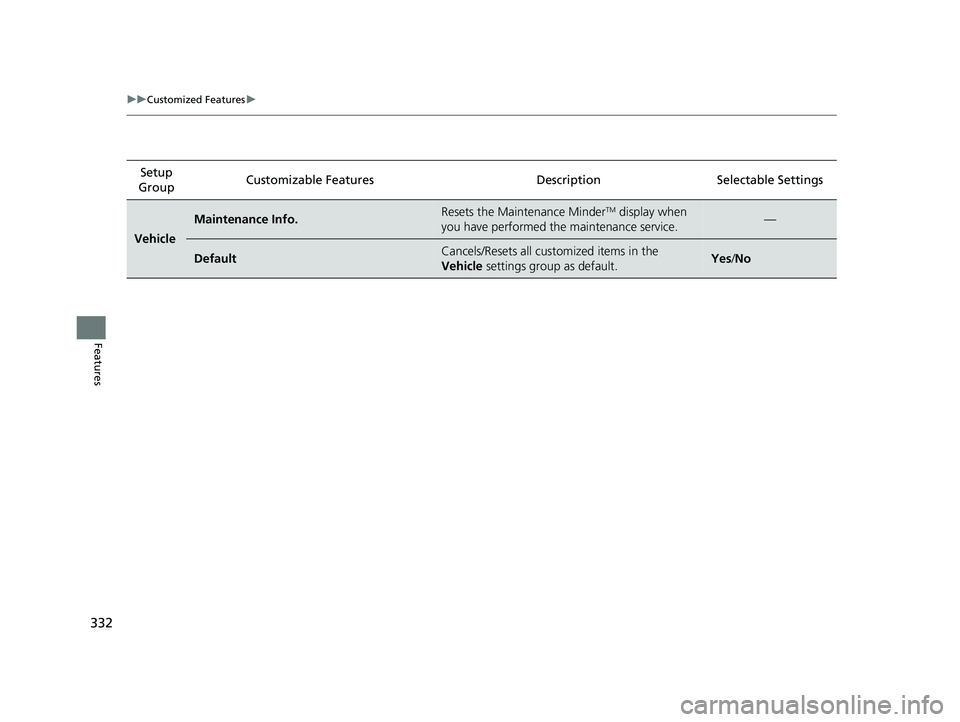

332 uu Customized Features u
Features Setup
Group Customizable Features Desc ription Selectable Settings
Vehicle Maintenance Info. Resets the Maintenance Minder TM
display when
you have performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle settings group as default. Yes / No19 CLARITY PHEV-31TRW6100.book 332 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

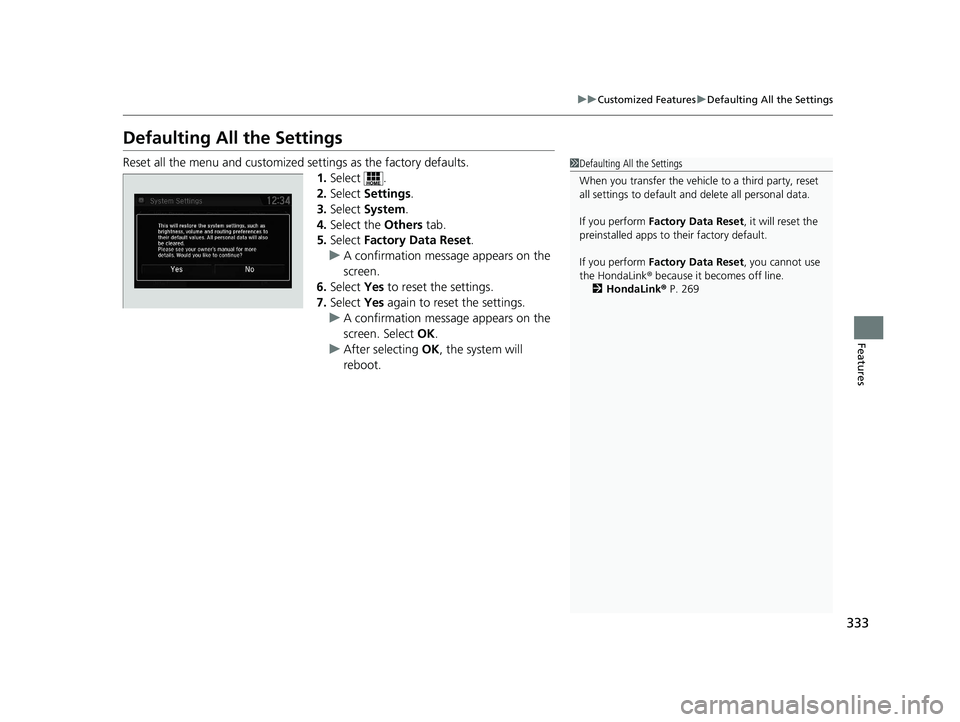

333uu Customized Features u Defaulting All the Settings
Features
Defaulting All the Settings Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Factory Data Reset .
u A confirmation message appears on the
screen.
6. Select Yes to reset the settings.
7. Select Yes again to reset the settings.
u A confirmation message appears on the
screen. Select OK .
u After selecting OK , the system will
reboot. 1 Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink ® P. 26919 CLARITY PHEV-31TRW6100.book 333 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

334

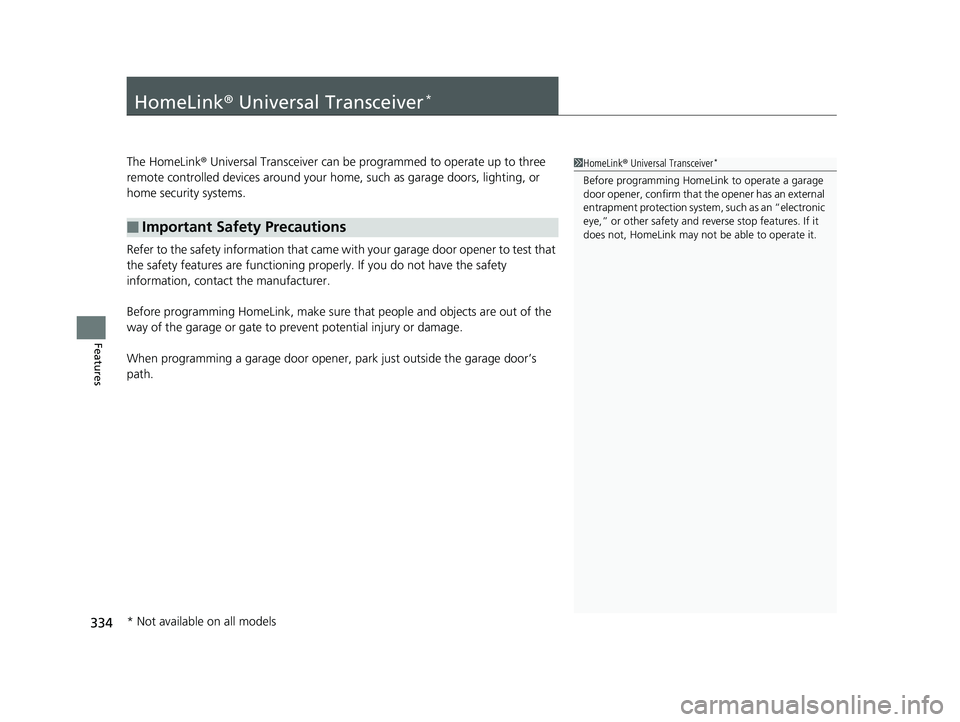

Features HomeLink ® Universal Transceiver *
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.■ Important Safety Precautions 1 HomeLink ® Universal Transceiver *
Before programming HomeLi nk to operat e a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.
