2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

Continued

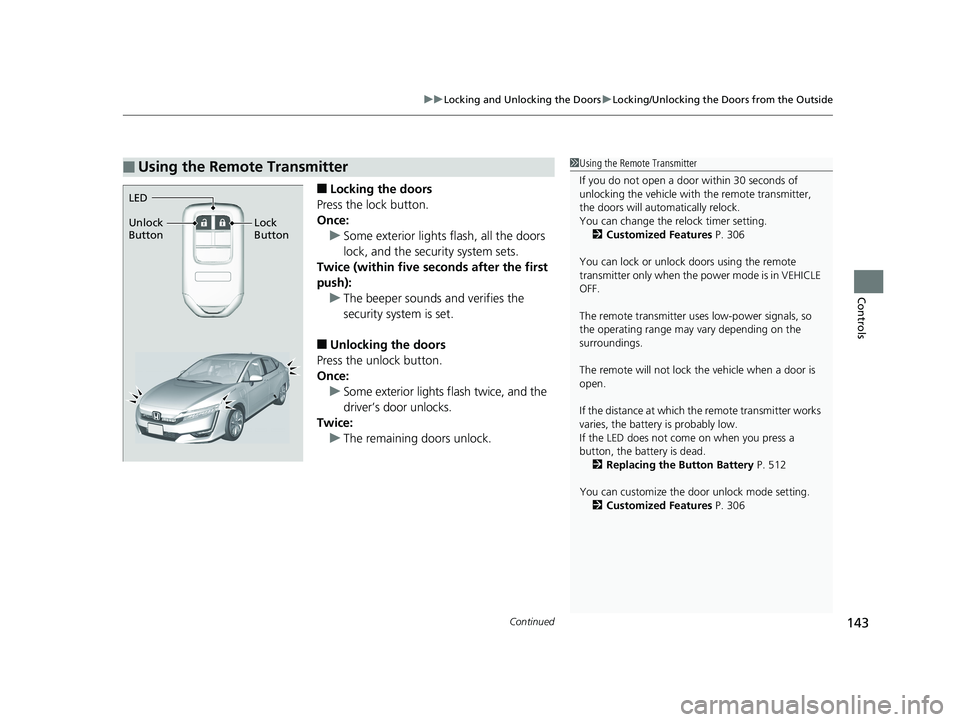

143uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
■ Locking the doors
Press the lock button.
Once:
u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■ Unlocking the doors
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice:
u The remaining doors unlock.■ Using the Remote Transmitter 1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting.
2 Customized Features P. 306
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 512
You can customize the door unlock mode setting.
2 Customized Features P. 306LED
Unlock
Button Lock
Button19 CLARITY PHEV-31TRW6100.book 143 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

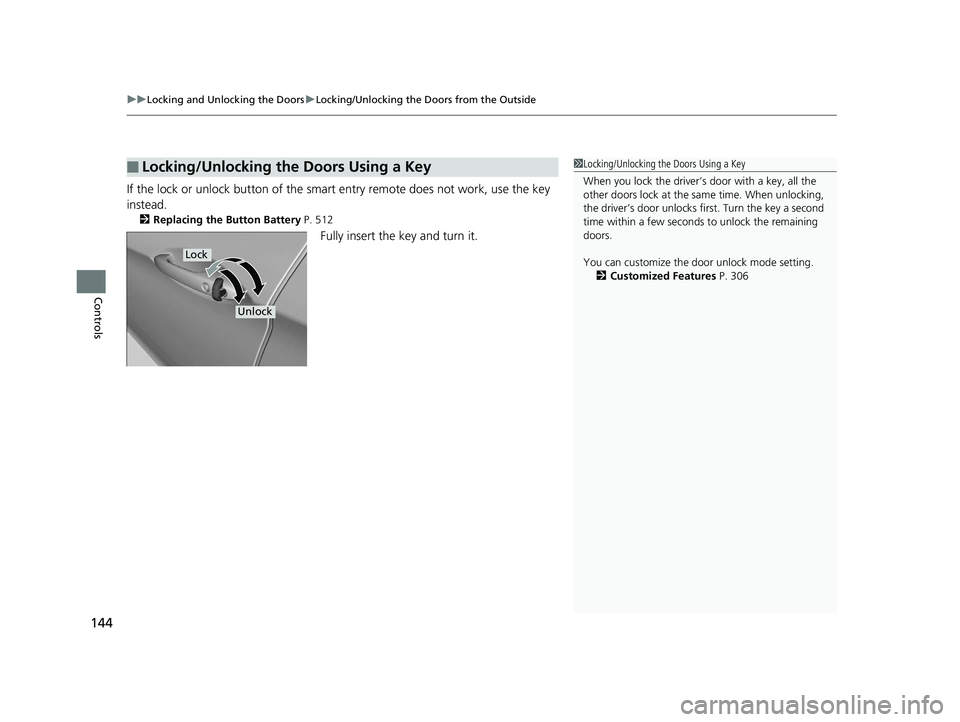

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
144
Controls If the lock or unlock button of the sma rt entry remote does not work, use the key
instead. 2 Replacing the Button Battery P. 512
Fully insert the key and turn it.
■ Locking/Unlocking the Doors Using a Key 1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting.
2 Customized Features P. 306Lock
Unlock19 CLARITY PHEV-31TRW6100.book 144 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

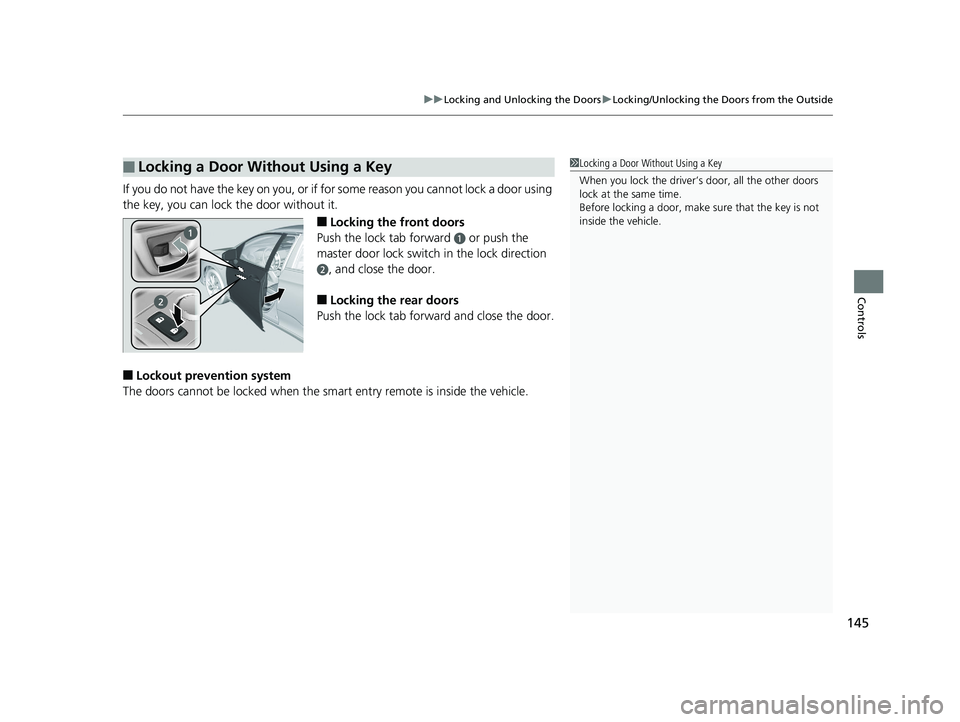

145uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■ Locking the front doors
Push the lock tab forward a
or push the
master door lock switch in the lock direction b
, and close the door.
■ Locking the rear doors
Push the lock tab forward and close the door.
■ Lockout prevention system
The doors cannot be locked when the sm art entry remote is inside the vehicle.■ Locking a Door Without Using a Key 1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.19 CLARITY PHEV-31TRW6100.book 145 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

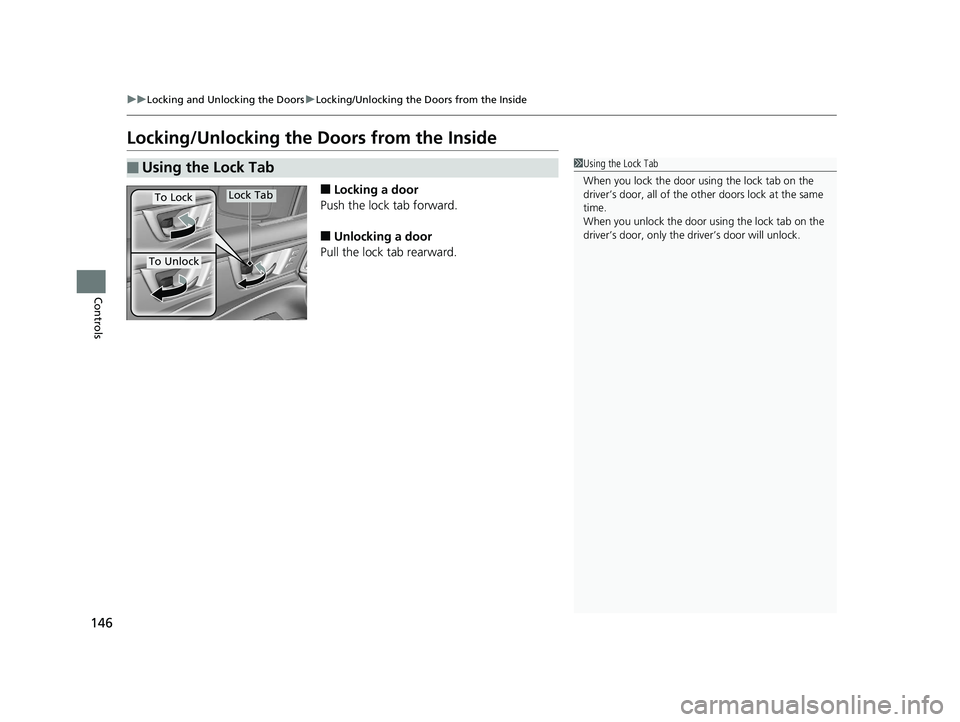

146 uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls Locking/Unlocking the Doors from the Inside ■ Locking a door
Push the lock tab forward.
■ Unlocking a door
Pull the lock tab rearward.
■ Using the Lock Tab 1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock To Lock Lock Tab19 CLARITY PHEV-31TRW6100.book 146 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued

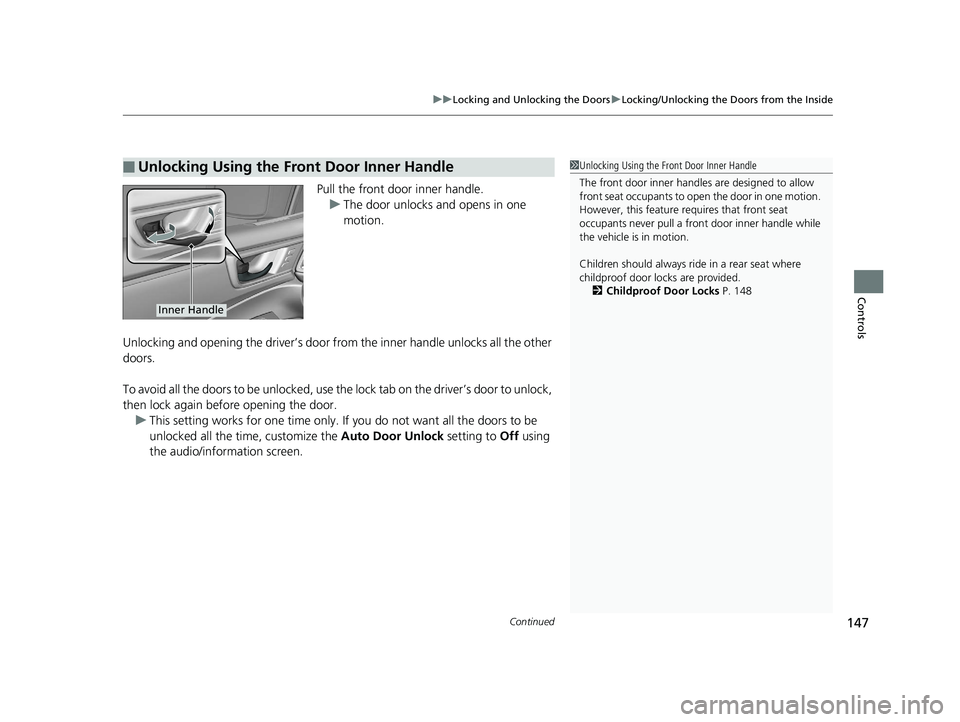

147uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.■ Unlocking Using the Front Door Inner Handle 1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 148
Inner Handle19 CLARITY PHEV-31TRW6100.book 147 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

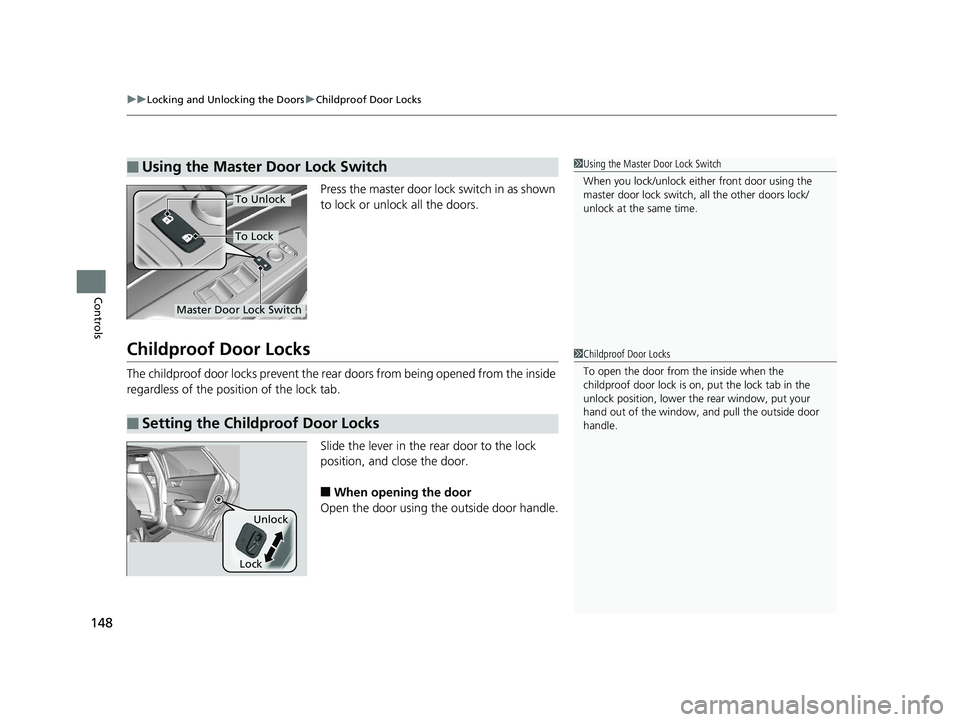

uu Locking and Unlocking the Doors u Childproof Door Locks
148
Controls Press the master door lock switch in as shown
to lock or unlock all the doors.
Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■ When opening the door
Open the door using the outside door handle.■ Using the Master Door Lock Switch 1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors lock/
unlock at the same time.
Master Door Lock Switch To Unlock
To Lock
■ Setting the Childproof Door Locks 1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock19 CLARITY PHEV-31TRW6100.book 148 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

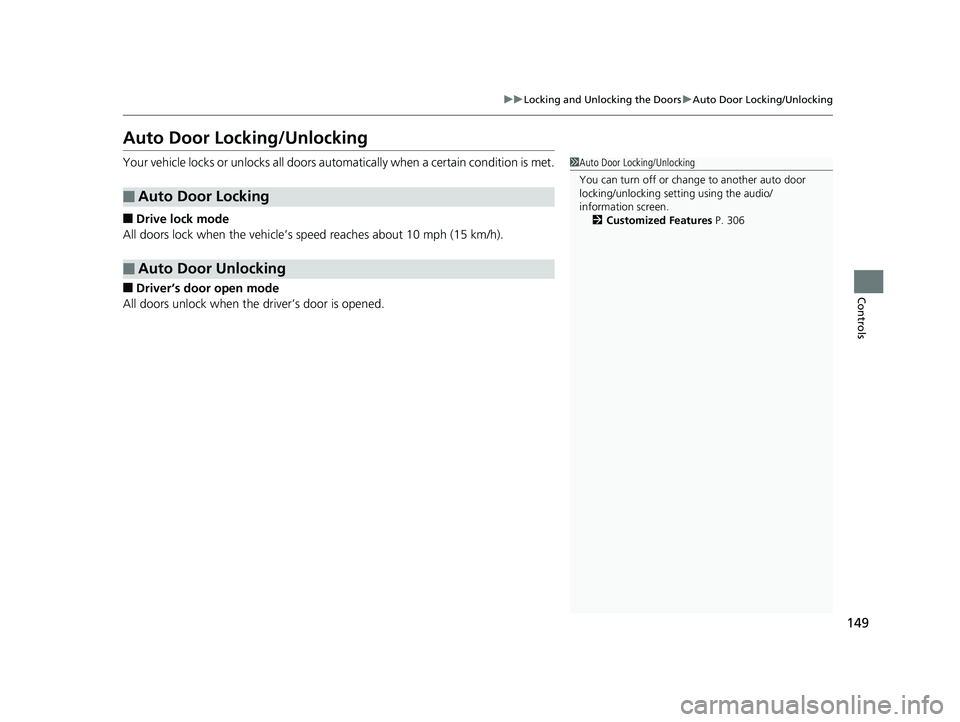

149uu Locking and Unlocking the Doors u Auto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■ Drive lock mode
All doors lock when the vehicle’s sp eed reaches about 10 mph (15 km/h).
■ Driver’s door open mode
All doors unlock when the driver’s door is opened.
■ Auto Door Locking
■ Auto Door Unlocking 1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen.
2 Customized Features P. 30619 CLARITY PHEV-31TRW6100.book 149 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

150

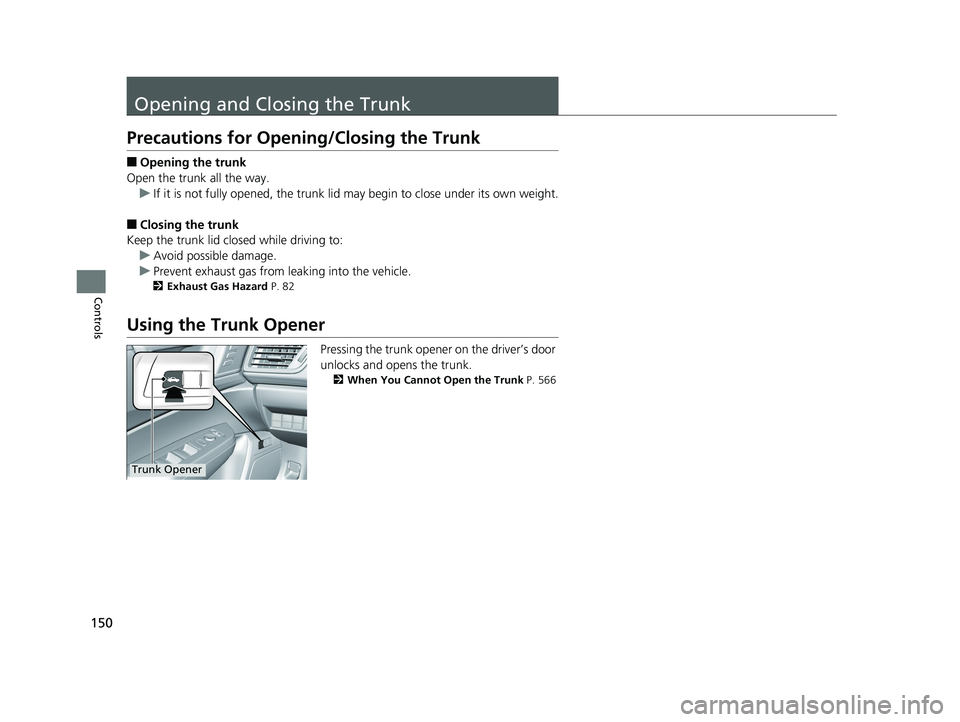

Controls Opening and Closing the Trunk Precautions for Opening/Closing the Trunk ■ Opening the trunk
Open the trunk all the way.
u If it is not fully opened, the trunk lid may begin to close under its own weight.
■ Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle. 2 Exhaust Gas Hazard P. 82
Using the Trunk Opener Pressing the trunk opener on the driver’s door
unlocks and opens the trunk. 2 When You Cannot Open the Trunk P. 566
Trunk Opener19 CLARITY PHEV-31TRW6100.book 150 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
