2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

207uu Audio System u Audio Remote Controls
Continued
Features

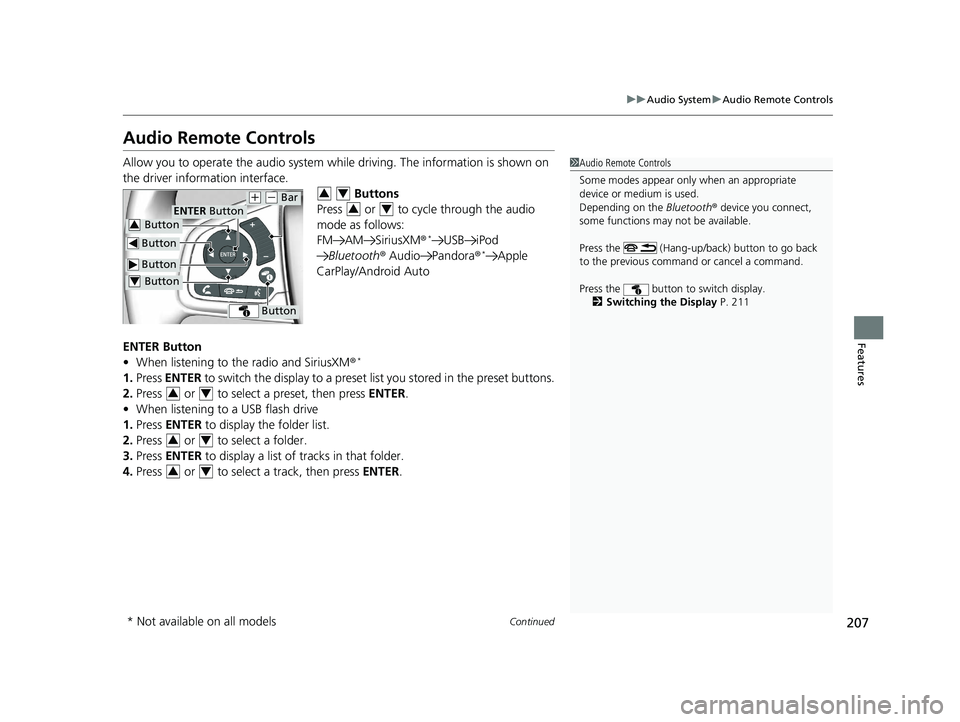

Audio Remote Controls Allow you to operate the audio system whil e driving. The information is shown on
the driver information interface.
Buttons
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ® *
USB iPod
Bluetooth ® Audio Pandora ® *
Apple
CarPlay/Android Auto
ENTER Button
• When listening to the radio and SiriusXM ® *
1. Press ENTER to switch the disp lay to a preset list you stored in the preset buttons.
2. Press or to select a preset, then press ENTER .
• When listening to a USB flash drive
1. Press ENTER to display the folder list.
2. Press or to select a folder.
3. Press ENTER to display a list of tracks in that folder.
4. Press or to select a track, then press ENTER . 1 Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth ® device you connect,
some functions may not be available.
Press the (Hang-up/back) button to go back
to the previous command or cancel a command.
Press the button to switch display.
2 Switching the Display P. 211 Button ENTER Button
Button ( +
( -
Bar
Button Button3
Button4 3 4
3 4
3 4
3 4
3 4
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 207 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

208 uu Audio System u Audio Remote Controls

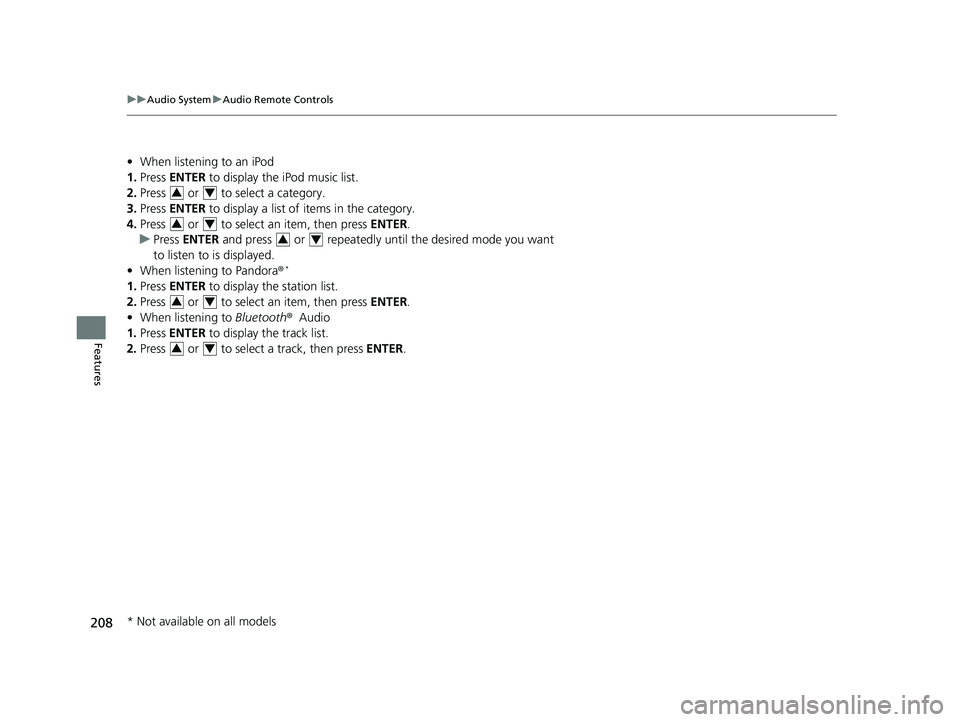

Features • When listening to an iPod
1. Press ENTER to display the iPod music list.
2. Press or to select a category.
3. Press ENTER to display a list of items in the category.
4. Press or to select an item, then press ENTER .
u Press ENTER and press or repeatedly until the desired mode you want
to listen to is displayed.
• When listening to Pandora ® *
1. Press ENTER to display the station list.
2. Press or to select an item, then press ENTER .
• When listening to Bluetooth ® Audio
1. Press ENTER to display the track list.
2. Press or to select a track, then press ENTER .3 4
3 4
3 4
3 4
3 4
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 208 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

209uu Audio System u Audio Remote Controls
Features
( +
( -

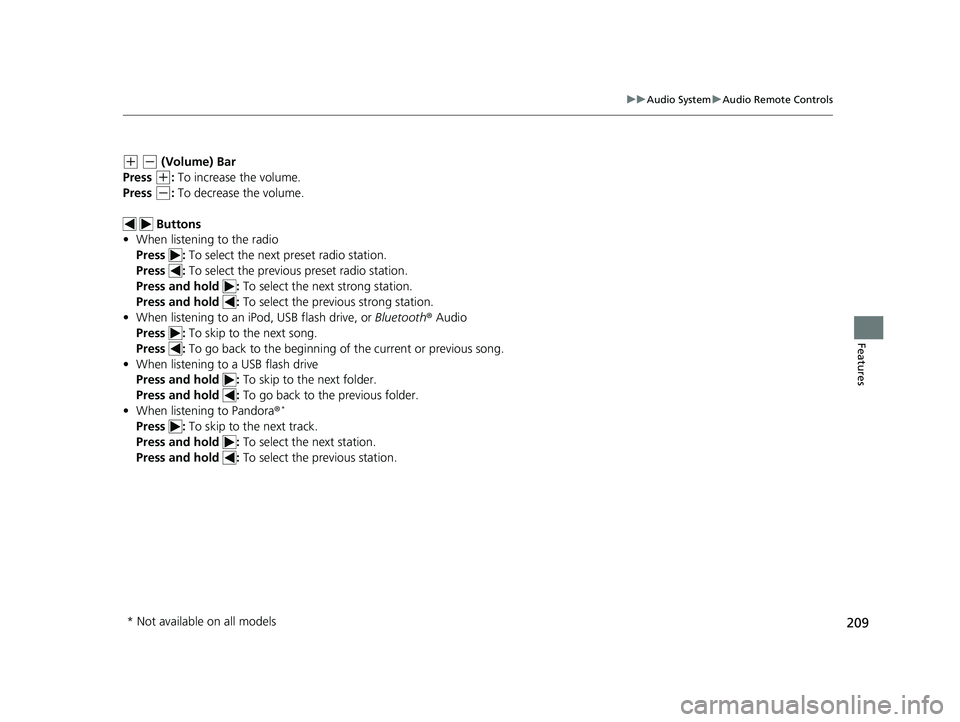

(Volume) Bar
Press ( +
: To increase the volume.
Press ( -
: To decrease the volume.
Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, or Bluetooth ® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to Pandora ® *
Press : To skip to the next track.
Press and hold : To select the next station.
Press and hold : To select the previous station.
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 209 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

210

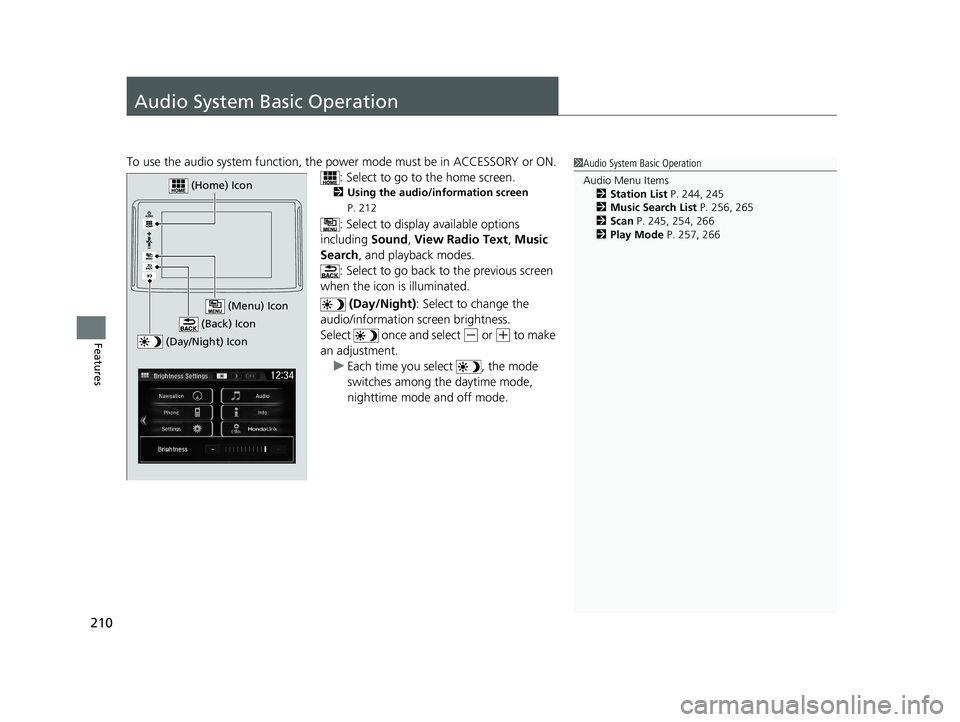

Features Audio System Basic Operation To use the audio system function, the po wer mode must be in ACCESSORY or ON.
: Select to go to the home screen.2 Using the audio/information screen
P. 212
: Select to display available options
including Sound , View Radio Text , Music
Search , and playback modes.
: Select to go back to the previous screen
when the icon is illuminated.
(Day/Night) : Select to change the
audio/information screen brightness.
Select once and select ( -
or ( +
to make
an adjustment.
u Each time you select , the mode
switches among the daytime mode,
nighttime mode and off mode. 1 Audio System Basic Operation
Audio Menu Items
2 Station List P. 244, 245
2 Music Search List P. 256, 265
2 Scan P. 245, 254, 266
2 Play Mode P. 257, 266
(Day/Night) Icon (Home) Icon
(Back) Icon (Menu) Icon19 CLARITY PHEV-31TRW6100.book 210 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

211uu Audio System Basic Operation u Audio/Information Screen
Continued
Features

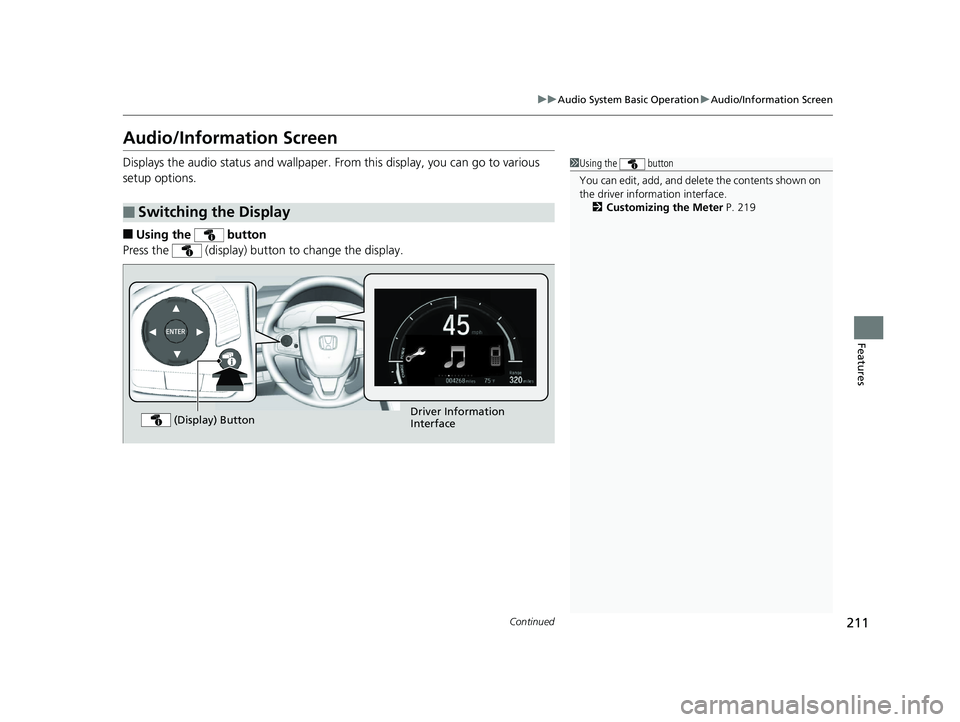

Audio/Information Screen Displays the audio status and wallpaper. From this display, you can go to various
setup options.
■ Using the button
Press the (display) button to change the display.
■ Switching the Display 1 Using the button
You can edit, add, and dele te the contents shown on
the driver information interface.
2 Customizing the Meter P. 219
Driver Information
Interface (Display) Button19 CLARITY PHEV-31TRW6100.book 211 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

212 uu Audio System Basic Operation u Audio/Information Screen

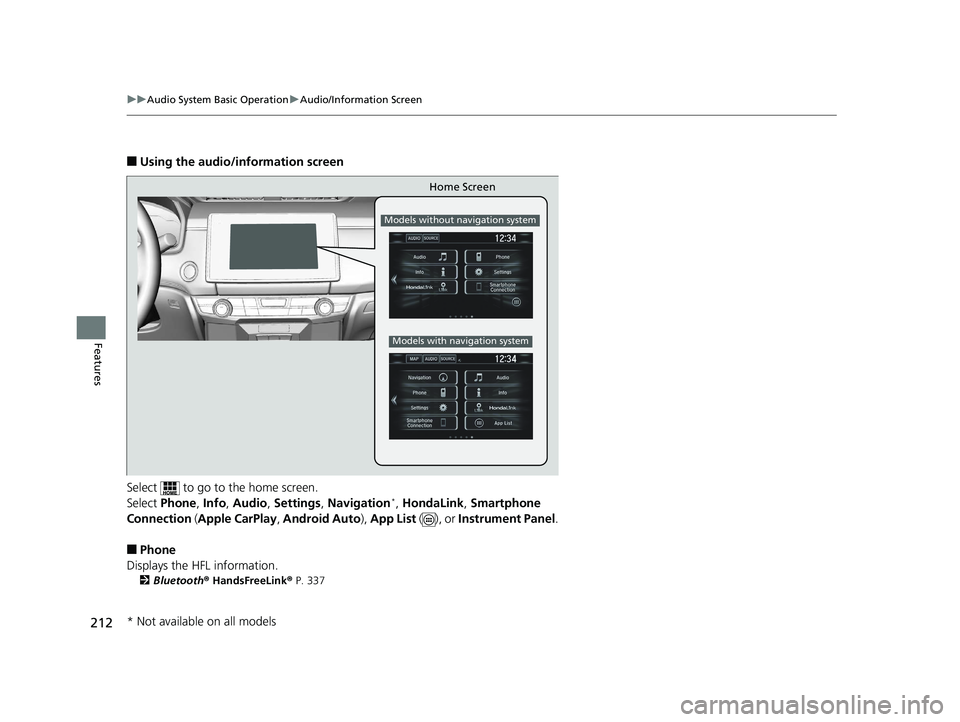

Features ■ Using the audio/information screen
Select to go to the home screen.
Select Phone , Info , Audio , Settings , Navigation *
, HondaLink , Smartphone
Connection ( Apple CarPlay , Android Auto ), App List ( ), or Instrument Panel .
■ Phone
Displays the HFL information. 2 Bluetooth ® HandsFreeLink ® P. 337 Home Screen Models without navigation system
Models with navigation system
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 212 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued
213uu Audio System Basic Operation u Audio/Information Screen
Features
■ Info
Displays Trip Computer or Clock/Wallpaper . Select on the Info Menu screen
to see all available options: Trip Computer , Voice Info , Clock/Wallpaper ,
System/Device Information and Vehicle energy .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete history on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes .
Voice Info : Displays a list of all voice commands.
Clock/Wallpaper : Displays the clock and wallpaper.
System/Device Information :
• System Info : Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
Vehicle energy :
Displays the ener gy flow screen.2 Energy flow screen P. 215
■ Audio
Displays the current audio information. 1 Audio/Information Screen
Touchscreen operation
• Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
• Some items may be grayed out during driving to
reduce the potential for distraction.
• You can select them when the vehicle is stopped or
use voice commands.
• Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 30619 CLARITY PHEV-31TRW6100.book 213 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

214 uu Audio System Basic Operation u Audio/Information Screen
Features ■ Settings *
Enters the customiz ing menu screen.2 Customized Features P. 306
■ Navigation *
Displays the navigation screen. 2 Refer to the Navigation System Manual
■ HondaLink ®
Displays the Hondalink ® screen.2 HondaLink ® P. 269
■ Smartphone Connection
Displays the Apple CarPlay or Android Auto. 2 Apple CarPlay P. 277
2 Android Auto P. 280
■ App List ( )
Adds or removes apps or widgets on the Home screen. 2 Home Screen P. 225
■ Instrument Panel
Selects from three customizable settings for the driver information interface.
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 214 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
