2019 HONDA CLARITY PLUG IN HYBRID Owners Manual

Continued

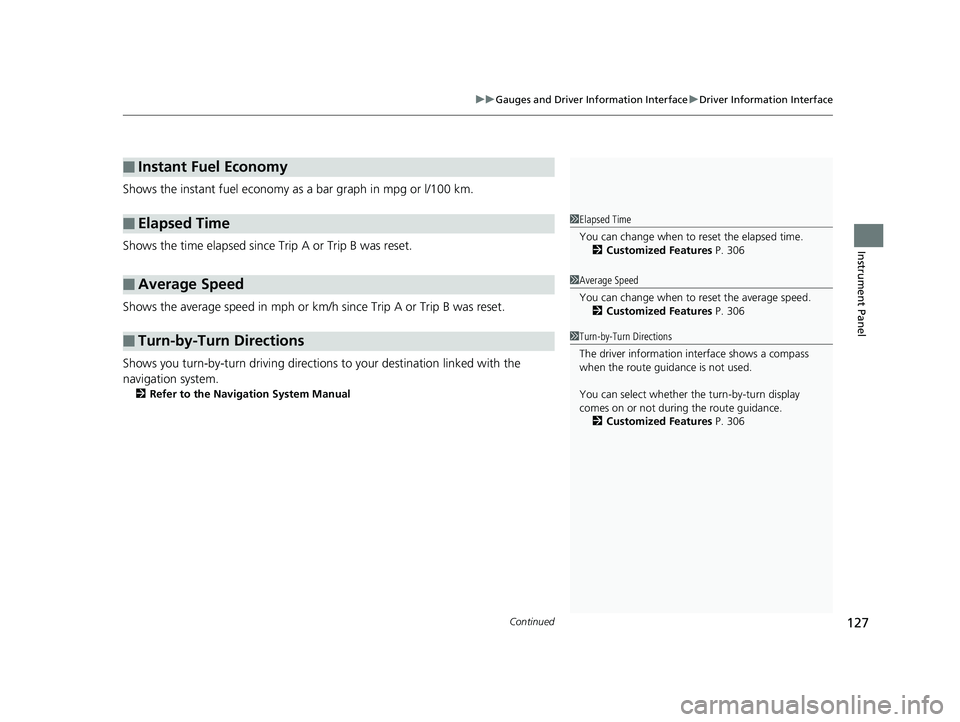

127uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system. 2 Refer to the Navigation System Manual■ Instant Fuel Economy
■ Elapsed Time
■ Average Speed
■ Turn-by-Turn Directions 1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 306
1 Average Speed
You can change when to reset the average speed.
2 Customized Features P. 306
1 Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether th e turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 30619 CLARITY PHEV-31TRW6100.book 127 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

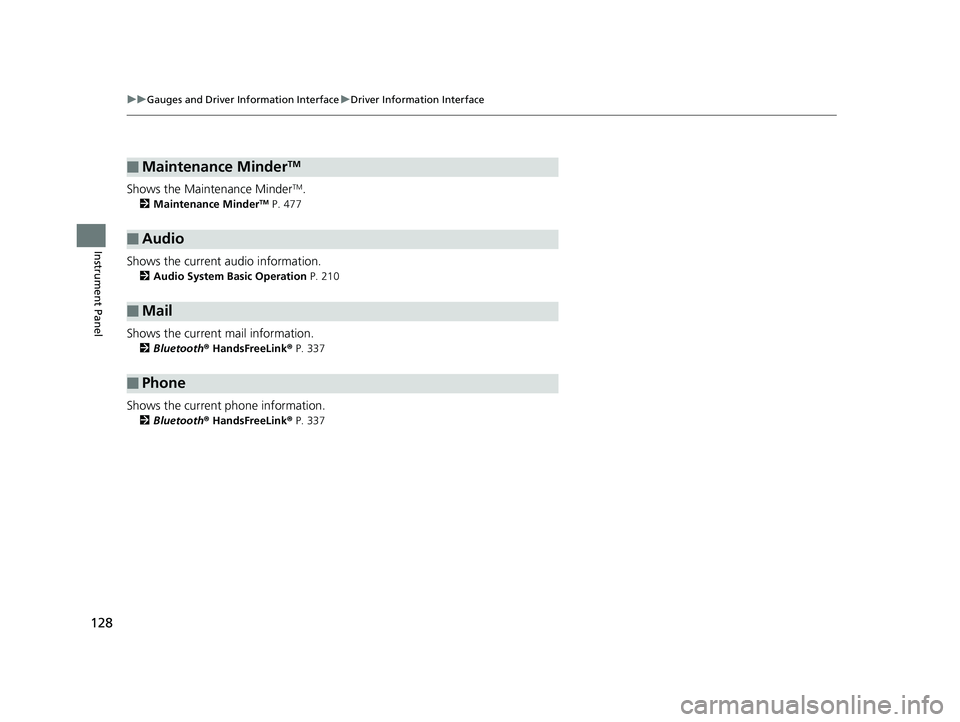

128 uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel Shows the Maintenance Minder TM
.2 Maintenance Minder TM
P. 477
Shows the current audio information. 2 Audio System Basic Operation P. 210
Shows the current mail information. 2 Bluetooth ® HandsFreeLink ® P. 337
Shows the current phone information. 2 Bluetooth ® HandsFreeLink ® P. 337■ Maintenance Minder TM
■ Audio
■ Mail
■ Phone 19 CLARITY PHEV-31TRW6100.book 128 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued

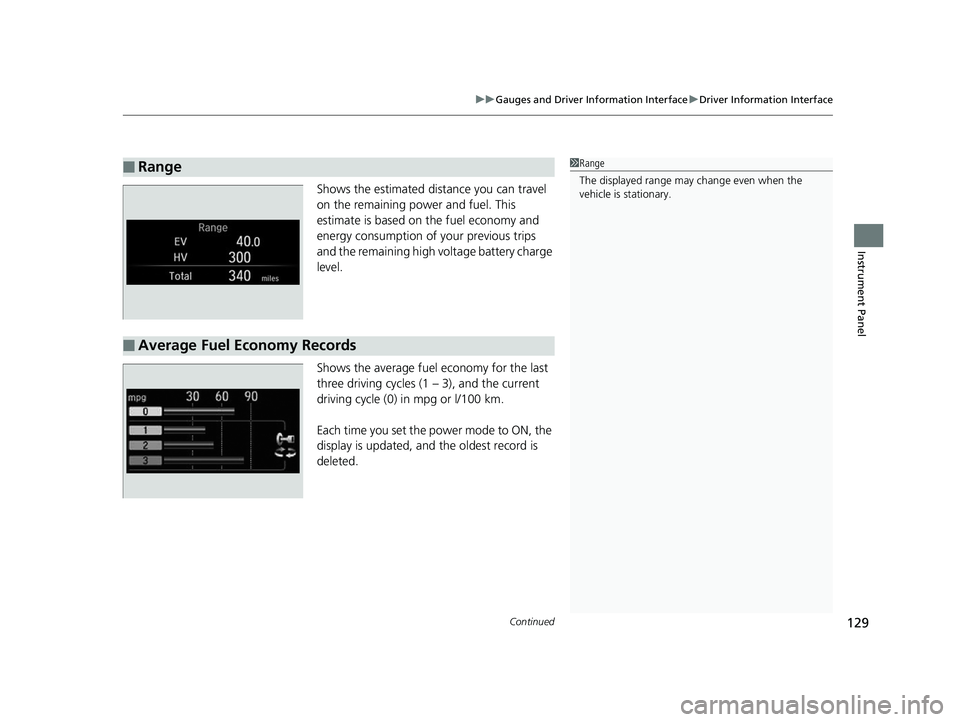

129uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel
Shows the estimated distance you can travel
on the remaining power and fuel. This
estimate is based on the fuel economy and
energy consumption of your previous trips
and the remaining high voltage battery charge
level.
Shows the average fuel economy for the last
three driving cycles (1 – 3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.■ Range 1 Range
The displayed ra nge may change even when the
vehicle is stationary.
■ Average Fuel Economy Records 19 CLARITY PHEV-31TRW6100.book 129 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

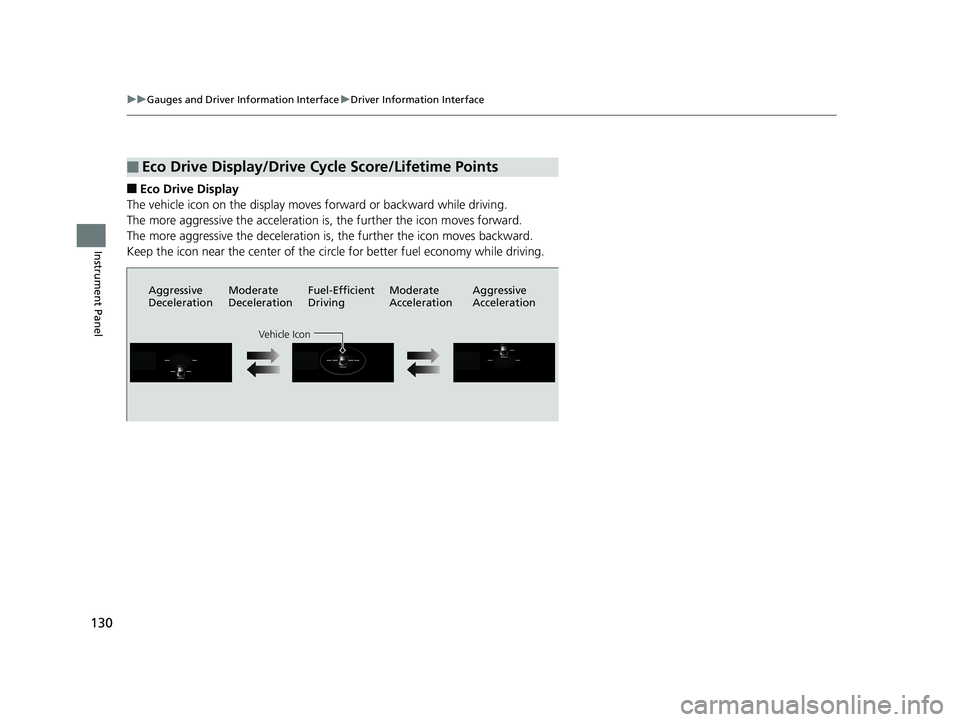

130 uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel ■ Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■ Eco Drive Display/Drive Cycle Score/Lifetime Points Aggressive
Deceleration Moderate
Deceleration Fuel-Efficient
Driving Moderate
Acceleration Aggressive
Acceleration
Vehicle Icon19 CLARITY PHEV-31TRW6100.book 130 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

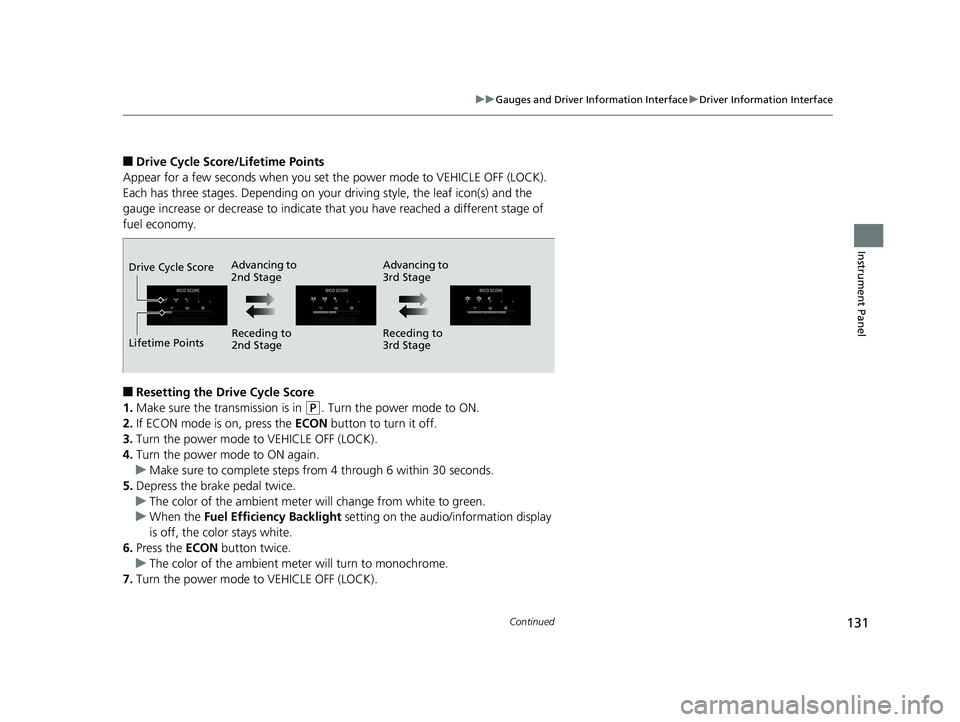

131uu Gauges and Driver Information Interface u Driver Information Interface
Continued
Instrument Panel
■ Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set the power mode to VEHICLE OFF (LOCK).
Each has three stages. Depending on your driving style, the leaf icon(s) and the
gauge increase or decrease to indicate that you have reached a different stage of
fuel economy.
■ Resetting the Drive Cycle Score
1. Make sure the transmission is in ( P
. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF (LOCK).
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from white to green.
u When the Fuel Efficiency Backlight setting on the audi o/information display
is off, the color stays white.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF (LOCK). Advancing to
2nd Stage Advancing to
3rd Stage
Receding to
2nd Stage Receding to
3rd StageLifetime PointsDrive Cycle Score19 CLARITY PHEV-31TRW6100.book 131 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

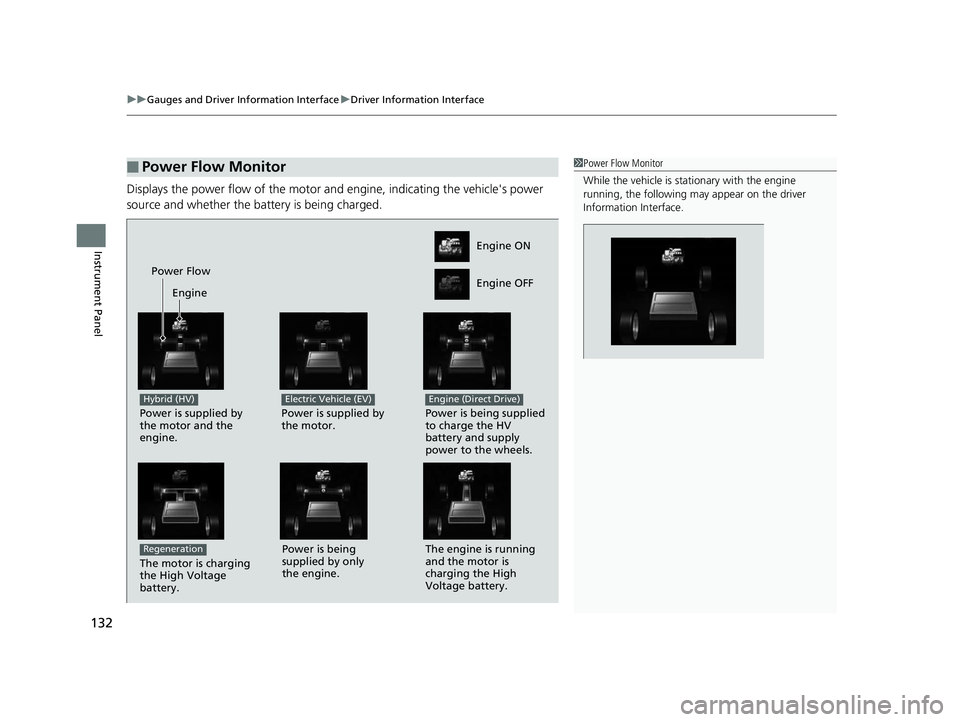

uu Gauges and Driver Information Interface u Driver Information Interface
132
Instrument Panel Displays the power flow of the motor an d engine, indicating the vehicle's power
source and whether the battery is being charged.
■ Power Flow Monitor 1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
Information Interface.
Engine ON
Engine OFFPower Flow
Engine
Power is supplied by
the motor and the
engine. Hybrid (HV)
Power is supplied by
the motor. Electric Vehicle (EV)
Power is being supplied
to charge the HV
battery and supply
power to the wheels. Engine (Direct Drive)
The motor is charging
the High Voltage
battery. Regeneration
Power is being
supplied by only
the engine. The engine is running
and the motor is
charging the High
Voltage battery.19 CLARITY PHEV-31TRW6100.book 132 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

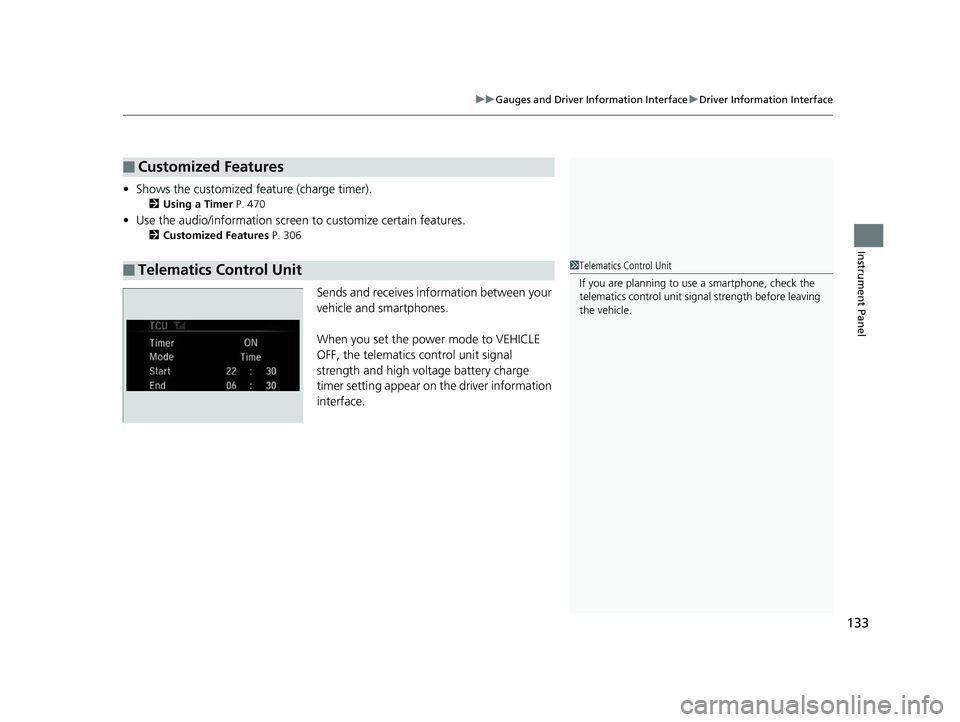

133uu Gauges and Driver Information Interface u Driver Information Interface
Instrument Panel
• Shows the customized feature (charge timer). 2 Using a Timer P. 470
• Use the audio/informat ion screen to custom ize certain features.2 Customized Features P. 306
Sends and receives information between your
vehicle and smartphones.
When you set the power mode to VEHICLE
OFF, the telematics control unit signal
strength and high voltage battery charge
timer setting appear on the driver information
interface.■ Customized Features
■ Telematics Control Unit 1 Telematics Control Unit
If you are planning to use a smartphone, check the
telematics control unit sign al strength be fore leaving
the vehicle.19 CLARITY PHEV-31TRW6100.book 133 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
