Seats

Seats
Generalinformation

ZAWARNING
See>page252,Drivingsafetyforimportant
information,tips,suggestionsandwarnings
thatyoushouldreadandfollowforyourown
safetyandthesafetyofyourpassengers.

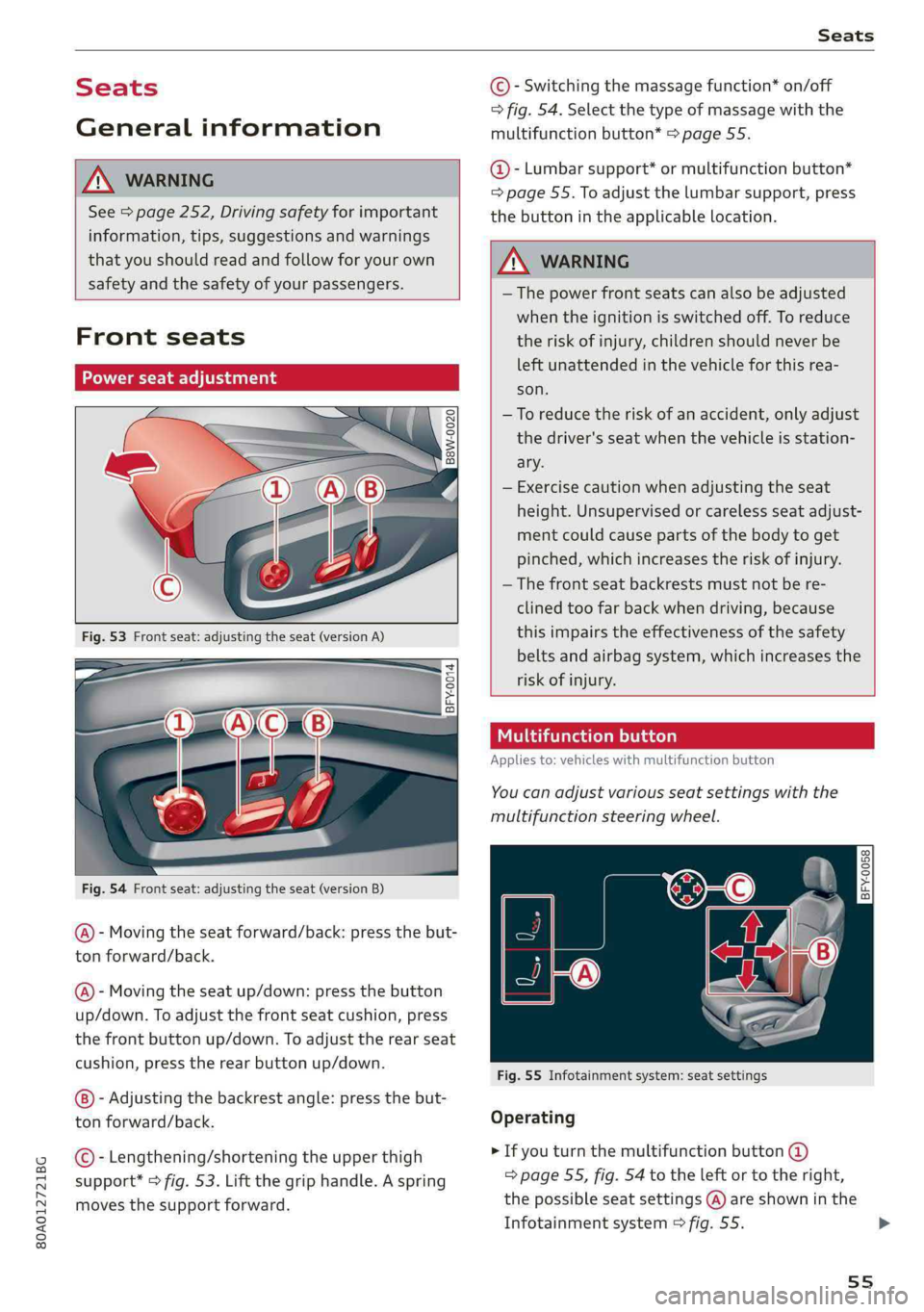

Frontseats
Powerseatadjustment

=
Ss
£>imo

Fig.54Frontseat:adjustingtheseat(versionB)
@-Movingtheseatforward/back:pressthebut-
ton forward/back.
@)-Movingtheseatup/down:pressthe button
up/down.Toadjustthefrontseatcushion,press
thefrontbuttonup/down.Toadjusttherearseat
cushion,presstherearbuttonup/down.
-Adjustingthebackrestangle:pressthebut-
tonforward/back.
©-Lengthening/shorteningtheupperthigh
support*>fig.53.Liftthegriphandle.Aspring
movesthesupportforward.
©-Switchingthemassagefunction*on/off
>fig.54.Selectthetypeofmassagewiththe
multifunctionbutton*>page55.
@-Lumbarsupport*ormultifunctionbutton*
=page55.Toadjustthelumbarsupport,press
thebuttonintheapplicablelocation.

Z\WARNING
— Thepowerfrontseatscanalsobeadjusted
whentheignitionisswitchedoff.To reduce
theriskofinjury,childrenshouldneverbe
leftunattendedinthevehicleforthisrea-
son.
—Toreducetheriskofanaccident,onlyadjust
thedriver'sseatwhenthevehicleisstation-
ary.
—Exercisecautionwhenadjustingtheseat
height.Unsupervisedorcarelessseatadjust-
mentcouldcausepartsofthebodytoget
pinched,whichincreasestheriskofinjury.
—Thefrontseatbackrestsmustnotbere-
clinedtoofarbackwhendriving,because
thisimpairstheeffectivenessofthesafety
beltsandairbagsystem,whichincreasesthe
riskofinjury.

Tatomelhace)
Appliesto:vehicleswithmultifunctionbutton

You canadjustvariousseatsettingswiththe
multifunctionsteeringwheel.
BFY-0058Om
C




Fig.55Infotainmentsystem:seatsettings
Operating
>Ifyouturnthemultifunctionbutton@
=>page55,fig.54totheleftortotheright,
thepossibleseatsettings@)areshowninthe
Infotainmentsystem>fig.55.>
55

Seats

>Toselectaseatsetting,turnthemultifunction
button@)inthecorrespondingdirectionuntil
thedesiredseatsettingisoutlinedinred.
>Thearrows(B)representthepossibleadjust-
ments.Forexample,tolowerthelumbarsup-
port,pressthemultifunctionbutton@down.
Thecorrespondingarrow©lightsup.
Thefollowingseatsettings@arepossible:
Massagefunction*-selectthemassagetype
Wave,Stretch,KneadorOff.Youcanadjustthe
intensityofeachmassagefrom1to3.Youcan
switchtheselectedmassageon/offusingthe
button@)>fig.55.
Lumbarsupport-youcanadjustthelumbarsup-
portup/downandtobestronger/weaker.
@Tips
Themassagefunctionswitchesoffautomati-
callyafterapproximately10minutes.
(enereei
Appliesto:vehicleswithacomfortfrontcenterarmrest

Thereisastoragecompartmentunderthearm-
rest.
2 S ¢
S z
a

Fig.56Comfortcenterarmrestbetweenthedriver'sseat
andfrontpassenger'sseat
>Toadjusttheangle,raisethearmrestfromthe
startingpositionnotchbynotch.
>Tobringthearmrestbackintothestartingpo-
sition,raiseitoutofthetop notchandfoldit
backdown.
Thearmrestcanslideforwardandback.
56

Rearseats
ONCTreatest)

SS)
B8R-0388
Fig.58Adjustingforwardandbackward*
Adjustingtheangleofthebackrest*
> Pulltheleverupwardandpushthebackrest
backtothedesiredposition>fig.57.Release
theleverandpressthebackrestfartherback
untilitlocksinplace.
>Pullthehandleupwardso thatthebackrestwill
tiltforward.Releasetheleverandpushthe
backrestbacktoputthebackrestinitsbasic
position.
Adjustingforwardandbackward*
>Pullthehandleupandslidetheseatforward/
back>fig.58.
»Releasethehandleandcontinueslidingthe
seatuntilitlocksinplace.

ZXWARNING
—To reducetheriskofanaccident,theseat
canonlybeadjustedwhenthevehicleissta-
tionary.
—Adjusting theseatwithoutpayingattention
canpinchfingersorlimbs,whichincreases
theriskofinjury.>

80A012721BG
Seats


—Alwayspullforwardonthebackresttomake
sureitischeckifitiscorrectlylockedin
place.

Headrestraints
amy(eMestar)
Appliesto:vehicleswithadjustableheadrestraints


Baw-0022

a\Wh)
Fig.59Frontseat:adjustingtheheadrestraint*

Adjusttheheadrestraintssotheupperedgeisas
evenaspossiblewiththetopofyourhead.Ifthat
isnotpossible,trytoadjustas close tothisposi-
tionaspossible.
Adjustingtheheadrestraints
>Tomoveaheadrestraint*upwardorforward,
holditatthesideswithbothhandsandslideit
upwardorforwarduntilyoufeelitclickinto
place.
>Tomovetheheadrestraint*downwardorback-
ward,pressthesidebuttonandslidethehead
restraintdownwardorbackward.Releasethe
buttonandslidetheheadrestraintfartheruntil
itlocksintoplace.

Z\WARNING
Alwaysreadandfollowtheapplicablewarn-
ings>page255, Properadjustmentofhead
restraints.

mateMery
Appliesto:vehicleswithadjustableheadrestraints



B8W-0187


B8W-0157

Fig.61Rearseat:removingtheheadrestraint
Ifpassengersaresittingintheouterrearseats,
adjusttheheadrestraintsso thattheupperedge
oftheheadrestraintisaslevelas possiblewith
theupperpartoftheirhead.Ifthatisnotpossi-
ble,trytoadjustasclosetothispositionaspos-
sible.Ifyourvehiclehasamiddleseat,adjust
thatheadrestraintallthewayup>A\.
Movingtheheadrestraints
>Tomovetheheadrestraintupward,holditat
thesideswithbothhandsandslideitupward
untilitclicksintoplace>fig.60.
>Tomovetheheadrestraintdown,pressthe
button(arrow)>fig.60andslidetheheadre-
straintdownward.
Removingtheheadrestraints
>Movetheheadrestraintupwardasfarasitcan
go.
>Pressthereleasepoint>fig.61usingtheme-
chanicalkey>page29,Keysetandpressthe
button(arrow)>fig.60.Pulltheheadrestraint
outofthebackrestatthesametime>A\.>
57

Seats

Installingtheheadrestraints
>Slidethepostsontheheadrestraintdowninto
theguidesuntilthepostsclickintoplace.
>Pressthebutton(arrow)©fig.60andslidethe
headrestraintallthewaydown.Youshould not
be
abletoremovetheheadrestraintfromthe
backrestwithoutpressingthebutton.

ZXWARNING
—Alwaysreadandfollowtheapplicablewarn-
ings>page255,Properadjustmentof
headrestraints.
—Onlyremovetheheadrestraintsfromthe
rearseatswhenitisnecessaryforinstalling
achildsafetyseat>page288,Childsafety.
Installtheheadrestraintagainimmediately
oncethechildsafetyseatisremoved.Driv-
ingwiththeheadrestraintsremovedornot
intheuprightpositionincreasestheriskof
seriousinjury.

Memoryfunction
Appliesto:vehicleswithmemoryfunction
Withthememoryfunction,youcansaveandre-
call
seatprofilesusingthememorybuttonsin
thedoortrimpanelandwiththevehiclekey.
Thedriver'sseatprofileisstoredagainandas-
signedtothevehiclekeyeachtimethevehicleis
locked.Whenyouopenthedoor,theseatprofile
isautomaticallyrecalled.Iftwopeopleuseone
vehicle,itisrecommendedthateachpersonal-
waysuses“hisorherown”vehiclekey.
Dependingontheequipment,itmaybepossible
tostorethefollowingsettings:
—Driver'sseat:seat,exteriormirror*
Aaa]
Appliesto:vehicleswithmemoryfunction
Thedriver'sseatprofilecanbeassignedtothe
vehiclekeywhenthevehicleislocked.

> SelectintheInfotainmentsystem:[MENU]but-
ton>Vehicle> leftcontrolbutton>Vehicle

58

settings>Seats>Driver'sseat>Storeset-
tingsonremotecontrolkey.
@)Tips
Ifyoudonotwishtohavetheseatprofilefor
anotherdriverassignedtothevehiclekey,
switchthememoryfunctionoffintheInfo-
tainmentsystem.
iTaatelaaeliacelry
Appliesto:vehicleswithmemoryfunction
1D Ss
£ > ao
Fig.62Driver'sdoor:memoryfunctionbuttons
Storingaseatprofile

>Pressthe[SET]button.TheLEDinthe button
willturnon.
>Pressmemorybutton[1]or[2].



Asignaltonewillsoundwhenitissuccessfully
stored.
Recallingaseatprofile
>Ifthedriver's doorisopenandtheignitionis
switchedoff,pressthememorybutton.
>Ifthedriver'sdoorisclosedortheignitionis
switchedon, pressandholdthememorybut-
tonuntiltheseat adjustmentiscomplete.

Z\WARNING
—Forsafetyreasons,theseatsettingcanonly
berecalledwhenthevehicleisstationaryto
reducetheriskofanaccident.
—Inanemergency,seatadjustmentoperation
canbestoppedbypressingthe[SET]button
orthebuttons@)or®)>page55,fig.54.

80A012721BG
Stowingandusing

Stowingandusing
Powersources
Whentheignitionisswitchedon,youmaybe
abletouse theelectricpowersourcesforexter-
naldevices,dependingonthevehicleequipment.
12voltsockets
Youcanconnectelectricalaccessoriestothe12
voltsockets.Thepowerusagemustnotexceed
120watts.
The12voltsocketsarelabeledwiththe12V
symbol.Theyarelocatedinthefrontcentercon-
sole*,intherear*andonthesidetrimpanelin
theluggagecompartment”.
USBports
Appliesto:VehicleswithUSBport
Youcan chargemobiledevicesusingtheUSB
ports.TheUSBportsarelabeledwiththe*or
[4symbolorCHARGEONLY.

Z\WARNING
—Toreducetheriskoffatalinjury,storeall
connecteddevicessecurelywhendrivingso
that
theydonotmovearoundinsidetheve-
hiclewhenbrakingorinthe eventofanacci-
dent.
—Incorrectusagecanleadtoseriousinjuries
orburns.Toreducetheriskofinjuries,never
leavechildrenunattendedinthevehicle
withthevehiclekey.

@)Note
—Readtheoperatingmanualsforthecon-
necteddevices.
—Toreducetheriskofdamagetothevehicle
electricalsystem,neverattempttocharge
thevehiclebatterybyconnectingaccesso-
riesthatprovidepowertothepowersour-
ces.
—Donotconnectanydevicewhosenetwork
class(voltage)doesnotmatchthenetwork
classdesignedforthesocket.
—Disconnect theconnectorsfromthepower
sourcescarefullytoreducetheriskofdam-
agingthem.
Storage
Cupholders

Fig.63Rearcenterarmrest:Cupholders*(example)
Yourvehiclehascupholdersinthefrontcenter
consoleandinthecenterrearseat”.
Cupholdersintherearcenterarmrest*
>Folddownthecenterarmrestbypressingon
thereleaselever(@)>page63,fig.70.
>Pressthebuttontoopenthecupholder
>fig.63.
>Setyourbeverageintheholder.
>Toclosethecupholder,foldthecoverbackun-
tilitclicksintoplace.

ZAWARNING
—Donot putanyhotbeveragesinthecup
holderwhilethevehicleismoving.Hotbev-
eragescouldspill,whichincreasestherisk
ofinjury.
—Donotuseanybreakablebeveragecontain-
ers(forexample,madeoutofglassorpor-
celain).Youcouldbeinjuredbytheminthe
event
ofanaccident.
@)Note
Beveragecontainersinthecupholdersshould
always
havealid.Otherwise,theliquidinside
couldspillandcausedamagetovehicle
equipment.

s9

Stowingandusing

Climatizedcupholder
Appliesto:vehicleswithclimatizedcupholders
2Ss3xaoo

Fig.64Centerconsole:climatizedcupholder
Pressthebuttontokeepyourbeveragecold.The
LEDturnsblue@).
Pressthe buttonagaintokeepyourbeverage
warm.TheLEDturnsred(@).
Toturnoffthecooling/heatingfunction,press
thebuttonrepeatedlyuntiltheLED@and@
turnsoff.
Whencooling,thetemperaturewillreachap-
proximately38°F(3°C).Whenheating,thetem-
peraturewillreachapproximately128°F(53°C).
Whenthetemperaturereaches104°F(40°C),
theheatindicator(@)alsoturnsontoremind you
nottotouchtheplatewhenitistoohot.Thedis-
playturnsoffifthetemperaturefallsbelowthis
value.

ZXWARNING
—Toreducetheriskofburns,nevertouchthe
beverageholderplatewhentheheatindica-
torison.
—Donotuseanybreakablebeveragecontain-
ers(forexample,madeoutofglassorpor-
celain).Youcouldbeinjuredbytheminthe
eventofanaccident.


®Note
Onlyplacesealedbeveragecontainersinthe
cupholderstoreducetheriskofdamageto
vehicleequipment.
60
G)Tips
Donotcoverthesideventgrille>fig.64;or
thefunctionofthecupholdermaybeim-
Paired.
Cooledglovecompartment
Appliesto:vehicleswithcooledglovecompartment
Ot

RAZ-0052|

Fig.65Glovecompartment:Coolingmodeknob
>Toswitchtherefrigerationfunctionon,turnthe
knobcounterclockwiseuntilthesymbolsindi-
catethatrefrigerationisswitchedon@).
>Toswitchtherefrigerationfunctionoff,turn
theknobclockwiseuntilthesymbolsindicate
thatrefrigerationisswitchedoff(2).
@)Tips
Theglovecompartmentcoolingmodeonly
functionswhenthevehicleA/Csystemis
switchedon.
Additi

nalstoragecompartts

Youwillfindavarietyofstoragecompartments
andholdersatvariouslocationsinthevehicle.
—Glovecompartment:Theglovecompartment
can belocked*usingthemechanicalkey
>page29.
—Inthedoortrimpanels
—Storagecompartmentunderthefrontcenter
armrest
— Garmenthooks abovethereardoors*
—Nets*ontheleft/rightluggagecompartment
trimpanel
—Tie-downs*ontheleftluggagecompartment
trimpanel
—Baghooks*intheluggagecompartment

80A012721BG
Stowingandusing


ZA\WARNING
—Looseobjectscanbethrownaroundtheve-
hicleinteriorduringsuddendrivingorbrak-
ingmaneuvers,whichincreasestheriskof
anaccident.Storeobjectssecurelywhile
driving.
—Toreducetheriskofinjury,makesureall
storagecompartmentsarealwaysclosed
whiledriving.
—Only use thestoragecompartmentsinthe
doortrimpanelstostoresmallobjectsthat
willnotstickoutofthecompartmentand
impairthefunctionofthesideairbags.
—Duetostrengthreasons,onlysecureobjects
upto11lbs(5kg)withthetie-downs*.
Heavierobjectsarenotadequatelysecured.
Thereisriskofpersonalinjury.
—Makesureyour viewtowardtherearisnot
blocked,forexamplebyhangingclothing or
objects
inthevehicle.
—Onlylightweightclothingshould behung
fromthegarmenthooksinthevehicle.The
pocketsoftheclothingmustnotcontainany
heavy,breakable,orsharp-edgedobjects.
Suchobjectsendangervehicleoccupants
andincreasetheriskofinjuryduringsudden
drivingorbrakingmaneuversorinanacci-
dent,especiallyiftheairbagsdeploy.
—Donotusecoathangerstohanggarments
becausethiscouldreducetheeffectiveness

ofthesidecurtainairbags*.

Luggagecompartment
Generalinformation
Allpieces ofluggageor objects mustbesecurely
fastenedintheluggagecompartment.Notethe
followingtomaintaingoodvehiclehandling:
>Distributetheloadevenlyintheluggagecom-
partment.
>Stowheavyluggageasfarforwardinthelug-
gagecompartmentaspossible.
»Usenon-elasticcordsattachedtothetie-downs
tosecureobjects.

ZAWARNING
— Theluggagecompartmentcoverisnota
surfaceforstoringobjects.Objectsplaced
onthecoverincreasetheriskofinjurytoall
vehicleoccupantsduringsuddendrivingor
brakingmaneuversorintheeventofanac-
cident.
—Looseobjectscanbethrownaroundtheve-
hicleinteriorduringsuddendrivingorbrak-
ingmaneuvers,whichincreasestheriskof
anaccident.Alwaysstowobjectssecurelyin
theluggagecompartmentandsecurethem
atthetie-downs.Usestrapssuitablefor
heavyobjects.
—Ifpieces ofluggageor objects aresecured
tothetie-downswithunsuitableordam-
agedstraps,thiscanincreasetheriskofin-
juryduringbrakingmaneuversoraccidents.
—Whentransportingheavyobjects,thevehi-
clecharacteristicswillchangeduetothe
shiftinthe centerofgravity,whichincreases
theriskofanaccident.Youmayneedto
adaptyourdrivingstyleandspeedtothe
currentconditions.
— Thecargonetisonlystrongenoughtose-
curelightobjects.Heavyobjectsarenotade-
quatelysecured.Attemptingtosecureheavy
objectsincreasestheriskofinjury.
—Neverexceedthepermittedaxleandload
andvehicleweight>page373.
—Neversecurea childsafetyseattothetie-
downs.
—Neverleaveyourvehicleunattended,espe-
ciallyiftheluggagecompartmentlidis
open.Childrencouldentertheluggagecom-
partmentandclosetheluggagecompart-
mentlidfromtheinside.Thiscreatesthe
riskoffatalinjury,sincethechildrenwould
belockedinandmaynotbeabletoescape
bythemselves.
—Donotallowchildrentoplayinorontheve-
hicle.Closeandlocktheluggagecompart-
mentlidaswellasallotherdoorswhenyou
leavethevehicle.

61

Stowingandusing


—Nevertransportpassengersintheluggage
compartment.Everypassengermustbecor-
rectlysecuredwiththesafetybeltsinthe
vehicle>page258.
—Becarefulwhenreleasingthebackrestand
foldingitforward.Toreducetheriskofbe-
ingpinched,payattentionandcheckwhen
foldingbackrestsforward.
—Thebackrestmustbesecurelylatchedso
objects
cannotslideforwardoutofthelug-
gagecompartmentduringsuddenbraking.
— Thebackrestmustbelatchedsecurelyto en-
surethatthesafetybeltisprotectingthe
centerseatingposition.
—Alwayspullforwardonthebackresttomake
sureitischeckifitiscorrectlylockedin
place.

Luggagecompartmentcover
Appliesto:vehicleswithluggagecompartmentcover


2
S|
2
= +
\a
iS
Fig.66Luggagecompartment:coverattached



oeNote
—Toreducetheriskofdamage,movetherear
headrestraintsdown>page57beforefold-
ingtherearbackrestsforward.
—Whenfoldingthebackrestforward,make
suretheoutersafetybeltsareinthebelt
guiderecessso thattheydonotgetpinched
inthebackrestlockanddamaged.Otherob-
jectsshould beremovedfromtherear
benchseattoprotectthebackrestfrom
damage.
—Ifyoumovethefrontseatbackwhenthe
rearseatbackrestisfoldedforward,you
coulddamagetheheadrestraintsonthe
rearseat.
—Makesurethattheheatinggridstripsfor
therearwindowdefoggerarenotdamaged
byabrasiveobjects.
—Lettheluggagecompartmentcoverrollup
slowlytoreducetheriskofdamage.
@)Tips
—Thetirepressuremustbeadaptedtothe
load>page334.
—Youcanpurchasestrapsatspecialtystores.
62

tiBSs
2= a a
Fig.67Luggagecompartment:removingandinstalling
theluggagecompartmentcover
Followthesafetyprecautions>page61.
Attaching
>Pullthecoveroutandattachitinthemounting
eyeletsinthesidetrimpanel>fig.66.
Removing
>Pullbothleversinthedirectionofthearrow
=>fig.67andremovethecoverupward.
Installing
> Placetheleftandrightsidesofthecoverinto
themountsonthesidetrimpanel.
>Pushthecoverdownwarduntilitclicksinto
place.
