2019 AUDI Q5 Owners Manual

80A012721BG
MultiMediaInterface

MultiMediaInterface
Trafficsafety
information
AudirecommendsperformingcertainInfotain-
mentsystemfunctions,suchasenteringa desti-
nation,onlywhenthevehicleisstationary.Al-
waysbepreparedtostopoperating theInfotain-
mentsystemintheinterestofyoursafetyand
thesafety ofotherroadusers.
Introduction
TheMultiMediaInterface,orMMIforshort,
combinesvarioussystemsforcommunication,
navigation*andentertainmentinyourAudi.You
canoperatetheMMIusingtheMMIcontrolpan-
el,themultifunctionsteeringwheelorthevoice
recognitionsystem*.

RAH-8836|

Z\WARNING
Onlyuse theInfotainmentsystemwhenroad,
traffic,weather,andvisibilityconditionsper-
mitandalwaysinawaythatallowsyouto
maintaincompletecontroloveryourvehicle.

@Tips
Certainfunctionsarenotavailablewhiledriv-
ing.






Fig.153MMIcontrolpanels-integratedshortcutkeys
Top:withoutMMItouchBottom:withMMItouch
MMIcontrolpaneloverview




@Controlknobwithjoystickfunction.153,157
@MMItouchcontrolpad*.........155
®Leftcontrolbutton.............154
@®Rightcontrolbutton............154
©)Buttonsforopeningmenusdirectly.153
6)[MENUButtonssceaoc2canevocermin&153
@)[BACK]button<3:+eavesseweae153
Shortcutkeys.........2..00000159
151

MultiMediaInterface

MMIOn/Offknobwith
joystickfunction
Operating

RAH-8536|


Fig.154MMIOn/Offknobwithjoystickfunction
SwitchingtheMMIon/off:theMMIcanbe
switched
on/offmanually.
—Switchingonmanually:presstheOn/Offknob
@briefly>fig.154.Or:pressthe[MENU]but-
ton©>page151,fig.153oroneofthebut-
tonstoopenthemenusdirectly().


—Switchingoffmanually:pressandholdthe
On/Offknob@)>fig.154untiltheMMI
switchesoff.IftheMMIhasbeenswitchedoff
manually,itdoesnotswitchonagainautomati-
callythenexttimetheignitionisswitchedon.
Additionalfunctions:
—Adjustingthevolume:turntheOn/Offknob@)
>fig.154.
—Muting:presstheOn/Offknob@)©fig.154
briefly.
—Selectingtheprevious/nextfunction(forex-
ample,aradiostation/track):presstheOn/Off
knob@)®fig.154brieflytowardtheleftKKor
rightDPI.
—Fastforwarding/rewinding(forexample
songs):pressandholdtheOn/Offknob@)
>fig.154towardtheleftKdorrightPo.

ZAWARNING
Adjustthevolumeoftheaudiosystemsothat
signalsfromoutsidethevehicle,suchas po-
liceandfiresirens,canbeheardeasilyatall
times.

152
G)Tips
TheMMIswitchesoffautomaticallyiftheen-
gineisnotrunningandthevehiclebatteryis
low.
Infotainmentsystem
display
Siarcelal
>Pressthe[6]buttontoswitchtheInfotainment
systemonandoff.
WhentheMMIisswitchedonandthedisplayis
switchedoff,youcanoperatecertainfunctions
usingtheOn/OffknobwiththeMMIjoystick
function>page152.
G)Tips
Theremaybedelayswhenswitchingonthe
display.
clearleClmemCaley
Thedisplayversiondependsonvehicleequip-
ment.

Fig.155DisplayversionA

Fig.156DisplayversionB
Additionalcontent(suchasalbumcoverandmap
material)isshownondisplayversionB,ifappli-
cable@©fig.156.Becausetheothercontent>

80A012721BG
MultiMediaInterface

shownonthedisplaysisnearlyidenticalbetween
thetwoversions,thismanualwillprimarilyde-
scribedisplayversionA.
MMIoperation
Selectingandconfirmingafunction

RAH-8539
87.6MHz
ct:BL
90.0MHz
Rand
91.5MHz
TAM


Fig.157Operatingthecontrolknob
Selectingandconfirmingafunctionina
menu/list
>Selectingafunction:turnthecontrolknob@)
>fig.157tothedesiredfunction(such asse-
lectingafrequency).
>Toconfirmyourselection:Pressthecontrol
knobQ)°fig.157.
Returningtofunctionsathigherlevels

>Pressthe[BACK]button@9page151,
fig.153.

CoveyaremanualAnata)
feyACCT

Fig.158Diagram:mainmenu
Openingthemainmenu
>Pressthe[MENU]button©>page151,
fig.153.TheMMImenus(suchasRadio)are
displayed>fig.158.Thenyoucanselectand
confirmafunctionusingthecontrolknob.


Openingamenudirectly
>Presstheapplicablebuttontodirectlyopenthe
menus()>page151,fig.153inthedirection
ofthedesiredmenu(suchas[RADIO)),Then
youcanselectandconfirmafunctionusingthe
controlknob.


153

MultiMediaInterface

Openingtheselectionmenu/optionsmenu
thecontrolbuttons
= z
||zrxG3

Appliesto:MMIcontrolpanelwithintegratedcontrolbut-
tonsontheMMItouchcontrolpad
Fig.159ControlbuttonsontheMMIcontrolpanel


RAH-8542

Appliesto:MMIcontrolpanelwithseparatecontrolbut-
tonsontheMMIcontrolpanel
Fig.160ControlbuttonsontheMMIcontrolpanel
154

Selectionmenu:throughtheselectionmenu,
youcanopenadditionalfunctionswithinamenu
item(suchasRadio).
Requirement:theselectionmenusymbolmust
bedisplayedintheInfotainmentsystemdisplay
>fig.160.
Openingandclosingtheselectionmenu:press
theleftcontrolbutton>fig.160.Thenyoucan
selectandconfirmafunctionusingthecontrol
knob.
Optionsmenu:usingtheoptionsmenu,youcan
selectandconfirmcontext-dependentfunctions
aswellassettingswithinamenuitem(suchas
Radio).

Requirement:theoptionsmenusymbol[+]must
bedisplayedintheInfotainmentsystemdisplay
>fig.160.
Openingandclosingtheoptionsmenu:press
therightcontrolbutton>fig.160.Thenyoucan
selectandconfirmafunctionusingthecontrol
knob.
Meleeelak)Celieeerary
Thisguideshowsyouat aglancethepathsfor
openingadesiredmenuand itssettingsand
functions.
Exampleofapath

>Select:[RADIO]button>leftcontrolbutton>
FM.

Followingthepath

>Pressthe[RADIO]button.
>Presstheleftcontrolbutton.
>Turn thecontrolknobtotheFMmenuitemto
selectit.
>Pressthecontrolknobtoconfirmtheselected
FMmenuitem.
>Theselectedandconfirmedfunctionisexecut-
ed.In thisexample,theFMfrequencybandis
set.

80A012721BG
MultiMediaInterface

MMItouch
MMItouchcontrolpad
Appliesto:vehicleswithMMItouch
Youcanenterdatausinghandwritingrecogni-
tionontheMMItouchcontrolpad.

®©-co=~Angeles,CA
=>ae)i
Jbgdeewn,LosAngeles,CAYT

Fig.161Example:enteringanavigationdestinationusing
theMMItouch
TheMMItouchcontrolpadislocatedbetween
thecontrolbuttons>fig.161.
Enteringnumbers,letters,andsymbols
Appliesto:vehicleswithMMItouch
TheMMItouchallowsyoutoenterdataonthe
MMItouchcontrolpadusinghandwritingrecog-
nition.

Fig.162DisplaywhenMMItouchisactive
Requirement:itmustbepossible toentertext or
numbersandthesymbol(@>fig.162 mustap-
pearintheInfotainmentsystemdisplay.
—Initialentry:writeanindividualuppercaseor
lowercaseletterornumber/symbolonthe
MMItouchcontrolpadusingyourfinger.A
symbolthatisrecognizedclearlyby thesystem
isdisplayedintheInfotainmentsystemdisplay
@&page155,fig. 161,confirmedwithanau-
diblesignalifnecessary,andtransferredtothe
inputfield.
—Enteringspaces:moveyourfingeracrossthe
MMItouchcontrolpadfromlefttoright.
—Deletingcharacters:moveyourfingeracross
theMMItouchcontrolpadfromrighttoleft.
—Selectingtheinputsuggestion:pressthecon-
trolknob.
—Switchingdirectlytotheresultslist:turnthe
controlknobtotheright.
—Openingthespeller:selecttherightcontrol
button>Openspeller.Textornumbersare en-
tered usingthespeller>page159.
—MMItouchvolume:presstherightcontrolbut-
ton.See>page250.
155

MultiMediaInterface

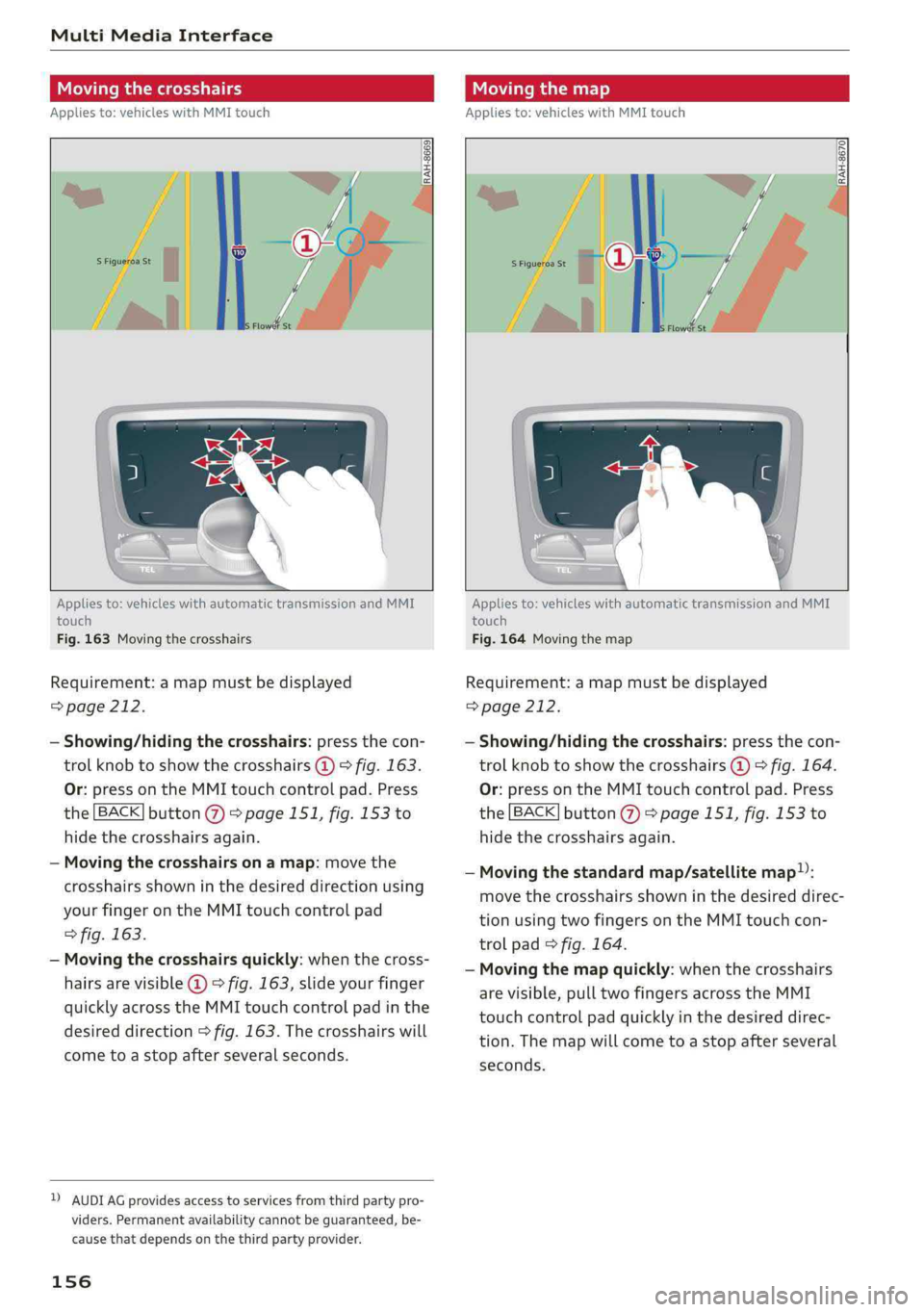

Movingthecrosshairs
Appliesto:vehicleswithMMItouch
Movingthemap
Appliesto:vehicleswithMMItouch



RAH-8670|



Appliesto:vehicleswithautomatictransmissionandMMI
touch
Fig.163Movingthecrosshairs
Requirement:amapmustbedisplayed
=>page212.
—Showing/hidingthecrosshairs:pressthecon-
trolknobtoshowthecrosshairs@)>fig.163.
Or:pressontheMMItouchcontrolpad.Press
the[BACK]button@>page151,fig.153to
hidethecrosshairsagain.
—Movingthecrosshairsonamap:movethe
crosshairsshowninthedesireddirectionusing
yourfingerontheMMItouchcontrolpad
>fig.163.
—Movingthecrosshairsquickly:whenthecross-
hairsarevisible@©fig.163,slideyourfinger
quicklyacrosstheMMItouchcontrolpadinthe
desireddirection>fig.163.Thecrosshairswill
cometoastopafterseveralseconds.



DAUDIAGprovidesaccesstoservicesfromthirdpartypro-
viders.Permanentavailabilitycannotbeguaranteed,be-
causethat dependsonthethirdpartyprovider.
156
Appliesto:vehicleswithautomatictransmissionandMMI
touch
Fig.164Movingthemap
Requirement:amapmustbedisplayed
=>page212.
—Showing/hidingthecrosshairs:pressthecon-
trolknobtoshowthecrosshairs@)©fig.164.
Or:pressontheMMItouchcontrolpad.Press
the[BACK]button@>page151,fig.153to
hidethecrosshairsagain.


—Movingthestandardmap/satellitemap):
movethecrosshairsshowninthedesireddirec-
tionusingtwofingersontheMMItouchcon-
trolpad>fig.164.
—Movingthemapquickly:whenthecrosshairs
arevisible,pulltwofingersacrosstheMMI
touchcontrolpadquicklyinthedesireddirec-
tion.Themapwillcometoastopafterseveral
seconds.

80A012721BG
MultiMediaInterface

Zoomingin/outonthemap

RAH-875


Appliesto:vehicleswithautomatictransmissionandMMI
touch
Fig.165Zoomingin/outonthemap
Requirement:amapmustbedisplayed
=>page212.
—Zoomingin/outonthemap:pressthecontrol
knobtoshowthecrosshairs.TouchtheMMI
touchcontrolpadwithtwofingersandpull
yourfingersapartortogether>fig.165.

Pressthe[BACK]button(Y)tohidethecrosshairs
=>page151,fig.153.
Adjustingthesoundfocus
Appliesto:vehicleswithMMItouch

Requirement:theBalance/faderfunctionmust
beselected>page249.
—Movingthecrosshairsforsoundfocus:move
yourfingerinthedesireddirectionontheMMI
touchcontrolpad.
—Storingthecrosshairslocation:pressthecon-
trolknobtwice.Or:Pressthe[BACK]button
=>page151,fig. 153.
UsingtheDVDmainmenu
Appliesto:vehicleswithMMItouch


Requirement:aDVDmustbeplaying
=page234.TheDVDmainmenuisshown.
—Selectingamenuitem:moveyourfingerup/
downorleft/rightontheMMItouchcontrol
pad.
@Tips
Thevolumeofthevoiceguidancepromptsfor
theMMItouch*canbeadjustedseparately
=>page250.
Controlknobwith
joystickfunction
Appliesto:vehicleswithjoystickfunction
iy

[RAH-8515
e»

&
Appliesto:vehicleswiththejoystickfunction
Fig.166Operationalconceptforcontrolknobwithjoystick
function


Youcanpushthecontrolknobupordown(@)
>fig.166or totherightorleft@).
Openingtheentertainmentslidingmenu
Appliesto:vehicleswithMMItouch
Openingtheentertainmentslidingmenu:push
thecontrolknobdowntoopentheentertain-
mentslidingmenu@)>page161,fig. 170.Then
youcanselectandconfirmafunction.
Closingtheentertainmentslidingmenu:push
thecontrolknobuptoclosetheentertainment
slidingmenu.Or:Pressthe[BACK]button(@)
=page151,fig.153.


Additionalfunctions
Appliesto:vehicleswithjoystickfunction
Displayingtheinputfield/switchingto
spellerinput
Pushthecontrolknobup*page157,fig.166to
reachthe beginningofalistinthecentralareaor
theinputfield.Iftheinputfieldisalreadyopen,
switchdirectlytothespellerintheinputfieldby>
157

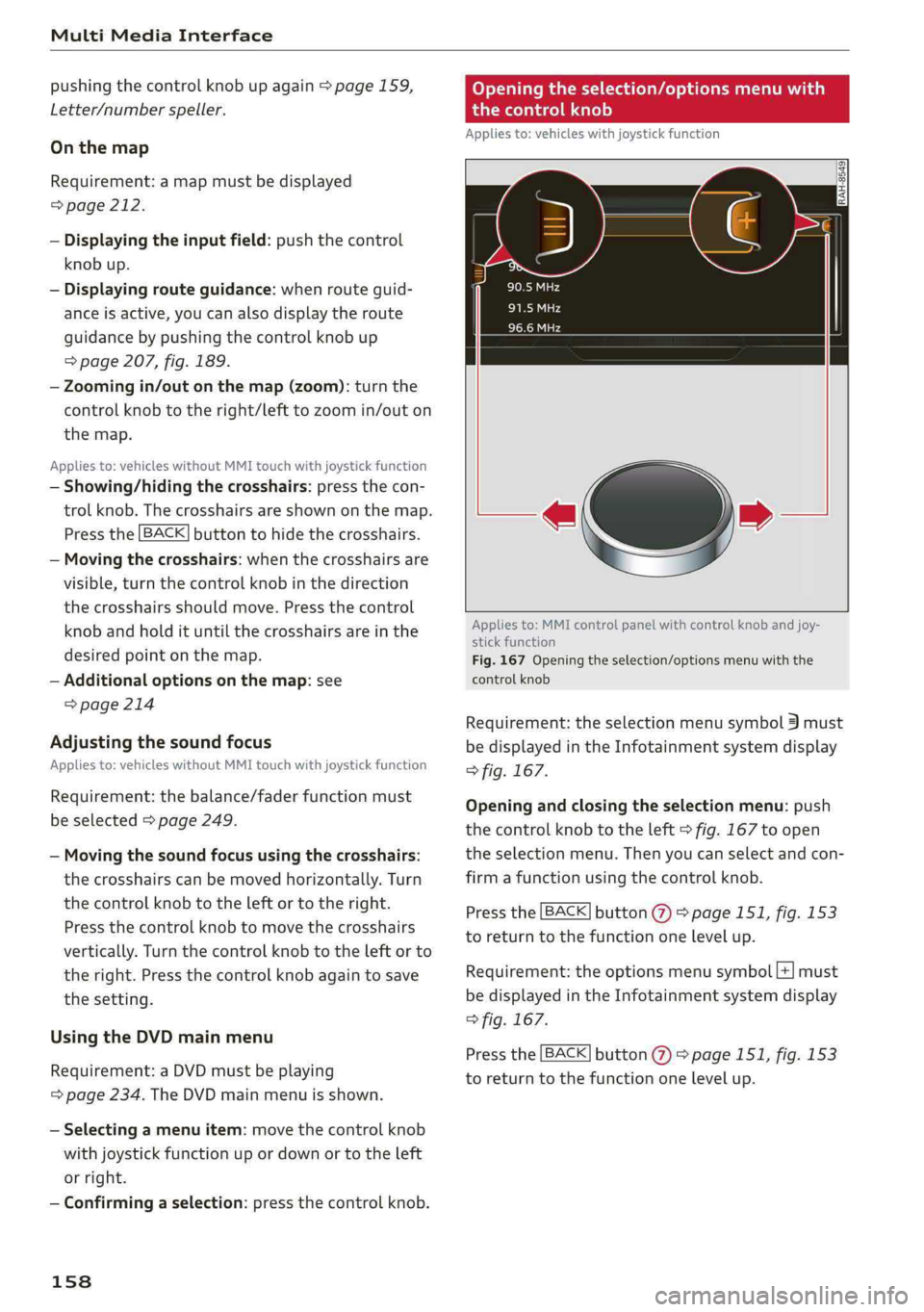

MultiMediaInterface

pushingthecontrolknobupagain>page159,
Letter/numberspeller.
Onthemap
Requirement:amapmustbedisplayed
=>page212.
—Displayingtheinputfield:pushthecontrol
knobup.
—Displaying routeguidance:whenrouteguid-
anceisactive,youcanalsodisplaytheroute
guidancebypushingthecontrolknobup
=>page207,fig. 189.
—Zoomingin/outonthemap(zoom):turnthe
controlknobtotheright/lefttozoomin/outon
themap.
Appliesto:vehicleswithoutMMItouchwithjoystickfunction
—Showing/hidingthecrosshairs:pressthecon-
trolknob.Thecrosshairsareshownonthemap.
Pressthe[BACK]buttonto hidethecrosshairs.
—Movingthecrosshairs:whenthecrosshairsare
visible,turnthecontrolknobinthedirection
thecrosshairsshouldmove.Pressthecontrol
knob andholdituntilthecrosshairsareinthe
desiredpointonthemap.
—Additionaloptionsonthemap:see
>page214


Adjustingthesoundfocus
Applies
to:vehicleswithoutMMItouchwithjoystickfunction
Requirement:thebalance/faderfunctionmust
beselected>page249.
—Movingthesoundfocususingthecrosshairs:
thecrosshairscanbemovedhorizontally.Turn
the
controlknobtotheleftortotheright.
Pressthecontrolknobtomovethecrosshairs
vertically.Turnthecontrolknobtotheleftorto
theright.Pressthecontrolknobagaintosave
thesetting.
UsingtheDVDmainmenu
Requirement:aDVDmustbeplaying
=page234.TheDVDmainmenuisshown.
—Selectingamenuitem:movethecontrolknob
withjoystickfunctionupordownortotheleft
orright.
—Confirmingaselection:pressthecontrolknob.
158
Openingtheselection/optionsmenuwith
thecontrolknob
Appliesto:vehicleswithjoystickfunction


¢»


Appliesto:MMIcontrolpanelwithcontrolknobandjoy-
stickfunction
Fig.167Openingtheselection/optionsmenuwiththe
controlknob
Requirement:theselectionmenusymbol3must
bedisplayedintheInfotainmentsystemdisplay
>fig.167.
Openingandclosingtheselectionmenu:push
thecontrolknobtotheleft>fig.167toopen
theselectionmenu.Thenyoucanselectandcon-
firm
afunctionusingthecontrolknob.

Pressthe[BACK]button(7)>page151,fig.153
to returntothefunctiononelevelup.


Requirement:theoptionsmenusymbol[+]must
bedisplayedintheInfotainmentsystemdisplay
>fig.167.


Pressthe[BACK]button()>page151,fig.153
to returntothefunctiononelevelup.
