&Replacing battery of access
key fob
CAUTION
When removing or reinstalling the
access key fob cover, make sure that
the plastic part does not come off or
become misaligned.

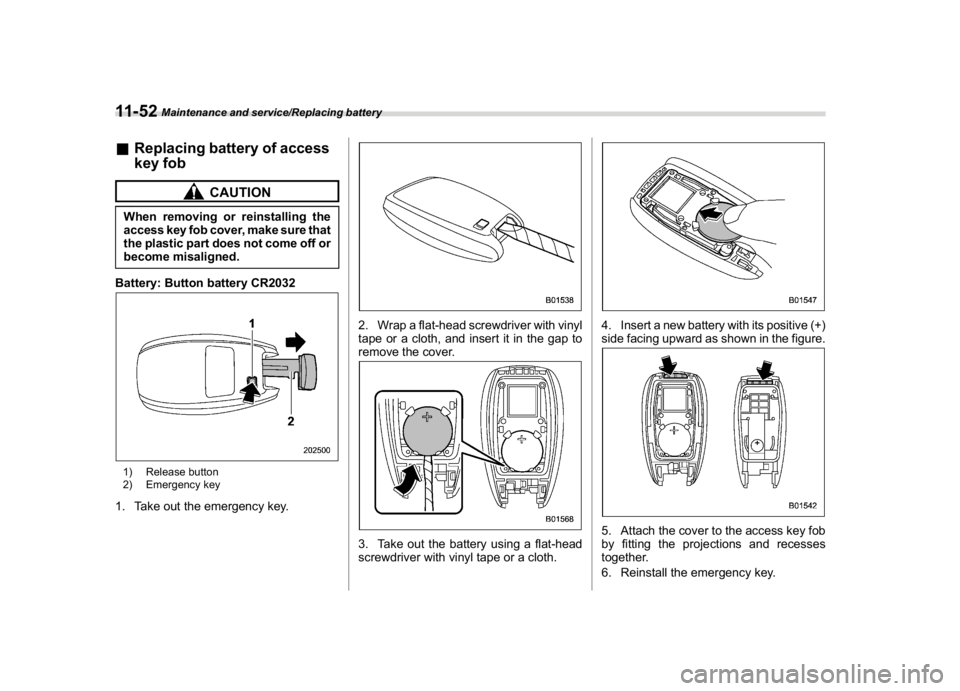

Battery: Button battery CR20321) Release button
2) Emergency key1. Take out the emergency key.
2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.
4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.5. Attach the cover to the access key fob
by fitting the projections and recesses
together.
6. Reinstall the emergency key.
Maintenance and service/Replacing battery
11-52

(551,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11

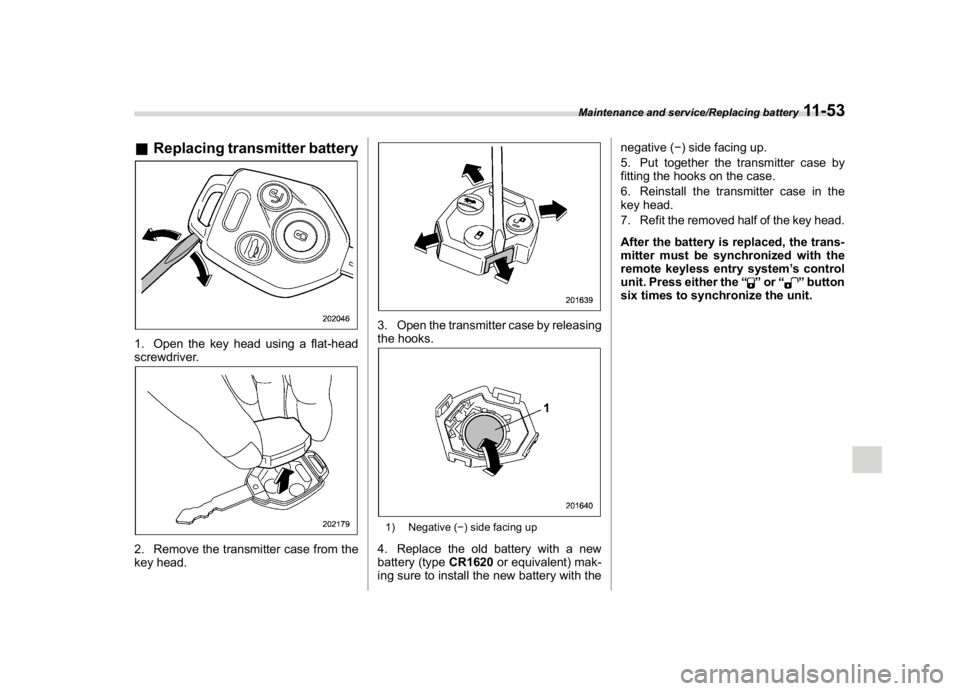

&Replacing transmitter battery1. Open the key head using a flat-head
screwdriver.2. Remove the transmitter case from the
key head.
3. Open the transmitter case by releasing
the hooks.1) Negative () side facing up4. Replace the old battery with a new
battery (typeCR1620or equivalent) mak-
ing sure to install the new battery with thenegative () side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.
After the battery is replaced, the trans-
mitter must be synchronized with the
remote keyless entry system’s control
unit. Press either the“
”or“
”button
six times to synchronize the unit.
Maintenance and service/Replacing battery
11-53
11

Black plate (2,1)
Model "ALL_MODEL_MEMO" EDITED: 2007/ 6/ 22
Left Page————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————

(555,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Specifications........................................................12-2
Dimensions...........................................................12-2
Engine..................................................................12-3
Fuel......................................................................12-3
Engine oil.............................................................12-4
Manual transmission, front differential and rear
differential gear oil..............................................12-6
Fluids...................................................................12-7
Engine coolant......................................................12-7
Electrical system..................................................12-8Tires.....................................................................12-8
Temporary spare tires...........................................12-9
Brake disc............................................................12-9
Fuses and circuits..............................................12-10
Fuse panel located in the passenger
compartment...................................................12-10
Fuse panel located in the engine compartment ... 12-12
Bulb chart............................................................12-14
Vehicle identification..........................................12-16
Specifications
12

(556,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
SpecificationsThese specifications are subject to change without notice.&Dimensions
in (mm)
Item TYPE RA Except TYPE RA
Overall length 181.9 (4,620) 180.9 (4,595)
Overall width70.7 (1,795)
Overall height
58.1 (1,475)
Wheel base104.3 (2,650)
Tread
Front 60.2 (1,530)
Rear 60.6 (1,540)
Ground clearance4.9 (125)
Specifications/Specifications
12-2

(557,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&EngineModel
STI Except STI
Engine modelEJ25
(2.5 L, DOHC, turbo)FA20
(2.0 L, DOHC, turbo)
Engine type Horizontally opposed, liquid cooled 4 cylinder, 4-stroke petrol engine
Displacement cu-in (cc) 150 (2,457) 122 (1,998)
Bore6Stroke in (mm) 3.9263.11 (99.5679.0) 3.3963.39 (86.0686.0)
Compression ratio 8.2 : 1 10.6 : 1
Firing order1–3–2–4&Fuel
NOTEThe engine is designed to operate using unleaded gasoline.
Model Fuel Fuel tank capacity
STI
93 AKI (98 RON) or higher*
1
15.9 US gal (60 liters, 13.2 Imp gal)
Except STI
91 AKI (95 RON) or higher*
2
*1: If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not available, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
*2: If unleaded gasoline with an octane rating of 91 AKI (95 RON) is not available, unleaded gasoline with an octane rating of 87 AKI (90 RON) or higher
may be used.
–CONTINUED–
Specifications/Specifications
12-3
12

(558,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Engine oilFor the checking, adding and replacing procedure or other details, refer to“Engine oil”F11-13.NOTEHave the procedure for changing the engine oil and oil filter performed by a properly-trained expert. It is recommended that
you have this service performed by your SUBARU dealer.
!Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
Specifications/Specifications
12-4

(559,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.NOTE.Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on
the temperature and other factors.
.In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower
viscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.
.When adding oil, you may use different brands together as long as they are the same API classification and SAE viscosity
as those recommended by SUBARU.
Oil gradeSAE viscosity No. and
applicable temperatureEngine oil capacity
API (American Petroleum Insti-
tute) classificationSNwith the
words“RESOURCE CONSER-
VING”or
ILSAC (International Lubricant
Specification Advisory Commit-
tee)GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)5W-30 syntheticoil is the required oil for
optimum engine performance and pro-
tection. Conventional oil may be used if
synthetic oil is unavailable.
*: If 5W-30 synthetic oil is not available,
5W-40 conventional oil may be used if
replenishment is needed but should be
changed to 5W-30 synthetic oil at the
next oil change.
STI:
· Adding the oil from L to F level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
· Changing the oil and oil filter:
4.5 US qt (4.3 liters, 3.8 Imp qt)
· Changing the oil:
4.2 US qt (4.0 liters, 3.5 Imp qt)
Except STI:
· Adding the oil from L to F level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
· Changing the oil and oil filter:
5.4 US qt (5.1 liters, 4.5 Imp qt)
· Changing the oil:
5.2 US qt (4.9 liters, 4.3 Imp qt)
–CONTINUED–
Specifications/Specifications
12-5
