2018 NISSAN NV PASSENGER VAN Owners Manual

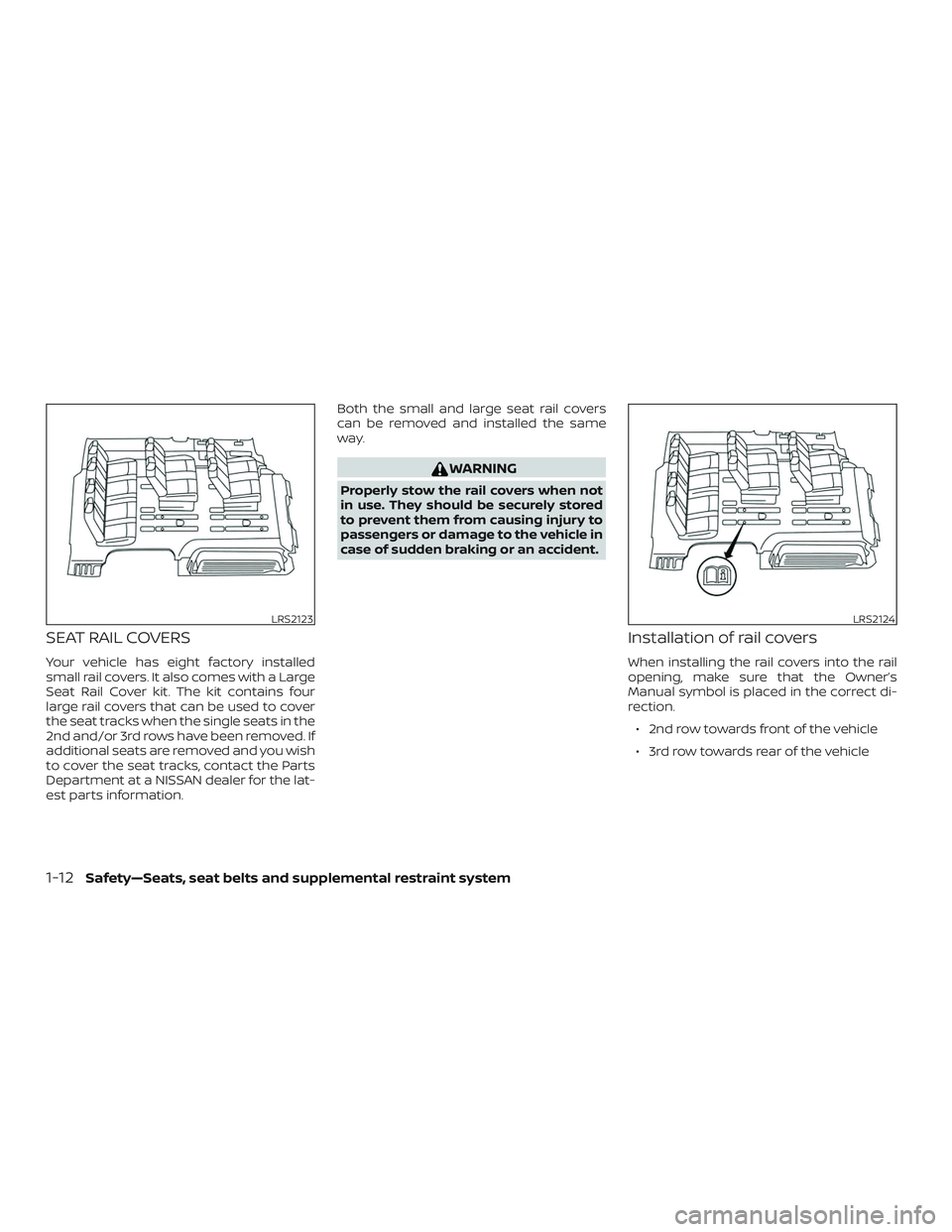

SEAT RAIL COVERS
Your vehicle has eight factory installed
small rail covers. It also comes with a Large
Seat Rail Cover kit. The kit contains four
large rail covers that can be used to cover
the seat tracks when the single seats in the
2nd and/or 3rd rows have been removed. If
additional seats are removed and you wish
to cover the seat tracks, contact the Parts
Department at a NISSAN dealer for the lat-
est parts information.Both the small and large seat rail covers
can be removed and installed the same
way.
WARNING
Properly stow the rail covers when not
in use. They should be securely stored
to prevent them from causing injury to
passengers or damage to the vehicle in
case of sudden braking or an accident.
Installation of rail covers
When installing the rail covers into the rail
opening, make sure that the Owner’s
Manual symbol is placed in the correct di-
rection.
∙ 2nd row towards front of the vehicle
∙ 3rd row towards rear of the vehicle
LRS2123LRS2124
1-12Safety—Seats, seat belts and supplemental restraint system

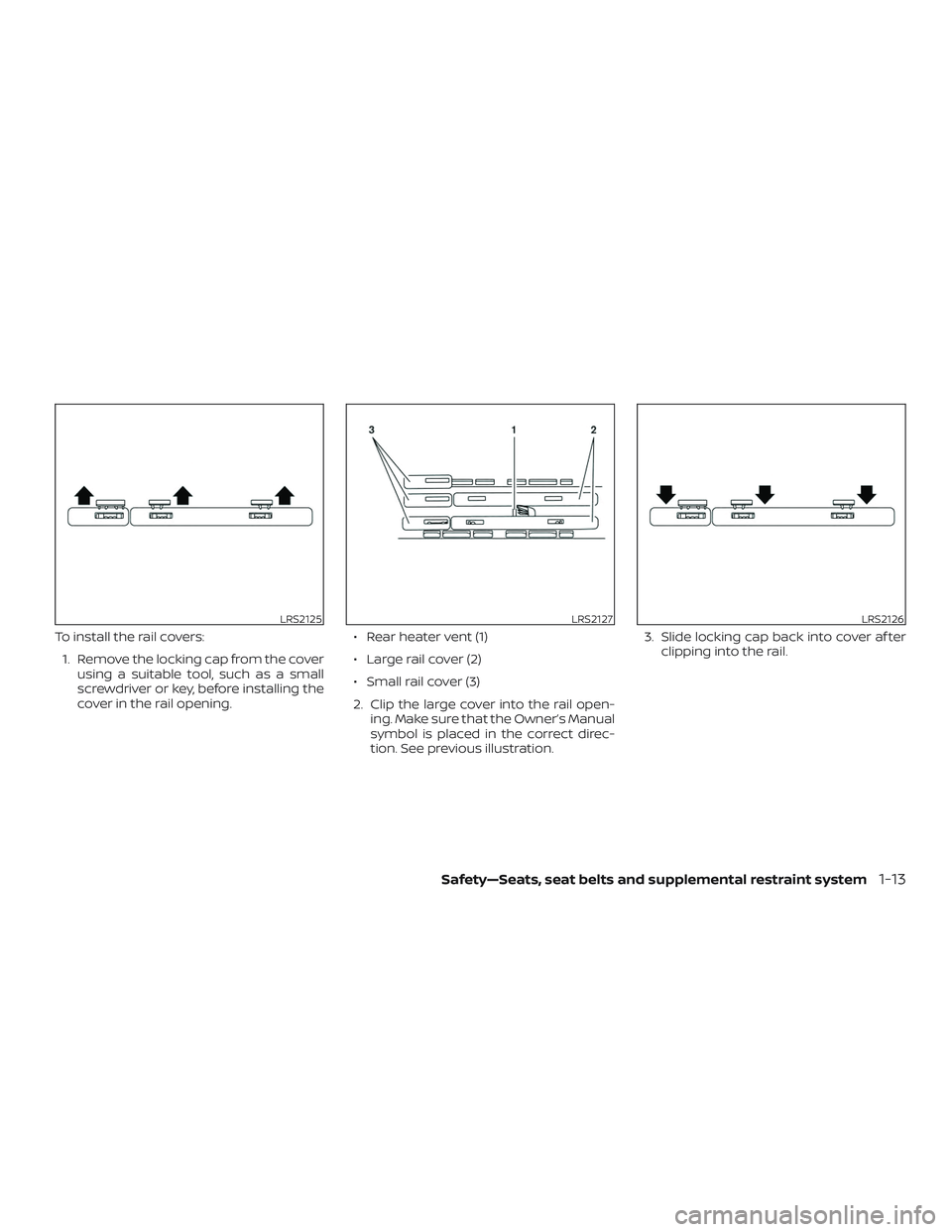

To install the rail covers:1. Remove the locking cap from the cover using a suitable tool, such as a small
screwdriver or key, before installing the
cover in the rail opening. ∙ Rear heater vent (1)
∙ Large rail cover (2)
∙ Small rail cover (3)
2. Clip the large cover into the rail open- ing. Make sure that the Owner’s Manual
symbol is placed in the correct direc-
tion. See previous illustration. 3. Slide locking cap back into cover af ter
clipping into the rail.
LRS2125LRS2127LRS2126
Safety—Seats, seat belts and supplemental restraint system1-13

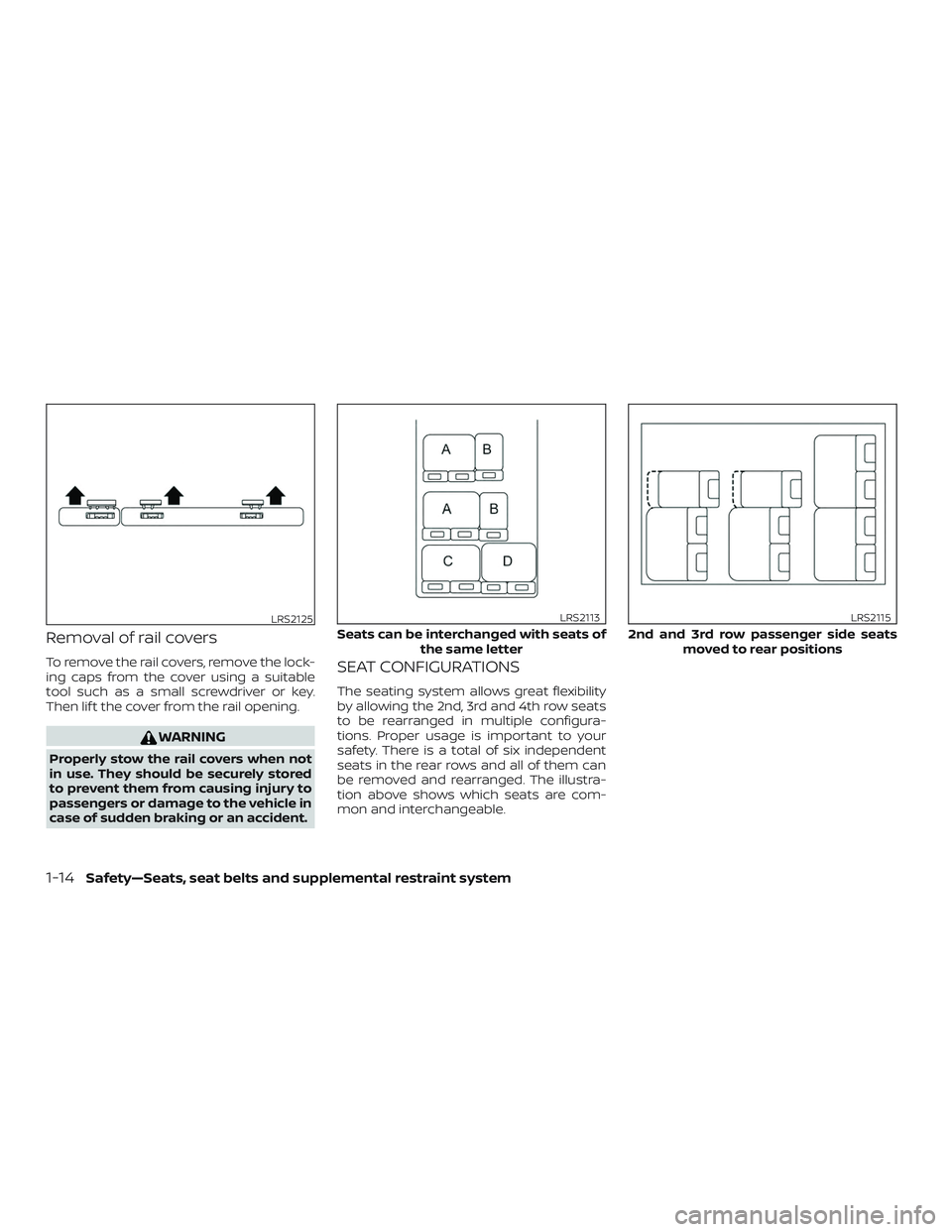

Removal of rail covers
To remove the rail covers, remove the lock-
ing caps from the cover using a suitable
tool such as a small screwdriver or key.
Then lif t the cover from the rail opening.
WARNING
Properly stow the rail covers when not
in use. They should be securely stored
to prevent them from causing injury to
passengers or damage to the vehicle in
case of sudden braking or an accident.
SEAT CONFIGURATIONS
The seating system allows great flexibility
by allowing the 2nd, 3rd and 4th row seats
to be rearranged in multiple configura-
tions. Proper usage is important to your
safety. There is a total of six independent
seats in the rear rows and all of them can
be removed and rearranged. The illustra-
tion above shows which seats are com-
mon and interchangeable.
LRS2125
Seats can be interchanged with seats ofthe same letter
LRS2113
2nd and 3rd row passenger side seatsmoved to rear positions
LRS2115
1-14Safety—Seats, seat belts and supplemental restraint system

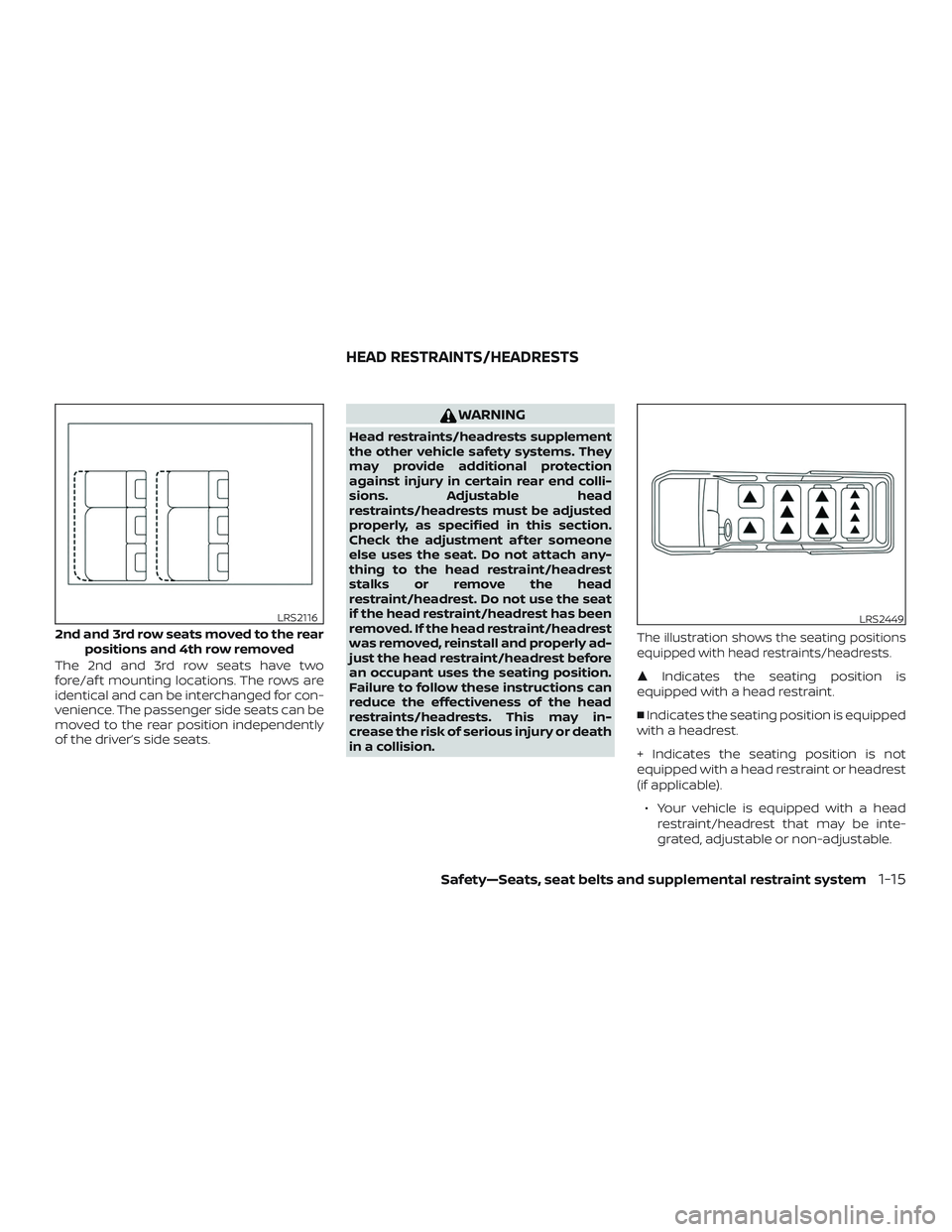

The 2nd and 3rd row seats have two
fore/af t mounting locations. The rows are
identical and can be interchanged for con-
venience. The passenger side seats can be
moved to the rear position independently
of the driver’s side seats.
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision.
The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
2nd and 3rd row seats moved to the rear positions and 4th row removed
LRS2116LRS2449
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-15

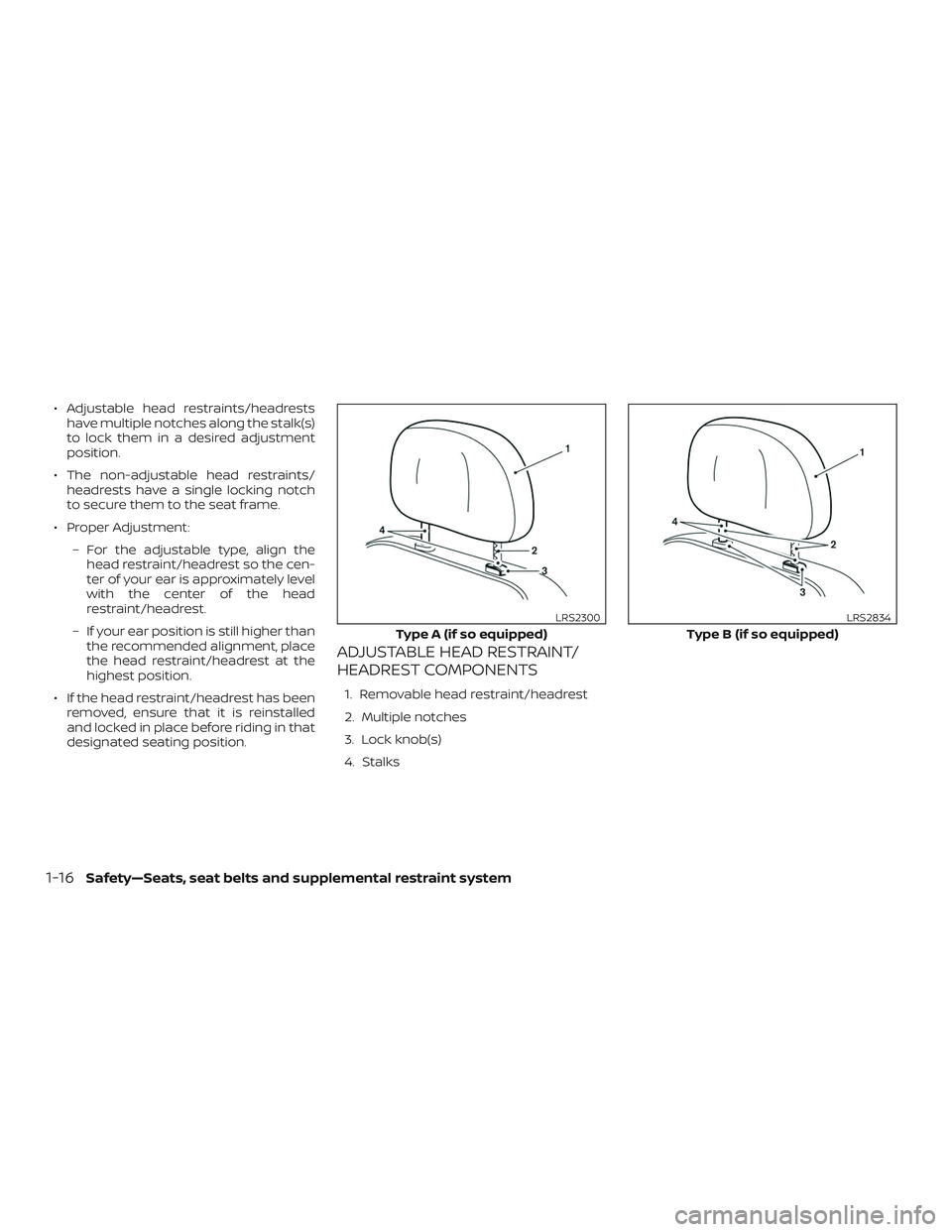

∙ Adjustable head restraints/headrestshave multiple notches along the stalk(s)
to lock them in a desired adjustment
position.
∙ The non-adjustable head restraints/ headrests have a single locking notch
to secure them to the seat frame.
∙ Proper Adjustment: – For the adjustable type, align thehead restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob(s)
4. Stalks
Type A (if so equipped)
LRS2300
Type B (if so equipped)
LRS2834
1-16Safety—Seats, seat belts and supplemental restraint system

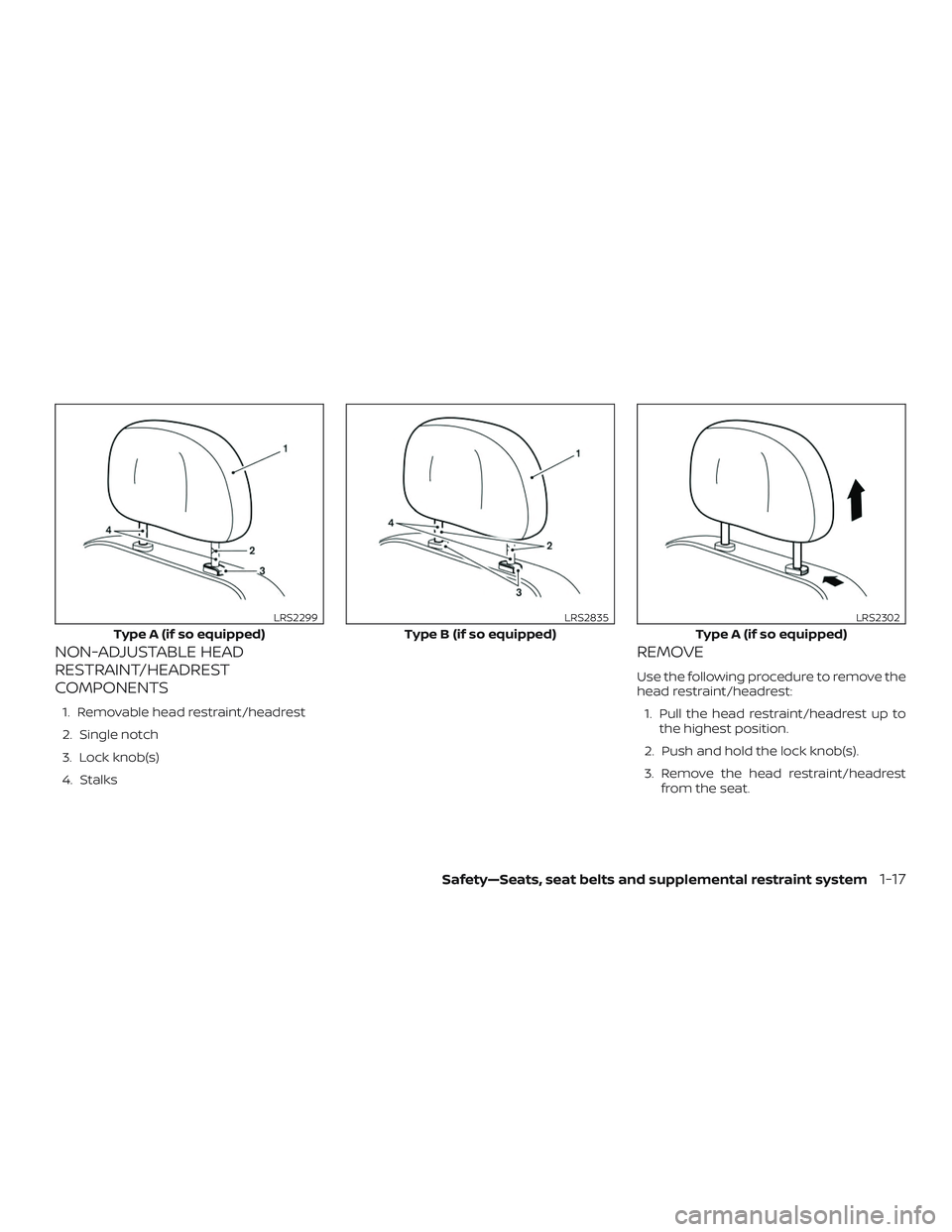

NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob(s)
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob(s).
3. Remove the head restraint/headrest from the seat.
Type A (if so equipped)
LRS2299
Type B (if so equipped)
LRS2835
Type A (if so equipped)
LRS2302
Safety—Seats, seat belts and supplemental restraint system1-17

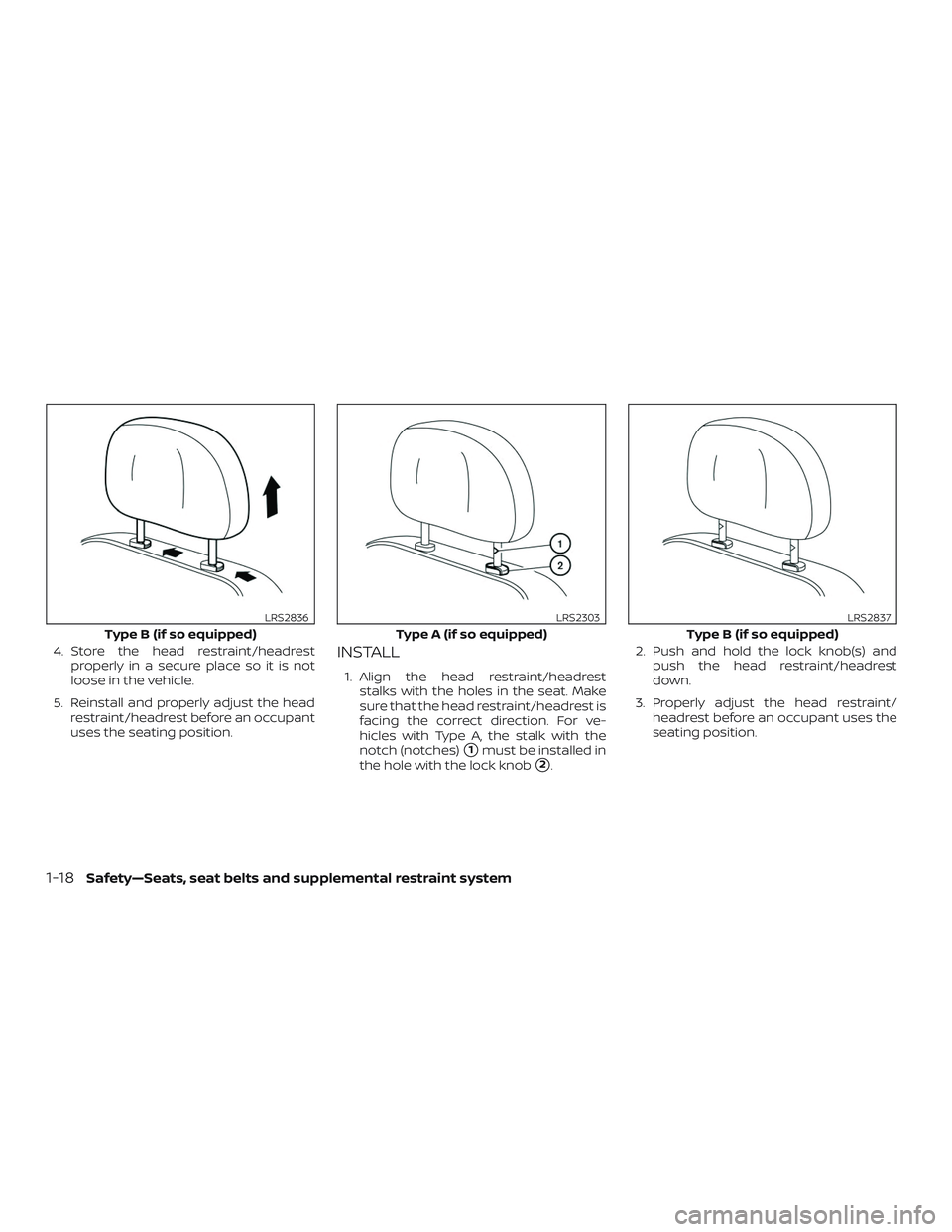

4. Store the head restraint/headrestproperly in a secure place so it is not
loose in the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant
uses the seating position.INSTALL
1. Align the head restraint/headreststalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. For ve-
hicles with Type A, the stalk with the
notch (notches)
1must be installed in
the hole with the lock knob
2. 2. Push and hold the lock knob(s) and
push the head restraint/headrest
down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
Type B (if so equipped)
LRS2836
Type A (if so equipped)
LRS2303
Type B (if so equipped)
LRS2837
1-18Safety—Seats, seat belts and supplemental restraint system

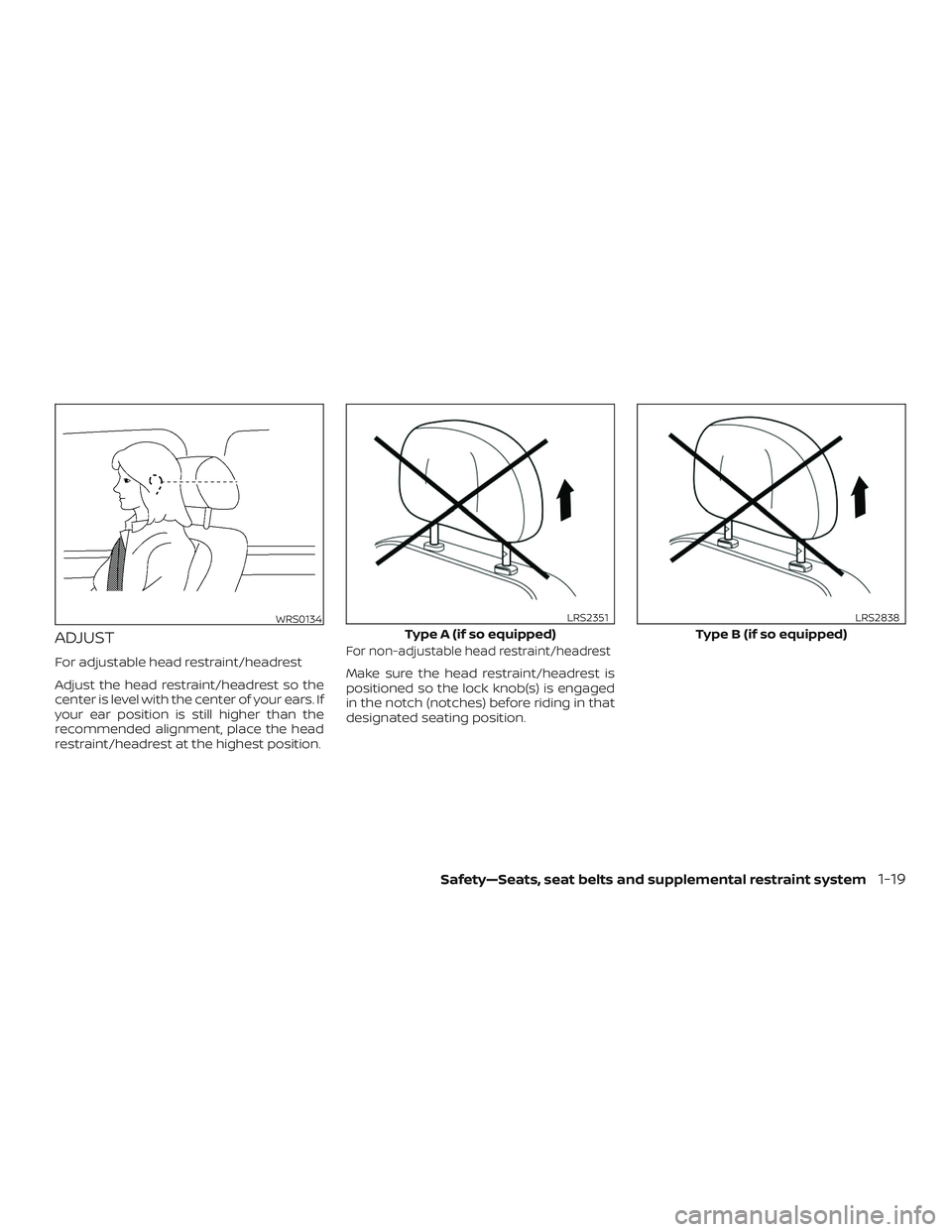

ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is
positioned so the lock knob(s) is engaged
in the notch (notches) before riding in that
designated seating position.
WRS0134
Type A (if so equipped)
LRS2351
Type B (if so equipped)
LRS2838
Safety—Seats, seat belts and supplemental restraint system1-19
