2018 NISSAN NV PASSENGER VAN Owners Manual

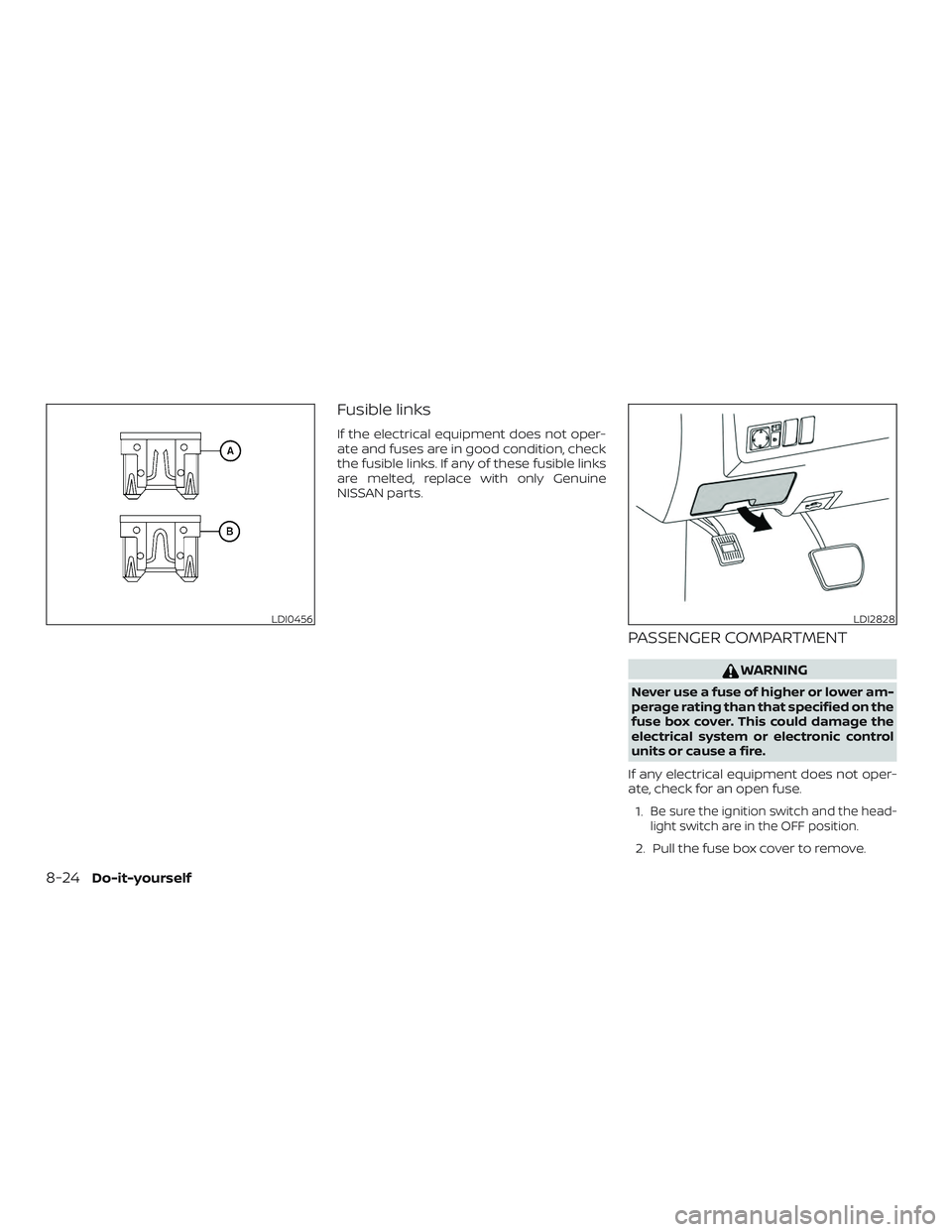

Fusible links
If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.
If any electrical equipment does not oper-
ate, check for an open fuse. 1.
Be sure the ignition switch and the head-
light switch are in the OFF position.
2. Pull the fuse box cover to remove.
LDI0456LDI2828
8-24Do-it-yourself

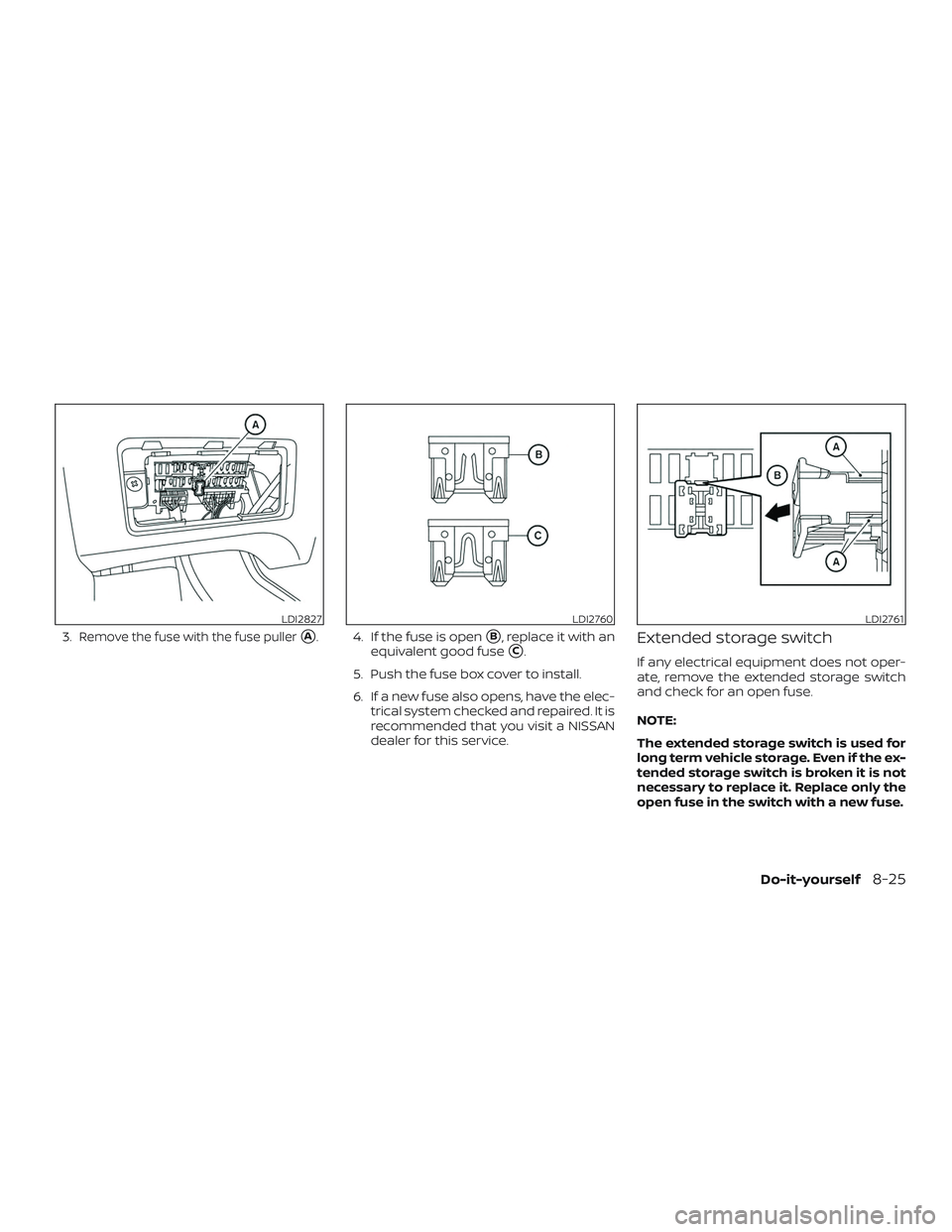

3.Remove the fuse with the fuse pullerA.4. If the fuse is openB, replace it with an
equivalent good fuse
C.
5. Push the fuse box cover to install.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.Extended storage switch
If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.
LDI2827LDI2760LDI2761
Do-it-yourself8-25

How to replace the extended storage

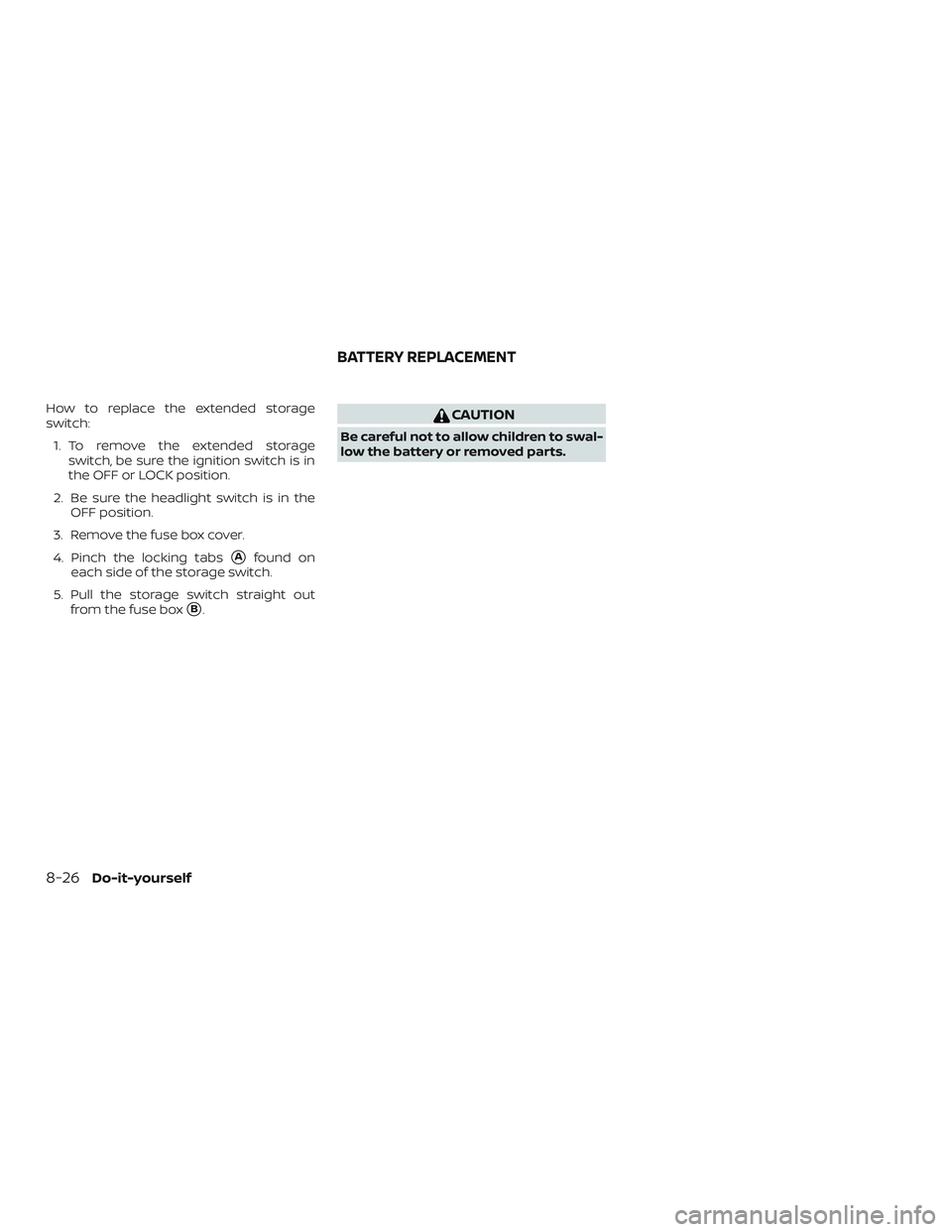

switch:1. To remove the extended storage switch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
Afound on
each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
B.
CAUTION
Be careful not to allow children to swal-
low the battery or removed parts.
BATTERY REPLACEMENT
8-26Do-it-yourself

KEY FOB (if so equipped)

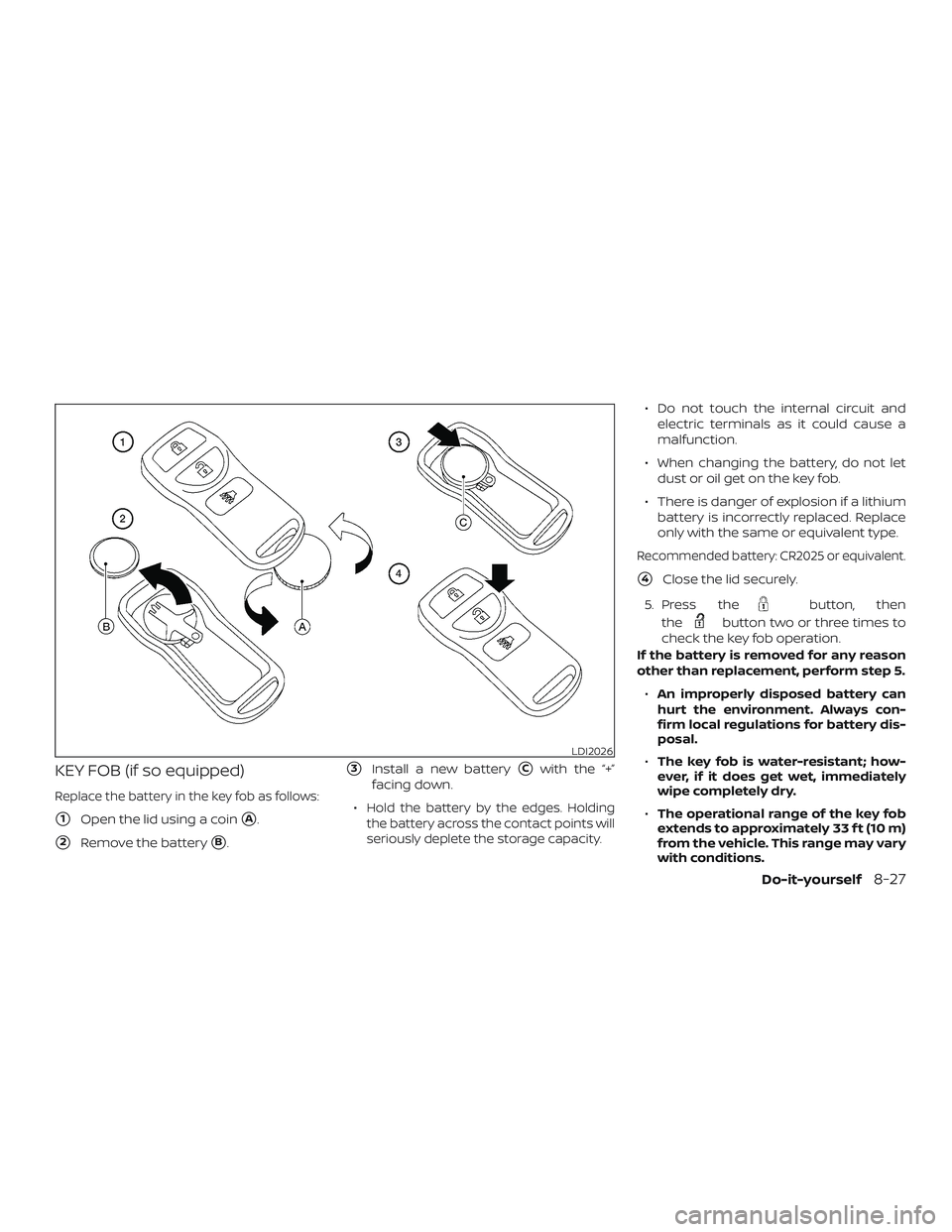

Replace the battery in the key fob as follows:
1Open the lid using a coinA.
2Remove the batteryB.
3Install a new batteryCwith the “+”
facing down.
∙
Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
∙ Do not touch the internal circuit and electric terminals as it could cause a
malfunction.
∙ When changing the battery, do not let dust or oil get on the key fob.
∙ There is danger of explosion if a lithium battery is incorrectly replaced. Replace
only with the same or equivalent type.
Recommended battery: CR2025 or equivalent.
4Close the lid securely.
5. Press the
button, then
the
button two or three times to
check the key fob operation.
If the battery is removed for any reason
other than replacement, perform step 5.
∙ An improperly disposed battery can
hurt the environment. Always con-
firm local regulations for battery dis-
posal.
∙ The key fob is water-resistant; how-
ever, if it does get wet, immediately
wipe completely dry.
∙ The operational range of the key fob
extends to approximately 33 f t (10 m)
from the vehicle. This range may vary
with conditions.
LDI2026
Do-it-yourself8-27

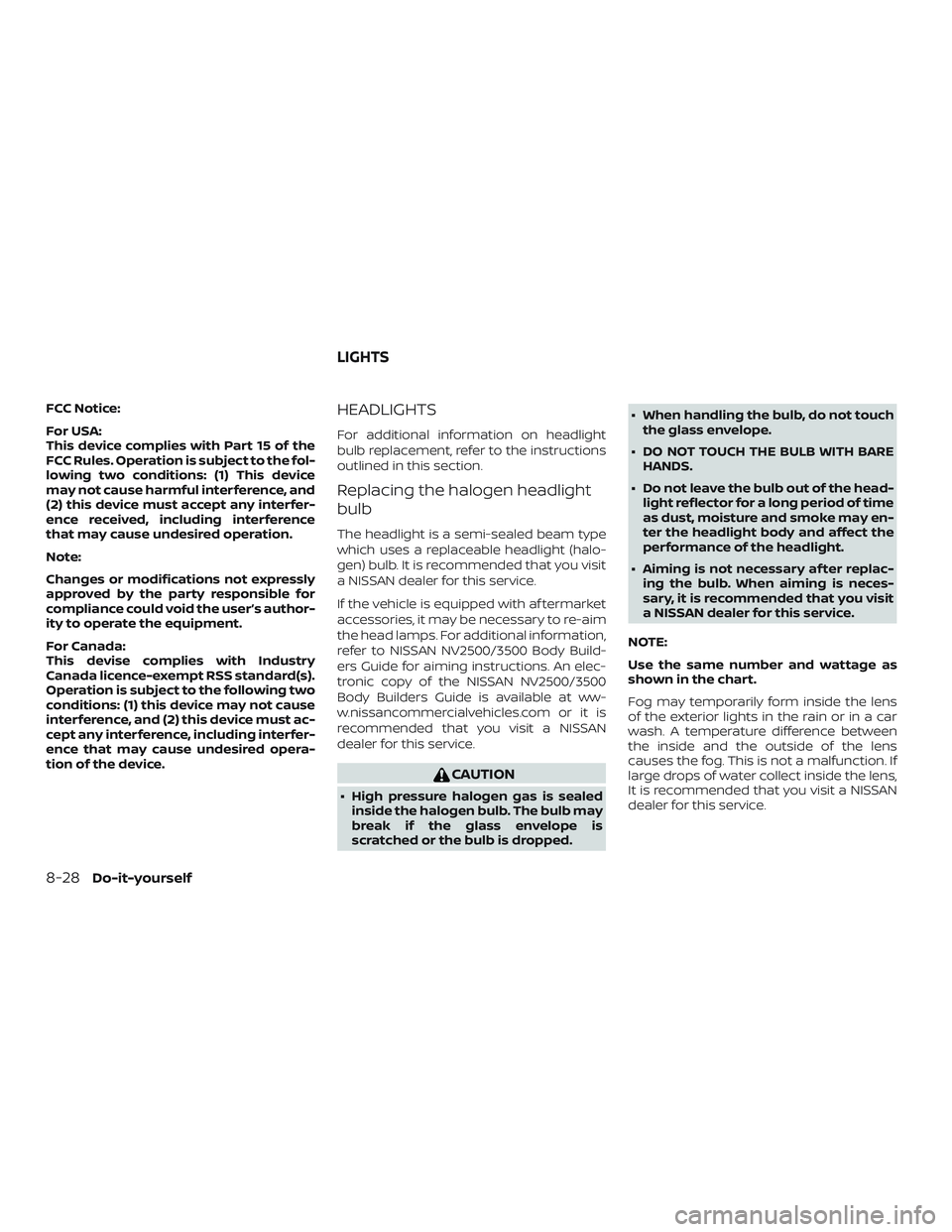

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Note:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.
For Canada:
This devise complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.HEADLIGHTS
For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.
Replacing the halogen headlight
bulb
The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. It is recommended that you visit
a NISSAN dealer for this service.
If the vehicle is equipped with af termarket
accessories, it may be necessary to re-aim
the head lamps. For additional information,
refer to NISSAN NV2500/3500 Body Build-
ers Guide for aiming instructions. An elec-
tronic copy of the NISSAN NV2500/3500
Body Builders Guide is available at ww-
w.nissancommercialvehicles.com or it is
recommended that you visit a NISSAN
dealer for this service.
CAUTION
∙ High pressure halogen gas is sealedinside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped. ∙ When handling the bulb, do not touch
the glass envelope.
∙ DO NOT TOUCH THE BULB WITH BARE HANDS.
∙ Do not leave the bulb out of the head- light reflector for a long period of time
as dust, moisture and smoke may en-
ter the headlight body and affect the
performance of the headlight.
∙ Aiming is not necessary af ter replac- ing the bulb. When aiming is neces-
sary, it is recommended that you visit
a NISSAN dealer for this service.
NOTE:
Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
It is recommended that you visit a NISSAN
dealer for this service.
LIGHTS
8-28Do-it-yourself

FOG LIGHTS (if so equipped)
For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

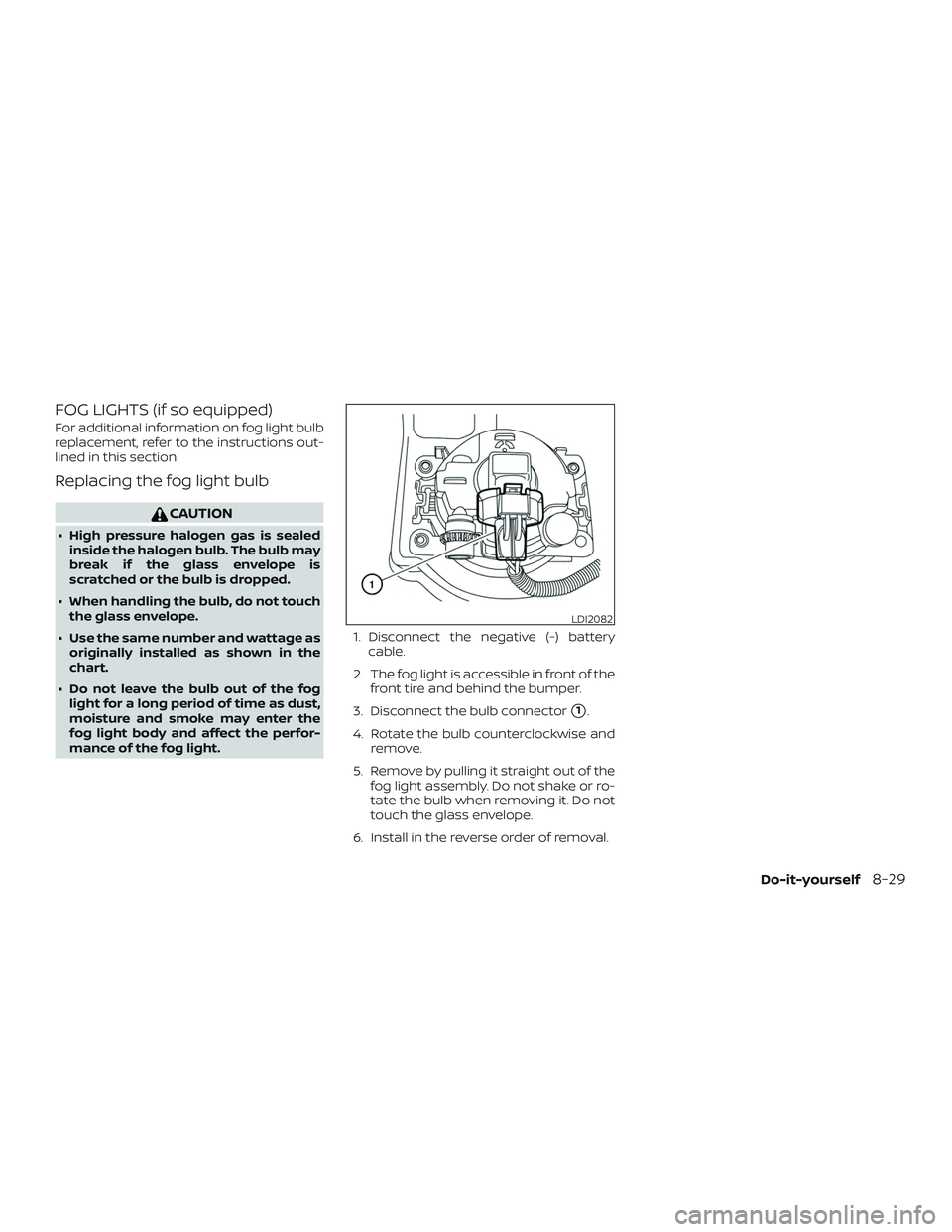

Replacing the fog light bulb
CAUTION
∙ High pressure halogen gas is sealedinside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ When handling the bulb, do not touch the glass envelope.
∙ Use the same number and wattage as originally installed as shown in the
chart.
∙ Do not leave the bulb out of the fog light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light. 1. Disconnect the negative (-) battery
cable.
2. The fog light is accessible in front of the front tire and behind the bumper.
3. Disconnect the bulb connector
1.
4. Rotate the bulb counterclockwise and remove.
5. Remove by pulling it straight out of the fog light assembly. Do not shake or ro-
tate the bulb when removing it. Do not
touch the glass envelope.
6. Install in the reverse order of removal.
LDI2082
Do-it-yourself8-29

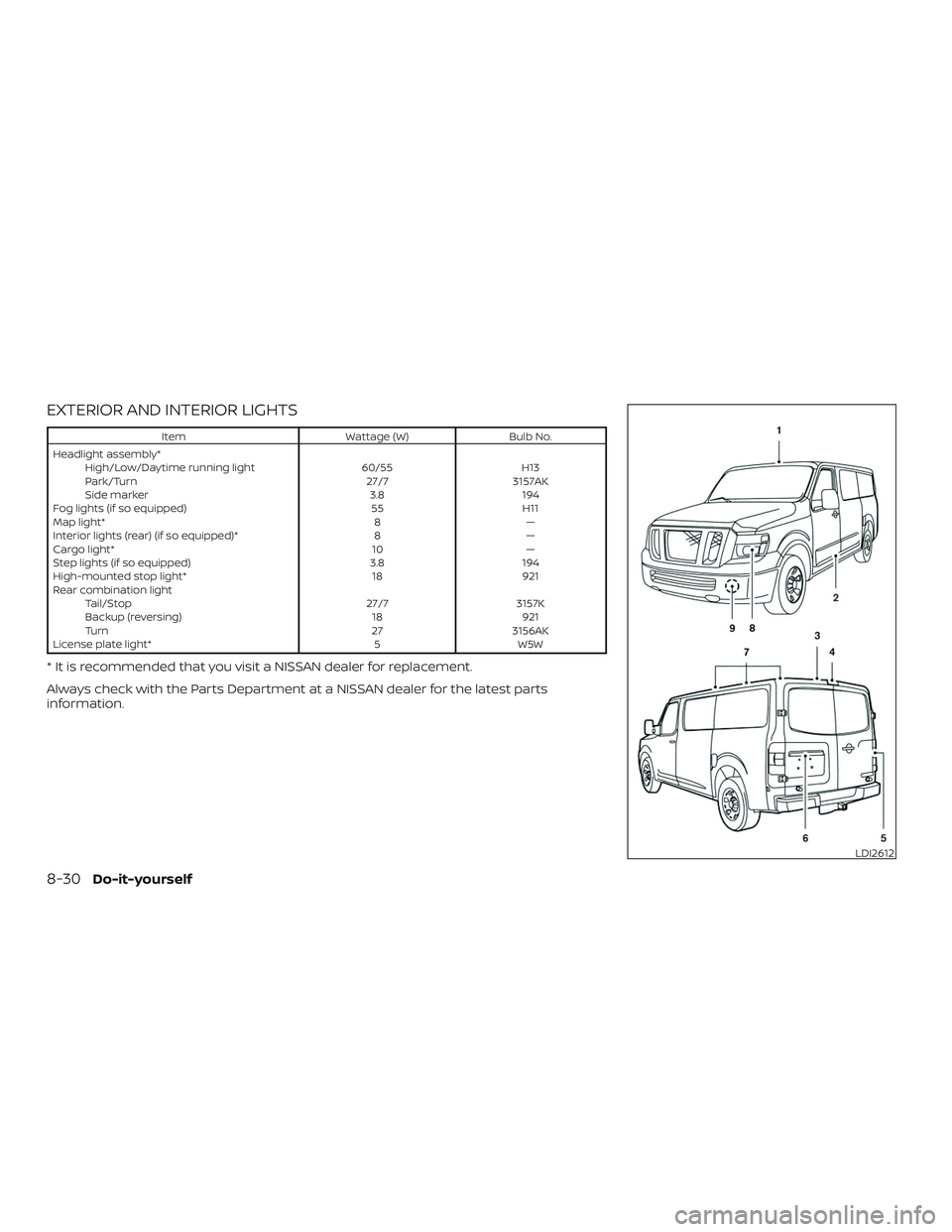

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly* High/Low/Daytime running light 60/55H13
Park/Turn 27/73157AK
Side marker 3.8194
Fog lights (if so equipped) 55H11
Map light* 8—
Interior lights (rear) (if so equipped)* 8—
Cargo light* 10—
Step lights (if so equipped) 3.8194
High-mounted stop light* 18921
Rear combination light Tail/Stop 27/73157K
Backup (reversing) 18921
Turn 273156AK
License plate light* 5W5W
* It is recommended that you visit a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts
information.
LDI2612
8-30Do-it-yourself

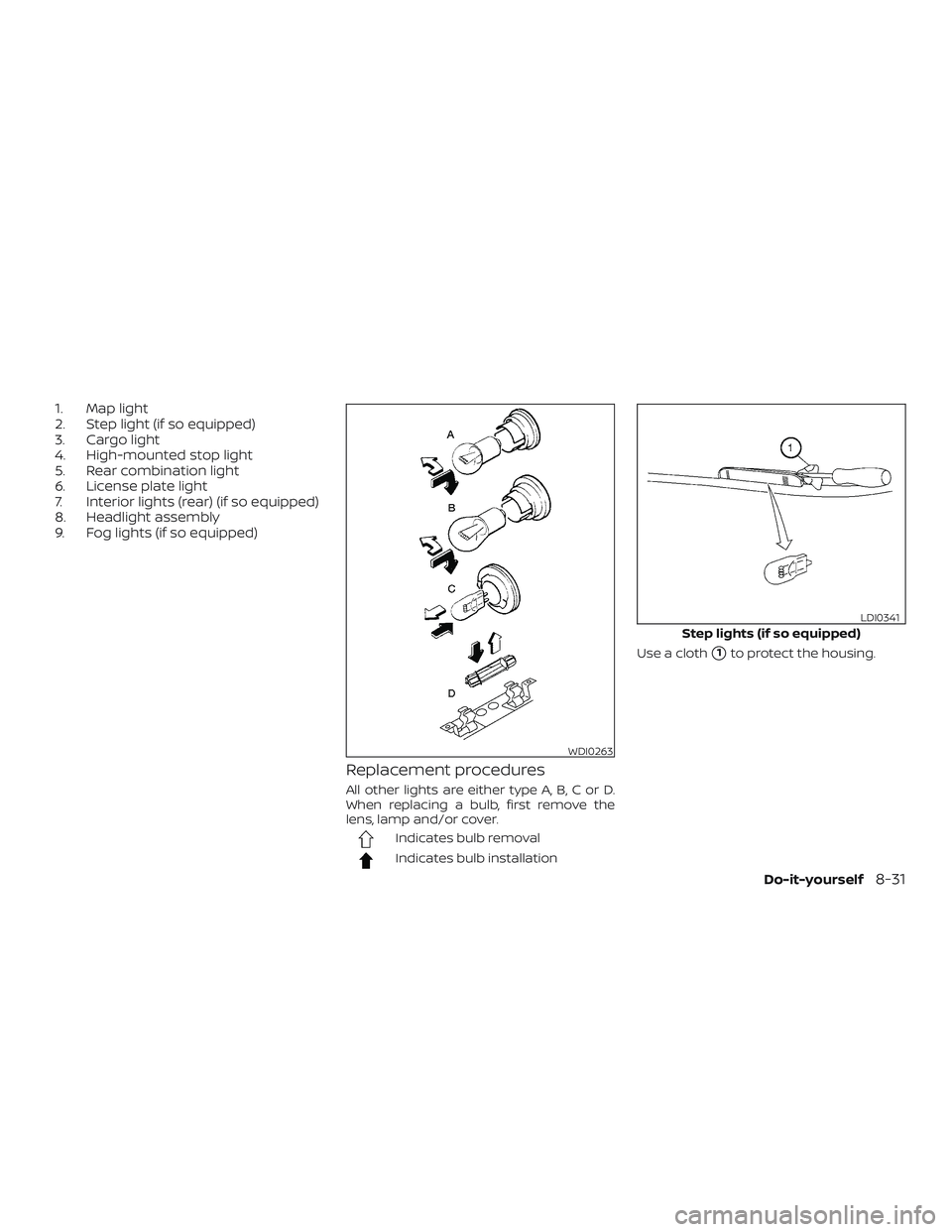

1. Map light
2. Step light (if so equipped)
3. Cargo light
4. High-mounted stop light
5. Rear combination light
6. License plate light
7. Interior lights (rear) (if so equipped)
8. Headlight assembly
9. Fog lights (if so equipped)
Replacement procedures
All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.
WDI0263
Step lights (if so equipped)
LDI0341
Do-it-yourself8-31
