2018 NISSAN NV PASSENGER VAN Owners Manual

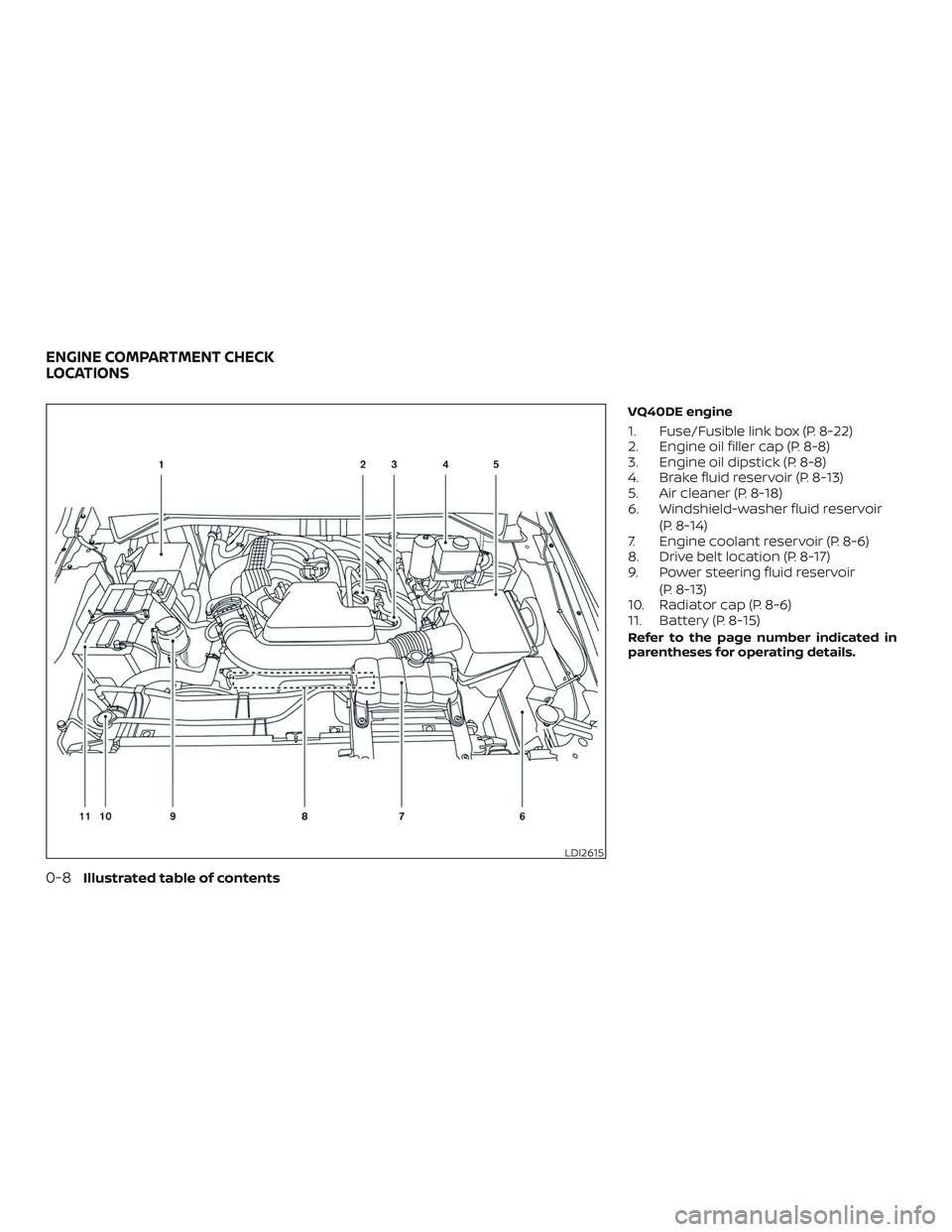

VQ40DE engine
1. Fuse/Fusible link box (P. 8-22)
2. Engine oil filler cap (P. 8-8)
3. Engine oil dipstick (P. 8-8)
4. Brake fluid reservoir (P. 8-13)
5. Air cleaner (P. 8-18)
6. Windshield-washer fluid reservoir(P. 8-14)
7. Engine coolant reservoir (P. 8-6)
8. Drive belt location (P. 8-17)
9. Power steering fluid reservoir
(P. 8-13)
10. Radiator cap (P. 8-6)
11. Battery (P. 8-15)
Refer to the page number indicated in
parentheses for operating details.
LDI2615
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

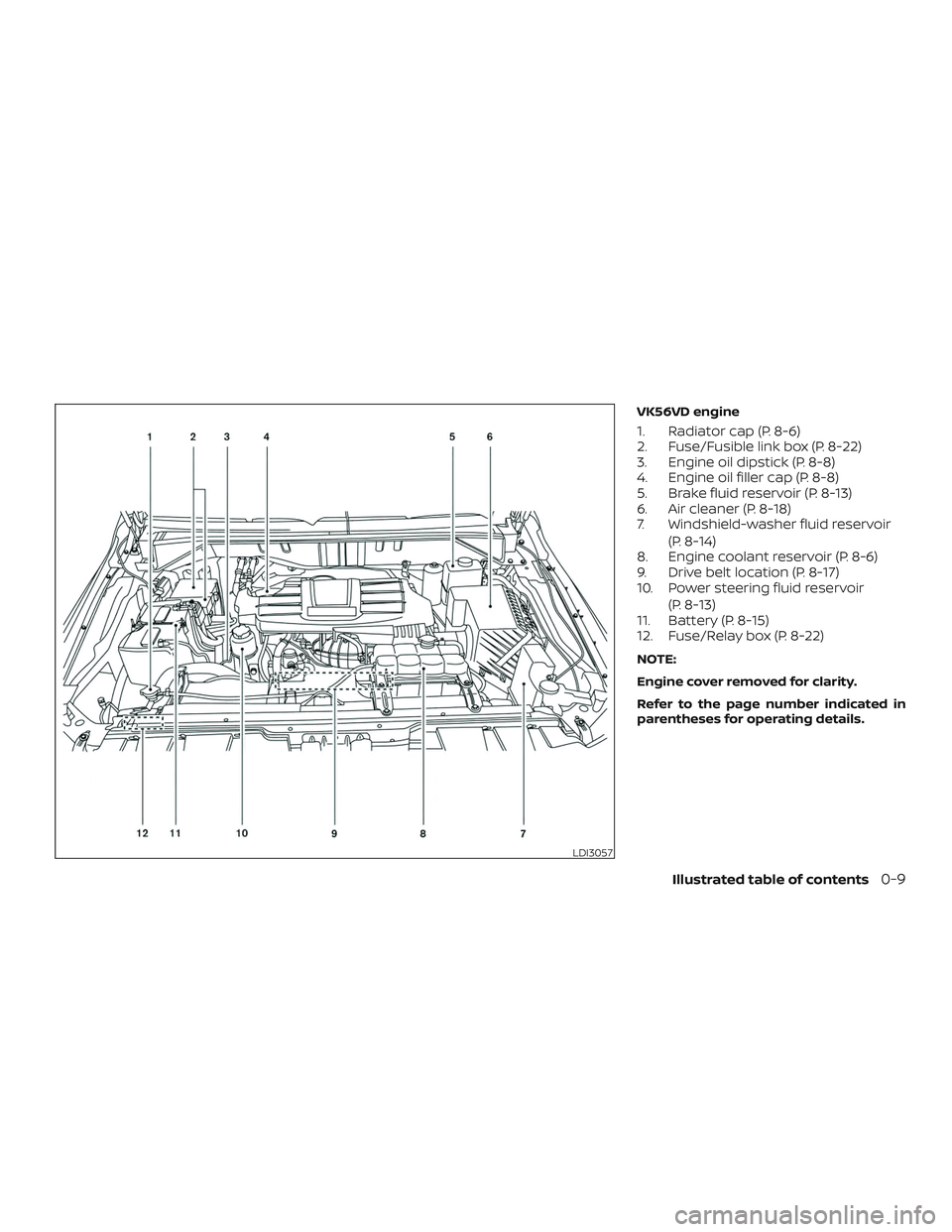

VK56VD engine
1. Radiator cap (P. 8-6)
2. Fuse/Fusible link box (P. 8-22)
3. Engine oil dipstick (P. 8-8)
4. Engine oil filler cap (P. 8-8)
5. Brake fluid reservoir (P. 8-13)
6. Air cleaner (P. 8-18)
7. Windshield-washer fluid reservoir(P. 8-14)
8. Engine coolant reservoir (P. 8-6)
9. Drive belt location (P. 8-17)
10. Power steering fluid reservoir
(P. 8-13)
11. Battery (P. 8-15)
12. Fuse/Relay box (P. 8-22)
NOTE:
Engine cover removed for clarity.
Refer to the page number indicated in
parentheses for operating details.
LDI3057
Illustrated table of contents0-9

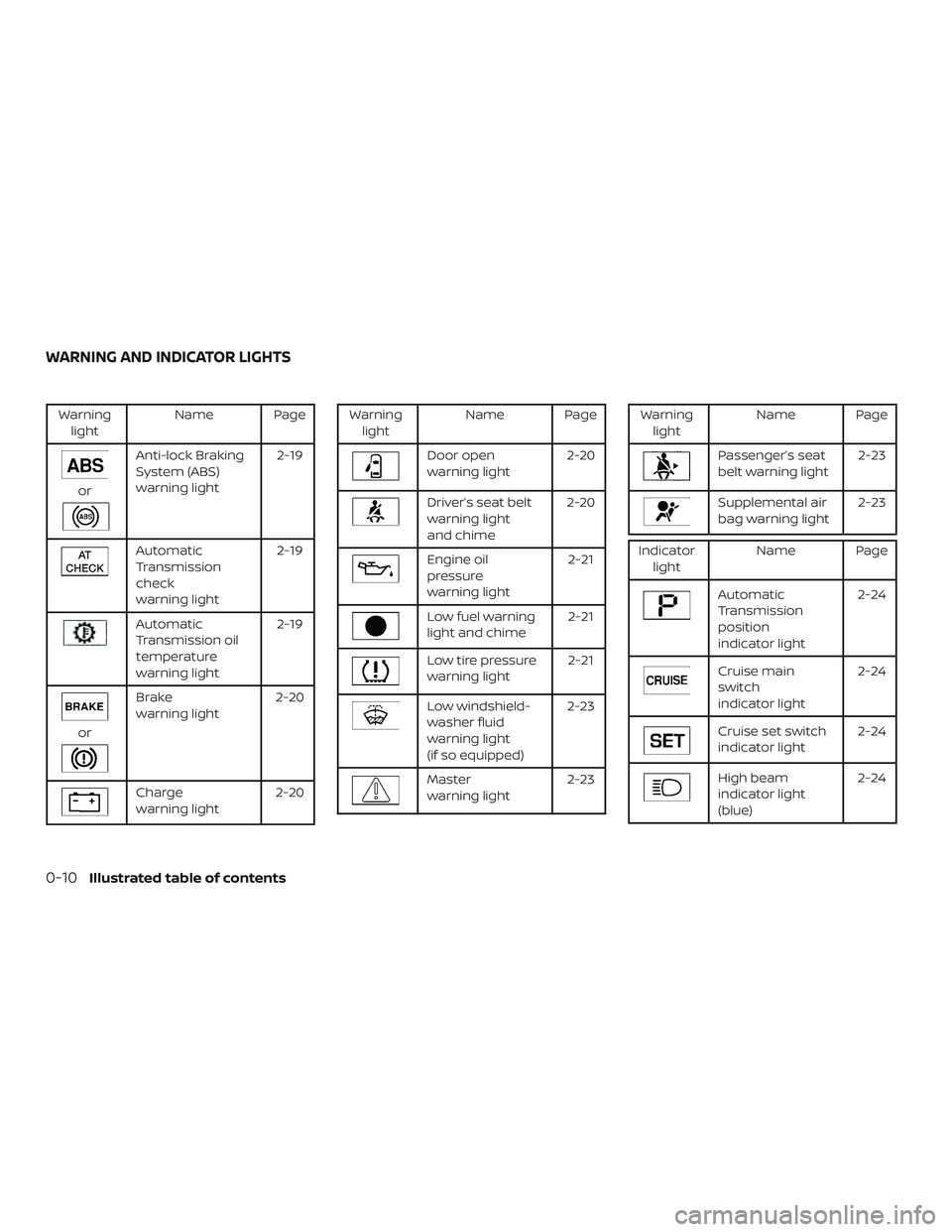

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-19
Automatic
Transmission
check
warning light2-19
Automatic
Transmission oil
temperature
warning light2-19
or
Brake
warning light
2-20
Charge
warning light2-20
Warning
light Name Page
Door open
warning light 2-20
Driver’s seat belt
warning light
and chime2-20
Engine oil
pressure
warning light 2-21
Low fuel warning
light and chime
2-21
Low tire pressure
warning light2-21
Low windshield-
washer fluid
warning light
(if so equipped)2-23
Master
warning light
2-23
Warning
light Name Page
Passenger’s seat
belt warning light 2-23
Supplemental air
bag warning light2-23
Indicator
light Name Page
Automatic
Transmission
position
indicator light 2-24
Cruise main
switch
indicator light
2-24
Cruise set switch
indicator light
2-24
High beam
indicator light
(blue)2-24
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

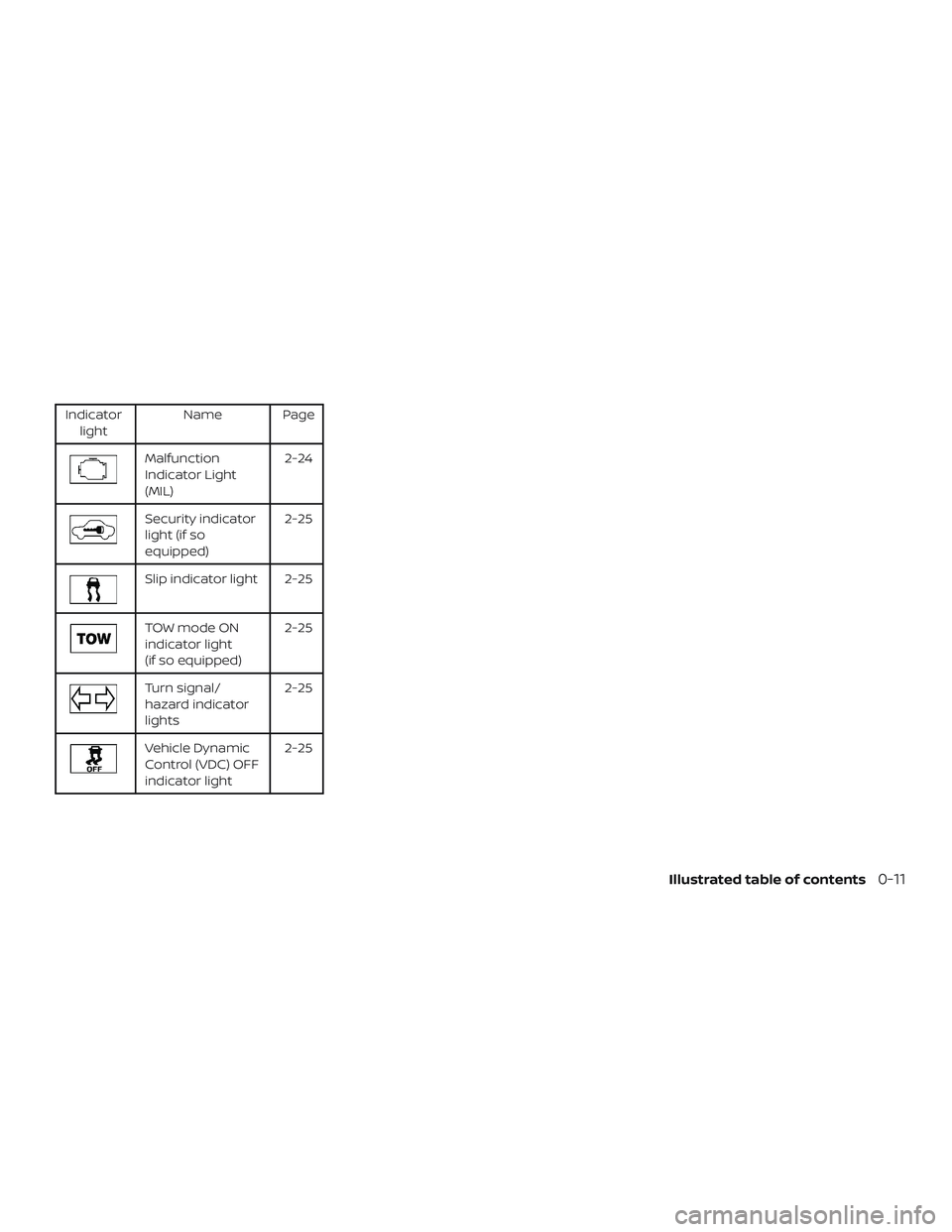

Indicatorlight Name Page
Malfunction
Indicator Light
(MIL) 2-24
Security indicator
light (if so
equipped) 2-25
Slip indicator light 2-25
TOW mode ON
indicator light
(if so equipped)2-25
Turn signal/
hazard indicator
lights2-25
Vehicle Dynamic
Control (VDC) OFF
indicator light2-25
Illustrated table of contents0-11

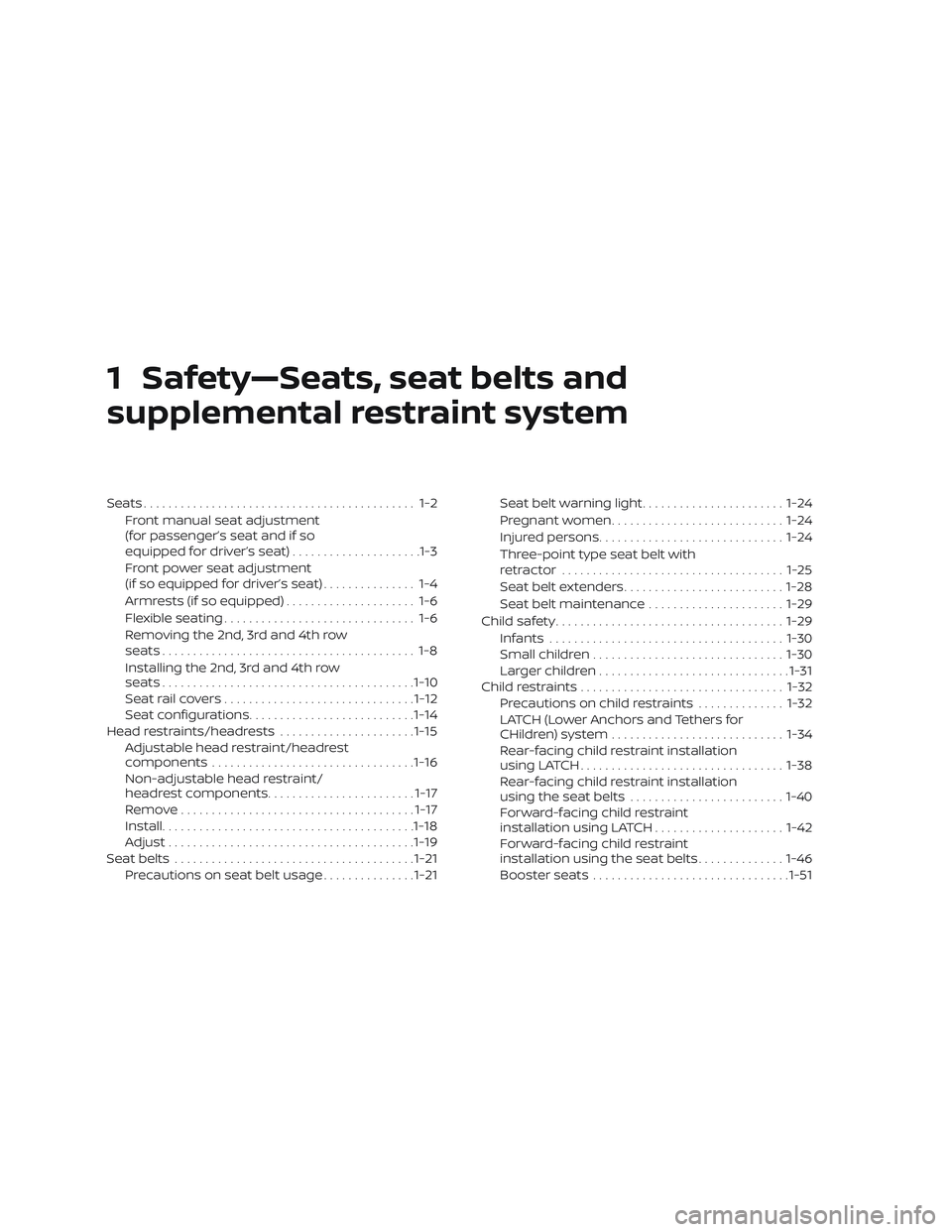

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(for passenger’s seat and if so
equipped for driver’s seat) .....................1-3
Front power seat adjustment
(if so equipped for driver’s seat) ............... 1-4
Armrests (if so equipped) ..................... 1-6
Flexible seating ............................... 1-6
Removing the 2nd, 3rd and 4th row
seats......................................... 1-8
Installing the 2nd, 3rd and 4th row
seats......................................... 1-10
Seatrailcovers............................... 1-12
Seat configurations ........................... 1-14
Head restraints/headrests ......................1-15
Adjustable head restraint/headrest
components ................................. 1-16
Non-adjustable head restraint/
headrest components ........................ 1-17
Remove...................................... 1-17
Install ......................................... 1-18
Adjust ........................................ 1-19
Seatbelts ....................................... 1-21
Precautions on seat belt usage ...............1-21Seat belt warning light
....................... 1-24
Pregnant women ............................ 1-24
Injured persons .............................. 1-24
Three-point type seat belt with
retractor .................................... 1-25
Seat belt extenders .......................... 1-28
Seat belt maintenance ......................1-29
Child safety ..................................... 1-29
Infants ...................................... 1-30
Small children ............................... 1-30
Larger children ............................... 1-31
Child restraints ................................. 1-32
Precautions on child restraints ..............1-32
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-34
Rear-facing child restraint installation
using LATCH ................................. 1-38
Rear-facing child restraint installation
using the seat belts ......................... 1-40
Forward-facing child restraint
installation using LATCH .....................1-42
Forward-facing child restraint
installation using the seat belts ..............1-46
Booster seats ................................ 1-51

Supplemental Restraint System (SRS)...........1-55
Precautions on SRS .......................... 1-55Supplemental air bag warning labels
........1-66
Supplemental air bag warning light ..........1-66

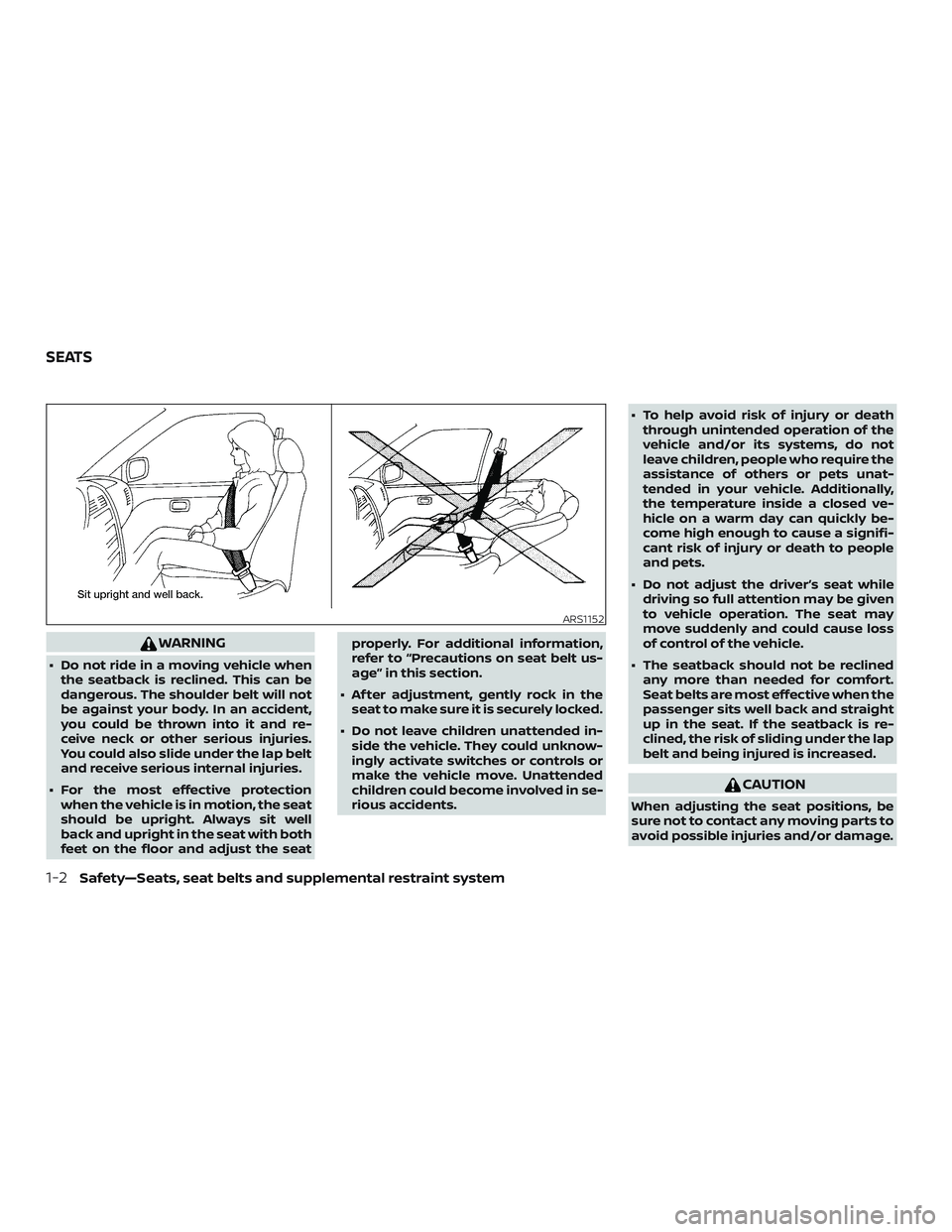

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.
∙ For the most effective protection when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents. ∙ To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

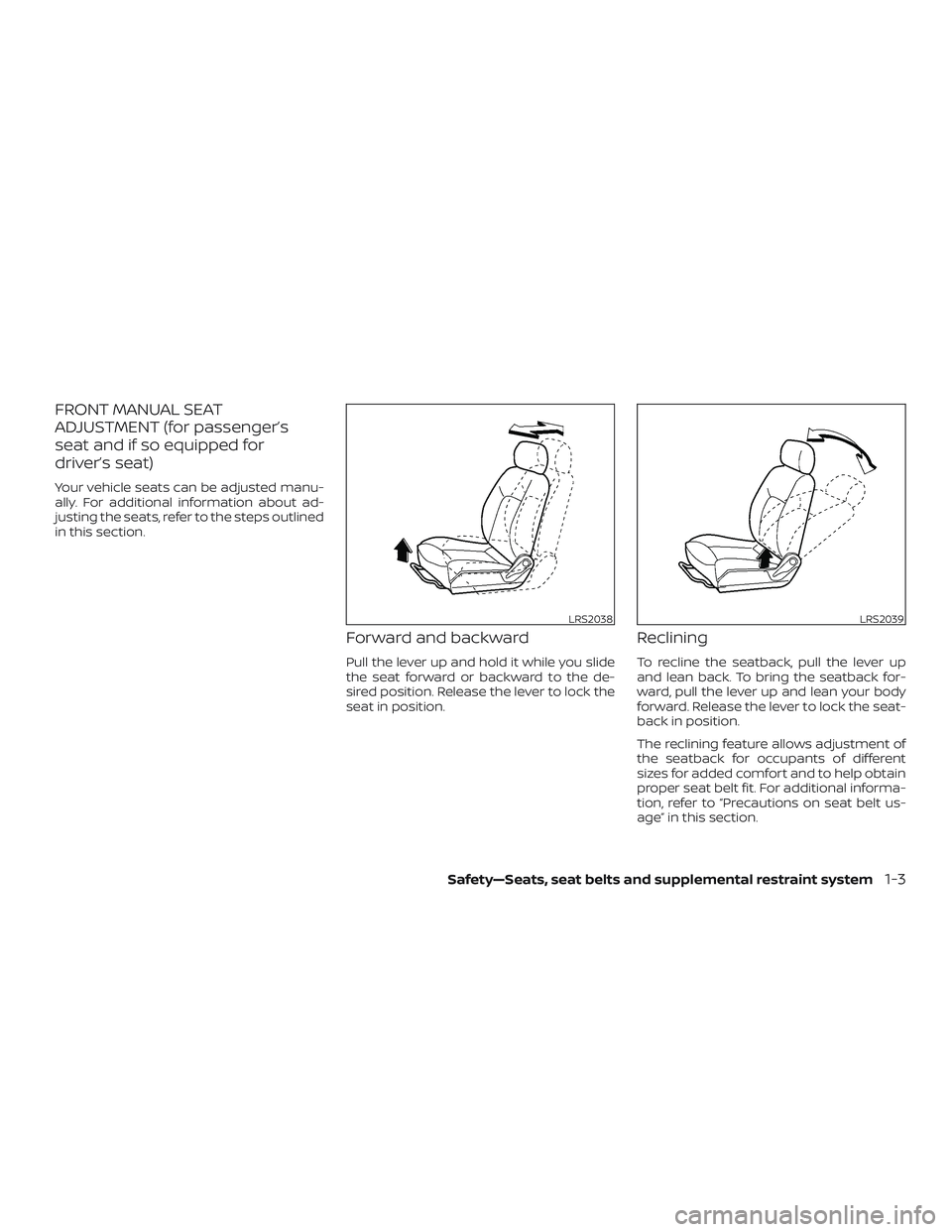

FRONT MANUAL SEAT
ADJUSTMENT (for passenger’s
seat and if so equipped for
driver’s seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section.
LRS2038LRS2039
Safety—Seats, seat belts and supplemental restraint system1-3
