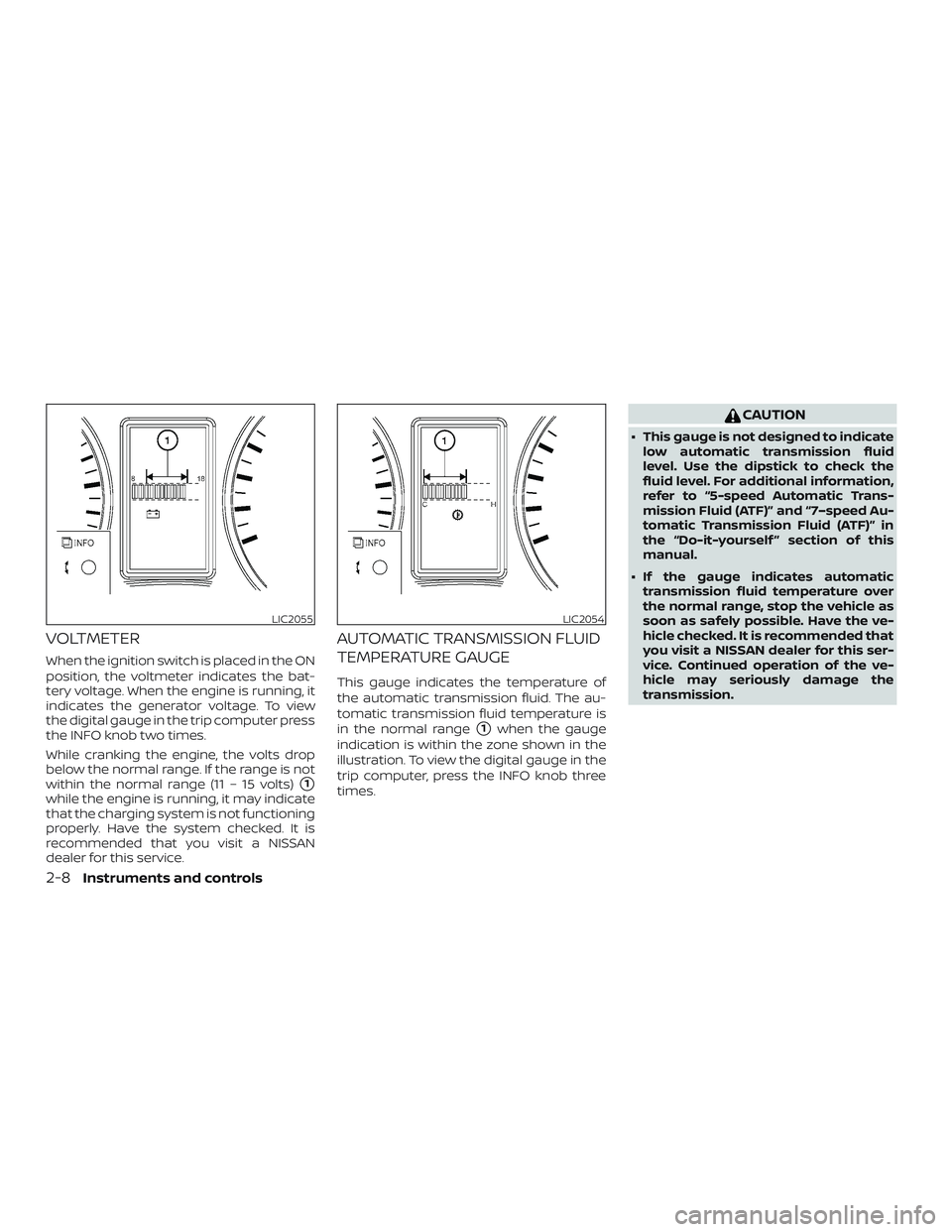

VOLTMETER
When the ignition switch is placed in the ON
position, the voltmeter indicates the bat-
tery voltage. When the engine is running, it
indicates the generator voltage. To view
the digital gauge in the trip computer press
the INFO knob two times.
While cranking the engine, the volts drop
below the normal range. If the range is not
within the normal range (11 – 15 volts)
1
while the engine is running, it may indicate
that the charging system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
AUTOMATIC TRANSMISSION FLUID
TEMPERATURE GAUGE
This gauge indicates the temperature of
the automatic transmission fluid. The au-
tomatic transmission fluid temperature is
in the normal range
1when the gauge
indication is within the zone shown in the
illustration. To view the digital gauge in the
trip computer, press the INFO knob three
times.
CAUTION
∙ This gauge is not designed to indicate low automatic transmission fluid
level. Use the dipstick to check the
fluid level. For additional information,
refer to “5-speed Automatic Trans-
mission Fluid (ATF)” and “7–speed Au-
tomatic Transmission Fluid (ATF)” in
the “Do-it-yourself ” section of this
manual.
∙ If the gauge indicates automatic transmission fluid temperature over
the normal range, stop the vehicle as
soon as safely possible. Have the ve-
hicle checked. It is recommended that
you visit a NISSAN dealer for this ser-
vice. Continued operation of the ve-
hicle may seriously damage the
transmission.
LIC2055LIC2054
2-8Instruments and controls

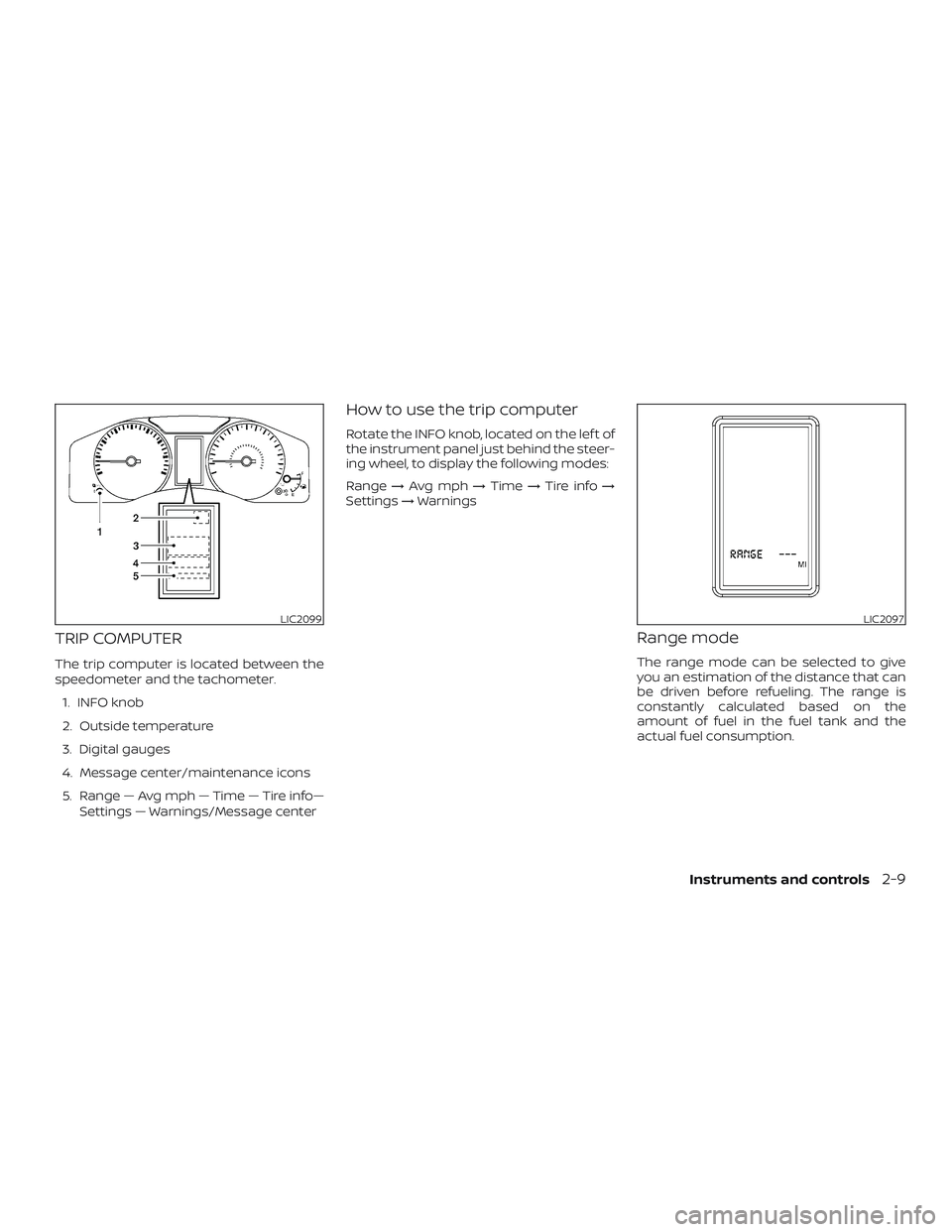

TRIP COMPUTER
The trip computer is located between the
speedometer and the tachometer.1. INFO knob
2. Outside temperature
3. Digital gauges
4. Message center/maintenance icons
5. Range — Avg mph — Time — Tire info— Settings — Warnings/Message center
How to use the trip computer
Rotate the INFO knob, located on the lef t of
the instrument panel just behind the steer-
ing wheel, to display the following modes:
Range →Avg mph →Time →Tire info →
Settings →Warnings
Range mode
The range mode can be selected to give
you an estimation of the distance that can
be driven before refueling. The range is
constantly calculated based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
LIC2099LIC2097
Instruments and controls2-9

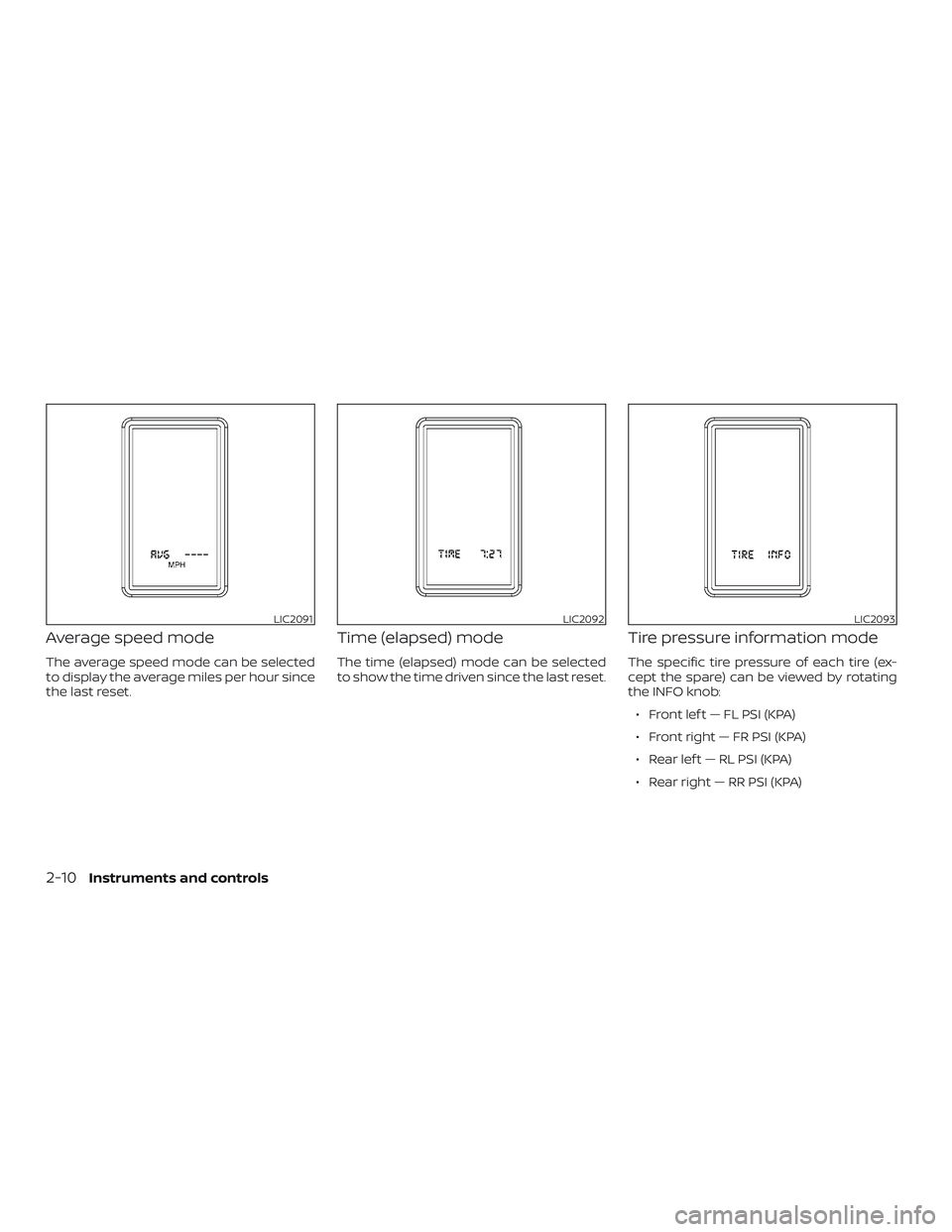

Average speed mode
The average speed mode can be selected
to display the average miles per hour since
the last reset.
Time (elapsed) mode
The time (elapsed) mode can be selected
to show the time driven since the last reset.
Tire pressure information mode
The specific tire pressure of each tire (ex-
cept the spare) can be viewed by rotating
the INFO knob:∙ Front lef t — FL PSI (KPA)
∙ Front right — FR PSI (KPA)
∙ Rear lef t — RL PSI (KPA)
∙ Rear right — RR PSI (KPA)
LIC2091LIC2092LIC2093
2-10Instruments and controls

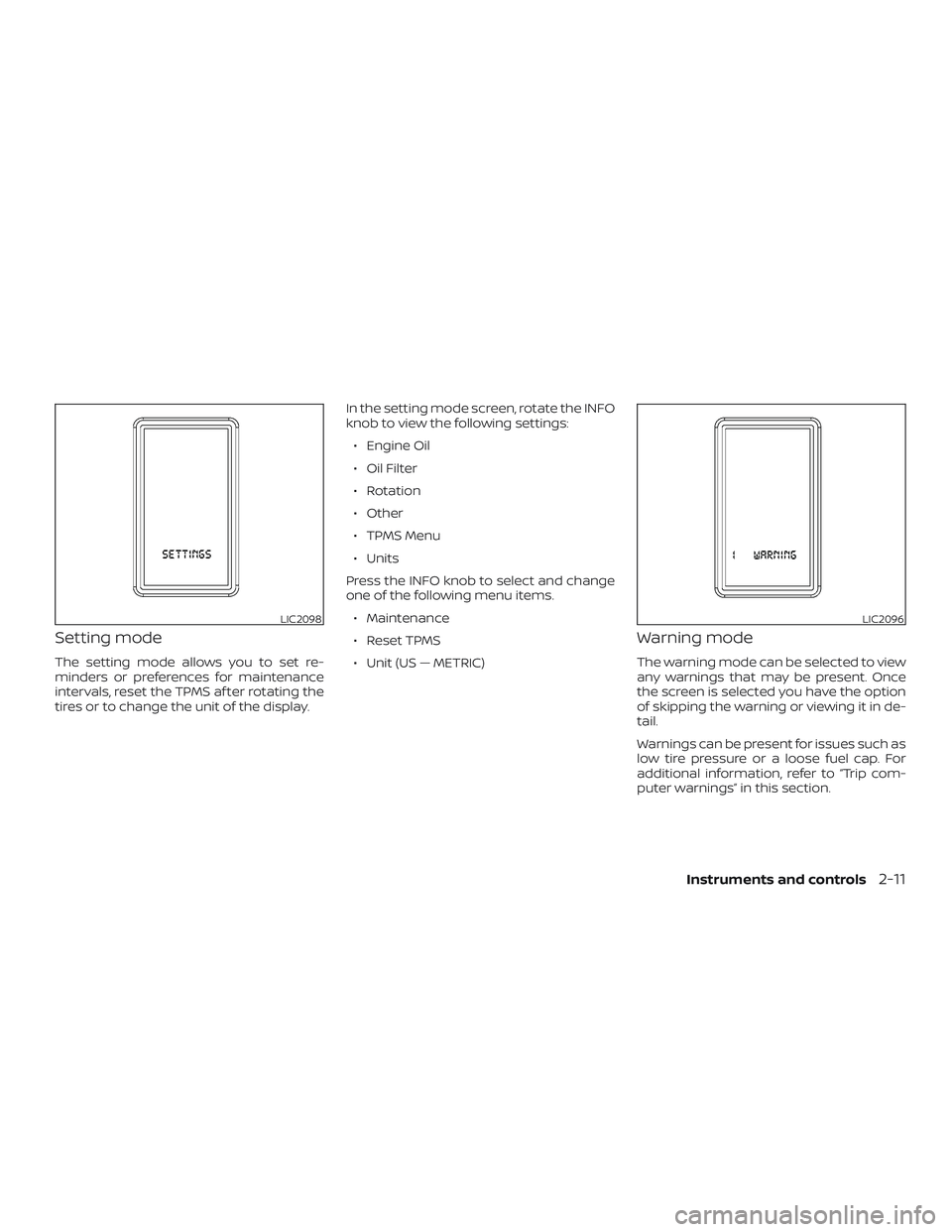

Setting mode
The setting mode allows you to set re-
minders or preferences for maintenance
intervals, reset the TPMS af ter rotating the
tires or to change the unit of the display.In the setting mode screen, rotate the INFO
knob to view the following settings:
∙ Engine Oil
∙ Oil Filter
∙ Rotation
∙ Other
∙ TPMS Menu
∙ Units
Press the INFO knob to select and change
one of the following menu items. ∙ Maintenance
∙ Reset TPMS
∙ Unit (US — METRIC)
Warning mode
The warning mode can be selected to view
any warnings that may be present. Once
the screen is selected you have the option
of skipping the warning or viewing it in de-
tail.
Warnings can be present for issues such as
low tire pressure or a loose fuel cap. For
additional information, refer to “Trip com-
puter warnings” in this section.
LIC2098LIC2096
Instruments and controls2-11

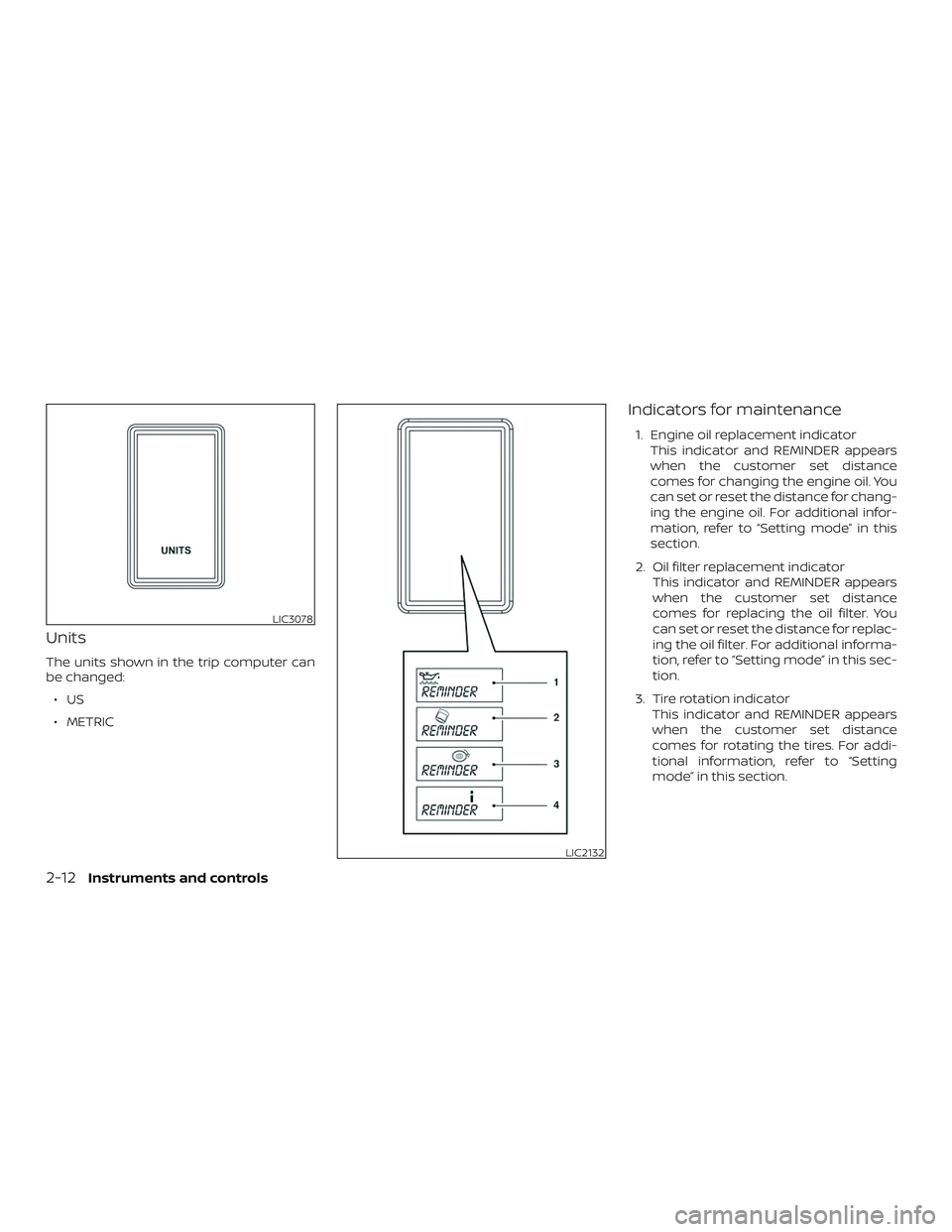

Units
The units shown in the trip computer can
be changed:∙US
∙ METRIC
Indicators for maintenance
1. Engine oil replacement indicator This indicator and REMINDER appears
when the customer set distance
comes for changing the engine oil. You
can set or reset the distance for chang-
ing the engine oil. For additional infor-
mation, refer to “Setting mode” in this
section.
2. Oil filter replacement indicator This indicator and REMINDER appears
when the customer set distance
comes for replacing the oil filter. You
can set or reset the distance for replac-
ing the oil filter. For additional informa-
tion, refer to “Setting mode” in this sec-
tion.
3. Tire rotation indicator This indicator and REMINDER appears
when the customer set distance
comes for rotating the tires. For addi-
tional information, refer to “Setting
mode” in this section.
LIC3078
LIC2132
2-12Instruments and controls

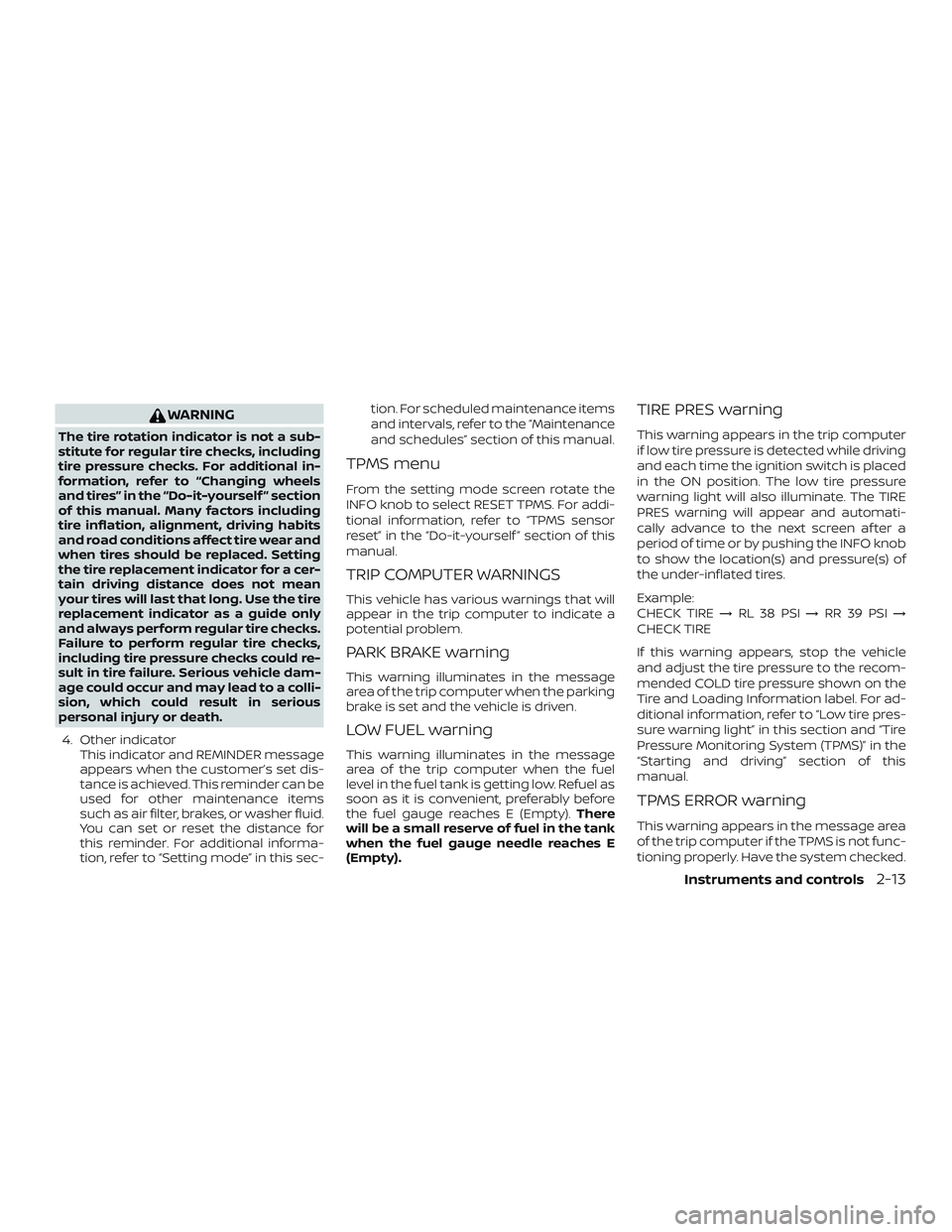

WARNING
The tire rotation indicator is not a sub-
stitute for regular tire checks, including
tire pressure checks. For additional in-
formation, refer to “Changing wheels
and tires” in the “Do-it-yourself ” section
of this manual. Many factors including
tire inflation, alignment, driving habits
and road conditions affect tire wear and
when tires should be replaced. Setting
the tire replacement indicator for a cer-
tain driving distance does not mean
your tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could re-
sult in tire failure. Serious vehicle dam-
age could occur and may lead to a colli-
sion, which could result in serious
personal injury or death.4. Other indicator This indicator and REMINDER message
appears when the customer’s set dis-
tance is achieved. This reminder can be
used for other maintenance items
such as air filter, brakes, or washer fluid.
You can set or reset the distance for
this reminder. For additional informa-
tion, refer to “Setting mode” in this sec- tion. For scheduled maintenance items
and intervals, refer to the “Maintenance
and schedules” section of this manual.
TPMS menu
From the setting mode screen rotate the
INFO knob to select RESET TPMS. For addi-
tional information, refer to “TPMS sensor
reset” in the “Do-it-yourself ” section of this
manual.
TRIP COMPUTER WARNINGS
This vehicle has various warnings that will
appear in the trip computer to indicate a
potential problem.
PARK BRAKE warning
This warning illuminates in the message
area of the trip computer when the parking
brake is set and the vehicle is driven.
LOW FUEL warning
This warning illuminates in the message
area of the trip computer when the fuel
level in the fuel tank is getting low. Refuel as
soon as it is convenient, preferably before
the fuel gauge reaches E (Empty).
There
will be a small reserve of fuel in the tank
when the fuel gauge needle reaches E
(Empty).
TIRE PRES warning
This warning appears in the trip computer
if low tire pressure is detected while driving
and each time the ignition switch is placed
in the ON position. The low tire pressure
warning light will also illuminate. The TIRE
PRES warning will appear and automati-
cally advance to the next screen af ter a
period of time or by pushing the INFO knob
to show the location(s) and pressure(s) of
the under-inflated tires.
Example:
CHECK TIRE →RL 38 PSI →RR 39 PSI →
CHECK TIRE
If this warning appears, stop the vehicle
and adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. For ad-
ditional information, refer to “Low tire pres-
sure warning light” in this section and “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section of this
manual.
TPMS ERROR warning
This warning appears in the message area
of the trip computer if the TPMS is not func-
tioning properly. Have the system checked.
Instruments and controls2-13

It is recommended that you visit a NISSAN
dealer for this service.

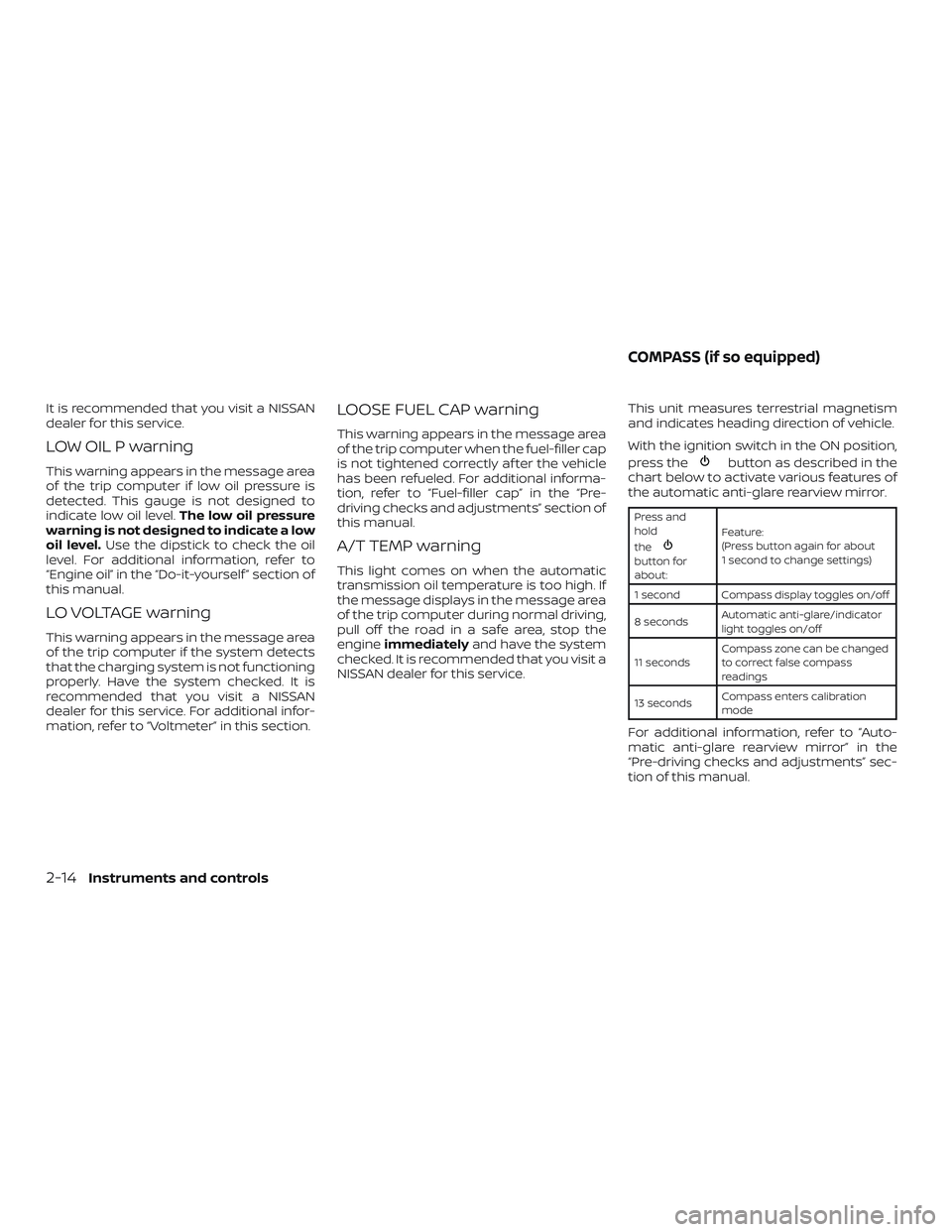

LOW OIL P warning
This warning appears in the message area
of the trip computer if low oil pressure is
detected. This gauge is not designed to
indicate low oil level.The low oil pressure
warning is not designed to indicate a low
oil level. Use the dipstick to check the oil
level. For additional information, refer to
“Engine oil” in the “Do-it-yourself ” section of
this manual.
LO VOLTAGE warning
This warning appears in the message area
of the trip computer if the system detects
that the charging system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service. For additional infor-
mation, refer to “Voltmeter” in this section.
LOOSE FUEL CAP warning
This warning appears in the message area
of the trip computer when the fuel-filler cap
is not tightened correctly af ter the vehicle
has been refueled. For additional informa-
tion, refer to “Fuel-filler cap” in the “Pre-
driving checks and adjustments” section of
this manual.
A/T TEMP warning
This light comes on when the automatic
transmission oil temperature is too high. If
the message displays in the message area
of the trip computer during normal driving,
pull off the road in a safe area, stop the
engine immediately and have the system
checked. It is recommended that you visit a
NISSAN dealer for this service. This unit measures terrestrial magnetism
and indicates heading direction of vehicle.
With the ignition switch in the ON position,
press the
button as described in the
chart below to activate various features of
the automatic anti-glare rearview mirror.
Press and
hold
the
button for
about: Feature:
(Press button again for about
1 second to change settings)
1 second Compass display toggles on/off
8 seconds Automatic anti-glare/indicator
light toggles on/off
11 seconds Compass zone can be changed
to correct false compass
readings
13 seconds Compass enters calibration
mode
For additional information, refer to “Auto-
matic anti-glare rearview mirror” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.
COMPASS (if so equipped)
2-14Instruments and controls

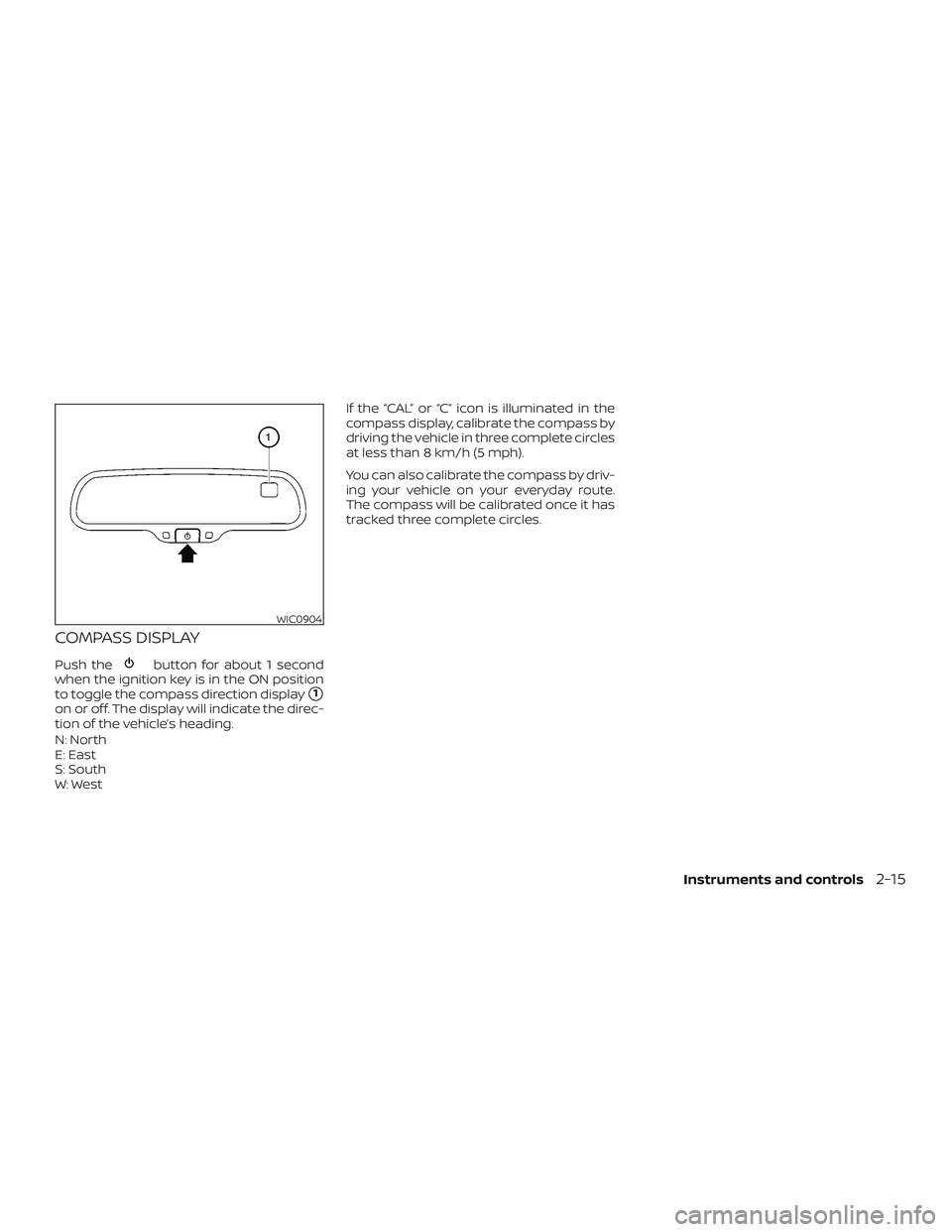

COMPASS DISPLAY
Push thebutton for about 1 second
when the ignition key is in the ON position
to toggle the compass direction display
1
on or off. The display will indicate the direc-
tion of the vehicle’s heading.
N: North
E: East
S: South
W: West If the “CAL” or “C” icon is illuminated in the
compass display, calibrate the compass by
driving the vehicle in three complete circles
at less than 8 km/h (5 mph).
You can also calibrate the compass by driv-
ing your vehicle on your everyday route.
The compass will be calibrated once it has
tracked three complete circles.
