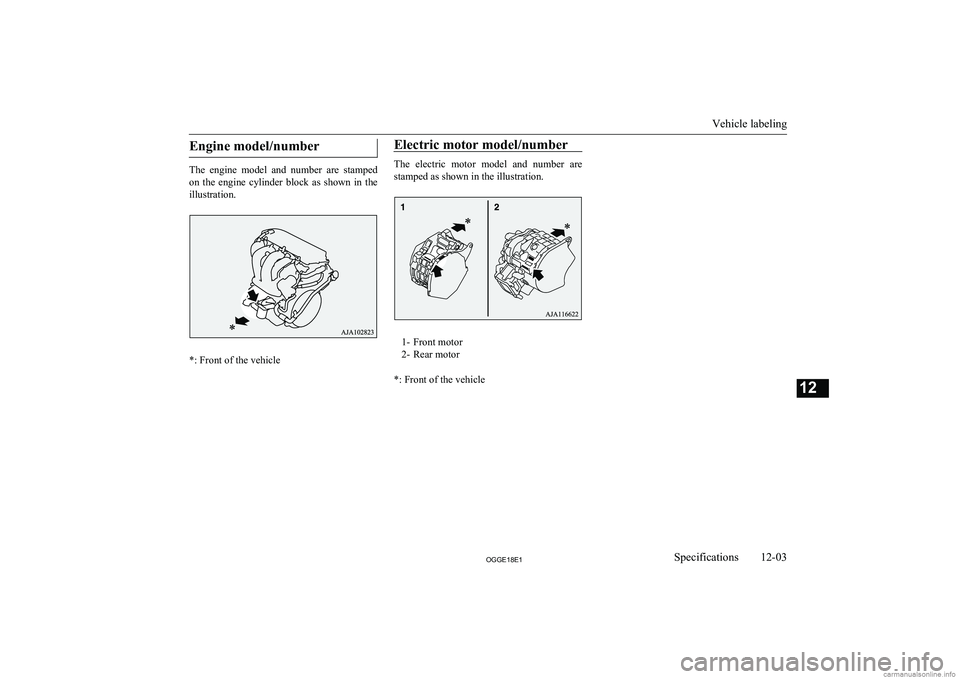

Engine model/number
The engine model and number are stamped
on the engine cylinder block as shown in the illustration.
*: Front of the vehicle
Electric motor model/number
The electric motor model and number are
stamped as shown in the illustration.
1- Front motor
2- Rear motor
*: Front of the vehicle
Vehicle labeling
12-03OGGE18E1Specifications12

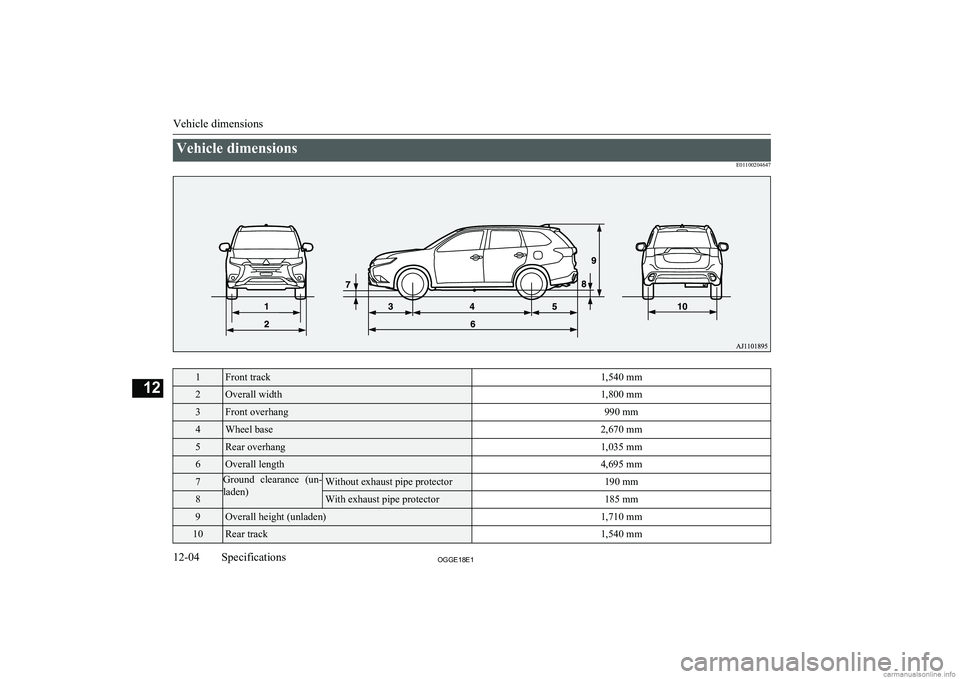

Vehicle dimensionsE011002046471Front track1,540 mm2Overall width1,800 mm3Front overhang990 mm4Wheel base2,670 mm5Rear overhang1,035 mm6Overall length4,695 mm7Ground clearance (un-
laden)Without exhaust pipe protector190 mm8With exhaust pipe protector185 mm9Overall height (unladen)1,710 mm10Rear track1,540 mm
Vehicle dimensions
12-04OGGE18E1Specifications12

Minimum turning radiusBody5.76 mWheel5.3 m

Vehicle performanceE01100303553Maximum speed170 km/h

Vehicle weightE01100408719ItemExcept for S EditionS EditionLHDRHDLHDRHDKerb weightWithout op-tional parts1,860 kg1,880 kgWith full op- tional parts1,929 kg1,927 kg1,937 kg1,935 kgMaximum gross vehicle weight2,370 kgMaximum axle
weightFront1,160 kgRear1,255 kg, 1,365 kg *Maximum towable
weightWith brake1,500 kgWithout brake750 kgMaximum trailer-nose weight75 kg* : In case of trailer towing
Vehicle performance
12-05OGGE18E1Specifications12

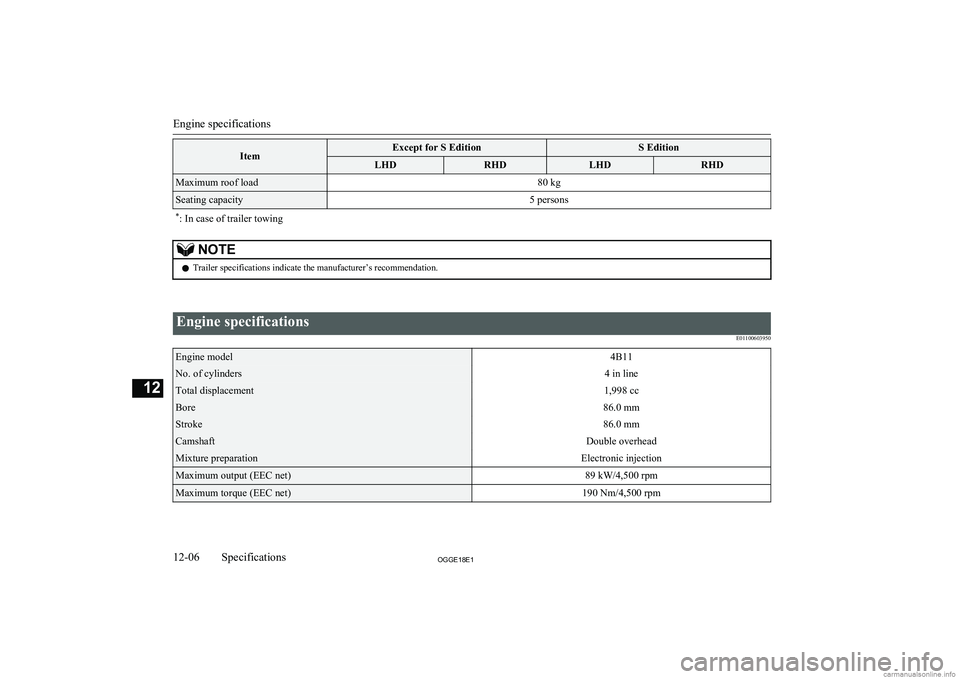

ItemExcept for S EditionS EditionLHDRHDLHDRHDMaximum roof load80 kgSeating capacity5 persons*: In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Engine specifications
E01100603950Engine model4B11No. of cylinders4 in lineTotal displacement1,998 ccBore86.0 mmStroke86.0 mmCamshaftDouble overheadMixture preparationElectronic injectionMaximum output (EEC net)89 kW/4,500 rpmMaximum torque (EEC net)190 Nm/4,500 rpm

Engine specifications
12-06OGGE18E1Specifications12

Charging system specificationsE01101901190
Normal charging system
Rated input voltageAC 230V (single phase)Rated input frequency50 Hz/60 HzMaximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)EN61851-1
IEC61851-1
IEC62196-1On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2IP degreesIP44: When a charge connector is connected
IP55: When charging lid is closed and vehicle is moving
Quick charging system
Applicable standardsIEC62196-1 CHAdeMOMaximum input current60 A
IP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving*1: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)

Charging system specifications
12-07OGGE18E1Specifications12

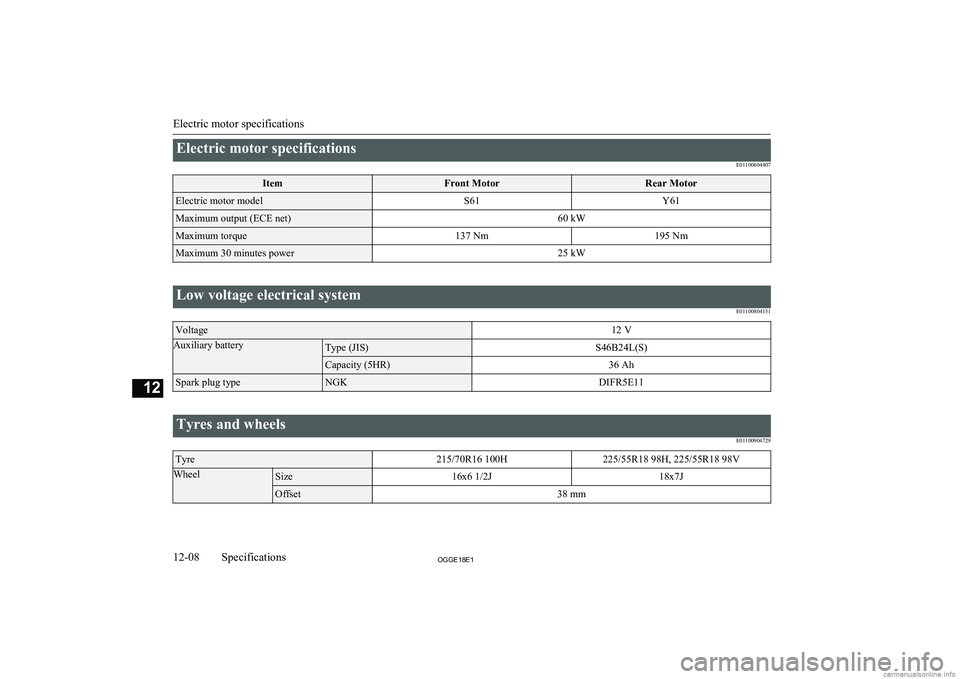

Electric motor specificationsE01100604407ItemFront MotorRear MotorElectric motor modelS61Y61Maximum output (ECE net)60 kWMaximum torque137 Nm195 NmMaximum 30 minutes power25 kW

Low voltage electrical systemE01100804151Voltage12 VAuxiliary batteryType (JIS)S46B24L(S)Capacity (5HR)36 AhSpark plug typeNGKDIFR5E11

Tyres and wheelsE01100904729Tyre215/70R16 100H225/55R18 98H, 225/55R18 98VWheelSize16x6 1/2J18x7JOffset38 mm
Electric motor specifications
12-08OGGE18E1Specifications12

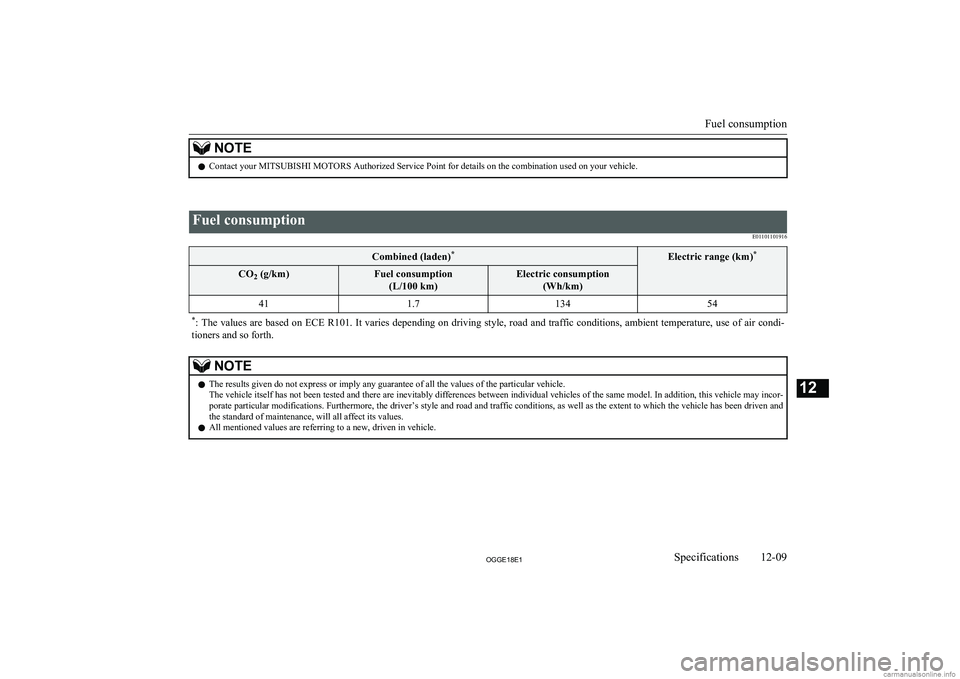

NOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Fuel consumption
E01101101916Combined (laden)*Electric range (km) *CO
2 (g/km)Fuel consumption
(L/100 km)Electric consumption (Wh/km)411.713454*: The values are based on ECE R101. It varies depending on driving style, road and traffic conditions, ambient temperature, use of air condi-
tioners and so forth.NOTEl The results given do not express or imply any guarantee of all the values of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its values.
l All mentioned values are referring to a new, driven in vehicle.

Fuel consumption
12-09OGGE18E1Specifications12

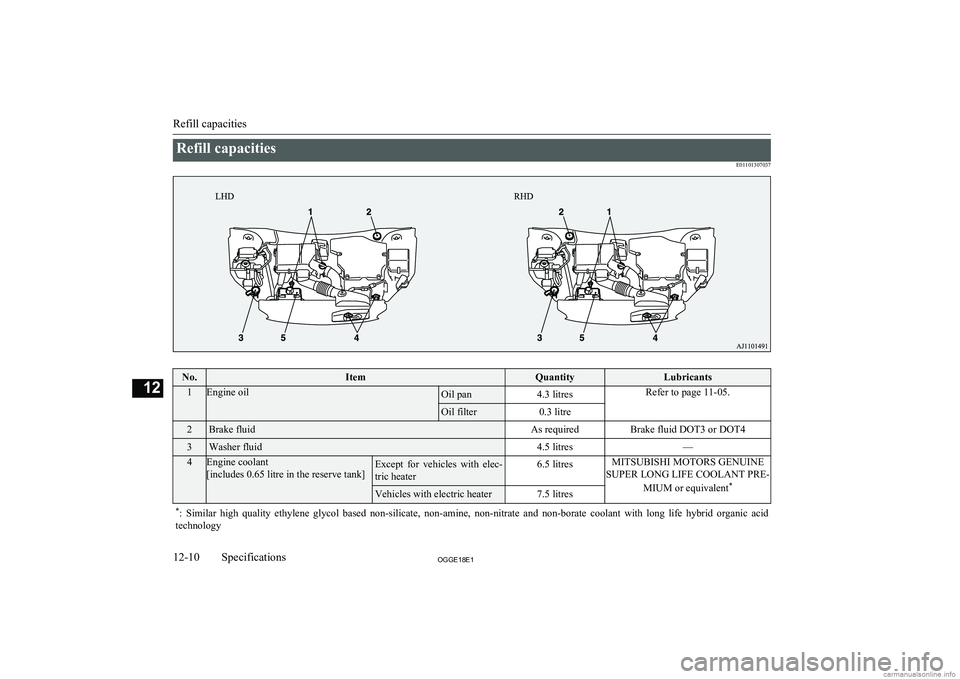

Refill capacitiesE01101307037No.ItemQuantityLubricants1Engine oilOil pan4.3 litresRefer to page 11-05.Oil filter0.3 litre2Brake fluidAs requiredBrake fluid DOT3 or DOT43Washer fluid4.5 litres—4Engine coolant
[includes 0.65 litre in the reserve tank]Except for vehicles with elec- tric heater6.5 litresMITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PRE-
MIUM or equivalent *Vehicles with electric heater7.5 litres*
: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technology
Refill capacities
