2018 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

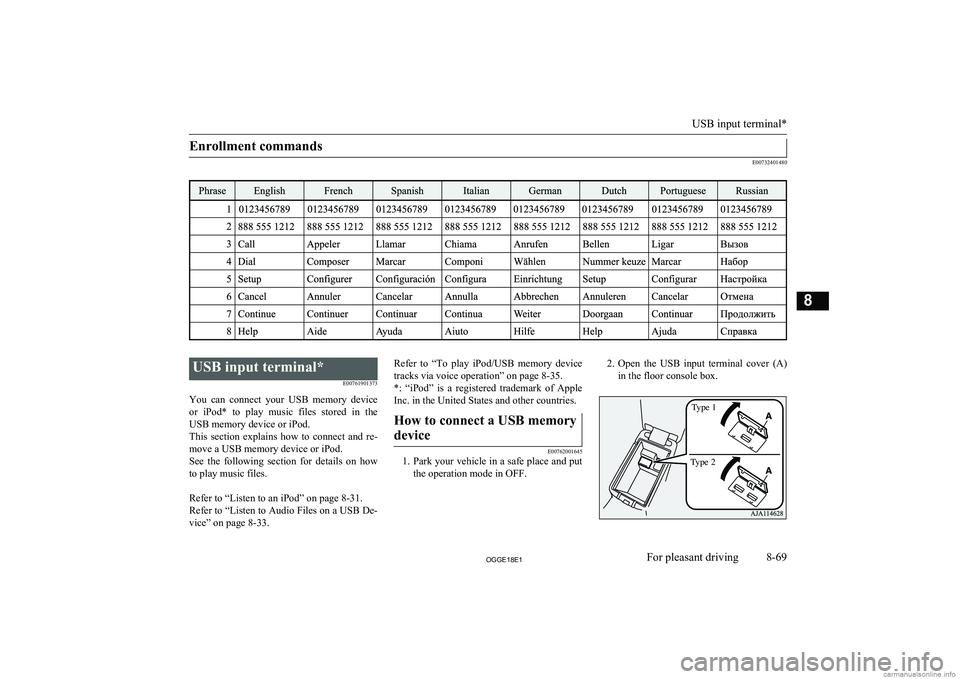

Enrollment commands
E00732401480

USB input terminal*E00761901373
You can connect your USB memory device or iPod* to play music files stored in the USB memory device or iPod.
This section explains how to connect and re-
move a USB memory device or iPod.
See the following section for details on how
to play music files.

Refer to “Listen to an iPod” on page 8-31.
Refer to “Listen to Audio Files on a USB De-
vice” on page 8-33.Refer to “To play iPod/USB memory device
tracks via voice operation” on page 8-35.
*: “iPod” is a registered trademark of Apple
Inc. in the United States and other countries.How to connect a USB memory
device
E00762001645
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover (A)
in the floor console box.
USB input terminal*
8-69OGGE18E1For pleasant driving8 Type 1
Type 2

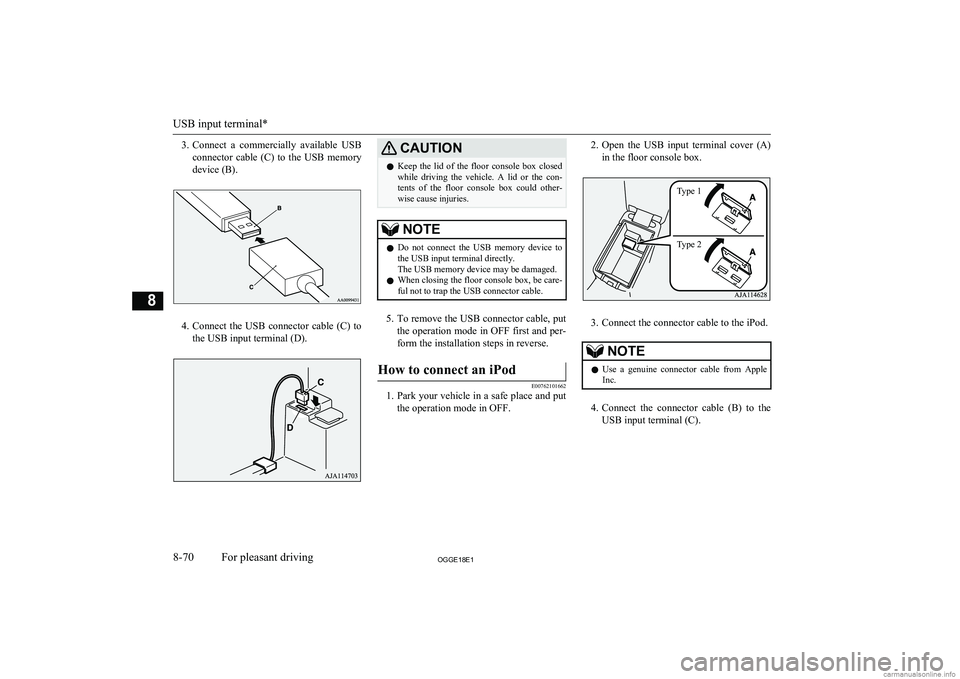

3.Connect a commercially available USB
connector cable (C) to the USB memory
device (B).
4. Connect the USB connector cable (C) to
the USB input terminal (D).
CAUTIONl Keep the lid of the floor console box closed
while driving the vehicle. A lid or the con- tents of the floor console box could other-
wise cause injuries.NOTEl Do not connect the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
l When closing the floor console box, be care-
ful not to trap the USB connector cable.
5. To remove the USB connector cable, put
the operation mode in OFF first and per-
form the installation steps in reverse.
How to connect an iPod
E00762101662
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover (A)
in the floor console box.
3. Connect the connector cable to the iPod.
NOTEl Use a genuine connector cable from Apple
Inc.
4. Connect the connector cable (B) to the
USB input terminal (C).
USB input terminal*
8-70OGGE18E1For pleasant driving8 Type 2
Type 1

CAUTIONlKeep the lid of the floor console box closed
while driving the vehicle. A lid or the con- tents of the floor console box could other-
wise cause injuries.NOTEl When closing the floor console box, be care-
ful not to trap the connector cable.
5. To remove the connector cable, put the
operation mode in OFF first and perform the installation steps in reverse.
Types of connectable devices
and supported file specifica-tions
E00762201399
Except for vehicles equipped with the
Bluetooth ®
2.0 interface
For details about the types of connectable de- vices and supported file specifications, referto the following pages and manuals.

[For vehicles equipped with the
LW/MW/FM radio/CD player]
Refer to “Listen to an iPod” on page 8-31,
“Listen to Audio Files on a USB Device” on page 8-33 and “Audio Files (MP3/WMA/
AAC)” on page 8-19.

[For vehicles equipped with the MITSUBISHI Multi-Communication Sys-
tem (MMCS), the Smartphone Link Dis-
play Audio or the DISPLAY AUDIO]
Refer to the separate owner’s manual.

For vehicles equipped with the Bluetooth ®
2.0 interface For details about the types of connectable de- vices and supported file specifications, referto the following section.
Device typesE00762301446
Devices of the following types can be con- nected.
Model nameConditionUSB memory deviceStorage capacity
of 256 Mbytes or
moreModels other than USB memory devices andiPodsDigital audio play-
er supporting mass
storage class
For connectable device type for “iPod *
,”
“iPod classic *
,” “iPod nano *
,” “iPod touch *
”
and “iPhone *
,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html
NOTEl Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.* “iPod,” “iPod classic,” “iPod nano,” “iPod
touch” and “iPhone” are registered trade-marks of Apple Inc. in the United States and other countries.
USB input terminal*
8-71OGGE18E1For pleasant driving8

NOTElIt is recommended to use an iPod with firm-
ware updated to the latest version.
l You can charge your iPod by connecting it
to the USB input terminal when the opera-tion mode is in ON or ACC.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.
l Do not connect to the USB input terminal
any device (hard disk, card reader, memory reader, etc.) other than the connectable devi- ces specified in the previous section. The de- vice and/or data may be damaged. If any of
these devices was connected by mistake, re- move it after putting the operation mode inOFF.File specifications

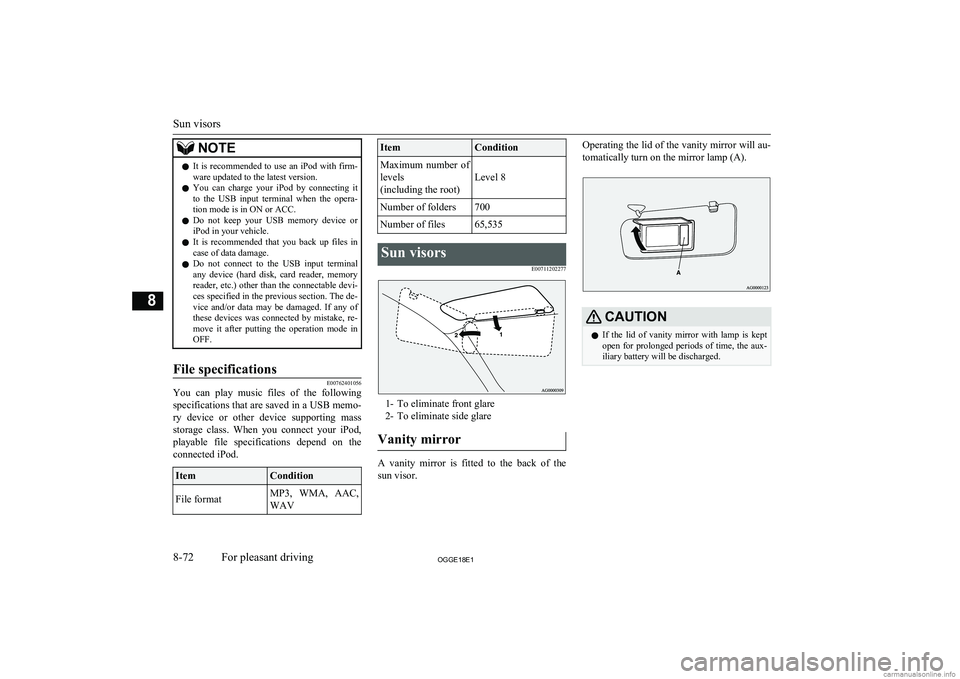

E00762401056
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVItemConditionMaximum number of levels
(including the root)
Level 8
Number of folders700Number of files65,535Sun visors
E00711202277
1- To eliminate front glare2- To eliminate side glare
Vanity mirror
A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will au-
tomatically turn on the mirror lamp (A).CAUTIONl If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the aux-
iliary battery will be discharged.
Sun visors
8-72OGGE18E1For pleasant driving8

Card holder
Cards can be slipped into the holder (B) onthe back of the sun visor.
Ashtray*
E00711401100CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Cigarette lighter*
E00711502759
The cigarette lighter can be used while the
operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.
Ashtray*
8-73OGGE18E1For pleasant driving8

CAUTIONlDo not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance when the ready indicator is not il-

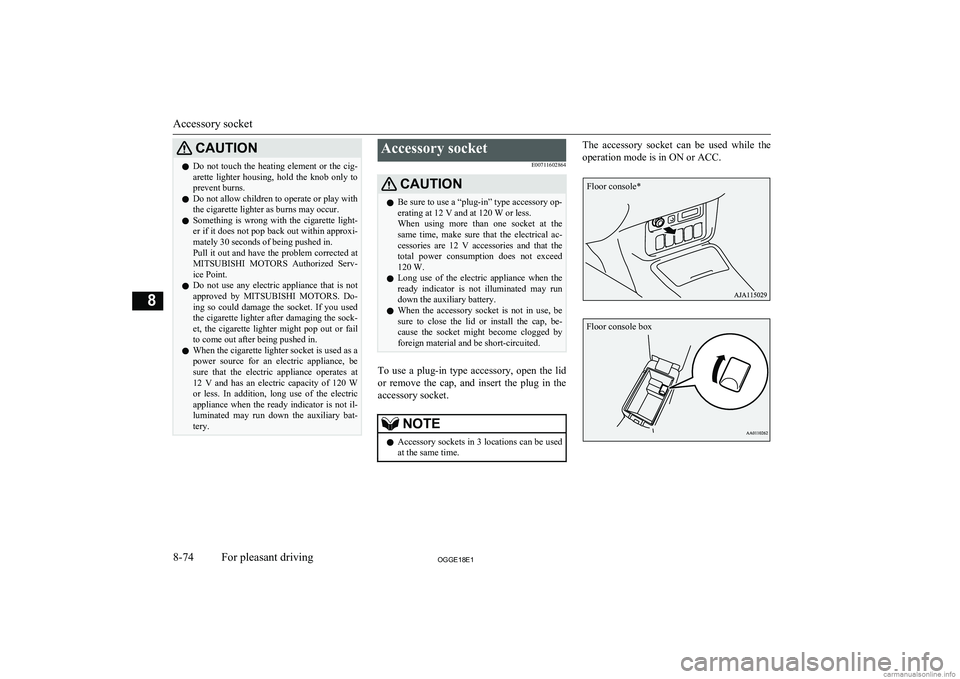

luminated may run down the auxiliary bat- tery.Accessory socket
E00711602864CAUTIONlBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac-
cessories are 12 V accessories and that the total power consumption does not exceed
120 W.
l Long use of the electric appliance when the
ready indicator is not illuminated may run
down the auxiliary battery.
l When the accessory socket is not in use, be
sure to close the lid or install the cap, be-
cause the socket might become clogged by foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
NOTEl Accessory sockets in 3 locations can be used
at the same time.The accessory socket can be used while the
operation mode is in ON or ACC.
Accessory socket
8-74OGGE18E1For pleasant driving8 Floor console* Floor console box

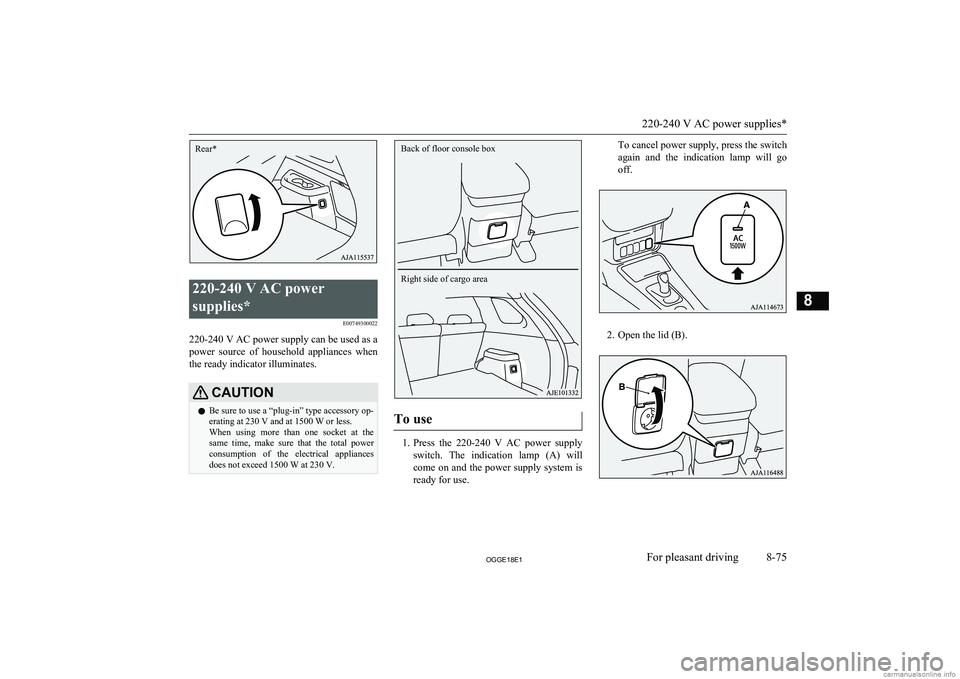

220-240 V AC power
supplies* E00749300022
220-240 V AC power supply can be used as a
power source of household appliances when
the ready indicator illuminates.
CAUTIONl Be sure to use a “plug-in” type accessory op-
erating at 230 V and at 1500 W or less.
When using more than one socket at the same time, make sure that the total power
consumption of the electrical appliances
does not exceed 1500 W at 230 V.
To use
1. Press the 220-240 V AC power supply
switch. The indication lamp (A) will come on and the power supply system is ready for use.
To cancel power supply, press the switch
again and the indication lamp will go
off.
2. Open the lid (B).
220-240 V AC power supplies*
8-75OGGE18E1For pleasant driving8Rear* Back of floor console box
Right side of cargo area

3.Insert the plug in the power outlet firm-
ly. Make sure that the plug is connected
correctly.
4. Disconnect the plug and close the lid af-
ter using the electrical appliance.
WARNINGl Never use the 220-240 V AC power supply
to charge an electric vehicle or a plug-in
hybrid vehicle. Also, never connect the 220-240 V AC power supply to a house-
hold powerline or a distribution panel. This may lead to an electric shock or a
malfunction.
l Do not connect or disconnect the plug
with a wet hand. Doing so can cause an electric shock.
l Never pull the cable to remove the plug.
Pull straight while holding the plug of an electrical appliance.
l Do not disassemble or modify the 220-240
V AC power supply.WARNINGl When using electrical appliance while
driving, make sure that it is firmly se- cured. Flying objects entering the passen-
ger compartment during sudden braking or sharp turning could result in a serious
accident and/or injury.
Refer to “Luggage hooks” on page 8-85.
l Do not use an electrical appliance which
emits steam while the windows are closed.Lack of visibility due to steam could lead
to an accident.
l While using the 220-240 V AC power sup-
ply, even if the engine is not running, the engine may automatically start later de- pending on the condition of the Plug-in
Hybrid EV system and/or the drive bat-
tery.
• Before using the 220-240 V AC power
supply while the vehicle is stationary, to
prevent the vehicle from moving abruptly, apply the parking brake
firmly and press the electrical parking switch and make sure that the select
position indicator on the multi-infor- mation displays “P” (PARK).
Also, to avoid activating the selector
lever, do not place a power cord on or
near the lever.
• Never use the 220-240 V AC power
supply in a closed or poorly ventilated area, such as in a garage or an area
surrounded by snow banks. Carbon
monoxide gas, which is odorless and ex- tremely poisonous, could build up and
cause serious injury or death.WARNING• When using the 220-240 V AC power
supply while it is raining or snowing,
do not leave the door or tailgate open.
Wetting the 220-240 V AC power sup- ply may cause overheating resulting in a fire and/or electrical shock.
l Never use a multi-plug adapter or conver-
sion adapter. Using them may cause over-
heating resulting in fire.
l If you use an electrical appliance that
emits light, your visibility at night may be
affected which could impede safe driving.
l Do not spill a beverage on the 220-240 V
AC power supply. This may cause over- heating resulting in a fire and/or electrical
shock.
l Do not let children touch the 220-240 V
AC power supply.
l The cooling fan in the engine compart-
ment may automatically operate when us-ing the 220-240 V AC power supply. Keep your hands and clothes away from the
cooling fan.
l Never use the 220-240 V AC power supply
when lightning or thunder is observed or
expected.
l Never use the 220-240 V AC power supply
for electromedical apparatus.
220-240 V AC power supplies*
8-76OGGE18E1For pleasant driving8
