2018 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

NOTElIn order to make it possible to check that the
doors and tailgate are locked, you cannot un-
lock them by using the tailgate open switch for 3 seconds after locking them.
l The time allowed for checking that the vehi-
cle is locked can be adjusted. For further in- formation, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
l The time between unlocking and automatic
locking can be adjusted. Please consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
Operation confirmation when locking and
unlocking
Operation can be confirmed as shown below. However, the room lamp will only illuminate if the front room lamp switch is in the
“DOOR” position or the rear room lamp switch is in the middle (•) position.
When locking:The turn-signal
lamps will blink
once.When unlocking:The room lamp illu-
minates for approxi-
mately 15 seconds,
the turn-signal lamps
blink twice.NOTEl Functions can be modified as stated below.
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
• Set the confirmation function (blinking of
the turn-signal lamps) to operate onlywhen the vehicle is locked or only when
the vehicle is unlocked.
• Disable the operation confirmation func-
tion (blinking of the turn-signal lamps).
• Change the number of blinks for the oper-
ation confirmation function (blinks of the turn-signal lamps).
Keyless operation system
4-11OGGE18E1Locking and unlocking4

Warning activation
E00305902204
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the buzzer and the display on the information screen
in the multi-information display are used to alert the driver.If a warning is activated, always check the vehicle and the keyless operation key. The warning is also displayed if there is a fault in the keyless operation system.
ItemDisplayBuzzerNote (Solution)Detection of failureInner buzzer sounds
once.There is a fault in the keyless operation system.Fall of battery voltageInner buzzer sounds
once.The battery starts to run out, the warning is activated. (The warning is not activated if the battery is completely dead.)Key not detectedInner buzzer sounds
once.When the operation mode of the power switch is put in ACC or
ON from OFF or when the Plug-in Hybrid EV System is started, the warning is activated, if any of the following conditions is oc-
curred.
l Carrying another keyless operation key with a different
code, or the keyless operation key could be outside the op- erating range.
l The battery of the keyless operation key is dead.
l Communication is blocked by electric wave environment.Keyless operation key
reminderInner buzzer sounds ap-
proximately 1 minute
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyIf the operation mode is in OFF and the driver’s door is opened
with the keyless operation key in the key slot, a warning is is-
sued and the outer buzzer sounds for approximately 3 seconds
and the inner buzzer sounds for approximately 1 minute to re-
mind you to remove the key. If the key removed from key slot,
the buzzer is stopped.
Keyless operation system
4-12OGGE18E1Locking and unlocking4

ItemDisplayBuzzerNote (Solution)Keyless operation key
take-out monitoring sys-
temInner buzzer sounds
once.
Outer buzzer sounds in-
termittently.l When the vehicle is parked with the operation mode in any
mode other than OFF, if you close the door after opening
any of the doors and taking the keyless operation key out of
the vehicle, a warning is issued until the key is detected in the vehicle.
l If you take the keyless operation key out of the vehicle
through a window without opening a door, the keyless op-
eration key take-out monitoring system does not operate.
l It is possible to change the setting to make the keyless oper-
ation key take-out monitoring system operate if you take
the keyless operation key out from the vehicle through a
window without opening a door.
For further information, please contact a MITSUBISHI
MOTORS Authorized Service Point.
l Even if you have the keyless operation key within the oper-
ating range for starting the Plug-in Hybrid EV System, if
the keyless operation key and vehicle ID codes cannot be matched, for example due to the ambient environment or
electromagnetic conditions, the warning may be activated.Key lock-in prevention
systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyl When the operation mode is in OFF, if you close all the
doors and the tailgate with the keyless operation key left inthe vehicle and you try to lock the doors and tailgate by
pressing the driver’s or front passenger’s door lock/unlock
switch, or the tailgate LOCK switch, a warning is issued
and you cannot lock the doors and tailgate.
l Make sure you have the keyless operation key with you be-
fore locking the doors. Even if you leave the keyless opera- tion key inside the vehicle, it is possible that the doors will
lock depending on the surrounding environment and wire- less signal conditions.
Keyless operation system
4-13OGGE18E1Locking and unlocking4

ItemDisplayBuzzerNote (Solution)Door ajar prevention
systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyWhen the operation mode in OFF, if you try to lock the doors
and tailgate by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch with one of the
doors or the tailgate not completely closed, a warning is issued
and you cannot lock the doors and tailgate.Operation mode OFF re-
minder systemInner buzzer sounds
once.
Outer buzzer sounds ap-
proximately 3 seconds
intermittentlyWhen the operation mode is in any mode other than OFF, if you
close all the doors and the tailgate then try to lock the doors and
tailgate by pressing the driver’s or front passenger’s door lock/
unlock switch, or the tailgate LOCK switch, a warning is issued and you cannot lock the doors and tailgate.

To operate without using the
keyless operation function
E00306000019
Emergency key
E00307201725
The emergency key is built into the keyless operation key. If the keyless operation func-
tion cannot be used, for example because the keyless operation key battery has worn out or the vehicle battery is flat, you can lock and
unlock the driver’s door with the emergency
key.
To use the emergency key (A), unlock the lock knob (B) and remove it from the keyless
operation key (C).
Refer to “Doors” on page 4-14, or “If the
keyless operation key is not operating proper- ly” on page 7-15.NOTEl Only use the emergency key for emergen-
cies. If the keyless operation key batterywears out, replace it as quickly as possible
so that you can use the keyless operation
key.
l After using the emergency key, always re-
turn it into the keyless operation key.Doors
E00300403719CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.
Doors
4-14OGGE18E1Locking and unlocking4

CAUTIONlBe careful not to lock the doors while the
key is inside the vehicle.NOTEl To prevent the key from being locked inside
the vehicle, neither the lock knob on the
driver’s door nor the key can be used to lock the driver’s door when it is open.
To lock or unlock with the key
1- Lock
2- Unlock
NOTEl When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors, the charging lid and the tailgate, use the central door lock
switch, the keyless entry system or the key-
less operation function.
Refer to “Central door locks” on page 4-16,
“Keyless entry system” on page 4-03, and
“To operate using the keyless operation function” on page 4-09.
l The charging lid can be locked or unlocked
at the same time when the driver’s door islocked or unlocked using the key.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you to open the door.NOTEl The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
l The charging lid can be locked or unlocked
at the same time when the driver’s door is locked or unlocked using the lock knob.
However, the charging lid cannot be un- locked while the operation mode of the pow-
er switch is in ON.
To lock without using the key
Front passenger’s door, Rear
door
Doors
4-15OGGE18E1Locking and unlocking4

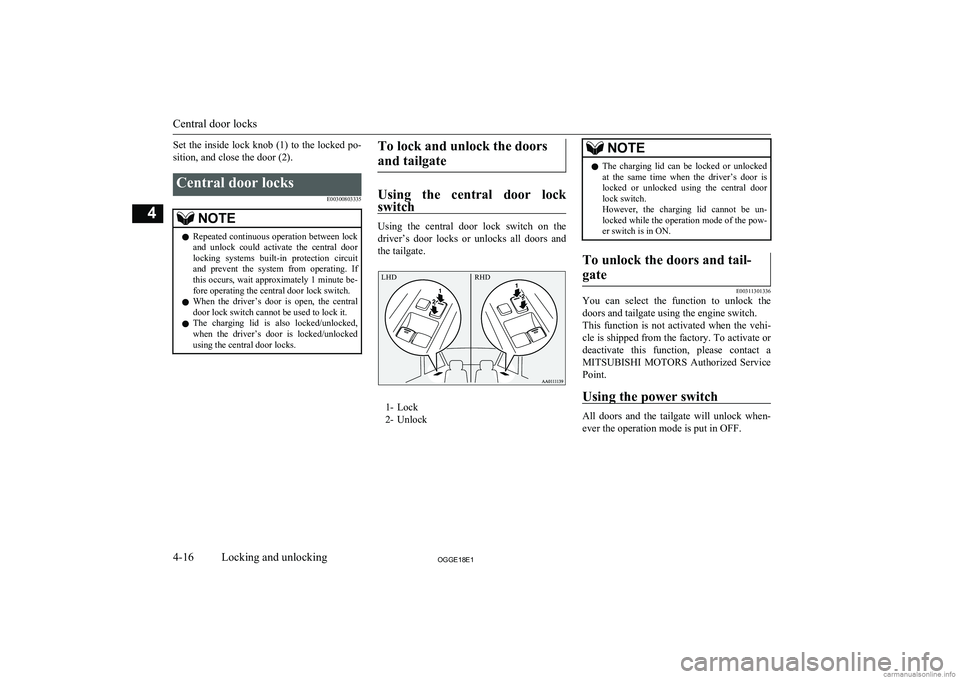

Set the inside lock knob (1) to the locked po-
sition, and close the door (2).Central door locks
E00300803335NOTElRepeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating. If
this occurs, wait approximately 1 minute be- fore operating the central door lock switch.
l When the driver’s door is open, the central
door lock switch cannot be used to lock it.
l The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked using the central door locks.To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
1- Lock
2- Unlock
NOTEl The charging lid can be locked or unlocked
at the same time when the driver’s door islocked or unlocked using the central doorlock switch.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.To unlock the doors and tail-
gate
E00311301336
You can select the function to unlock the doors and tailgate using the engine switch.
This function is not activated when the vehi- cle is shipped from the factory. To activate or
deactivate this function, please contact a MITSUBISHI MOTORS Authorized Service
Point.
Using the power switch
All doors and the tailgate will unlock when-
ever the operation mode is put in OFF.
Central door locks
4-16OGGE18E1Locking and unlocking4 LHD RHD

Dead Lock System*E00305100198
The Dead Lock System helps prevent theft.
When the keyless entry system or the keyless operation system has been used to lock all of
the doors and the tailgate, the Dead Lock System makes it impossible to unlock the
doors using the inside lock knobs.CAUTIONl Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock
the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un- lock the doors using the UNLOCK switch
on the remote control switch or using the
keyless operation function.Setting the system
E00305201330
1. Put the operation mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front passenger’s door lock/unlock switch (C),
or the tailgate LOCK switch (D) to lock
all of the doors and the tailgate. The turn-signal lamps will blink once.
4. Press the switch again within 2 seconds.
The turn-signal lamps will blink threetimes to show that the Dead Lock Sys-
tem has been set.NOTEl Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
E00305301432
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously cancelled.
l The UNLOCK switch (B) on the remote
control switch is pressed.
l The drive’s or front passenger’s door
lock/unlock switch (C) or the tailgate
open switch (E) is pressed while you are
carrying the keyless operation key.
Dead Lock System*
4-17OGGE18E1Locking and unlocking4 Driver’s and front passenger’s door lock/unlock
switches* Tailgate switches*

NOTElIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate open switch), the doors andtailgate are automatically relocked and the
Dead Lock System is simultaneously set again.
l Even when it is not possible to use the key-
less entry system or keyless operation func- tion to unlock the doors, it is possible to use
the key to unlock the driver’s door. When the key is used to unlock the driver’s door,
the Dead Lock System is cancelled for only the driver’s door. If you wish to subsequent-
ly unlock all other doors, turn the ignition switch to the “ON” or “ACC” position, orput the operation mode in on or ACC.
l It is possible to adjust the time between
pressing the UNLOCK switch (B) on the re-
mote control switch or the driver’s or front passenger’s door lock/unlock switch (C) andautomatic locking. For details, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.NOTEl It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (C), or the tailgate lock switch (D).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400159
Open all of the door windows, then set the
Dead Lock System.
(Refer to “Setting the system” on page 4-17.)
After setting the Dead Lock System, reach into the vehicle through a window and con-
firm that you cannot unlock the doors using
the lock knobs.
NOTEl If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.“Child-protection” rear
doors E00300901042
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
“Child-protection” rear doors
4-18OGGE18E1Locking and unlocking4
