Rear-centre 3-point type seatbelt
E00405201184
The rear-centre 3-point type seat belt must be
worn correctly as illustrated.
WARNINGl Be sure to securely connect the both latch
plate (A and B). Failing to do so could sig-
nificantly reduce the amount of protection
and cause serious injures in a collision or a sudden stop.NOTEl If the seat belt buckles in the rear seating po-
sition are not found, you will find them un-
der the rear seat cushion.
Refer to “Making a luggage area” on page 5-06 for how to put the seat belt buckles at
the proper position.To fasten
1. Pull out the buckle (C) from the seat-
back.
2. Pull out the small latch plate (A) and
then pull out the latch plate (B) by tilting
it as shown in the illustration.
NOTEl Pulling out the latch plate by force may
damage the headliner.
3. Pull the seat belt and insert the small
latch plate (A) into the buckle (C).
4. Insert the latch plate (B) into the buckle
(D).
5. Pull the belt slightly to adjust slackness
as desired.
To unfasten
1. Hold the latch plate and push the button
on the buckle.
NOTEl As the belt retracts automatically, keep hold-
ing the latch plate while retracting so that the
belt stows slowly. Failure to do this could damage the vehicle.
l To release the buckle (C), press the button
(E) with a narrow-tipped object (latch plate
or mechanical key etc.).
Seat belts
5-13OGGE18E1Seats and seat belts5AA0111461

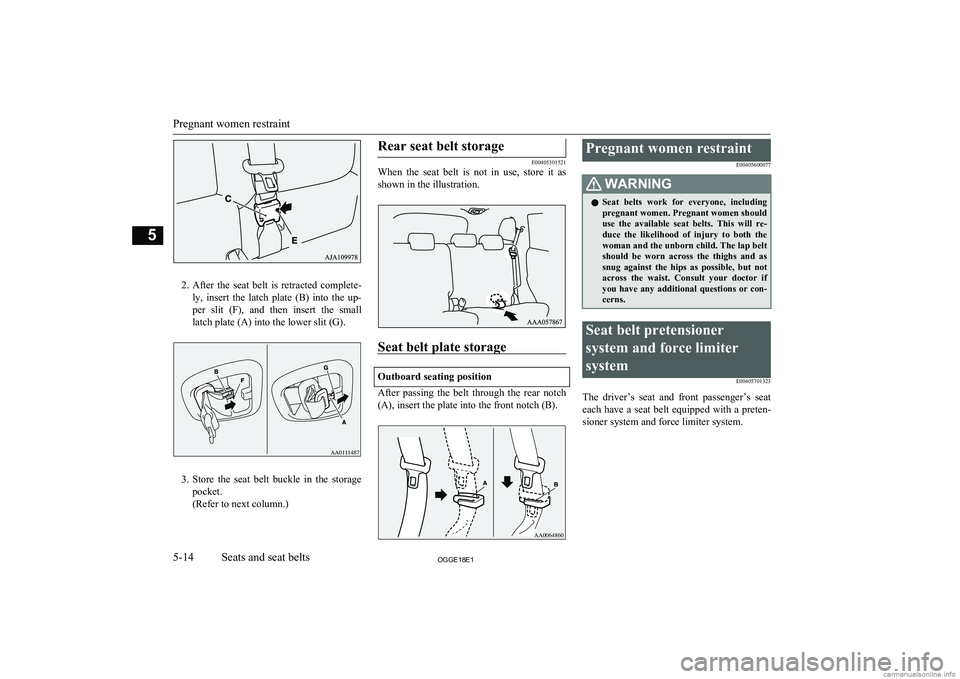

2.After the seat belt is retracted complete-
ly, insert the latch plate (B) into the up-
per slit (F), and then insert the small
latch plate (A) into the lower slit (G).
3. Store the seat belt buckle in the storage
pocket.
(Refer to next column.)
Rear seat belt storage
E00405301521
When the seat belt is not in use, store it as
shown in the illustration.
Seat belt plate storage
Outboard seating position
After passing the belt through the rear notch
(A), insert the plate into the front notch (B).
Pregnant women restraint
E00405600077WARNINGlSeat belts work for everyone, including
pregnant women. Pregnant women should
use the available seat belts. This will re- duce the likelihood of injury to both thewoman and the unborn child. The lap belt
should be worn across the thighs and as snug against the hips as possible, but not
across the waist. Consult your doctor if you have any additional questions or con-
cerns.Seat belt pretensioner
system and force limiter
system E00405701323
The driver’s seat and front passenger’s seateach have a seat belt equipped with a preten- sioner system and force limiter system.
Pregnant women restraint
5-14OGGE18E1Seats and seat belts5 AA0111487 AA0064860

Pretensioner system
E00405802523
When the operation mode of the power
switch is in ON, if there is a frontal impact or a side impact severe enough to injure the
driver and/or front passenger, the pretension- er system will retract their respective seat
belts instantaneously, thus maximizing the seat belt’s effectiveness.
WARNINGl To obtain the best results from your pre-
tensioner seat belt, make sure you have adjusted your seat correctly and wear your seat belt properly.CAUTIONl Installation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.
l If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
It is important to do so because unexpected activation of the pretensioner seat belts
could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe impact, even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat
belts have been activated, we recommend you have it replaced by a MITSUBISHI
MOTORS Authorized Service Point.SRS warning
E00405900360
The same warning lamp/display is shared by
the SRS airbags and the pretensioner seat
belts.
Refer to “SRS warning lamp/display” on page 5-36.
Force limiter system
E00406000209
In the event of a collision, each force limitersystem will effectively absorb the load ap- plied to the seat belt to minimize the impact
to the passenger.
Child restraint
E00406403507
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil-
dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.
l When attaching a child restraint system
to the rear seat, prevent the front seat- backs from touching the child restraintsystem.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.
Child restraint
5-15OGGE18E1Seats and seat belts5

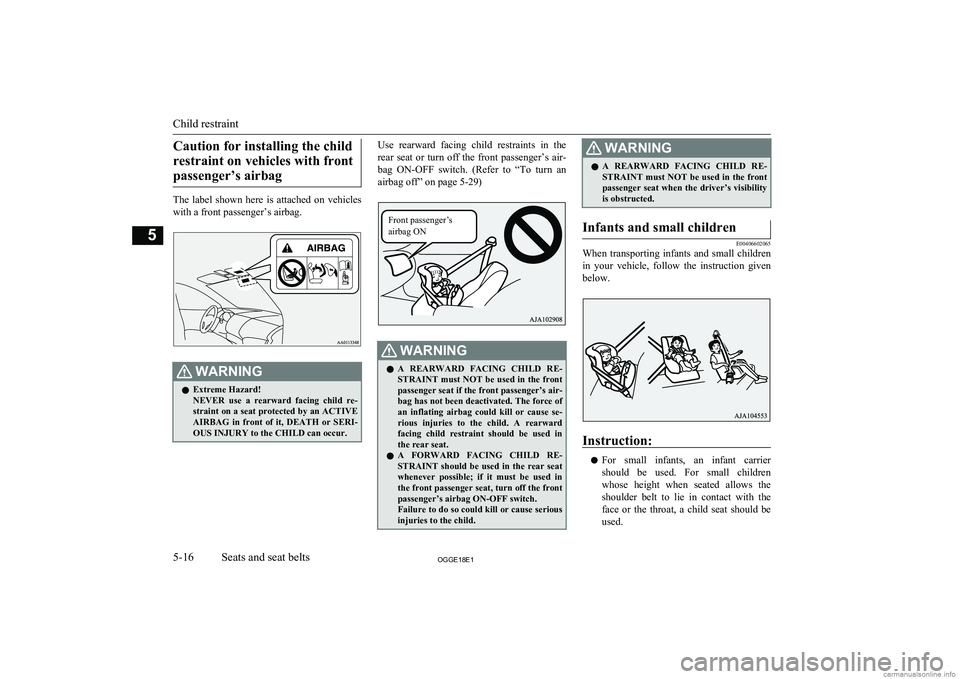

Caution for installing the childrestraint on vehicles with frontpassenger’s airbag
The label shown here is attached on vehicles
with a front passenger’s airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch. (Refer to “To turn an airbag off” on page 5-29)WARNINGl A REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint should be used in
the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if it must be used in the front passenger seat, turn off the front
passenger’s airbag ON-OFF switch.
Failure to do so could kill or cause serious
injuries to the child.WARNINGl A REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat when the driver’s visibilityis obstructed.Infants and small children
E00406602065
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be used.
Child restraint
5-16OGGE18E1Seats and seat belts5 Front passenger’s
airbag ON

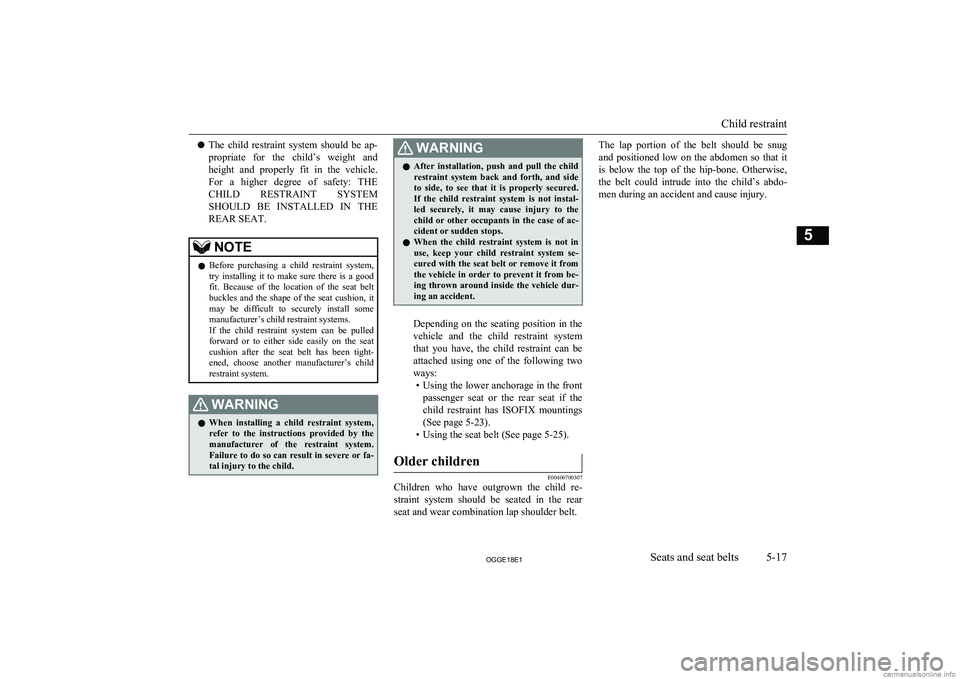

lThe child restraint system should be ap-
propriate for the child’s weight and height and properly fit in the vehicle.
For a higher degree of safety: THE CHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.NOTEl Before purchasing a child restraint system,
try installing it to make sure there is a good fit. Because of the location of the seat belt
buckles and the shape of the seat cushion, it may be difficult to securely install some
manufacturer’s child restraint systems.
If the child restraint system can be pulled forward or to either side easily on the seatcushion after the seat belt has been tight-
ened, choose another manufacturer’s child restraint system.WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.WARNINGl After installation, push and pull the child
restraint system back and forth, and sideto side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system se- cured with the seat belt or remove it fromthe vehicle in order to prevent it from be- ing thrown around inside the vehicle dur-
ing an accident.
Depending on the seating position in the
vehicle and the child restraint system
that you have, the child restraint can be attached using one of the following two
ways: • Using the lower anchorage in the front
passenger seat or the rear seat if the
child restraint has ISOFIX mountings (See page 5-23).
• Using the seat belt (See page 5-25).
Older children
E00406700307
Children who have outgrown the child re-
straint system should be seated in the rear
seat and wear combination lap shoulder belt.
The lap portion of the belt should be snug
and positioned low on the abdomen so that it
is below the top of the hip-bone. Otherwise, the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
5-17OGGE18E1Seats and seat belts5

Suitability for various ISOFIX positions
E00411402191Mass groupSize
classFixture
Vehicle ISOFIX positionsRecommended
Child Restraint
Systems *2UN-R44 Ap-
proval No.
Front passengerRear out- boardActivated air- bagDeactivated Airbag *1CarrycotFISO/L1XXX——GISO/L2XXX——0- Up to 10 kgEISO/R1XXX——0+- Up to 13 kg
EISO/R1XILIL
BABY-SAFE plus:
MZ314393
BABY-SAFE ISO- FIX BASE:MZ314394
E1-04301146
DISO/R2XXILG 0/1 S (Child re- straint system for East area):
MZ314390E
G 0/1 S (Child re- straint system for
Central-South area): MZ314390CS
G 0/1 S (Child re- straint system for North area):
MZ314390N
RWF ISOFIX BASE (Rearward facingISOFIX base for
E4-04443718
CISO/R3XXILI- 9 to 18 kg
DISO/R2XXIL
Child restraint
5-18OGGE18E1Seats and seat belts5

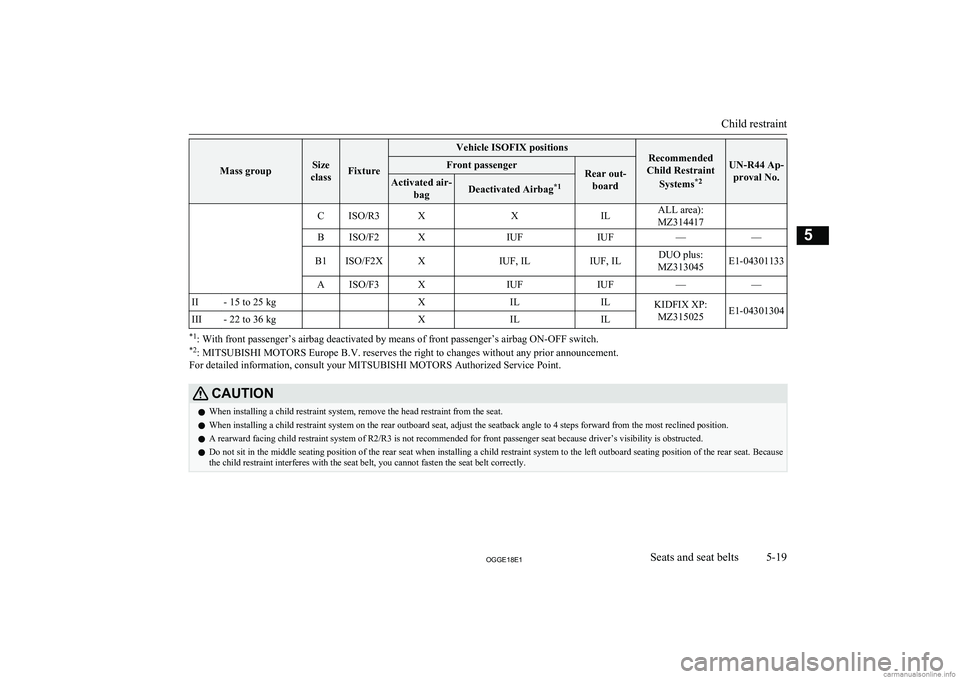

Mass groupSize
classFixture
Vehicle ISOFIX positionsRecommended
Child Restraint
Systems *2UN-R44 Ap-
proval No.
Front passengerRear out- boardActivated air- bagDeactivated Airbag *1CISO/R3XXILALL area):
MZ314417BISO/F2XIUFIUF——B1ISO/F2XXIUF, ILIUF, ILDUO plus:
MZ313045E1-04301133AISO/F3XIUFIUF——II- 15 to 25 kg XILILKIDFIX XP: MZ315025E1-04301304III- 22 to 36 kg XILIL
*1 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
*2 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system on the rear outboard seat, adjust the seatback angle to 4 steps forward from the most reclined position.
l A rearward facing child restraint system of R2/R3 is not recommended for front passenger seat because driver’s visibility is obstructed.
l Do not sit in the middle seating position of the rear seat when installing a child restraint system to the left outboard seating position of the rear seat. Because
the child restraint interferes with the seat belt, you cannot fasten the seat belt correctly.
Child restraint
5-19OGGE18E1Seats and seat belts5

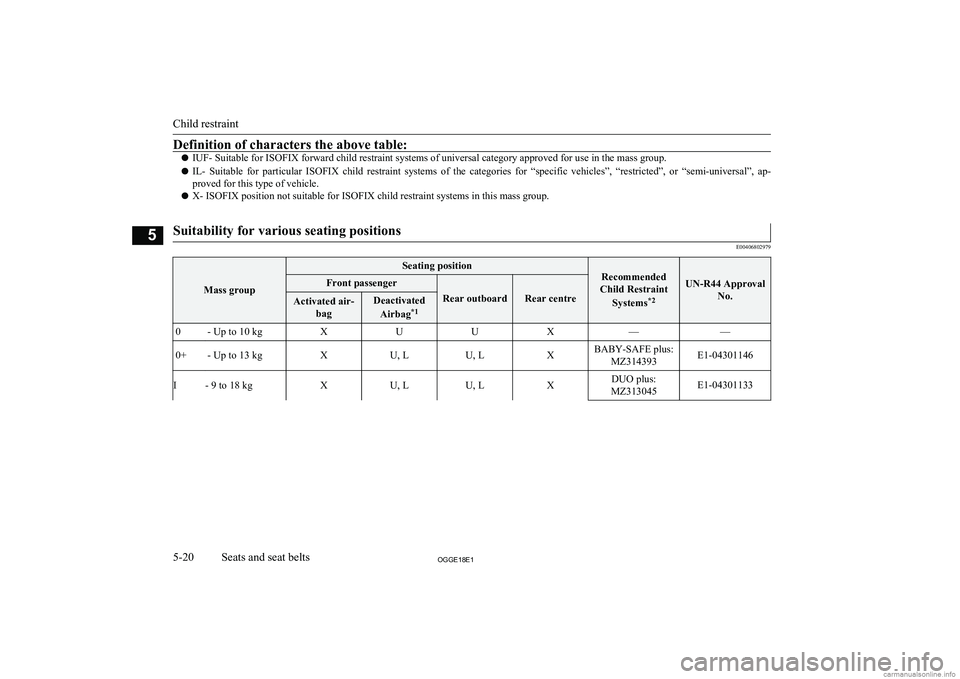

Definition of characters the above table:
lIUF- Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems of the categories for “specific vehicles”, “restricted”, or “semi-universal”, ap-
proved for this type of vehicle.
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.

Suitability for various seating positions
E00406802979Mass group
Seating positionRecommended
Child Restraint
Systems *2UN-R44 Approval
No.
Front passenger
Rear outboardRear centre
Activated air-bagDeactivated
Airbag *10- Up to 10 kgXUUX——0+- Up to 13 kgXU, LU, LXBABY-SAFE plus:
MZ314393E1-04301146I- 9 to 18 kgXU, LU, LXDUO plus:
MZ313045E1-04301133
