2018 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

Cruise control switches
A-CRUISE CONTROL ON/OFF switch
Used to turn on and off the cruise con-
trol.
B- SET - switch
Used to reduce the set speed and to set the desired speed.
C- RES + switch
Used to increase the set speed and to re-
turn to the original set speed.
D- CANCEL switch
Used to deactivate the set speed driving.
NOTEl When operating the cruise control switches,
press the cruise control switches correctly.
The set speed driving may be deactivated automatically if two or more switches of the
cruise control are pressed at the same time.To activate
E00609302397
1. With the operation mode in ON, press
the CRUISE CONTROL ON/OFF
switch (A) to turn on the cruise control. The indicator display in the meter cluster
will come on.
2. Accelerate or decelerate to your desired
speed, then push down and release the SET - switch (B). The vehicle will thenmaintain the desired speed.
The “SET” indicator appears on the in- formation display in the meter cluster.NOTEl When you release the SET - switch (B), the
vehicle speed will be set.To increase the set speed
E00609401779
There are 2 ways to increase the set speed.
RES + switch
Push up and hold the RES + switch (C) whiledriving at the set speed, and your speed will
then gradually increase.
Cruise control*
7-43OGGE18E1Starting and driving7

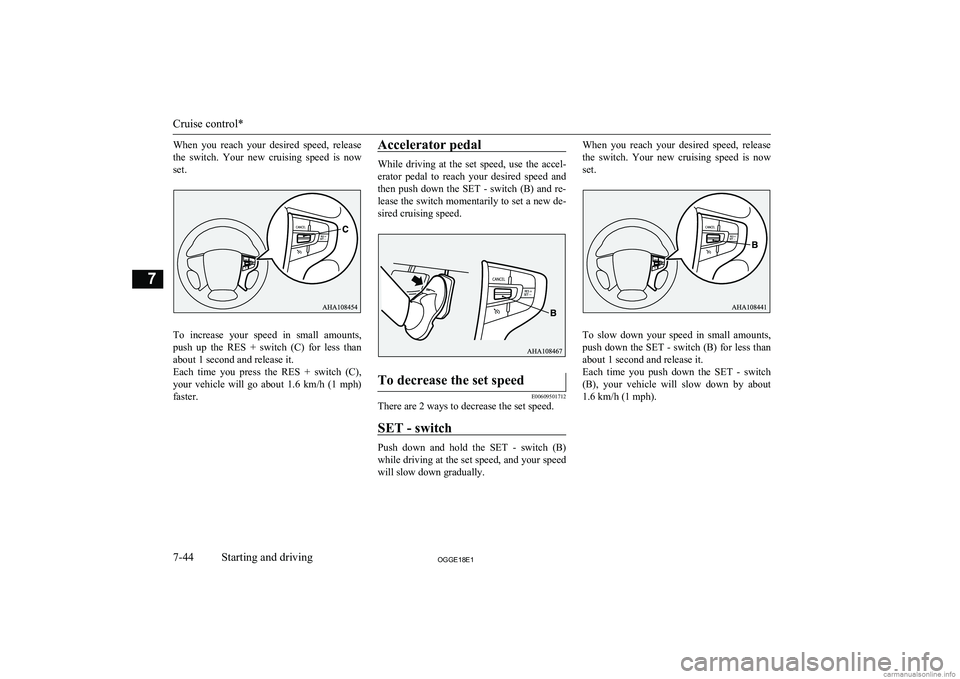

When you reach your desired speed, release
the switch. Your new cruising speed is now set.
To increase your speed in small amounts,
push up the RES + switch (C) for less than about 1 second and release it.
Each time you press the RES + switch (C), your vehicle will go about 1.6 km/h (1 mph)
faster.
Accelerator pedal
While driving at the set speed, use the accel-
erator pedal to reach your desired speed and
then push down the SET - switch (B) and re- lease the switch momentarily to set a new de-
sired cruising speed.
To decrease the set speed
E00609501712
There are 2 ways to decrease the set speed.
SET - switch
Push down and hold the SET - switch (B) while driving at the set speed, and your speed
will slow down gradually.
When you reach your desired speed, release
the switch. Your new cruising speed is nowset.
To slow down your speed in small amounts,
push down the SET - switch (B) for less than about 1 second and release it.
Each time you push down the SET - switch (B), your vehicle will slow down by about
1.6 km/h (1 mph).
Cruise control*
7-44OGGE18E1Starting and driving7

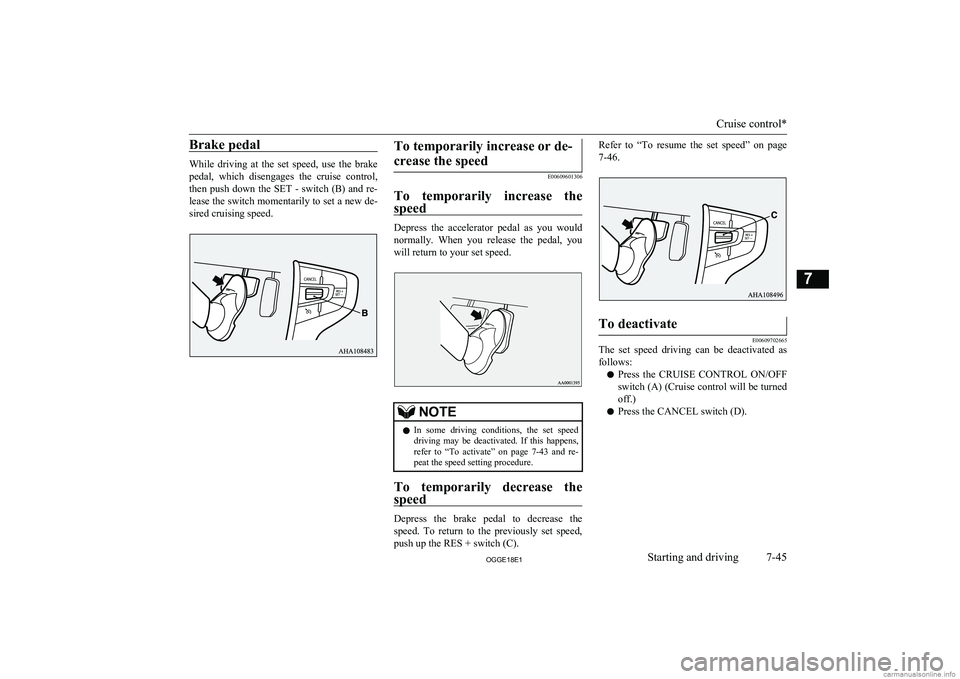

Brake pedal
While driving at the set speed, use the brakepedal, which disengages the cruise control,
then push down the SET - switch (B) and re- lease the switch momentarily to set a new de-
sired cruising speed.
To temporarily increase or de-
crease the speed
E00609601306
To temporarily increase the speed
Depress the accelerator pedal as you would
normally. When you release the pedal, you will return to your set speed.
NOTEl In some driving conditions, the set speed
driving may be deactivated. If this happens,refer to “To activate” on page 7-43 and re-
peat the speed setting procedure.
To temporarily decrease the
speed
Depress the brake pedal to decrease the speed. To return to the previously set speed,
push up the RES + switch (C).
Refer to “To resume the set speed” on page
7-46.To deactivate
E00609702665
The set speed driving can be deactivated as follows:
l Press the CRUISE CONTROL ON/OFF
switch (A) (Cruise control will be turned off.)
l Press the CANCEL switch (D).
Cruise control*
7-45OGGE18E1Starting and driving7

lDepress the brake pedal.
The set speed driving is deactivated automat-
ically in any of the following ways.
l When your speed slows to about
15 km/h (9 mph) or more below the set speed because of a hill, etc.
l When your speed slows to about
40 km/h (25 mph) or less.
l When the Active Stability Control
(ASC) starts operating.
Refer to “Active stability control (ASC)”
on page 7-40.
WARNINGl Although the set speed driving will be de-
activated when shifting to the “N” (NEU-
TRAL) position, never move the selector lever to the “N” (NEUTRAL) position
while driving.
You would have no regenerative brake and could cause a serious accident.CAUTIONl When the set speed driving is deactivated
automatically in any situation other thanthose listed above, there may be a system
malfunction.
Press the CRUISE CONTROL ON/OFF switch to turn off the cruise control and have your vehicle inspected by a MITSUBISHI
MOTORS Authorized Service Point.NOTEl You cannot operate the regenerative brake
while the adaptive cruise control system(ACC) is operating.
l If you perform the following operation, the
buzzer may sound and the select position may automatically shift to “N” position.
• The electrical parking switch is pressed
during driving.
• The selector lever is shifted to “R” during
driving forward.
• The selector lever is shifted to “D” during
driving backward.NOTE• The selector lever is shifted to “B” when
the select position is in “R”.To resume the set speed
E00609801988
If the set speed driving is deactivated by the
condition described in “To deactivate” on
page 7-45, you can resume the previously set
speed by push up the RES + switch (C) while
driving at a speed of about 40 km/h (25 mph)
or higher. The “SET” indicator appears on
the information display in the meter cluster.
Under either of the following conditions, however, using the switch does not allow you
to resume the previously set speed. In these
situations, repeat the speed setting procedure:
l The CRUISE CONTROL ON/OFF
switch is pressed.
Cruise control*
7-46OGGE18E1Starting and driving7

lThe operation mode is put in OFF.
l The indicator display goes off.Speed Limiter*
E00633201093
The Speed Limiter is a driver assist functionto prevent from exceeding the speed set by
driver while Plug-in Hybrid EV System pow- er control.
CAUTIONl Because the system does not use service
brake (hydraulic brake), the vehicle speed
may exceed the set speed on the downhill.
If a driver wants to keep the vehicle speed in such a situation, he/she must put on a servicebrake.
If the vehicle speed exceeds the set speed
(about 3 km/h (2 mph)), the indicator will
brink in the combination meter.
If the vehicle speed exceeds the set speed about +3 km/h (2 mph) more than about 5
seconds after indicated alert message, beep
alert is sounded for about 10 seconds at the most.
While running without alert message, if you
decrease the set speed and vehicle speed is more than set speed about +3 km/h (2 mph) ,
alert message is displayed but beep alert is delayed.
In this case, when vehicle speed keeps ex-
ceeding set speed about +3 km/h (2 mph) for
about 30 seconds after the alert message is appeared, beep alert is sounded for about 10
seconds at the most.
If the vehicle speeds decreases less than set
speeds after the alert message is appeared, the message is disappeared. When beep alert is sounding, the beep alert also goes off.NOTEl However, this gives priority to audio and
visual signal of safety reasons or driver’s de-mand.Speed Limiter control switches
E00633301052
There are 4 switches which relate to the
Speed Limiter on the steering wheel.
A- SPEED LIMITER ON/OFF switch
To turn on/off the Speed Limiter.
B- SET - switch
To set the current vehicle speed to a set
speed decrease the set speed.
C- RES + switch
To resume the Speed Limiter with set speed memorized or increase the setspeed.
D- CANCEL switch
To cancel the Speed Limiter.NOTEl Press the switch one by one.
l The Speed Limiter may be cancelled auto-
matically, if two or more switches are press-ed at the same time.
Speed Limiter*
7-47OGGE18E1Starting and driving7

Speed Limiter information onthe multi information display area
E00633401037
The Speed Limiter information is displayed
on the multi information display area in the
combination meter.
A- Control state
There are 3 control states as below. LIMIT OFF
When the Speed Limiter is in
STANDBY, the vehicle speed can ex- ceed the set speed
LIMIT
When the Speed Limiter is in opera-
tion. The vehicle is controlled in order not to exceed the set speed.
OVER LIMIT
When the vehicle speed is exceeding
the set speed by more than about
3 km/h (2 mph)
B- SPEED LIMITER ON indication
When the Speed Limiter is started up, the Speed Limiter’s symbol appears.
C- Set speed
Set speed appears if it is stored.To start up
E00633501025
First of all, press the ON/OFF switch in order to power up the Speed Limiter when the op-
eration mode in ON.
The Speed Limiter indication will be ap- peared in the combination meter.
To activate
E00633601055
Accelerate or decelerate to your desired
speed, and push down the SET - switch (B).
the Speed Limiter memorizes the current ve- hicle speed when you release the SET -
switch (B). Now, the Speed Limiter starts controlling in order not to exceed the set speed.
If the current vehicle speed is lower than
about 30 km/h (19 mph) (settable minimum
speed), the set speed is set at about 30 km/h
(19 mph).
The set speed is displayed in the combination meter.
And, control state “LIMIT” is displayed in
the combination meter.
Speed Limiter*
7-48OGGE18E1Starting and driving7

To increase the set speed
E00633700017
By using the RES + switch
E00633801044
Push up the RES + switch continuously.
Then the set speed displayed in the combina- tion meter is gradually increased.
If the set speed reaches your desired speed, release the RES + switch (C).
The set speed is increased each about 5 km/h(3 mph) per about 0.5 second.
If a driver wants to increase the set speed a
little, push up RES + switch for less than about 0.5 second and release it.
The set speed is increased 1 km/h (1 mph)
each taps.By using the CANCEL switch,
the accelerator pedal and theSET - switch
E00633901058
Press the CANCEL switch (D) to deactivate the Speed Limiter.
Control state “LIMIT” is disappeared and
change control state “LIMIT OFF” in the
combination meter.
Accelerate to driver’s desired vehicle speedand push down SET - switch (B) and release.
Control state “LIMIT” is displayed again andthe set speed is updated.
To decrease the set speed
E00634000017
By using the SET - switch
E00634101044
Push down the SET - switch (B).

Then the set speed displayed in the combina-
tion meter is gradually decreased.
Speed Limiter*
7-49OGGE18E1Starting and driving7

If the set speed reaches to your desired speed,release the SET - switch (B).
The set speed decrease about 5 km/h (3 mph)
per about 0.5 second.
If a driver wants to decrease the set speed a little, press SET - switch (B) for less than
about 0.5 second and release it.
The set speed is decreased 1 km/h (1 mph) each taps.
By using the CANCEL switch,
the service brake and the SET - switch
E00634201058
Press the CANCEL switch (D) to deactivate
the Speed Limiter.
Control state “LIMIT” is disappeared and
change control state “LIMIT OFF” in the combination meter.
Decelerate to driver’s desired speed and push
down SET-switch - (B) and release.
The Speed Limiter indication is displayed
again and the set speed is updated.
To increase the vehicle speed
temporarily
E00634301020
A driver can temporarily accelerate for emer-
gency use.

The Speed Limiter is temporarily deactiva-
ted, and the vehicle speed can be increased.
Speed Limiter*
7-50OGGE18E1Starting and driving7
