2018 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

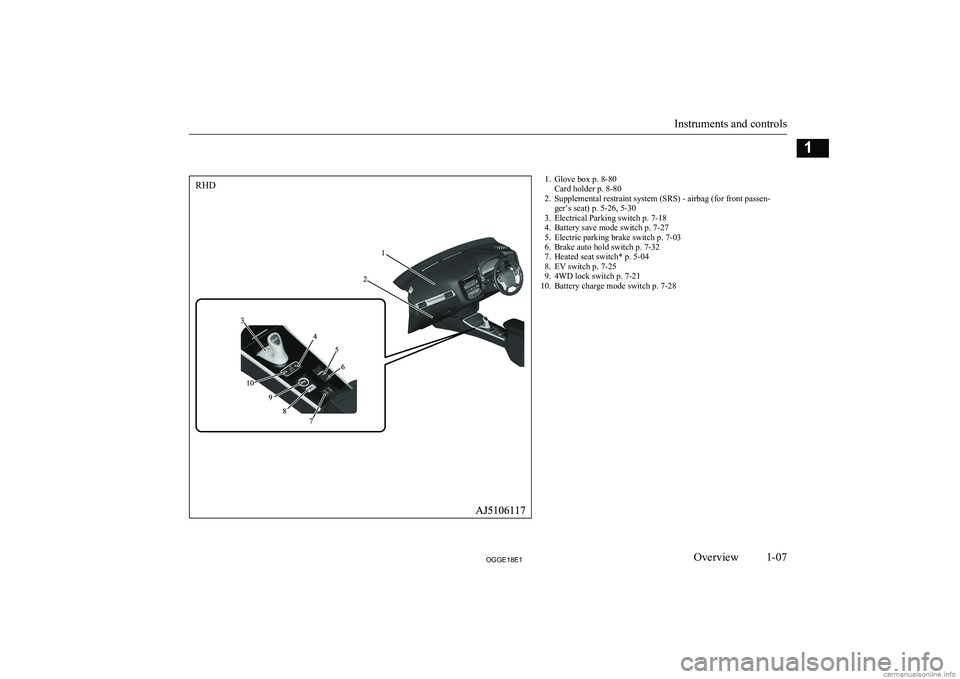

1. Glove box p. 8-80Card holder p. 8-80
2. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 5-26, 5-30
3. Electrical Parking switch p. 7-18
4. Battery save mode switch p. 7-27
5. Electric parking brake switch p. 7-03
6. Brake auto hold switch p. 7-32
7. Heated seat switch* p. 5-04
8. EV switch p. 7-25
9. 4WD lock switch p. 7-21
10. Battery charge mode switch p. 7-28
Instruments and controls
1-07OGGE18E1Overview1RHD

InteriorE085002017111. Electric window control switch p. 4-34
2. Lock switch p. 4-35
3. Electric remote-controlled outside rear-view mirrors switch p. 7-09
4. Central door lock switch p. 4-16
5. Inside rear-view mirror p. 7-07 Multi Around Monitor* p. 7-106
6. Front seat p. 5-03
7. Supplemental restraint system (SRS) -side airbag (for front seat) p. 5-26, 5-33
8. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-23
9. Rear seat p. 5-05
10. Armrest p. 5-05 Cup holder p. 8-82
11. Room lamp (rear) p. 8-78, 11-25
12. Head restraints p. 5-05
13. Supplemental restraint system (SRS) - curtain airbag p. 5-26, 5-33
Interior
1-08OGGE18E1Overview1LHD

1. Lock switch p. 4-35
2. Electric remote-controlled outside rear-view mirrors switch p. 7-09
3. Central door lock switch p. 4-16
4. Electric window control switch p. 4-34
5. Head restraints p. 5-05
6. Supplemental restraint system (SRS) - curtain airbag p. 5-26, 5-33
7. Room lamp (rear) p. 8-78, 11-25
8. Armrest p. 5-05 Cup holder p. 8-82
9. Rear seat p. 5-05
10. Tether anchorages for child restraint system (for front passenger’s seat) p. 5-23
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 5-26, 5-33
12. Front seat p. 5-03
13. Inside rear-view mirror p. 7-07 Multi Around Monitor* p. 7-106
Interior
1-09OGGE18E1Overview1RHD

1. Bottle holder p. 8-83
2. Map & room lamps (front) p. 8-78, 8-79, 11-25
3. Downlight p. 8-78
4. Sunroof switch* p. 4-36
5. Hands-free microphone* p. 8-50
6. Sun visors p. 8-72 Vanity mirror p. 8-72
Card holder p. 8-72
7. Sunglasses holder* p. 8-82
8. Cargo area cover p. 8-83
9. Luggage room lamp p. 8-79, 11-25
10. Assist grips p. 8-85 Coat hook p. 8-85
11. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
Interior
1-10OGGE18E1Overview1LHD

1. Bottle holder p. 8-83
2. Adjustable seat belt anchor p. 5-12 Seat belts p. 5-09
3. Assist grips p. 8-85 Coat hook p. 8-85
4. Luggage room lamp p. 8-79, 11-25
5. Cargo area cover p. 8-83
6. Sunglasses holder* p. 8-82
7. Sun visors p. 8-72 Vanity mirror p. 8-72
Card holder p. 8-72
8. Hands-free microphone* p. 8-50
9. Map & room lamps (front) p. 8-78, 8-79, 11-25
10. Downlight p. 8-78
11. Sunroof switch* p. 4-36
Interior
1-11OGGE18E1Overview1RHD

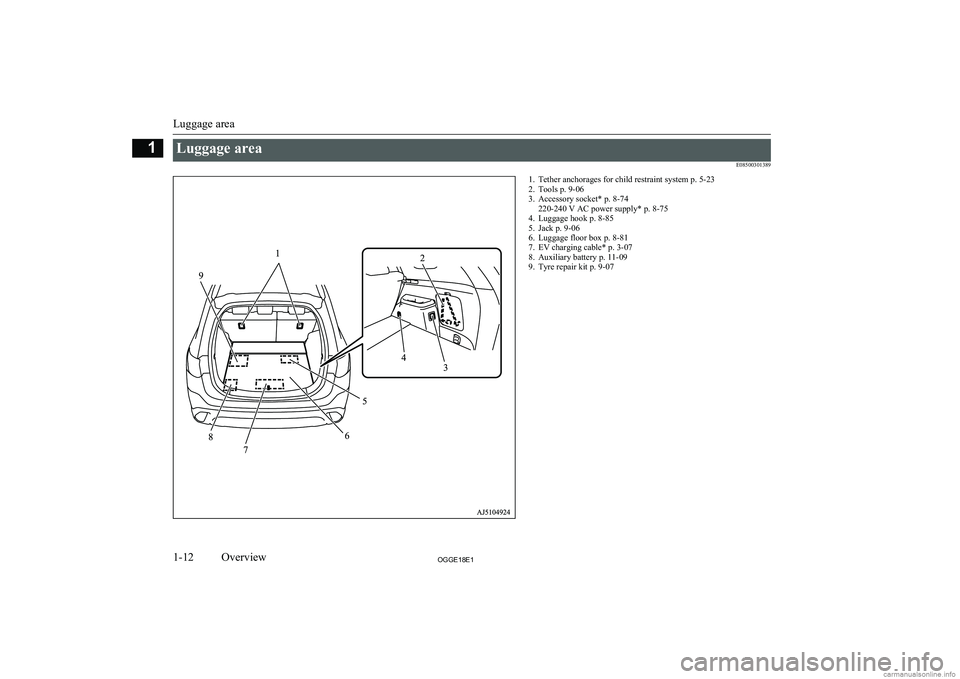

Luggage areaE085003013891. Tether anchorages for child restraint system p. 5-23
2. Tools p. 9-06
3. Accessory socket* p. 8-74 220-240 V AC power supply* p. 8-75
4. Luggage hook p. 8-85
5. Jack p. 9-06
6. Luggage floor box p. 8-81
7. EV charging cable* p. 3-07
8. Auxiliary battery p. 11-09
9. Tyre repair kit p. 9-07
Luggage area
1-12OGGE18E1Overview1

Outside (Front)E085004023581. Front-view camera* p. 7-1062. Bonnet p. 11-04
3. Windscreen wipers p. 6-62
4. Sensor* [for Automatic High-Beam (AHB), Forward Collision Mitigation System (FCM) and Lane Departure Warning (LDW)]
p. 6-54, 7-64, 7-85
Rain sensor p. 6-62
5. Sunroof* p. 4-36
6. Electric window control p. 4-34
7. Fuel tank filler p. 2-14
8. Side turn-signal lamps p. 6-60, 11-24 Side view camera* p. 7-106
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74 Parking sensors* p. 7-98
10. Front fog lamps p. 6-61, 11-24, 11-27
11. Headlamps, high-beam p. 6-54, 11-24, 11-26
12. Headlamps, low beam p. 6-54, 11-24
13. Position lamps p. 6-52, 11-24 Daytime running lamps p. 11-27, 11-24
14. Front turn-signal lamps p. 6-60, 11-24, 11-27
15. Headlamps, high-beam p. 6-54, 11-24, 11-26
16. Headlamps, low beam p. 6-54, 11-24, 11-25
17. Position lamps p. 6-52, 11-24 Daytime running lamps p. 6-54, 11-24
18. Front turn-signal lamps p. 6-60, 11-24, 11-27
Outside (Front)
1-13OGGE18E1Overview1Halogen headlamps type LED headlamps type

Outside (Rear)E085004023611. Antenna2. Tail lamps p. 11-24, 11-29
3. Keyless entry system p. 4-03 Keyless operation system p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-13 Tyre pressure monitoring system (TPMS) p. 7-89
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Snow traction device (tyre chains) p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12 Charging port courtesy lamp p. 3-06
6. Stop lamps p. 11-24, 11-29
7. Rear turn-signal lamps p. 6-60, 11-24, 11-29
8. Reversing lamp (LHD vehicles) p. 11-24, 11-29 Rear fog lamp (RHD vehicles) p. 6-62, 11-24, 11-29
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74 Reversing sensor system* p. 7-94
Parking sensors* p. 7-98
10. Rear fog lamp (LHD vehicles) p. 6-62, 11-24, 11-29 Reversing lamp (RHD vehicles) p. 11-24, 11-29
11. Licence plate lamps p. 11-24, 11-30
12. Rear-view camera* p. 7-102, 7-106
13. Rear window wiper p. 6-65
14. Tailgate* p. 4-19 Electric tailgate* p. 4-20
15. High-mounted stop lamp p. 11-24
Outside (Rear)
1-14OGGE18E1Overview1
