2018 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

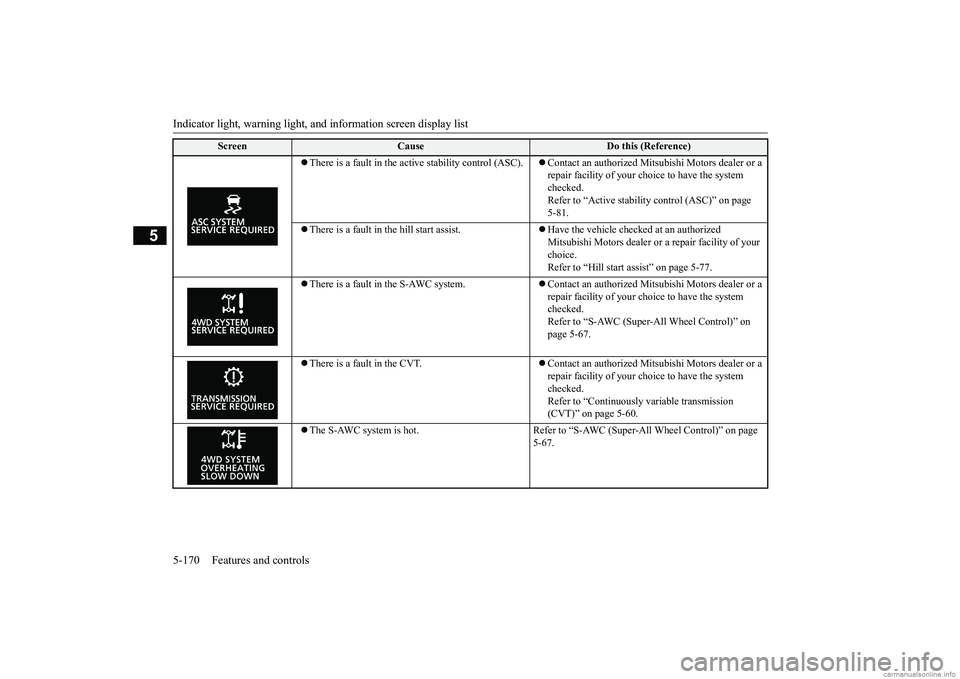

Indicator light, warning light, an
d information screen display list
5-170 Features and controls
5
 There is a fault in the active stability control (ASC).
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked.Refer to “Active stability control (ASC)” on page 5-81.
 There is a fault in the hill start assist.
Have the vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice. Refer to “Hill start assist” on page 5-77.
 There is a fault in the S-AWC system.
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked. Refer to “S-AWC (Super-All Wheel Control)” on page 5-67.
 There is a fault in the CVT.
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked.Refer to “Continuously variable transmission (CVT)” on page 5-60.
 The S-AWC system is hot. Refer to “S-AWC
(Super-All Wheel Control)” on page
5-67.
Screen
Cause
Do this (Reference)
BK0252700US.book
170 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-171
5
 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-147.
 The outside temperature is 37 °F (3 °C) or less.
Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive carefully.
 The Adaptive Cruise Control System (ACC) has detected the approach of the vehicles in front.
 Increase the following distance by depressing the brake pedal or marking other decelerating control. Refer to “Adaptive Cruise Control System (ACC): Approach alarm” on page 5-93.
 The Forward Collision Mitigation system (FCM) has detected the danger of collision.
 Take appropriate action such as depressing the brake to avoid collision. Refer to “Forward collision warning function” on page 5-101.
 The Electric parking brake cannot be applied auto- matically.
 Depress the brake pedal as soon as possible. Refer to “Brake auto hold” on page 5-74.
Screen
Cause
Do this (Reference)
BK0252700US.book
171 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-172 Features and controls
5
 The Adaptive Cruise Control System (ACC) control is active.
Refer to “How to use ACC” on page 5-90.
 The Adaptive Cruise Control System (ACC) control is automatically canceled and the system is placed in the standby state.  Conditions for the start of control are not met, the Adaptive Cruise Control System (ACC) cannot start the control.  The Adaptive Cruise Control System (ACC) cannot start the control because the speed is out of speed range.  The Adaptive Cruise Control System (ACC) cannot start the control because not detected the approach of the vehicles in front.  The Adaptive Cruise Control System (ACC) is tem- porarily unavailable due to conditions such as the adhesion of contaminants to the sensor. This is not a malfunction.
Screen
Cause
Do this (Reference)
BK0252700US.book
172 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-173
5
 There is a fault in the Adaptive Cruise Control Sys- tem (ACC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “When ACC detects a vehicle in front within the set distance” on page 5-92.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sen- sor, contact an authorized
Mitsubishi Motors dealer
or a repair facility of your choice. Refer to “To cancel ACC control” on page 5-96.
 There is a fault in the Forward Collision Mitigation system (FCM).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “FCM ON/OFF switch: FCM deactivation due to fault” on page 5-106.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor. When the warning display does not disappear after having cleaned the bumper surface around the sen-sor, contact an authorized
Mitsubishi Motors dealer
or a repair facility of your choice. Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105.
Screen
Cause
Do this (Reference)
BK0252700US.book
173 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-174 Features and controls
5
 FCM braking function of the Forward Collision Mit- igation system (FCM) has been activated.
Refer to “FCM braking function” on page 5-101.
 The Forward Collision Mitig
ation system (FCM) is
temporarily unavailable for some reason. This is not a malfunction.  The Lane Departure Warning (LDW) has detected that your vehicle is about to leave or has left the lane.
Refer to “Lane Departure Warning (LDW)” on page 5-115.
 There is a fault in the Lane Departure Warning (LDW).
 Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked.Refer to “Lane Departure Warning (LDW)” on page 5-115.
 The Blind Spot Warning (BSW) sensor is temporar- ily not available for some reason such as the environ-mental condition or increase of the sensor temperature.
 When the warning display does not disappear after waiting for a while, contact an authorized Mitsubishi Motors dealer. Refer to “Blind Spot Warning (BSW): When the sen- sor is temporarily not available” on page 5-111.
Screen
Cause
Do this (Reference)
BK0252700US.book
174 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-175
5
 The Blind Spot Warning (BSW) does not operate normally because there are some malfunctions in the sensor or the system.
 Immediately have your vehicle inspected at an authorized Mitsubishi Motors dealer. Refer to “Blind Spot Warning (BSW): When there is a malfunction in the system or the sensor” on page 5-111.
 Foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.
 Remove a foreign object on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sen- sor, contact an authorized
Mitsubishi Motors dealer.
Refer to “Blind Spot Warning (BSW): When there is a foreign objects on the sensor” on page 5-112.
 The Rear Cross Traffic Alert (RCTA) is detected the vehicle approaching your vehicle.
 Pay special attention to the rear of your vehicle. Refer to “Rear Cross Traffic Alert (RCTA)” on page 5-112.
 There is a fault in the sensor.
Contact an authorized Mitsubishi Motors dealer. Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117.Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
Screen
Cause
Do this (Reference)
BK0252700US.book
175 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-176 Features and controls
5
 The Forward Collision M
itigation system (FCM),
Lane Departure Warning (LDW) and Automatic High Beam (AHB) is temporarily unavailable due to the high or low temperature of the sensor.
 After the temperature of the sensor has been in range, the system will automatically return to opera- tion.Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117. Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
 The sensor is temporarily unavailable due to condi- tions such as the adhesion of contaminants to the sensor or windshield. This is not a malfunction.
Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page 5-105. Refer to “Lane Departure Warning (LDW): System problem warning” on page 5-117.Refer to “Automatic High Beam (AHB): System prob- lem warning” on page 5-194.
 There is a fault in the system of automatic high beam.
 Contact an authorized M
itsubishi Motors dealer.
Refer to “Automatic High Beam (AHB): System problem warning” on page 5-194.
Screen
Cause
Do this (Reference)
BK0252700US.book
176 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-177
5
N00558201340
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
Other interrupt displays
Screen
Cause
Do this (Reference)
 When starting the engine, the selector lever is in a position other than the “P” (PARK) or the “N” (NEUTRAL) posi- tion, or you pressed the engine switch without depressing the brake pedal.
 Place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-23.
 When communication was successful after the F.A.S.T.-key was touched to the engine switch.
Refer to “If the F.A.S.T.-key is not operating properly” on page 5-25.
NOTE
 When operating each system, confirm that the operation status of
the system has changed on the information screen. However, the
operation status of the
system may not be displayed immediately after the warn
ing display appears even if the system is operated.
