2018 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

Active stability control (ASC) 5-82 Features and controls
5
N00559200021
On slippery surfaces, the traction control function prevents the drive wheels from spin- ning excessive, thus helping the vehicle tostart moving from a stop
ped condition. It also
provides sufficient driving force and steering performance as the vehicle turns while press-ing the acceleration pedal.
N00559301074
The skid control function is designed to helpthe driver maintain control of the vehicle onslippery roads or during rapid steering maneuvers. It works by controlling the engine output and the brake on each wheel.
N00559401310
The ASC is automatically activated when theignition switch is turned to the “ON” posi- tion. You can deactivate the system by press- ing down the ASC OFF switch for 3 secondsor longer. When the ASC is deactivated, the indica- tor will turn on. To reactivate the ASC, momentarily press the ASC OFF switch; the indicator is turned off.
NOTE
 An operation noise may be emitted from the engine compartment in the following situa- tions. The sound is associated with checking the operations of the ASC. At this time, you may feel a shock from the brake pedal if youdepress it. These do not indicate a malfunc- tion. • When the ignition switch is set to the “ON” position. • When the vehicle is driven for a while after the engine is turned on.
 When the ASC is activated, you may feel a vibration in the vehicle body or hear a whin- ing sound from the engine compartment.This indicates that the system is operating normally. It does not indicate a malfunction.  When the anti-lock braking system warning light is illuminated, the ASC is not active.
Traction control function
CAUTION When driving a vehicle on a snowy or icy road, be sure to install snow tires and drive the vehicle at moderate speeds.
Skid control function
NOTE
 The skid control function operates at speeds of approximately 9 mph (15 km/h) or higher.
ASC OFF switch
CAUTION For safety reasons, the ASC OFF switch should be operated when your vehicle isstopped.  Be sure to keep the ASC on while driving in normal circumstances.
BK0252700US.bo
ok 82 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Active stability control (ASC) Features and controls 5-83
5
N00559501252
N00546601158
If an abnormal condition occurs in the sys- tem, the following warning light/display willturn on. Warning light Warning display
NOTE
 Using the ASC OFF switch turns off both the stability control function and the traction control function.  When moving out of mud, sand or fresh snow, pressing the accelerator pedal may not allow the engine speed to increase. In such situations, temporarily turning off ASC withthe ASC OFF switch will make it easier to move out your vehicle.  If you continue to press the ASC OFF switch after the ASC is turned off, the “mistaken operation protection function” will activateand the ASC will turn back on.
ASC operation display or ASC OFF indicator
-
ASC operation display/ASC indicator The display/indicator will blink whenthe ASC is operating.
-
ASC OFF indicator This indicator will turn on when theASC is turned off with the ASC OFF switch.
CAUTION When display/indicator blinks, ASC is operating, which means that the road is slip- pery or that your vehicle’s wheels are begin- ning to slip. If this happens, drive slower. If the temperature in the braking system con- tinues to increase due to continuous brake control on a slippery road surface, the indicator will blink. To prevent the brake system from overheat- ing, the brake control of the traction controlfunction will be temporarily suspended. The engine control of the traction control function and normal brake operation will notbe affected. Park your vehicle in a safe place. When the temperature in the braking system has come down, the indicator will be turned off and the traction control f
unction will start operat-
ing again.NOTE
 The indicator may come on when you start the engine. This means that the battery voltage momentarily dropped when the engine was started. It does not indicate a malfunction, provided that the display goesout immediately.
 When a spare tire has been put on your vehi- cle, the gripping ability of the tire will be lower, making it more likely that the dis- play/indicator will blink.
ASC warning light/display
-
ASC indicator
-
ASC OFF indicatorNOTE
BK0252700US.bo
ok 83 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Cruise control 5-84 Features and controls
5
N00546301083
N00518301668
Cruise control is an automatic speed control system that keeps a set speed. It can be acti-vated at speeds from approximately 20 mph (30 km/h). Cruise control does not work at speeds below approximately 20 mph(30 km/h).
CAUTION The system may be malfunctioning. Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the light/display goes out. If they go out, there is no abnormal condition. If they do notgo out or if they turn
on frequently, it is not
necessary to stop the vehicle immediately, but you should have your vehicle inspectedby an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as
possible.
To w i n g
CAUTION If the 2WD vehicle is towed with the ignition switch in the “ON” position or the operation mode in ON and only the front wheels oronly the rear wheels raised off the ground, the ASC may operate, resulting in an acci- dent. When towing the 2WD vehicle with thefront wheels raised, keep the ignition switch in the “OFF” or “ACC” position or the oper- ation mode in ACC or OFF. When towing the vehicle with the rear wheels raised, keep the ignition switch in the “ACC” position orthe operation mode in ACC. Refer to “Towing” on page 8-11.
Cruise control
CAUTION When you do not wish to drive at a set speed, turn off the cruise control for safety. Do not use cruise control when driving con- ditions will not allow you to stay at the same speed, such as in heavy traffic or on roadsthat are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.NOTE
 Cruise control may not be able to keep your speed on uphills or downhills.  Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.  Your speed may increase to more than the set speed on a steep downhill. You have to usethe brake to control your speed. As a result, the set speed driving is deactivated.
Cruise control switches A-
CRUISE CONTROL ON/OFF switch Used to turn on and off the cruise con- trol.
B-
“SET -” switch Used to reduce the set speed and to set the desired speed.
C-
“RES +” switch Used to increase the set speed and toreturn to the original set speed.
D-
“CANCEL” switch Used to deactivate the set speed driving.NOTE
 When operating the cruise control switches, press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or more switches of thecruise control are pressed at the same time.
BK0252700US.bo
ok 84 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Cruise control
Features and controls 5-85
5
N00518401454
1. With the ignition switch in the “ON” posi- tion or the operation mode in ON, pressthe CRUISE CONTROL ON/OFF switch (A) to turn on the cruise control. The indi- cator display appear on the informationscreen of the multi-information display will come on. 2. Accelerate or decelerate to your desired speed, then push down and release the“SET -” switch (B) when the indicatordisplay appear on the information screen of the multi-information display. The vehicle will then maintain the desiredspeed.
The “SET” indicator appears on the infor- mation screen of the multi-information display.
N00518501400
There are two ways to increase the set speed.
Push up and hold the “RES +” switch (C) while driving at the set speed, and your speedwill then gradually increase. When you reach your desired speed, release the switch. Your new cruising speed is nowset. To increase your speed in small amounts, push up the “RES +” switch (C) for less than approximately 1 second and release it.Each time you push up the “RES +” switch (C), your vehicle will go approximately 1 mph (1.6 km/h) faster. While driving at the set speed, use the accel- erator pedal to reach your desired speed and
To activate
NOTE
 When you release the “SET -” switch (B), the vehicle speed will be set.
To increase the set speed
RES + switch Accelerator pedal
BK0252700US.bo
ok 85 ページ ２０１７年１０月４日　水曜日　午後４時５４分

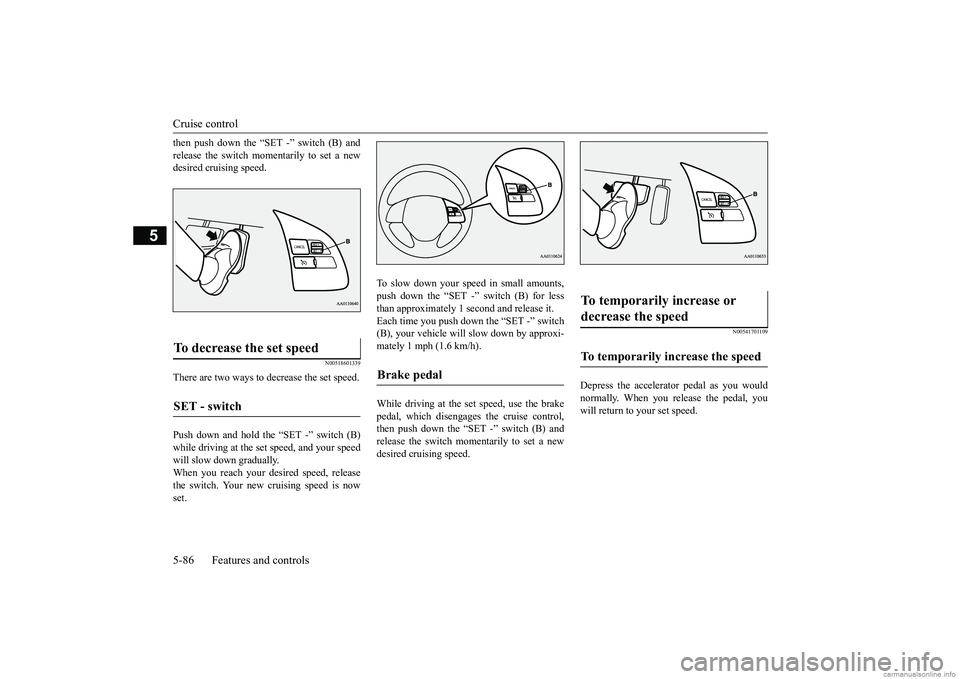

Cruise control 5-86 Features and controls
5
then push down the “SET -” switch (B) and release the switch momentarily to set a new desired cruising speed.
N00518601339
There are two ways to decrease the set speed. Push down and hold the “SET -” switch (B) while driving at the set speed, and your speedwill slow down gradually. When you reach your desired speed, release the switch. Your new cruising speed is nowset.
To slow down your speed in small amounts, push down the “SET -” switch (B) for less than approximately 1 second and release it.Each time you push down the “SET -” switch (B), your vehicle will slow down by approxi- mately 1 mph (1.6 km/h). While driving at the set speed, use the brake pedal, which disengages the cruise control, then push down the “SET -” switch (B) andrelease the switch momentarily to set a new desired cruising speed.
N00541701109
Depress the accelerator pedal as you would normally. When you release the pedal, youwill return to your set speed.
To decrease the set speed SET - switch
Brake pedal
To temporarily increase or decrease the speed To temporarily increase the speed
BK0252700US.bo
ok 86 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Cruise control
Features and controls 5-87
5
Depress the brake pedal to decrease the speed. To return to the previously set speed,push up the “RES +” switch (C). Refer to “To resume the set speed” on page 5-88.
N00518801650
The set speed driving can be deactivated asfollows:  Press the CRUISE CONTROL ON/OFF switch (A) (Cruise control will be turnedoff.)  Press the “CANCEL” switch (D).  Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of the following ways.  When your speed slows to approximately 10 mph (15 km/h) or more below the set speed because of a hill, etc. When your speed slows to approximately 20 mph (30 km/h) or less.  When the active stability control (ASC) starts operating. Refer to “Active stability control (ASC)” on page 5-81.
Also, the set speed driving may be deacti- vated as follow:  When the engine speed rises and approaches the tachometer’s red zone (the red-colored part of the tachometer dial).
NOTE
 In some driving conditions, the set speed driving may be deactivated. If this happens, refer to “To activate” on page 5-85 andrepeat the speed setting procedure.
To temporarily decrease the speed
To deactivate
WA R N I N G Although the set speed driving will be deactivated when shifting to the “N”(NEUTRAL) position, never move the selector lever to the “N” (NEUTRAL) position while driving.You would have no engine braking and could cause a serious accident.
BK0252700US.bo
ok 87 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped) 5-88 Features and controls
5
N00518901387
If the set speed driving is deactivated by the condition described in “To deactivate” onpage 5-87, you can resume the previously set speed by push up the “RES +” switch (C) while driving at a speed of approximately 20mph (30 km/h) or higher. The “SET” indicator appears on the informa- tion screen of the multi-information display.
Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In thesesituations, repeat the speed setting procedure:  The CRUISE CONTROL ON/OFF switch is pressed.  The ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  Indicator go off.
N00576800064
Adaptive Cruise Control System (ACC) maintains a set speed with no need for you to use the accelerator pedal. Using a sensor (A), the system also measures the relative speedand distance between your vehicle and a vehi- cle in front, and maintains a set following dis- tance between your vehicle and the vehicle infront by automatically decelerating your vehi-cle if it becomes too close to the vehicle in front. The cruising set speed can be set from 20 to110 mph (30 to 180 km/h). The distance can be selected from four levels. If the vehicle in front decelerates, the ACCwill automatically apply limited braking to maintain the distance, and if the front vehicle then accelerates, the ACC will automaticallyaccelerate your vehicle up to the set speed. If your vehicle is approaching too close to the front vehicle, a buzzer will sound and a warn-ing is shown in the multi-information display. When the ACC detects no vehicle ahead, the set speed will be maintained.Conventional cruise control mode without the distance control can also be selected. Stop lights are illuminated during automaticbraking.
CAUTION When the set speed driving is deactivated automatically in any situation other than those listed above, there may be a system malfunction. Press the CRUISE CONTROL ON/OFFswitch to turn off the cruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facilityof your choice.
To resume the set speed
Adaptive Cruise Control System (ACC)
(if so equipped)
BK0252700US.bo
ok 88 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-89
5
N00577000047
N00577100048
While the ACC is turned on, indicators for the ACC are shown in the multi-information display.
WA R N I N G Before using the ACC, read this entire sec- tion to understand the limitations of this system. Failure to follow instructions could result in an accident. Never rely solely on the ACC. The ACC is not a collision avoidance system or anautomatic driving system. It is designed to use only limited braking and is never a substitute for your safe and careful driv-ing. Always be ready to apply the brakes manually.
Cruise control switch

1- ACC ON/OFF switch
Used to turn on and off the ACC sys- tem.
2- “SET -” switch
Used to set a desired speed or to reduce the set speed.
3- “RES +” switch
Used to resume the control function after cancelling the ACC or the conven- tional cruise control.Also used to increase the set speed.
4- “CANCEL” switch
Used to cancel the control function ofthe ACC or the cruise control.
5- ACC distance switch
Used to set or change the following dis-tance between your vehicle and a vehi- cle in front.
NOTE
 Operate the individual switches correctly and one after another. The ACC may be turned off or its control function may be cancelled if two or more switches are pressed concurrently
ACC indicators

1- ACC indicator:
Indicating that the ACC is turned on.
2- Control state indicator:
Indicating that ACC is activated. Two types of indication; “SET” and“HOLD” (stationary vehicle hold state)
BK0252700US.bo
