2018 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

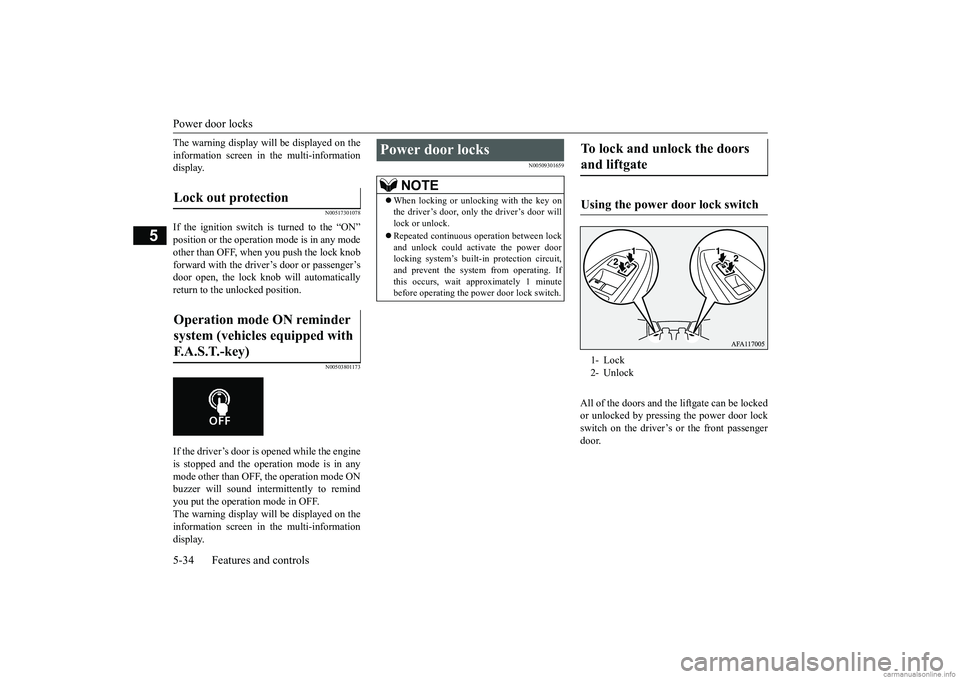

Power door locks 5-34 Features and controls
5
The warning display will be displayed on the information screen in the multi-information display.
N00517301078
If the ignition switch is turned to the “ON”position or the operation mode is in any mode other than OFF, when you push the lock knobforward with the driver’s door or passenger’sdoor open, the lock knob will automatically return to the unlocked position.
N00503801173
If the driver’s door is opened while the engine is stopped and the operation mode is in any mode other than OFF, the operation mode ON buzzer will sound intermittently to remindyou put the operation mode in OFF. The warning display will be displayed on the information screen in the multi-informationdisplay.
N00509301659
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lock switch on the driver’s or the front passengerdoor.
Lock out protection Operation mode ON reminder system (vehicles equipped with F. A . S . T. - k e y )
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock.  Repeated continuous operation between lock and unlock could activate the power door locking system’s built
-in protection circuit,
and prevent the system from operating. If this occurs, wait approximately 1 minute before operating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
BK0252700US.bo
ok 34 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Child safety locks for rear door Features and controls 5-35
5
N00563401210
All doors and the liftgate will unlock when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF. All doors and the liftgate will unlock when the selector lever is moved to the “P” (PARK) position with the ignition switch in the “ON”position or the operation mode in ON.
N00509401328
Child safety locks help prevent rear passen-gers, especially children, from opening therear door using the inside door handle.A lock lever for the chil
d safety lock is pro-
vided on each rear door. When the lever is in the lock position (1), therear door cannot be opened using the inside door handle. To open the rear door when the child safetylock lever is in the lock position, pull the out- side door handle. When the lever is in th
e release position (2),
the child safety lock is released and the rear
To unlock the doors and liftgate You can select the functions to unlock thedoors and liftgate either using the ignition switch position or the engine switch, or using the selector lever position.These functions are no
t activated when the
vehicle is shipped from the factory. To acti- vate or deactivate these functions, pleasecontact your authorized Mitsubishi Motors dealer.Using the ignition switch or the engine switch Using the selector lever position
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.
Child safety locks for rear door 1- To lock 2- To release
BK0252700US.bo
ok 35 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Liftgate 5-36 Features and controls
5
door can be opened using the inside door han- dle.
N00510101325
1. After unlocking, push the liftgate open switch (A) and pull up the liftgate.
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen-ger, especially by a child who could fall out. Also, if the doors are not locked, there is a greater risk of someone being thrownfrom the vehicle in an accident.
Liftgate
WA R N I N G The luggage compartment was not designed for people to ride in it. Do not letpassengers ride in or let children play in the luggage compartment. Riding or play- ing in the luggage compartment couldresult in a serious accident or injury. Before driving, be sure that the liftgate is securely closed. It is dangerous to drive with the liftgate open
since carbon monox-
ide (CO) gas contained in engine exhaust gases can enter the passenger compart- ment.CO is an invisible, odorless gas that can cause unconsciousness and even death. In addition, if the liftgate opens whiledriving, luggage could fall onto the road and cause an accident.
 When opening and closing the liftgate, make sure that there are no people nearby and be careful not to hit your head or pinch your hands, neck, etc. If snow or ice has accumulated on the lift- gate, remove it before opening the liftgate. Otherwise the liftgate may abruptly closedue to the weight of the snow or ice. When opening the liftgate, always fully open it. A partially opened liftgate can unexpectedly close due to its own weight. When the vehicle is parked on a slope, the effort required to open or close the liftgate may be greater or less than expected.The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat fromthe exhaust could lead to burns. To avoid damage to the liftgate, make sure that area above and behind the liftgate is clear before opening it.WA R N I N G
NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-key operation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift-gate.
To open To open from outside the vehicle
CAUTION Make sure there is no one standing nearby when opening the liftgate.
BK0252700US.bo
ok 36 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Liftgate
Features and controls 5-37
5
The liftgate can also open from the inside of vehicle. It is designed to provide a way to open the liftgate if the battery is dead or dis- connected. 1. Open the lid (A) inside of the liftgate.
2. Move the lever (B) to open the liftgate. 3. Push out on the liftgate to open it.
1. Pull the liftgate grip (A) downward as illustrated and release it before the liftgate closes completely. Gently slam the liftgatefrom the outside so that it is completely closed.
NOTE
 The liftgate cannot be opened if it is not raised immediately after pressing the liftgate open switch. If this happens, press the liftgate open switch again and raise the liftgate.  The liftgate cannot be opened when the bat- tery is discharged or disconnected.The liftgate must then be opened using the inside liftgate release.  When the battery is reconnected, all doors and the liftgate will be locked. Unlock them before trying to open the liftgate.  On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors auto-matically extend when the liftgate and all doors are unlocked using the liftgate open switch (A).
To open from inside the vehicle
WA R N I N G Always keep the release lever lid on the liftgate closed when
driving so that your
luggage cannot accidentally bump the lever and open the liftgate.
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the liftgate without releasingthe liftgate grip (A). Before starting the vehicle, be sure to con- firm that the liftgate is locked. If the liftgate opens while driving the vehicle, objects stored in the luggage compartment could fallout into the road.
BK0252700US.bo
ok 37 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Theft-alarm system 5-38 Features and controls
5
N00510201267
The theft-alarm system is designed to provide protection from unauthorized entry into thevehicle. This system is operated in three stages: the first is the “armed” stage, the sec- ond is the “alarm” stage, and third is the “dis-armed” stage. If triggered, the system provides both audible and visual alarm sig- nals.
N00510301239
Park the vehicle and stop the engine. Arm thesystem as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch. For vehicles equipped with the F.A.S.T.-key, put the operation mode in OFF. 2. Make sure that the engine hood is closed. 3. Lock all doors and the liftgate by usingthe keyless entry system or the F.A.S.T.- key operation.
At this time, the theft-alarm indicator (A) on the instrument panel flashes for confir- mation. 4. The system has entered the armed stage after approximately 20 seconds, when thetheft-alarm indicator (A) flashing becomes slower. The theft-alarm indicator (A) continues toflash while the system is in the armedstage.
NOTE
 Gas struts (B) are installed in the locations illustrated in order to support the liftgate. Please observe the following in order to pre- vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang objects on the gas struts.
Theft-alarm system
CAUTION Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can- not enter the armed stage.The system enters the armed stage approxi- mately 20 seconds after the engine hood is closed.
BK0252700US.bo
ok 38 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Theft-alarm system
Features and controls 5-39
5
N00510401243
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked and the system is armed.
 One of the doors and the liftgate is opened without using the keyless entry system or the F.A.S.T.-key operation.  The engine hood is opened.
N00582500053
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati-cally shut off. 2. The horn will sound intermittently for 3 minutes.
N00582600041
The alarm can be deactivated in the followingways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the doors and liftgate.  Except for vehicles equipped with the F.A.S.T.-key, by turning the ignition switch to the “ON” position.  For vehicles equipped with the F.A.S.T.- key, by putting the operation mode in ON.
N00510501215
The system will be disarmed if the followingoperation is performed.
 The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-key operation.  The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol-lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. • For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.
 The system will not be armed if a door, the liftgate or the engine hood is not completely closed. If this happens, rearm the system asdescribed above.  The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent acci- dental activation of th
e alarm, do not set the
system to the system armed mode while peo- ple are riding in the vehicle.
Alarm stage
NOTE
Type of alarm Horn sounds! Headlights blink on and off!
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resume if unauthorized actions are taken again, even if the alarm hasstopped.
Alarm deactivation Disarmed stage
BK0252700US.bo
ok 39 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Power window control 5-40 Features and controls
5
 Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position.  For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.  All doors and the liftgate are unlocked by using the keyless entry system or theF.A.S.T.-key operation.
N00510601160
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armedstage”. 3. Make sure that the theft-alarm indicator comes on and flashes for approximately20 seconds. 4. Wait a few seconds and then unlock the driver’s side door by using the inside doorlock knob. Open the door. 5. Make sure that the horn sounds intermit- tently and the headlights blink when adoor is opened.
6. Disarm the system by unlocking all doors and the liftgate by using the keyless entry system or the F.A.S.T.-key operation.
N00510801436
NOTE
 If the UNLOCK button on the key, or the driver’s or front passenger’s doorlock/unlock switch is pressed when all doors and the liftgate are closed and no door is opened within approximately 30 seconds, re-arming will automatically occur.Disarm...by using the keyless entry system or F.A.S.T.-key operation
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an au
thorized Mitsubishi
Motors dealer for details. On vehicles equipped with the SmartphoneLink Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.  Once the system has been disarmed, it can- not be rearmed except by repeating the arm-ing procedure.
Testing the theft-alarm system
NOTE
Power window control 1- Open (down) 2- Close (up)
NOTE
 Never try to operate the main switch and sub-switch in different directions at the same time. This will freeze the window in posi- tion.  Operating the power windows repeatedly with the engine stopped will run down thebattery. Use the window switches only while the engine is running.
BK0252700US.bo
ok 40 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Power window control
Features and controls 5-41
5
N00548701153
The main switch located on the driver’s door can be used to operate all the windows. A window can be opened or closed by operat-ing the corresponding switch. Press the switch down to open the window, and pull up the switch to close it.If the driver’s door window switch is fully pressed down/pulled up, the driver’s door window automatically opens/closes com-pletely. If you want to stop the window movement, operate the switch lightly in the reverse direc-tion.
N00548801138
Each sub-switch can be
used for its own door
window, unless the driver’s window lock switch is activated.
N00548901171
The power windows can be opened or closed when the ignition switch is in the “ON” posi- tion or the operation mode is in ON.The door windows can be opened or closed for a 30-second period after the engine is
WA R N I N G Before operating the power windows, make sure that nothing is capable of being trapped (head, hands, fingers, etc.) in the window. Never leave the vehicle without carrying the key. Never leave children or unreliable adults unattended inside the vehicle.
Main switch
1- Driver’s door window switch 2- Front passenger’s door window switch 3- Left rear door window switch 4- Right rear door window switch5- Lock switch
Sub-switches 1- Open 2- Close
NOTE
 The rear door windows open only half-way.
Power window timer function
BK0252700US.bo
ok 41 ページ ２０１７年１０月４日　水曜日　午後４時５４分
