2018 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

Power window control 5-42 Features and controls
5
stopped. However, once the driver’s door or the front passenger’s door is opened, the power windows cannot be operated.
N00549001182
When this switch is in the lock mode, the sub-switches cannot be used to open or close the door windows, and the main switch will openor close only the driver’s door window. Tounlock the switch, press it again.
N00528801174
If a hand or head is trapped, for safety thedoor window is automatically lowered a little. After the door window is lowered, clear the obstruction, then pull up the switch again toclose the door window.
Lock switch 1- Lock 2- UnlockWA R N I N G Before driving with a child in the vehicle, be sure to lock the window switch to make it inoperative. Children tampering withthe switch could easily trap their hands or heads in the window.
Safety mechanism (Driver’s door window only)
WA R N I N G If the battery terminals are disconnected or the fuse for electric window is replaced, the safety mechanism will be cancelled.If a hand or head got trapped, a serious injury could result.CAUTION The safety mechanism is deactivated just before the door window closes. This allows the door window to close completely. There- fore be especially careful that fingers are nottrapped in the door window opening. The safety mechanism is deactivated while the switch is pulled up. Therefore be espe- cially careful that fingers are not trapped inthe door window opening. Do not deliberately trap your hands or head in order to activate the safety mechanism. Your hand or head could be trapped and per- sonal injury could result.
NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the door window to be subjected to a physical shock similar to that caused by trapped hand or head.  If the safety mechanism is activated five or more times in a row, the safety mechanismwill be cancelled and the door window will not close correctly. In such a case, the fol- lowing procedure should be implemented torectify this situation. If the window is open, repeatedly raise the driver’s door window switch until that window has been fullyclosed. Following this, release the switch, raise the switch once again and hol
d it in this condi-
tion for at least 1 second, then release it. You should now be able to operate in the normal fashion.  If the battery terminals are disconnected or the fuse for electric window is replaced, thesafety mechanism will be cancelled and the door window will not automatically open/close completely.If the window is open, repeatedly raise the driver’s door window switch until the win- dow has been fully closed. Following this, release the switch, raise the switch once again and hold it in this
condition for at least
1 second, then release it. You should now be able to operate the driver’s door window in the normal fashion.
BK0252700US.bo
ok 42 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Power panoramic sunroof (if so equipped)
Features and controls 5-43
5
N00551400043
Wind buffeting can be described as the per- ception of pressure on
the ears or a booming
or rumbling sound. Your vehicle may exhibit wind buffeting when driving with one or bothrear door windows down or partially opened. This is a normal occurrence that can be mini- mized. If the buffeting occurs with the reardoor windows open, open the front door win-dows as well as the rear door windows to minimize the condition.
N00594700023
The front sunroof & front shade can be opened or closed with the ignition switch in the “ON” position or the operation mode in ON.
What to do if you hear wind buffeting when driving Power panoramic sunroof
(if
so equipped)
WA R N I N G Do not put head, hands or anything else out of the front sunroof opening whiledriving the vehicle. Never leave children or unreliable adults unattended inside the vehicle. Never leave the vehicle without carrying the key. Before operating the front sunroof, front shade, or rear shade, make sure that noth- ing is capable of being trapped (head,hands, fingers, etc.) in the front sunroof, front shade, or rear shade.
 Because the front sunroof opens to the outside of the vehicle, do not open the sun- roof when cleaning th
e top of the roof, etc.
Your hands or arms could be trapped.NOTE
 When leaving the vehicle unattended, be sure to close the front sunroof and carry thekey.  Do not try to operate the front sunroof if it is frozen closed (after snow fall or during extreme cold).  Do not sit or place heavy luggage on the front sunroof or roof opening edge.  Do not apply any force that may cause dam- age to the sunroof.  Release the switch when the front sunroof, front shade, or rear shade starts to move.  If the front sunroof, front shade, or rear shade does not operate when the switch is operated, release the switch and checkwhether something is trapped by the sunroof or shade. If nothing is trapped, we recom- mend you to have the sunroof or shade checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting up the front sunroof if a ski carrier or a roof carrier is installed.Depending on the model of ski carrier or roof carrier, the front sunroof may contact the car- rier when the front sunroof is tilted up.WA R N I N G
 Be sure to close the front sunroof completely when washing the vehicle or when leaving the vehicle.  After washing the vehicle or after rain be sure to wipe off any water that is on the front sunroof before operating it.  Operating the front sunroof, front shade, or rear shade repeatedly with the engine turned off will run down the
battery. Operate the
front sunroof, front shade, and rear shade only while the engine is running.
Front sunroof & front shade

NOTE
BK0252700US.bo
ok 43 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Power panoramic sunroof (if so equipped) 5-44 Features and controls
5
Press the switch in direction (1) to open the front sunroof automatically. To stop the sunroof before it is fully open, operate the switches in any of the directions(1) to (6).
Press the switch in direction (3) to fully close the front sunroof automatically. To stop the sunroof before it is fully closed, operate the switches in any of the directions(1) to (6). Press the switch in direction (2) to raise the rear edge of the front sunroof as it opens.
Press the switch in direction (3) or pull the switch in direction (4) to fully close the frontsunroof automatically. Press the switch in direction (5) to fully open the front shade automatically. To stop the shade before it is fully open, oper- ate the switches in any of the directions (1) to(6). Press the switch in direction (6) to fully close the front shade automatically.
1- Open (front sunroof) 2- Tilt up (front sunroof) 3- Close (front sunroof) 4- Tilt down (front sunroof)5- Open (front shade) 6- Close (front shade)Opening the front sunroof

NOTE
 The front sunroof automatically stops just before reaching the fully open position to reduce wind noise. Press the switch again to fully open it.  Depending on the position of the front shade, the front shade will open together with the front sunroof.
Closing the front sunroof

NOTE
 When you press the switch in direction (6), the front sunroof will close slightly, and then the sunroof and front shade will fully close automatically.
Tilting up the front sunroof

NOTE
 Depending on the position of the front shade, the front shade will open together with the front sunroof.
Tilting down the front sunroof

NOTE
 When you press the switch in direction (6), the front sunroof will close slightly, and then the sunroof and front shade will fully close automatically.
Opening the front shade

Closing the front shade

BK0252700US.bo
ok 44 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Power panoramic sunroof (if so equipped)
Features and controls 5-45
5
To stop the shade before it is fully closed, operate the switches in any of the directions (1) to (6). Within approximately 30 seconds after the ignition switch is changed to “ACC” or“OFF” or the operatio
n mode is changed to
ACC or OFF, the front sunroof and front shade can be opened and closed.However, if the driver’s or front passenger’s door is opened within 30 seconds after the ignition switch is changed to “ACC” or“OFF” or the operatio
n mode is changed to
ACC or OFF, the front sunroof and front shade cannot be opened or closed. If a person’s hand, neck, etc., is trapped in the front sunroof or front sh
ade, the front sunroof
or front shade will au
tomatically open a max-
imum of 8 inches (20 cm) as a safety func- tion. After the front sunroof and front shadeopen, you can use the switch to close them.
If the safety mechanism operates five times or more consecutively, you will not be able to close the front sunroof and front shade nor- mally.If this occurs, perform the following proce- dure to reset the safety mechanism. 1. Press and hold the switch in direction (3) or pull and hold the switch in direction(4). 2. The front sunroof (if open) and front shade will move to the fully closed posi-tions in small increments. 3. When the front sunroof and front shade have both stopped in the fully closed posi- tions, release the switch. (The resetting procedure is finished.)
If the front sunroof and front shade do not move correctly to the fully closed positions after you perform the resetting procedure, contact an authorized Mitsubishi Motorsdealer.
The rear shade can be opened or closed with the ignition switch in the “ON” position or the operation mode in ON.
NOTE
 If the front sunroof is open, it will close together with the front shade.
Timer function

Safety mechanism

NOTE
 If the front sunroof and front shade are both open, the front sunroof will move to the fullyclosed position, and then the front shade will move to the fully closed position.
CAUTION The safety mechanism is cancelled just before the front shade is fully closed. This allows the front shade to close completely. Therefore be especially careful that no fin- gers are trapped in the front shade.NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the front sunroof or the front shade tobe subjected to a physical shock similar to that caused by a trapped hand or head.  Do not release the switch until the resetting procedure is finished. If you release the switch, the resetting mode will be cancelled.To perform the resetting procedure again, repeat the procedure from step 1.
Rear shade

BK0252700US.bo
ok 45 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake 5-46 Features and controls
5
Press the switch in direction (7) to fully open the rear shade automatically.To stop the shade before
it is fully open, press
the switch in direction (7) or (8). Press the switch in direction (8) to fully close the rear shade automatically. To stop the shade before it is fully closed,press the switch in direction (7) or (8).
If a person’s hand, neck, etc., is trapped in the rear shade, the shade will automatically opena maximum of 8 inches (20 cm) as a safety function. After the rear shade opens, you can use the switch to close it.If the safety mechanism operates five times or more consecutively, you will not be able to close the rear shade normally.If this occurs, perform the following proce-dure to reset the safety mechanism. 1. Press and hold the switch in direction (8). 2. The rear shade will move to the fully closed position in small increments.3. When the rear shade has stopped in the fully closed position, release the switch. (The resetting procedure is finished.)
If the rear shade does not move correctly to the fully closed positions after you perform the resetting procedure, contact an authorized Mitsubishi Motors dealer.
N00511401484
To park the vehicle, first bring it to a com-plete stop, firmly apply the parking brake, and then move the selector lever to the “P” (PARK) position.Make sure the brake warning light (red) is illuminated.
7- Open (rear shade) 8- Close (rear shade)Opening the rear shade

Closing the rear shade

Safety mechanism

CAUTION The safety mechanism is cancelled just before the rear shade is fully closed. Thisallows the rear shade to close completely. Therefore be especially careful that no fin- gers are trapped in the rear shade.
NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the rear shade to be subjected to a physical shock similar to that caused by a trapped hand or head.  Do not release the switch until the resetting procedure is finished. If you release theswitch, the resetting mode will be cancelled. To perform the resetting procedure again, repeat the procedure from step 1.
Parking brake
BK0252700US.bo
ok 46 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake
Features and controls 5-47
5
N00593100033
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
Before driving, be sure to release the parking brake.
N00593200047
The Electric parking brake is the system thatapplies the parking brake by the electric motor.
Lever type parking brake
(if so
equipped)To apply

1- Pull the lever up without pressing the
button at the end of hand grip.When the parking brake is set and the ignition switch is in the “ON” position, or the operation mode is in ON thebrake warning light in the instrument cluster will come on.
To release

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Pressing the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light (red)
or
Warning display
Electric parking brake
(if so
equipped)
BK0252700US.bo
ok 47 ページ ２０１７年１０月４日　水曜日　午後４時５４分

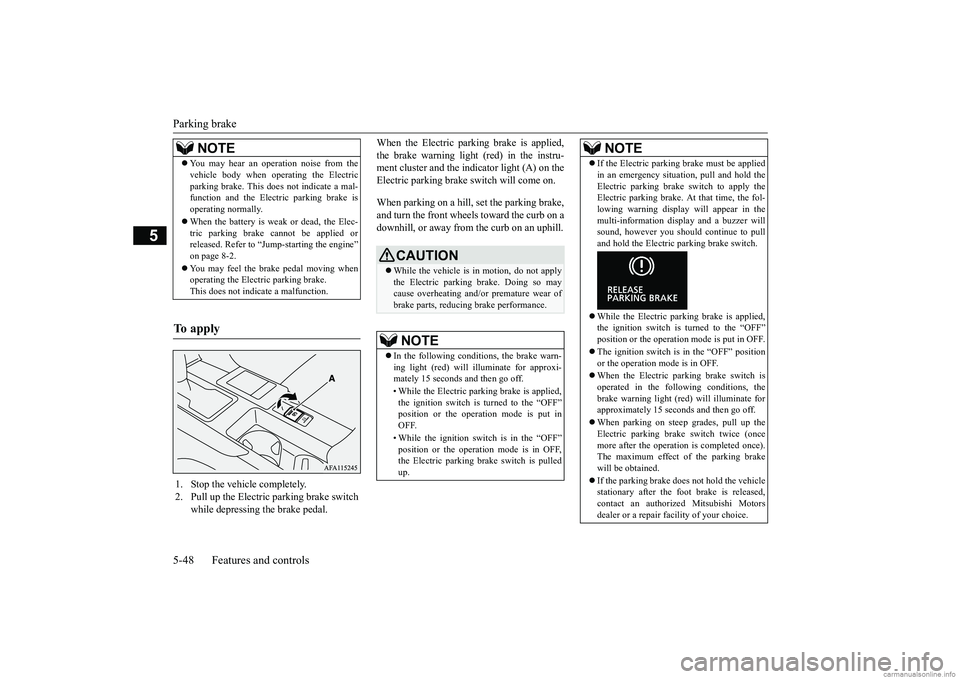

Parking brake 5-48 Features and controls
5
When the Electric parking brake is applied, the brake warning light (red) in the instru- ment cluster and the indicator light (A) on the Electric parking brake switch will come on. When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
NOTE
 You may hear an operation noise from the vehicle body when operating the Electric parking brake. This does not indicate a mal- function and the Electric parking brake is operating normally.  When the battery is weak or dead, the Elec- tric parking brake cannot be applied orreleased. Refer to “Jump-starting the engine” on page 8-2.  You may feel the brake pedal moving when operating the Electric parking brake. This does not indicate a malfunction.
To apply

1. Stop the vehicle completely. 2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTION While the vehicle is in motion, do not apply the Electric parking brake. Doing so may cause overheating and/or premature wear of brake parts, reducing brake performance. NOTE
 In the following conditions, the brake warn- ing light (red) will illuminate for approxi- mately 15 seconds and then go off. • While the Electric parking brake is applied, the ignition switch is turned to the “OFF”position or the operation mode is put in OFF. • While the ignition switch is in the “OFF” position or the operation mode is in OFF, the Electric parking brake switch is pulled up.
 If the Electric parking brake must be applied in an emergency situation, pull and hold the Electric parking brake switch to apply the Electric parking brake. At that time, the fol- lowing warning display will appear in themulti-information display and a buzzer will sound, however you should continue to pull and hold the Electric parking brake switch.  While the Electric parking brake is applied, the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  The ignition switch is in the “OFF” position or the operation mode is in OFF.  When the Electric parking brake switch is operated in the following conditions, thebrake warning light (red) will illuminate for approximately 15 seconds and then go off.  When parking on steep grades, pull up the Electric parking brake switch twice (once more after the operation is completed once).The maximum effect of the parking brake will be obtained.  If the parking brake does not hold the vehicle stationary after the foot brake is released,contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
BK0252700US.bo
ok 48 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake
Features and controls 5-49
5
When the accelerator pedal is depressed slowly while all of the following conditionsare met, the Electric parking brake is auto- matically released.  The engine is running.  The selector lever is in the “D” (DRIVE) or the “R” (REVERSE) position.  The driver’s seat belt is fastened.
When the Electric parking brake is released, the brake warning light (red) and the indicator light on the Electric parking brake switch go off. Before driving, be sure that the parking brake is released and brake warning light is off.
 When the ignition switch or the operation mode is other than ON, if the parking brake is applied, the Electric parking brake indica- tor light comes on for a while.  If the Electric parking brake switch is repeat- edly operated in a short time, the following warning display will appear in the multi-information display and the Electric parking brake will temporarily stop working. In such case, wait for approximately 1 minute untilthe warning display disappears, and operate the Electric parking brake switch again.  The brake warning light (red) and the indica- tor light on the Electric parking brake switch may blink. This does not indicate a malfunc- tion, the lights go off when/if the Electricparking brake is released.  Depending on the situation, the Electric parking brake may be applied automatically. Refer to “Brake auto hold” on page 5-74.NOTE
To release

Manual operation 1. Make sure that the ignition switch is in
the “ON” position or the operation mode is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
CAUTION After the Electric parking brake switch has been operated to apply or release the Electric parking brake, if the brake warning light(red) and the indicator light on the Electric parking brake switch remain blinking or the Electric parking brake warning light (yellow)remain illuminated, the Electric parking brake system may be malfunctioning and the parking brake may not be applied orreleased. Immediately park your vehicle in a safe place and contact the nearest authorized Mitsubishi Motors dealer or a repair facilityof your choice. If a vehicle is driven without releasing the parking brake, the brake will overheat, resulting in ineffective braking and possible brake failure. If the brake warning light (red) does not go off after the parking brake has been released, the brake system may be malfunctioning. Contact the nearest authorized MitsubishiMotors dealer or a repair facility of your choice.
BK0252700US.bo
ok 49 ページ ２０１７年１０月４日　水曜日　午後４時５４分
